160LM/W Commercial Recessed Led Bright Downlights IP54 FT-DLT05
Features:
● Lightweight Design–Easy to install and handle
● High lumen150-160LM/W–More light with less energy
● Low Heat Generation，efficient thermal management
● Flicker Free–Stable light output for eye comfort
● Robust Housing–Durable construction for long-term use
● High CRI(≥90)-Ensures accurate and vibrant color rendering
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-50W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | High Brightness Square Recessed Downlight |
| Power | 10W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White/Green |
| Beam angle | 60° |
| CRI (Ra>) | ＞90 |
| Cut out | 75*75/95*95/125*125/145*145/165*165mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 10W-20W: 0.5 ; 25W-50W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

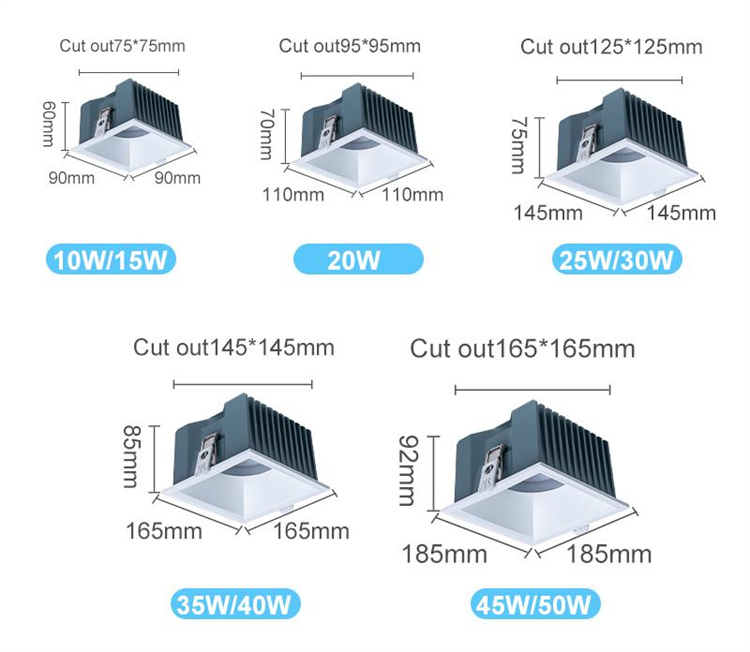

Model No. |
Watts |
Size(mm) |
Cut Out |
Beam Angle |
LED Color |
|
FT-DLT05-10W |
10W |
90*90*60 |
75*75mm |
60° |
2700K
|
|
FT-DLT05-15W |
15W |
90*90*60 |
75*75mm |
60° |
|
|
FT-DLT05-20W |
20W |
110*110*70 |
95*95mm |
60° |
|
|
FT-DLT05-25W |
25W |
145*145*75 |
125*125mm |
60° |
|
|
FT-DLT05-30W |
30W |
145*145*75 |
125*125mm |
60° |
|
|
FT-DLT05-35W |
35W |
165*165*85 |
145*145mm |
60° |
|
|
FT-DLT05-40W |
40W |
165*165*85 |
145*145mm |
60° |
|
|
FT-DLT05-45W |
45W |
185*185*92 |
165*165mm |
60° |
|
|
FT-DLT05-50W |
50W |
185*185*92 |
165*165mm |
60° |
Cutting-Edge Photometric Performance (150-160 lm/W)
1. Industry-Leading Energy Optimization
• Delivers 150-160 lumens per watt - 45% more efficient than standard 100 lm/W fixtures
• Documented €18,000 annual savings per 10,000-unit deployment in EU warehouse installations
2. Professional-Grade Light Quality
• >95 CRI for museum-grade color accuracy (tested per IES TM-30-20)
• UGR<16 certified meeting stringent European workplace lighting standards
3. Extended Operational Economics
• L90@50,000 hours rating ensures <10% lumen depreciation over 13.7 years (8h/day)
• Includes 5-year performance warranty with optional extended coverage
• 50,000-hour lifespan
Flicker-Free Downlight – Optimal Visual Comfort & Performance
Why Flicker-Free Matters
· Eliminates Eye Strain & Fatigue – Stable light output reduces workplace discomfort (CRI≥90)
· Camera-Friendly Illumination – No banding effects for video recording/streaming
· Superior for Sensitive Environments – Ideal for hospitals, schools, and offices
High-Efficiency Driver – Maintains stable current output (±1% variance)

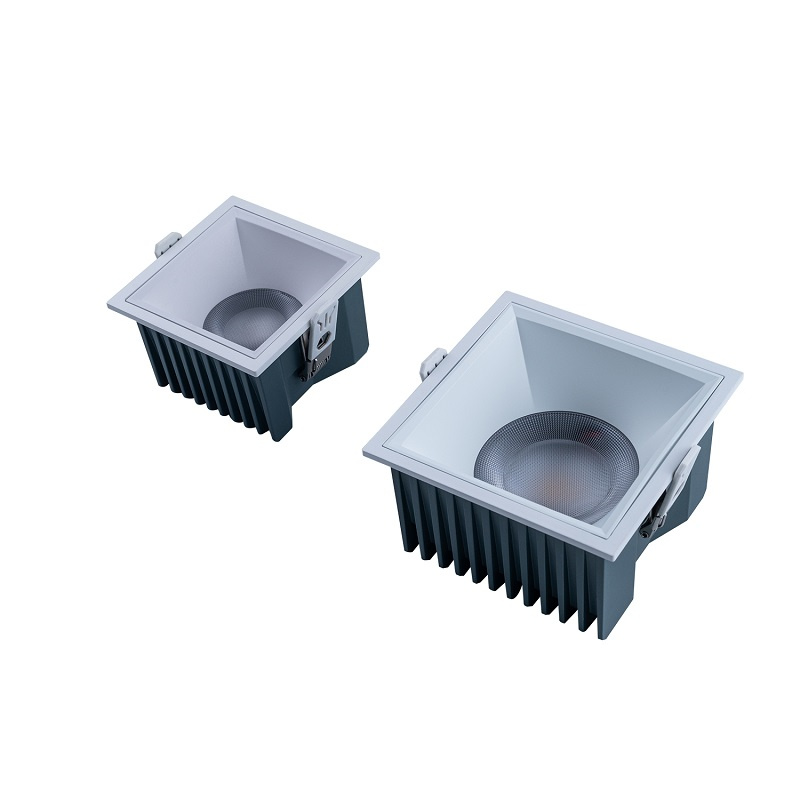

Professional Commercial Downlight Range (10-50W)
Engineered for Demanding Environments
• IP54 Certified Protection - Resists airborne particles and water splashes, ensuring durability in:
Moisture-intensive zones (commercial kitchens/spa facilities)
High-traffic entryways (shopping malls/industrial lobbies)
Precision-Tuned Performance Options
Available in calibrated wattages:
10W | 15W | 20W | 25W | 30W | 35W | 40W | 45W | 50W
• 1,500-7,800 lumens output
• Maintains premium 160 lumens/watt efficiency throughout the range
Flexible Dimming & Color Control
Dimming Options:
·Works with standard wall dimmers (Triac)
·Compatible with professional 0-10V dimming systems
·Supports smart DALI lighting networks
Adjustable White Light (2700K–6000K):
Wireless Control: Compatible with major smart systems (Bluetooth /WiFi /Zigbee)
Wired Professional Control: Meets DALI DT8 standard

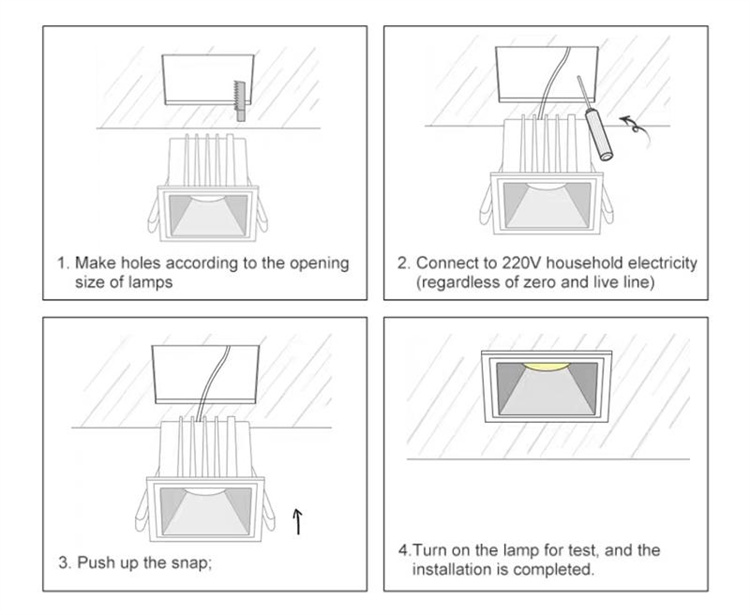

Easy to install
1. Prepare the Mounting Hole – Make holes according to the openingsize of lamps
2. Electrical Connection – Connect to 110/220V household electricity(regardless of zero and live line)

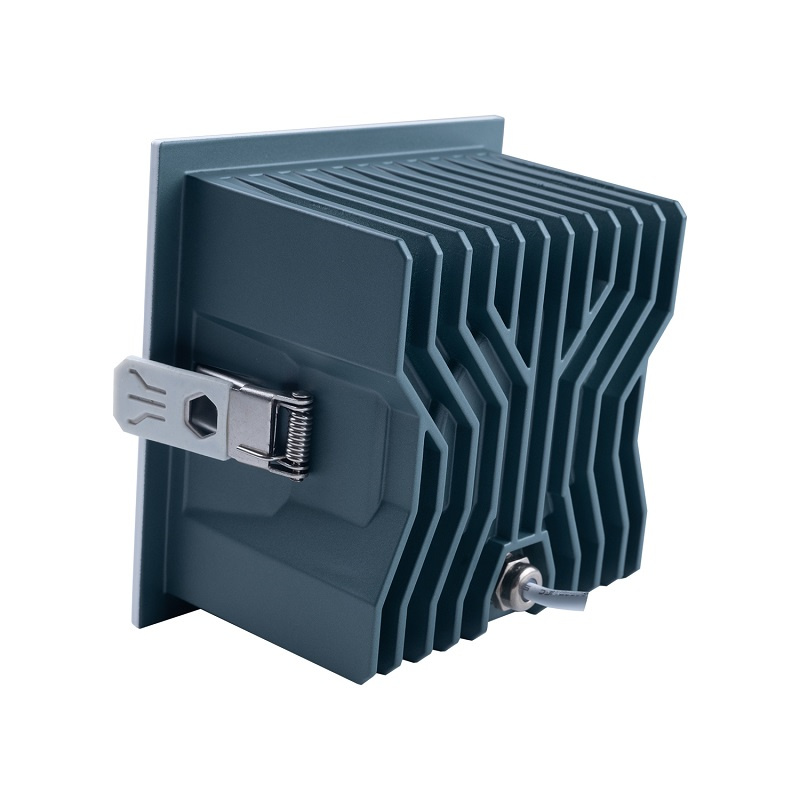

3. Secure the Fixture – Align and press upward until the spring clips fully engage with the ceiling/wall surface.
4. Final Verification – Power on to confirm proper operation before final use.
Safety Tip: Always ensure the circuit is de-energized during installation.

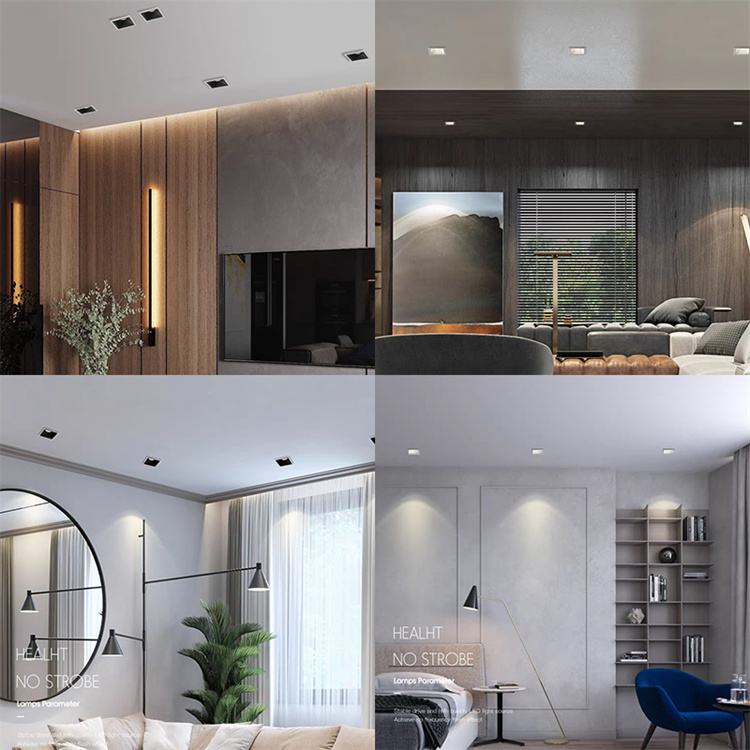

Application
This downlight is suitable for: Offices & Conference Rooms, Retail Stores, Hotels & Restaurants, Healthcare & Education etc.

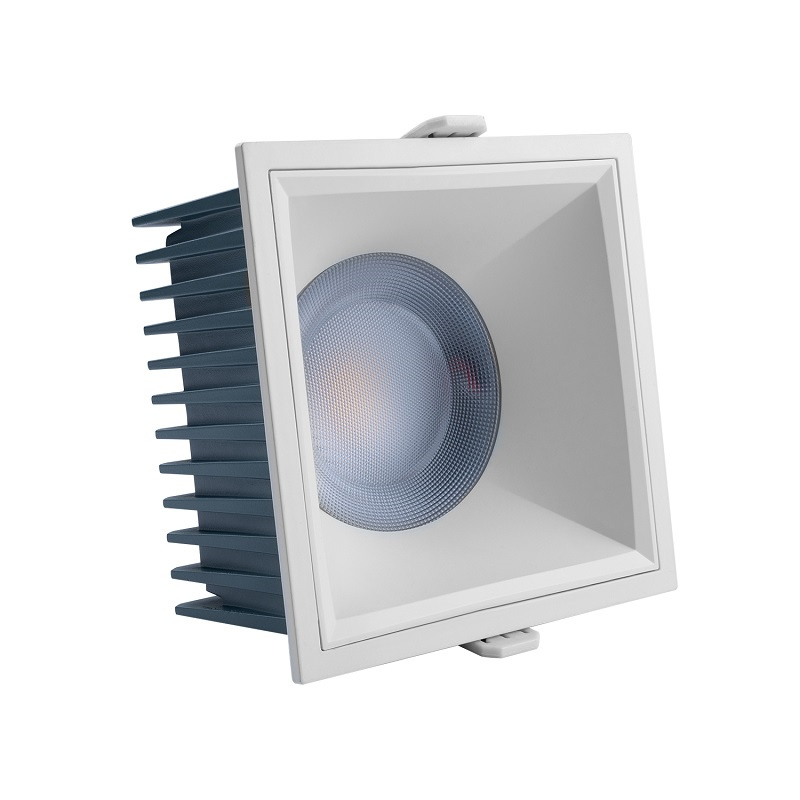

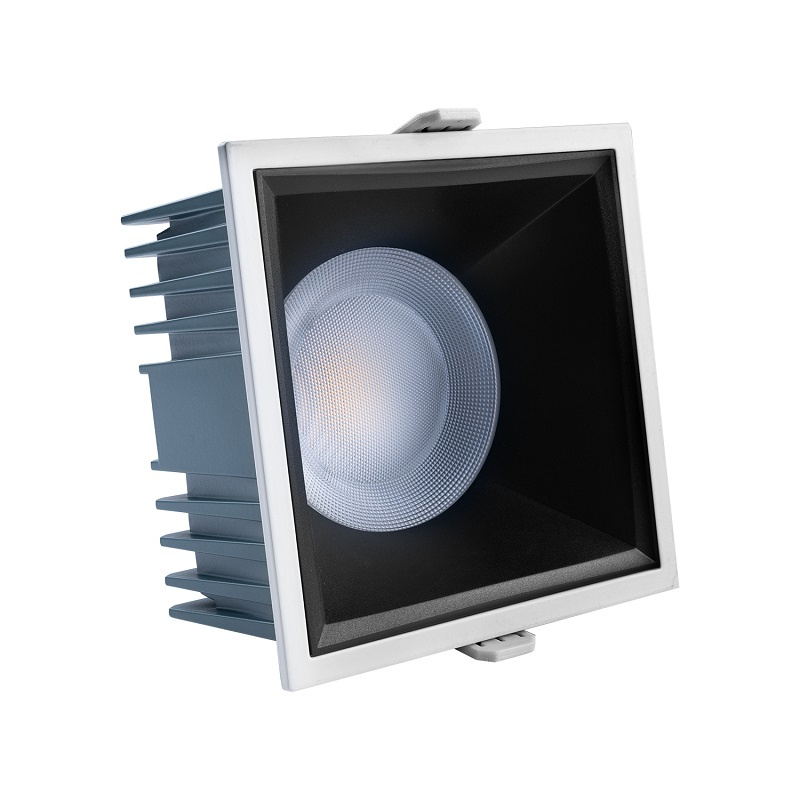

High-Efficiency Recessed Downlight (Square Frame) – 150-160LM/W, SMD LED, IP54
Upgrade your space with our high-efficiency square-frame recessed downlight, designed to deliver exceptional brightness while maximizing energy savings. With an impressive 150-160 lumens per watt (LM/W), this downlight outperforms traditional lighting solutions, providing superior illumination with minimal power consumption.
Energy-Saving Benefits:
● Ultra-High Efficacy (150-160LM/W): Achieves brighter light output using significantly less energy, reducing electricity costs by up to 80% compared to conventional lighting.
● SMD LED Technology: Equipped with advanced Surface-Mounted Device (SMD) chips for enhanced durability, consistent light distribution, and 50,000+ hours of lifespan, lowering maintenance costs.
● Eco-Friendly & Cost-Effective: Reduced energy consumption translates to lower carbon emissions, supporting sustainability goals while cutting operational expenses.
Premium Features:
● Wide Application: Ideal for commercial, residential, and industrial settings, including offices, retail stores, and corridors.
● IP54 Rated: Protected against dust and water splashes, ensuring reliable performance in humid or dusty environments.
● Sleek & Modern Design: The square-frame structure blends seamlessly into ceilings, offering a clean, contemporary aesthetic.
By choosing our high-efficiency downlight, you invest in long-term savings, superior light quality, and environmental responsibility. Perfect for global buyers seeking high-performance, durable, and energy-smart LED solutions.
