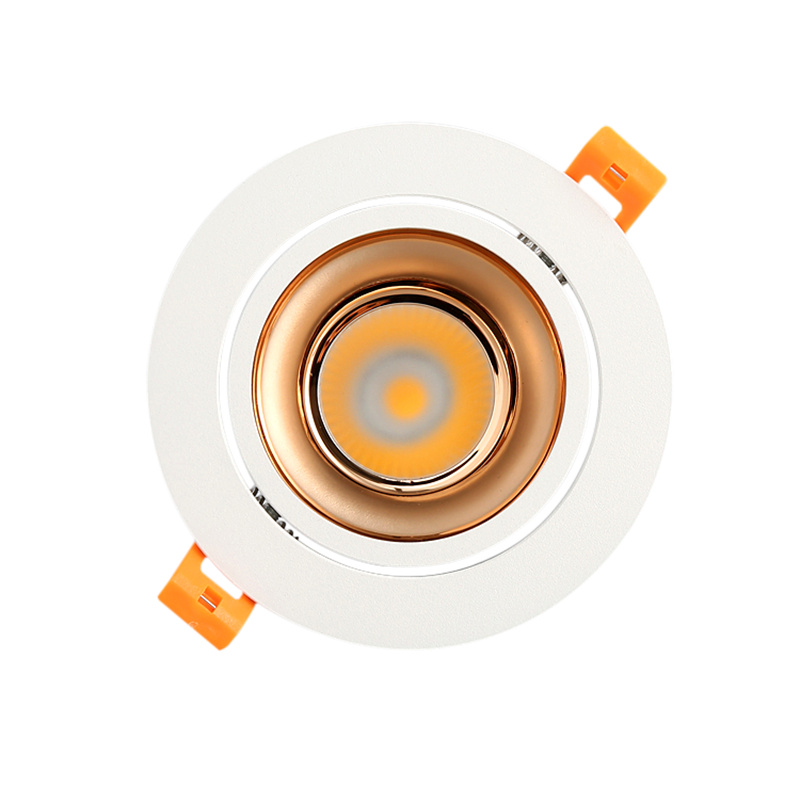

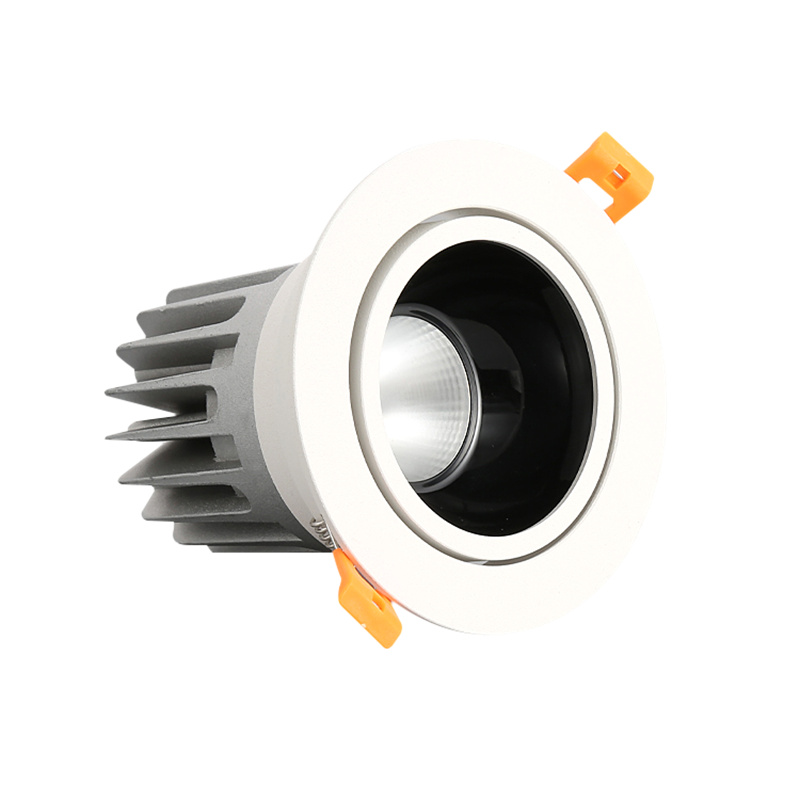

Adjustable Downlights Halo Led Pot Lights FT-DLT07
Features:
● High-Output LED Engine
● Flicker-Free Technology
● Beam Angles (15°/30°/45°)
● Energy Efficient & Long Lifespan (50,000 Hours)
● Certified Safety & Reliability (CE/RoHS/SAA Listed)
● Wide Voltage Input & Dimmable (100-277V AC/Triac/0-10V)
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-35W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led COB Recessed Downlight |
| Power | 7W/10W/12W/15W/20W/25W/30W/35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White |
| Beam angle | 15°/30°/45° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 75/95/120/145mm |
| Working Temperature( °C ) | -20 ~ +50 |

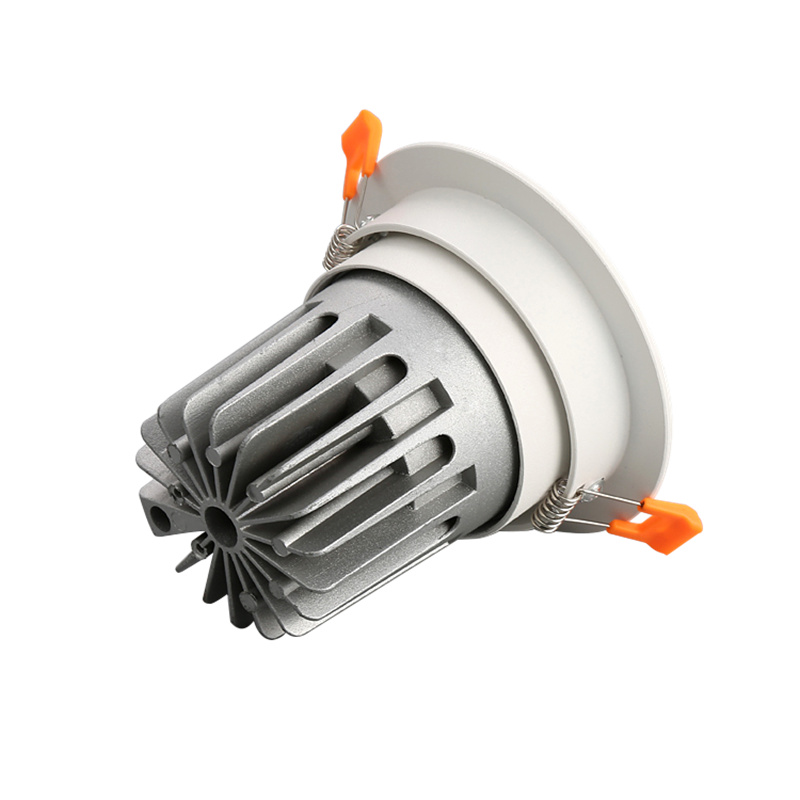

| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7W-20W: 0.5 ; 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

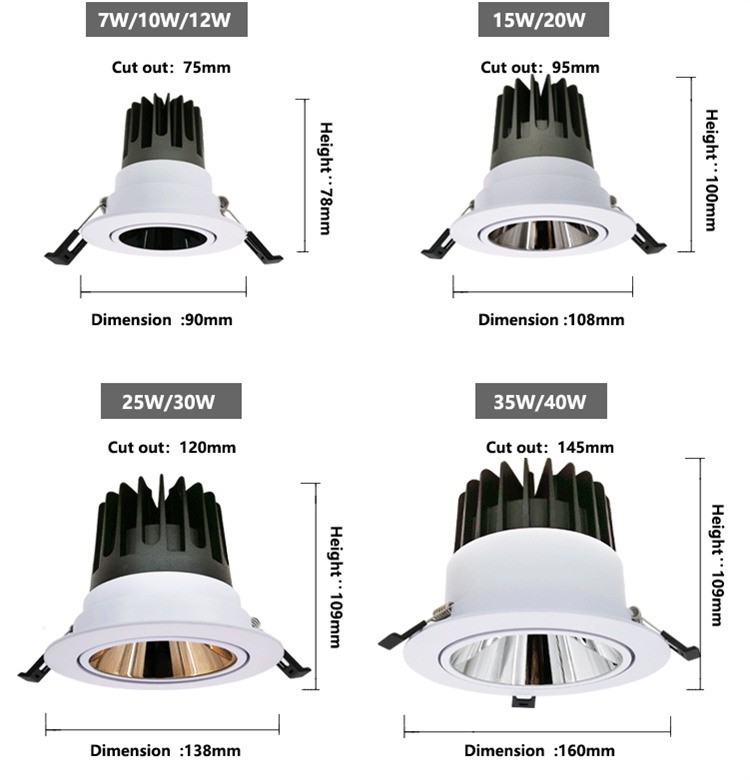

Model No. |
Watts |
Size(mm) |
Cut Out |
Beam Angle |
LED Color |
|
FT-DLT07-7W |
7W |
D90*H78 |
75mm |
15°/30°/45° |
2700K
|
|
FT-DLT07-9W |
9W |
D90*H78 |
75mm |
15°/30°/45° |
|
|
FT-DLT07-12W |
12W |
D108 *H100 |
95mm |
15°/30°/45° |
|
|
FT-DLT07-15W |
15W |
D108 *H100 |
95mm |
15°/30°/45° |
|
|
FT-DLT07-20W |
20W |
D138*H109 |
95mm |
15°/30°/45° |
|
|
FT-DLT07-25W |
25W |
D138*H109 |
120mm |
15°/30°/45° |
|
|
FT-DLT07-30W |
30W |
D160 *H125 |
120mm |
15°/30°/45° |
|
|
FT-DLT07-35W |
35W |
D160 *H125 |
145mm |
15°/30°/45° |

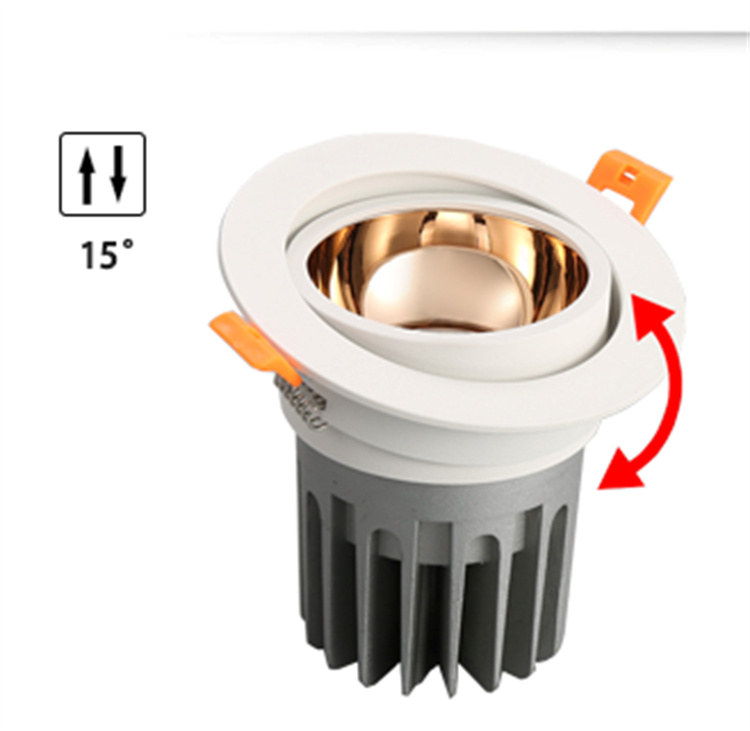

15° Adjustable lamp head
Our this downlight has a lamp head that can be adjusted by 15°.
Anti-glare : The tilting head reduces direct light, avoids glare and makes the light softer, suitable for areas that need focused lighting, such as TV walls, sofa walls and above coffee tables.
Focal lighting available : Downlights tilted at 15 degrees are suitable for focal lighting, providing intense and concentrated light, suitable for lighting small soft furnishings or decorations.
Adjust the shape of the light spot : By adjusting the tilt Angle of the lamp head, the shape and size of the light spot can be changed to better adapt to different installation environments and decoration requirements.

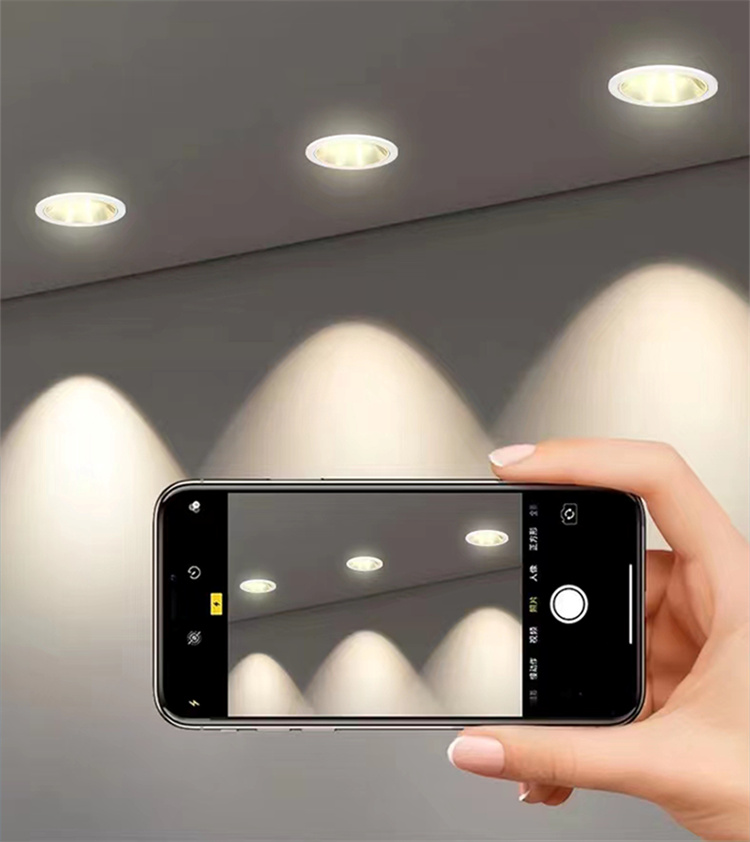

Flicker-Free Downlight – Easy on the Eyes
This downlight is flicker-free
• True flicker-free lighting technology
• Eliminates eye strain and headaches
• Perfect for spaces where people work or relax for long hours

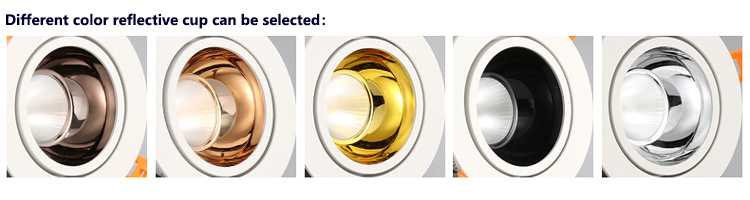

Multi-Reflector Color Options
This downlight offers customizable reflector colors to match your aesthetic and functional needs:
Available Finishes:
•White Reflector – Clean, neutral look for seamless ceiling integration
•Black Reflector – Reduces glare and creates a dramatic, focused beam
• Silver/Aluminum Reflector – Enhances light output for brighter illumination
• Gold Reflector – Adds warm tones to the light for a cozy ambiance
Available Wattages & Recommended Uses
Full Wattage Range:
7W | 10W | 12W | 15W | 20W | 25W | 30W | 35W
(Complete selection from subtle accent lighting to powerful illumination)
Smart Dimming & Tunable White Technology
Advanced Dimming Compatibility
• Universal wall dimmer support (Triac)
• Professional 0-10V dimming for commercial applications
• DALI-2 & DT8 compliant for intelligent lighting networks
Full-Spectrum White Tuning (2700K-6000K)
• Seamless warm-to-cool white adjustment
• Precise CCT control (±50K accuracy)
• Preset lighting scenes for different moods
Smart Control Integration
▸ Wireless protocols: Bluetooth Mesh / WiFi / Zigbee 3.0
▸ Wired professional systems: DALI DT8 certified
Application
Downlight Wattage Selection Guide
Available Wattages:
7W | 10W | 12W | 15W | 20W | 25W | 30W | 35W
(Comprehensive range for all lighting scenarios)
Application-Based Recommendations:
Subtle Ambient Lighting (7W-10W)
Perfect for:
• Decorative accent lighting
• Night-time pathway illumination
• Intimate atmosphere creation
General Purpose Lighting (12W-20W)
Optimal for:
• Residential living spaces
• Retail floor lighting
• Office workstation areas
High-Output Lighting (25W-35W)
Designed for:
• Commercial lobbies
• High-ceiling applications
• Industrial environments
Versatile Recessed Downlight with Multi-Color Reflector Cups – White, Black, Silver, Rose Gold & Champagne Gold
Enhance any space with our premium recessed downlight, featuring five elegant reflector cup colors—white, black, silver, rose gold, and champagne gold—each designed to optimize lighting performance and aesthetics for different environments.
White Reflector Cup
● Best for: Clean, bright spaces like offices, hospitals, and retail stores.
● Advantages: Maximizes light reflection for a crisp, neutral illumination, improving visibility without glare. Ideal for modern, minimalist interiors.
Black Reflector Cup
● Best for: Theaters, luxury boutiques, and high-end restaurants.
● Advantages: Reduces light spill, creating focused, dramatic lighting with a sleek, high-contrast finish. Enhances ambiance in mood-lit settings.

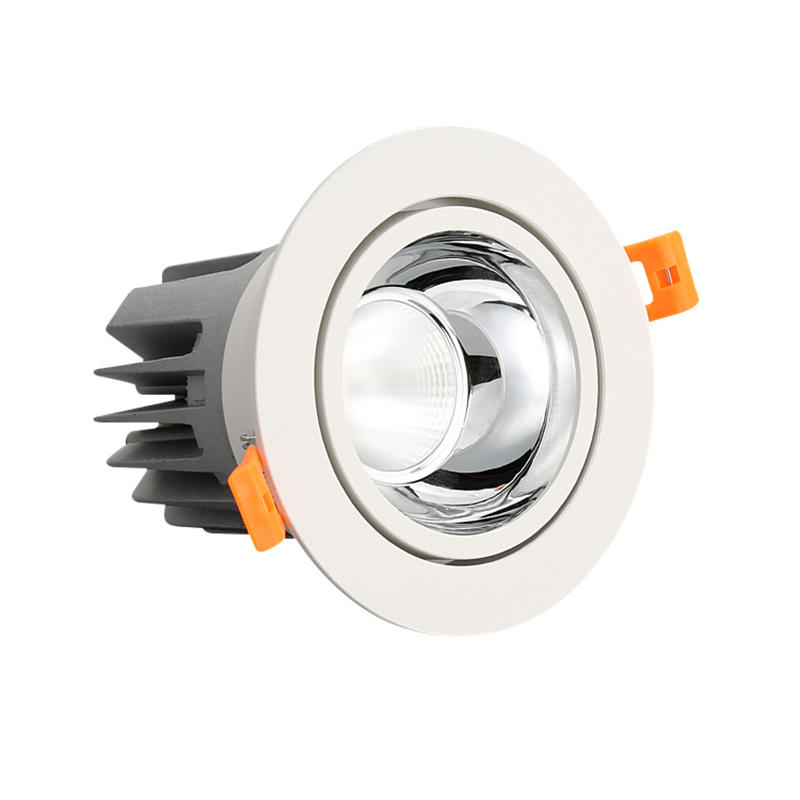

Silver (Bright) Reflector Cup
● Best for: Commercial spaces, showrooms, and kitchens.
● Advantages: Provides a vibrant, high-reflective surface for balanced brightness, ensuring excellent color rendering (CRI>90) for true-to-life visuals.

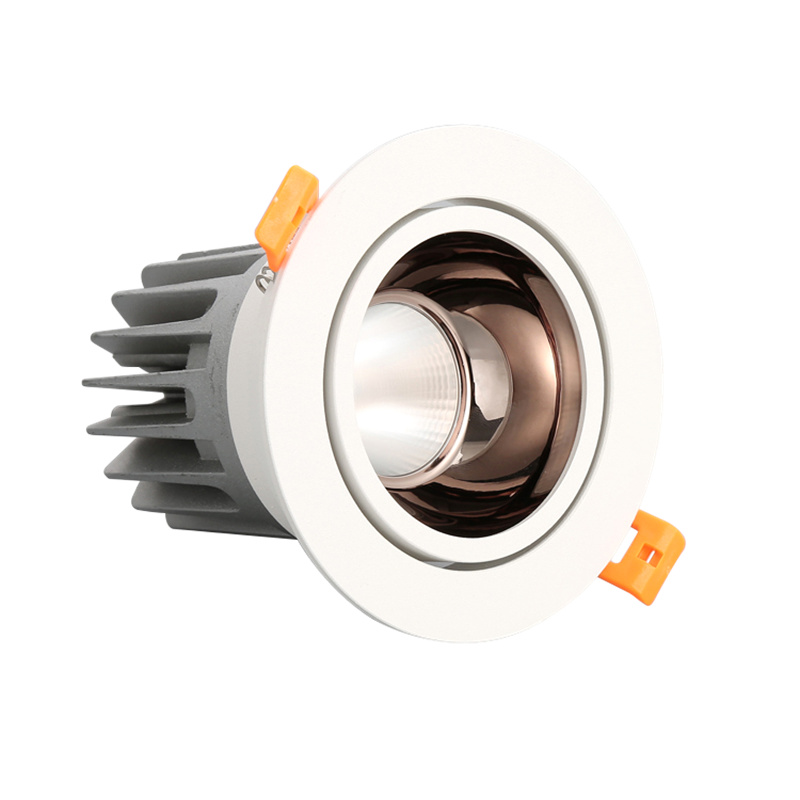

Rose Gold Reflector Cup
● Best for: Hotels, spas, and upscale residences.
● Advantages: Adds a warm, luxurious glow, softening light for a cozy yet sophisticated atmosphere. Perfect for decorative and hospitality lighting.
Champagne Gold Reflector Cup
● Best for: High-end homes, lobbies, and premium retail stores.
● Advantages: Delivers a subtle golden hue, enhancing warm lighting tones for an elegant, inviting effect.
Why Choose Our Downlight?
● Customizable Aesthetics: Match any interior style with 5 refined finishes.
● High-Quality Materials: Durable, anti-oxidation coating ensures long-lasting color and performance.
● Wide Compatibility: Compatible with dimmable LED drivers for adjustable ambiance.
Ideal for architects, designers, and global buyers seeking versatile, stylish, and functional recessed lighting solutions.
