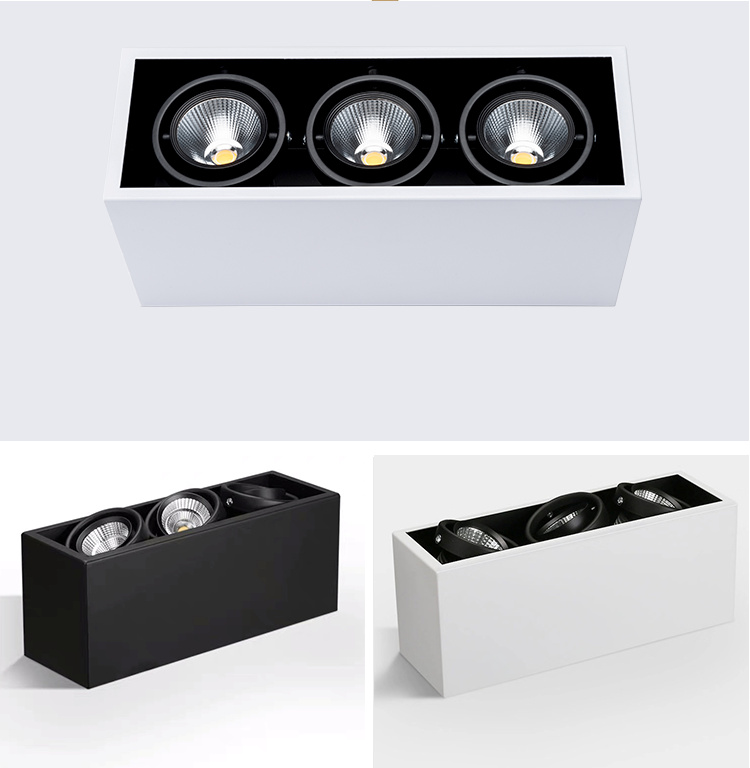

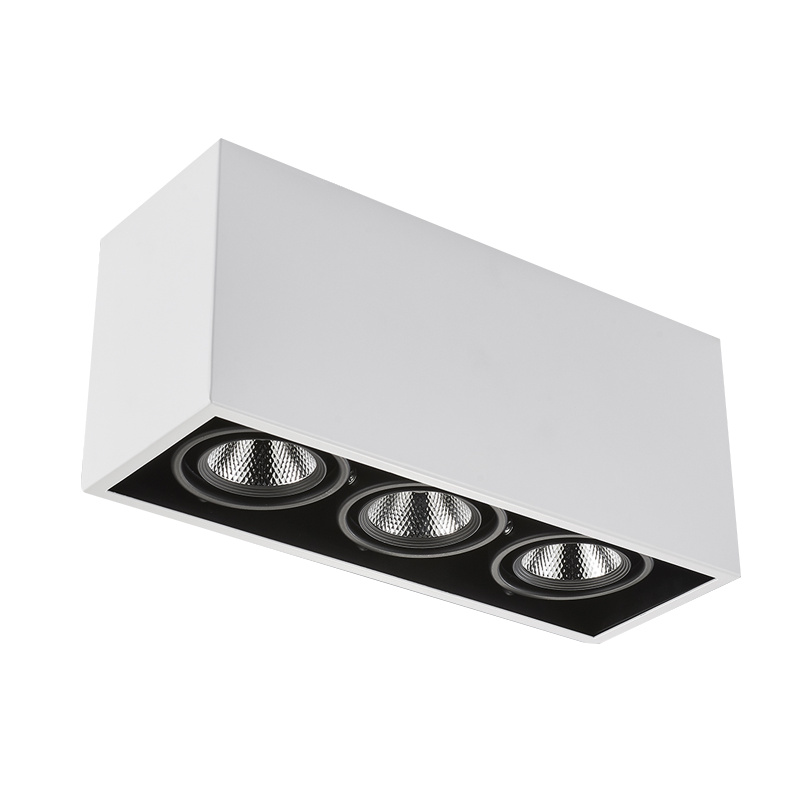

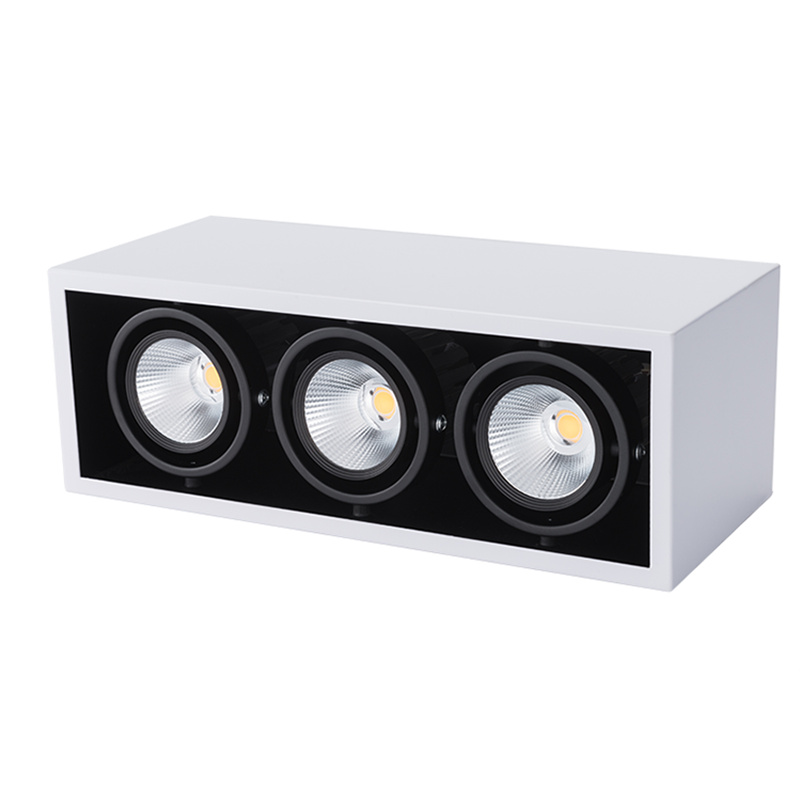

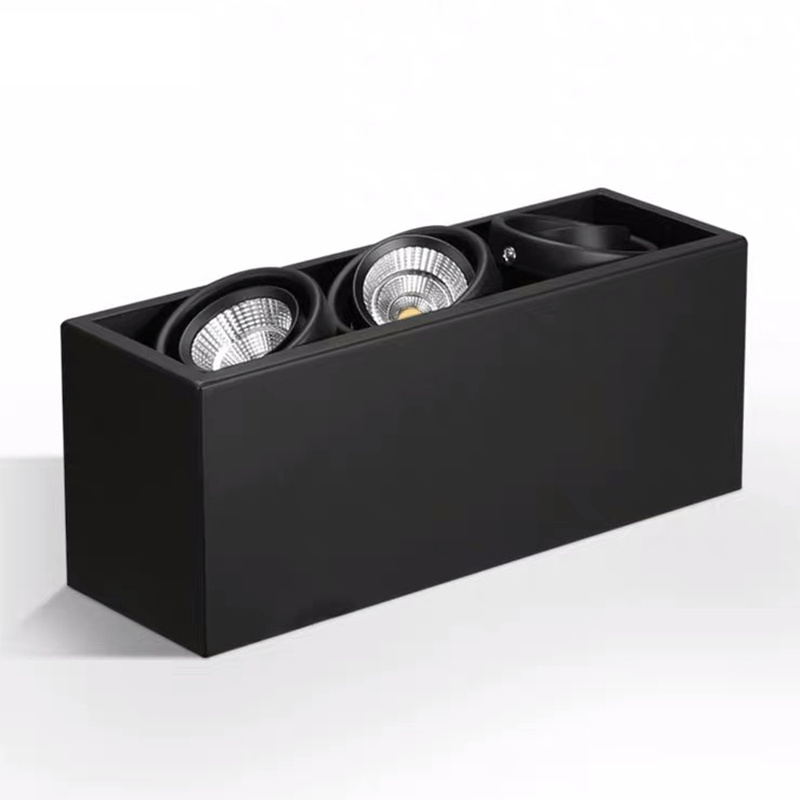

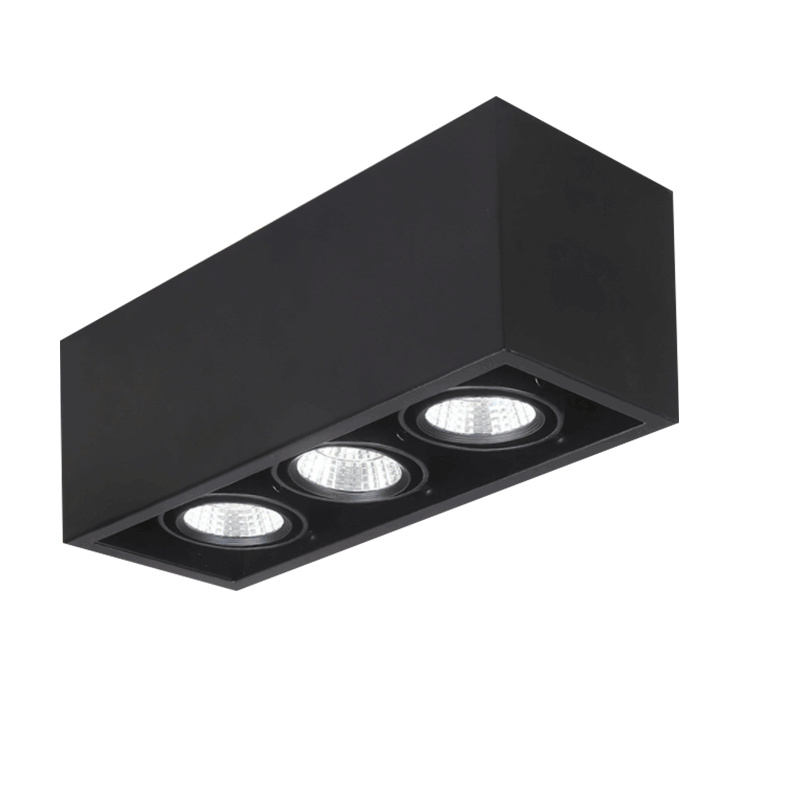

Adjustable Lighting Three Head 3*10W Ceiling Downlight FT-GL05*3
Features:
● Low heat, less than 60°C
● No mercury or other inorganic
● Homogeneous flood illumination
● High Lumen Efficacy (≥90-100 lm/W)
● No UV or IR light radiation
● Machined aluminum heat fins with excellent thermal efficiencies
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-15W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Square Ceilng Mount Downlight |
| Power | 3*7W/3*10W/3*12W/3*15W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 15°,24°,38° |
| CRI (Ra>) | 80/90/95 |
| Dimension(mm) | 200*100*125mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7W-15W: 0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Surface mounted/pendant |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|
Model No. |
Watts |
Dimension(mm) |
LED Color |
|
FT-GL05-3*7W |
3*7W |
285*100*125 |
2700K |
|
FT-GL05-3*10W |
3*10W |
285*100*125 |
|
|
FT-GL05-3*12W |
3*12W |
285*100*125 |
|
|
FT-GL05-3*15W |
3*15W |
285*100*125 |
GL05×3 Three Head Ceiling Downlight: Precision Adjustable Lighting System
Introduction to GL05×3 Adjustable Downlight
The GL05×3 Three Head Ceiling Downlight sets a new standard for precision lighting with its dual adjustable heads and selectable beam angles. This professional-grade, surface-mounted fixture combines energy-efficient LED technology with unmatched flexibility, offering three beam options (15°/24°/38°) to meet diverse lighting requirements in both commercial and residential spaces.
Key Advantages of GL05×3 System
1. Precision Beam Control
·Multiple Beam Angle Options: Choose from 15° (spot), 24° (narrow flood), or 38° (flood) for perfect light distribution
·Dual 355° Adjustable Heads: Each GL05 head rotates independently with ±15° tilt capability
·CRI ≥90+: Professional color accuracy for retail, galleries, and workspaces
2. Advanced Energy Efficiency
·80% Energy Savings: Delivers 3600lm output at just 3*15W total power
·50,000+ Hour Lifespan: Reduced maintenance with premium LED components
·Eco-Safe Design: Mercury-free with zero UV/IR emissions
3. Professional-Grade Construction
·Anodized Aluminum Housing: Optimized heat dissipation for long life
·Precision Reflector Optics: Available in 15°/24°/38° configurations
·IP44 Rated: Protected against dust and moisture
Application-Specific Beam Selection Guide
✅ 15° Narrow Spot Beam
·Retail: Highlighting premium products
·Galleries: Accenting artwork
·Museums: Focal point illumination
✅ 24° Medium Flood Beam
·Office: Task lighting over desks
·Kitchens: Island lighting
·Lobbies: Architectural features
✅38° Wide Flood Beam
·Conference Rooms: Even illumination
·Hallways: General lighting
·Living Areas: Ambient lighting
Application-Specific Solutions
Retail Environments
·Jewelry Stores
·Boutique Display
·Window Displays
Office & Workspace Lighting
·Conference Rooms
·Workstations:
·Reception Areas
Residential Applications
·Kitchen Islands
·Living Room Art
·Hallway Lighting
Hospitality Settings
·Hotel Lobbies
·Restaurant Dining
·Bar Areas
Simple 3-Step Installation Process
The GL05×2 downlight features a tool-free surface mount design that simplifies installation while eliminating the need for ceiling cutting. Follow these easy steps for proper installation:
Step 1: Secure Mounting Bracket
1. Position the mounting bracket on your ceiling surface
2. Mark screw locations through the bracket holes
3. Install screws to firmly secure the bracket to ceiling
4. Ensure bracket is level before final tightening
Step 2: Electrical Connection
1.Turn off power at circuit breaker
2.Connect fixture wires to building wiring:
·Live (L) to brown wire
·Neutral (N) to blue wire
·Ground ( ) to green/yellow wire
3.Secure all connections with wire nuts
4.Tuck wires neatly into junction box
Step 3: Fixture Installation
1.Align fixture with mounted bracket
2.Snap the GL05×2 housing onto the bracket
3.Adjust both heads to desired angles (355° rotation, ±15° tilt)
4.Restore power and test operation
Why Designers Specify GL05×3
✅ Beam Angle Flexibility - Match light distribution to each application
✅ Precision Engineering - Consistent beam patterns with sharp cutoff
✅ Simplified Specification - One fixture for multiple lighting needs
Professional Lighting Solutions Start Here
The GL05×3 with selectable beam angles provides lighting designers and contractors with unparalleled control over light distribution. Whether you need precise accent lighting (15°), focused task lighting (24°), or comfortable ambient lighting (38°), this versatile system delivers professional results in any environment.
