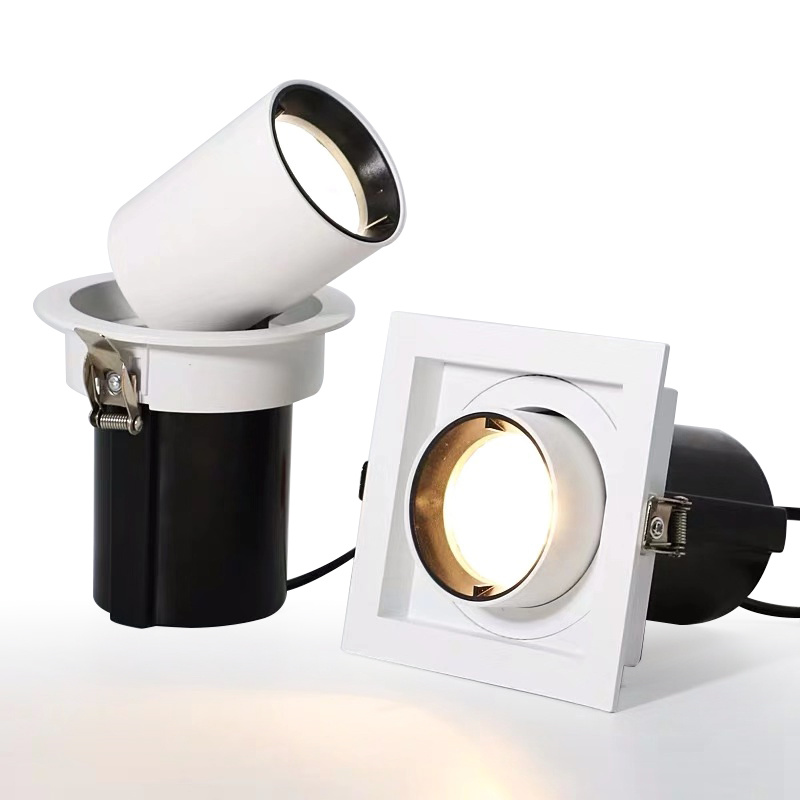

Adjustable Square Ceiling Dimmable Downlights FT-GL04 Square
Features:
● High CRI (≥90),robust Aluminum Housing
● Retractable Design，multi-Angle Flexibility
● High-Quality LED Chips,wide Beam Angle Options
● Dimmable Compatibility,smooth Glare-Free Lighting
● Quick-Connect Terminals,energy-Saving Performance

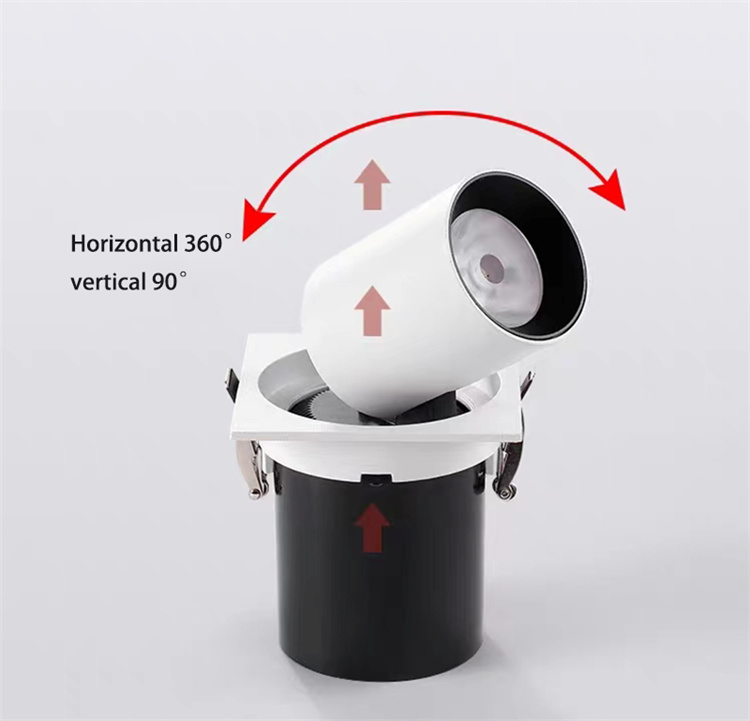

● 90° Vertical Tilt Adjustment，360° Horizontal Rotation
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 10-20W：0.5 ; 25W-35W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led COB Downlight |
| Power | 10W/15W/20W/25W/30W/35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White/Black |
| Beam angle | 15°,24°,36° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 75*75/95*95/125*125/145*145MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 10-20W: 0.5 ; 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|
Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL04-10W |
10W |
L90*W90*H92 |
75*75 |
2700K |
|
FT-GL04-15W |
15W |
L115*W115*H120 |
95*95 |
|
|
FT-GL04-20W |
20W |
L140*W140*H140 |
125*125 |
|
|
FT-GL04-25W |
25W |
L140*W140*H140 |
125*125 |
|
|
FT-GL04-30W |
30W |
L160*W160*H150 |
145*145 |
|
|
FT-GL04-35W |
35W |
L160*W160*H150 |
145*145 |
360° Adjustable Recessed Downlight – Precision Lighting Redefined
Total Beam Control for Demanding Applications
Engineered for architects and lighting designers, our fully adjustable LED recessed downlight delivers pinpoint illumination with industry-leading flexibility. The multi-axis gimbal system combines 90° vertical tilt, 360° horizontal rotation, and telescopic height adjustment – all in a sleek, low-profile housing.
Unmatched Adjustability
Omni-Directional Positioning
✓ 90° vertical tilt (from straight down to horizontal)
✓ 360° smooth rotation (no mechanical stops)
✓ 50mm telescopic extension (adapts to ceiling depths)
Professional-Grade Mechanics
✓ Aircraft-grade aluminum gimbal with stainless steel pivots
✓ Vibration-resistant design holds position indefinitely
Optical Precision
✓ Consistent beam shape at any angle (15°/24°/36° optics)
✓ Zero light leakage or hotspot distortion
✓ 90+ CRI for true color rendering
Precision Beam Control for Every Need
✔ 15° Spotlight – Ultra-focused beam for museum displays, artwork, or dramatic accents
✔ 24° Task Light – Ideal over kitchen islands, workbenches, and retail displays
✔ 36° Wide Flood – Even illumination for living rooms, hallways, and commercial spaces
Installation Made Simple
Universal Compatibility
✔ Fits standard 75-145mm cutouts

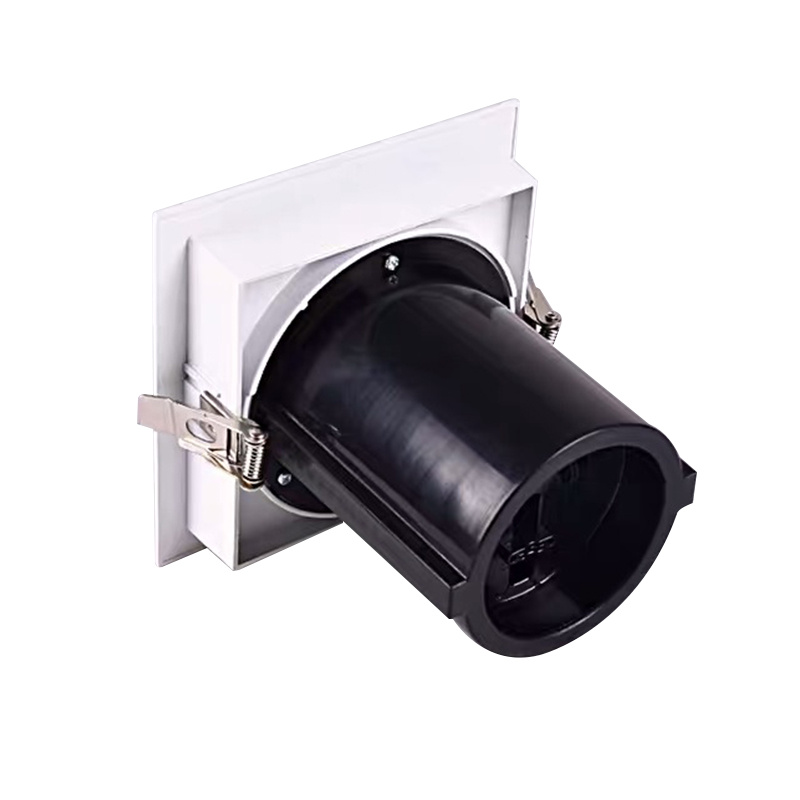

✔ Spring-loaded torsion clips accommodate 10-50mm ceiling thickness
✔ Pre-aimable before final ceiling installation
Premium Lighting Solutions
Ideal For
◼ Museums & Galleries – Accent artifacts without glare
◼ Retail Stores – Highlight merchandise dynamically
◼ Hotels & Restaurants – Create mood lighting scenes
◼ Office Lobbies – Wash walls or architectural details
Technical Specifications
·Wattage Options: 10W/15W/20W/25W/30W/35W
·Voltage: 100-277V (universal driver)
·Dimming: 0-10V / DALI / TUYA compatible
·IP Rating: IP44 (splash-resistant)
·Warranty: 5 years on mechanical components
Smart Dimming & Color Control
✔ Standard Dimmable Models – Works with TRIAC, 0-10V, and DALI for smooth brightness adjustment
✔ Tunable White Options – Adjust from warm (2700K) to cool daylight (6000K) with no visible steps
✔ Smart Home Ready – Integrates with Lutron, Control4, KNX, and Bluetooth mesh systems
Easy 4-Step Installation Guide：
1.Prepare the Ceiling Cutout
·Cut an opening in your ceiling to match the fixture's specified size using standard drywall tools
2.Wire Connections
·Have a licensed electrician connect the power wires to the fixture's terminal block (L/N/GND)
3.Mount the Fixture
·Compress the spring-loaded mounting clips vertically and insert the fixture into the ceiling opening
4.Secure & Test
·Release the clips to lock the fixture in place, then restore power to test operation
Why Professionals Choose This Downlight
→ Replace multiple fixed fixtures with one adjustable solution
→ Fine-tune post-installation as layouts change
→ Commercial-grade durability for high-traffic spaces
