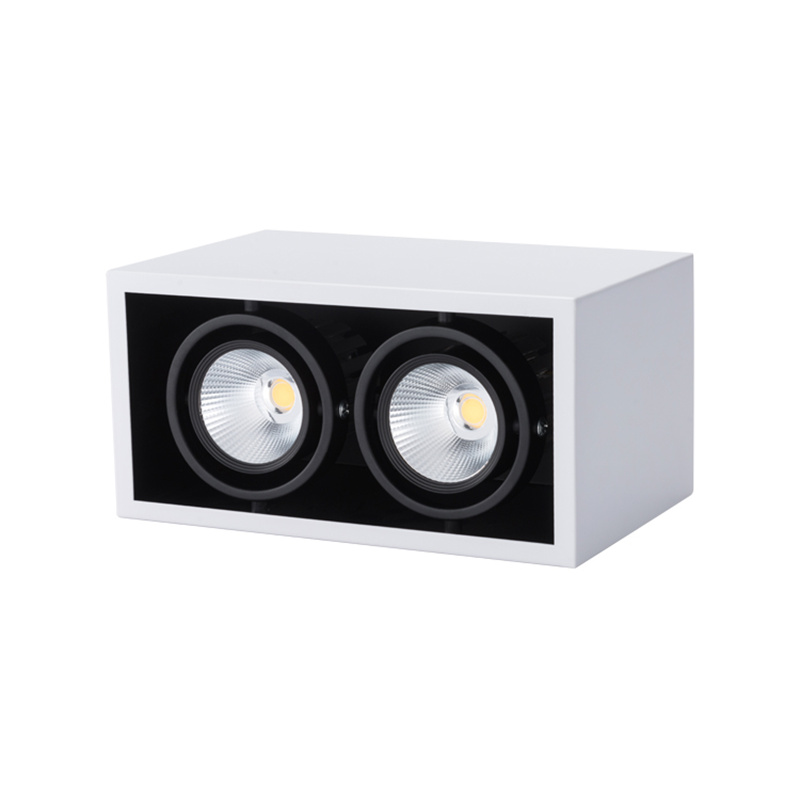

Adjustable Surface Mounted Downlight Concrete Ceiling Square Light FT-GL05*2
Features:
● Low heat, less than 60°C
● No mercury or other inorganic
● Homogeneous flood illumination
● High Lumen Efficacy (≥90-100 lm/W)
● No UV or IR light radiation

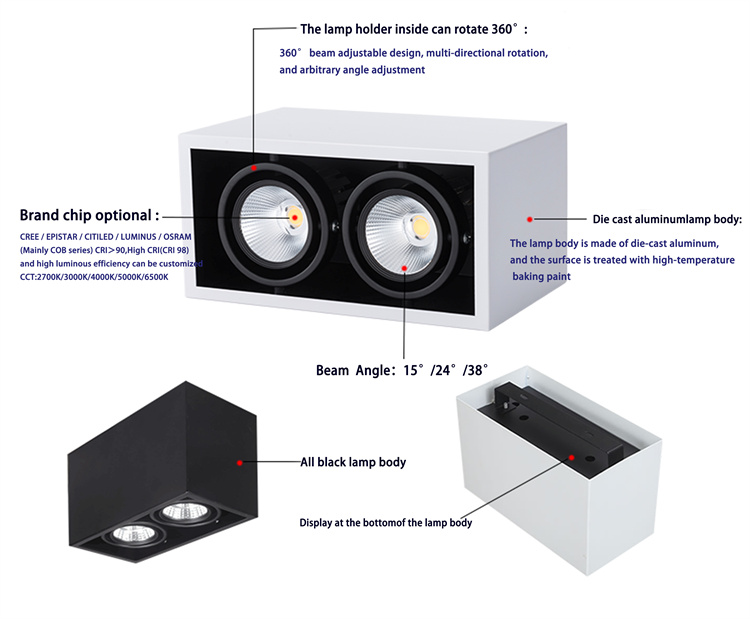

● Machined aluminum heat fins with excellent thermal efficiencies
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-15W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Square Ceilng Mount Downlight |
| Power | 2*7W/2*10W/2*12W/2*15W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |

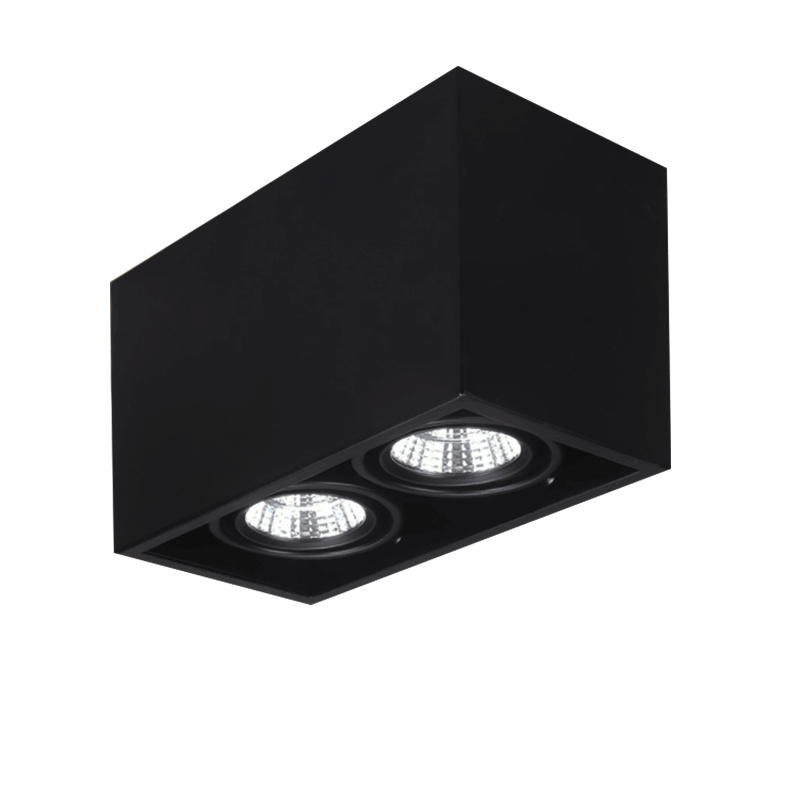

| Color | Black/White |

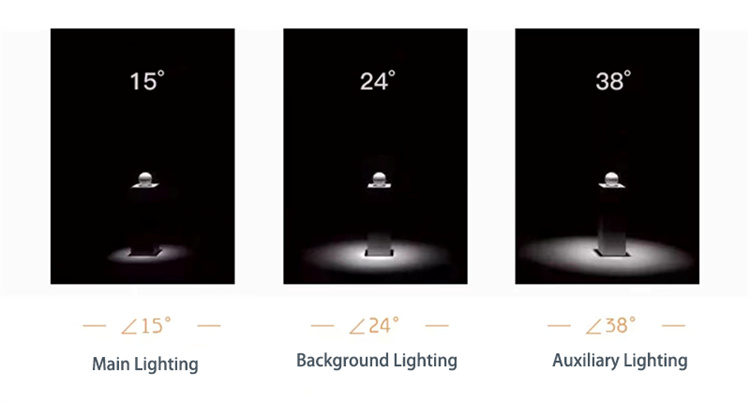

| Beam angle | 15°,24°,38° |
| CRI (Ra>) | 80/90/95 |

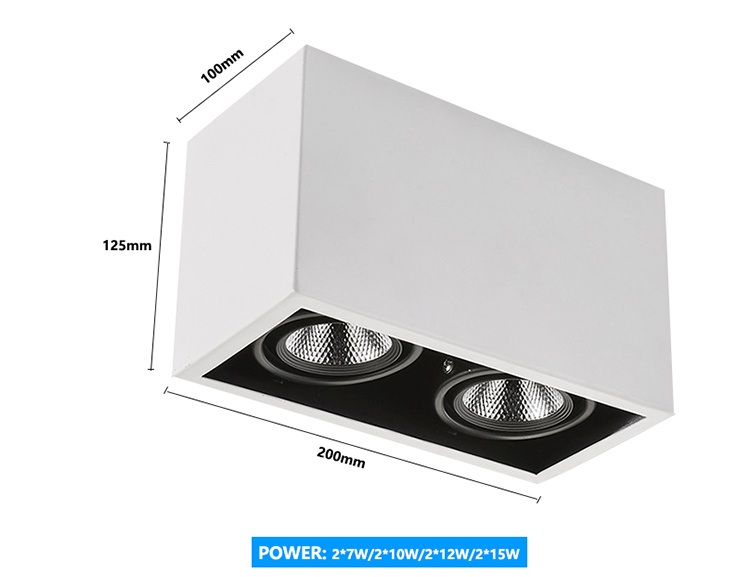

| Dimension(mm) | 200*100*125mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7W-15W: 0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Surface mounted/pendant |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|
Model No. |
Watts |
Dimension(mm) |
LED Color |
|
FT-GL05-2*7W |
2*7W |
200*100*125 |
2700K |
|
FT-GL05-2*10W |
2*10W |
200*100*125 |
|
|
FT-GL05-2*12W |
2*12W |
200*100*125 |
|
|
FT-GL05-2*15W |
2*15W |
200*100*125 |

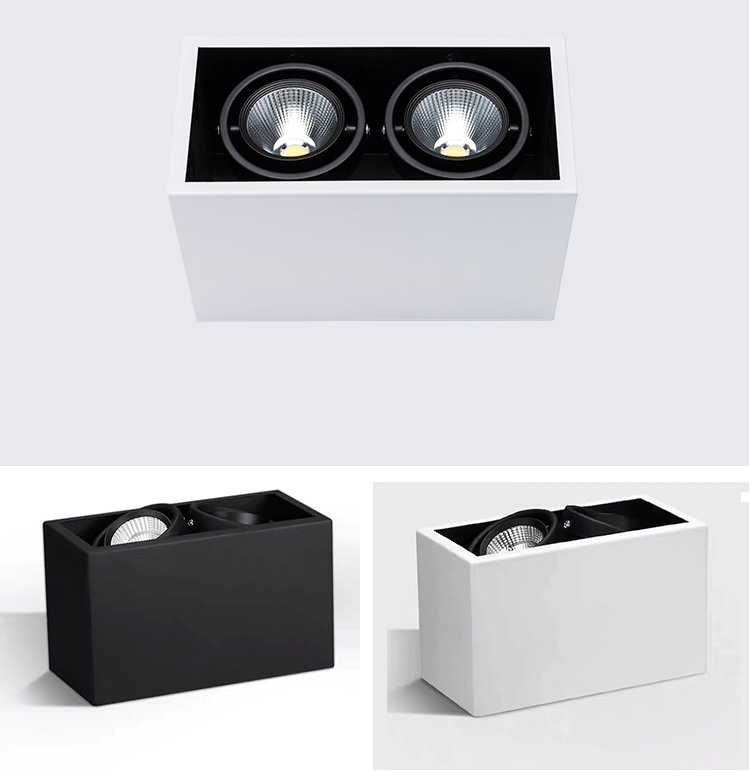

Double Square Ceiling Downlight: Scandinavian Minimalism Meets Smart Lighting
Nordic Dual-Head Surface Downlight: The Essence of Modern Lighting
The Double Square Ceiling Downlight redefines contemporary illumination with its perfect blend of Scandinavian design aesthetics and advanced lighting technology. This innovative fixture features two independently adjustable heads in a sleek square housing, offering unparalleled flexibility for modern interiors. Designed for tool-free surface mounting, it delivers professional-grade lighting without the complexity of recessed installation.
Key Features & Benefits
1. Precision Dual-Arm Lighting System
·340° Rotation Range: Each head rotates ±170° horizontally for complete directional control
·90° Vertical Tilt: Achieve perfect lighting angles for any application
·Multi-Beam Options: Choose from 15° (spot), 24° (narrow flood), or 38° (flood) optics
·50% Wider Coverage: Compared to conventional single-head downlights
2. Authentic Nordic Design Elements
·Matte Aluminum Finish: Clean, radius-edged housing embodies Scandinavian minimalism
·Flush Ceiling Integration: Concealed fasteners create a seamless "floating" appearance
·Warm Color Temperatures: 2700K-3000K LEDs enhance natural materials and neutral tones
3.Smart Performance Features
· Energy Efficient Operation: Consumes 80% less power than traditional halogen lighting
· Universal Compatibility: Works with standard dimming systems for seamless integration
· Sustainable Design: Environmentally conscious construction with exceptional longevity
Transformative Lighting Applications
Residential Excellence
·Open-Plan Living: Illuminate reading corners and dining areas simultaneously from a single fixture
·Modern Kitchens: Provide perfect task lighting over islands while maintaining clean sightlines
·Minimalist Bedrooms: Create layered lighting effects without visual clutter
Commercial Sophistication
·Boutique Retail: Eliminate merchandise shadows with cross-lighting capability
·Café Spaces: Simultaneously highlight display cases and provide ambient seating lighting
·Gallery Walls: Achieve museum-quality artwork illumination with adjustable beams

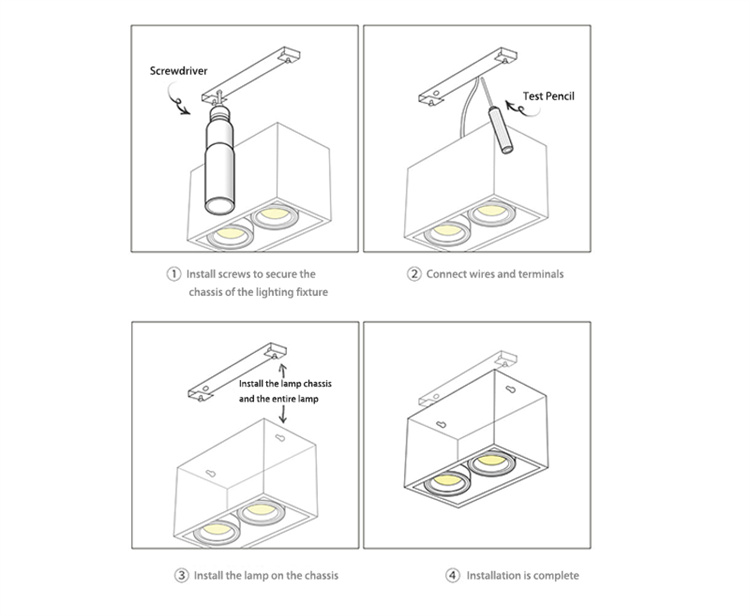

Effortless 3-Step Installation Guide
The GL05×2 downlight incorporates an innovative tool-free surface mount system, enabling quick installation without ceiling modifications. Simply follow these straightforward steps:
Step 1: Mounting Bracket Installation
1.Place the mounting bracket against the ceiling surface
2.Mark drilling points through the bracket's pre-cut holes
3.Securely fasten the bracket using provided screws
4.Verify perfect level alignment before final tightening
Step 2: Wiring Connection
1.Disconnect power supply at the main circuit breaker
2.Make proper wire connections:
• Connect Live (L) wire to brown cable
• Join Neutral (N) wire to blue cable
• Attach Ground ( ) wire to green/yellow cable
3.Secure all connections using included wire connectors
4.Neatly organize cables within the junction box
Step 3: Fixture Assembly
1.Align the fixture body with the installed bracket
2.Firmly snap the GL05×2 housing into place
3.Position both adjustable heads (355° rotation range with ±15° tilt)
4.Reactivate power and verify proper functionality
Why Designers Choose This Solution
✅ Effortless Installation: Surface-mounted design eliminates ceiling cutting
✅ Reduced Fixture Count: Dual-head configuration means fewer ceiling penetrations
✅ Design-Forward Aesthetics: Complements contemporary Nordic furnishings
✅ Long-Term Value: Industry-leading warranty protection
Experience Effortless Elegance
The Double Square Ceiling Downlight represents the perfect marriage of Nordic design principles and intelligent lighting technology. With its dual adjustable heads, tool-free installation, and energy-smart performance, this fixture delivers both visual appeal and functional versatility for the most discerning spaces.
