Bright Ceiling Living Room Aluminum Track Lighting Manufacturers FT-TL26
Features:
● Certified Safety Standards
● Environmentally Friendly-RoHS compliant
● 5-Year Warranty-Industry-leading protection
● 50,000-Hour Lifespan- L90@50,000hrs (Ta=25°C)
● Smart Lighting Read-Optional Bluetooth/Zigbee mesh
● Cold-Forged Aluminum-30% better heat dissipation than die-cast
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W:0.5 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | LED Track Light |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Power | 15W/20W/25W/30W/35W/40W/45W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM |
| (Other driver brands can also choose from) | |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional |
| (Other driver brands can also choose from) | |
| Color | White Black For Option |
| Beam angle | 24°/38° |
| CRI (Ra>) | 80/90/95 |
| Size(mm) | D55*H120/D65*H128/D75*H150/D85*H160/D95*H170 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) / Natural white (4000K) Cool White (5000K/6000K) |
| PF | 15-20W:0.5 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

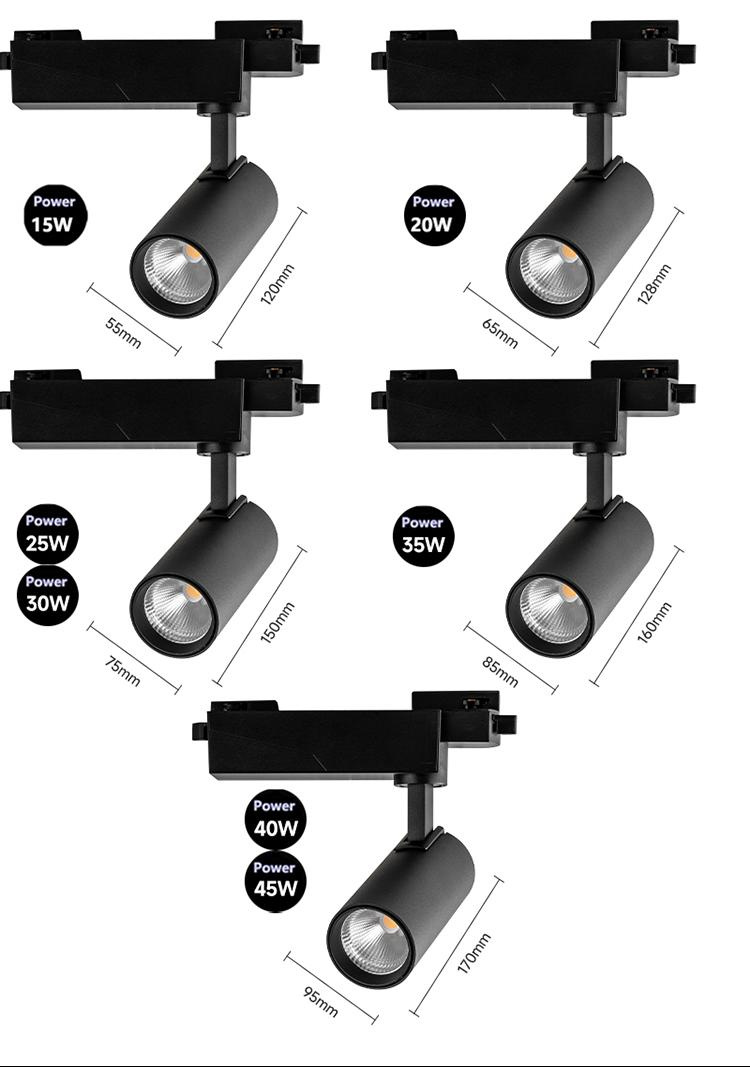

Model No. |
Watts |
Size(mm) |
Lumens |
LED Color |
|
FT-TL26-15W |
15W |
D55*H120 |
1350lm |
2700K
|
|
FT-TL26-20W |
20W |
D65*H128 |
1900lm |
|
|
FT-TL26-25W |
25W |
D75*H150 |
2375lm |
|
|
FT-TL26-30W |
30W |
D75*H150 |
2850lm |
|
|
FT-TL26-35W |
35W |
D85*H160 |
3325lm |
|
|
FT-TL26-40W |
40W |
D95*H170 |
3800lm |
|
|
FT-TL26-45W |
45W |
D95*H170 |
4275lm |
The advantages of the product
The driver and the lamp body are separated, resulting in low maintenance costs. When the driver is damaged, there is no need to disassemble the lamp; simply replace the external power supply.
Fast heat dissipation and long service life.
This track light offers impressive bidirectional adjustment, allowing for 355° horizontal rotation and 90° vertical rotation. This design ensures exceptional flexibility and precise control over lighting, making it ideal for various lighting designs. When making adjustments or reconfiguring spaces, there’s no need to reposition the tracks; simply rotate the lamp heads to redirect the light as needed.

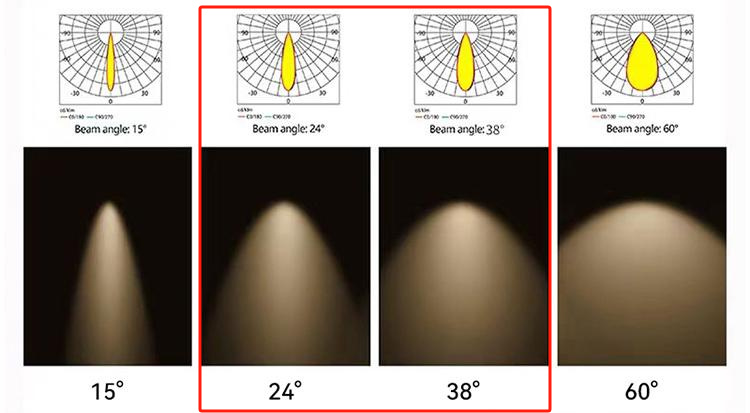

· Our track light comes in two versatile beam angles—24° and 38°—offering you the flexibility to achieve precise lighting control in a variety of environments.
24° Beam Angle: This narrow illumination range is perfect for spotlighting individual products or exhibits, drawing attention to specific items.
38° Beam Angle: Often referred to as the “universal beam angle,” this option provides a soft diffusion of light with a smooth transition at the edges of the light spot. It is ideal for illuminating wall displays in clothing stores and cosmetic shelves.

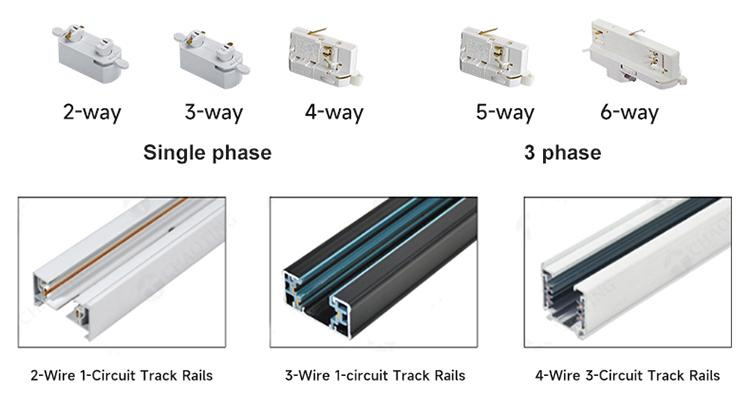

The 2-wire, 3-wire, and 4-wire systems of track lights are designed to meet the electrical standards and application needs of various countries. The key differences among these systems include power supply methods, dimming protocols, and safety regulations.
2-Wire System: Ideal for residential and basic commercial lighting, this system does not require intelligent control features.
3-Wire System: Commonly used in North America (including the United States and Canada) and certain European countries.
4-Wire System: Designed for global professional lighting projects, this system is suitable for theaters, stages, and high-end retail environments.
· Our track lights are offered in a range of wattages (15W–45W) to accommodate both residential and commercial applications.
15W-20W Track Lights: Ideal for illuminating jewelry counters, art displays, and home decorative paintings.
25W-30W Track Lights: Perfect for lighting clothing store shelves, restaurant tables, and office workstations.
35W-45W Track Lights: Designed for use in supermarket fresh food sections, main stages in exhibition halls, and high-position lighting in factories.
Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
