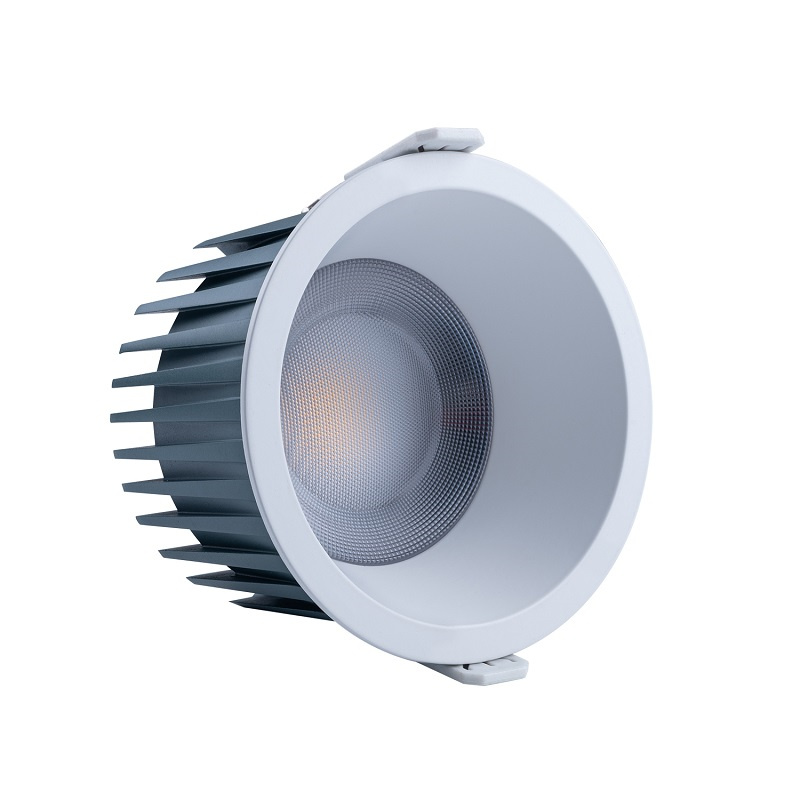

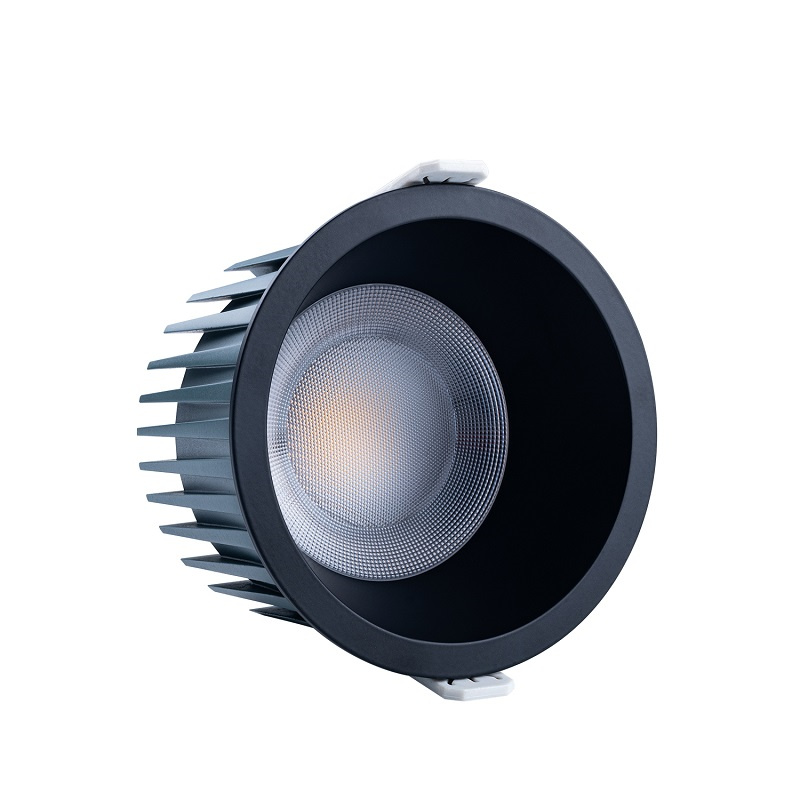

Brightest Downlight Led Recessed Down Lighting Wholesale FT-DTL04
Features:
● Ultra-High Efficiency-150-160LM/W
● IP54 Rate-Dust-protected and splash-resistant
● Embedded Design–Sleek recessed installation
● Long Lifespan–Up to 50,000 hours of operation
● Energy-Saving–Significantly reduces power consumption
● SMD LED Technology,superior brightness and reliability
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-50W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | High Brightness Led Recessed Downlight |
| Power | 10W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 60° |
| CRI (Ra>) | ＞90 |
| Cut out | 75/95/125/145/165mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |

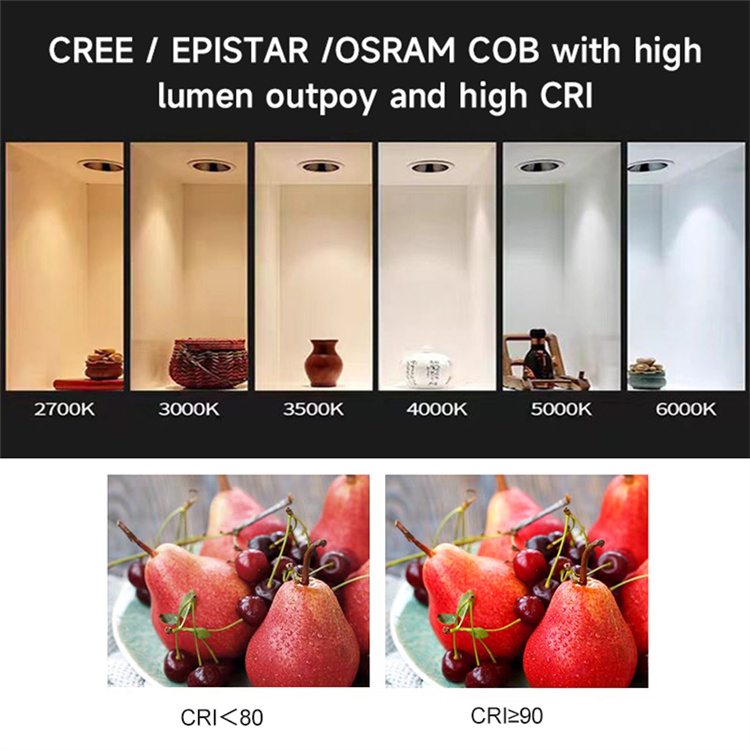

| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 10W-20W: 0.5 ; 25W-50W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

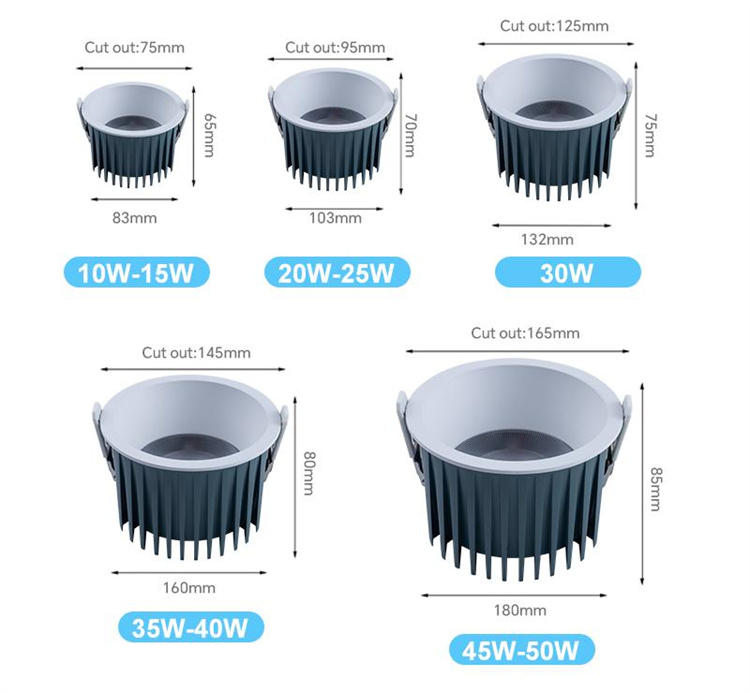

Model No. |
Watts |
Size(mm) |
Cut Out |
Beam Angle |
LED Color |
|
FT-DLT04-10W |
10W |
D83*H65 |
¢75 |
60° |
2700K
|
|
FT-DLT04-15W |
15W |
D83*H65 |
¢75 |
60° |
|
|
FT-DLT04-20W |
20W |
D103*H70 |
¢95 |
60° |
|
|
FT-DLT04-25W |
25W |
D103*H70 |
¢95 |
60° |
|
|
FT-DLT04-30W |
30W |
D132*H75 |
¢125 |
60° |
|
|
FT-DLT04-35W |
35W |
D160*H80 |
¢145 |
60° |
|
|
FT-DLT04-40W |
40W |
D160*H80 |
¢145 |
60° |
|
|
FT-DLT04-45W |
45W |
D180*H85 |
¢165 |
60° |
|
|
FT-DLT04-50W |
50W |
D180*H85 |
¢165 |
60° |

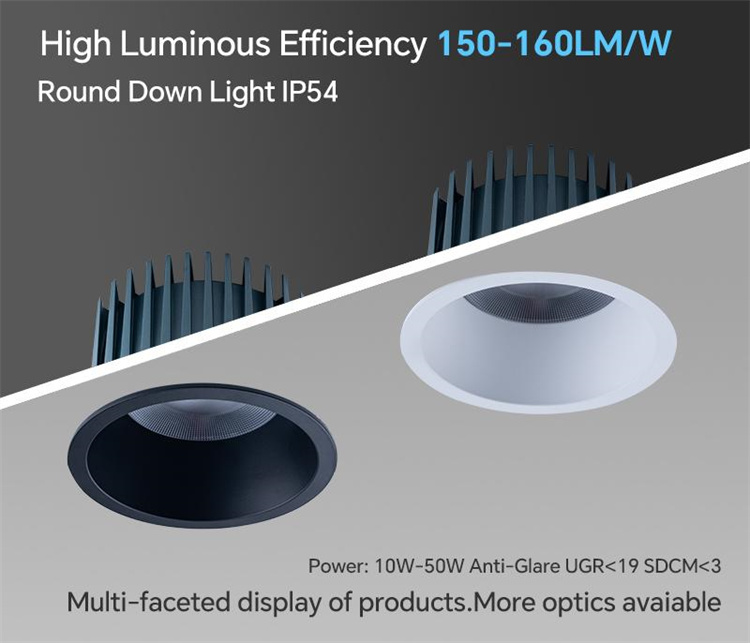

High Luminous Efficiency 150-160LM/W
1. Unmatched Energy Savings
150+ lm/W efficacy (vs. 80-100 lm/W conventional downlights) – cuts power consumption by 30-40% at equal brightness
Proven ROI: Saves €15,000+ annually per 10,000 fixtures (based on EU industrial electricity rates)
2. Premium Lighting Performance
CRI≥95 – True-color rendering for retail (jewelry/apparel) and galleries
UGR<16 – Glare-free compliance with EN 12464-1 (ideal for offices/museums)
3. Lower Total Cost of Ownership
50,000-hour lifespan (11+ years at 12h/day)
4. Smart-Ready Integration
Native DALI-2/D4i support (KNX/BACnet compatible)
Flicker-free 0-10V dimming – safe for hospitals/film studios

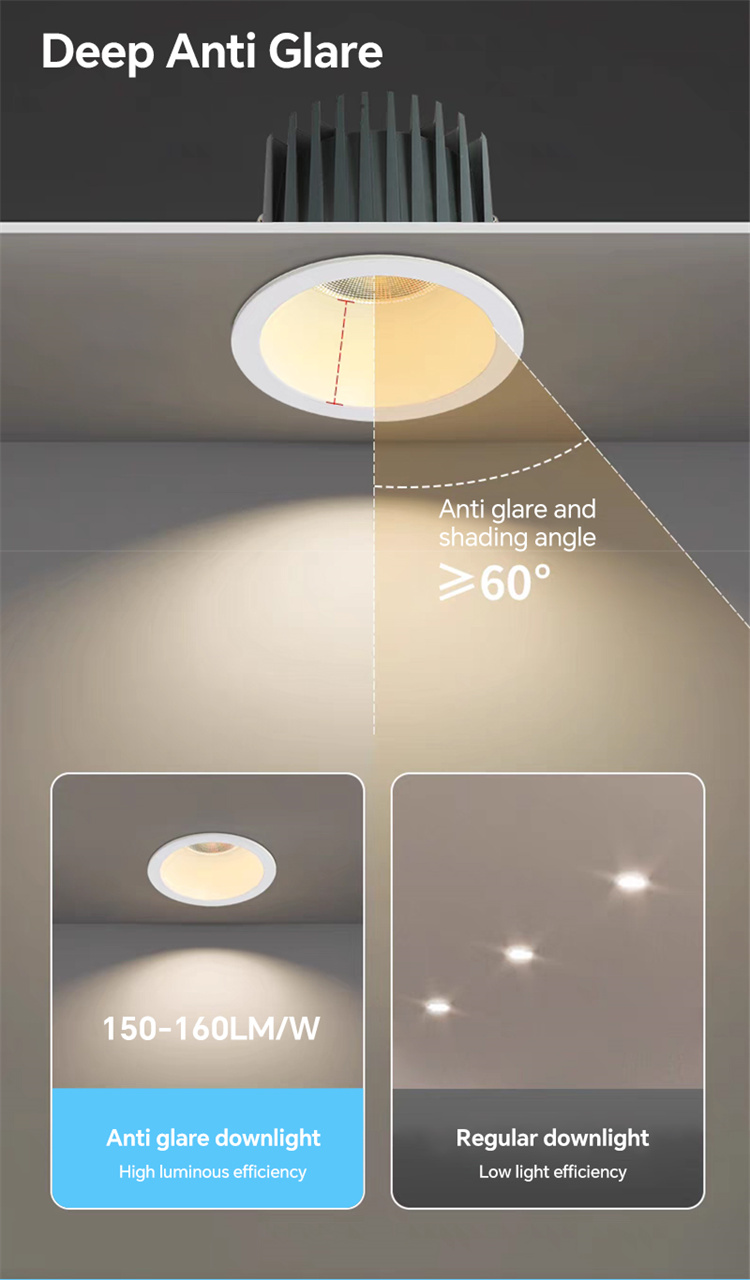

Deep Anti-glare
This downlight not only achieves high luminous efficiency but also features an anti-glare design to protect your eyes.
Adjustable Beam Angles for Precision Lighting
·15° Narrow Beam (Spotlight)
Precision Focus: Perfect for accentuating small objects or fine details, such as artwork, sculptures, or high-end retail displays.
High-Intensity Light: Delivers sharp contrast and a striking visual effect, ideal for creating focal points.
·24° Medium Beam (Accent Lighting)
Balanced Spread: Optimized for mid-sized applications like product shelves, signage, or feature walls—providing clear visibility without light spill.
Adaptable Use: Suitable for both home and commercial environments, offering flexibility in design.
·38° Wide Beam (Floodlight)
Expansive Coverage: Effectively lights up broad areas, including wall washes, open-concept spaces, and showroom floors.
Even Illumination: Minimizes shadows for a smooth, ambient glow that enhances overall visibility.
Commercial Downlight Series (10W-50W)
Professional-Grade Specifications
IP54 Rated Protection - Certified defense against dust ingress (5) and water splashes (4) for reliable performance in:
·High-humidity areas (restaurant kitchens/hotel spas)
·Dust-prone environments (retail store entrances/warehouses)
Wattage-Scalable Output - 10W 15W 20W 25W 30W 35W 40W 45W 50W
·1500lm (10W) to 7800lm (50W) output
·Consistent 160lm/W efficacy across all models

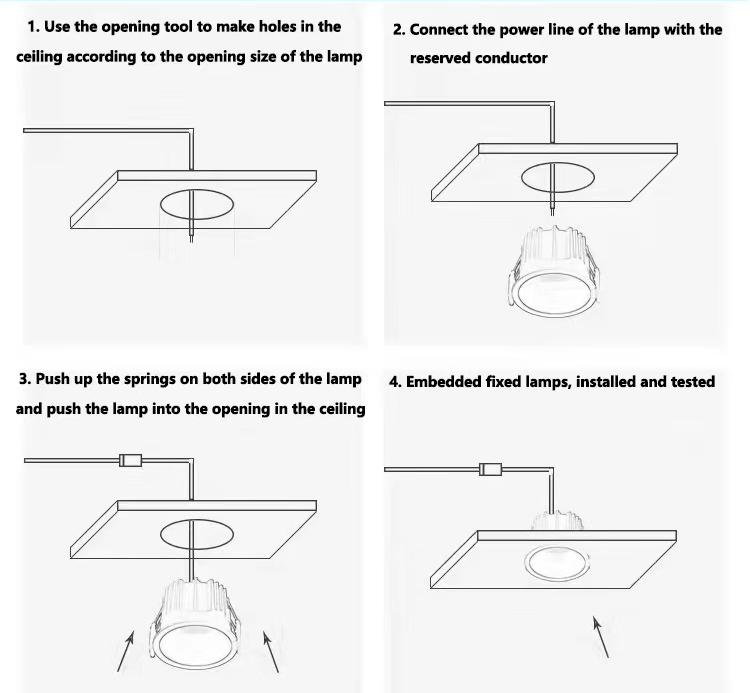

Easy to install
1. Prepare the Mounting Hole – Cut an opening matching the lamp’s specified diameter using appropriate tools.
2. Electrical Connection – Safely wire to standard 220V household power (polarity-insensitive design eliminates live/neutral wire concerns).
3. Secure the Fixture – Align and press upward until the spring clips fully engage with the ceiling/wall surface.
4. Final Verification – Power on to confirm proper operation before final use.
Safety Tip: Always ensure the circuit is de-energized during installation.

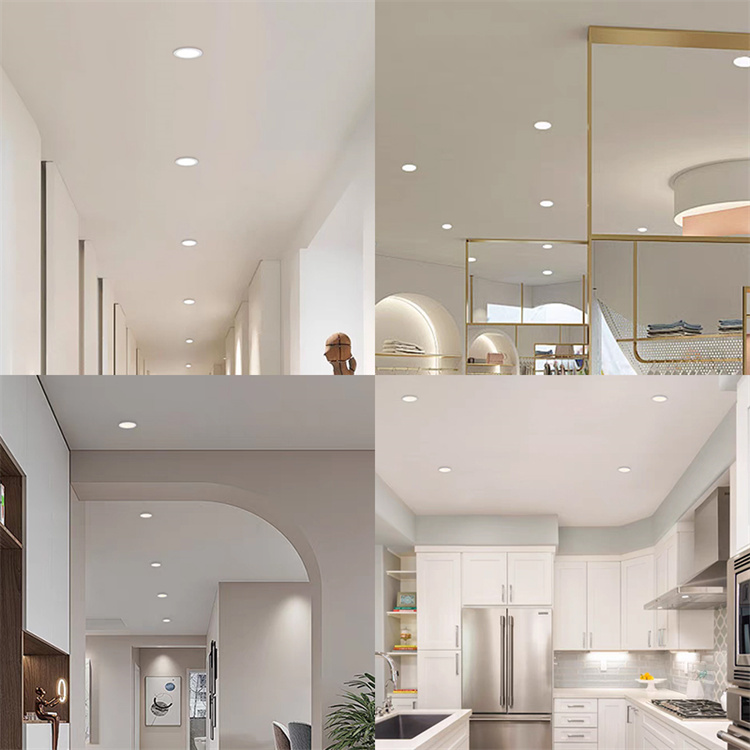

Application
This spotlight is suitable for: Offices & Conference Rooms, Retail Stores, Hotels & Restaurants, Healthcare & Education etc.
Experience Unmatched Efficiency & Performance with Our Premium Recessed Downlight
Maximize illumination while minimizing energy consumption with our cutting-edge recessed downlight, engineered to set new standards in commercial and residential lighting. Boasting an industry-leading 150-160 LM/W efficacy, this luminaire delivers exceptional brightness with drastically reduced power usage – translating to significant long-term cost savings and environmental benefits.
Core Advantages:
● Superior Light Output: Utilizing advanced SMD LED chips, we ensure brilliant, consistent illumination with excellent color rendering (CRI >90), creating vibrant and accurate visual environments.
● Robust Durability: Engineered for demanding applications with an IP54 rating, offering reliable protection against dust ingress and water splashes. Ideal for kitchens, covered patios, corridors, and commercial spaces requiring dependable performance.

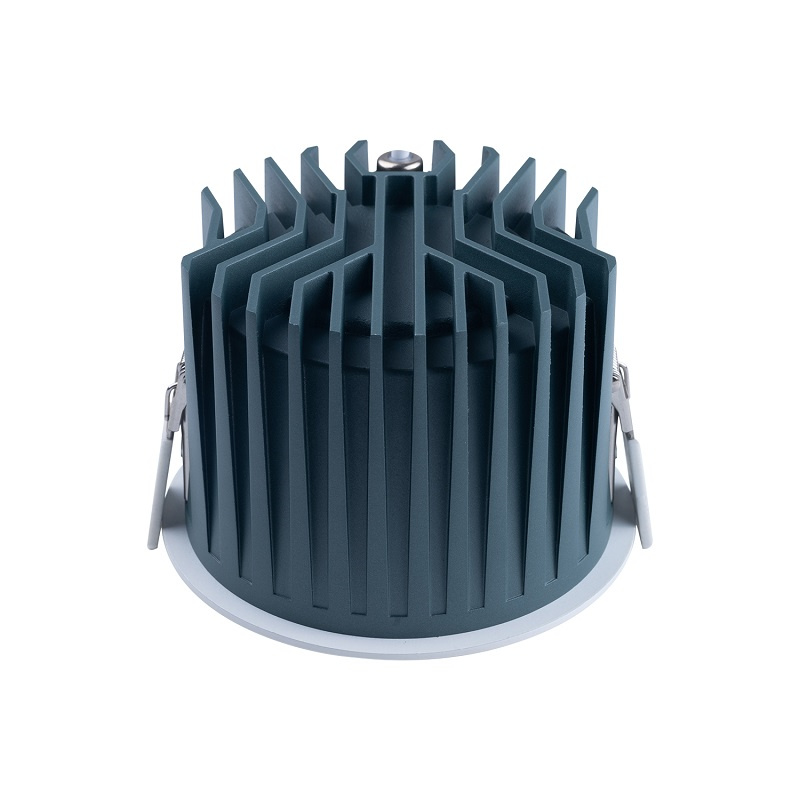

● Exceptional Thermal Management: Sophisticated heat dissipation technology prolongs LED lifespan (rated 50,000+ hours) and maintains optimal light output over time.

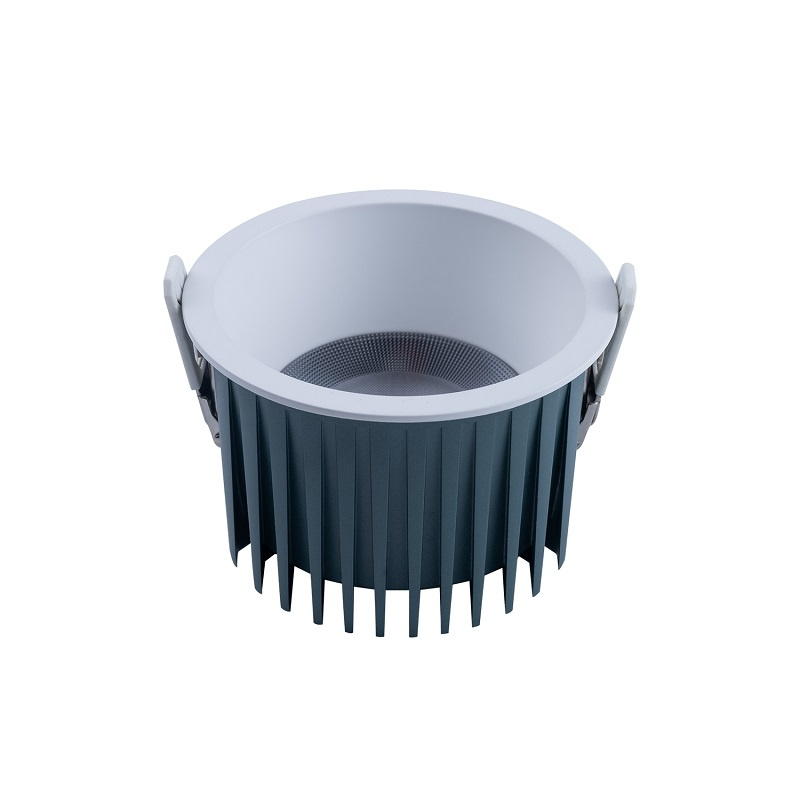

● Versatile & Secure: Features tool-free spring clips for swift, hassle-free installation into various ceiling types. The robust aluminum housing ensures structural integrity and aids heat dissipation.
● Modern & Discreet: Sleek, integrates seamlessly into contemporary ceilings, providing focused, glare-free illumination with a crisp lighting profile.
Designed for Sustainability & Value:
This fixture exceeds global energy standards, contributing to LED points and sustainability goals. The ultra-high efficiency cuts operational costs by up to 70% compared to traditional lighting. Coupled with minimal maintenance requirements due to its long lifespan and rugged IP54 construction, it offers an outstanding lifetime value proposition.
Ideal Applications: Perfect for retail spaces, offices, hotels, educational facilities, modern homes, and any setting demanding efficient, high-quality, durable, and aesthetically subtle lighting solutions. Invest in performance and savings today.
