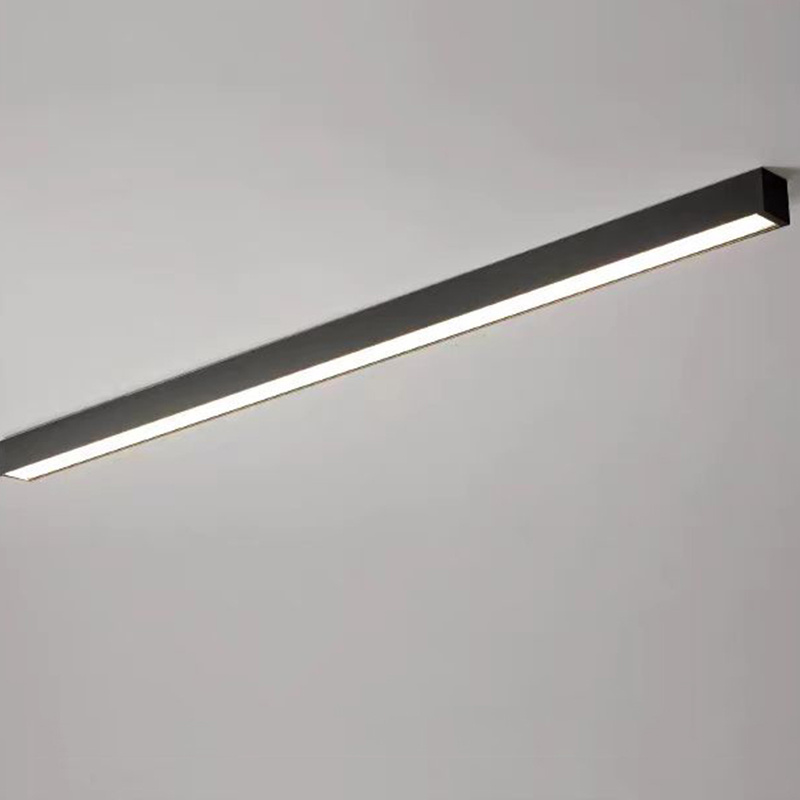

Ceiling Led Profile Linear Kitchen Light Fixture Manufacturer FT-LL1F2
Features:
● Light source: San’an SMD LED
● Long LED life: More than 50,000 hours
● Low heat, less than 60°C
● No mercury or other inorganic
● Homogeneous flood illumination
● Machined aluminum heat fins with excellent thermal efficiencies
● 5 years limited warranty
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 20W:0.5 25W-55W: 0.95
- Driver LIFUD / Boke Optional
- LED source San’an
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Modern Linear Lighting |
| Power | 20W/25W/30W/35W/40W/45W/50W/55W |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | SMD2835 |
| Shell color | White And Black For Option |
| Beam angle | 140° |
| CRI (Ra>) | 80/90/95 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum Housing+PS Diffuser |
| CCT | Warm White(2700K/3000K/3500K) / Cool White(4000K) / Natural white(5000K/6000K) |
| PF | 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Surface Mounted/Pendant/Suspending |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/Office/Hospital .etc |
|

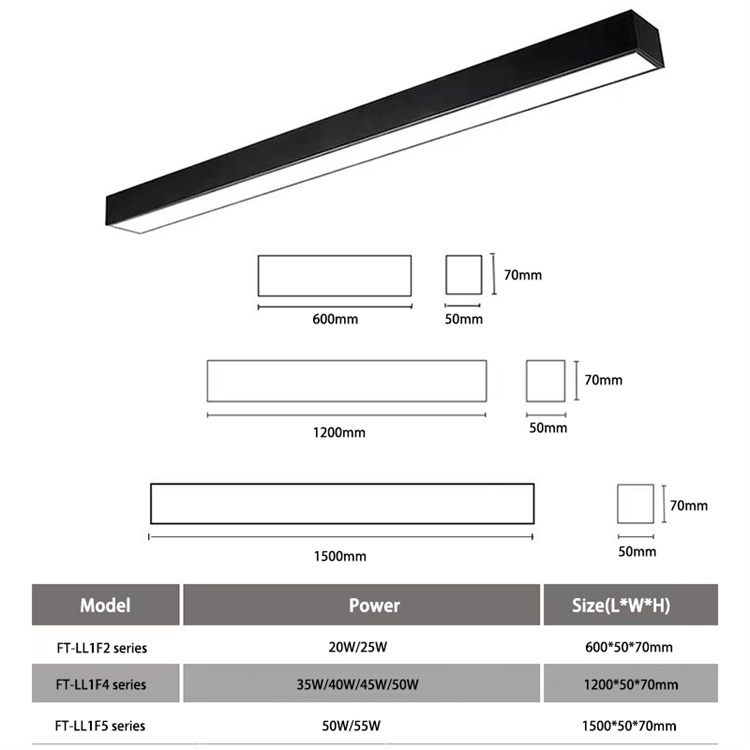

Model No. |
Watts |
Size （mm/ft） |
Lumens |
LED Color |
|
FT-LL1F2-20W |
20W |
600*50*70mm/2ft |
＞100LM/W |
Warm White (2700K/3000K/3500K) |
|
FT-LL1F2-25W |
25W |
600*50*70mm/2ft |
＞100LM/W |
|
|
FT-LL1F4-35W |
35W |
1200*50*70mm/4ft |
＞100LM/W |
|
|
FT-LL1F4-40W |
40W |
1200*50*70mm/4ft |
＞100LM/W |
|
|
FT-LL1F4-45W |
45W |
1200*50*70mm/4ft |
＞100LM/W |
|
|
FT-LL1F5-50W |
50W |
1500*50*70mm/5ft |
＞100LM/W |
|
|
FT-LL1F5-55W |
55W |
1500*50*70mm/5ft |
＞100LM/W |
The advantages of the product
Space saving: Ceiling mounted linear lights are installed on the ceiling, occupying almost no vertical space. They are an ideal lighting choice for rooms with low ceilings or small spaces, avoiding the spatial pressure caused by traditional chandeliers or large lighting fixtures.
Flexible layout: It can be flexibly installed according to the shape, size, and personal needs of the room. Whether it is a straight, curved, or combined layout, it can be easily achieved, better adapting to different spatial layouts and decoration styles.

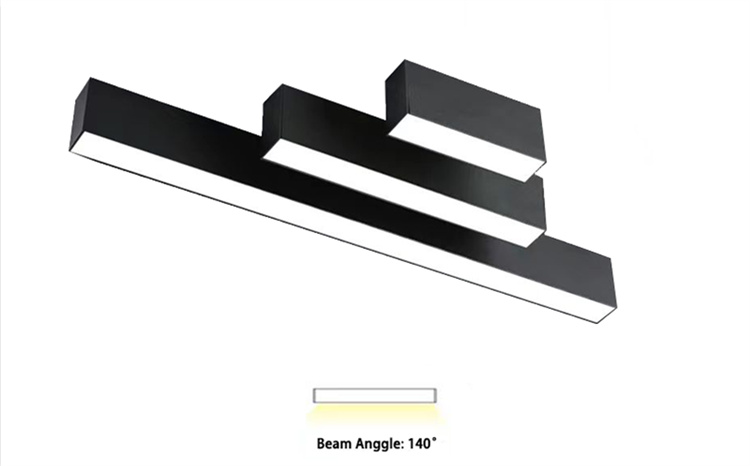

Beam angle 140 degrees: The beam angle of the line lamp is 140 degrees, which can provide more uniform light distribution, reduce blind spots in lighting, and ensure that the entire room receives sufficient and soft light, avoiding the uneven brightness that may occur with traditional point light source lamps

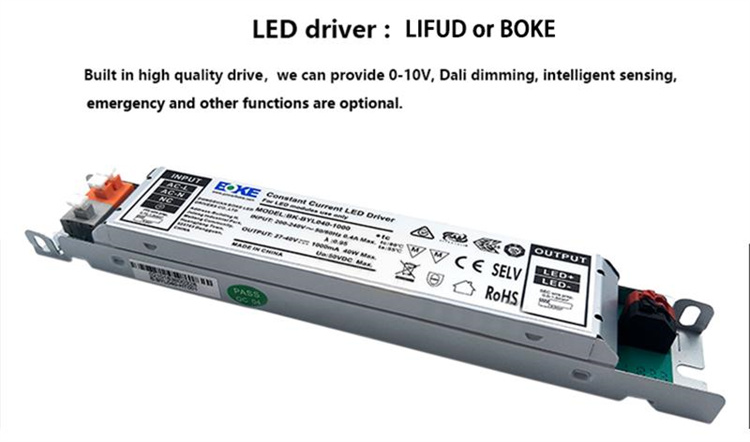

For this ceiling-mounted linear light, we adopt drivers from renowned brands like Lifud or Boke, ensuring flicker-free operation and providing effective eye protection.
For this linear light, we provide three standard lengths: 600mm, 1200mm, and 1500mm. These can be seamlessly spliced to achieve any customized length as per your specific requirements.
Color Temperature Options for the Linear Light:
Choose from a spectrum of color temperatures to create your desired ambiance:
● Warm White: 2700K/3000K (soft, cozy glow)
● Natural White: 4000K (neutral, balanced light)
● Cold White: 5000K/6000K (bright, energizing tone)
Details:

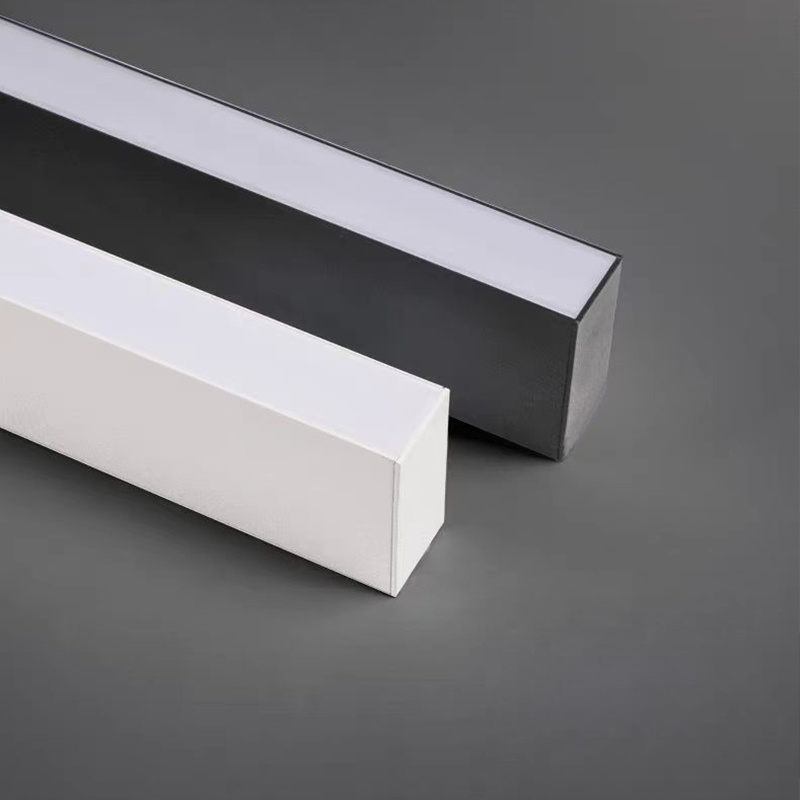

1. Light body adopt aviation grade aluminum,light anddurable ,environment-friendly,fastness
2. SMD 2835 as a light source, with high thermaconductivity,low light decay, light pure point
3. Built-in high quality driver we can provide 1-10V,dali
4. SMD 2835 as a light source, with high thermalconductivity,low light decay, light pure point

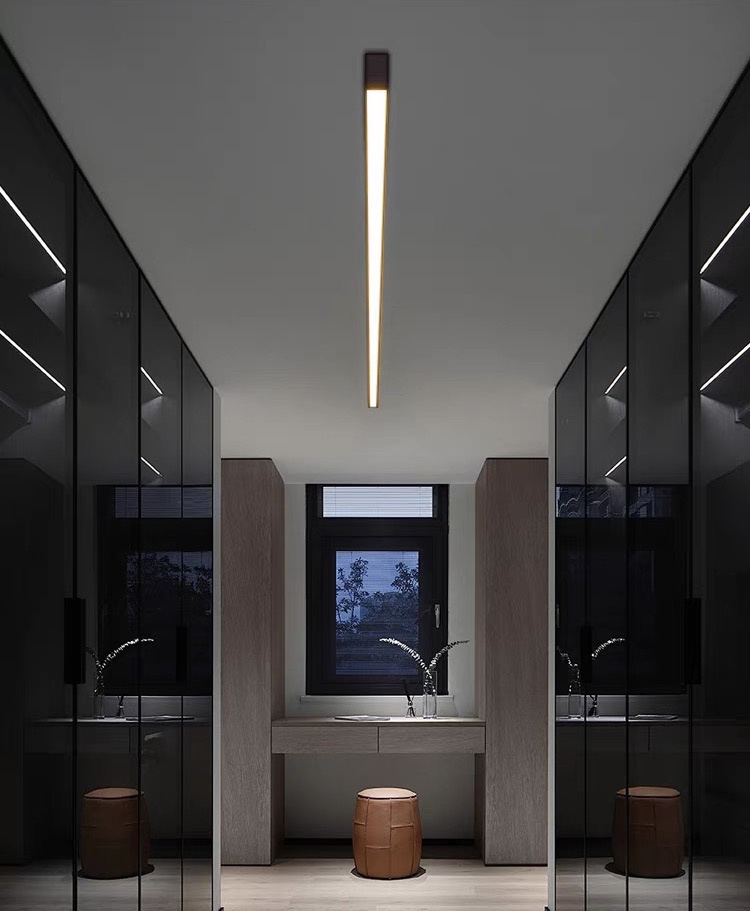

Led Linear Light Application
Linear lights can be used in restaurants, offices, meeting rooms, corridors, hospitals, supermarkets, etc.
