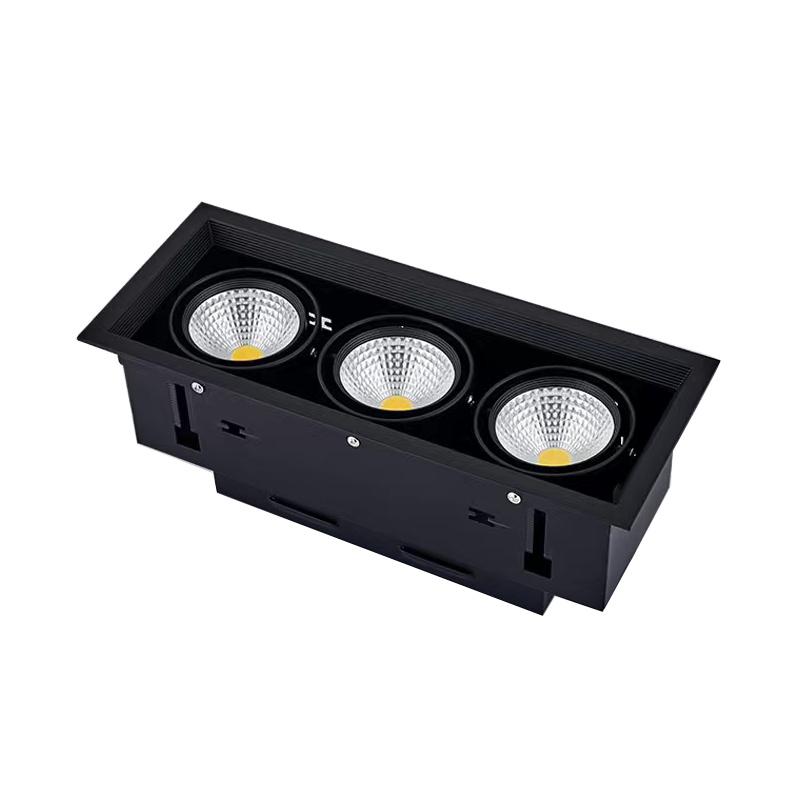

Ceiling Pot Recessed Led Grille Lights Dual-Head Downlight FT-GL01*3
Features:
● Snap-In Installation，aluminum Housing
● Dimmable Function,long Lifespan,IP44 Rated
● RoHS Compliant–Free from hazardous substances
● Low Heat Emission–Safe for prolonged operation
● Wide Voltage Range–AC100-277V for global compatibility
● Corrosion-Resistant,low Heat Emission,5-Year Warranty
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 5-20W：0.5 ; 25W-30W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Dual-head Grille Downlight |
| Power | 3*5W/3*7W/3*10W/3*15W/3*20W/3*25W/3*30W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 15°,24° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 285*100/405*145/480*165MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 5W-20W: 0.5 ; 25W-30W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

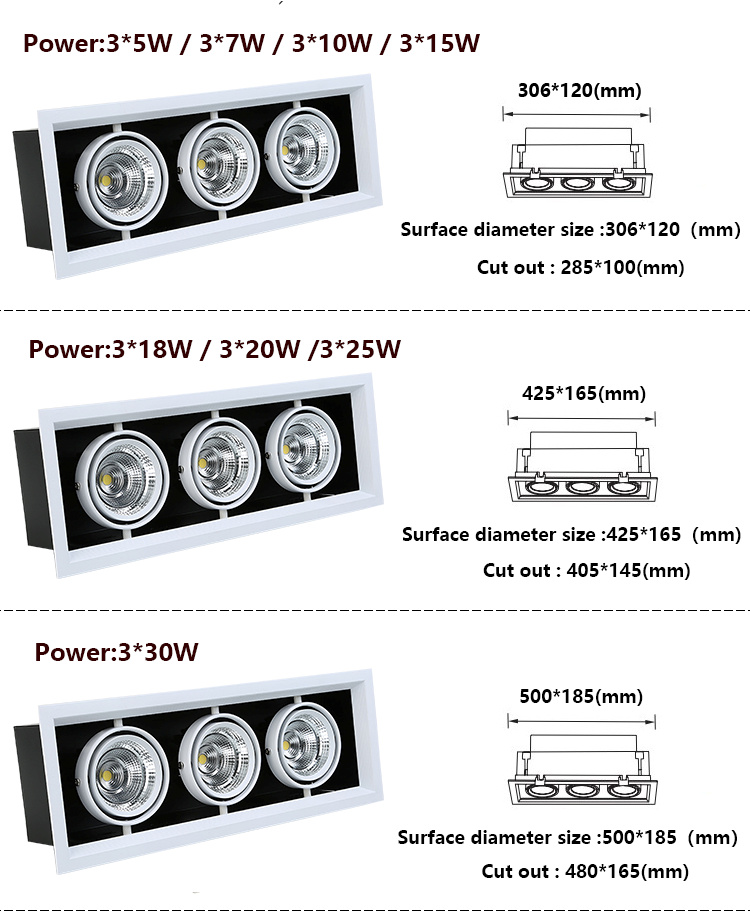

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL01-3*5W |
3*5W |
306*120 |
285*100 |
2700K
|
|
FT-GL01-3*7W |
3*7W |
306*120 |
285*100 |
|
|
FT-GL01-3*10W |
3*10W |
306*120 |
285*100 |
|
|
FT-GL01-3*15W |
3*15W |
306*120 |
285*100 |
|
|
FT-GL01-3*20W |
3*20W |
425*165 |
405*145 |
|
|
FT-GL01-3*25W |
3*25W |
425*165 |
405*145 |
|
|
FT-GL01-3*30W |
3*30W |
500*185 |
480*165 |
Premium Multi-Head LED Grid Light System - Modern Design with Unmatched Versatility
Next-Generation Lighting Solution for Commercial & Residential Spaces
Introducing our advanced LED grid lighting system that redefines modern illumination. Engineered with three integrated LED heads in a single sleek aluminum housing, this innovative fixture delivers superior light coverage while dramatically reducing installation complexity. Perfect for offices, retail environments, and industrial applications, our grid light combines cutting-edge design with exceptional functionality to meet the most demanding lighting requirements.
Revolutionary Features & Benefits
1. Three-Head Integrated Design - Installation Made Simple
· Single-unit construction eliminates multiple cutouts - installs as easily as standard panel lights
· Contemporary square profile blends seamlessly with modern architectural styles
· Significant cost savings - up to 60% reduction in labor compared to installing individual fixtures
· Clean, unified appearance - no more cluttered ceiling layouts
2. High-Efficiency Power Options (3×5W to 3×30W)
Tailor brightness to any setting:
·3×5W–3×10W: Soft accent lighting (lobbies, hallways, decorative use)
·3×15W–3×20W: Balanced general lighting (offices, retail, conference rooms)
·3×25W–3×30W: High-intensity output (warehouses, gyms, industrial spaces)

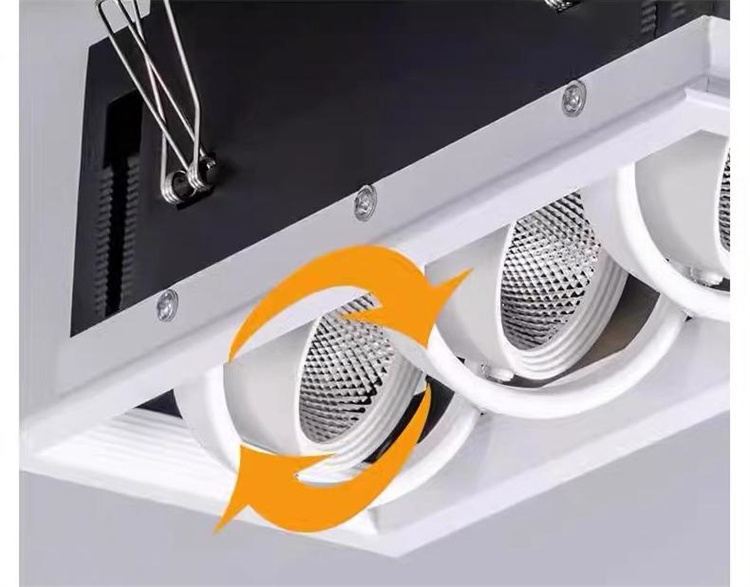

3. Precision 180° Adjustable Heads
·Independent adjust of all three light heads
·Eliminate shadows by directing light precisely where needed
·Create dynamic lighting scenes - perfect for retail displays or task areas
4. Customizable Color Temperature
Match lighting to your space’s purpose:
·2700K–3500K: Warm & inviting (restaurants, hotels, homes)
·4000K–5000K: Bright & energizing (offices, clinics, classrooms)
·6000K: Daylight clarity (warehouses, labs, garages)
5.Two Beam Angle Options
·15° Spot Beam: Focused light for displays & workstations
·24° Flood Beam: Wide, even coverage for general areas

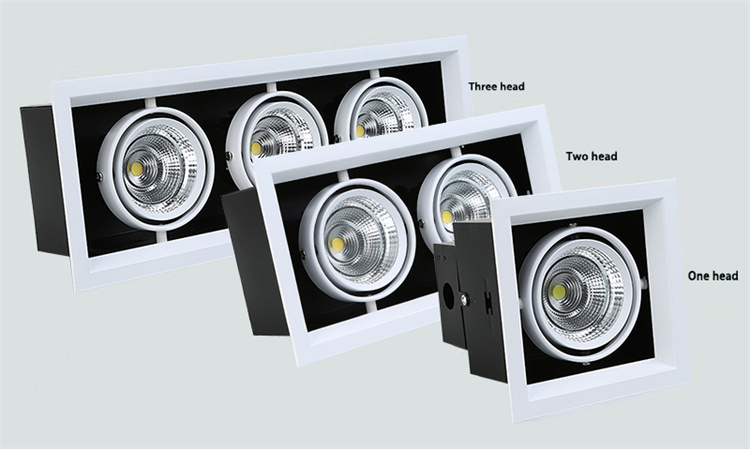

6. Modular Configurations
Choose the right setup for your needs:
·Single-head: Task lighting
·Double-head: Balanced mid-area coverage
·Three-head (flagship): Maximum brightness & flexibility
Technical Excellence
·Material: High-grade aluminum + tempered glass diffuser
·Voltage: 100-277V (universal compatibility)
·CRI ≥90 – True-to-life color accuracy
·Certifications: CE, RoHS, SAA, LVD, EMC, ISO9001
·Warranty: 5-year coverage

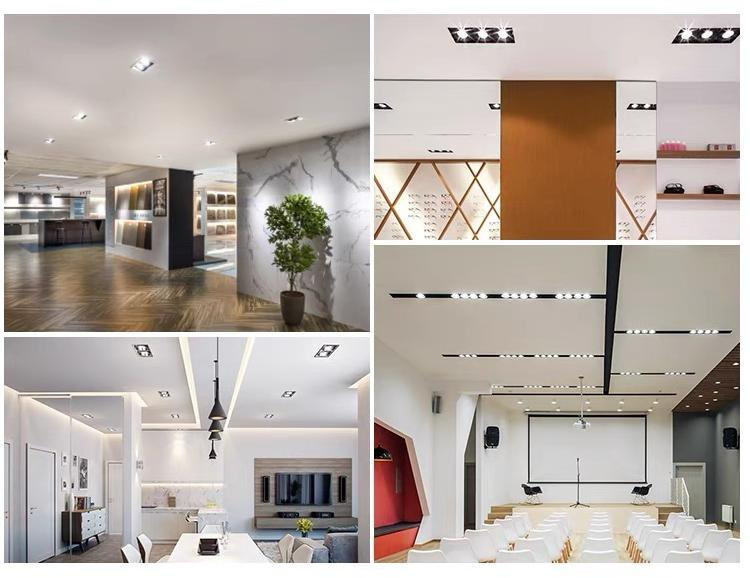

Ideal Applications
· Corporate Spaces: Boardrooms, open offices, reception areas
· Retail Environments: Boutiques, showrooms, gallery lighting
· Hospitality: Hotel lobbies, restaurants, lounge areas
· Industrial: Warehouses, factories, workshops
· Healthcare: Clinics, laboratories, examination rooms

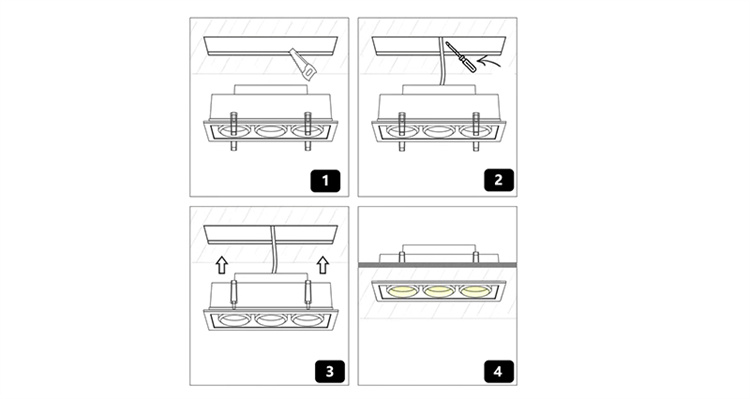

How To Install Quickly

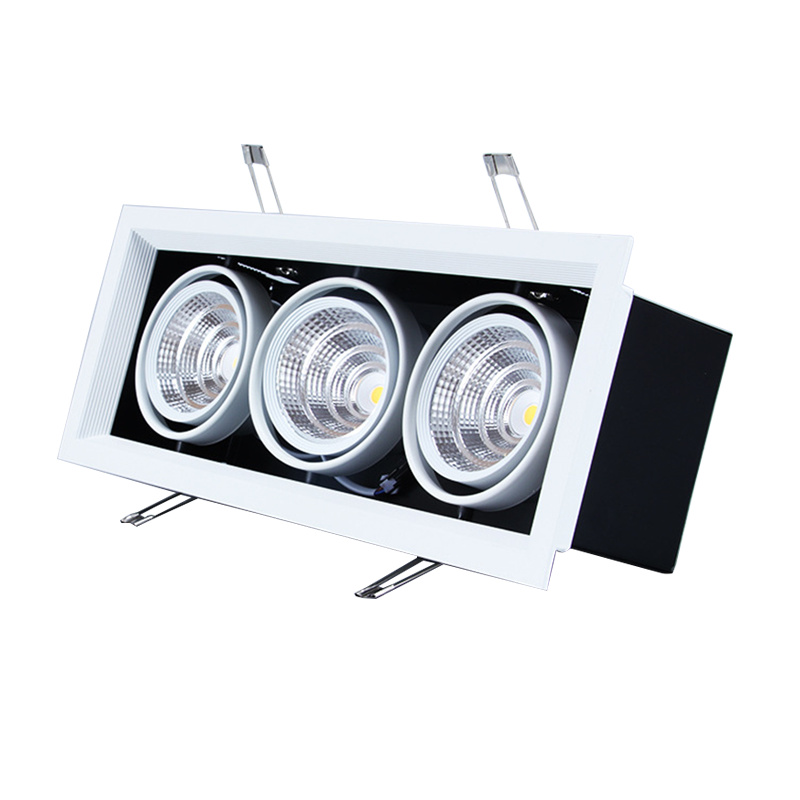

Installation of Light with springs:
The instalation method can be instaed according to the installation diagramoftheluminaire.The instalation position ofthe luminaire is selected by theembedded installation, and the hanging parts,cables,instalation tools, etc.required forinstallation are prepared. The luminaires are led out according to relevantspecifications, and the luminalres are hanged by hanging parts,etc,The back cover is pre-selected and properly hung or embedded to the pre-selected position.
1.Cut a ceiling opening to match the fixture dimensions
2.Connect the fixture's wiring to the building's power supply
3.Align the spring clips vertically and insert the fixture into the opening
4.Release the spring locks once properly seated, then restore power
The front-end power supply must be cut off during installation. The power supply must be cut off when repairing or replacing parts.

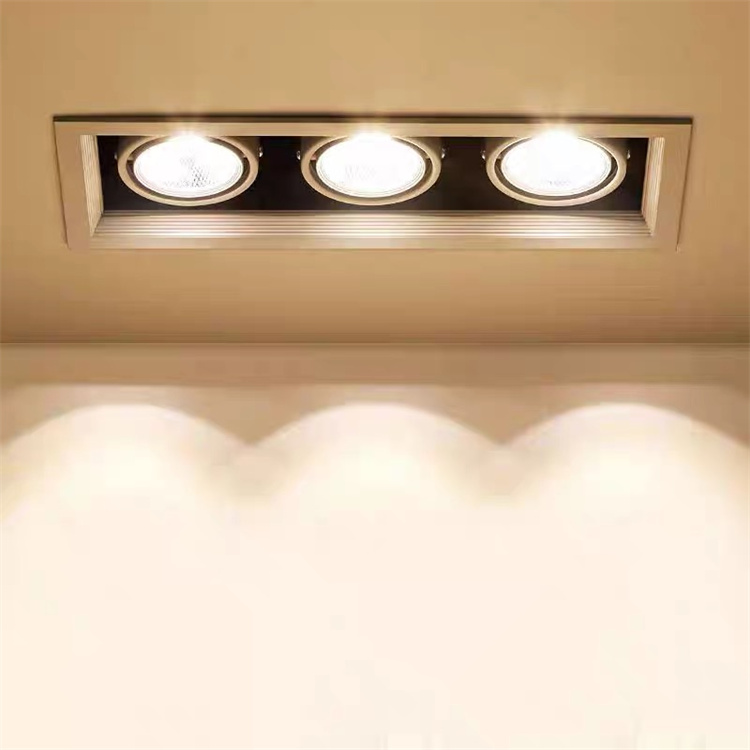

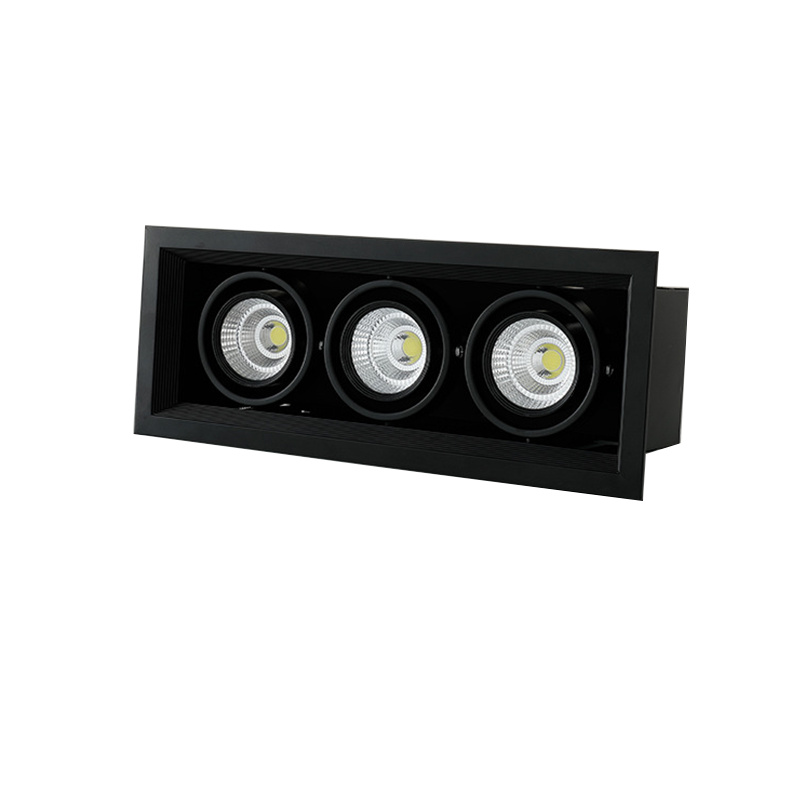

Three-Head Recessed Square Grille Light – Precision Lighting, Perfected
Take full command of your lighting with our innovative triple-head recessed grille light, featuring independently adjustable heads that rotate 355° for exact illumination. Built for commercial and architectural excellence, this system combines focused task lighting and ambient versatility in one sleek, high-performance design.

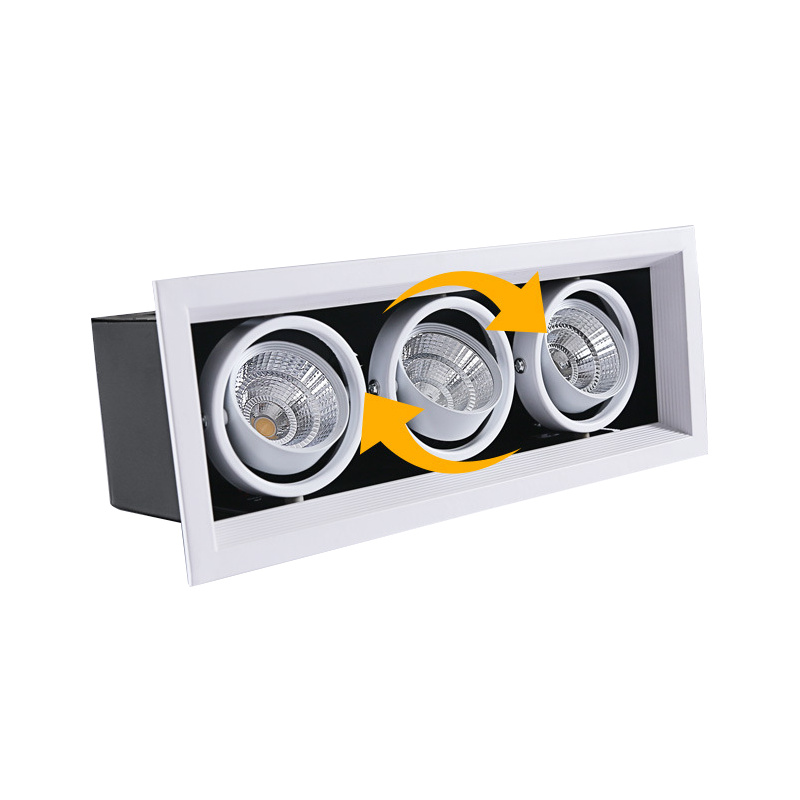

Full-Range Adjustable Heads
✔ Tool-free 355° rotation – Infinite positioning flexibility
✔ Three precision 15W LED heads – Smooth, effortless adjustment
✔ Magnetic retention system – Stays perfectly aligned
Professional Lighting Effects
✔ Dual-beam options (15° spot / 24° medium) – One fixture, multiple uses
✔ Wall-wash, accent, or general light – No need to swap fixtures
✔ 90+ CRI – Vibrant, true-color illumination for retail & galleries
Built to Perform
✔ Aerospace-grade aluminum – Durable, long-lasting construction
✔ 50,000-hour LED lifespan – Minimal maintenance required

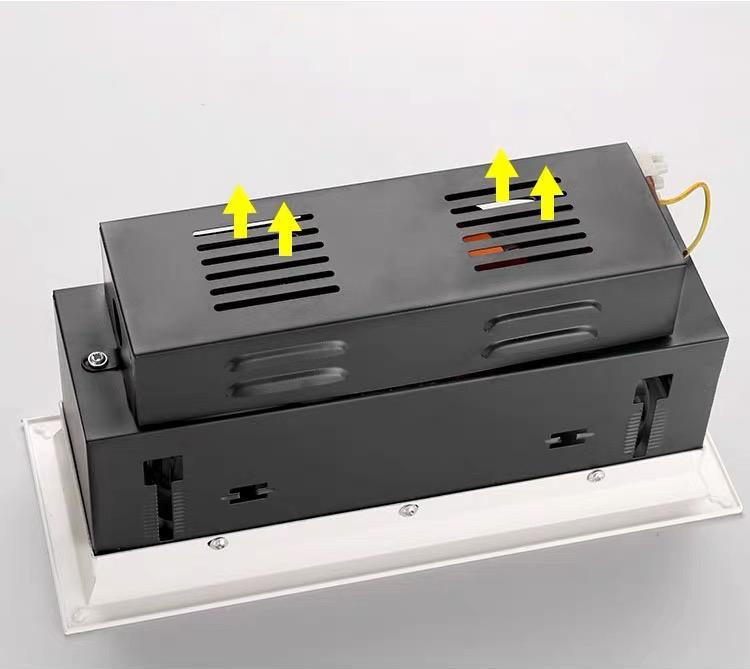

✔ Advanced thermal control – Runs cool (<60°C) for reliability
Smart Applications
Smart Applications
◼ Retail – Multi-angle product highlighting
◼ Museums – Adapt to rotating exhibits
◼ Offices – Direct light where it’s needed
◼ Hotels – Dynamic lobby atmospheres
Technical Advantages
Technical Advantages
✓ 100-277V universal voltage – Works anywhere
✓ DALI dimming (optional) – Seamless smart integration
✓ Tool-less maintenance – Quick, hassle-free access
Why Professionals Trust This Light
Why Professionals Trust This Light
→ 70% fewer fixtures vs. fixed alternatives
→ 30-second adjustments for layout changes
→ 5-year commercial warranty – Guaranteed reliability
Certifications: CE, RoHS, SAA
