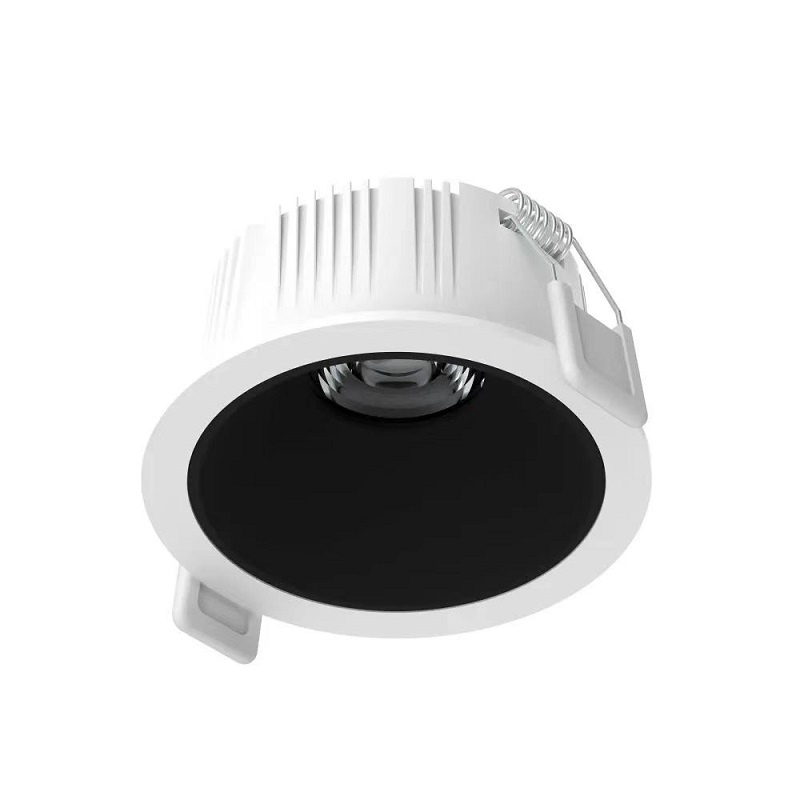

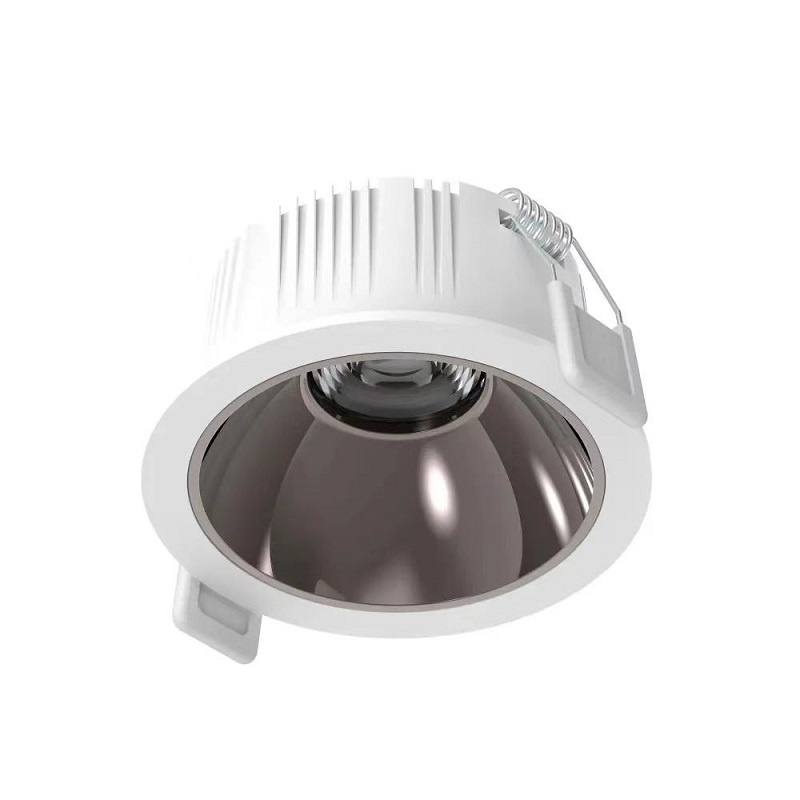

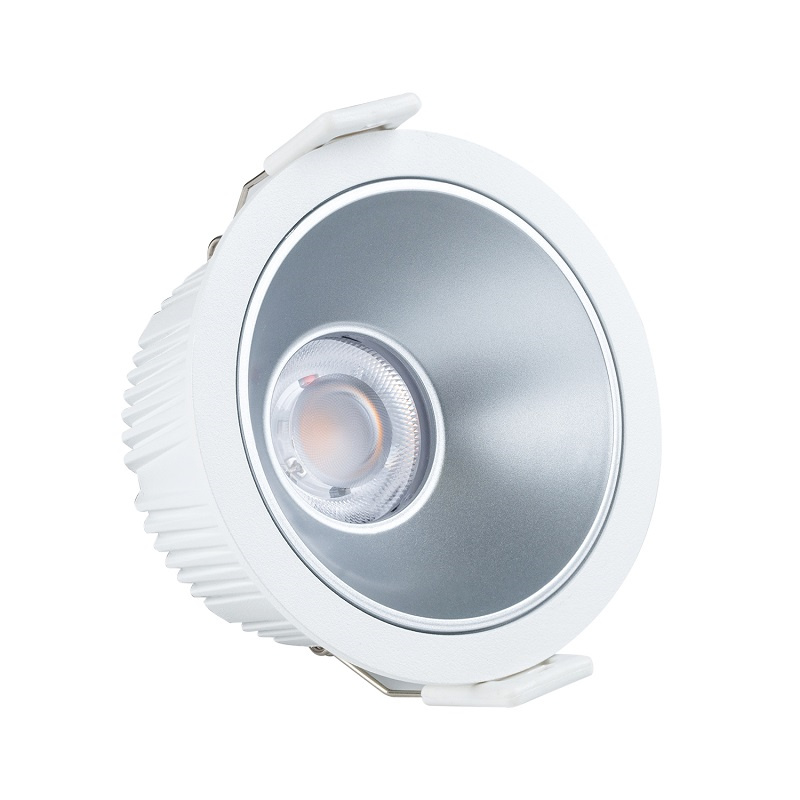

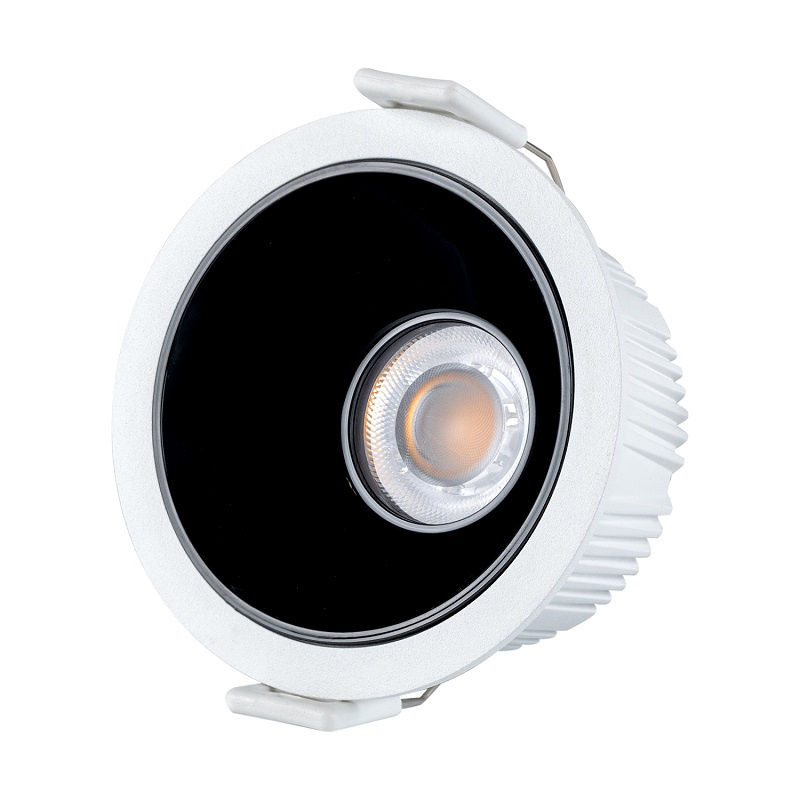

Ceiling Recessed Down Light Fixture LED lighting Manufacturer FT-DLT10
Features:
● High Power Factor (PF >0.9)–Optimizes energy usage
● Multiple Color Temperatures– 2700K-6000K options
● ECO-Friendly–Mercury-free and recyclable
● Low UV/IR Emission–Safe for sensitive environments
● Corrosion-Resistant–Suitable for humid or coastal areas
● Warranty Protection–5 years warranty for peace of mind
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 5-20W：0.5 ; 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led COB Recessed Downlight |
| Power | 5W/7W/9W/10W/12W/15W/20W/25W/30W/40W/45W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 15/24/36/60° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 55/75/80/95/120/145/160/200mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 5W-20W: 0.5 ; 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

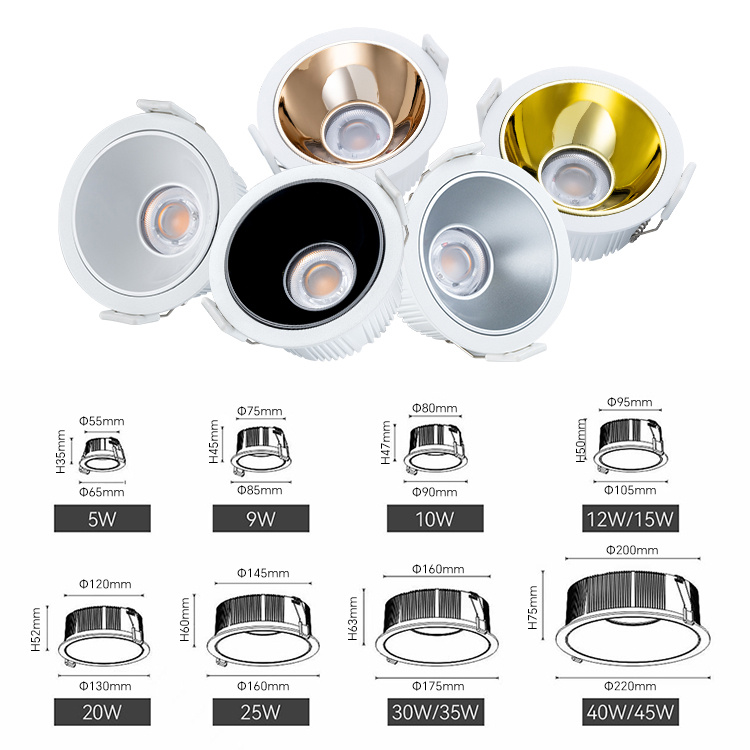

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-DLT10-5W |
5W |
D60*H35 |
¢55 |
2700K
|
|
FT-DLT10-7W |
7W |
D85*H45 |
¢75 |
|
|
FT-DLT10-9W |
9W |
D85*H45 |
¢75 |
|
|
FT-DLT10-10W |
10W |
D90*H47 |
¢80 |
|
|
FT-DLT10-12W |
12W |
D105*H50 |
¢95 |
|
|
FT-DLT10-15W |
15W |
D105*H50 |
¢95 |
|
|
FT-DLT10-20W |
20W |
D130*H52 |
¢120 |
|
|
FT-DLT10-25W |
25W |
D160*H60 |
¢145 |
|
|
FT-DLT10-30W |
30W |
D175*H63 |
¢160 |
|
|
FT-DLT10-35W |
35W |
D175*H63 |
¢160 |
|
|
FT-DLT10-40W |
40W |
D220*H75 |
¢200 |
|
|
FT-DLT10-45W |
45W |
D220*H75 |
¢200 |

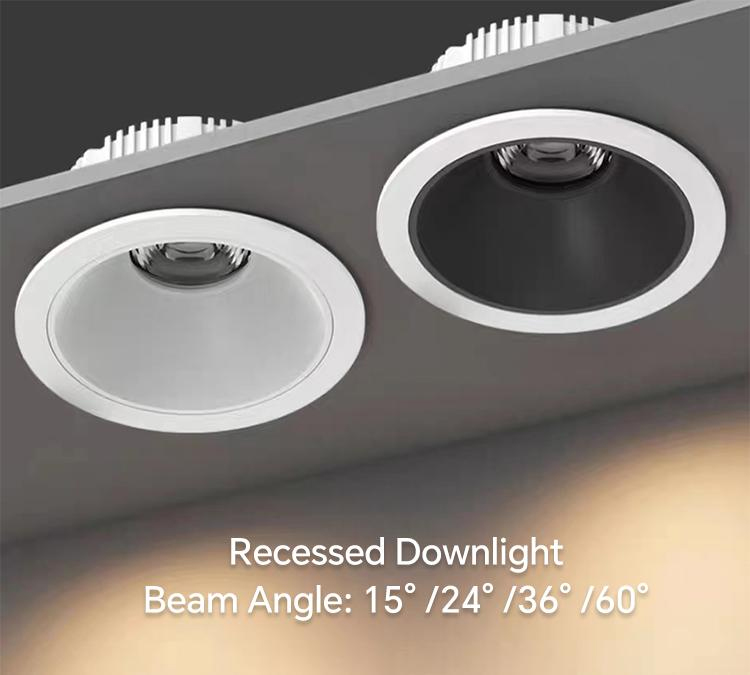

Multi-Beam Angle Recessed Downlight
Precision Beam Control Options
Available Beam Angles:
• 15° (Ultra-Narrow Spot) - Pinpoint accent lighting
• 24° (Narrow Flood) - Focused object highlighting
• 36° (Medium Flood) - Balanced task lighting
• 60° (Wide Flood) - Generous area illumination

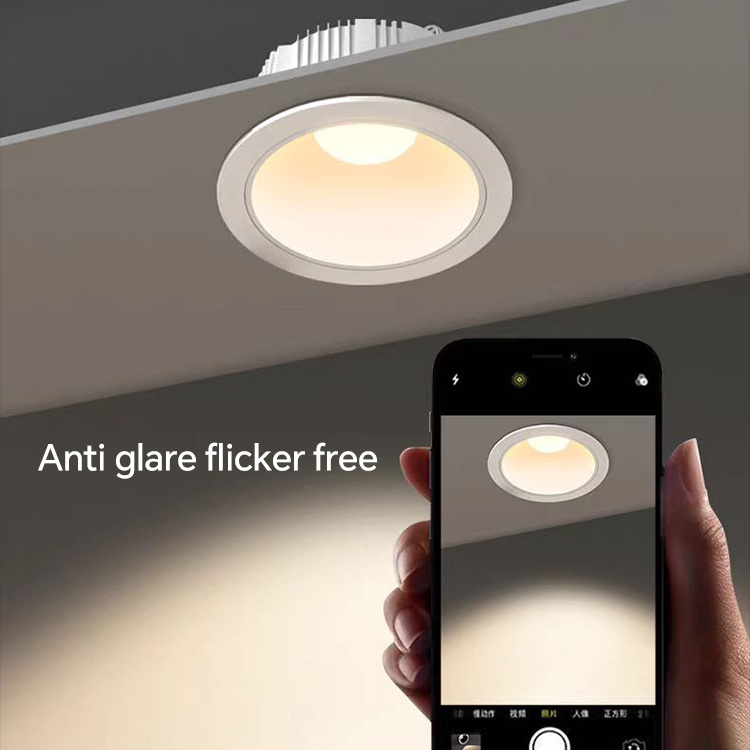

Flicker-Free LED Downlight – Eye Comfort Technology
Key Benefits:
•100% Flicker-Free Operation - Advanced driver technology eliminates harmful light fluctuations
•Reduces Eye Fatigue - Stable light output prevents strain during prolonged use
•Headache-Free Environment - Ideal for sensitive individuals and extended exposure areas

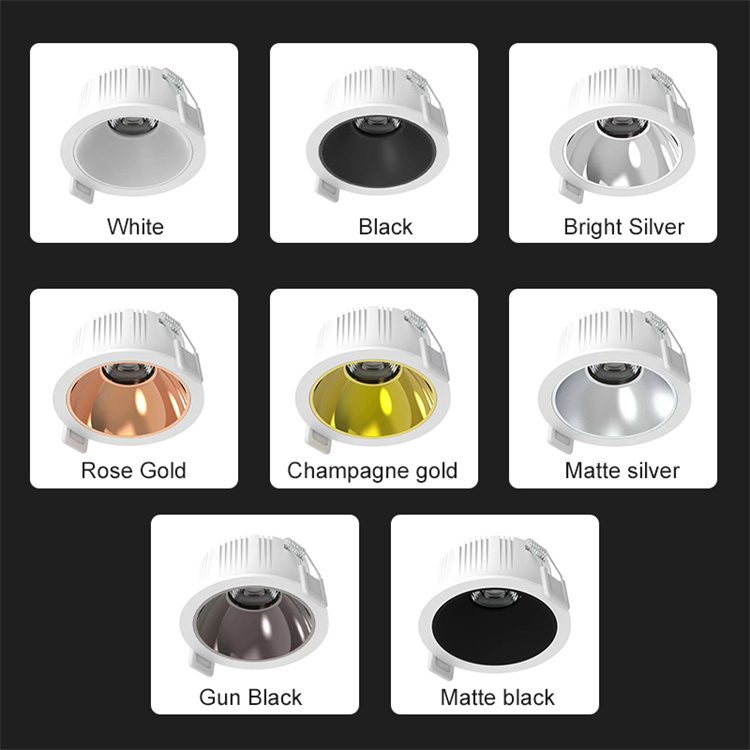

Multi-Color Reflector Options for Downlights
Available Reflector Finishes:
Black – Modern & Anti-Glare
Reduces light spill for focused beams
Ideal for accent lighting & contemporary interiors
White – Neutral & Bright
Blends seamlessly with ceilings
Perfect for general lighting in homes & offices
Silver – High-Reflective & Crisp
Maximizes light output efficiency
Best for retail displays & task lighting
Gold – Warm & Luxurious
Enhances warm white tones (2700K-3000K)
Creates inviting ambiance in hotels & restaurants
Rose Gold – Elegant & Trendy
Soft metallic finish for decorative lighting
Popular in high-end residences & boutiques
Available Wattages & Recommended Uses
Full Wattage Range:
5W | 9W | 10W | 12W | 15W | 20W | 25W | 35W | 40W | 45W
(Complete selection from subtle accent lighting to powerful illumination)
Smart Dimming & Tunable White Technology
Advanced Dimming Compatibility
• Universal wall dimmer support (Triac)
• Professional 0-10V dimming for commercial applications
• DALI-2 & DT8 compliant for intelligent lighting networks
Full-Spectrum White Tuning (2700K-6000K)
• Seamless warm-to-cool white adjustment
• Precise CCT control (±50K accuracy)
• Preset lighting scenes for different moods
Smart Control Integration
• Wireless protocols: Bluetooth Mesh / WiFi / Zigbee 3.0
• Wired professional systems: DALI DT8 certified

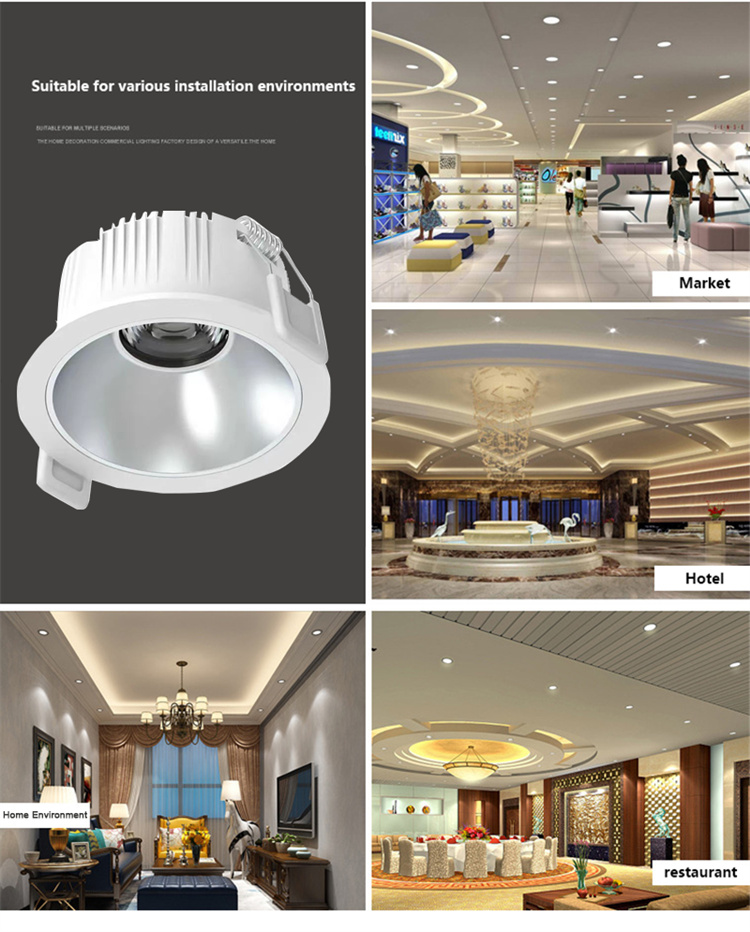

Application
Perfect for home, market, hotel, restaurant etc.
Ultra-Adaptable Recessed Downlight: Precision Optics Meets Design Versatility
Engineered for architectural lighting perfection, this LED downlight delivers unprecedented flexibility with four precision-engineered beam angles (15°/24°/36°/60°) and five premium trim finishes (White/Black/Bright Silver/Rose Gold/Champagne Gold). This dual-customization system empowers designers to create targeted illumination scenarios while seamlessly integrating with diverse interior aesthetics.
Beam Angle Advantages:
● 15° Spotlighting: Creates dramatic accent lighting for artwork, sculptures, or retail displays with intense center focus (85% higher center-beam candlepower than standard 30° fixtures).
● 24° Wall Washing: Delivers uniform vertical illumination ideal for textured surfaces in galleries or hotel lobbies (≤10% intensity variance across 3m height).
● 36° Task Lighting: Optimized for kitchen islands, retail counters, and office workstations with 50% wider dispersion than narrow beams.
● 60° Ambient Flood: Provides spacious, shadow-free coverage in corridors, classrooms, and residential spaces (up to 25% fewer fixtures required vs. 40° options).
Design-Forward Trim Options:
Each color-matched trim features anti-glare baffles:
● Bright Silver: Sleek contemporary finish for commercial spaces
● Champagne Gold: Warm metallic accent for luxury hospitality
● Rose Gold: Trendsetting tone for boutique retail
● Matte White/Black: Universal solutions for minimalist ceilings
Technical Superiority:
● True Color Rendering: 90+ CRI ensures authentic material/texture visualization
● Glare Control: Deep-recessed optics (UGR<19)
● Thermal Management: Die-cast aluminum heat sink enables 50,000-hour lifespan at 105lm/W efficacy
Application-Specific Solutions:
1. Retail: Combine 15° Champagne Gold trims for jewelry cases + 36° Rose Gold for fitting rooms
2. Restaurants: Use 24° Black trims for intimate booth lighting + 60° White for perimeter ambience
3. Museums: 15° Bright Silver accents for vitrines with 100% UV-free output
4. Residential: Mix 36° White trims (kitchens) with 60° Matte Black (media rooms)
Includes 0-10V dimming compatibility, and 5-year warranty. Specify angles/colors during ordering for project-specific bundles.
