01
China Factory Led Lights Recessed Ceiling 120 Degrees Slim Downlights FT-DLT06
Features:
● 120° Ultra-Wide Beam Angle
● Excellent Color Rendering (CRI >80 / >90)
● Flicker-Free & Glare-Reduced Lighting
● Wide Voltage Compatibility (AC 100-277V)
● Energy-Saving & Long Lifespan (50,000+ Hours)
● High-Quality Polycarbonate (PC) Optical Cover
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 5-20W：0.5 ; 25W-35W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Recessed Downlight |
| Power | 5W/7W/9W/12W/15W/20W/25W/30W/35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White |
| Beam angle | 120° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 70/90/120/140/160/200/230 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 5W-20W: 0.5 ; 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

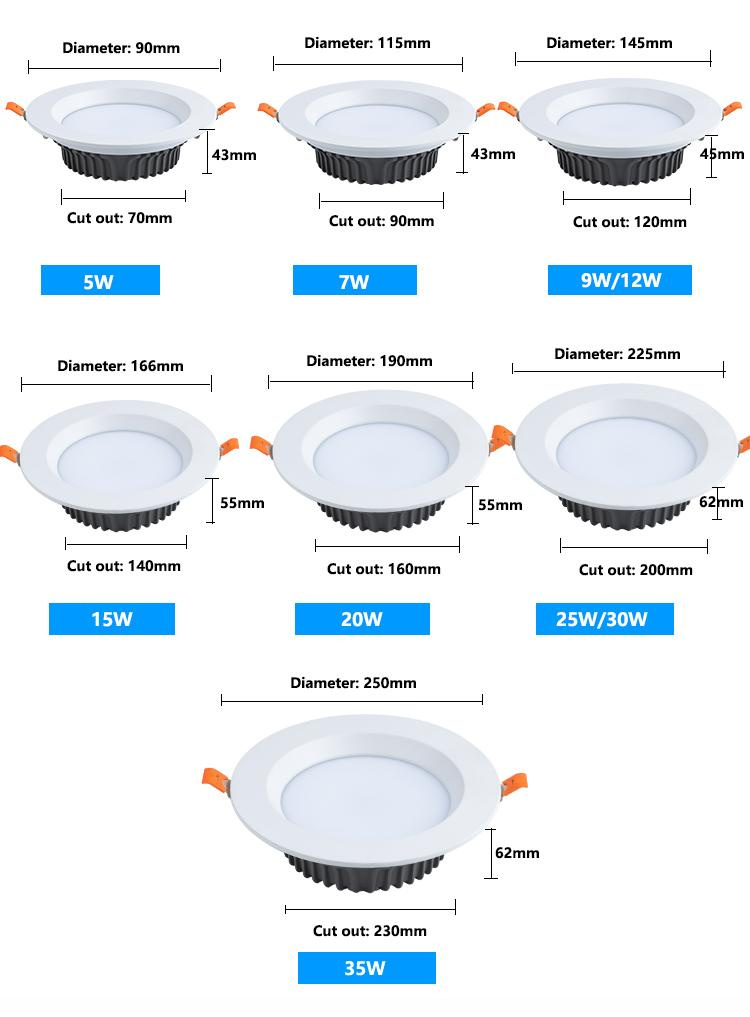

Model No. |
Watts |
Size(mm) |
Cut Out |
Beam Angle |
LED Color |
|
FT-DLT06-5W |
5W |
D90*H43 |
75*75mm |
120° |
2700K
|
|
FT-DLT06-7W |
7W |
D115*H43 |
75*75mm |
120° |
|
|
FT-DLT06-9W |
9W |
D145*H45 |
95*95mm |
120° |
|
|
FT-DLT06-12W |
12W |
D145*H45 |
125*125mm |
120° |
|
|
FT-DLT06-15W |
15W |
D166*H55 |
125*125mm |
120° |
|
|
FT-DLT06-20W |
20W |
D190*H55 |
145*145mm |
120° |
|
|
FT-DLT06-25W |
25W |
D225*H62 |
145*145mm |
120° |
|
|
FT-DLT06-30W |
30W |
D225*H62 |
165*165mm |
120° |
|
|
FT-DLT06-35W |
35W |
D250*H62 |
165*165mm |
120° |
Ultra-thin downlight
With a slim profile of just 43mm, this ultra-low-profile downlight is perfectly suited for rooms with low ceilings or limited vertical space, offering seamless integration without compromising illumination quality.

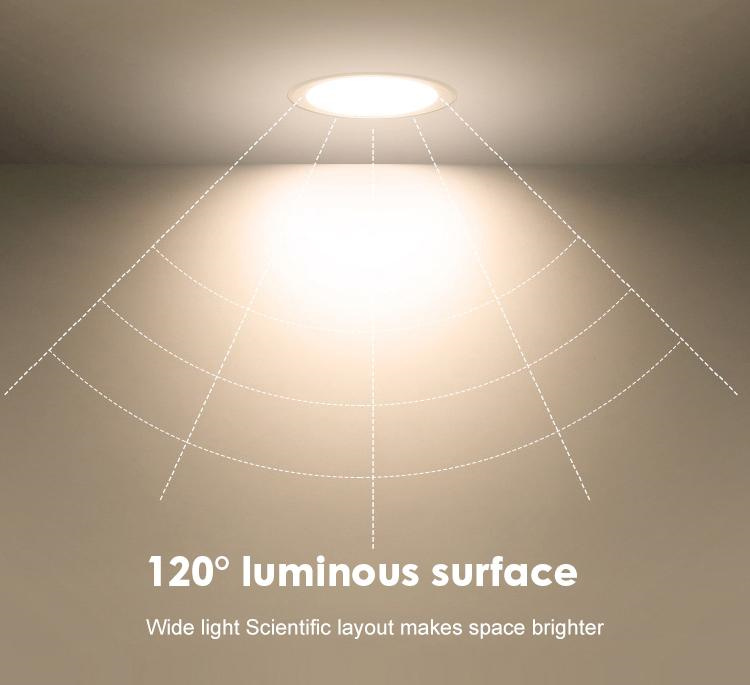

Beam Angle: 120° (Ultra-Wide Flood)
This downlight features a 120° beam angle, delivering wide, uniform illumination ideal for broad coverage and ambient lighting.
Key Characteristics:
· Expansive Coverage – The ultra-wide beam provides soft, diffused light with gentle edge blending, perfect for lighting up large areas evenly.
· Perfect for Ambient Lighting – Ideal for general illumination in living rooms, hallways, or kitchens, as well as ceiling cove lighting where seamless brightness is desired.
· Optimal Mounting Height – For best results, install at ≤2.8m (9.2 ft). Higher placements may reduce floor-level brightness.

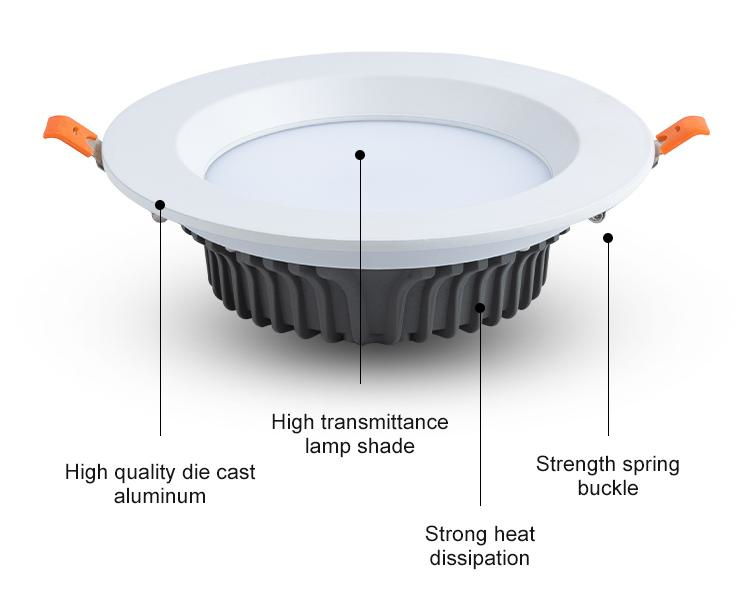

High Quality Material
Premium Build Quality
·Heavy-Duty Die-Cast Aluminum Housing – Ensures superior heat dissipation, extending LED lifespan and maintaining optimal performance.
·High Quality PC Lens – High light transmittance for minimal glare & maximum brightness output.
·Robust Spring Clips – Tool-free, quick & secure installation with a firm grip on various ceiling types.

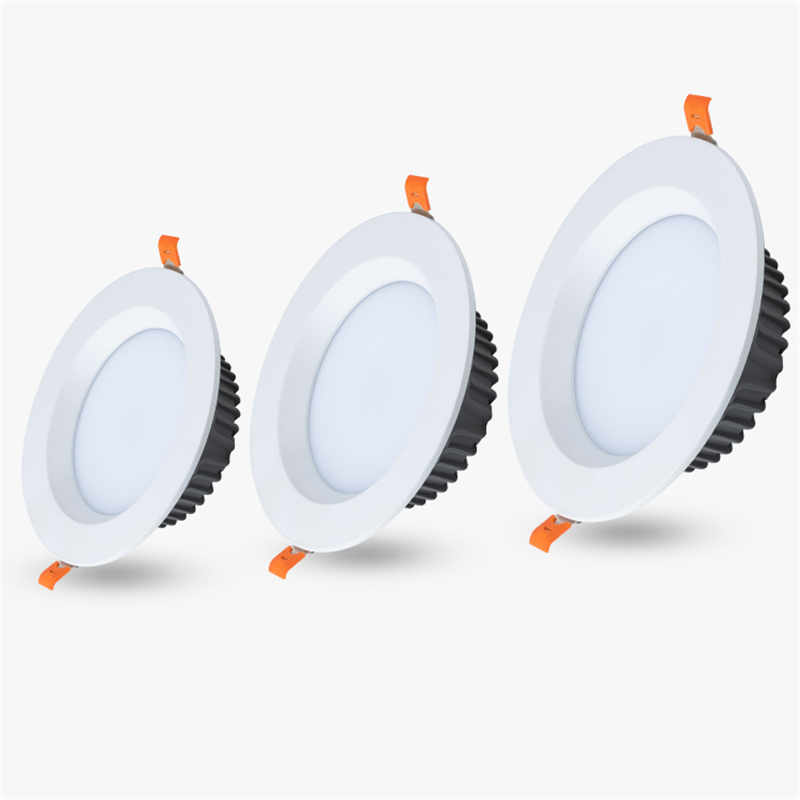

Available Wattages & Recommended Uses
Full Wattage Range:
5W | 7W | 9W | 12W | 15W | 20W | 25W | 30W | 35W
(Complete selection from subtle accent lighting to powerful illumination)
Flexible Dimming & Color Control
Dimming Options:
·Works with standard wall dimmers (Triac)
·Compatible with professional 0-10V dimming systems
·Supports smart DALI lighting networks
Adjustable White Light (2700K–6000K):
Wireless Control: Compatible with major smart systems (Bluetooth /WiFi /Zigbee)
Wired Professional Control: Meets DALI DT8 standard

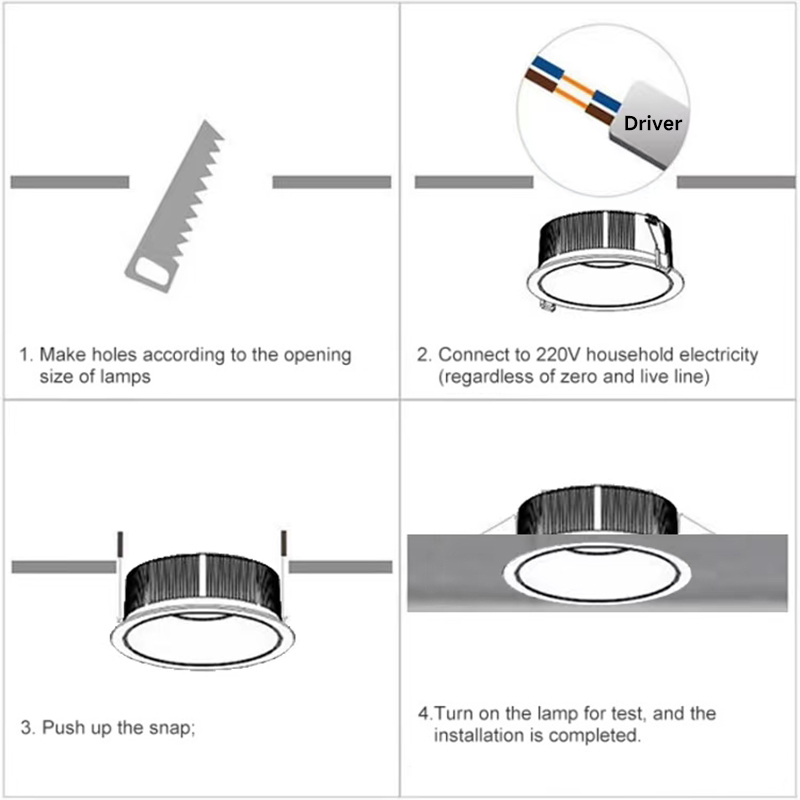

Easy to install
1. Prepare the Mounting Hole – Make holes according to the openingsize of lamps
2. Electrical Connection – Connect to 110/220V household electricity(regardless of zero and live line)
3. Secure the Fixture – Align and press upward until the spring clips fully engage with the ceiling/wall surface.
4. Final Verification – Power on to confirm proper operation before final use.
Safety Tip: Always ensure the circuit is de-energized during installation.

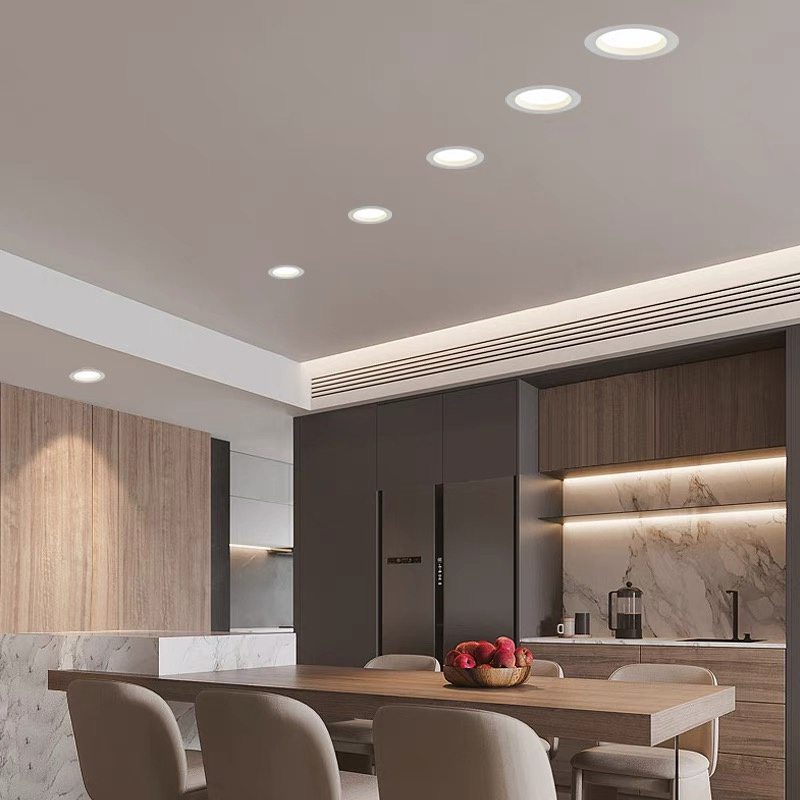

Application
Wattage Guide by Application:
Low Wattage Solutions (5W-9W):
Perfect for:
Accent lighting in display cabinets
Night lighting in hallways and staircases
Mood lighting in restaurants and lounges
Benefits: Energy-efficient operation with soft illumination
Mid-Range Lighting (12W-20W)：
General office lighting
Retail store ambient lighting
Residential kitchen task lighting
Advantages: Balanced brightness with excellent energy savings
High Power Options (25W-35W):
Large conference rooms
High-ceiling commercial spaces
Warehouse and industrial areas
Elevate Your Space with Our Embedded Round Downlight
Discover the perfect blend of functionality and aesthetics with our Embedded Round Downlight. Designed for seamless integration, this downlight features a sleek, minimalist design that complements any decor, from modern to traditional.
The milky white diffuser not only adds a touch of elegance but also ensures soft, glare-free illumination, creating a cozy and inviting atmosphere in any room. With a wide 120° beam angle, it provides even and expansive lighting coverage, making it ideal for general lighting, accent lighting, and task lighting applications.
Measuring at a height of just 62mm, this ultra-thin downlight is perfect for installations where space is limited. Its low-profile design allows for easy installation in ceilings, walls, and other surfaces, without sacrificing performance or style.
Crafted from high-quality materials, our downlight is built to last. It is energy-efficient, long-lasting, and maintenance-free, making it a cost-effective lighting solution for your home or business. Whether you're looking to upgrade your existing lighting or create a new lighting design, our Embedded Round Downlight is the perfect choice.
Invest in quality lighting today and transform your space with our Embedded Round Downlight.
