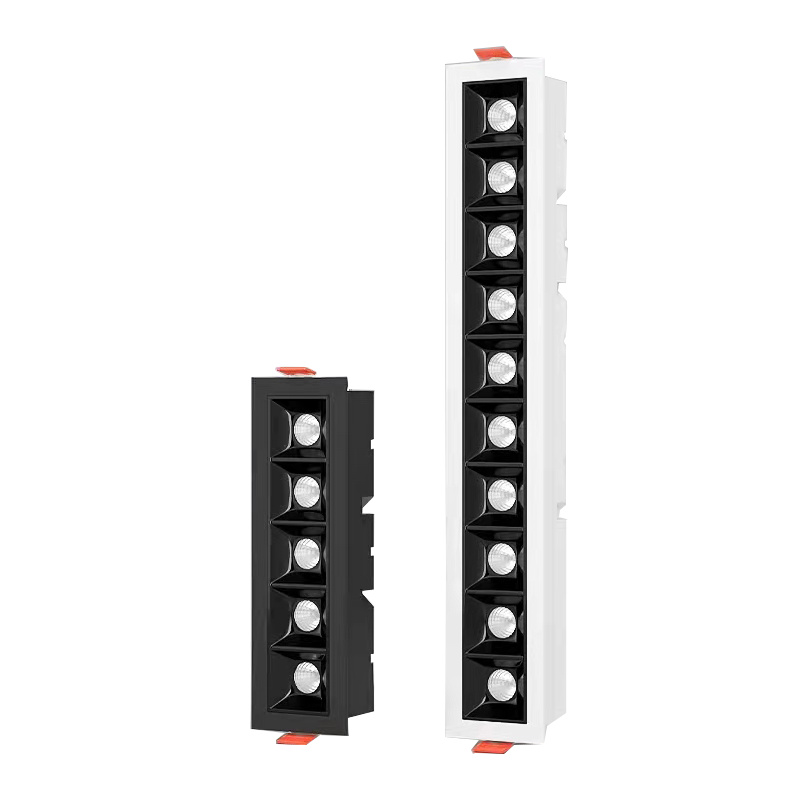

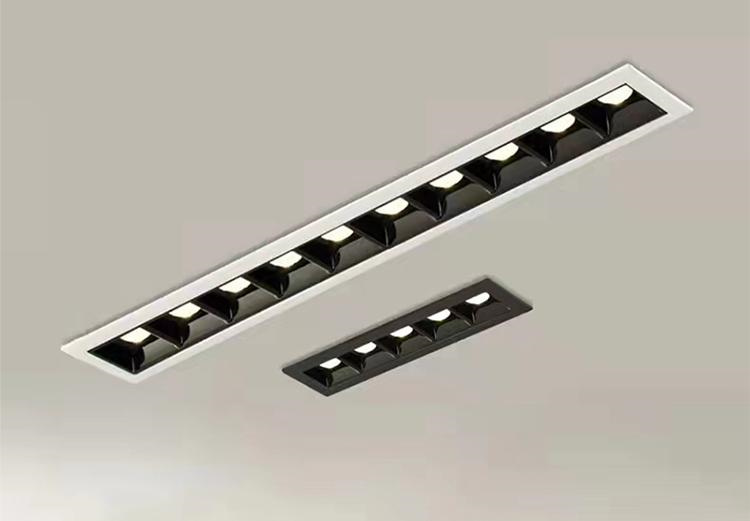

China Factory Modern Commercial Recessed Led Linear Cob Lighting FT-LL2F1
Features:
● Light source: OSRAM LED
● Long LED life: More than 50,000 hours
● Low heat, less than 60°C
● No mercury or other inorganic
● Homogeneous flood illumination
● 5 years limited warranty
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 0.95
- Driver LIFUD / Boke Optional
- LED source San’an
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Model | FT-LL2F1 |
| Normal Voltage | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| Power | 10W/20W/30W |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Dimension(mm) | L148*W46*H37.5mm/L280*W46*H37.5mm/L414*W46*H37.5mm |
| Cut out(mm) | L145*W35mm/L275*W35mm/L410*W35mm |
| Lumens (lm)±10% | 80/85/90/95/100/110lm/w Can Be Customized |
| LED chip | Osram |
| CRI | 80/90/95 |
| CCT | Warm White(2700K/3000K/3500K) / Natural white(4000K)/ Cool White(5000K/6000K) |
| Shell color | white and Black for option |
| Beam Angle | 30° |
| Lamp Body Material | Aluminum |
| Lifespan | 50000hours |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Certificate | SAA/CE/EMC/LVD/ROHS(Whole lamp);Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Warranty | 5 years |
|
Model |
Power |
Cut out |
Beam Angle |
CCT |
|
FT-LL2F1-10W |
10W |
L145*W35mm |
30° |
Warm White (2700K/3000K/3500K) |
|
FT-LL2F1-20W |
20W |
L275*W35mm |
30° |
|
|
FT-LL2F1-30W |
30W |
L410*W35mm |
30° |
The advantages of the product

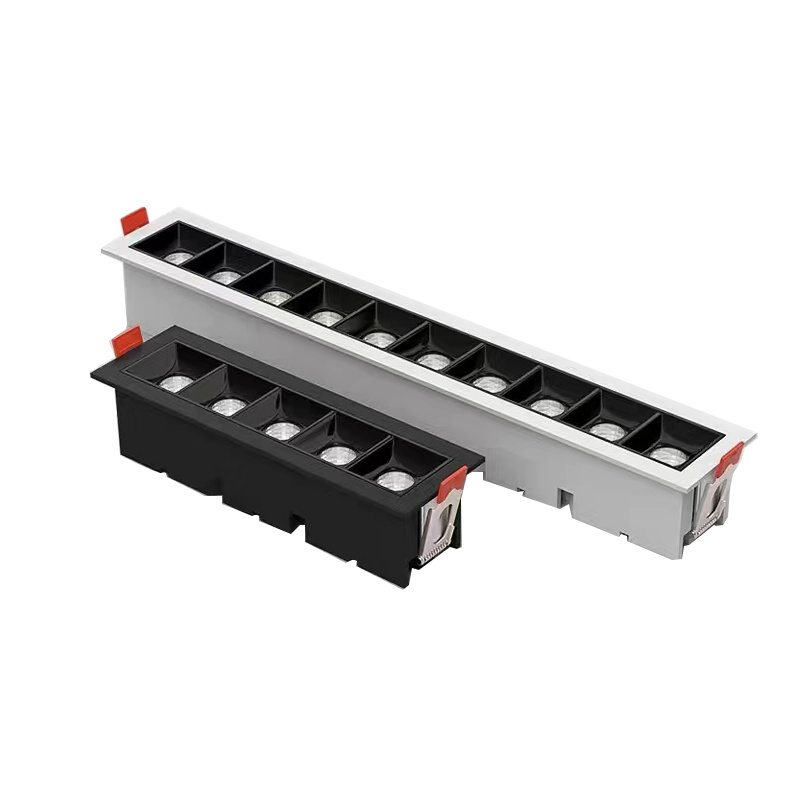

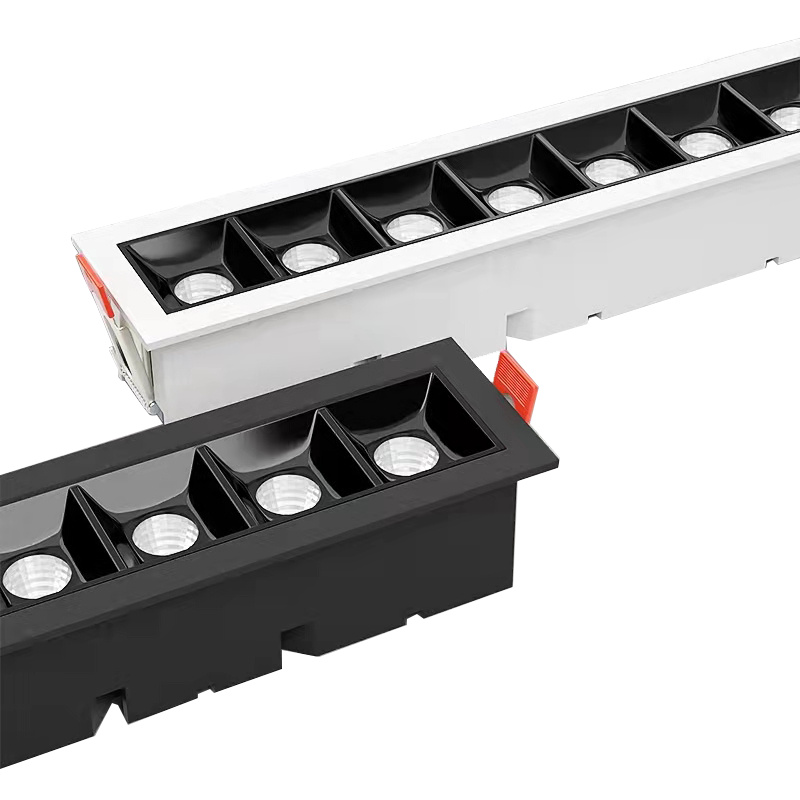

This linear light is embedded, with a simple appearance that blends seamlessly with the ceiling, making it suitable for spaces with relatively low ceilings

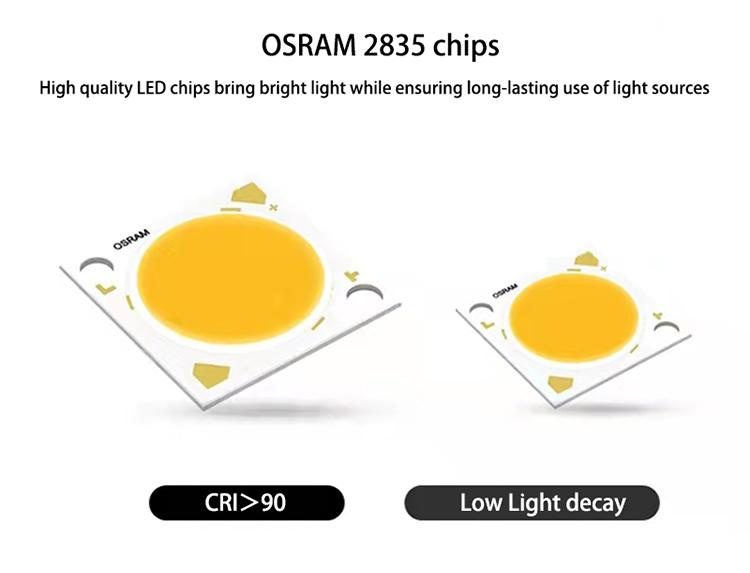

This embeded linear light use high quality LED chips :Osram 2835 chips ,CRI＞90，bring bright light while ensuring long-lasting use of light sources.

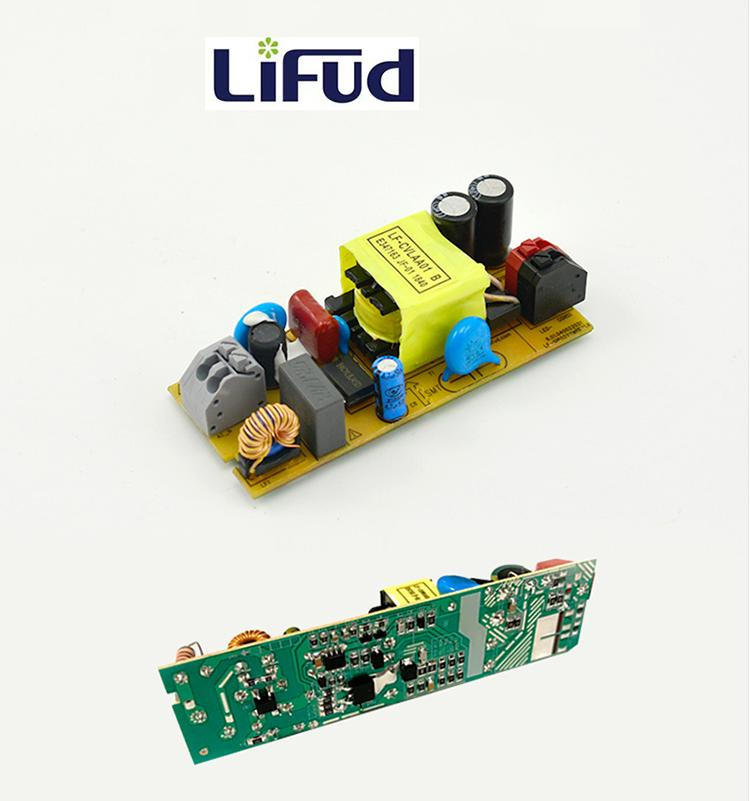

Driver: Adopting Lifud flicker free driver, the light source is more stable and protects the eyes.

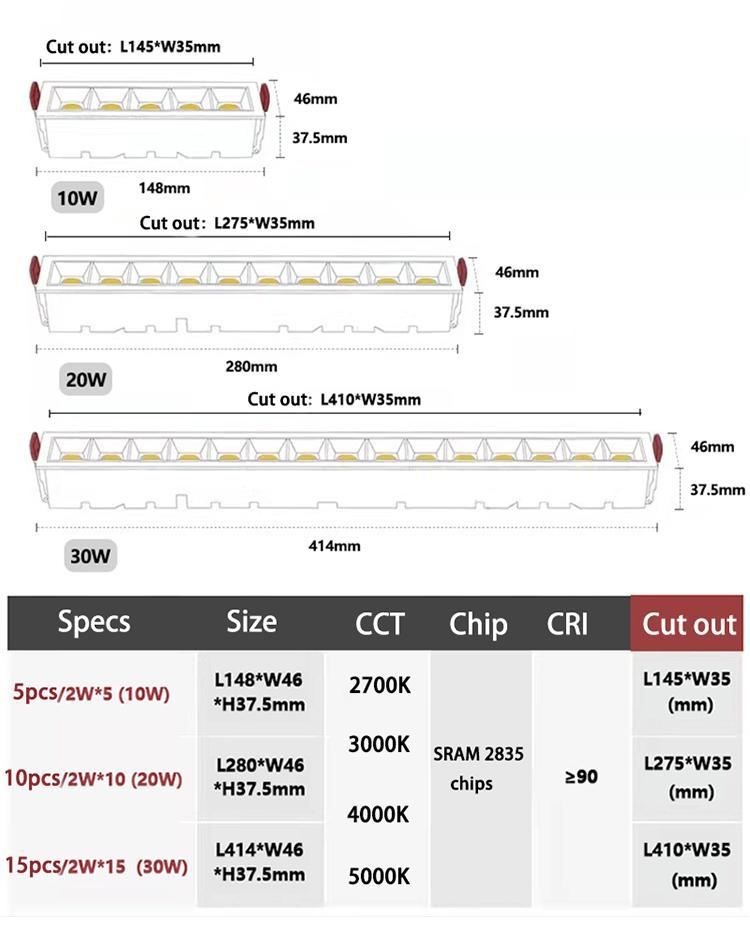

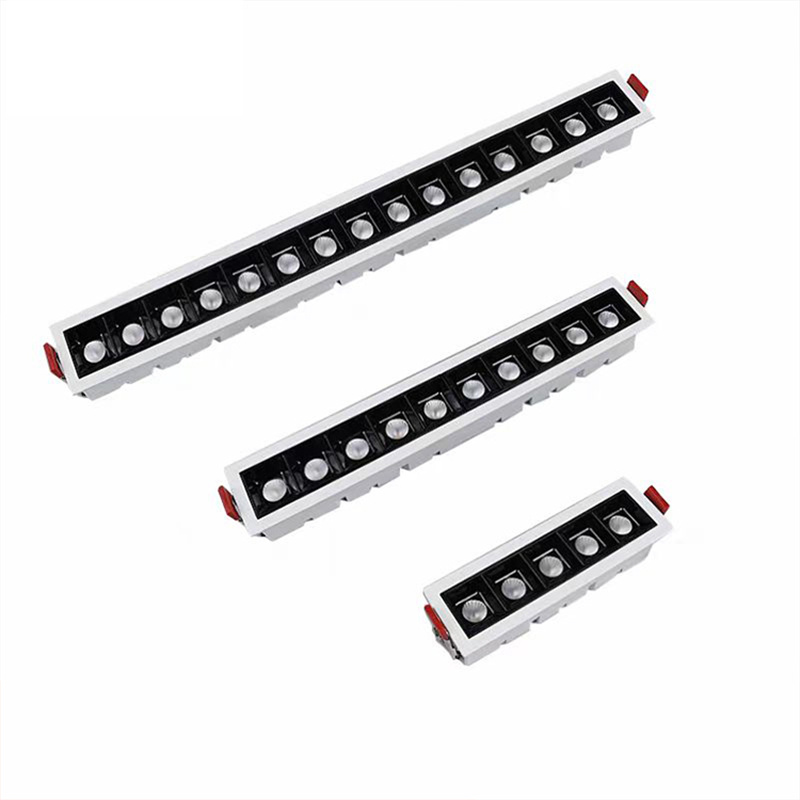

Different wattage, different length.
Holes need to be opened according to the large size of the line lamps

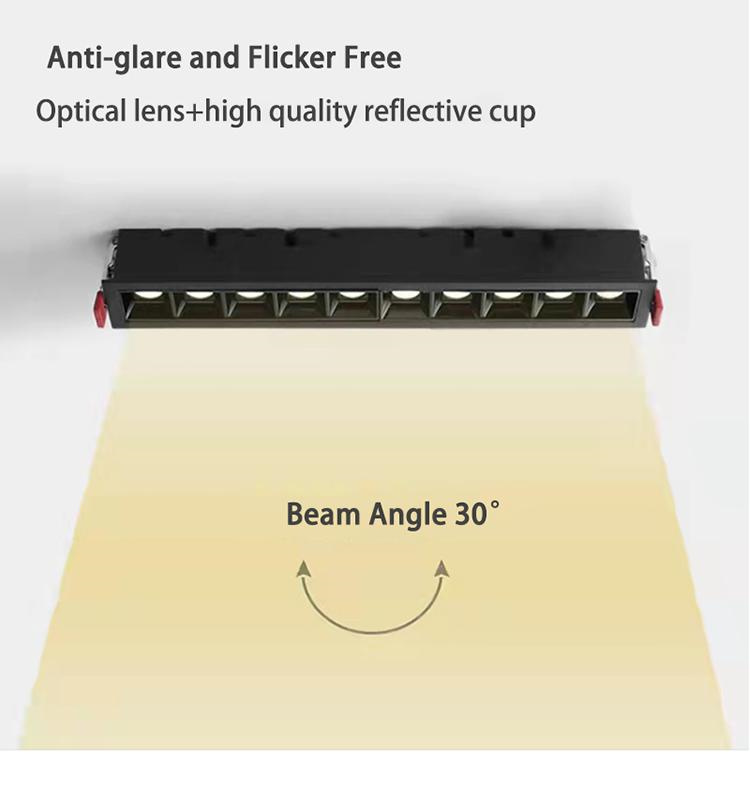

Embedded COB light source, visible light but not visible light,anti-glare.
Led Linear Light Application

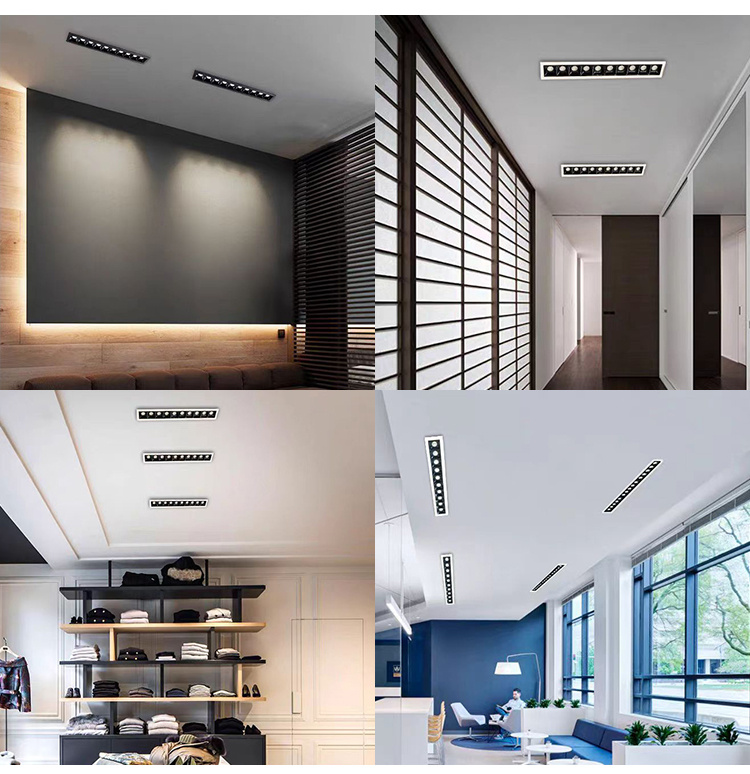

This recessed linear light can be used in Home Office, hotel, living Room, office apartment, kitchen etc.
