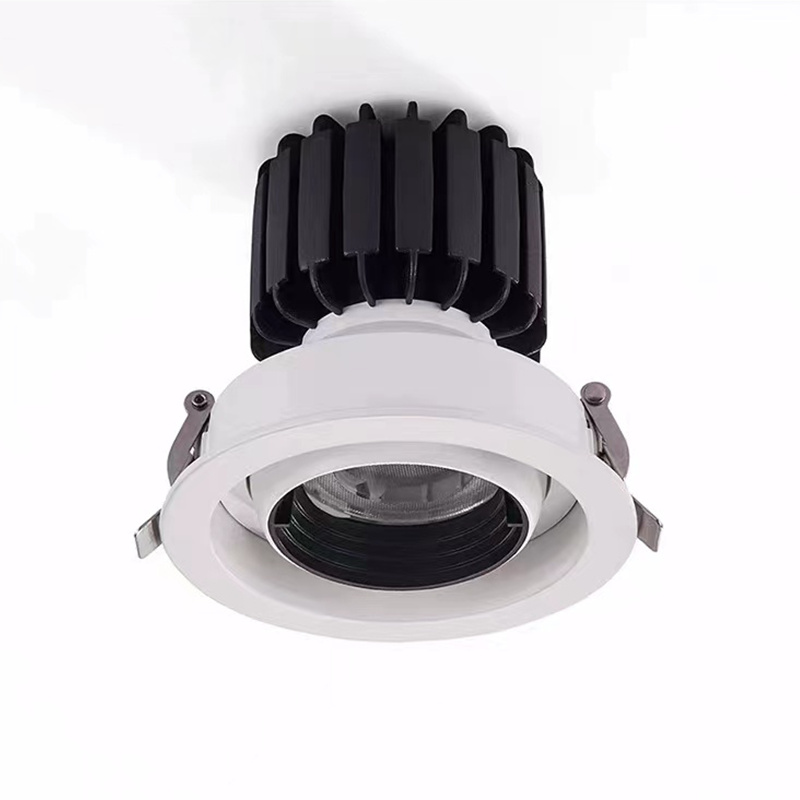

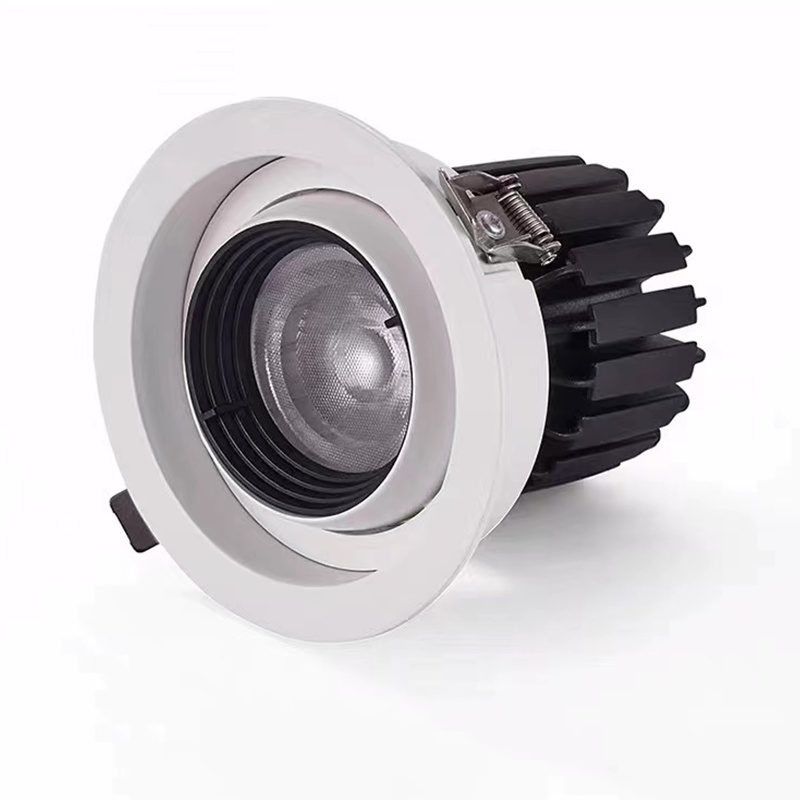

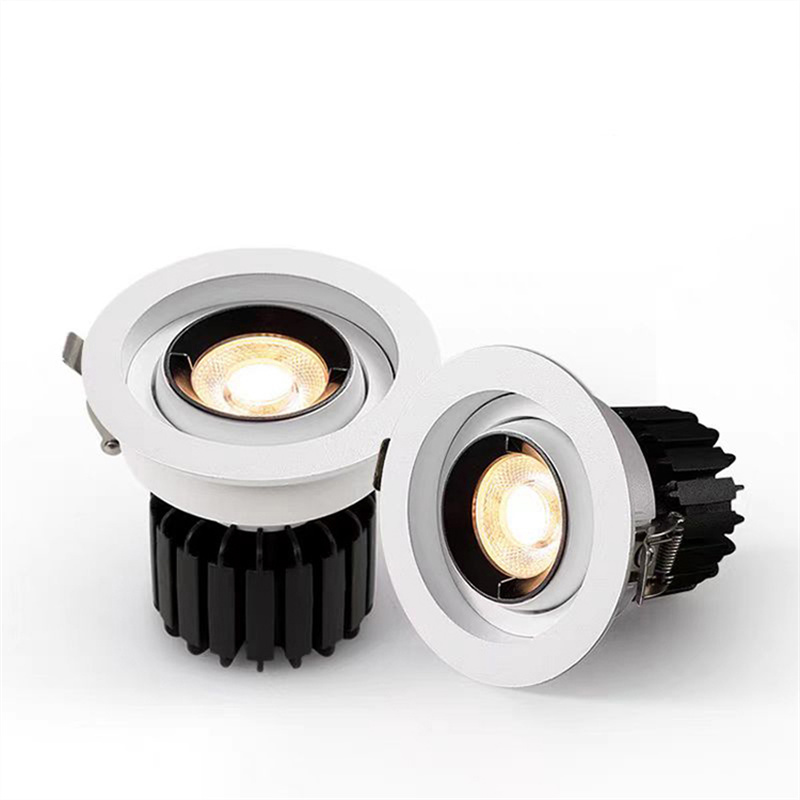

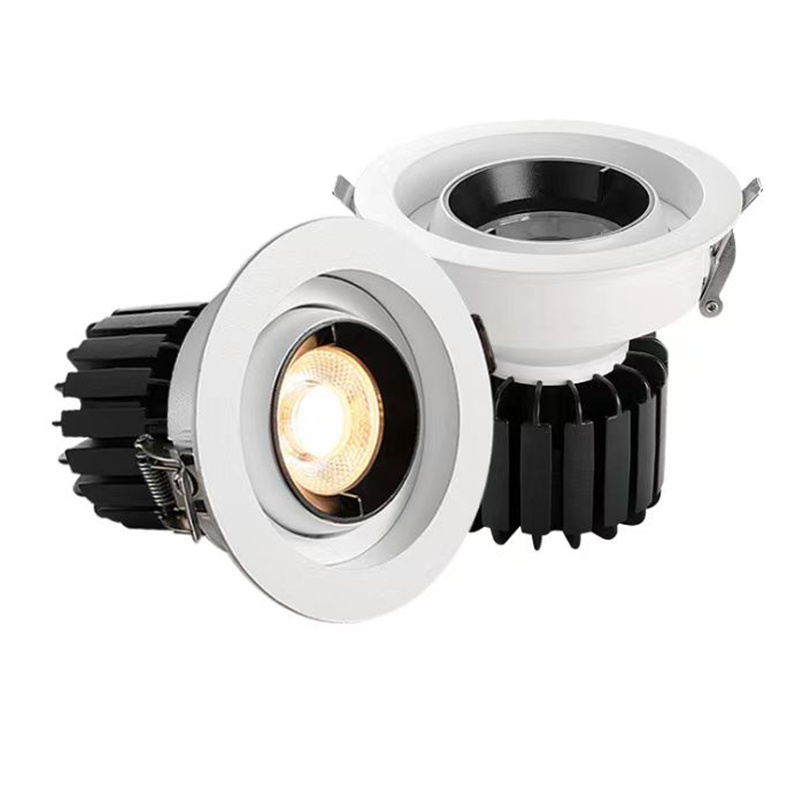

China Led Recessed Grille Light Fixtures Downlights FT-GL03 Round
Features:
● Wide Voltage Range (AC100-277V)
● High-Output LED Engine，high CRI (≥90)
● 15° Adjustable Angle,space-Saving Design
● High Lumen Efficiency,flicker-Free Lighting
● Aluminum Housing,spring Clip Installation
● Fireproof & Overheat Protection–Meets international safety
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 8-20W：0.5 ; 25W-35W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Grille Light |
| Power | 8W/10W/12W/15W/20W/25W/30W/35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White |
| Beam angle | 15°,24°,38° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 75/100/120/145MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 8-20W: 0.5 ; 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

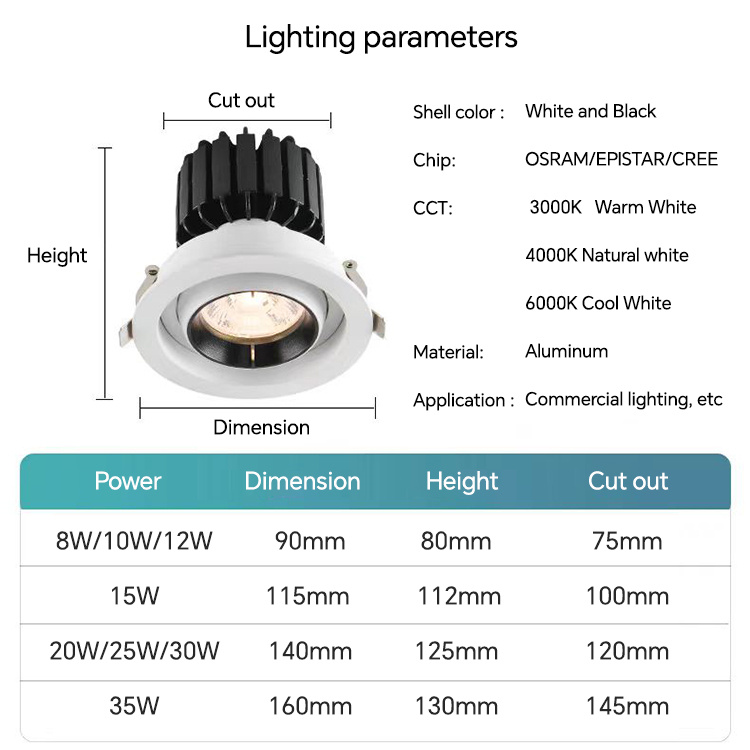

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL03-8W |
8W |
¢90*80 |
¢75 |
2700K |
|
FT-GL03-10W |
10W |
¢90*80 |
¢75 |
|
|
FT-GL03-12W |
12W |
¢90*80 |
¢75 |
|
|
FT-GL03-15W |
15W |
¢115*112 |
¢100 |
|
|
FT-GL03-20W |
20W |
¢140*125 |
¢120 |
|
|
FT-GL03-25W |
25W |
¢140*125 |
¢120 |
|
|
FT-GL03-30W |
30W |
¢140*125 |
¢120 |
|
|
FT-GL03-35W |
35W |
¢160*130 |
¢145 |

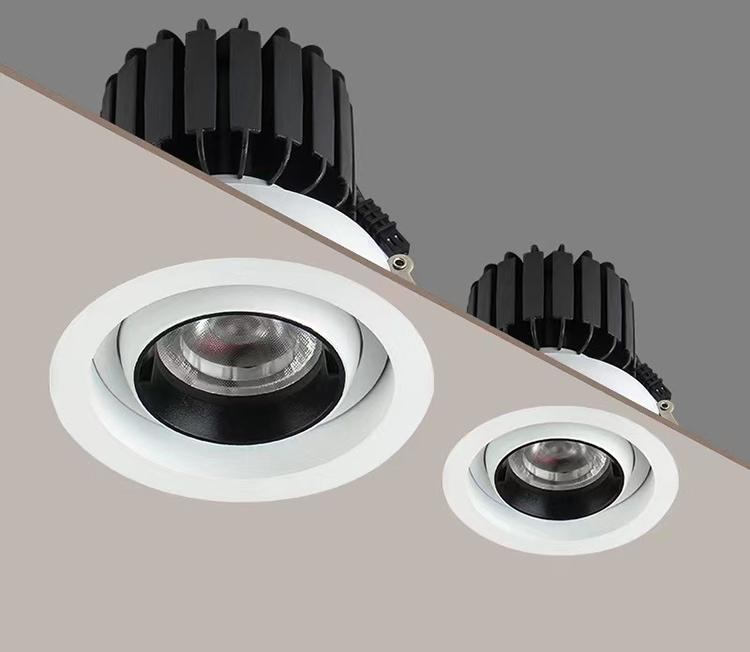

GL03 Premium Recessed Downlight - Ultimate Comfort & Flexibility
The Perfect Balance of Elegance and Functionality for Every Space
Introducing the GL03 LED Downlight, a classic round recessed fixture that combines deep anti-glare technology with exceptional adjustability. Designed for both residential and commercial applications, this versatile downlight delivers precise, comfortable illumination while maintaining a clean, minimalist aesthetic. Whether you're lighting a cozy living room or a professional workspace, the GL03 adapts perfectly to your needs with its wide range of customization options.
Outstanding Features & Benefits
1. Advanced Deep Anti-Glare Design
✔ True "light without seeing the source" effect for visual comfort
✔ UGR<16 rating meets strict commercial lighting standards
✔ Ideal for eye-sensitive environments (offices, schools, healthcare)

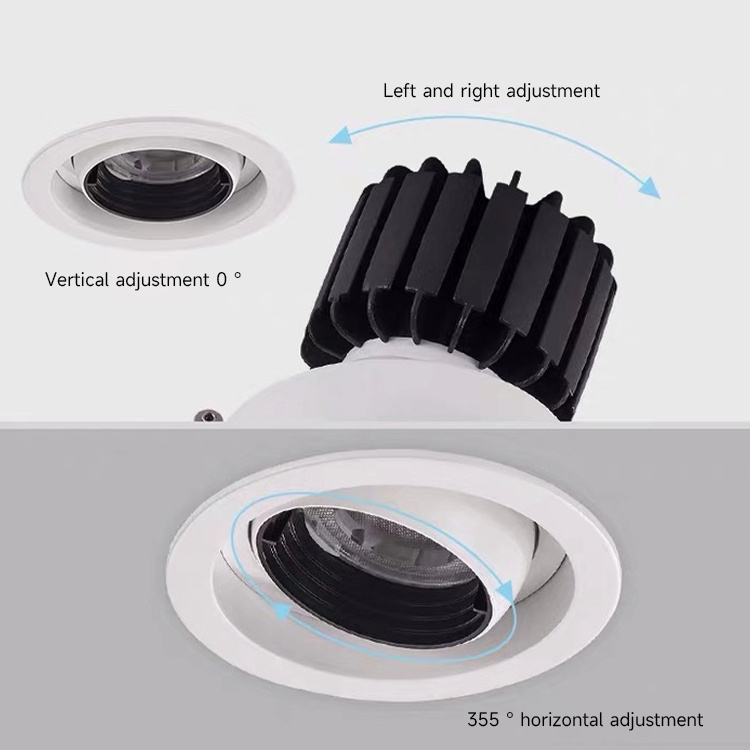

2. Precision 355°+30° Adjustability
✔ Near-full horizontal rotation (355°) for perfect positioning
✔ 30° vertical tilt enables accurate accent lighting
✔ Tool-free adjustment
✔ Stays securely in place after adjustment
3. Complete Color Temperature Options
Create the perfect atmosphere:
·2700K-3500K: Warm, inviting glow (living rooms, restaurants)
·4000K-5000K: Natural, productive light (offices, kitchens)
·6000K: Crisp daylight effect (retail, workshops)
✔ CRI≥90 across all color temperatures

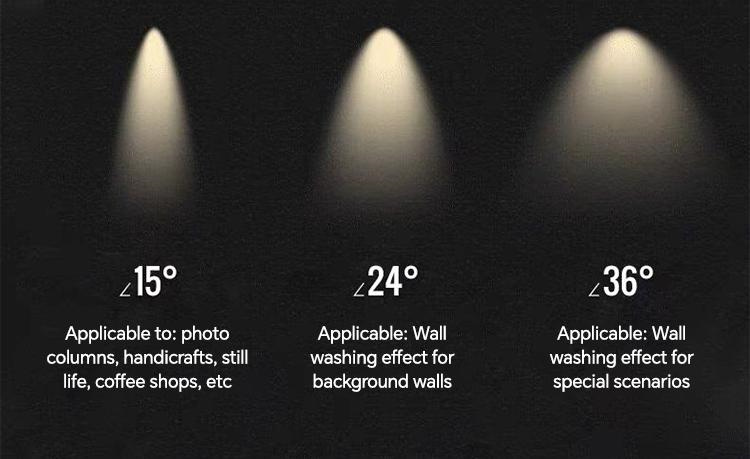

4. Three Professional Beam Angles
Choose your ideal light spread:
·15° (Spot): Perfect for artwork and displays
·24° (Narrow Flood): Ideal task lighting
·36° (Medium Flood): General area lighting
5. Versatile Wattage Selection
·8W-15W: Residential and accent lighting
·20W-25W: Commercial general lighting
·30W-35W: High-output applications
6. Flexible Dimming Options
·Single CCT Version:
✔ TRIAC dimmable
✔ 0-10V control
✔ DALI compatible
Tunable White Version:
✔ 2700K-6000K continuous adjustment
✔ Compatible with most smart home systems
✔ Perfect for circadian lighting setups
Premium Construction & Specifications
✔ Housing: High-grade aluminum with thermal management
✔ Optics: PMMA lens with anti-glare treatment
✔ Installation: Quick-connect terminals for easy wiring
✔ Voltage: 100-277V (universal)
✔ Lifespan: 50,000 hours (L80)
✔ Certifications: CE, RoHS, SAA

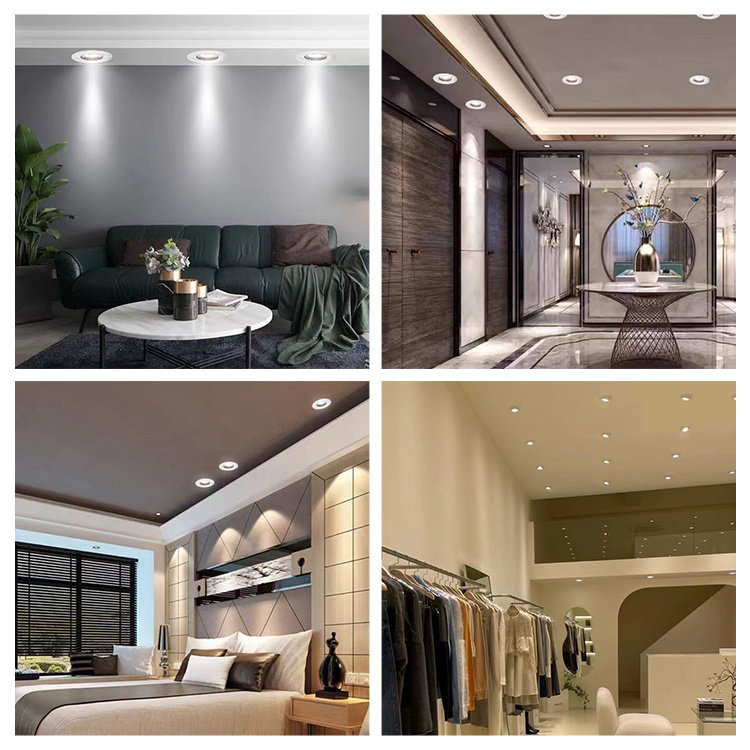

Ideal Applications
·Residential: Living rooms, kitchens, hallways
·Commercial: Offices, conference rooms, reception areas
·Retail: Boutiques, display lighting
·Hospitality: Hotels, restaurants, lobbies
·Healthcare: Waiting rooms, examination areas

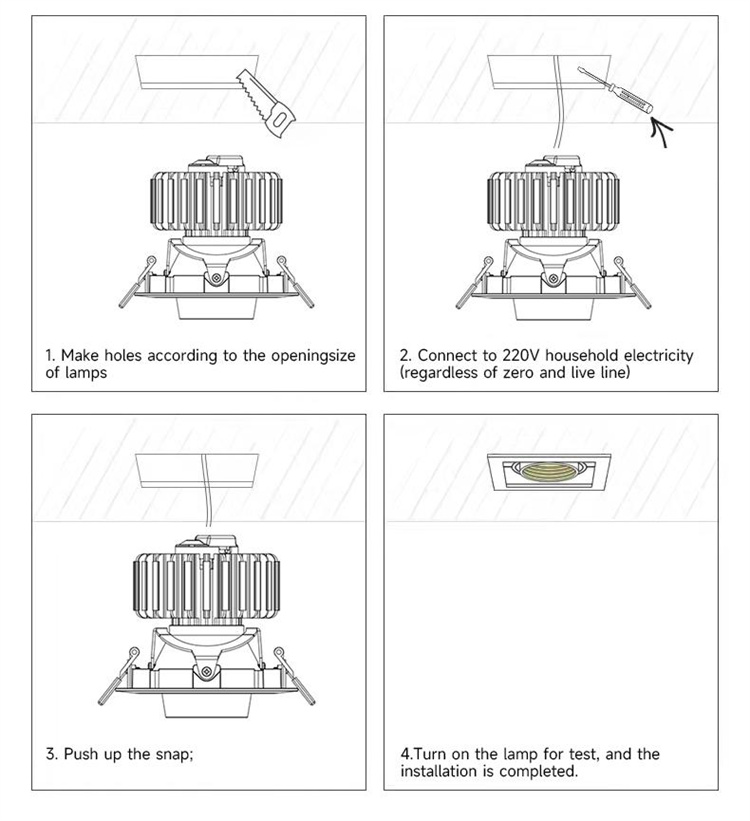

How To Install This Downlight
1. Make holes according to the openingsizeof lamps
2. Connect to 220V household electricity(regardless of zero and live line)
3. Push up the snap;
4.Turn on the lamp for test, and theinstallation is completed.
Premium Adjustable Recessed Downlight: Flicker-Free Precision Lighting
Engineered for professional-grade illumination, our circular recessed downlight combines ultra-smooth dimming performance with true color accuracy in a durable, thermally-optimized package. The fixture's tool-free adjustable head (±30° tilt) and high-efficiency die-cast aluminum body make it ideal for demanding commercial and residential applications where lighting quality matters.
Perfect Light Quality
● True flicker-free operation (certified <1% flicker at all dim levels)
● CRI 90+ & R9>80 for vibrant, natural color rendering - ideal for retail, galleries, and makeup studios
● Consistent 2700K-6000K CCT options with <3 SDCM color deviation
Advanced Thermal Management
● Pressure-cast aluminum housing (AL6063-T5) with fractal heat sink design
● 70°C max housing temperature at full load - 25% cooler than industry standards
● 50,000-hour L90 lifespan even in enclosed ceilings
🔹 Professional Adjustability
● Smooth 30° tilt adjustment with positive-lock mechanism
● Rotatable 355° base for perfect alignment post-installation
Installation Advantages
● Spring-loaded clips for 1/2"-2" ceiling thickness
● IC-rated for direct insulation contact
Technical Specifications:
✓ Input: 100-277V AC, 50/60Hz
✓ 8W-35W versions available
✓ Dimmable: Triac/0-10V/DALI options
✓ Certifications: CE, RoHS, SAA
Ideal Applications:
◼ High-end retail: Accurate color evaluation
◼ Hospitality: Flattering guest lighting
◼ Healthcare: Fatigue-free examination areas
◼ Residential: Gallery-quality wall washing
Why Professionals Choose This:
→ Zero strobe effect for camera/video environments
→ Maintains CRI consistency across dimming range
→ 5-year performance warranty
