China Manufacturer Waterproof Led Spotlights Ceiling Outdoor FT-HGS12
Features:
● IP65 waterproof
● High CRI≥90-Excellent color rendering index
● Anti-Glare Deep Reflector-Minimizes direct glare
● Compatible with Tuya Smart Control(Zigbee/Bluetooth)
● Smart Dimming & Color Tuning-Brightness & CCT adjustment
● Multi-Color Reflector Cups- Optional silver/black/white/gold
● UGR<19-Ultra-low glare for comfortable lighting environments
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Spotlights |
| Power | 7W/9W/10W/12W/20W |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | LED |
| Color | Black/White |
| Beam angle | 15°/24°/36°/55° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 55/75/95mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7-20W:0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

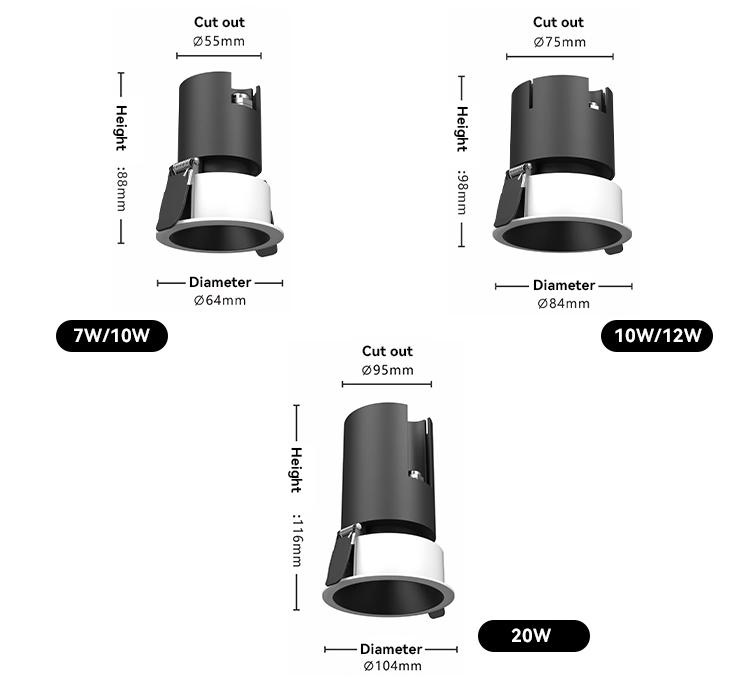

Model No. |
Watts |
Size(mm) |
Cut Out |
Beam Angle |
LED Color |
|
FT-HGS12-7W |
7W |
D64*H88 |
¢55 |
15°/24°/36°/55° |
2700K
|
|
FT-HGS12-10W |
10W |
D64*H88 |
¢55 |
15°/24°/36°/55° |
|
|
FT-HGS12-10W |
10W |
D84*H98 |
¢75 |
15°/24°/36°/55° |
|
|
FT-HGS12-12W |
12W |
D84*H98 |
¢75 |
15°/24°/36°/55° |
|
|
FT-HGS12-20W |
20W |
D104*H116 |
¢95 |
15°/24°/36°/55° |

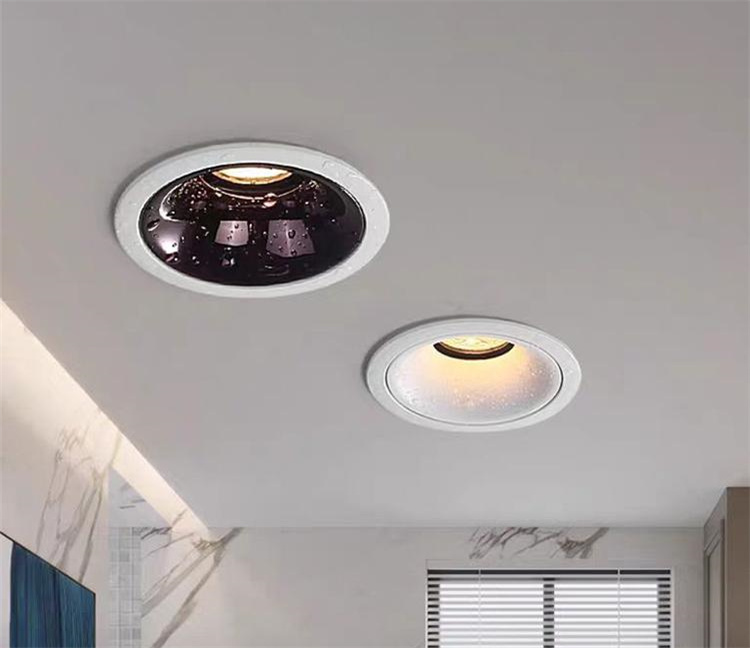

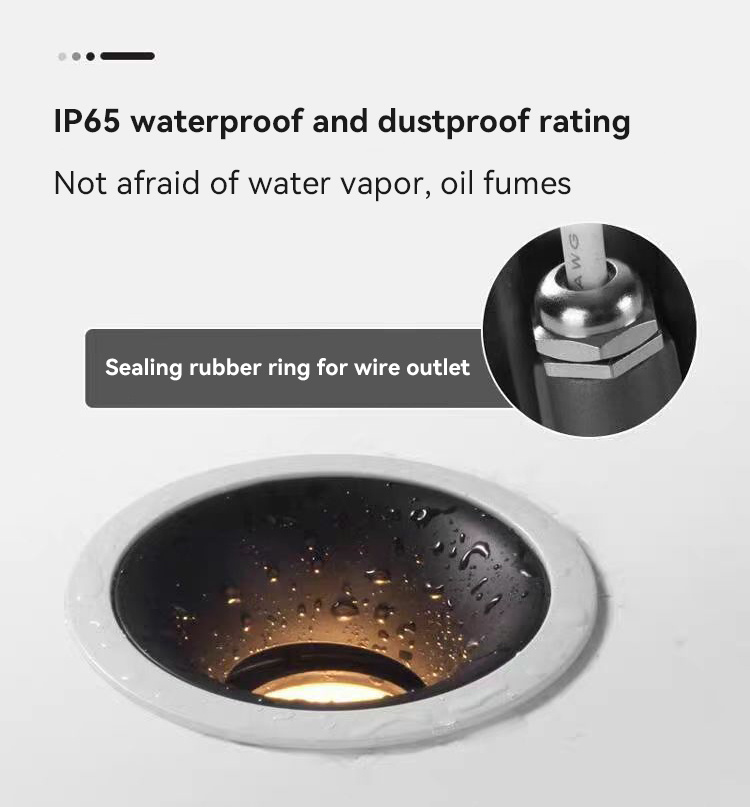

IP65 waterproof function
The Benefits of Waterproof Spotlights
Safe for Any Environment – Waterproof spotlights are ideal for bathrooms, kitchens, outdoor areas, and other places exposed to moisture. No worries about splashes or humidity!
Long-Lasting Durability – With sealed construction, these lights resist water, dust, and corrosion, ensuring they stay bright and functional for years.
Versatile Placement – Install them outdoors (like patios and gardens) or in damp indoor spaces (like showers and pools) without risk of damage.
Easy to Clean & Maintain – The waterproof design prevents dirt buildup, making them simple to wipe down and keep looking new.
Versatile Beam Angles for Every Lighting Need
This spotlight offers four beam angles (15°/24°/36°/55°) to create the perfect lighting for any space:
15° Narrow Spot
• Sharp, focused beam
• Perfect for highlighting artwork, shelves, or architectural details
24° Medium Flood
• Balanced light coverage
• Ideal for kitchen counters, workspaces, or reading nooks
36° Wide Flood
• Broad, even illumination
• Great for living rooms, dining areas, or hallway lighting
55° Extra-Wide Flood
• Soft, ambient glow
• Best for ceiling washes or general room lighting

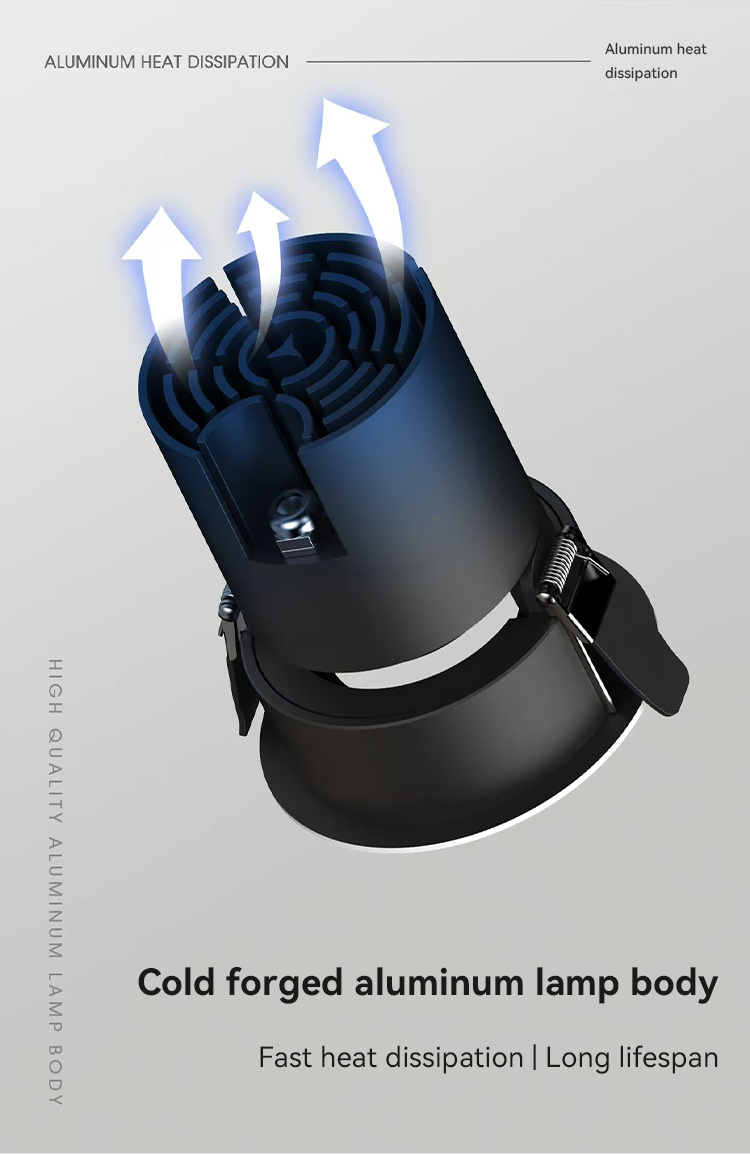

Adop cold forged aluminum lamp body
Super durability:
·The hardness is increased by more than 40% compared with ordinary aluminum materials
·It does not deform after long-term use
The surface is smooth
Fast heat dissipation, with a thermal conductivity of up to 200W/(m·K)
The heat dissipation efficiency is increased by 35% compared with the die-casting process
Multiple Power Options: 7W | 10W | 12W |20W
Our premium spotlight comes in different wattages to fit every lighting need:
Brightness Choices:
• 7W - Soft glow for decoration and small displays
• 10W - Perfect for home workspaces and cozy corners
• 12W - Great for small shops and display areas
• 20W - Bright professional lighting for galleries
Top Features:
True-color 90+ CRI (all options)
Works with most dimmer switches (0-10V/TRIAC)

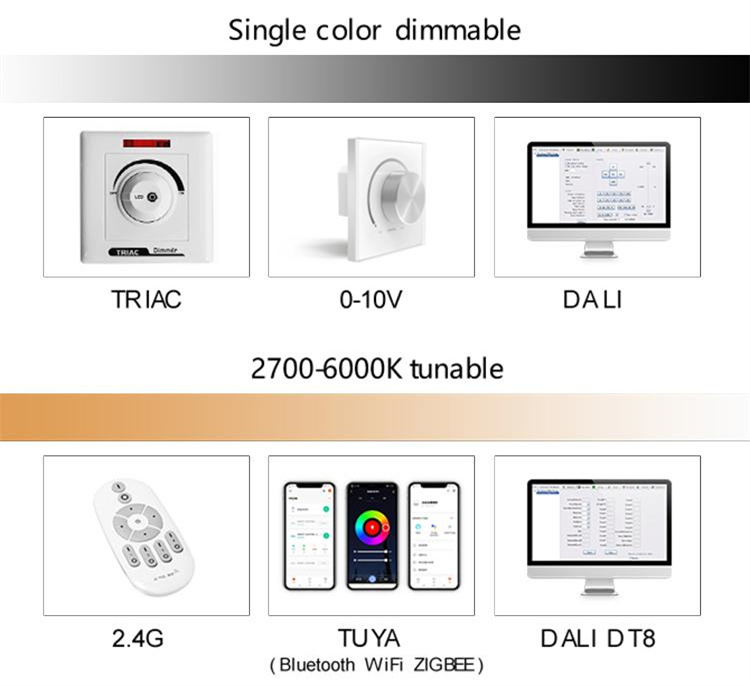

Customizable Dimming & Color Control
Dimming Features:
● Works with standard wall dimmers (Triac)
● Compatible with professional 0-10V dimming setups
● Supports smart DALI lighting networks

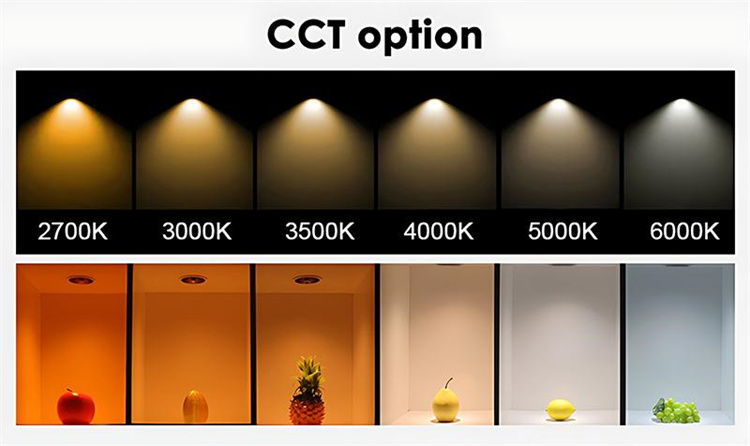

Adjustable White Light (2700K–6000K):
● Shift between warm, cool, and daylight tones to match any mood or task
Control Options:
● Wireless: Works with leading smart home systems (Bluetooth / WiFi / Zigbee)
● Wired (Professional): Meets DALI DT8 standards for commercial setups

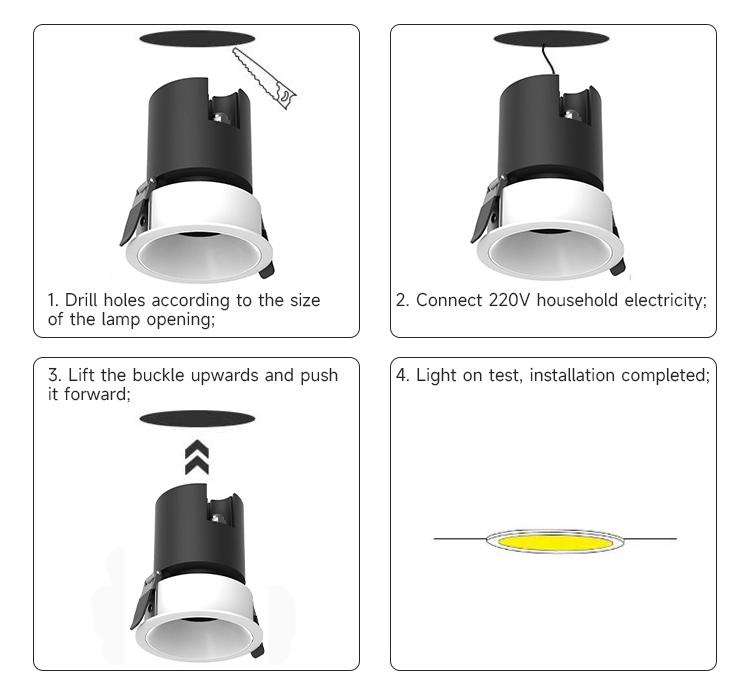

Easy to install
1. Drill holes according to the size of the lamp opening
2. Connect 110V/220V household electricity
3. Lift the buckle ipwards and push it forward
4. Light on the test completed.
Safety Tip: Always ensure the circuit is de-energized during installation.
Application
Bathroom, kitchen, under the eaves, basement, laundry room, etc.
IP65 Recessed LED Anti-Glare Spotlight: Superior Waterproof & Visual Comfort
Experience exceptional performance and protection with our cutting-edge IP65 Recessed LED spotlight. Engineered for demanding environments, this fixture seamlessly combines robust waterproof capabilities with superior visual comfort through its advanced anti-glare design.
Uncompromised Waterproof Protection (IP65):
Achieve peace of mind in damp or outdoor settings. The stringent IP65 rating signifies complete defense against low-pressure water jets from any direction and total protection against harmful dust ingress. This resilience makes the fixture ideal for bathrooms, covered patios, garages, commercial kitchens, and other wet areas where reliable, safe lighting is non-negotiable. The sealed construction ensures long-lasting operation, unaffected by moisture or dust.
Advanced Anti-Glare Performance:
Prioritize visual well-being. The downlight features a deep-recessed LED module and a precision-engineered reflector system (or micro-prismatic optic) specifically designed to minimize direct glare and uncomfortable brightness. This results in a uniform, soft light distribution that significantly reduces eye strain (UGR <19 typical), enhancing comfort in offices, retail spaces, hallways, and homes. Enjoy crisp, clear illumination without the harshness, creating a more pleasant and productive atmosphere.
Versatile Aesthetics & Function:
Personalize your lighting scheme. Choose from multiple interior reflector cup colors (e.g., White, Black, Silver, Gold). This allows for seamless integration with your ceiling or enables subtle accent effects. Easily tailor the fixture's look to match your decor or achieve specific lighting moods, adding a touch of customization without compromising performance.
Built for Durability & Efficiency:
Constructed with high-quality materials for longevity and powered by efficient LED technology, this downlight delivers significant energy savings and minimal maintenance requirements. Its robust build ensures reliable performance year after year.
Ideal For: Bathrooms, Covered Outdoor Areas, Commercial Wet Locations, Corridors, Kitchens, Retail Spaces, Offices – Anywhere demanding waterproof reliability and glare-free visual comfort.
Upgrade your space with the perfect blend of waterproof durability, eye-friendly illumination, and adaptable style. Choose our IP65 Recessed Anti-Glare spotlight.
