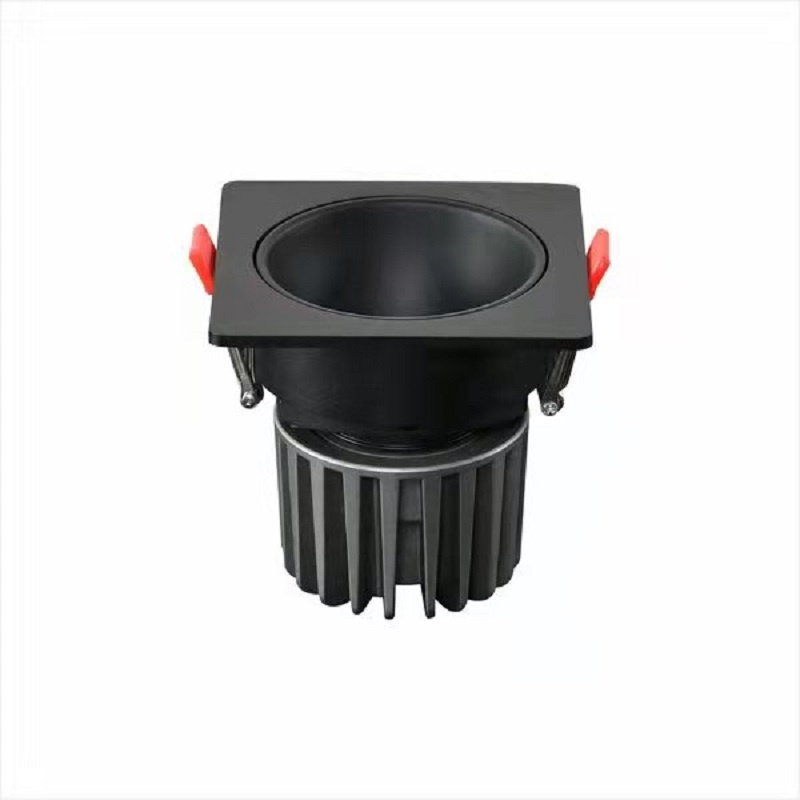

Color Changing Recessed Lights Anti glare Downlight Factory FT-GL07
Features:
● RoHS-compliant, free from hazardous substances
● Modular Head Options,square Modern Aesthetic
● Recessed & Flush Mount–Sleek, modern design blends
● Universal Voltage (100-240V),Eco-Friendly Materials
● Silent Operation– No humming or buzzing, perfect for quiet spaces
● 5-Year Warranty–Reliable performance backed by a long-term guarantee
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led COB Downlight |
| Power | 7W/12W/15W/20W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White/Black |
| Beam angle | 15°,24°,36° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 75*75/95*95MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7-20W: 0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

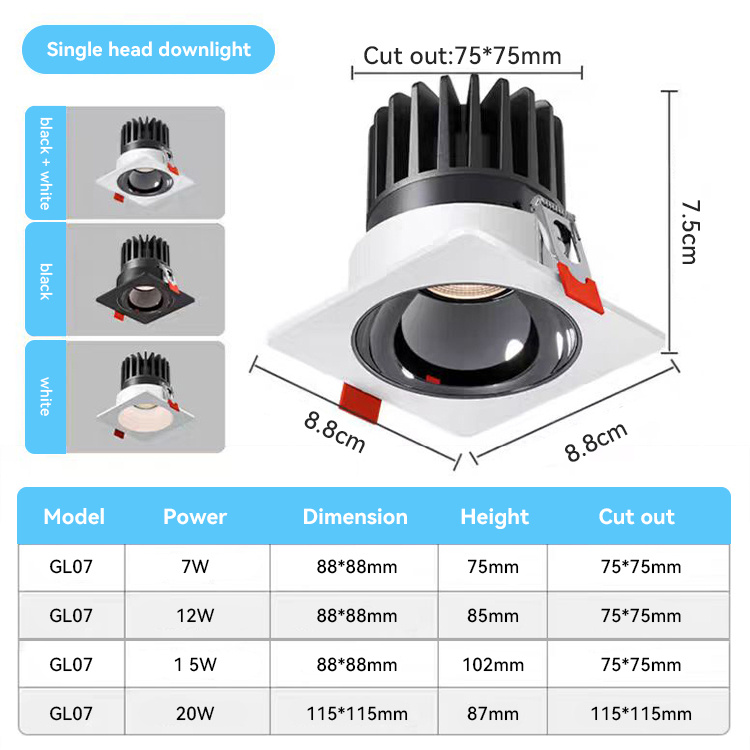

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL07-7W |
7W |
88*88*H75 |
75*75 |
2700K |
|
FT-GL07-12W |
12W |
88*88*H85 |
75*75 |
|
|
FT-GL07-15W |
15W |
88*88*H102 |
75*75 |
|
|
FT-GL07-20W |
20W |
115*115*H87 |
95*95 |

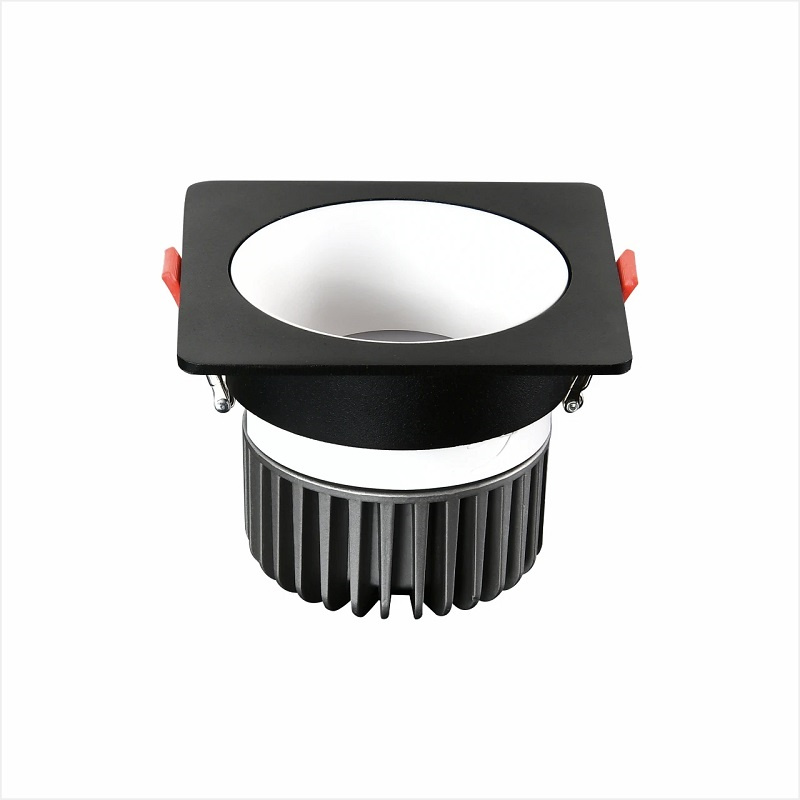

GL07 Adjustable Square Downlight - Precision Lighting with Custom Style
Sophisticated Performance Meets Design Flexibility
Engineered for lighting professionals and discerning homeowners alike, the GL07 square downlight redefines modern recessed lighting with its perfect balance of adjustable precision, anti-glare comfort, and customizable aesthetics. This architectural-grade luminaire combines 360° positioning flexibility with five premium reflector finishes to deliver both functional illumination and design harmony in any space.
Key Features & Technical Advantages

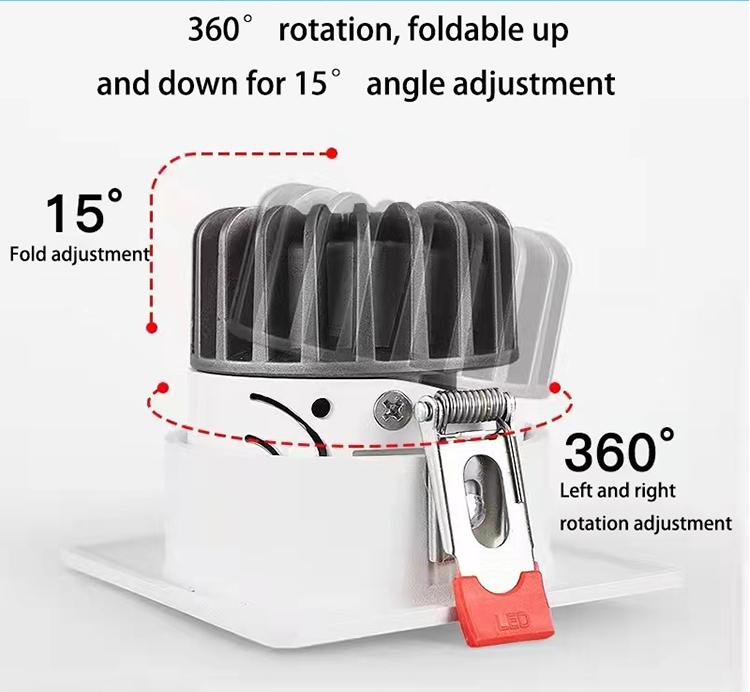

1. Fully Adjustable Modern Design
·Tool-free 355° rotation with smooth-glide gimbal mechanism
·15° vertical tilt for precise accent lighting positioning
·Advanced anti-glare system (UGR<18) with micro-louver optical control
·Flicker-free operation (<1% modulation) for eye comfort
2. Designer Reflector Options
Five professional-grade finishes:
·Matte White - soft, diffuse light for offices and healthcare
·Matte Black - discreet presence in luxury residences
·Rose Gold - warm metallic accent for hospitality
·Brushed Silver - contemporary neutral for retail
·Gunmetal - sophisticated industrial aesthetic
3. Complete CCT Selection
Precision-tuned color temperatures:
·2700K-3500K: Warm ambiance (residential, restaurants)
·4000K-5000K: Neutral productivity (offices, classrooms)
·6000K: Crisp daylight (galleries, workshops)
·CRI≥90 across all temperatures

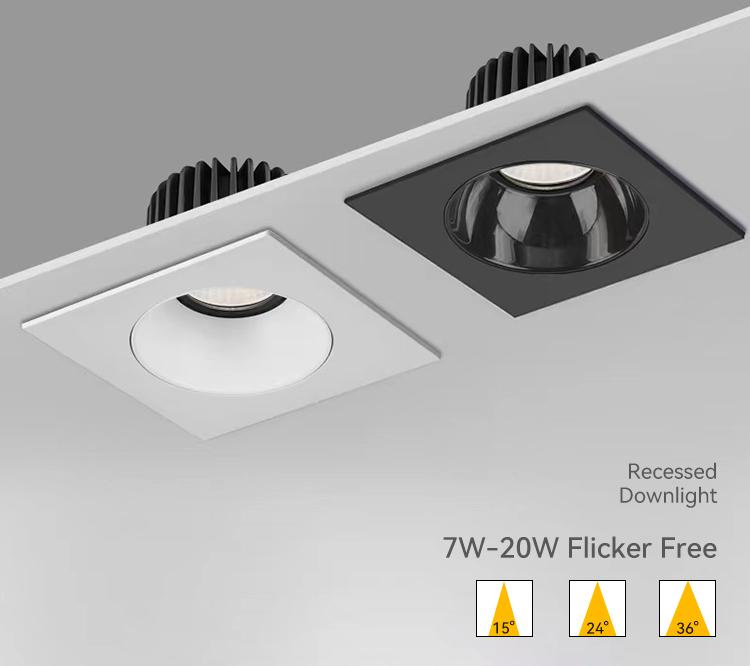

4. Professional Beam Angles
·15° - museum-grade accent lighting
·24° - task lighting precision
·36° - comfortable general illumination
5. Optimized Power Options
·7W (595lm) - decorative applications
·12W (1020lm) - residential general lighting
·15W (1275lm) - commercial ambient
·20W (1700lm) - high-output needs

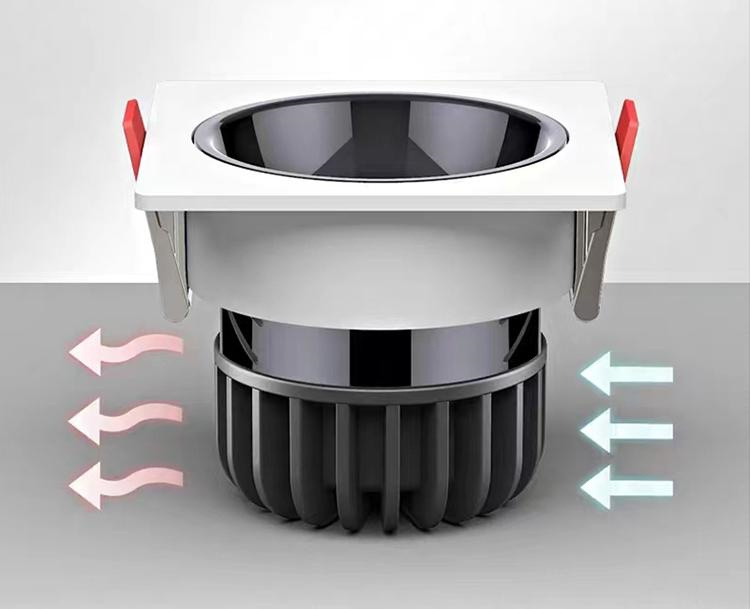

6. Advanced Thermal Architecture
·Die-cast aluminum heatsink with 25% more surface area
·Convection-enhanced design maintains <75°C operating temp
·50,000-hour L90 lifespan
7. Smart Control Integration
·Single CCT: TRIAC/0-10V/DALI dimming
·Tunable White: 2.4G control,Tuya(bluetooth,wifi,Zigbee),Dali DT8
Technical Specifications
·Housing: Marine-grade aluminum with ceramic coating
·Optics: PMMA lens with anti-reflective treatment
·Installation: Quick-connect terminals, torsion springs
·Voltage: 100-277V universal input
·Certifications: CE, RoHS,SAA,LVD,EMC
Professional Applications
·Residential: Luxury kitchens, art lighting
·Commercial: Boutique retail, executive offices
·Hospitality: Restaurant mood lighting
·Institutional: Gallery/museum displays

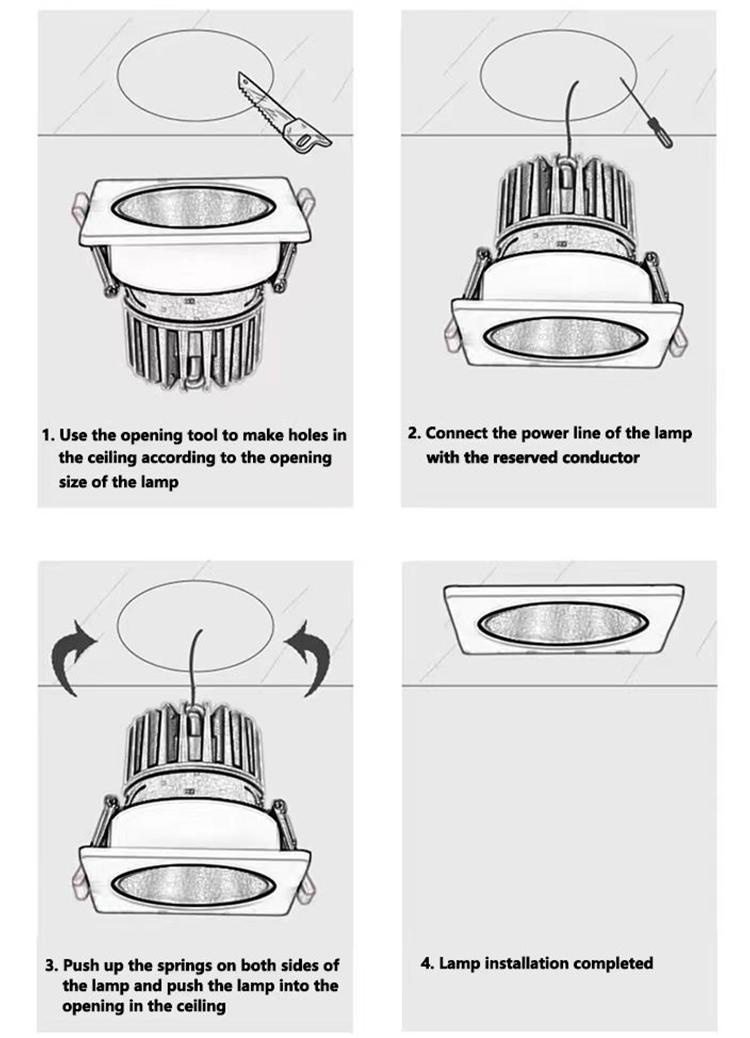

Easy to install this downlight
1. Use the opening tool to make holes inthe ceiling according to the openingsize of the lampConnect the wires to the lampterminals by a professional electrician
2. Connect the power line of the lampwith the reserved conductor
3. Push up the springs on both sides ofthe lamp and push the lamp into theopening in the ceiling
4. Lamp installation completed
