Commercial Anti Glare Cob Led Track Lighting White For Restaurant FT-TL25
Features:
● Built-in Driver Track Light
● Cold-Forged Aluminum Housing
● >0.95 PF with <10% THD
● Exceptional brightness with energy-saving LED technology
● 360° rotational track heads with ±90° tilt adjustment
● Support single/three-circuit configuration
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W:0.5 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | LED Track Light |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp) |
| Power | 15W/20W/25W/30W/35W/40W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM |
| (Other driver brands can also choose from) | |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional |
| (Other driver brands can also choose from) | |
| Color | White Black For Option |
| Beam angle | 24°/38° |
| CRI (Ra>) | 80/90/95 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) / Natural white (4000K) Cool White (5000K/6000K) |
| PF | 15-20W:0.5 25W-40W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

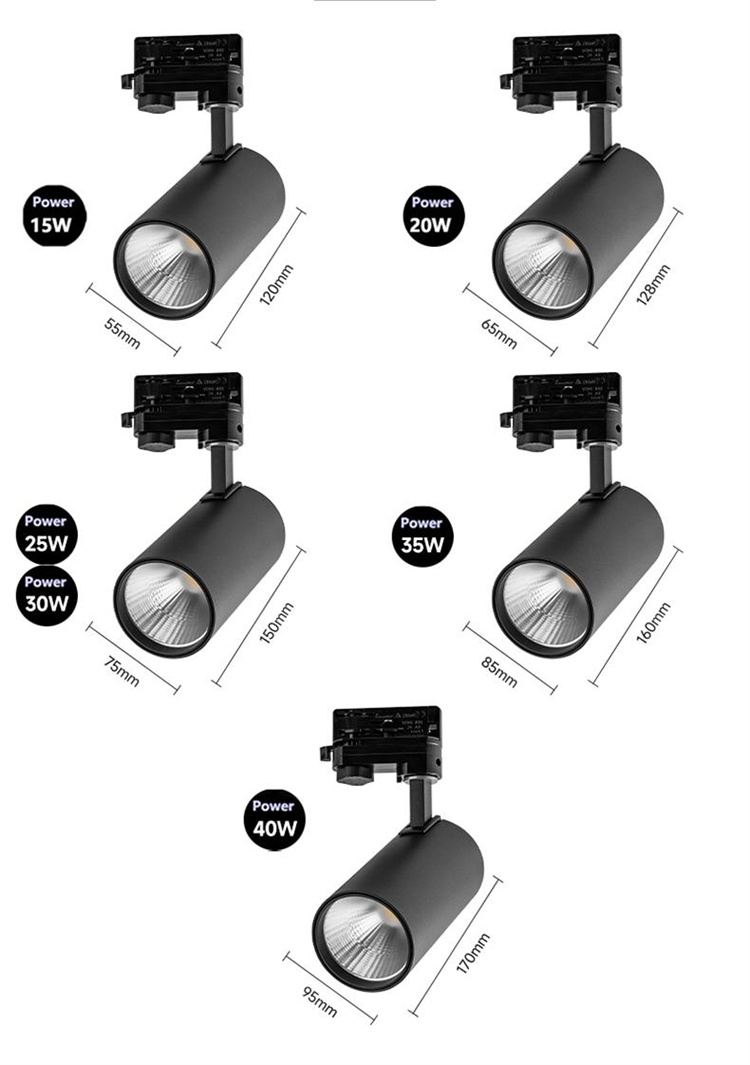

Model No. |
Watts |
Size(mm) |
Lumens |
LED Color |
|
FT-TL25-15W |
15W |
D55*H120 |
1350lm |
2700K
|
|
FT-TL25-20W |
20W |
D65*H128 |
1900lm |
|
|
FT-TL25-25W |
25W |
D75*H150 |
2375lm |
|
|
FT-TL25-30W |
30W |
D75*H150 |
2850lm |
|
|
FT-TL25-35W |
35W |
D85*H160 |
3325lm |
|
|
FT-TL25-40W |
40W |
D95*H170 |
3800lm |
The advantages of the product

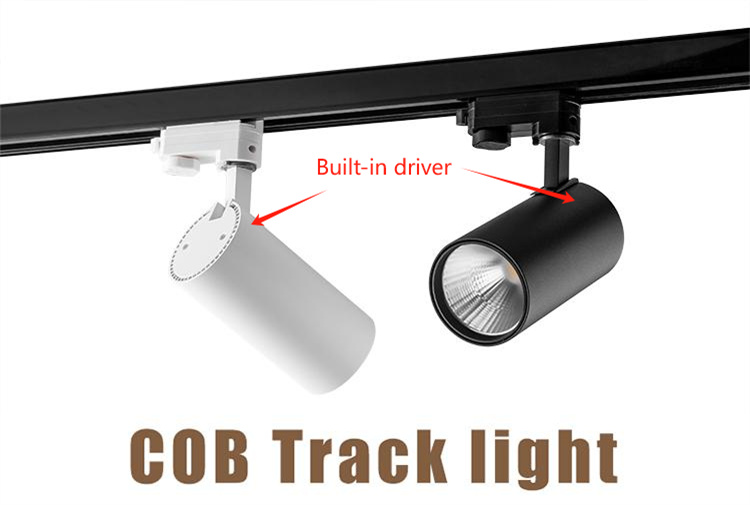

The power supply is built-in the lamp head of the track light, which is more design-oriented and easy to install. There is no exposed power supply at all, making it suitable for a minimalist style.

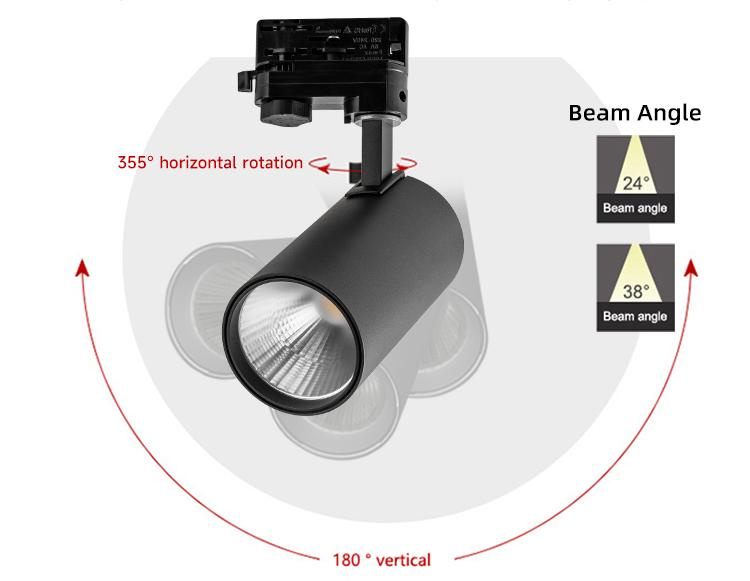

This track light features a bidirectional adjustment capability of 355° horizontal rotation and 90° vertical rotation, providing extremely high flexibility and precise light control for lighting design. When adjusting products or transforming Spaces, there is no need to move the tracks. Just rotate the lamp heads to redistribute the light.
· Our track light is available in multiple beam angles—24° and 38° —providing flexibility for precise lighting control in various settings.
24° beam Angle: With a small illumination range, it can be used to highlight a single product or exhibit
38° beam Angle: Known as the "universal beam Angle", the light diffuses gently and the edge of the light spot transitions naturally, making it suitable for the wall-hanging areas of clothing stores and cosmetic shelves
The 2-wire, 3-wire and 4-wire systems of track lights correspond to the electrical standards and application scenarios of different countries. The main differences lie in the power supply mode, dimming protocol and safety regulations
2-wire system: Residential and basic commercial lighting (no intelligent control requirements)
3-wire system: North America (the United States, Canada), and some European countries
4-wire system: Global professional lighting projects (theaters, stages, high-end retail)
· Available in multiple wattages (15W–45W ), which can meet both household needs and commercial purposes.
15W-20W track lights: Suitable for jewelry counters, art displays, and lighting for home decorative paintings
25W-30W track lights: Suitable for clothing store shelves, restaurant tables, and office workstations
35W-45W track lights: Fresh food section in supermarkets, main stage in exhibition halls, and high-position lighting in factories
Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
LED Track Light Power Options: Choose the Right Driver for Your Space
Selecting the proper power supply ensures your track lights perform at their best. We provide three driver solutions to fit any project:
1. Built-In Driver (All-in-One)
✅ Best for: Clean, low-profile installations (retail, offices, homes)
✅ Benefits: Compact design, easy installation, maintenance-free
✅ Lifespan: 50,000+ hours
2. Integrated Driver (Unibody Design)
✅ Best for: High-end spaces needing reliability (museums, galleries, hotels)
✅ Benefits: Better cooling, stable performance, easy to service
✅ Ideal when: You want a balance of aesthetics and accessibility
3. External Driver (Remote Power Box)
✅ Best for: Large or industrial setups (warehouses, smart buildings)
✅ Benefits: Handles high power, supports dimming (DALI/0-10V), centralized control
✅ Choose this: For complex lighting systems or long-distance wiring
Quick Selection Tips
Small spaces? Built-in keeps it sleek
Premium project? Integrated balances looks & performance
Big area or smart controls? External gives full flexibility
All options work globally (100-277V) and deliver top efficiency. Need help deciding? We’ll guide you to the perfect solution!
