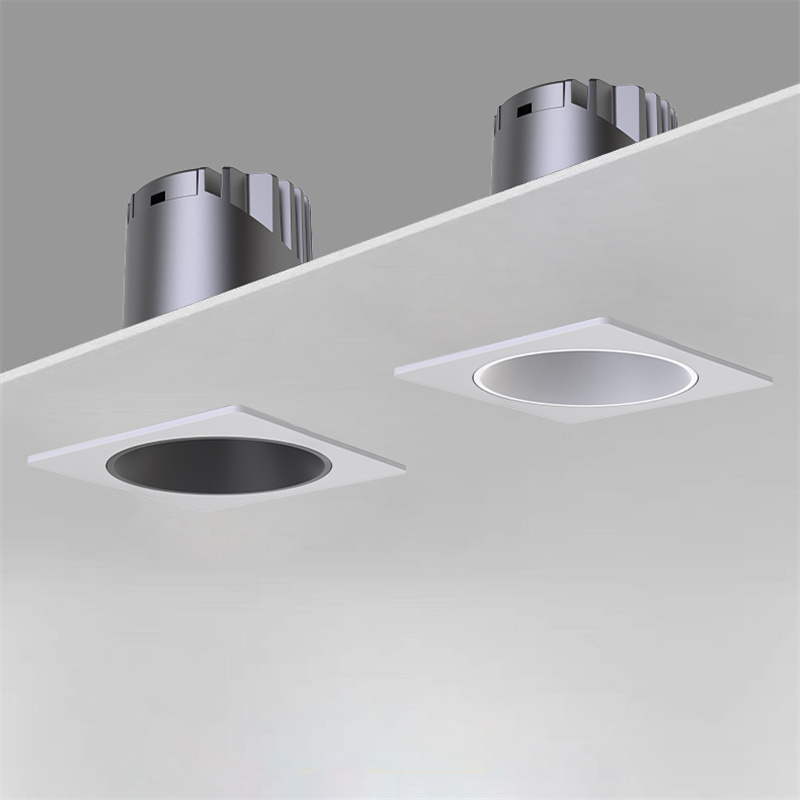

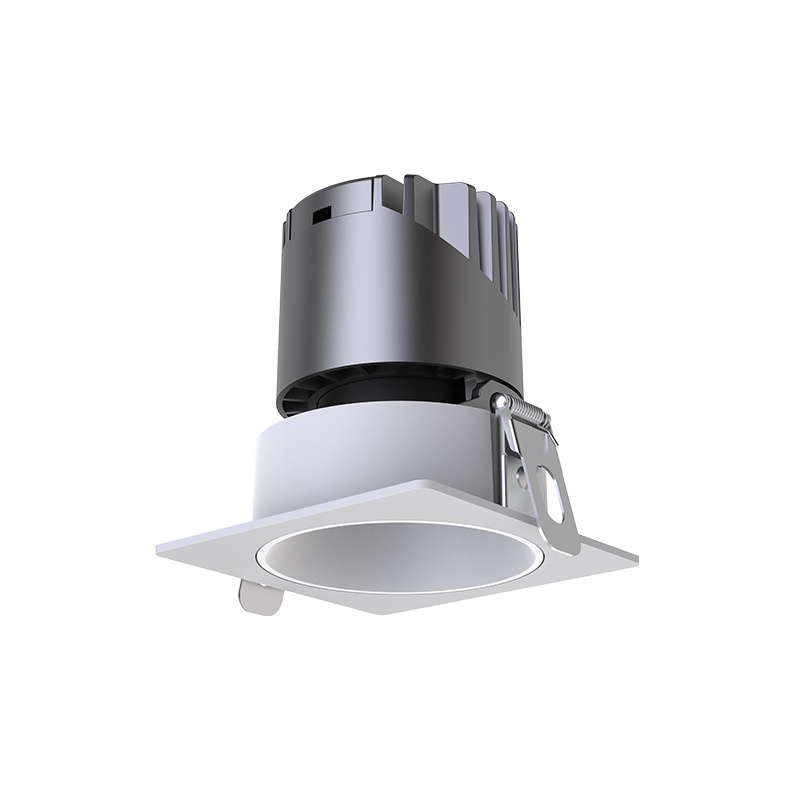

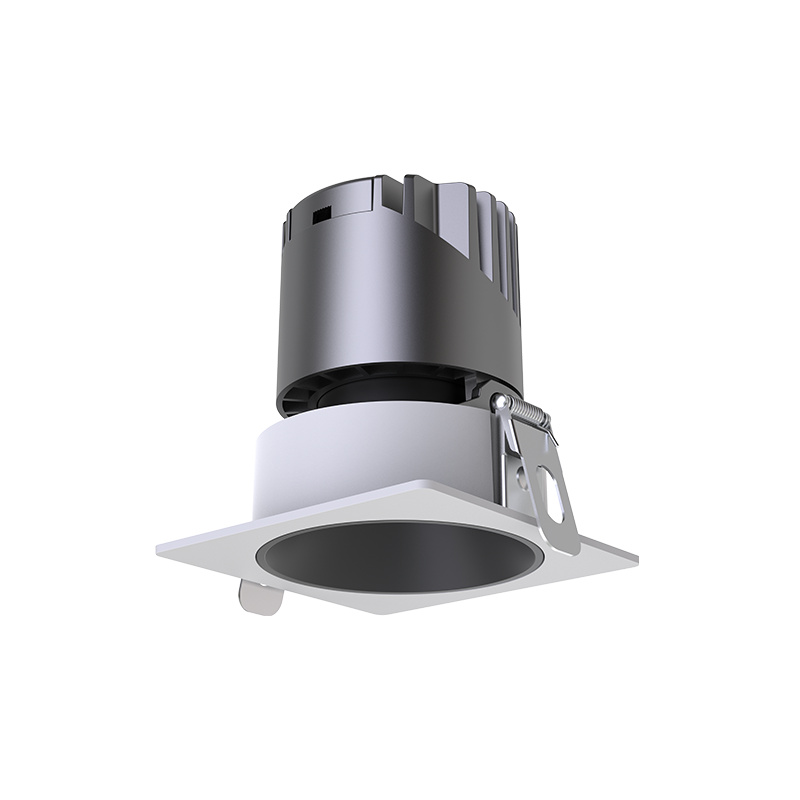

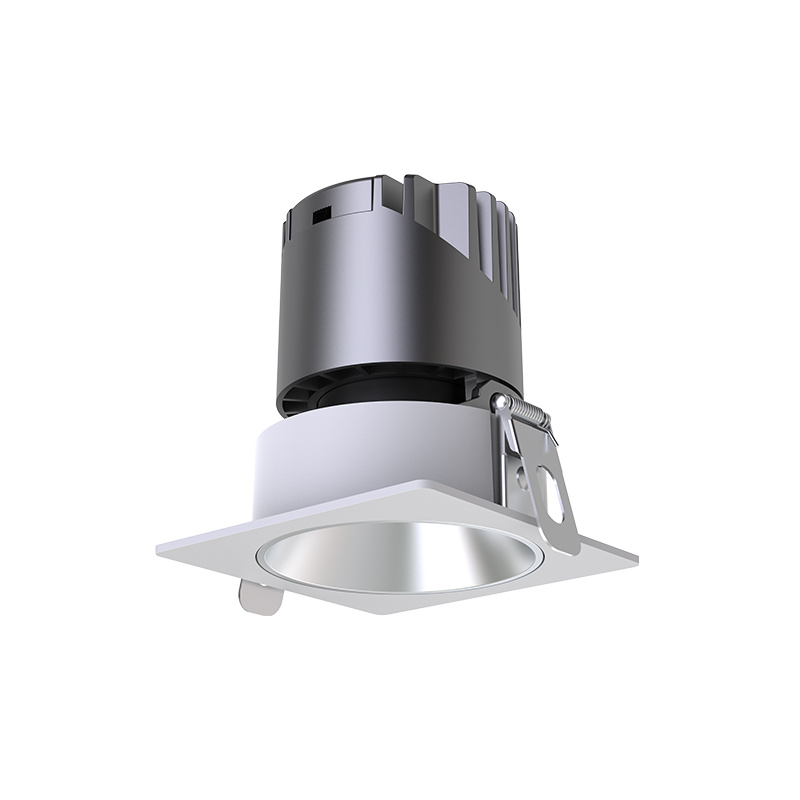

Commercial Dimmable Square Spotlight Ceiling Lights FT-HGS10
Features:
● Flicker-Free-Eye protection technology
● Low Blue Light- Eye-friendly illumination
● DALI/DMX Compatible-For professional systems
● Multiple Beam Angles-8°/15°/24°/38°/55°options
● Uniform Light Distribution-No dark spots or shadows
● Premium Aluminum Housing-Excellent heat dissipation
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Spotlights |
| Power | 7W/9W/10W/12W/15W/20W |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Color | Black |
| Beam angle | 8°/15°/24°/38°/55° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 75*75mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7-20W:0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

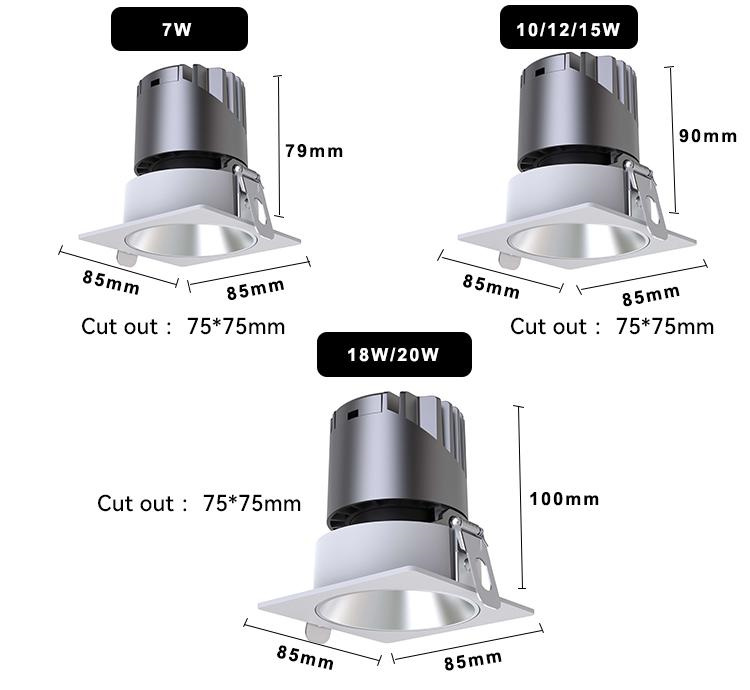

Model No. |
Watts |
Size(mm) |
Cut Out |
LED Color |
|
FT-HGS10-7W |
7W |
85*85*79MM |
75*75MM |
2700K
|
|
FT-HGS10-10W |
10W |
85*85*90MM |
75*75MM |
|
|
FT-HGS10-12W |
12W |
85*85*90MM |
75*75MM |
|
|
FT-HGS10-15W |
15W |
85*85*100MM |
75*75MM |
|
|
FT-HGS10-20W |
20W |
85*85*100MM |
75*75MM |

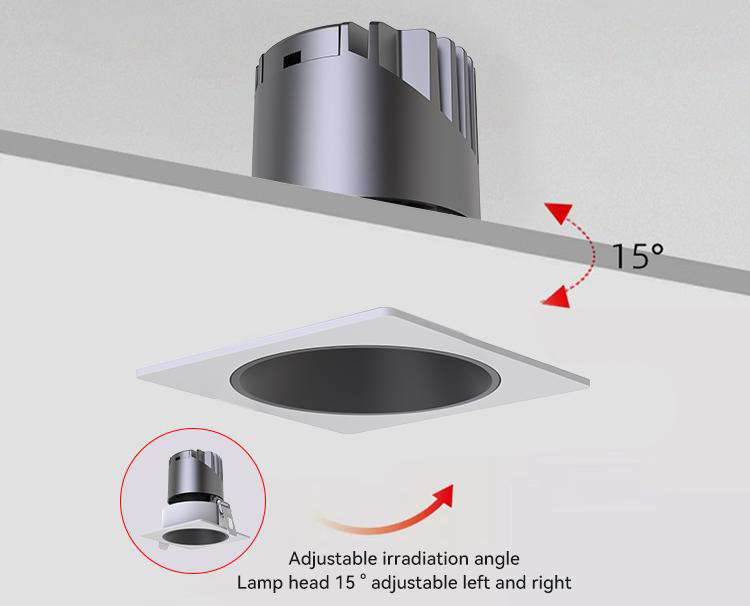

15° Adjustable lamp head
The spotlight features a 15° tiltable lamp head for flexible positioning.
Anti-glare Design: The angled head minimizes direct light, reducing glare while softening the beam—ideal for accent lighting on TV walls, sofa walls, and above coffee tables.
Focused Illumination: The 15° tilt creates concentrated beams, perfect for highlighting small decor items or textured surfaces.
Customizable Light Spot: Adjust the head’s angle to alter the light spot’s shape and size, ensuring seamless integration with varied decor styles and spaces.
Different Beam Angles for Precision Lighting
This spotlight offers five precision beam angles (8°/15°/24°/38°/55°) to suit any lighting need:
8° Ultra-Narrow Beam
• Pinpoint accuracy for fine details
• Ideal for jewelry displays, gallery pieces
15° Narrow Spot – Sharp accent lighting; Perfect for artwork, high-end retail
24° Medium Flood – Even task lighting; Great for kitchens, office desks
38° Wide Flood – Broad coverage; Best for living rooms, dining spaces
55° Extra-Wide Flood – Spacious ambient light; Ideal for ceilings, large entryways
The advanced optics provide clean edges and smooth blending between angles, giving designers precise control without sacrificing efficiency.

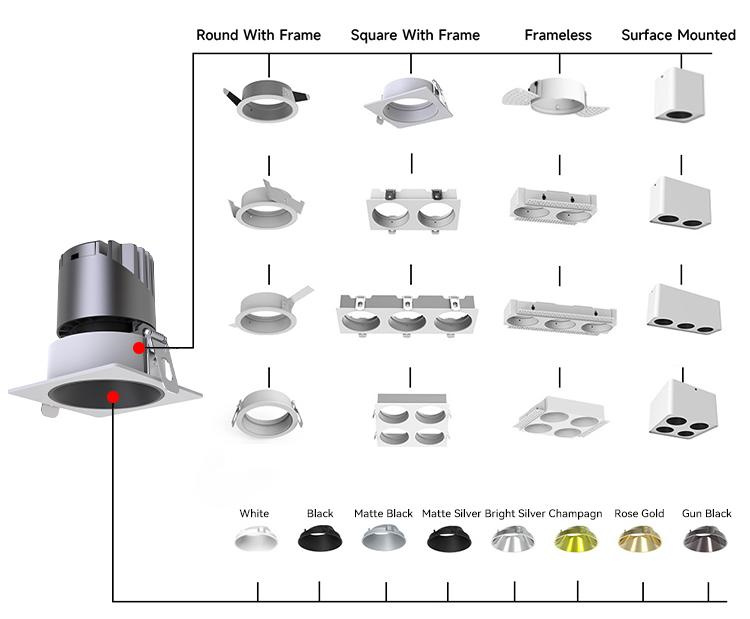

Modular Spotlight System – The Ultimate Lighting Solution
This cutting-edge spotlight features a modular design, allowing endless combinations to create a complete range of lighting solutions for any space:
Available Configurations:
Design Styles:
• Round spotlights (timeless & elegant)
• Square spotlights (sleek & contemporary)
Multi-Light Options:
• Single-head (focused accent lighting)
• Double-head (balanced symmetrical lighting)
• Triple-head (dynamic triangular layout)
• Quad-head (wide, even illumination)
Key Benefits:
All-in-one system – Covers every spotlight need
Mix & match – Customize shapes and light counts effortlessly
Easy upgrades – Adapt existing setups in minutes
Cost-efficient – Saves on purchasing and storage
Perfect For:
▶ Retail & offices – Layer light for depth and ambiance
▶ Homes – Match any décor style seamlessly
▶ Galleries & displays – Adjust highlights with precision
A truly flexible lighting system that grows with your needs—simplicity, style, and smart design in one.
Multiple Power Options: 7W | 10W | 12W | 15W | 20W
Our premium spotlight comes in different wattages to fit every lighting need:
Brightness Choices:
• 7W - Soft glow for decoration and small displays
• 10W - Perfect for home workspaces and cozy corners
• 12W - Great for small shops and display areas
• 15W - Strong light for cafes and dining spaces
• 20W - Bright professional lighting for galleries
Top Features:
True-color 90+ CRI (all options)
Works with most dimmer switches (0-10V/TRIAC)
Where to Use:
7W: Glass cabinets, picture lighting
10W-12W: Kitchen counters, office desks
15W-20W: Store displays, special wall lighting
Pick the right power for your space - we've got all the options you need.
Flexible Dimming & Color Control Options
Standard Dimmable Models:
• Works with regular wall dimmers (Triac)
• Professional 0-10V dimming systems
• Smart DALI lighting networks
Adjustable White Light (2700K-6000K):
▸ Wireless Control: Works with all major systems (Bluetooth/WiFi/Zigbee)
▸ Professional Wired Control: DALI DT8 standard
Smart Lighting Features:
✓ Smooth color temperature changes
✓ No flickering - eye comfort guaranteed
✓ Compatible with popular smart home systems

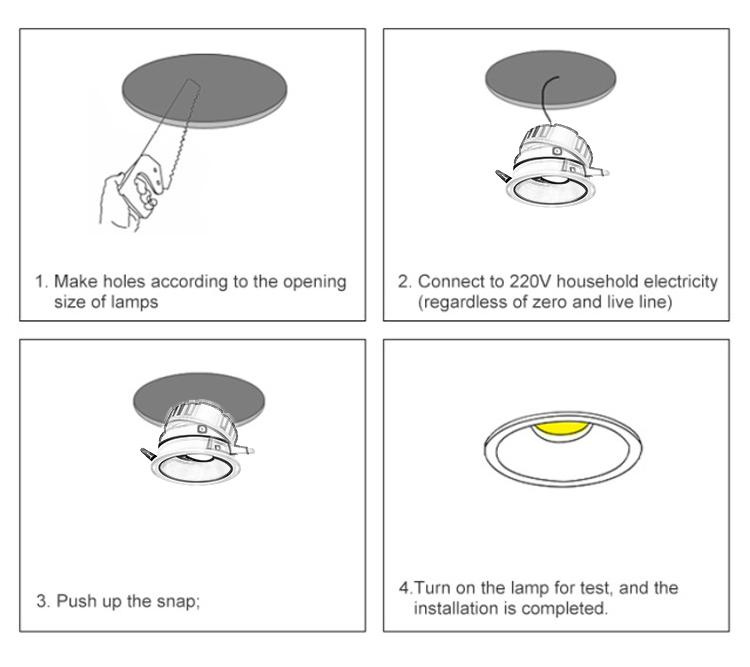

Easy to install
1. Prepare the Mounting Hole – Cut an opening matching the lamp’s specified diameter using appropriate tools.
2. Electrical Connection – Safely wire to standard 220V household power (polarity-insensitive design eliminates live/neutral wire concerns).
3. Secure the Fixture – Align and press upward until the spring clips fully engage with the ceiling/wall surface.
4. Final Verification – Power on to confirm proper operation before final use.
Safety Tip: Always ensure the circuit is de-energized during installation.

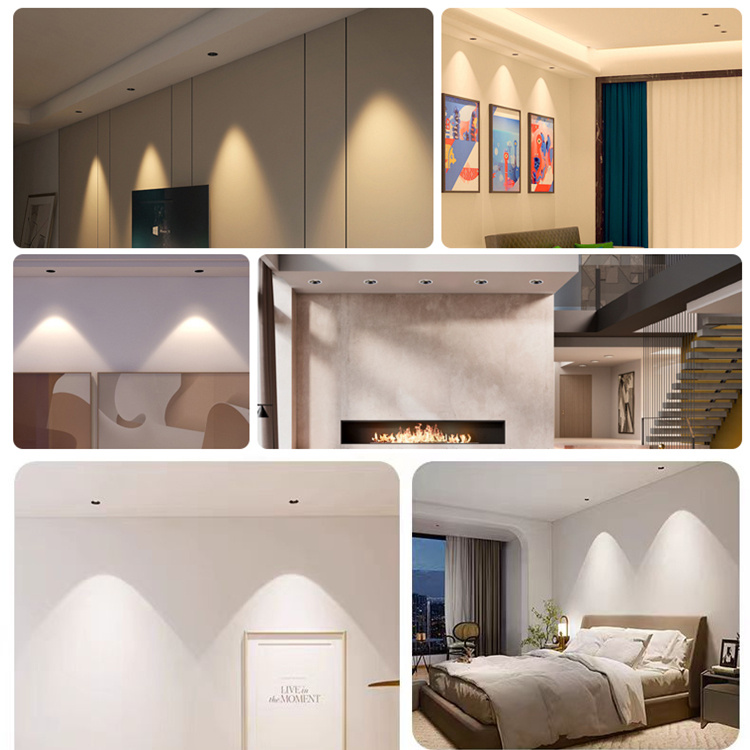

Application
Retail stores, Dining room, Hotel, Living room, Kitchen, Bedroom, Art gallery, Museum, Gallery
