Custom Luminaire Recessed Lighting Downlight Zigbee FT-GL07 Double Head
Features:
● Flush Ceiling Mount,multi-Layer Reflector Design
● Sleek, low-profile design for contemporary interiors
● Interchangeable Light Cups,adjustable Beam Direction
● Available in single, double, triple, and quadruple-head
● Detachable Light Modules– Easy maintenance and replacement
● High CRI ≥90– Exceptional color accuracy for natural and vibrant lighting
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Anti-galre Downlight |
| Power | 2*7W/2*12W/2*15W/2*20W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White/Black |
| Beam angle | 15°,24°,36° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 240*75/300*95MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7-20W: 0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

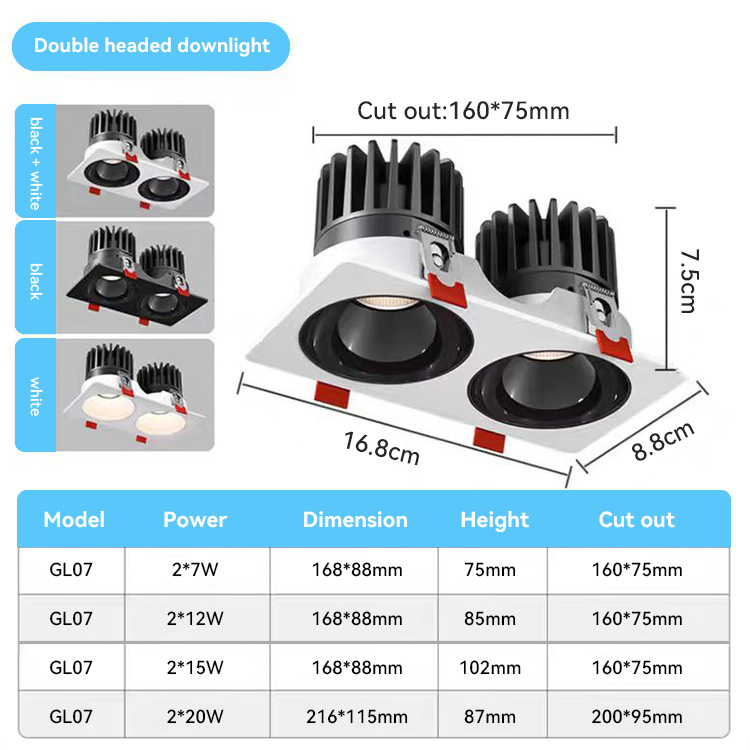

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL07-2*7W |
2*7W |
168*88*H75 |
¢160*75 |
2700K |
|
FT-GL07-2*12W |
2*12W |
168*88*H85 |
¢160*75 |
|
|
FT-GL07-2*15W |
2*15W |
168*88*H102 |
¢160*75 |
|
|
FT-GL07-2*20W |
2*20W |
216*115*H87 |
¢160*75 |
Dual-Point Adjustable Downlight - Precision Illumination for
Contemporary Environments
Engineered for Versatility and Visual Comfort
Our innovative dual-head adjustable downlight redefines modern illumination, blending sophisticated design with professional-grade functionality. This cutting-edge lighting solution features two fully articulating light sources in a streamlined fixture, delivering unparalleled lighting control for both residential and commercial applications. From luxury retail spaces to executive offices and designer homes, this luminaire provides exceptional visual comfort and precise light placement.
Core Advantages

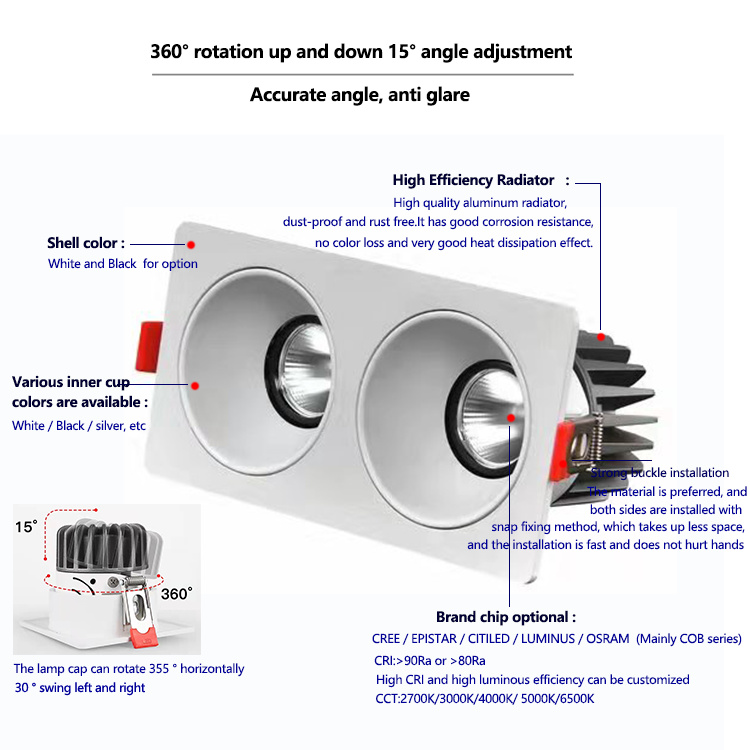

1. Dual-Source Adjustability
·Two independently positionable light heads in one space-saving unit
·Complete 355° horizontal rotation for each module
·15° vertical tilt range for accent lighting precision
·Magnetic quick-adjust mechanism for effortless aiming
·Advanced anti-glare optics (UGR<19) ensure comfortable viewing
·Flicker-free performance
2. Designer-Select Trim Finishes
Five refined finish options to complement any interior scheme:
·Matte White: Professional aesthetic for corporate settings
·Matte Black: Contemporary minimalist appeal
·Rose Gold: Elegant accent for hospitality venues
·Brushed Silver: Versatile neutral for retail environments
·Gunmetal: Industrial modern statement
3. Full-Spectrum Color Tuning
Create the ideal atmosphere:
·Warm White (2700K-3500K): Intimate residential spaces
·Neutral White (4000K-5000K): Productive work environments
·Cool White (6000K): Vibrant commercial displays
·Exceptional 90+ CRI for true color fidelity
4. Specialized Beam Distributions
·15° Focus Beam: Precision accent lighting
·24° Task Beam: Optimal work surface illumination
·36° Ambient Beam: Comfortable area lighting
5. Optimized Performance Options
·2×7W (1190lm): Subtle decorative lighting
·2×12W (2040lm): Balanced ambient illumination
·2×15W (2500lm): Professional task lighting
·2×20W (3400lm): High-output applications
6. Intelligent Control Integration
Fixed Color Models:
·TRIAC dimmer compatible
·0-10V analog control
·DALI protocol ready
Tunable White Models:
·Seamless 2700K-6000K adjustment
·Wireless Bluetooth/Zigbee/WiFi connectivity
·DALI DT8 color control protocol
Technical Specifications
·Construction: Aircraft-grade aluminum housing
·Optical System: Anti-reflective PMMA lenses
·Thermal Solution: Copper-enhanced heatsink design
·Power Input: Universal 100-277V operation
·Operational Life: 50,000 hours (L90)
·Compliance: ISO9001, CE, RoHS ,SAA certified
Recommended Applications
·Corporate: Executive offices, conference rooms
·Retail: Luxury boutiques, product displays
·Hospitality: Fine dining, hotel suites
·Residential: Designer kitchens, living spaces
·Healthcare: Waiting areas, treatment rooms
Dual Recessed LED Downlight: CRI 80 vs CRI 90 Performance Guide
Our dual-head recessed downlights offer two tiers of color rendering excellence to meet diverse lighting requirements. Understanding the distinction between CRI >80 and CRI >90 models ensures optimal lighting performance for your specific application.
CRI >80 (Standard Color Accuracy)
● Color Performance:
•Faithfully renders 80% of colors compared to natural light
•Suitable for basic color discrimination needs
● Ideal Applications:
•Corridors and back-of-house areas
•Industrial facilities and warehouses
•Budget-conscious retail chains
•Parking garages and storage areas
● Technical Advantages:
•5-8% higher lumen output than CRI90 versions
•Lower production costs for large projects
•Perfect for functional lighting where color isn't critical
CRI >90 (Premium Color Fidelity)
● Color Performance:
•Reveals 90%+ of colors with R9>85 for vibrant reds/tones
•Exceptional material/texture differentiation
● Premium Applications:
•Luxury boutiques and jewelry displays
•Art galleries and museum exhibits
•Cosmetic counters and fashion retail
•High-end hospitality venues
● Commercial Benefits:
•Increases perceived product value by 20-30%
•Reduces merchandise return rates
•Meets IES TM-30-18 premium lighting standards
Key Technical Differences:
✓ CRI80: 110lm/W efficacy | CRI90: 95lm/W
✓ Identical 50,000-hour lifespan for both versions
✓ Same ±3 SDCM color consistency
Professional Selection Guide:
→ Use CRI80 for: Cost-sensitive projects, secondary spaces
→ Specify CRI90 for: Customer experience zones, premium environments
Certifications:
• CRI80: CE, RoHS, ENEC
• CRI90: CE, RoHS, ENEC, WELL Building Certified
