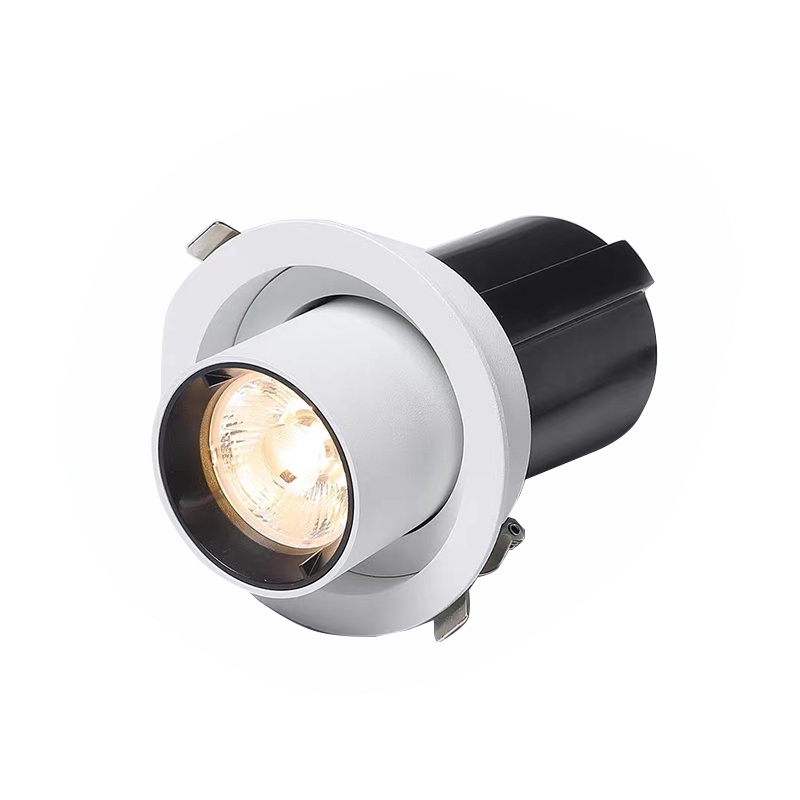

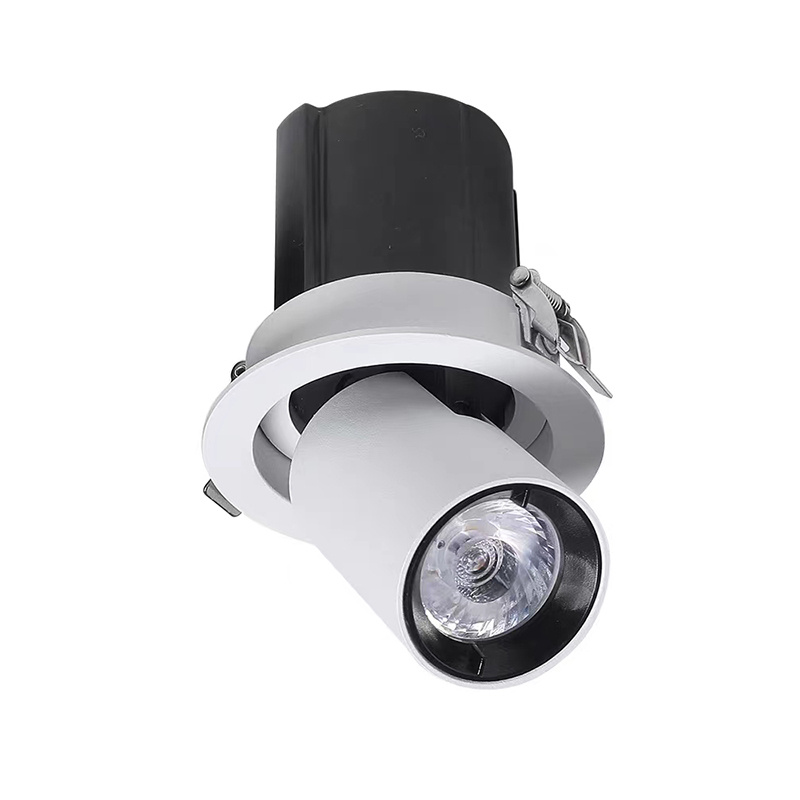

Custom White Recessed Round Adjustable Downlights Manufacturer FT-GL04 Round
Features:
● High CRI (≥90),robust Aluminum Housing
● Retractable Design，multi-Angle Flexibility
● High-Quality LED Chips,wide Beam Angle Options
● Dimmable Compatibility,smooth Glare-Free Lighting
● Quick-Connect Terminals,energy-Saving Performance
● 90° Vertical Tilt Adjustment，360° Horizontal Rotation
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 10-20W：0.5 ; 25W-35W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led COB Downlight |
| Power | 10W/15W/20W/25W/30W/35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White/Black |
| Beam angle | 15°,24°,36° |
| CRI (Ra>) | 80/90/95 |
| Cut out | ¢75/¢95/¢120/¢145MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 10-20W: 0.5 ; 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|
Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL04-10W |
10W |
¢90*H92 |
¢75 |
2700K |
|
FT-GL04-15W |
15W |
¢115*H120 |
¢95 |
|
|
FT-GL04-20W |
20W |
¢135*H140 |
¢120 |
|
|
FT-GL04-25W |
25W |
¢135*H140 |
¢120 |
|
|
FT-GL04-30W |
30W |
¢160*H150 |
¢145 |
|
|
FT-GL04-35W |
35W |
¢160*H150 |
¢145 |
GL04 Premium Recessed Downlight - Ultimate Precision & Eye Comfort
Professional-Grade Adjustable Lighting for Discerning Spaces
Introducing the GL04 Recessed Downlight, where sophisticated optical engineering meets unparalleled adjustability. This circular LED downlight redefines precision lighting with its industry-leading 90° vertical tilt capability, deep anti-glare technology, and professional-grade COB LED performance. Designed for architects and lighting designers who demand perfection, the GL04 delivers exceptional visual comfort and installation flexibility for both residential and commercial applications.
Cutting-Edge Features
1. Advanced Anti-Glare Optical System
✔ True "source-free" visual experience (UGR<19)
✔ Deep 45mm recessed design with honeycomb optical filter
✔ 98% glare reduction for sensitive environments
✔ Eye-comfort by international lighting standards

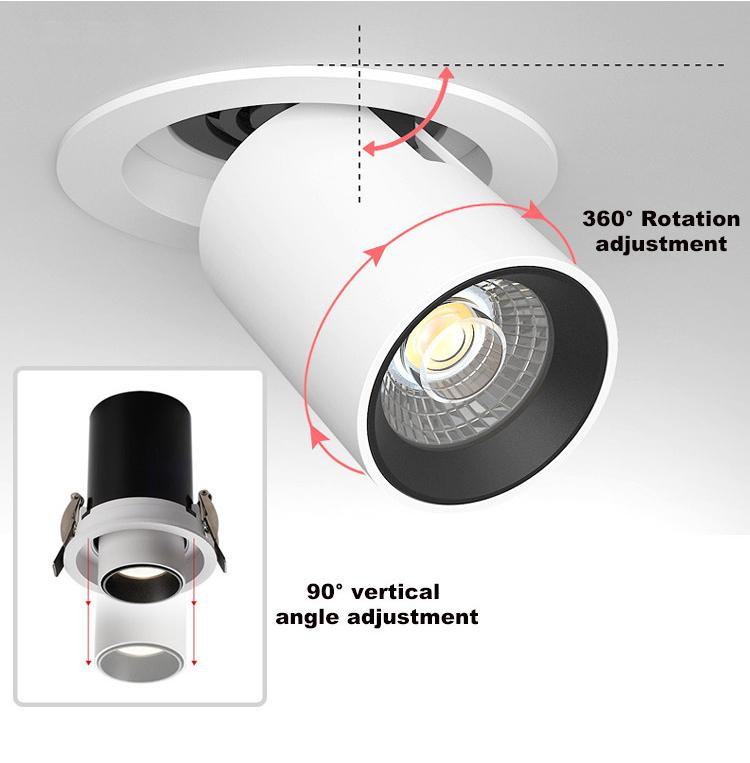

2. Unmatched 355°+90° Adjustability
✔ Full horizontal rotation (355°) for perfect positioning
✔ Industry-leading 90° vertical tilt - widest adjustment range available
✔ Tool-less magnetic gimbal system for effortless aiming
✔ Military-grade locking mechanism maintains precise alignment

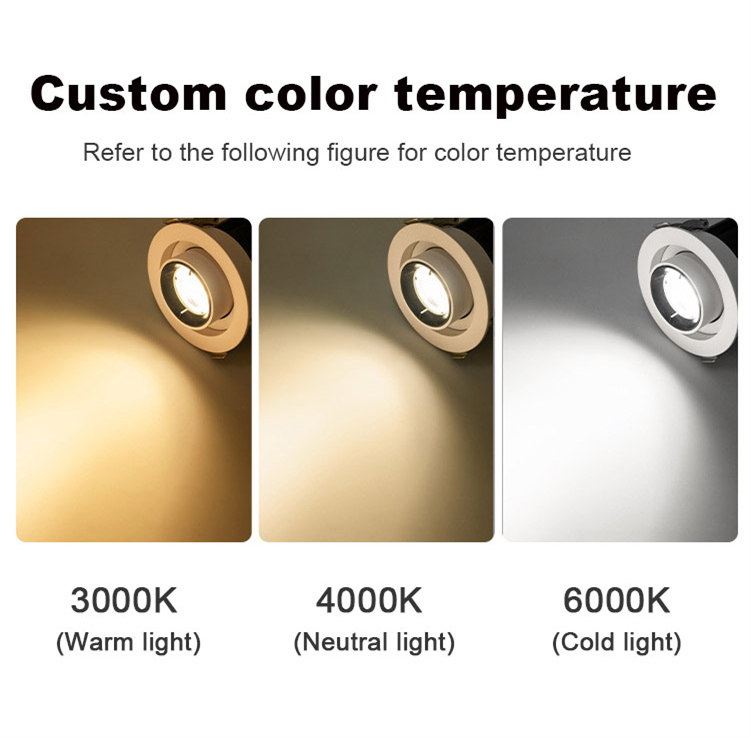

3. Professional Color Temperature Range
Create the ideal atmosphere:
·Warm White (2700K-3500K): Luxury residences, hospitality
·Natural White (4000K-5000K): Offices, healthcare facilities
·Cool White (6000K): Retail displays, industrial spaces
✔ CRI 90+ across all temperatures
4. Precision Beam Angle Selection
·15° Laser Focus: Museum-grade accent lighting
·24° Task Beam: Perfect for kitchen islands, workbenches
·36° Area Flood: General illumination for larger spaces

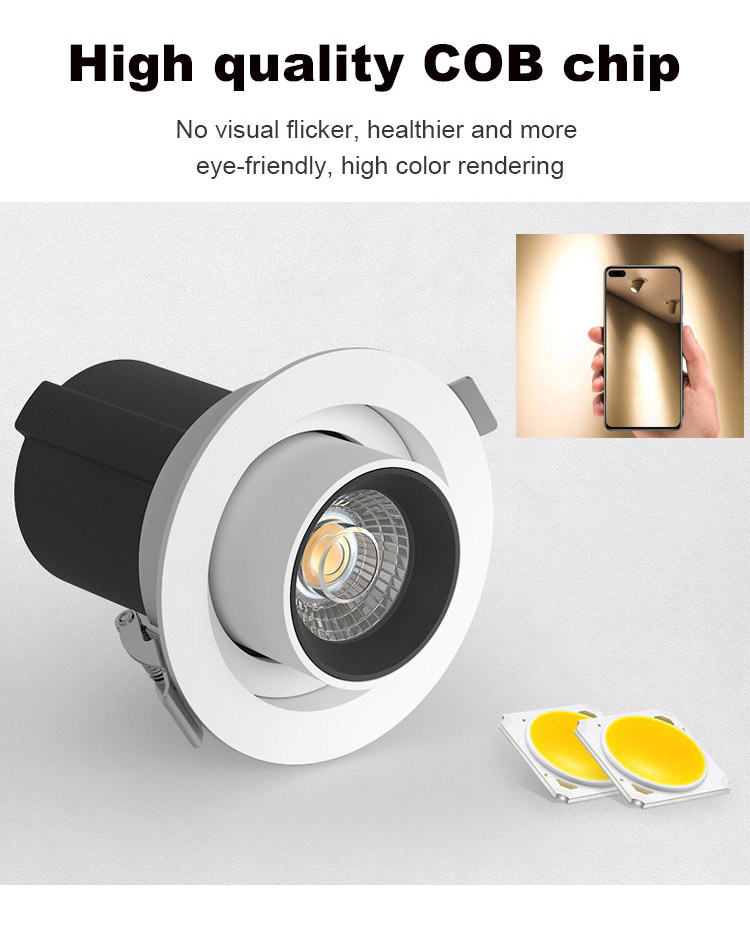

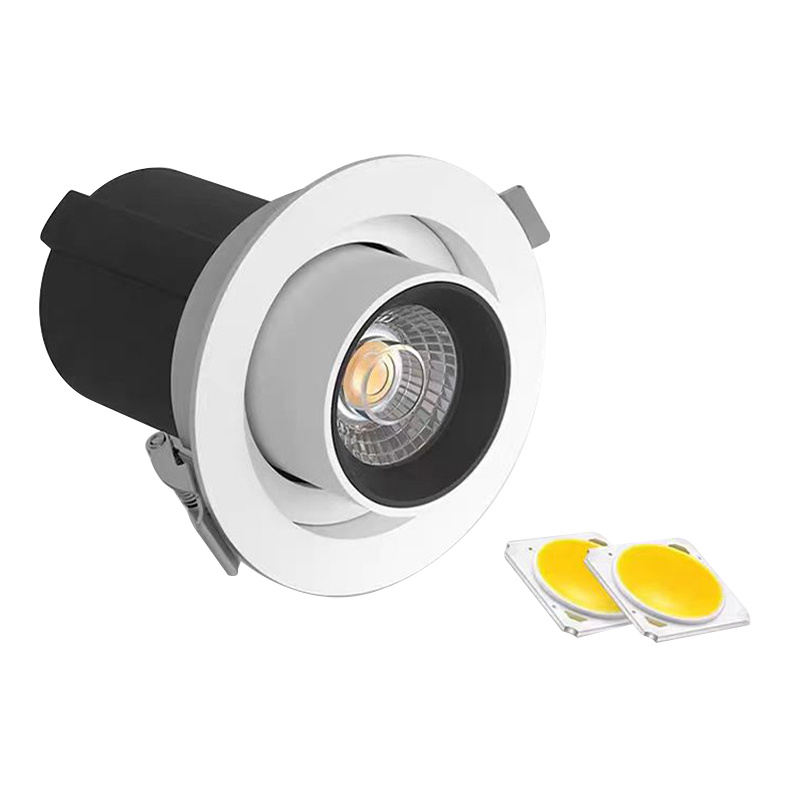

5. High-Efficiency COB LED Performance
·10W-20W: Residential and accent lighting
·25W-35W: Commercial and task lighting
✅ Premium COB chips ensure consistent light quality
6. Smart Dimming Capabilities
·Fixed CCT Models:
✔ TRIAC/0-10V/DALI dimmable
·Tunable White Models:
✔ Seamless 2700K-6000K adjustment
✔ Compatible with Lutron, Control4, KNX systems
✔ Bluetooth mesh enabled for smart control
Superior Engineering
✔ Aerospace-grade aluminum housing with copper core
✔ German-engineered optical system for perfect light distribution
✔ Quick-connect terminals with push-wire technology
✔ Universal 100-277V auto-sensing driver
✔ 50,000-hour lifespan (L90 rating)
✔ Certifications: CE,RoHs,SAA,EMC,LVD

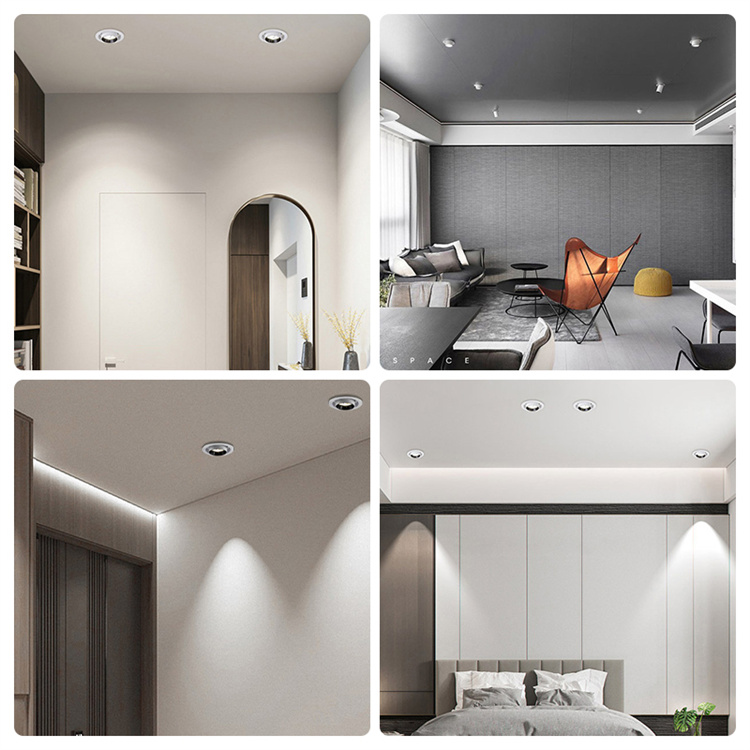

Application Excellence
Residential Perfection:
• Luxury kitchen task lighting
• Art gallery-style accent lighting
• Bathroom vanity illumination
Commercial Performance:
• High-end retail merchandise highlighting
• Professional office workstation lighting
• Healthcare facility corridor lighting
Specialty Environments:
• Museum artifact illumination
• Jewelry store case lighting
• High-end restaurant ambient lighting

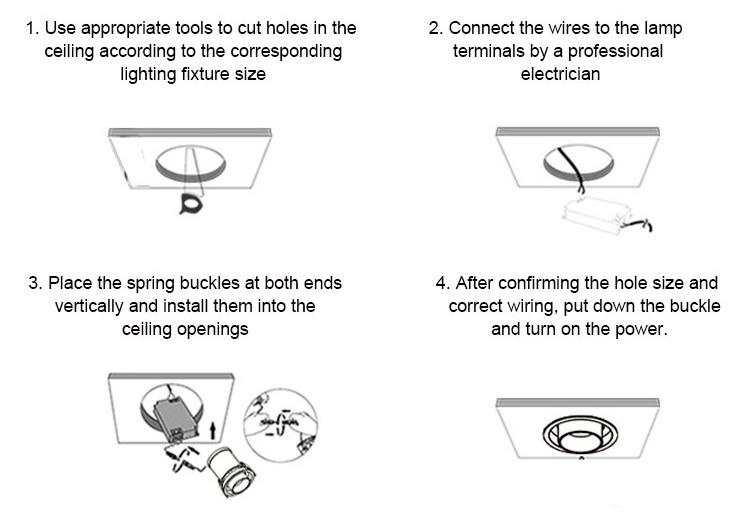

How to install this downlight quickly
1. Use appropriate tools to cut holes in theceiling according to the correspondinglighting fixture size.
2. Connect the wires to the lampterminals by a professional electrician
3. Place the spring buckles at both endsvertically and install them into the ceiling openings
4. After confirming the hole size andcorrect wiring, put down the buckleand turn on the power.

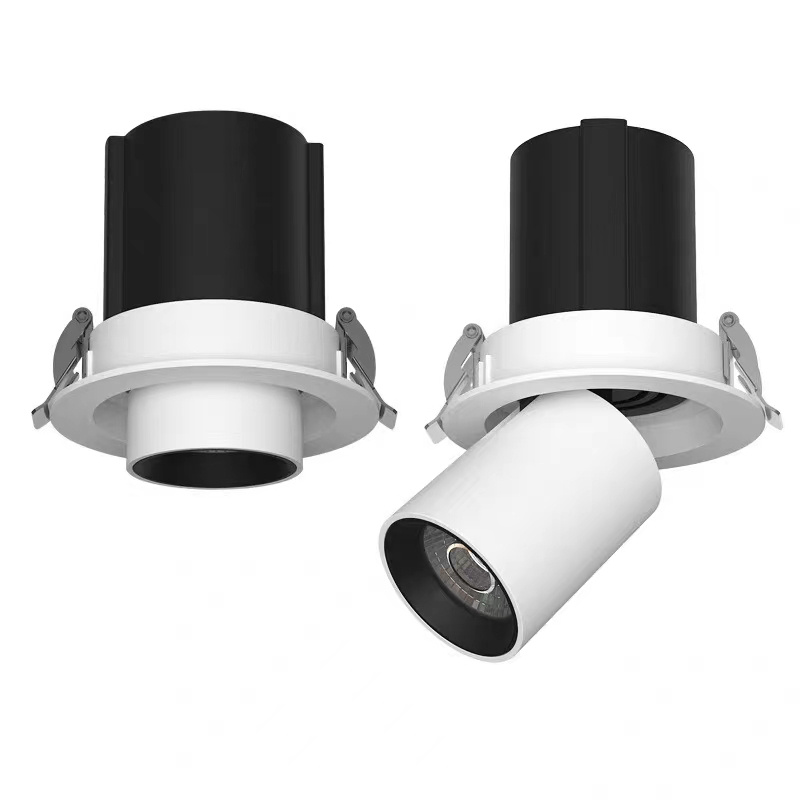

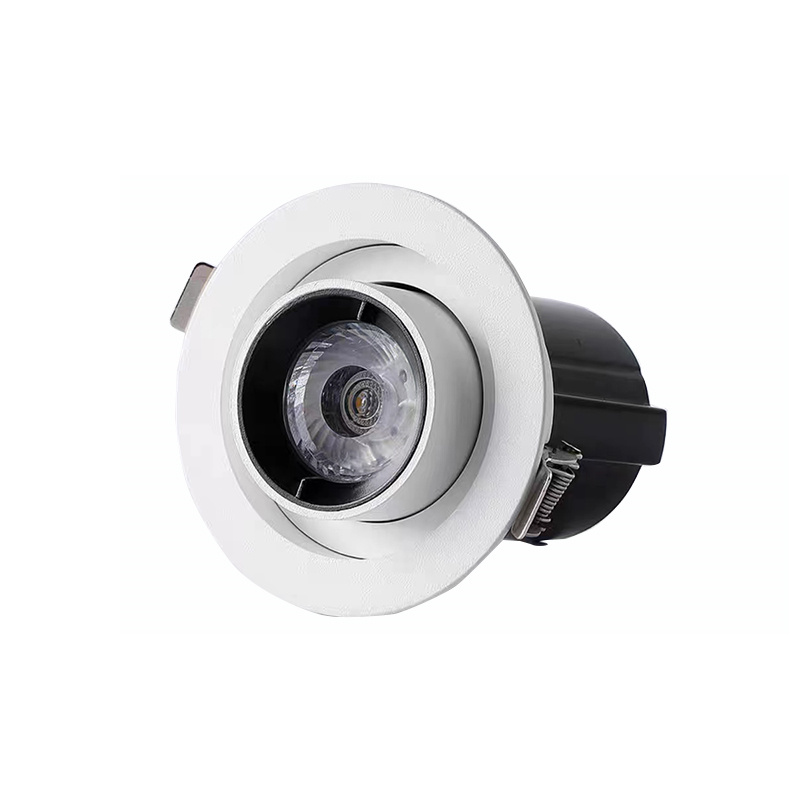

360° Adjustable Recessed Downlight: Ultimate Lighting Precision
Revolutionizing directional lighting, our fully articulating LED recessed downlight delivers unmatched beam control with multi-axis adjustability for perfect illumination positioning. Engineered for architectural and commercial applications, this innovative fixture combines 90° vertical tilt, 360° horizontal rotation, and telescopic height adjustment in one ultra-flexible system.
Unmatched Adjustability Features:
Omni-Directional Positioning
● 90° vertical tilt - From straight down to horizontal wall grazing
● 360° smooth rotation - Complete circular movement without stops
● 50mm telescopic extension - Adjusts to varying ceiling depths
Professional-Grade Mechanics
● Industrial-strength aluminum gimbal with stainless steel pivot points
● Maintains position despite vibration or air currents
Optical Excellence
● Maintains perfect beam shape at all angles (15°/24°/36° options)
● Zero light leakage or hotspotting during movement
● 90+ CRI across full adjustment range
Installation Advantages:
✓ Fits standard 75-145mm openings
✓ Spring-loaded torsion clips for 10-50mm ceiling thickness
✓ Pre-aimable before ceiling installation
Premium Applications:
◼ Museum lighting - Precise artifact highlighting
◼ Retail displays - Dynamic merchandise illumination
◼ Architectural features - Perfect wall washing
◼ Hospitality venues - Flexible mood lighting
Technical Specifications:
• 10W/15W/20W/25W/30W/35W high-output versions
• 100-277V driver
• Dimmable: 0-10V/DALI/TUYA
• IP44
Why Designers Specify This:
→ Eliminates multiple fixture types
→ Post-installation fine-tuning capability
→ 5-year mechanical warranty
