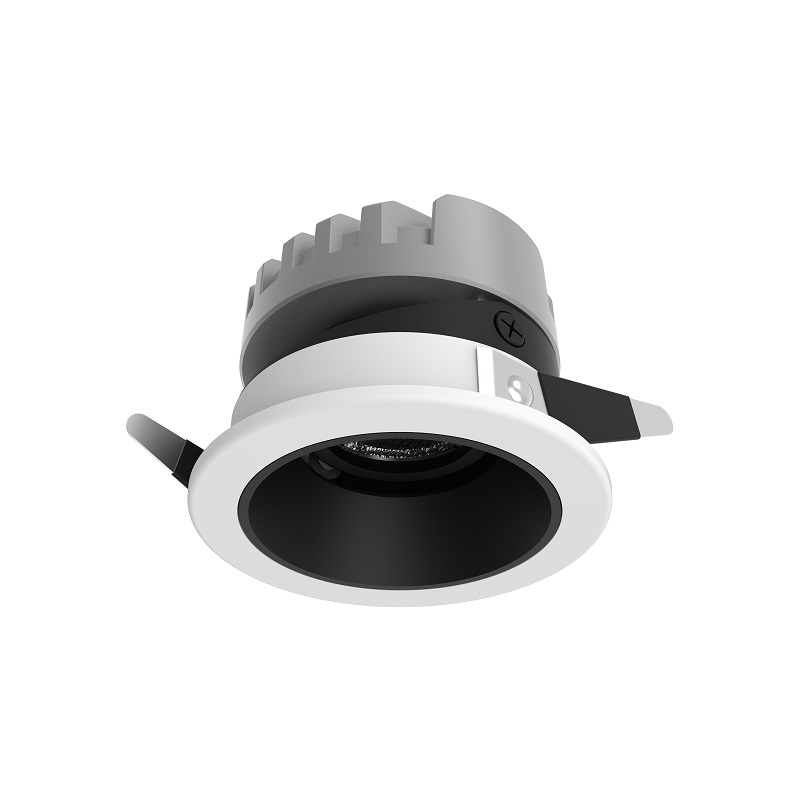

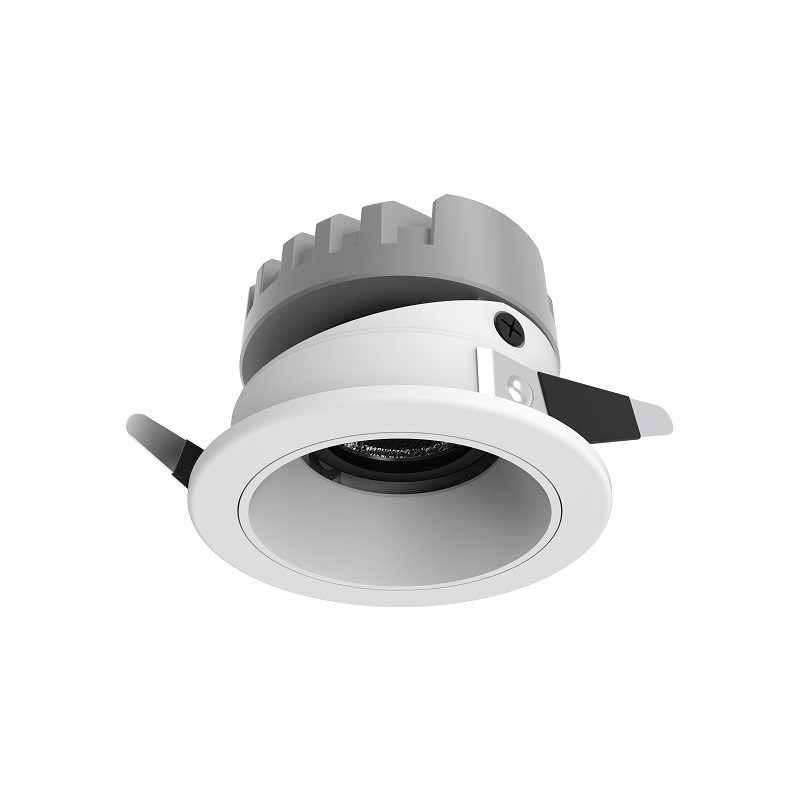

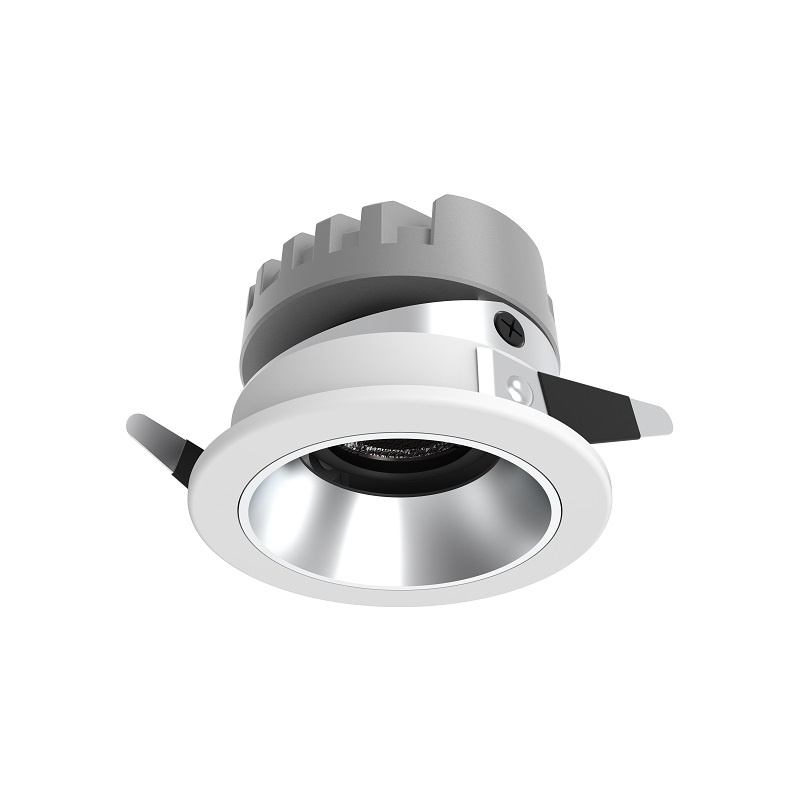

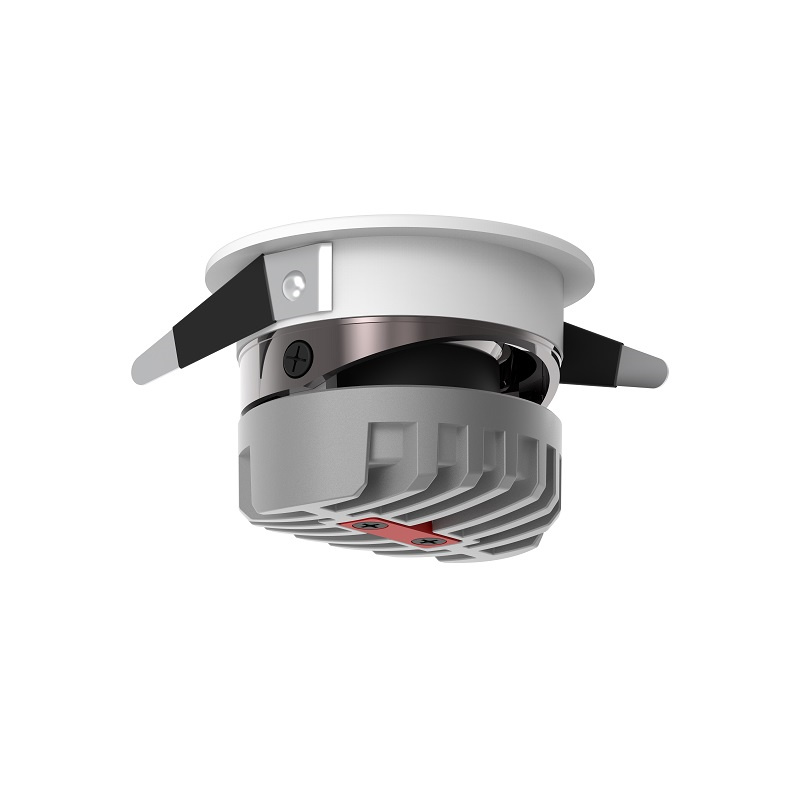

Customize Commercial Led Spot Light for House FT-HGS09
Features:
● High CRI (≥80/90),Multiple CCT Options
● 2700K-6000K CCT Range–Warm to cool white options
● CE/RoHS/SAA Certified–Compliant with global regulations
● Optional Smart Control–TUYA/Zigbee/Bluetooth
● OEM/ODM Accepted–Custom logos, specs, and packaging
● 5-Year Warranty–Reliable after-sales support
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Spotlights |
| Power | 7W/10W/12W/20W |
| Input Voltage(V) | AC 110V (± 10%)/AC 220V(± 10%) |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 8°/15°/24°/38°/55° |
| CRI (Ra>) | 80/90/95 |
| Cut out | ¢55/¢75/¢95 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7-20W:0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

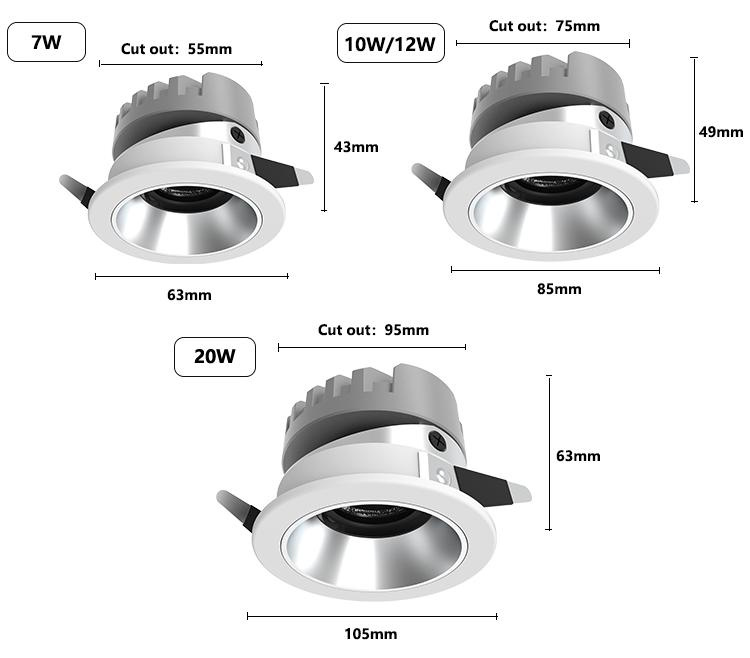

Model No. |
Watts |
Size(mm) |
Cut Out |
Lumens |
LED Color |
|
±10% |
|||||
|
FT-HGS09-7W |
7W |
85*85*79MM |
D63*H43 |
560-595lm |
2700K
|
|
FT-HGS09-10W |
10W |
85*85*90MM |
D85*H49 |
800-850lm |
|
|
FT-HGS09-12W |
12W |
85*85*90MM |
D85*H49 |
960-1020lm |
|
|
FT-HGS09-20W |
20W |
85*85*100MM |
D105*H63 |
1600-1700lm |

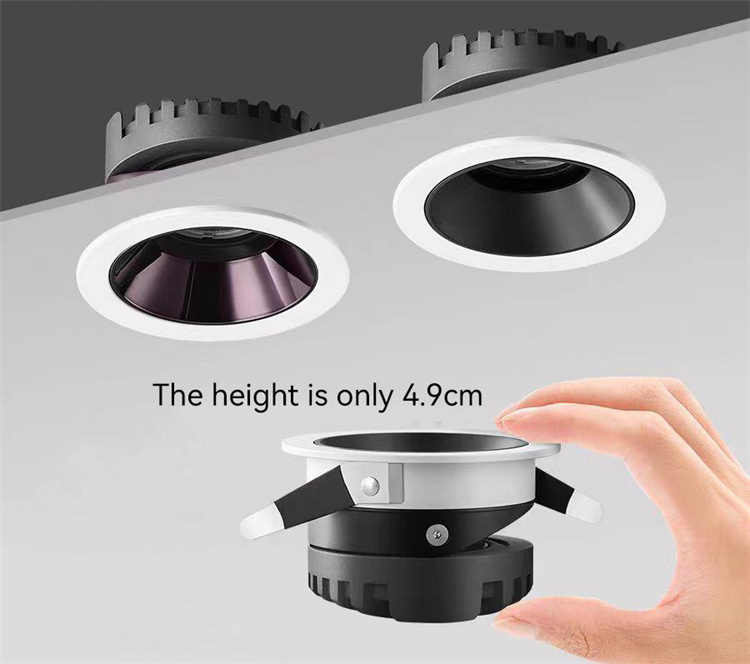

Ultra thin spot light
With a slim profile of just 4.9cm (1.93"), this ultra-low-profile spotlight is perfectly suited for rooms with low ceilings or limited vertical space, offering seamless integration without compromising illumination quality.

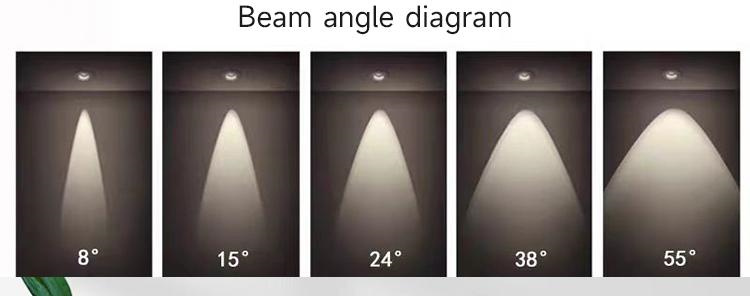

Different Beam Angles for Precision Lighting
This spotlight features five precision-engineered beam angles (8°/15°/24°/38°/55°) to deliver customized illumination for any application:
8° Extreme Narrow Beam
• Laser-like precision for highlighting minute details
• Perfect for museum exhibits, diamond displays
15° Narrow Spot：Focused accent lighting; Ideal for artwork, luxury retail displays
24° Medium Flood: Balanced task lighting; Excellent for kitchen counters, office workstations
38° Wide Flood: Generous area coverage; Optimal for living rooms, restaurant dining areas
55° Extra Wide Flood: Expansive ambient lighting; Best for ceiling washes, spacious lobbies
The innovative optical system ensures sharp cutoff and smooth transitions between beam angles, giving lighting designers complete creative control while maintaining energy efficiency.

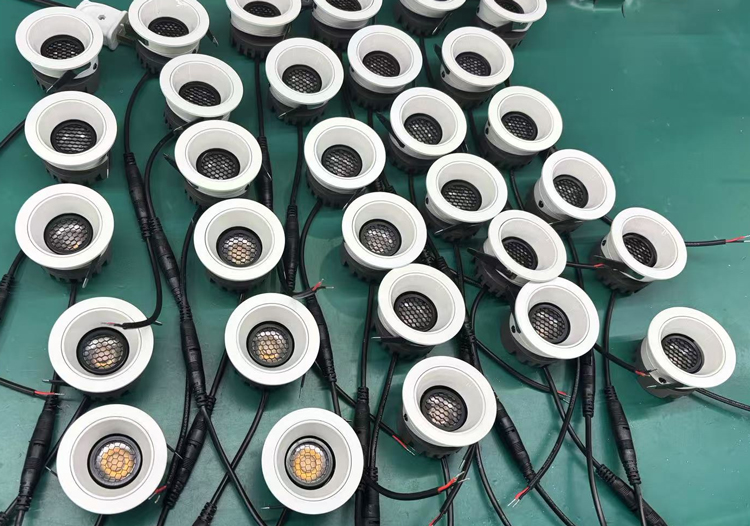

Honeycomb Anti-Glare Accessory (Optional)
Upgrade your lighting system with our precision-engineered honeycomb grid:
• Advanced glare reduction for improved visual comfort
• Enhanced beam control with minimal light spillage
• Sleek, architectural design complements modern fixtures
Perfect for light-sensitive environments:
• Art galleries and museum exhibits
• High-end retail displays
• Professional workspaces
• Hotel and restaurant lighting
This sophisticated honeycomb accessory delivers commercial-quality light control while maintaining elegant aesthetics. An ideal solution for projects demanding both performance and visual comfort.
7W 10W 12W 20W available
This spotlight is available in multiple wattage configurations (7W/10W/12W/20W) to meet diverse illumination needs:
• 7W : Ultra-efficient accent lighting for displays and decor
• 10W : Balanced output for residential task lighting
• 12W: Professional-grade brightness for retail environments
• 20W: High-intensity illumination for commercial applications
Smart Features:
✓ Consistent 90+ CRI across all wattages
✓ Dimmable with most standard systems (0-10V/TRIAC)
Recommended Applications:
7W: Artwork lighting, shelf accents
10W-12W: Kitchen islands, workspaces
20W: Gallery walls, architectural features

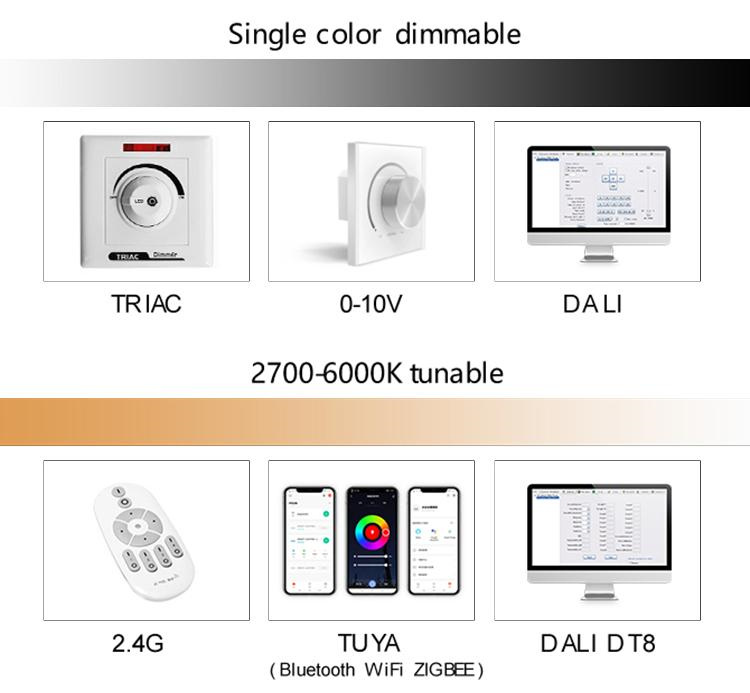

Versatile Dimming & Color Tuning Options
Single Color Dimmable Models:
• Triac - Compatible with standard wall dimmers
• 0-10V - For professional lighting control systems
• DALI - Digital addressable lighting interface
Tunable dimming (2700K-6000K):
▸ Wireless Control: 2.4G ,Multi-protocol support (Bluetooth/WiFi/Zigbee)
▸ Wired Protocol: DALI DT8 (professional color control standard)
Smart Features:
✓ Seamless CCT adjustment
✓ Flicker-free performance
✓ Integration with major smart home platforms
Easy to install
Simple Installation in 4 Steps:
1. Cut Mounting Hole：Create an opening matching the spotlight's exact diameter (tools required)
2. Connect Power：Direct wiring to 220V AC (non-polarized for hassle-free connection)
3. Mount Fixture：Push up firmly until retention clips lock securely
4. Test Operation：Verify proper lighting function after installation
Safety Tip: Always ensure the circuit is de-energized during installation.
Application
· Architectural highlighting
· Retail merchandising
· Hospitality lighting
· Residential accent lighting
Space-Saving & Comfortable: Ultra-Slim Anti-Glare Spotlights for Low Ceilings
Low ceilings require smart lighting solutions. Our ultra-slim recessed LED spotlights are specially designed for tight spaces, offering brilliant light without sacrificing comfort or valuable headroom.
Why They’re Perfect for Low Ceilings:
1. Sleek & Space-Smart
At just under 65mm deep, these fixtures fit effortlessly into shallow ceilings—ideal for basements, hallways, apartments, and renovations where every inch counts. No more cramped, closed-in feelings.
2. Advanced Anti-Glare Tech
When lights are closer to eye level, glare becomes a real issue. Our spotlights feature precision optics—deep baffles, micro-louvers, and specialized reflectors—all packed into a slim design. The result? Ultra-low glare (UGR <19, sometimes even lower) for maximum comfort.
3. Wider, Softer Light
Unlike harsh spotlights that create dark edges, these distribute light evenly, making small rooms feel more open. No more "cave effect"—just smooth, balanced brightness.
4. Cool & Long-Lasting

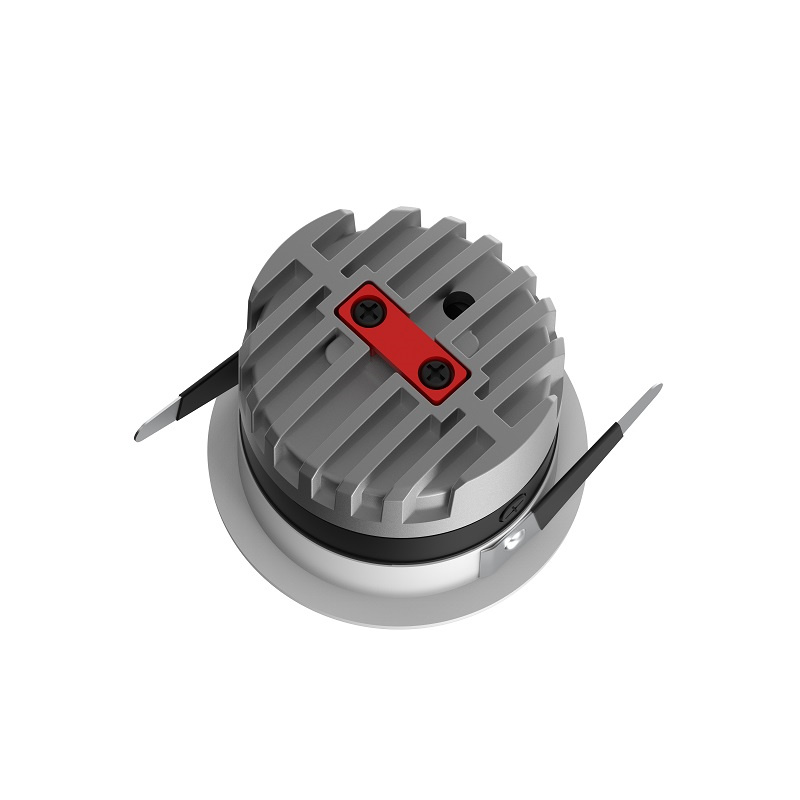

A slim build can trap heat, but not here. High-quality aluminum housings and efficient heat sinks keep temperatures in check, ensuring a long lifespan (50,000+ hours), even in insulated ceilings.
5. Easy & Safe to Install
Lightweight and compatible with shallow junction boxes, they work in drywall, wood, or suspended ceilings. Safe (IP20/IP44 rated) and cool to the touch, even in tight spots.
6. Minimalist & Discreet
The ultra-thin bezel sits nearly flush, keeping ceilings clean and uncluttered—a must for small, stylish spaces.
Perfect for homes, offices, retail dressing rooms, and anywhere ceiling height is limited, these ultra-slim spotlights deliver comfort, space-enhancing light, and lasting performance—all in a sleek, low-profile design.
