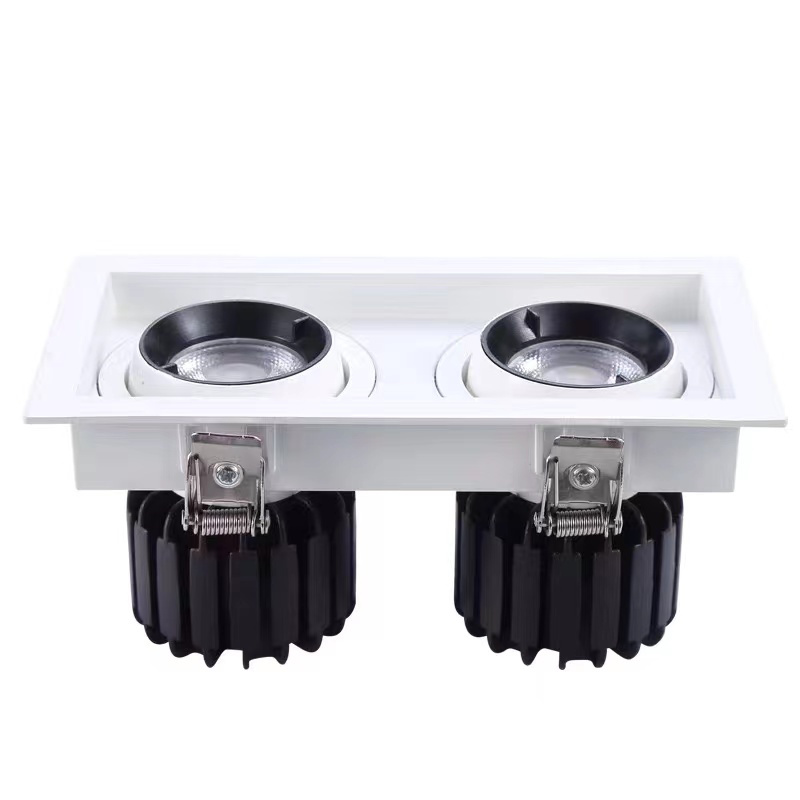

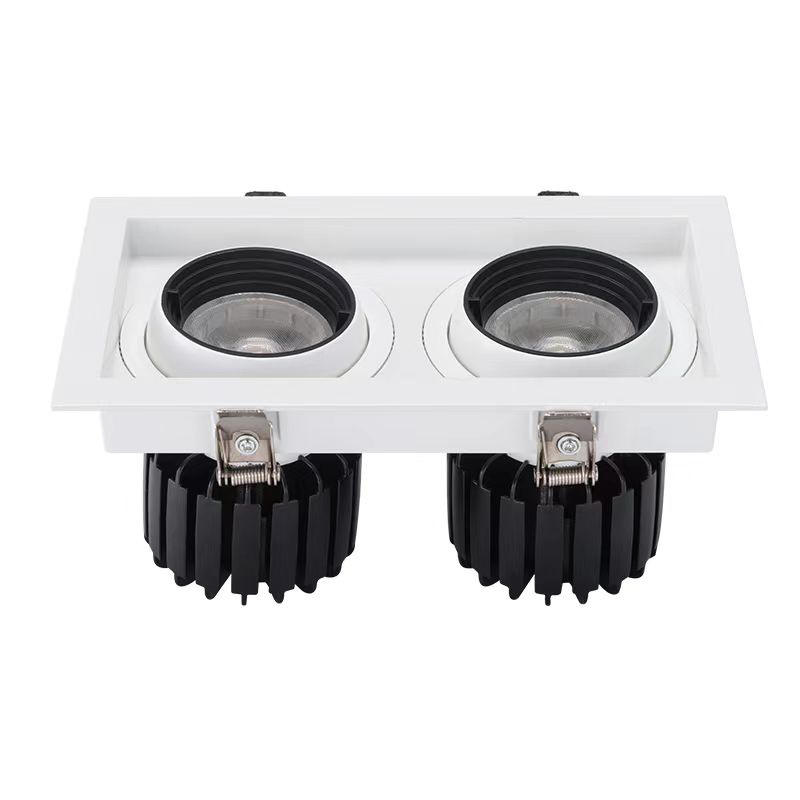

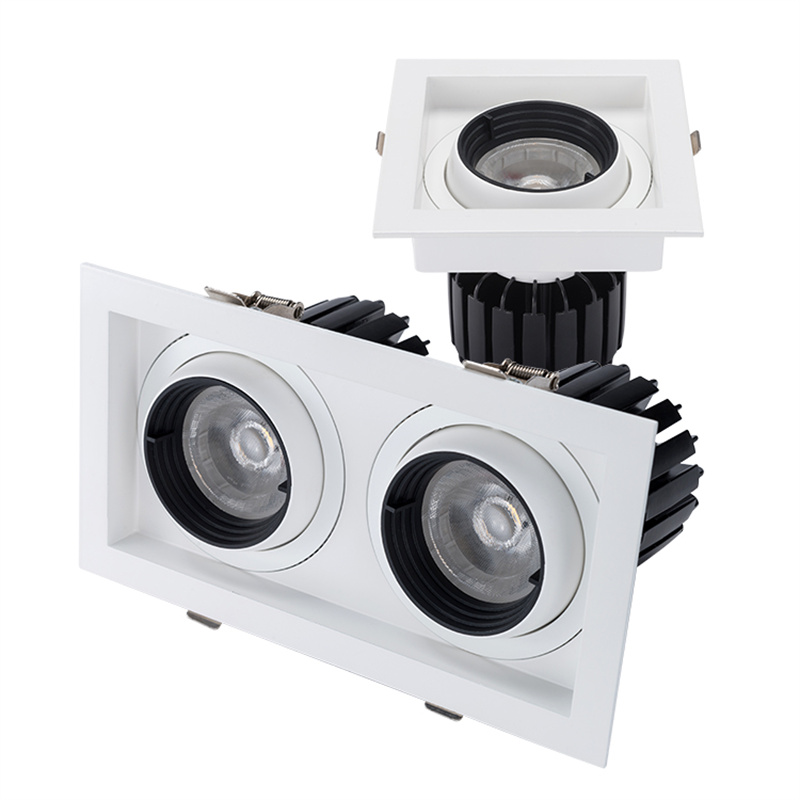

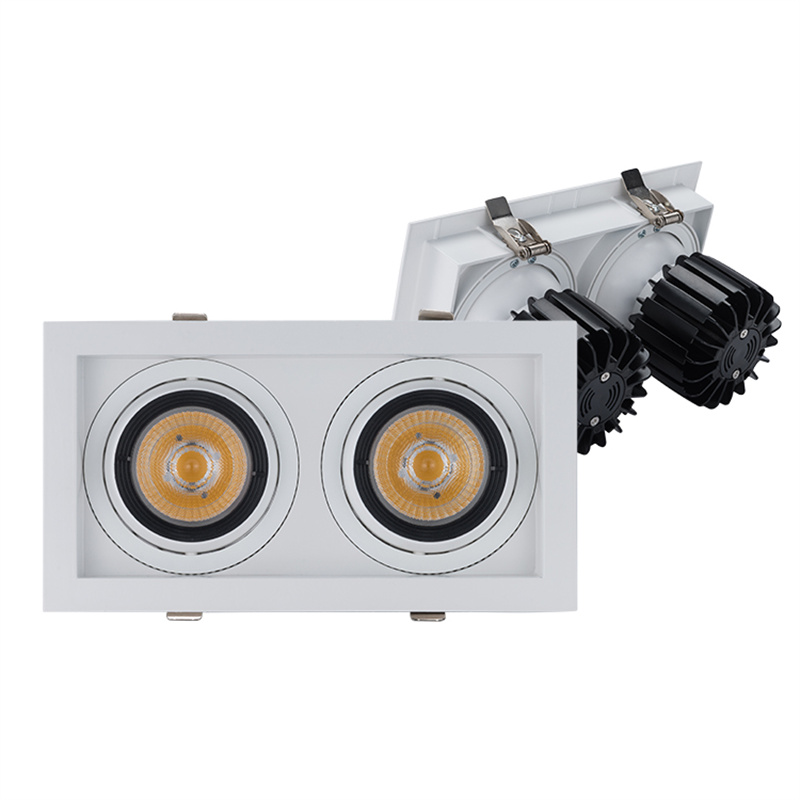

Directional Recessed Double-head Grille Lighting for Living Room FT-GL03*2
Features:
● Multiple Color Temperatures–2700K-6500K (Warm to Cool White)
● RoHS & CE Certified–Environmentally friendly and globally compliant
● ECO-Friendly–Mercury-free and recyclable
● Low UV/IR Emission–Safe for sensitive environments
● Corrosion-Resistant–Suitable for humid or coastal areas
● Warranty Protection–5 years warranty for peace of mind
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 8-20W：0.5 ; 25W-35W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Square Double Head Grille Light |
| Power | 2*8W/2*10W/2*12W/2*15W/2*20W/2*25W/2*30W/2*35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White |
| Beam angle | 15°,24°,38° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 155*75/200*100/230*120/280*145MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 8-20W: 0.5 ; 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

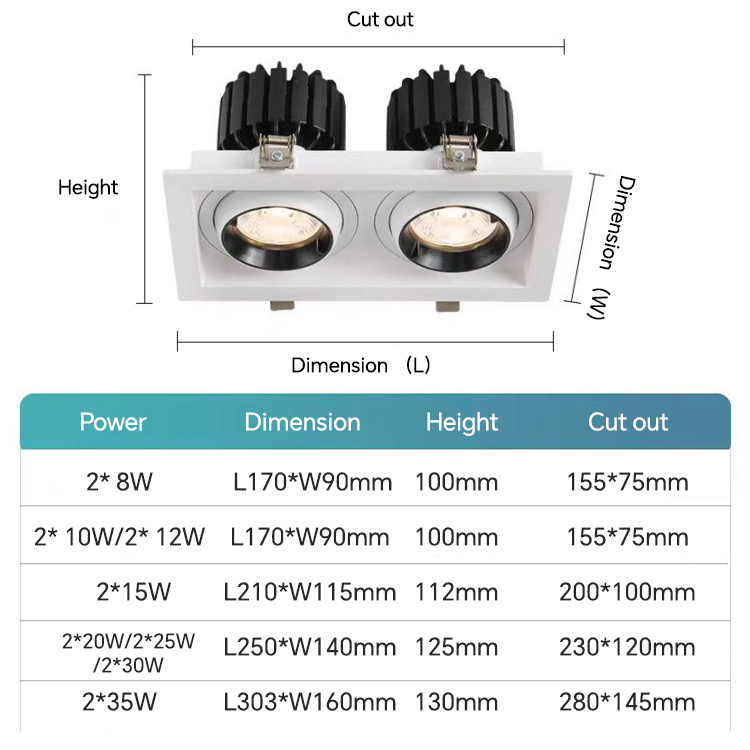

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL03-2*8W |
2*8W |
L170*W90*H100 |
155*75 |
2700K
|
|
FT-GL03-2*10W |
2*10W |
L170*W90*H100 |
155*75 |
|
|
FT-GL03-2*12W |
2*12W |
L170*W90*H100 |
155*75 |
|
|
FT-GL03-2*15W |
2*15W |
L210*W115*H112 |
200*100 |
|
|
FT-GL03-2*20W |
2*20W |
L250*W140*H125 |
230*120 |
|
|
FT-GL03-2*25W |
2*25W |
L250*W140*H125 |
230*120 |
|
|
FT-GL03-2*30W |
2*30W |
L250*W140*H125 |
230*120 |
|
|
FT-GL03-2*35W |
2*35W |
L303*W160*H130 |
280*145 |
GL03 Dual-Head Recessed Downlight - Precision Lighting Redefined
The Ultimate in Adjustable, Eye-Comfort Lighting Solutions
Meet the GL03 Dual-Head Downlight System, a revolutionary lighting solution that combines professional-grade performance with residential elegance. Designed for architects and lighting designers, this innovative dual-light fixture delivers unmatched versatility through its advanced anti-glare technology, precision adjustability, and smart lighting compatibility. Whether illuminating a modern kitchen or a commercial workspace, the GL03 adapts effortlessly to your lighting needs.
Industry-Leading Features
1. Dual-Light Anti-Glare Technology

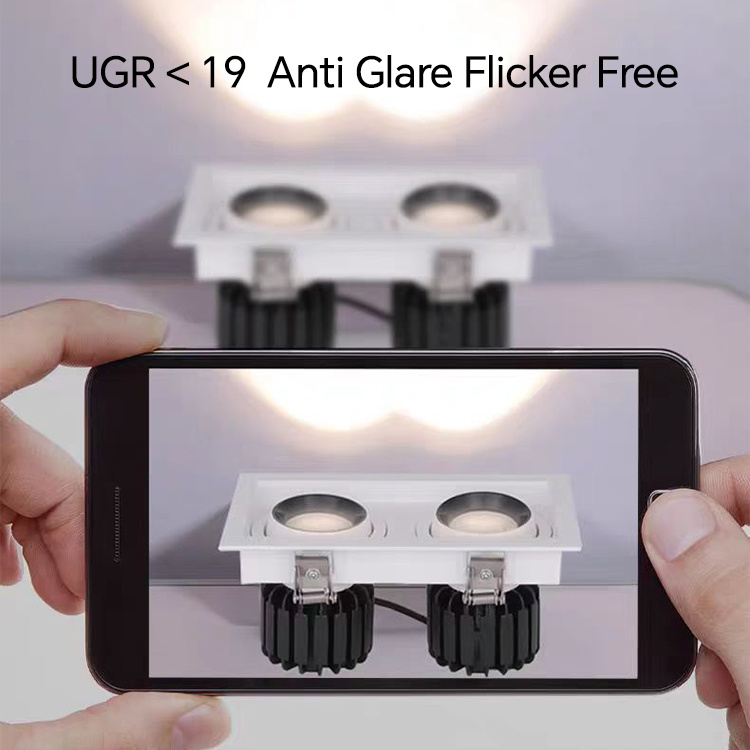

• True "light-only" visual effect (UGR<19 )
• Deep recessed design with honeycomb optical system
• Eliminates 98% of glare for office and residential use

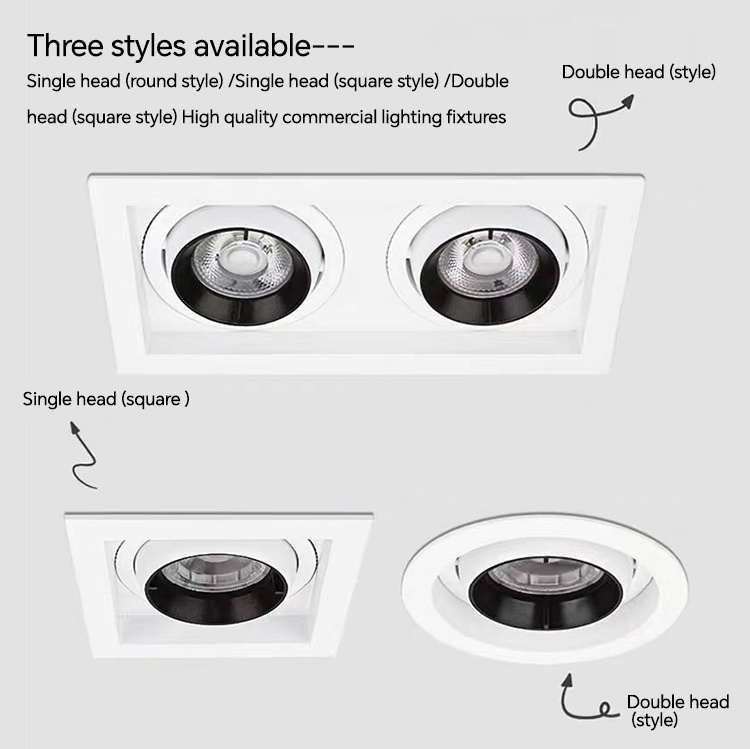

• Three housing configurations:
• Circular trim (traditional aesthetic)
• Single-square frame (minimalist appeal)
• Dual-square assembly (enhanced functionality)

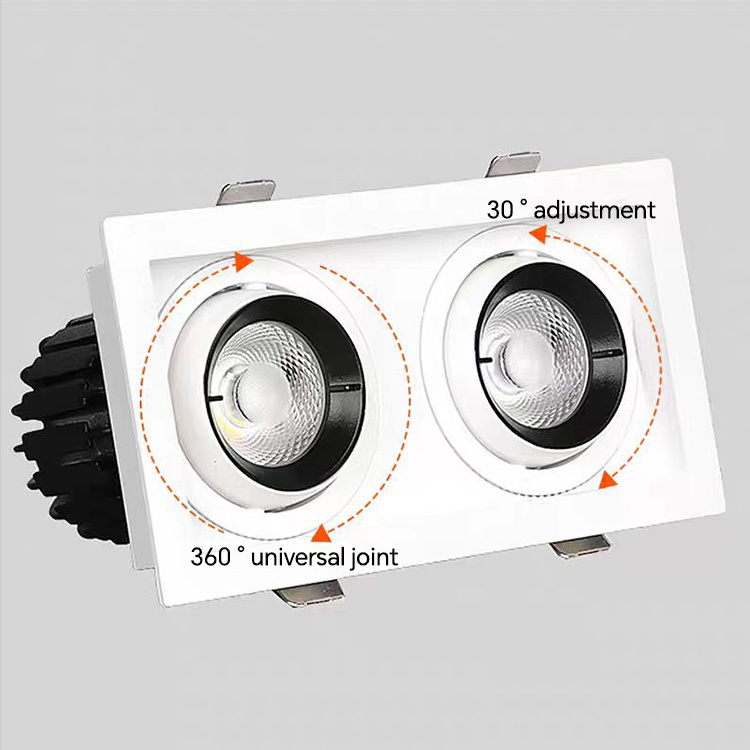

2. Professional Lighting Control
• Full 355° horizontal rotation - position lights with millimeter precision
• 30° vertical tilt creates perfect accent lighting
• Patented magnetic adjustment - no tools required
• Vibration-resistant - maintains position indefinitely
3. Complete Color Spectrum Selection
Create the perfect ambiance:
• Warm White (2700K-3500K): Living rooms, restaurants
• Natural White (4000K-5000K): Offices, retail spaces
• Daylight White (6000K): Workshops, commercial displays
✔ CRI 90+ across all temperatures

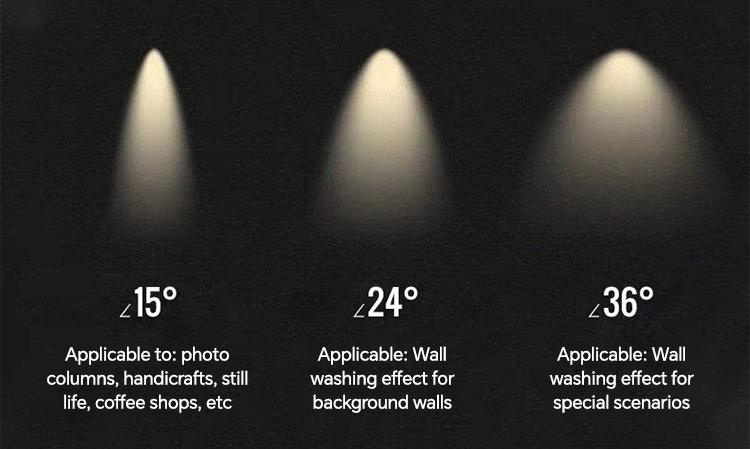

4. Three Professional Beam Options
• 15° Pinpoint Beam (artwork, jewelry displays)
• 24° Focused Flood (kitchen counters, workstations)
• 36° Wide Flood (general room illumination)
5. Versatile Power Configuration
• 8W-15W: Residential/ambient lighting
• 20W-25W: Commercial workspaces
• 30W-35W: High-intensity applications
6. Smart Control Ready
Fixed Color Models:
• TRIAC/0-10V/DALI dimmable
Tunable White Models:
• Full-range 2700K-6000K adjustment
• Compatible with Lutron, Crestron, KNX
• Bluetooth/Zigbee/WiFi enabled
Premium Engineering
• Aircraft-grade aluminum housing with copper heat sinks
• Military-grade connectors for reliable installation
• Tool-less spring clips for fast mounting
• Universal 100-277V voltage range
• 50,000-hour lifespan (L90 rating)
• Certifications: CE,Rohs,SAA,LVD,EMC
Application Versatility
Residential Excellence:
• Modern kitchen task lighting
• Living room accent features
• Bathroom vanity illumination
Commercial Performance:
• Office workstation lighting
• Retail merchandise highlighting
• Hotel lobby ambient lighting
Specialized Environments:
• Art gallery display lighting
• Museum conservation-grade illumination
• Hospital corridor lighting

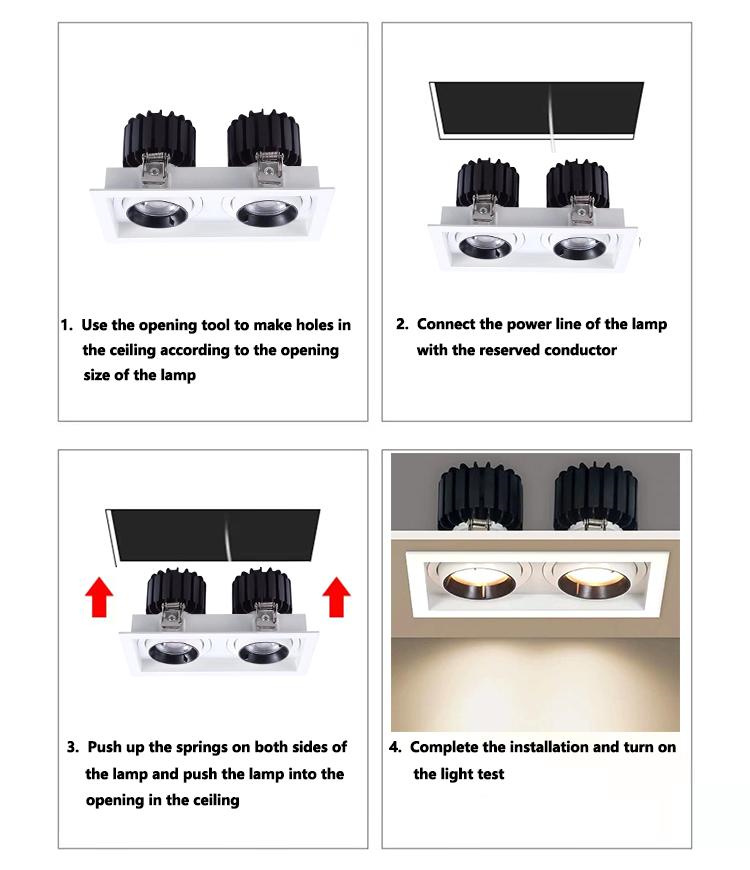

Easy to install
1. Use the opening tool to make holes inthe ceiling according to the openingsize of the lamp
2. Connect the power line of the lampwith the reserved conductor.
3. Push up the springs on both sides ofthe lamp and push the lamp into theopening in the ceiling
4. Complete the installation and turn onthe light test
Dual-head Recessed Downlight: Ultimate Lighting Flexibility for Retail Spaces
Transform your commercial lighting with our innovative dual-head recessed downlight, engineered specifically for dynamic retail environments. Each independently adjustable head rotates 355 degrees with precision smoothness, allowing pinpoint illumination control to highlight merchandise and create captivating visual displays.
Retail-Specific Advantages:
Full-Range Positioning System
● Each 15W LED head rotates 355° horizontally + tilts 15° vertically
● Tool-free adjustment saves valuable maintenance time
Precision Merchandising Lighting
● Create cross-lighting effects to eliminate shadows on displays
● Highlight seasonal collections by redirecting beams in seconds
● Combine spot (15°) and flood (38°) beams in one fixture
Enhanced Product Presentation
● 90 CRI ensures true color representation of fabrics and goods
● Optional 3000K/4000K/5000K/6000K selectable color temperatures
● Glare-free optics prevent customer eye strain
Commercial-Grade Construction
● Heavy-duty aluminum housing withstands frequent adjustments
● Integrated thermal management for 50,000-hour lifespan
● IP44 rated for dust resistance in high-traffic areas

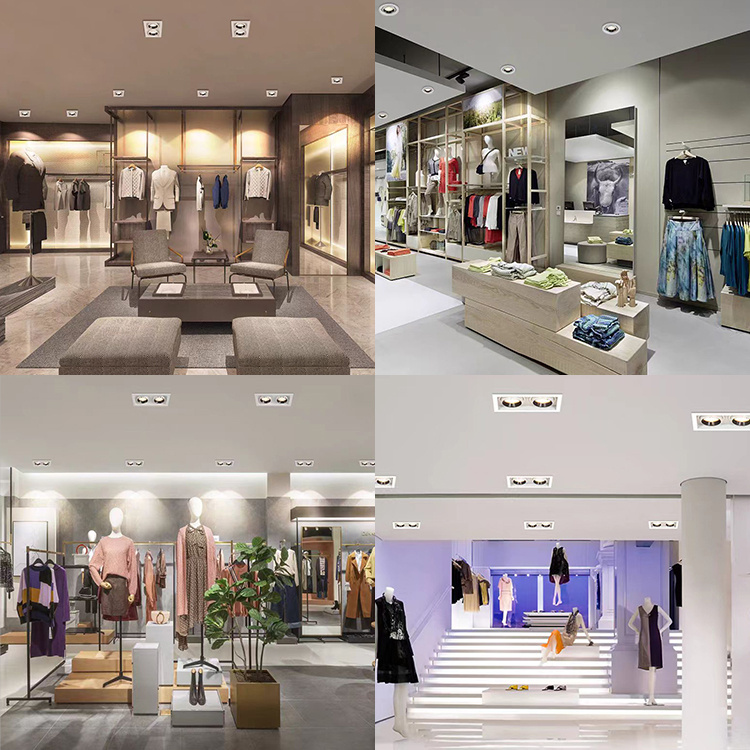

Smart Retail Applications:
◼ Window displays - Create dramatic focal points
◼ Jewelry cases - Precise gemstone illumination
◼ Apparel walls - Even coverage across hanging items
◼ Checkout areas - Combine task and ambient lighting
Technical Superiority:
✓ 100-277V universal voltage
✓ DALI dimmable for smart lighting systems
Why Retailers Choose This:
→ 70% fewer fixtures needed vs fixed downlights
→ Instant seasonal lighting updates without rewiring
→ 5-year commercial warranty
Certifications: CE, RoHS, SAA
