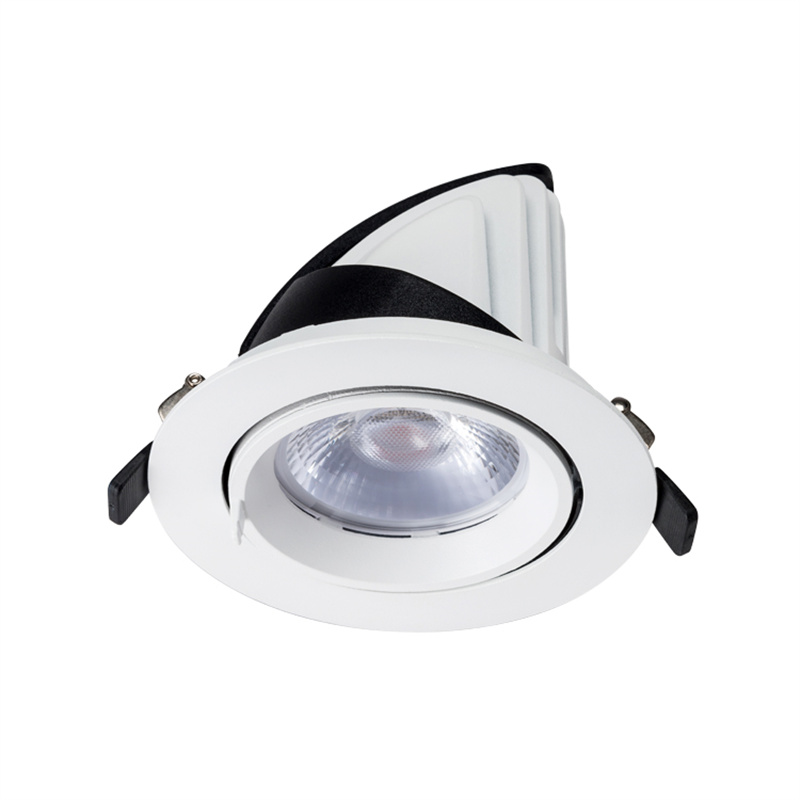

Downlight Led Cob Gimbal Recessed Down Lights FT-DTL03
Features:
● High-efficiency LED chips，CRI ≥90
● Multiple beam angles (15°/24°/38°)
● 355°horizontal rotation，75°vertical tilt
● Dimmable Options- 0-10V/DALI/TRIAC compatible
● Advanced heat dissipation – Extends LED lifespan
● Flicker free technology-reduces eye strain in workspaces
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-50W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Gimbal Downlight |
| Power | 5W/7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 15°,24°,38° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 75/95/125/145/175mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7W-20W: 0.5 ; 25W-50W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

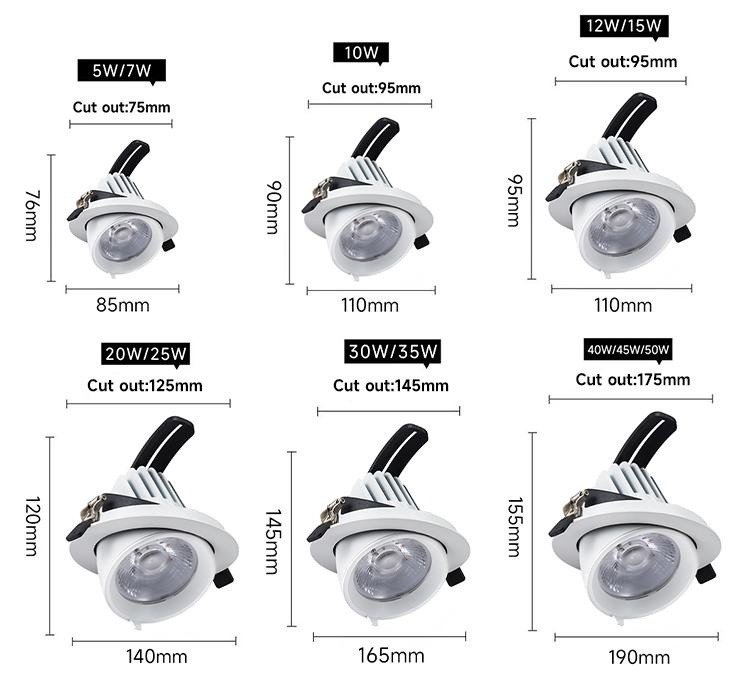

Model No. |
Watts |
Size(mm) |
Cut Out |
Beam Angle |
LED Color |
|
FT-DTL03-5W |
5W |
D85*H76 |
¢75MM |
15°,24° |
2700K
|
|
FT-DTL03-7W |
7W |
D85*H76 |
¢75MM |
15°,24° |
|
|
FT-DTL03-10W |
10W |
D110*H90 |
¢95MM |
15°,24° |
|
|
FT-DTL03-12W |
12W |
D110*H95 |
¢95MM |
15°,24° |
|
|
FT-DTL03-15W |
15W |
D110*H95 |
¢95MM |
15°,24° |
|
|
FT-DTL03-20W |
20W |
D140*H120 |
¢125MM |
15°,24°,38° |
|
|
FT-DTL03-25W |
25W |
D140*H120 |
¢125MM |
15°,24°,38° |
|
|
FT-DTL03-30W |
30W |
D165*H145 |
¢145MM |
15°,24°,38° |
|
|
FT-DTL03-35W |
35W |
D165*H145 |
¢145MM |
15°,24°,38° |
|
|
FT-DTL03-40W |
40W |
D190*H155 |
¢175MM |
15°,24°,38°,60° |
|
|
FT-DTL03-45W |
45W |
D190*H155 |
¢175MM |
15°,24°,38°,60° |
|
|
FT-DTL03-50W |
50W |
D190*H155 |
¢175MM |
15°,24°,38°,60° |

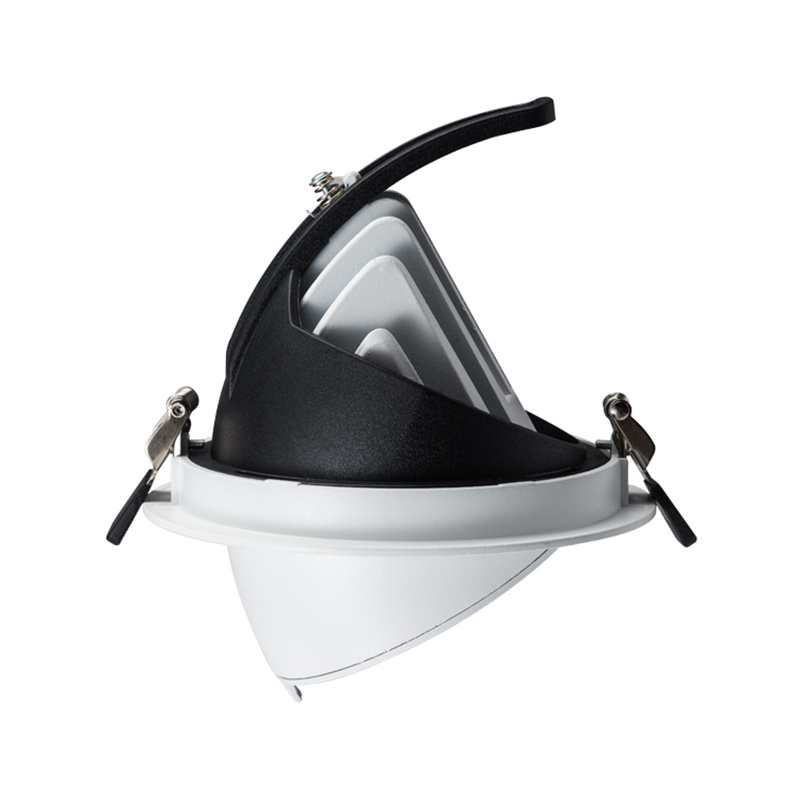

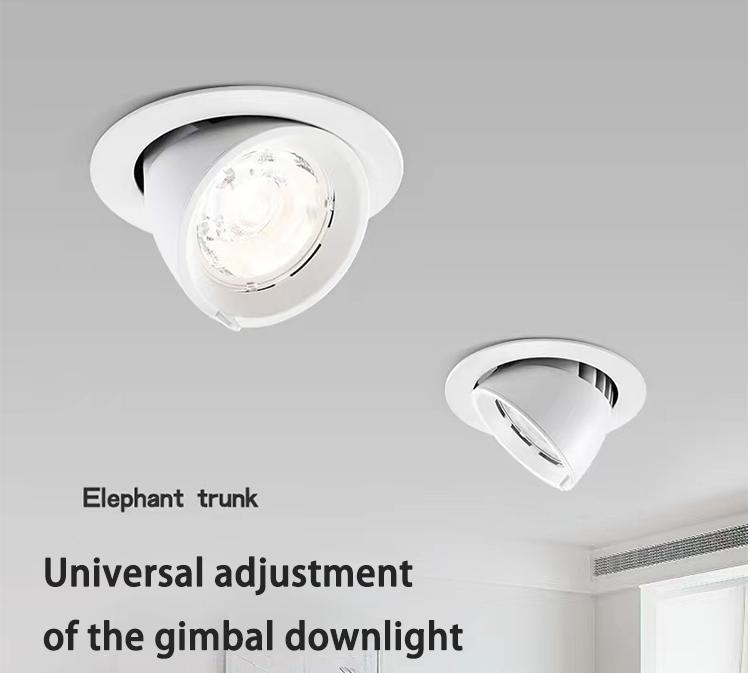

This elephant-trunk lamp has a unique shape as well as distinctive advantages

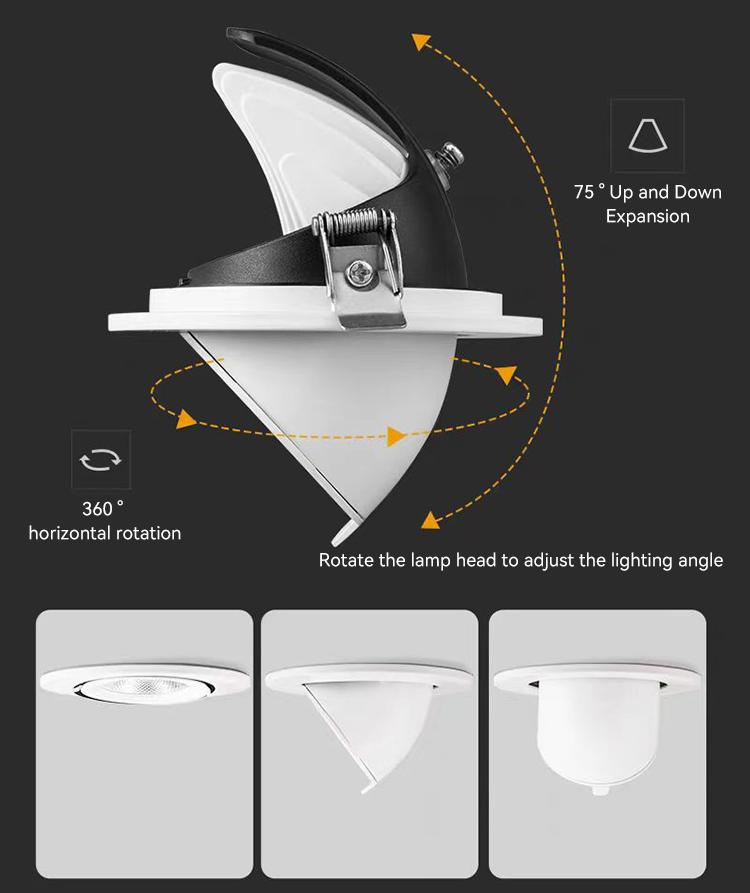

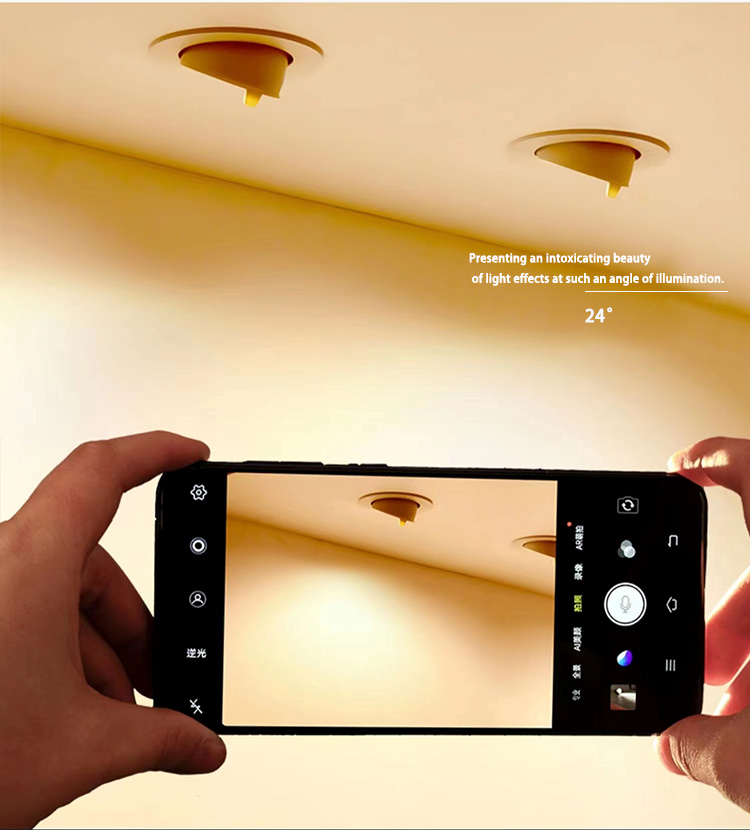

75° Vertical & 360° Horizontal Adjustable
This gimbal downlight has unparalleled flexibility
Full-Range Adjustability
75° vertical tilt – Easily direct light from soft wall grazes to focused downlight
360° horizontal rotation – Full coverage without needing to reposition the fixture
Professional-Grade Precision
Holds its position perfectly after adjustment
Smooth, tool-free operation with just the right resistance
Superior Motion Range
Wider vertical tilt than standard adjustable lights (which typically only offer 30-60°)
Complete rotation ensures no dark spots or uneven lighting
Flicker-Free Downlight – Easy on the Eyes
This downlight is flicker-free
• True flicker-free lighting technology
• Eliminates eye strain and headaches
• Perfect for spaces where people work or relax for long hours

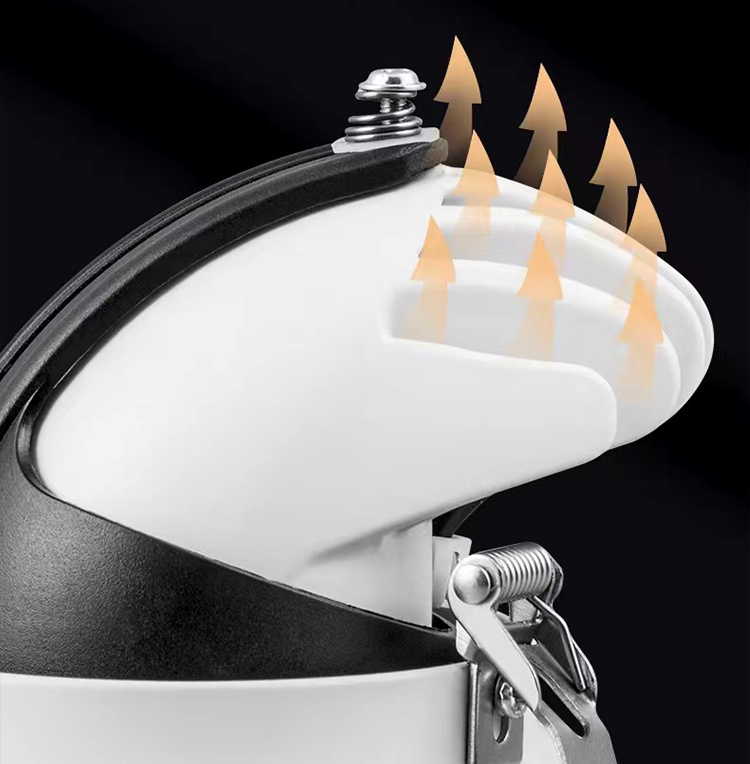

Aluminum Lamp Body-good heat dissipation performance
The entire lamp body is made of high-quality aluminum, which has fast heat dissipation and a longer service life.

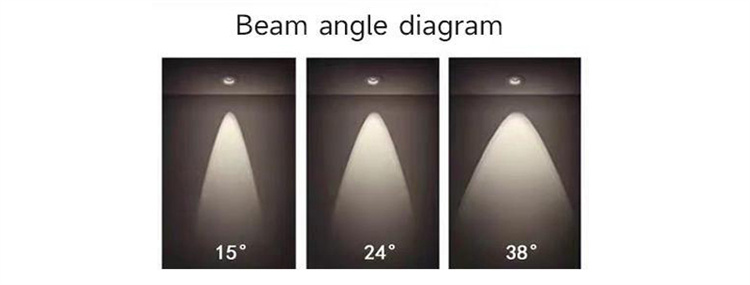

Adjustable Beam Angles for Precision Lighting
·15° Narrow Beam (Spotlight)
Precision Focus: Perfect for accentuating small objects or fine details, such as artwork, sculptures, or high-end retail displays.
High-Intensity Light: Delivers sharp contrast and a striking visual effect, ideal for creating focal points.
·24° Medium Beam (Accent Lighting)
Balanced Spread: Optimized for mid-sized applications like product shelves, signage, or feature walls—providing clear visibility without light spill.
Adaptable Use: Suitable for both home and commercial environments, offering flexibility in design.
·38° Wide Beam (Floodlight)
Expansive Coverage: Effectively lights up broad areas, including wall washes, open-concept spaces, and showroom floors.
Even Illumination: Minimizes shadows for a smooth, ambient glow that enhances overall visibility.
Versatile Gimbal Downlight - Choose Your Perfect Brightness
Available in Multiple Power Options:
5W / 7W / 10W / 12W / 15W / 20W / 25W / 30W / 35W / 40W / 45W / 50W
Selection Guide:
5-15W: Perfect for mood lighting & small spaces
20-30W: Ideal for task lighting & medium rooms
35-50W: Best for high-ceiling areas & commercial use
All Models Feature:
·Flicker-free technology
·360° adjustable gimbal design
·Consistent high CRI (90+) across all wattages
Easy to install
1. Prepare the Mounting Hole – Cut an opening matching the lamp’s specified diameter using appropriate tools.
2. Electrical Connection – Safely wire to standard 220V household power (polarity-insensitive design eliminates live/neutral wire concerns).
3. Secure the Fixture – Align and press upward until the spring clips fully engage with the ceiling/wall surface.
4. Final Verification – Power on to confirm proper operation before final use.
Safety Tip: Always ensure the circuit is de-energized during installation.

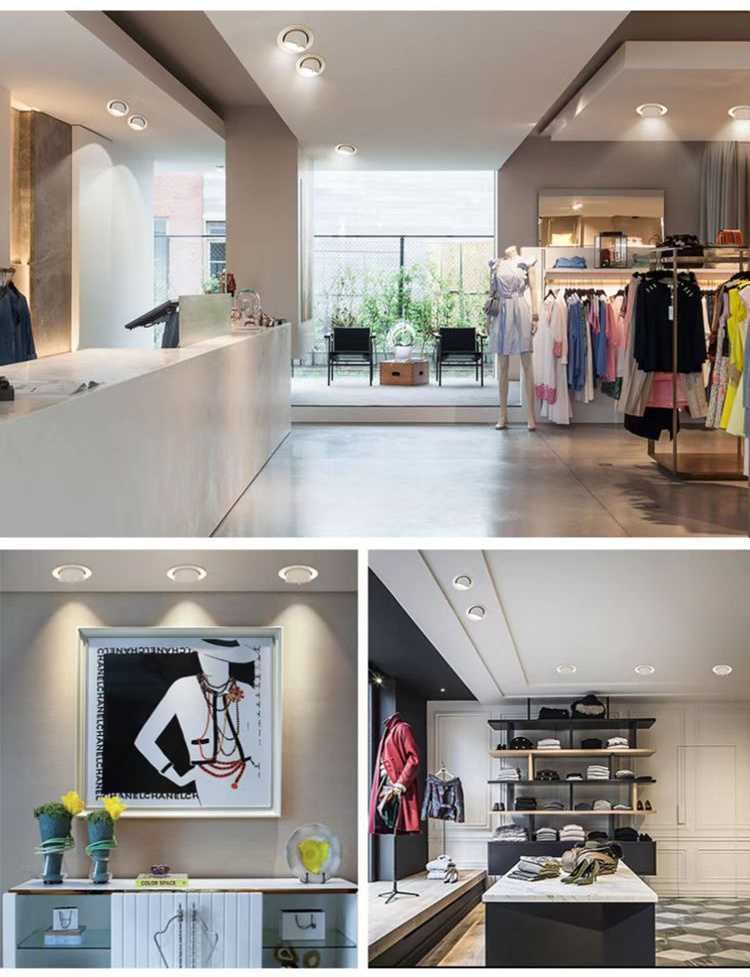

Application
This spotlight is suitable for: hotels, apartments, galleries, living rooms, background walls, etc
Recessed Gimbal Down Light: Precision Lighting for Retail Excellence
Engineered for retail perfection, our Recessed Gimbal Down Light delivers unparalleled flexibility to showcase merchandise with stunning clarity. Featuring industry-leading adjustability and high-color-rendering LEDs, this fixture empowers retailers to create dynamic, eye-catching displays that drive engagement and sales.
Ultimate Positioning Flexibility:
Unlock total directional control. The gimbal head rotates 355° horizontally and tilts ±75° vertically, enabling precise beam targeting from any installation point. Easily redirect light without moving fixtures when displays change—saving time and resources while maintaining perfect illumination on mannequins, garment racks, or feature walls.
High CRI >90 for True Color:
Experience fabrics as designers intended. With exceptional color rendering (CRI >90), every hue, texture, and detail appears vibrant and true-to-life. Red fabrics look richly saturated, subtle patterns gain definition, and material quality becomes unmistakable—critical for influencing purchasing decisions in fashion retail.
Adaptive Lighting Scenarios:
● Spotlight Collections: Use narrow beams to highlight new arrivals or premium items.
● Flood Displays: Illuminate entire clothing racks evenly with wide-angle settings.
● Dynamic Zoning: Adjust multiple fixtures to create evolving focal points during promotions.
● Accent Shelving: Angle light vertically to eliminate shadows on folded items.
Seamless Integration & Efficiency:
Maintain clean ceilings while achieving gallery-grade lighting. The recessed design blends invisibly into ceiling, directing attention solely to merchandise. Combined with energy-efficient LEDs (50,000+ hours), it slashes maintenance costs and ensures consistent, high-quality illumination year-round.
Why Retailers Choose This Light:
1. Merchandising Agility: Instantly adapt lighting to seasonal layouts or promotions.
2. Visual Impact: Maximize garment appeal with shadow-free, color-accurate light.
3. Cost Control: Reduce relighting labor + 60% energy savings versus halogens.
4. Customer Experience: Create immersive, flattering fitting room environments.
Ideal For: Fashion boutiques, department stores, window displays, fitting rooms, and luxury retail environments demanding precision and ambiance.
Transform visual merchandising with intelligent adjustability and color fidelity—where every beam drives desire.
