Drop Ceiling Recessed Led Grille Lights Factory FT-GL03 Square
Features:
● Suitable for global markets
● Superior light output per watt for energy savings
● Enhances color accuracy for retail and display areas
● Reduces eye strain for comfortable use in homes and offices
● Dimmable Option–Compatible with TRIAC/0-10V/dimmers (selectable)
● Rotate the lamp head left/right for precise directional lighting
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 8-20W：0.5 ; 25W-35W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Square Grille Light |
| Power | 8W/10W/12W/15W/20W/25W/30W/35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White |
| Beam angle | 15°,24°,38° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 75/100/120/145MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 8-20W: 0.5 ; 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

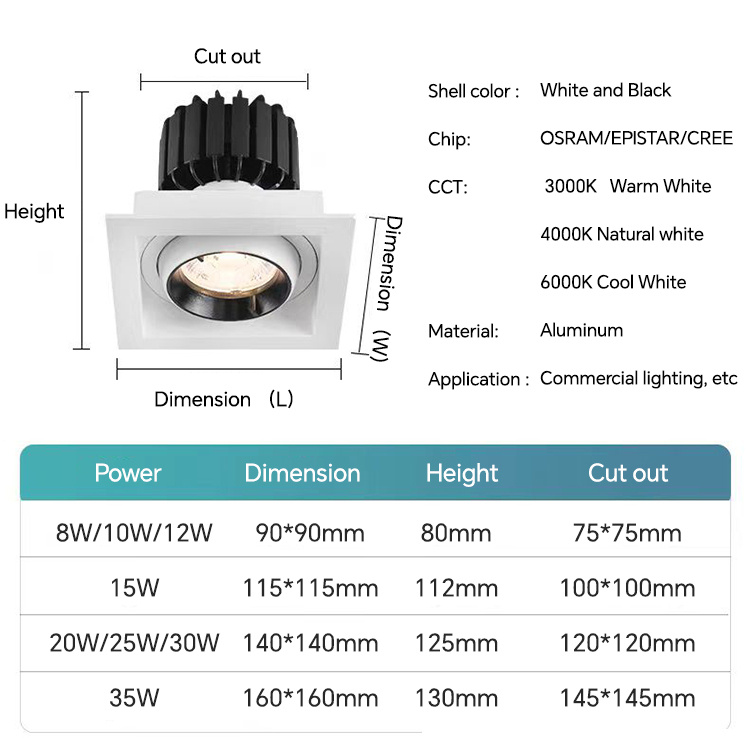

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL03-8W |
8W |
90*90*80 |
75*75 |
2700K |
|
FT-GL03-10W |
10W |
90*90*80 |
75*75 |
|
|
FT-GL03-12W |
12W |
90*90*80 |
75*75 |
|
|
FT-GL03-15W |
15W |
115*115*112 |
100*100 |
|
|
FT-GL03-20W |
20W |
140*140*125 |
120*120 |
|
|
FT-GL03-25W |
25W |
140*140*125 |
120*120 |
|
|
FT-GL03-30W |
30W |
140*140*125 |
120*120 |
|
|
FT-GL03-35W |
35W |
160*160*130 |
145*145 |
GL03 Modern Square Downlight System - Versatile Lighting for Contemporary Spaces
Sleek Design Meets Professional Performance
Introducing the GL03 Square Downlight Series, a modern lighting solution that combines cutting-edge anti-glare technology with unmatched versatility. Designed for today's architectural trends, this square-profile downlight is available in three stylish configurations to perfectly match your space. Whether for high-end residential or commercial applications, the GL03 delivers precise, comfortable illumination with superior adjustability and smart-ready features.
1. Sleek Square Profile with Anti-Glare Technology
✔ Modern square frame seamlessly integrates with contemporary decor
✔ Advanced glare control (UGR<16) for comfortable viewing
✔ Multi-stage optical design minimizes eye strain
✔ Three distinct finishes available:
·Classic round bezel (timeless elegance)
·Single-square frame (clean, understated look)
·Dual-square configuration (expanded light coverage)

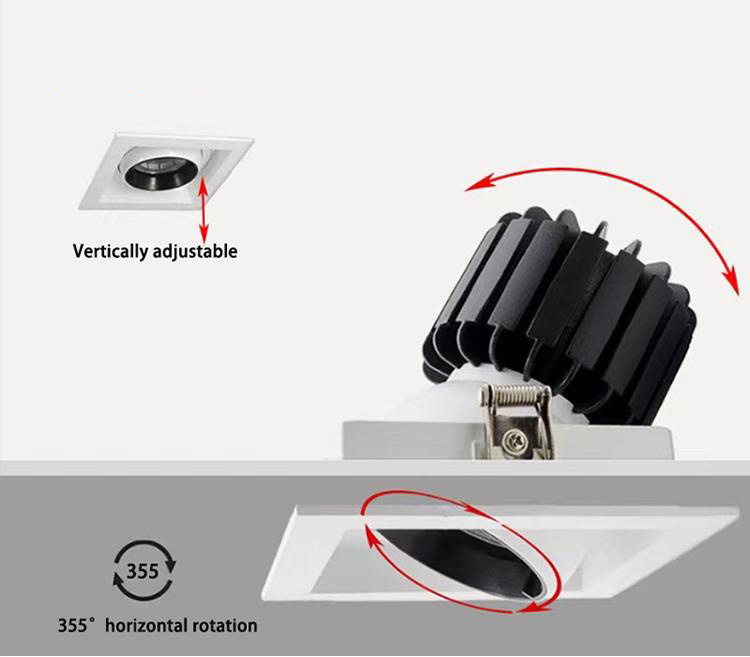

2. Precision Beam Direction Control
· Complete 355° horizontal rotation for optimal placement
· 30° vertical adjustment for targeted illumination
· Magnetic positioning system allows effortless aiming
· Locking mechanism ensures stable long-term alignment
3. Customizable Color Temperature Range
Set the perfect mood for any environment:
·2700K-3500K: Cozy, welcoming glow (living spaces, dining areas)
·4000K-5000K: Balanced, natural white (work areas, kitchens)
·6000K: Bright, energizing daylight (commercial spaces, retail)
✔ 90+ CRI rating delivers exceptional color accuracy
4. Adjustable Light Distribution Patterns
Select from three focused beam options:
·15° concentrated spot (accent lighting)
·24° directional flood (task-oriented lighting)
·36° wide dispersion (area illumination)
5. Versatile Power Output Selection
·8W-15W: Ambient and decorative lighting
·20W-25W: Standard workspace illumination
·30W-35W: High-intensity applications
6. Intelligent Dimming Capabilities
Single-color models feature:
· TRIAC dimmer compatibility
· 0-10V control interface
· DALI protocol support
Tunable white models include:
· Full-range 2700K-6000K adjustment
· Integration with leading smart home platforms
· Circadian rhythm lighting optimization
7. Multiple Design Configurations
Available in three distinct styles:
·Circular trim (traditional aesthetic)
·Single-square housing (contemporary style)
·Dual-square assembly (expanded functionality)
Premium Build Quality & Technical Specifications
✔ Construction: Aircraft-grade aluminum housing
✔ Light Control: Anti-reflective optical lenses
✔ Installation: Simplified quick-connect wiring
✔ Power Compatibility: 100-277V auto-sensing
✔ Durability: 50,000-hour rated lifespan
✔ Compliance: CE, RoHS, SAA
Perfect For These Applications
· Home Environments: Contemporary kitchens, living areas
· Business Settings: Professional offices, meeting rooms
· Retail Spaces: Product displays, boutique lighting
· Hospitality Venues: Luxury hotels, fine dining
· Medical Facilities: Examination rooms, waiting areas

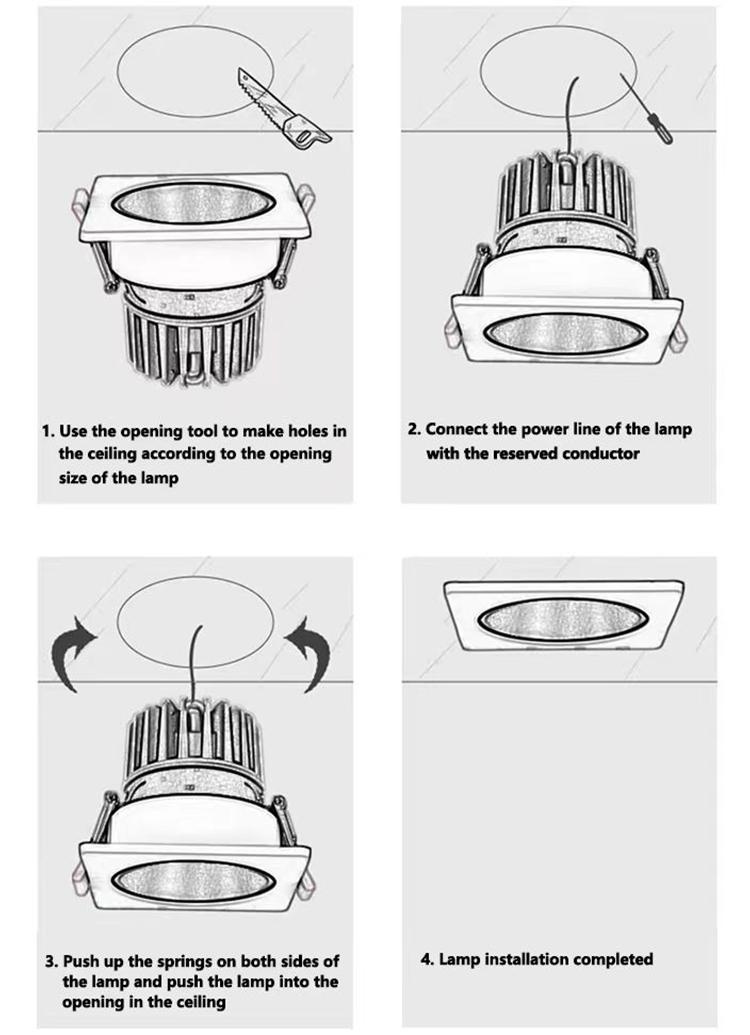

Easy to install
1. Use the opening tool to make holes irthe ceiling according to the openingsize of the lamp.
2. Connect the power line of the lampwith the reserved conductor.
3. Push up the springs on both sides ofthe lamp and push the lamp into theopening in the ceiling.
4. Lamp installation completed.
Premium Adjustable Square Recessed Downlight: Precision Engineering for Demanding Applications
Crafted for architectural and commercial excellence, our square recessed downlight combines robust die-cast aluminum construction with professional-grade adjustability. The fixture's ±15° horizontal swivel capability allows precise light positioning while maintaining a sleek, low-profile appearance ideal for modern interiors.
Unmatched Build Quality
● Aerospace-grade die-cast aluminum housing (ADC12 alloy) with 60μm anodized finish
● Reinforced heat sink fins provide 40% better thermal dissipation than stamped alternatives
● IP44 rated
Optical Performance
✓ Tool-free 15°adjustment with positive-click detents every 5°
✓ Choice of beam angles (15°/24°/38°) via interchangeable optics
✓ 90+ CRI for authentic color rendering in retail/gallery settings
Installation Advantages
● Fits standard 75-145mm square openings
● 10-35mm ceiling thickness compatibility
● Spring-loaded torsion clips prevent ceiling sag
Technical Superiority
● 30W high-output version delivers 3300lm (110lm/W efficacy)
● 100-277V auto-sensing driver with <3% THD
● Optional 0-10V/DALI dimming
Professional Applications
◼ Luxury boutiques: Precise merchandise highlighting
◼ Corporate lobbies: Glare-free accent lighting
◼ Museums: Conservation-grade illumination
◼ High-end residences: Discreet architectural lighting
Certifications & Warranty
● CE, RoHS, SAA
● 5-year comprehensive warranty
Why Specify This Fixture?
→ 50% heavier gauge aluminum vs. competitors
→ Maintains alignment despite vibration/airflow
→ No visible fasteners for clean aesthetics
