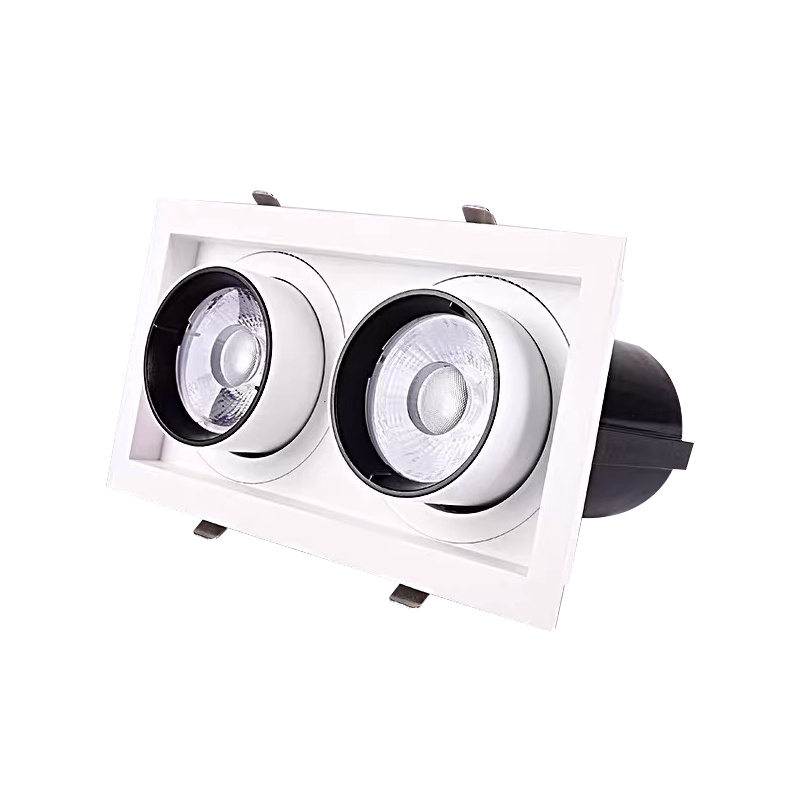

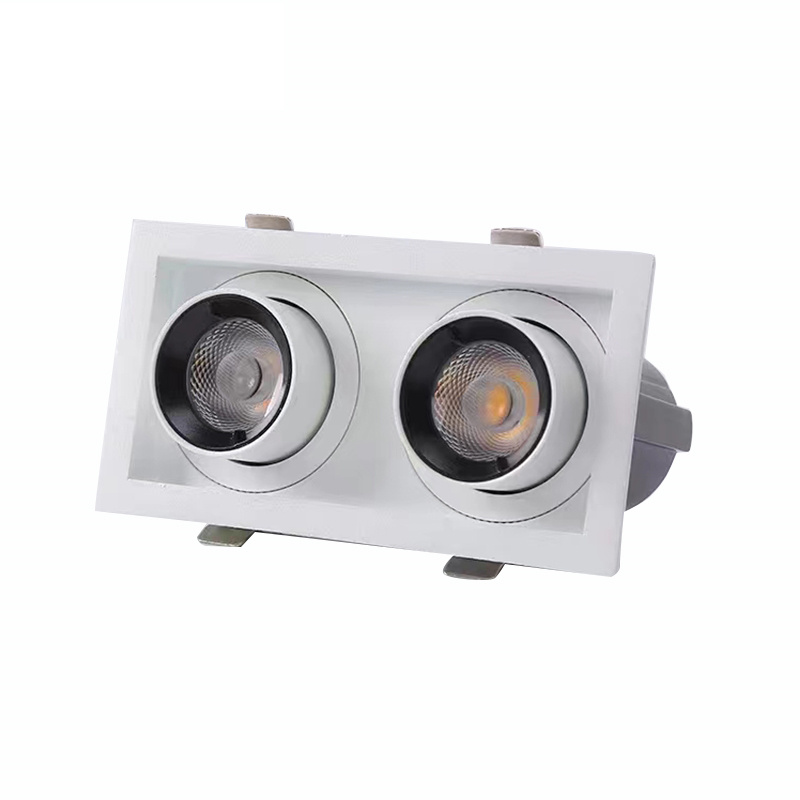

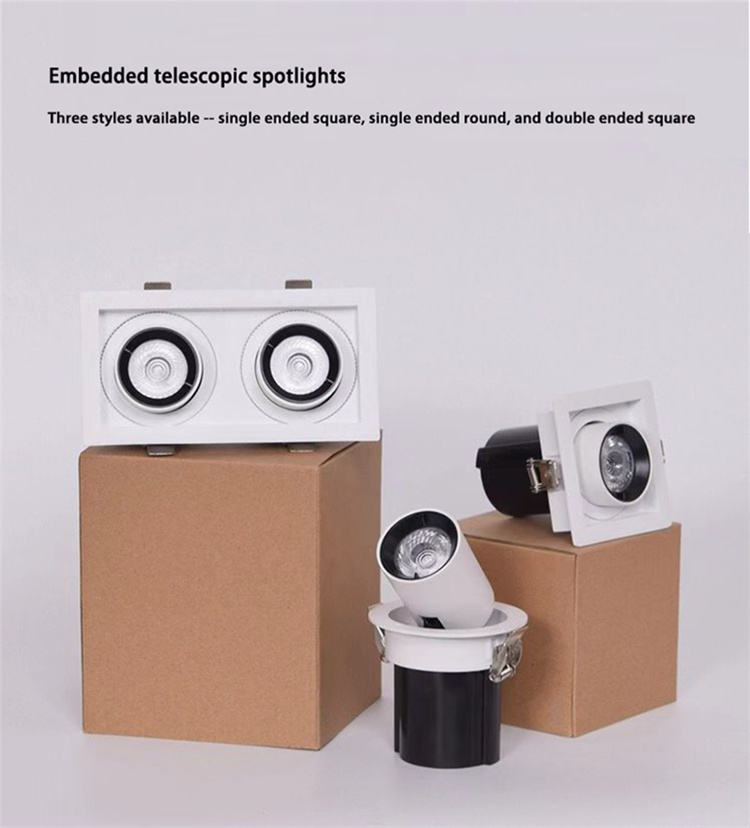

Eyeball Recessed Light Led Double Head Downlight FT-GL04*2 Square
Features:
● High CRI (≥90),robust Aluminum Housing

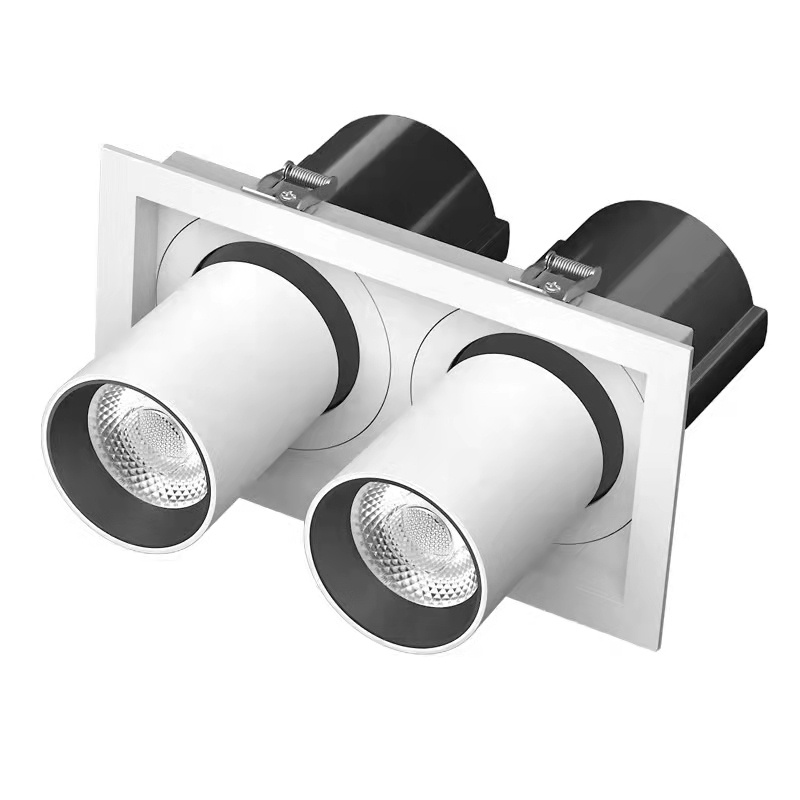

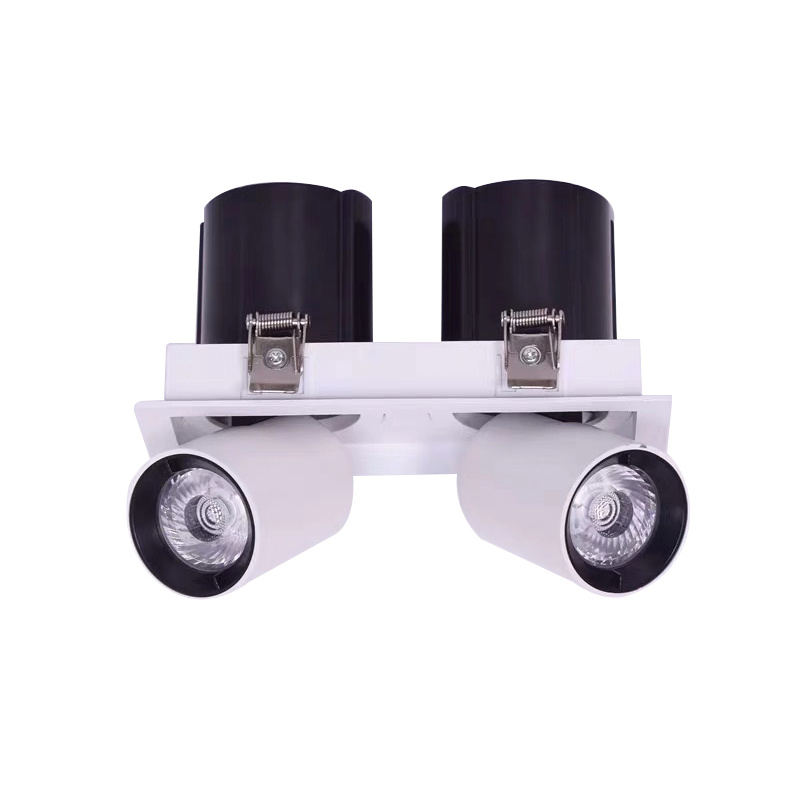

● Retractable Design，multi-Angle Flexibility
● High-Quality LED Chips,wide Beam Angle Options
● Dimmable Compatibility,smooth Glare-Free Lighting
● Quick-Connect Terminals,energy-Saving Performance

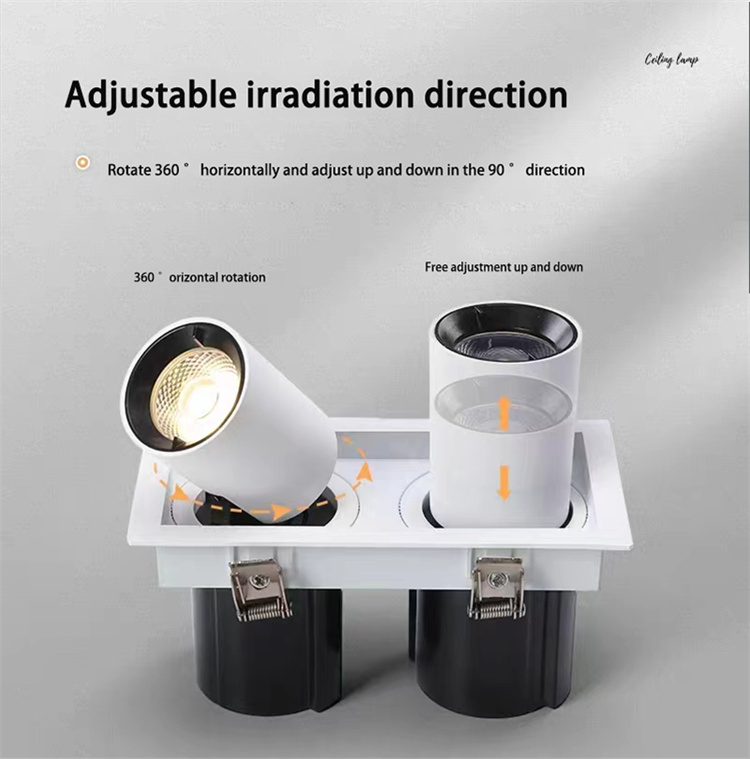

● 90° Vertical Tilt Adjustment，360° Horizontal Rotation
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 10-20W：0.5 ; 25W-35W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Double COB Downlight |
| Power | 2*10W/2*15W/2*20W/2*25W/2*30W/2*35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |

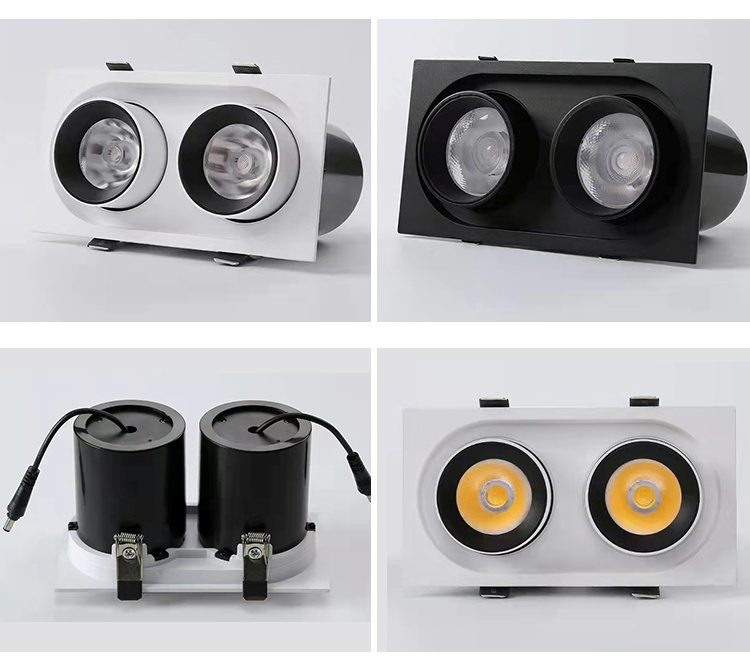

| Color | White/Black |
| Beam angle | 15°,24°,36° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 155*75/190*95/230*120/280*145MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 10-20W: 0.5 ; 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|
Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL04-2*10W |
2*10W |
L170*W90*H92 |
155*75 |
2700K |
|
FT-GL04-2*15W |
2*15W |
L210*W115*H120 |
190*95 |
|
|
FT-GL04-2*20W |
2*20W |
L250*W140*H140 |
230*120 |
|
|
FT-GL04-2*25W |
2*25W |
L250*W140*H140 |
230*120 |
|
|
FT-GL04-2*30W |
2*30W |
L303*W160*H150 |
280*145 |
|
|
FT-GL04-2*35W |
2*35W |
L303*W160*H150 |
280*145 |
Double-Head Adjustable Recessed Downlight – Precision Lighting Redefined
Dual-Angle Flexibility for Professional Lighting Control
Our double-head recessed downlight delivers 360° adjustability with independent control of each LED module—perfect for retail, museums, offices, and hospitality spaces. Each head features 90° vertical tilt and 360° smooth rotation, allowing precise beam positioning without compromising ceiling aesthetics.
Key Features
✔ Independent Adjustability – Position each head at different angles for multi-directional lighting
✔ High-Efficiency Optics – Polycarbonate TIR lens (95% light transmission) for crisp, focused beams
✔ Commercial Durability – Reinforced aluminum gimbals with 50,000+ repositioning cycles tested
Superior Light Quality & Performance
Optical Precision

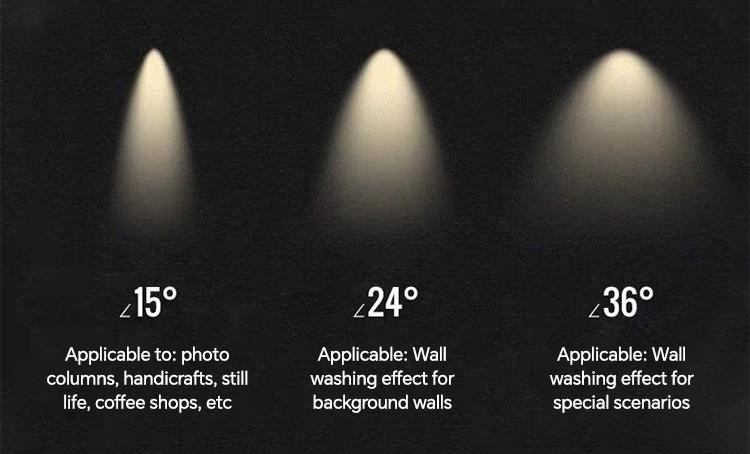

·3 Beam Angle Options (15° spot / 24° narrow flood / 36° wide flood)
·Anti-Glare Design – Reduces eye strain in workspaces
·90+ CRI – True color rendering for retail & art displays
Energy Efficiency
·90lm/W efficacy – Lower energy costs without sacrificing brightness
·Flicker-Free Dimming – Compatible with Triac, 0-10V & DALI
Built for Commercial & Architectural Use
Durable Construction
·IP44 Rated – Resists dust and moisture in restaurants & lobbies

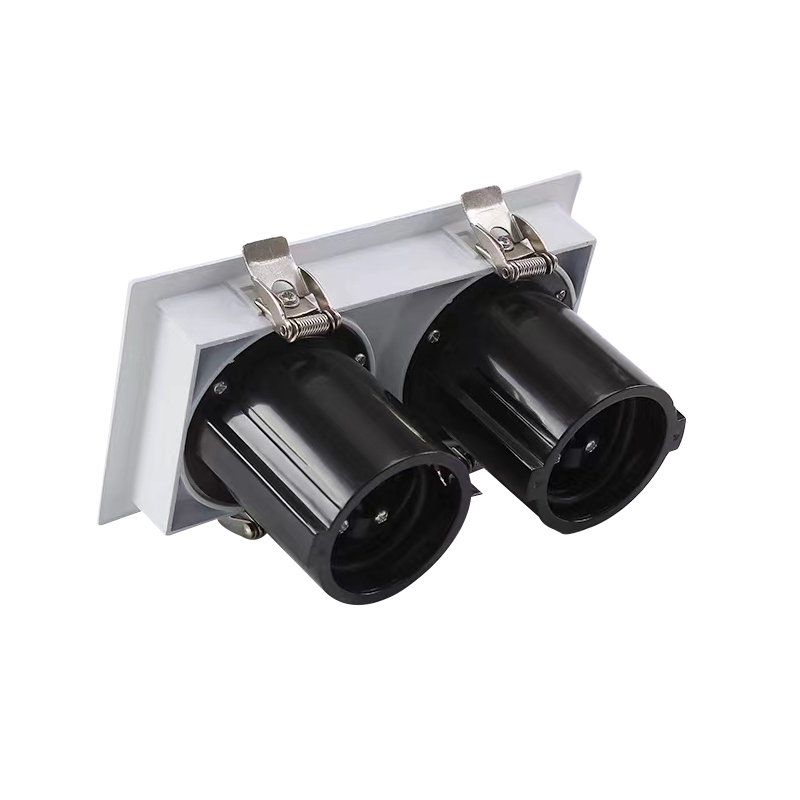

·Spring-Loaded Mounting – Fits 75-145mm ceiling cutouts
·5-Year Warranty – Reliable long-term performance
Smart Installation Benefits
✔ 50% Fewer Fixtures Needed vs. fixed downlights
✔ No Rewiring Required – Adjust lighting anytime
✔ Pre-Aimable Design – Set angles before ceiling installation
Ideal Applications
◼ Retail Stores – Accent shelves & displays from multiple angles
◼ Museums & Galleries – Adjust lighting for rotating exhibits
◼ Offices & Conference Rooms – Direct light onto desks or whiteboards
◼ Restaurants & Hotels – Create dynamic ambiance with adjustable beams
Why Choose This Double-Head Downlight?
→ Replace 4+ Fixed Fixtures with just one dual-head unit
→ Instant Lighting Updates – No need for electrical modifications
→ Certified & Safe – CE, RoHS, SAA compliant
Warranty: 5 years (mechanical & electrical)
