Factory Single Ceiling Track Spotlights Black Cob Light Fixture FT-TL23
Features:
● High CRI (≥90)
● Certified Safety Standards
● Corrosion-Resistant Finish
● Rotate and tilt without tools
● 2700K-6500K (warm to cool white)
● Easy installation and maintenance
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W:0.5 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | LED Surface Mounted Track Light |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp) |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM |
| (Other driver brands can also choose from) | |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional |
| (Other driver brands can also choose from) | |
| Color | White Black For Option |
| Beam angle | 15°/24°/38°/60° |
| CRI (Ra>) | 80/90/95 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) / Natural white (4000K) Cool White (5000K/6000K) |
| PF | 15-20W：0.5 ; 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Surface Mounted |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

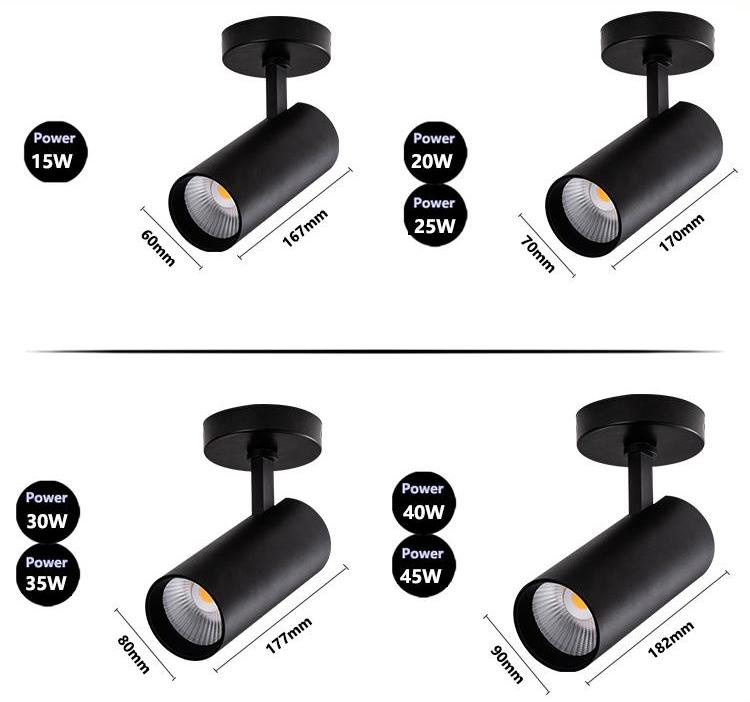

Model No. |
Watts |
Size(mm) |
Lumens |
LED Color |
|
FT-TL23-15W |
15W |
D60*H167 |
1275lm |
2700K
|
|
FT-TL23-20W |
20W |
D70*H170 |
1700lm |
|
|
FT-TL23-25W |
25W |
D70*H170 |
2125lm |
|
|
FT-TL23-30W |
30W |
D80*H177 |
2550lm |
|
|
FT-TL23-35W |
35W |
D80*H177 |
2975lm |
|
|
FT-TL23-40W |
40W |
D90*H182 |
3400lm |
|
|
FT-TL23-45W |
45W |
D90*H182 |
3825lm |
The advantages of the product
This ceiling-mounted track light is directly installed through the ceiling panel, eliminating the need for track slotting or pre-embedding steps. It is particularly suitable for scenarios that have already been renovated (such as old house renovation and rental use). Single lamp low cost, no need to purchase track strips. The maintenance cost is low. When damaged, only a single track light needs to be replaced, which does not affect other lighting.

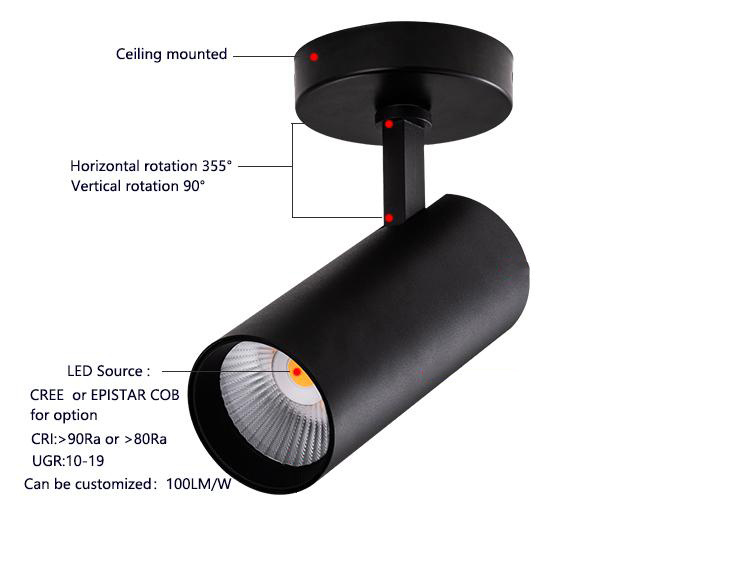

Supports 355° horizontal rotation and 90° vertical adjustment, allowing for precise control of the beam direction (such as illuminating wall decorative paintings or corner exhibits).

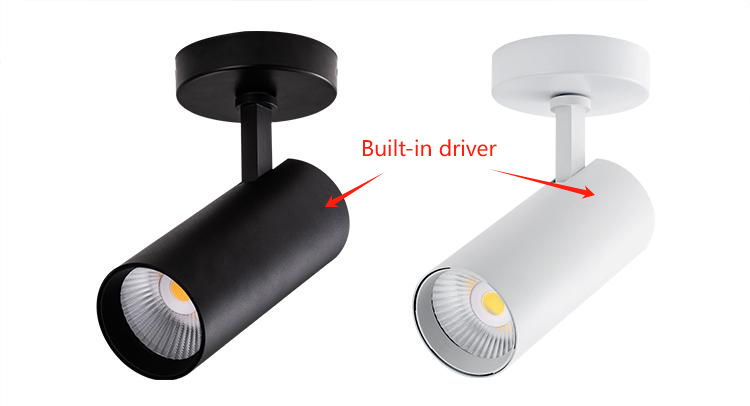

This track light uses a built-in power supply ,only the lamp body and the ceiling panel visible, making it more aesthetically pleasing.
· Our track light is available in multiple beam angles—15° (spot), 24° (narrow flood), 38° (flood), and 60° (wide flood)—providing flexibility for precise lighting control in various settings.
· Available in multiple wattages (15W–45W ), which can meet both household needs and commercial purposes.

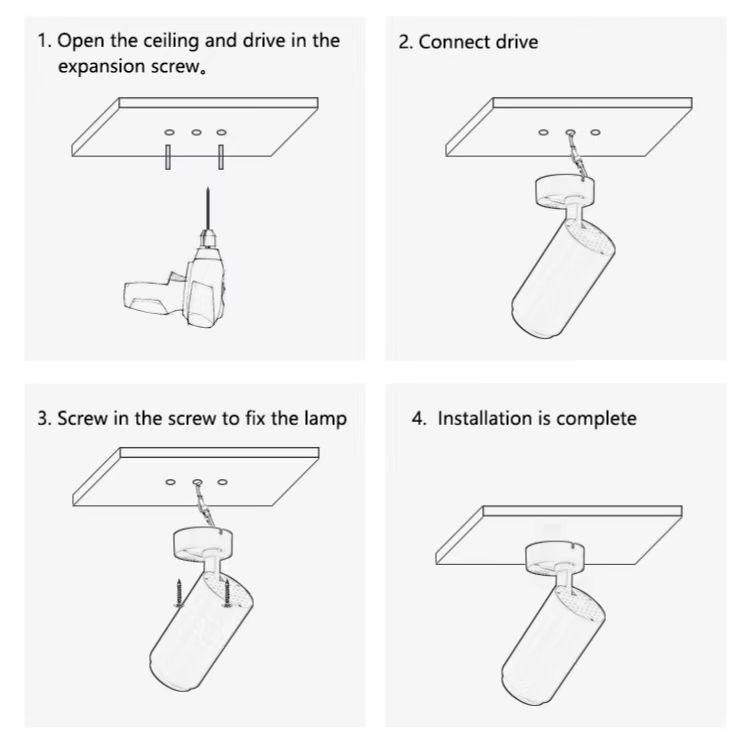

Easy to install:
1. Open the ceiling and drive in the expansion screw
2. Connect drive
3. Screw in the screw to fix the lamp
4. Installation is complete

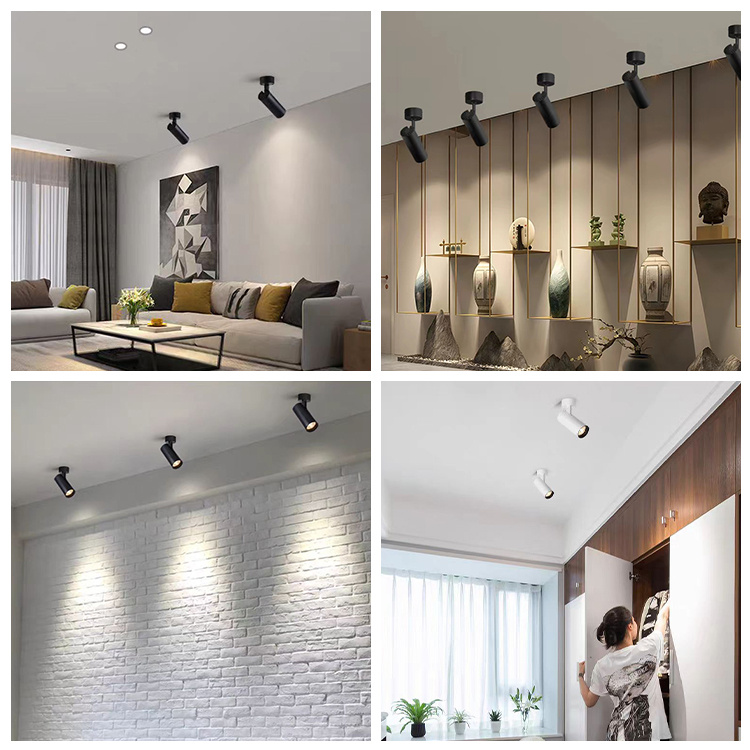

Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
LED Track Light Housing Materials: Choosing the Right Option for Your Application
The housing material of LED track lights plays a crucial role in performance, durability, and application suitability. Our track lights are available in three premium materials: extruded aluminum, die-cast aluminum, and cold-forged aluminum, each offering distinct advantages for different environments.
1. Extruded Aluminum Housing
● Lightweight & Cost-Effective – Ideal for budget-conscious projects requiring reliable performance.
● Good Heat Dissipation – Suitable for standard commercial applications like retail stores, offices, and residential spaces.
● Linear Design Flexibility – Easily customizable for long-span track systems in supermarkets and galleries.
Best for: General lighting in low-to-medium heat environments where weight and cost are key considerations.
2. Die-Cast Aluminum Housing
● High Strength & Durability – Provides excellent impact resistance, making it perfect for industrial and outdoor use.
● Seamless Design – Enhanced IP rating (up to IP65) for dustproof and waterproof performance.
● Superior Heat Management – Ensures stable operation in high-temperature conditions.
Best for: Harsh environments such as factories, warehouses, parking lots, and outdoor architectural lighting.
3. Cold-Forged Aluminum Housing
● Ultra-High Thermal Conductivity – Maximizes heat dissipation, extending LED lifespan (50,000+ hours).
● Premium Aesthetic & Precision – Sleek, seamless finish ideal for high-end applications.
● Lightweight Yet Robust– Combines strength with elegance for luxury retail, museums, and hospitality lighting.
Best for: High-performance settings requiring energy efficiency, superior heat control, and a refined look.
Why Material Choice Matters
✔ Energy Efficiency – Better heat dissipation (cold-forged > die-cast > extruded) improves lumen maintenance.
✔ Longevity – Industrial-grade materials withstand demanding conditions.
✔ Aesthetic Appeal – Die-cast and cold-forged options offer a premium finish for architectural lighting.
Consult our experts to select the optimal housing material for your project!
