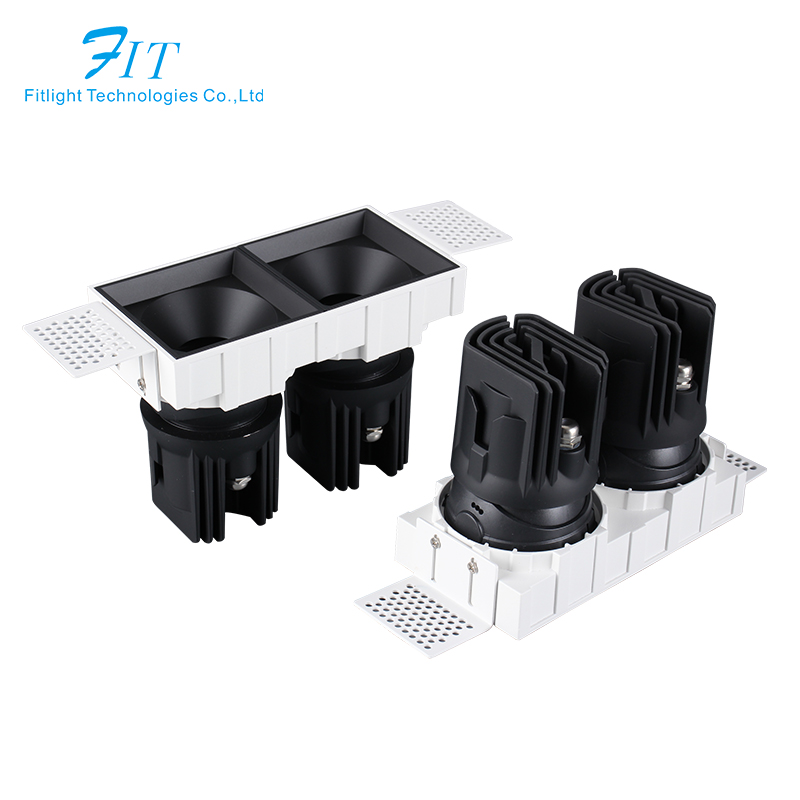

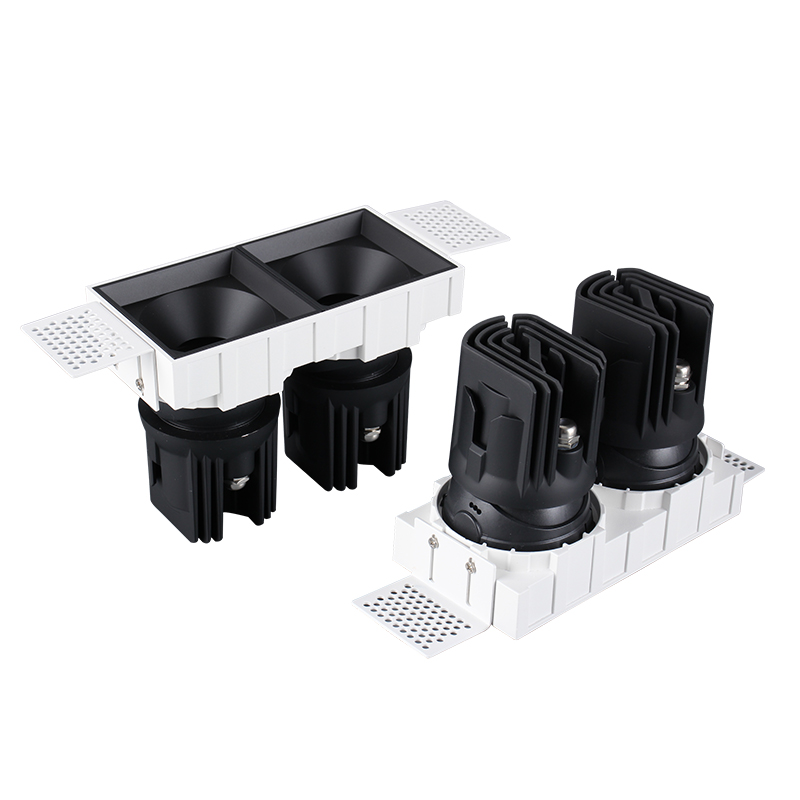

Twin-Head Frameless LED Spotlight IP65-HGS21 Square Trimless 2 Head
Features：
- Smart Dimming Compatibility: Works with smart home automation systems.
- Long Lifespan: High reliability with extended service life up to 50,000 hours.
- Energy Efficient: High lumen output with low power consumption, saving energy costs.
- Shower Room Ready: Safe for use in shower areas due to high water resistance.
- Outdoor Weatherproof: Rainproof design suitable for garden, patio, and yard.
- Indoor & Outdoor Dual-use: Versatile lighting solution for both environments.
Specifications：
- Input Voltage: AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF: 7-20W:0.5 25W:0.95
- Driver : LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source: CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI: 80/90/95
- Lifespan: 50000hrs
Specification
|
Brand Name |
Fitlight |
|
Item Type |
Led Trimless Double Waterproof Spotlight |
|
Power |
2*7W/2*10W/2*12W/2*15W/2*20W/2*25W |
|
Input Voltage(V) |
AC 110V ( ± 10%)/AC 220V( ± 10%) |
|
LED light source |
Bridgelux/OSRAM Cob Chip |
|

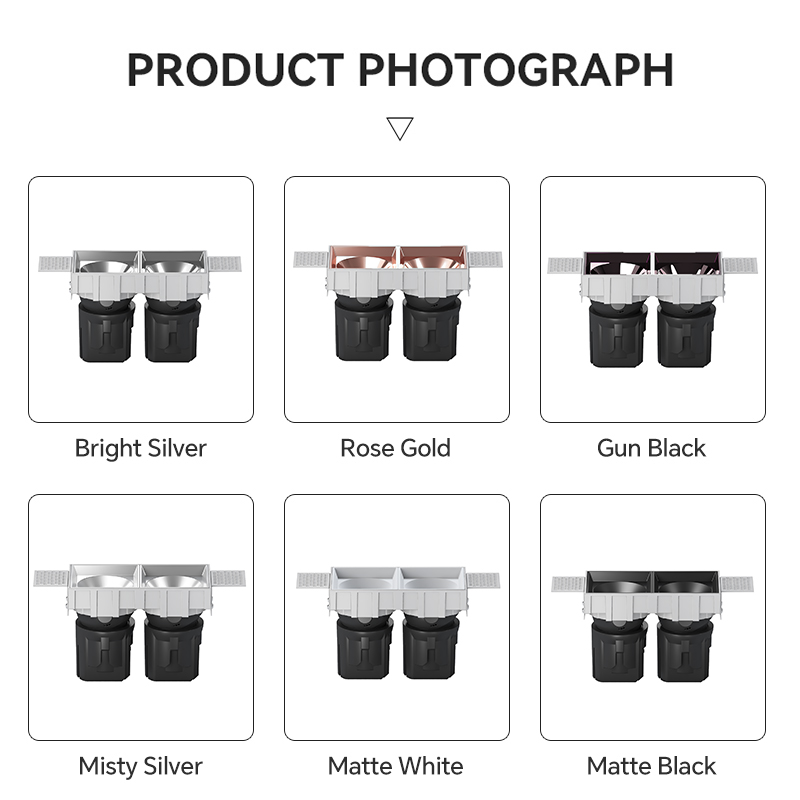

Color |
White, black, matte silver, gun black, bright silver, rose gold and antique bronze. |
|
Beam angle |
15°/24°/36°/55° |
|
CRI (Ra>) |
80/90/95 |
|
Cut out |
105*55mm/145*75mm/185*95mm |
|
Working Temperature( °C ) |
-20 ~ +50 |
|
Lamp Body Material |
Aluminum |
|
CCT |
Warm white(2700K/3000K/3500K)/Natural white (4000k)/Cool white (5000K/6000K) |
|
PF |
7-20W:0.5 25W:0.95 |
|
Dimmable |
Dimmable(0-10V ,Triac ,Dali) / TUYA (ZigbeeBluetooth) |
|
Key Feature1 |
Frameless Square Waterproof Spotlight |
|
Installation |
Recessed/Embedded |
|

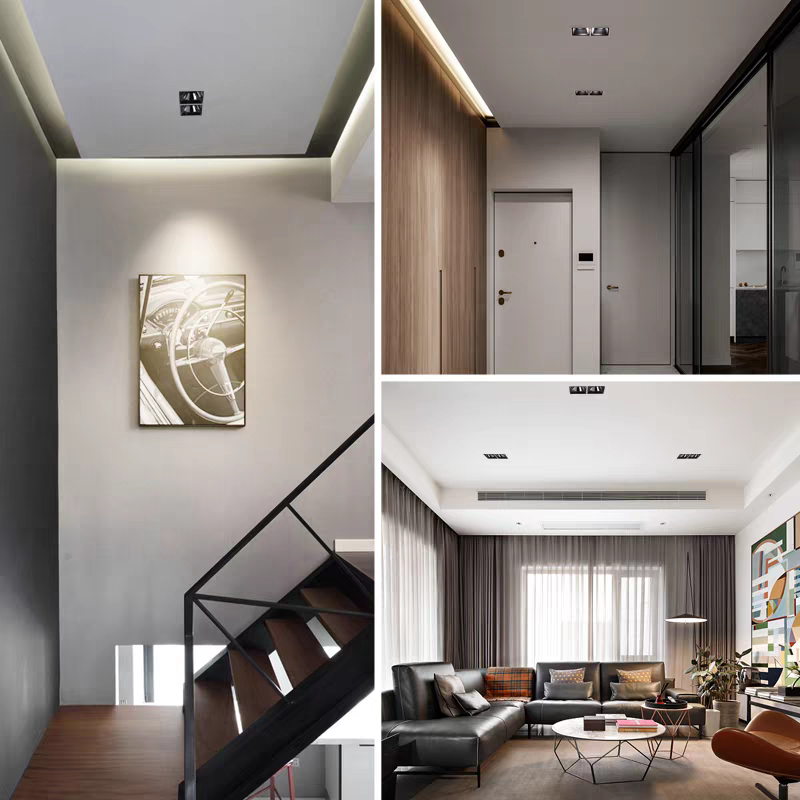

Application |
Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

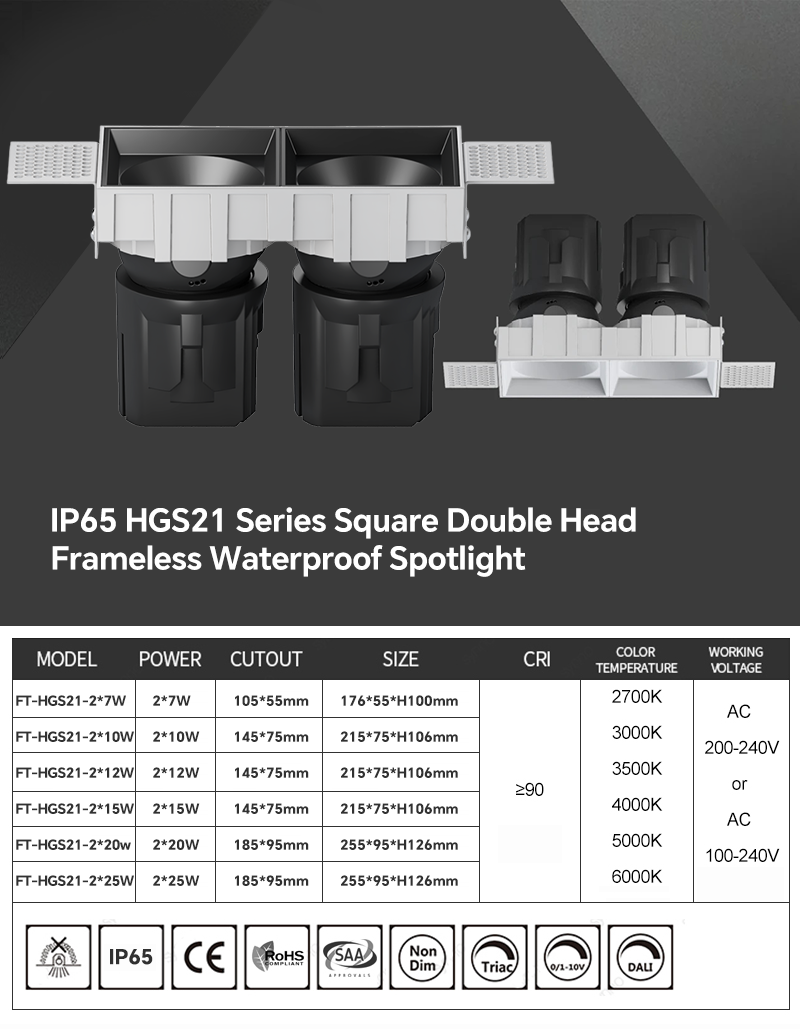

Model No.
|
Watts
|
Size(mm)
|
Cut Out(mm)
|
Beam Angle
|
LED Color
|
|
FT-HGS21-2*7W
|
2*7W
|
176*65*H100
|
105*58
|
15°/24°/36°/55°
|
2700K
3000K
3500K
4000K
5000K
6000K
|
|
FT-HGS21-2*10W
|
2*10W
|
155*85*H106
|
145*78
|
15°/24°/36°/55°
|
|
|
FT-HGS21-2*12W
|
2*12W
|
155*85*H106
|
145*78
|
15°/24°/36°/55°
|
|
|
FT-HGS21-2*15W
|
2*15W
|
155*85*H106
|
145*78
|
15°/24°/36°/55°
|
|
|
FT-HGS21-2*20W
|
2*20W
|
195*105*H126
|
185*98
|
15°/24°/36°/55°
|
|
|
FT-HGS20-2*25W
|
2*25W
|
155*85*H106
|
185*98
|
15°/24°/36°/55°
|
IP65 Square LED Spot Light | DALI 0-10V Triac Dimmable - Premium Architectural Lighting Solution
Introducing our Twin-Head Frameless Square LED Spotlight, a revolutionary breakthrough in symmetrical architectural lighting that redefines versatility, aesthetics, and performance for global projects. Unlike traditional single-head spotlights that limit coverage and flexibility, this dual-head frameless fixture delivers wider, more balanced illumination from a single cutout, combining the seamless minimalist design of frameless lighting with the practicality of dual beams. Perfect for highlighting large columns, wide artworks, corridor pathways, hotel lobbies, retail spaces, and outdoor landscapes, it brings a clean, professional aesthetic to any architectural or design project—whether residential, commercial, or hospitality-focused.
Crafted with meticulous attention to detail, our Twin-Head Frameless Square LED Spotlight is engineered to meet the demands of modern lighting design, where both form and function matter. The frameless trimless housing disappears into ceilings or walls, creating a flush, invisible finish that puts the focus entirely on the light effect, not the fixture itself. This seamless integration is ideal for high-end projects that require a polished, uncluttered look, while the dual-head design solves the limitations of single-head spotlights, offering greater coverage and symmetrical illumination that elevates the overall aesthetic of any space.
Designed for global use, this IP65 waterproof spotlight features wide voltage compatibility (AC100-277V) and multiple advanced dimming options, making it suitable for projects in the USA, Europe, UK, Middle East, Asia, and beyond. Whether you’re outfitting a luxury hotel, a contemporary retail store, a residential complex, or an outdoor landscape, this twin-head fixture delivers consistent, reliable performance that meets the highest industry standards.
Dual-Beam Versatility: Why Choose a Twin-Head Design?
The twin-head design is the defining feature of our Frameless Square LED Spotlight, offering unparalleled versatility and functionality that single-head fixtures simply cannot match. By incorporating two fully independent, adjustable heads into a single frameless housing, we’ve created a lighting solution that maximizes coverage, enhances symmetry, and adapts to a wide range of lighting needs—all while maintaining a clean, minimalist aesthetic.
Unlike single-head spotlights that require multiple cutouts to achieve wide coverage, our twin-head fixture delivers double the surface area illumination from a single installation point, reducing installation time, cost, and visual clutter. This makes it the perfect choice for spaces where every detail matters, from high-end hotel lobbies to contemporary retail stores and residential corridors.
- Wider Coverage, Less Clutter: With two independent beams, this fixture illuminates double the surface area compared to a single-head spotlight, eliminating the need for multiple fixtures to cover large spaces. Whether you’re lighting a wide corridor, a large wall mural, or a spacious outdoor patio, the twin-head design ensures uniform, balanced illumination without the visual distraction of multiple cutouts or fixtures. This not only enhances the aesthetic appeal of the space but also reduces installation costs and maintenance efforts.
- Symmetrical Accents for a Professional Look: Symmetry is a key element of modern architectural design, and our twin-head spotlight is engineered to deliver perfectly balanced illumination that elevates any space. It’s ideal for flanking entrance pillars, hotel lobbies, retail window displays, or building facades, creating a polished, professional look that impresses guests and customers alike. The symmetrical beams add a sense of order and elegance, making it perfect for high-end hospitality and commercial projects where first impressions matter.
- Flexible Aiming for Customized Illumination: Each head of the twin-beam fixture is fully adjustable, allowing you to aim them at different angles to suit your specific lighting needs. Spread the heads wide for uniform area lighting in large spaces, or angle them towards specific focal points—such as artwork, architectural features, or product displays—to create targeted accents. This flexibility makes the fixture suitable for a wide range of applications, from highlighting a large column in a hotel lobby to illuminating a retail display case or a residential hallway.
The dual-beam design also offers practical benefits for energy efficiency. By delivering wider coverage with a single fixture, you can reduce the number of lights needed for your project, lowering energy consumption and operating costs. The adjustable heads also allow you to direct light exactly where it’s needed, minimizing light waste and ensuring that every watt is used efficiently.
Customizable Aesthetics: Seamless Frameless Design
While the twin-head functionality is a game-changer for performance, the frameless trimless design ensures that the fixture blends seamlessly into any space, putting the focus entirely on the light effect. Unlike traditional bezeled fixtures that disrupt the visual flow of a space, our Twin-Head Frameless Square LED Spotlight features a flush, invisible housing that disappears into ceilings or walls, creating the illusion of light emanating directly from the surface.
This frameless design is more than just an aesthetic choice—it’s a design philosophy that prioritizes the structure and ambiance of your space over the fixture itself. It complements minimalist, contemporary, and high-end design schemes alike, making it perfect for projects that require a clean, uncluttered look. Whether installed in ceilings or walls, the trimless housing blends seamlessly with the surrounding surface, ensuring that the light is the star of the show.
The frameless design also offers practical benefits for installation and maintenance. Its low-profile construction makes it suitable for shallow ceilings or walls, where traditional recessed fixtures might not fit. The flush finish also makes cleaning easy, as there are no crevices or edges where dust and debris can accumulate—perfect for high-traffic spaces like hotels, retail stores, and public areas where cleanliness is a top priority.
Smart Control: Advanced Dimming for Every Project
Engineered for modern smart buildings and personalized lighting control, our Twin-Head Frameless Square LED Spotlight integrates seamlessly with all major lighting control systems, offering advanced dimming options that allow you to adjust the ambiance to suit any occasion. Whether you’re working on a commercial project that requires energy-saving controls or a residential retrofit that needs simple, user-friendly dimming, we have the solution to fit your needs.
- 0-10V Dimming: The industry standard for commercial energy-saving controls, 0-10V dimming allows for smooth, flicker-free light adjustment from 0% to 100%. This dimming method is ideal for office environments, retail spaces, and commercial buildings where energy efficiency is a top priority. It ensures consistent performance and compatibility with most commercial lighting control systems, helping you reduce energy consumption without compromising on light quality. Whether you’re adjusting the light levels in a conference room, a retail store, or a hotel lobby, 0-10V dimming provides precise control that enhances the user experience.
- DALI Dimming: Designed for large-scale automated buildings such as hotels, shopping malls, and office complexes, DALI (Digital Addressable Lighting Interface) dimming offers addressable control, allowing you to adjust individual fixtures or groups of fixtures remotely. This advanced dimming option provides unparalleled flexibility, making it easy to create custom lighting scenes, schedule lighting changes, and integrate with building management systems (BMS) for seamless smart control. Perfect for high-end hotels and commercial spaces, DALI dimming ensures that you can control the lighting with precision, creating the perfect ambiance for any event or time of day.
- Triac Dimming (Leading/Trailing Edge): Perfect for residential retrofit projects and spaces where existing dimmer switches are in place, Triac dimming is compatible with most standard residential dimmer switches. Whether you’re upgrading your home’s lighting or retrofitting a commercial space, this dimming option ensures easy installation and smooth, flicker-free light adjustment. It’s ideal for spaces where simplicity is key, allowing users to adjust the light levels with the flip of a switch, enhancing the ambiance of any room.
The smart dimming capabilities of our twin-head spotlight not only enhance the user experience but also contribute to energy savings. By allowing you to adjust light levels based on occupancy, time of day, or specific needs, you can reduce energy consumption and lower your operating costs—all while maintaining the perfect ambiance for your space.
Engineered for Global Durability: Built to Last Anywhere
Our Twin-Head Frameless Square LED Spotlight is engineered to withstand the harshest environments while delivering consistent, long-lasting performance. Built with premium materials and advanced technology, it’s designed for global use, with wide voltage compatibility and global certifications that ensure it meets the highest industry standards. Whether you’re installing it in a humid hotel bathroom, a rainy outdoor patio, or a commercial building in a different country, this fixture is built to last.
- Global Voltage Compatibility: Equipped with a wide voltage AC100-277V 50/60Hz driver, this fixture is compatible with power grids worldwide, making it a versatile choice for global projects. The Plug & Play design ensures easy installation, with no additional wiring or modifications needed for different voltage standards—whether you’re working in the USA (120V), Europe (230V), UK (230V), Middle East (240V), or Asia (220V). This global compatibility eliminates the need for custom fixtures or voltage adapters, making it the perfect choice for international projects.
- IP65 Waterproof Rating: With an IP65 waterproof rating, our Twin-Head Frameless Square LED Spotlight is fully protected against moisture, rain, snow, dust, and splashes, making it suitable for both indoor and outdoor use. Whether it’s installed in a steam-prone bathroom, an outdoor covered patio, a coastal area with salt air, or a rainy landscape, this fixture will continue to perform at its best. The rugged construction ensures that it can withstand extreme temperatures, humidity, and other harsh conditions, providing reliable performance for years to come.
- Global Certifications: We understand the importance of compliance in global markets, which is why our Twin-Head Frameless Square LED Spotlight is fully certified to meet the highest industry standards. It complies with CE (European Conformity), RoHS (Restriction of Hazardous Substances), SAA (Australian Safety Approval), EMC (Electromagnetic Compatibility), and LVD (Low Voltage Directive) certifications, ensuring that it meets the safety, environmental, and performance requirements of markets worldwide. This means you can rest assured that your project will pass local inspections effortlessly, avoiding delays and additional costs.
- 5-Year Warranty: Backed by a 5-year warranty, our Twin-Head Frameless Square LED Spotlight offers peace of mind and long-term value. We stand behind the quality of our products, and our warranty covers any defects in materials or workmanship, ensuring that you receive a reliable, high-performance fixture that will last for years to come. This warranty is a testament to our commitment to quality and customer satisfaction, making us a trusted partner for your lighting projects.
Power & Coverage: Select the Right Wattage for Every Project
We understand that every lighting project has unique requirements, which is why our Twin-Head Frameless Square LED Spotlight is available in a range of wattages (7W, 10W, 12W, 15W, 20W, 25W), allowing you to optimize illumination for various installation depths, space sizes, and lighting needs. Whether you need subtle accent lighting for small spaces or powerful dual-beam illumination for large areas, we have the perfect wattage to suit your project.
- 7W - 12W (Accent Lighting): Designed for intimate spaces and targeted illumination, these lower wattages are ideal for small corridors, retail display cases, residential hallways, and accent lighting for artwork or architectural details. The dual beams provide subtle, focused light that highlights specific features without overpowering the space. Perfect for highlighting a small artwork in a hotel room, illuminating a retail shelf, or adding a warm glow to a residential corridor, these wattages offer versatility and precision.
- 15W - 25W (Flood & Area Lighting): Built for larger spaces and more demanding applications, these higher wattages deliver powerful dual-beam illumination that’s perfect for atrium ceilings, outdoor covered patios, commercial signage, large columns, and high-traffic areas. They provide ample illumination for security purposes, ensuring that outdoor spaces are well-lit and safe, while also enhancing the visual appeal of commercial buildings and public areas. Whether you’re lighting a large hotel atrium, a restaurant patio, or a retail storefront, these wattages offer consistent, powerful light that covers large areas without sacrificing quality.
Each wattage option is engineered to deliver maximum efficiency and performance, with energy-saving LED technology that reduces power consumption without compromising on light quality. Whether you choose a lower wattage for accent lighting or a higher wattage for flood lighting, you can trust that our Twin-Head Frameless Square LED Spotlight will deliver consistent, long-lasting illumination.
