High Bright Contemporary Museum Track Lighting System Suppliers FT-TL28
Features:
● Certified Safety Standards
● Environmentally Friendly-RoHS compliant
● 5-Year Warranty-Industry-leading protection
● 50,000-Hour Lifespan- L90@50,000hrs (Ta=25°C)
● Smart Lighting Read-Optional Bluetooth/Zigbee mesh
● Cold-Forged Aluminum-30% better heat dissipation than die-cast
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W:0.5 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | 160LM/W High Efficiency LED Track Light |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Power | 10W/15W/20W/25W/30W/35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM |
| (Other driver brands can also choose from) | |
| Driver | OSRAM/LIFUD (Other driver brands can also choose from) |
| Color | White Black For Option |
| Beam angle | 15°/24°/36°/50° |
| CRI (Ra>) | 80/90/95 |

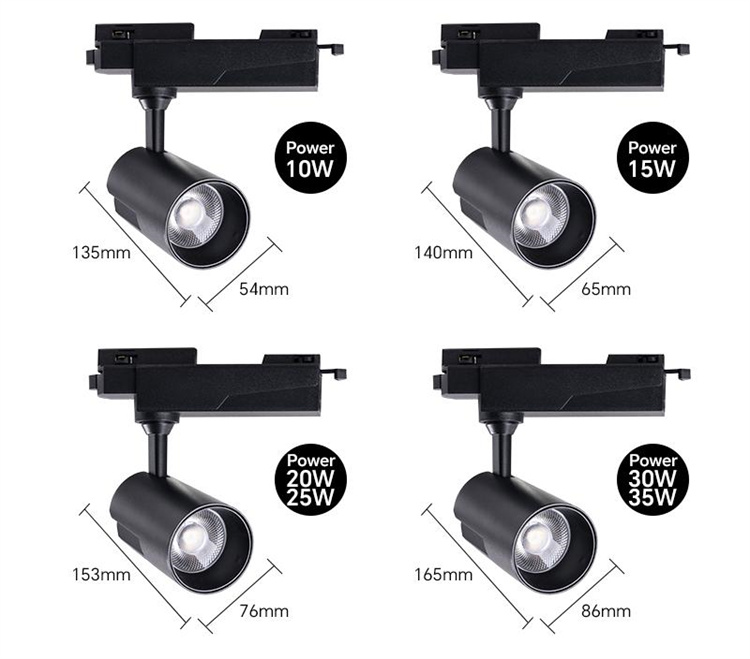

| Size(mm) | D54*H135/D65*H140/D76*H153/D86*H165mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural white (4000K) Cool White (5000K/6000K) |
| PF | 10-20W:0.5 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|
Model No. |
Watts |
Size(mm) |
Lumens |
LED Color |
|
FT-TL28-10W |
10W |
D54*H135 |
900LM |
2700K |
|
FT-TL28-15W |
15W |
D65*H140 |
1350LM |
|
|
FT-TL28-20W |
20W |
D76*H153 |
1800LM |
|
|
FT-TL28-25W |
25W |
D76*H153 |
2250LM |
|
|
FT-TL28-30W |
30W |
D86*H165 |
2700LM |
|
|
FT-TL28-35W |
35W |
D86*H165 |
3150LM |
The advantages of the product
The driver and lamp body are constructed separately, which helps minimize maintenance costs. In the event that the driver is damaged, there is no need to disassemble the lamp; you can easily replace the external power supply.
This design also promotes effective heat dissipation and enhances the overall service life of the product.

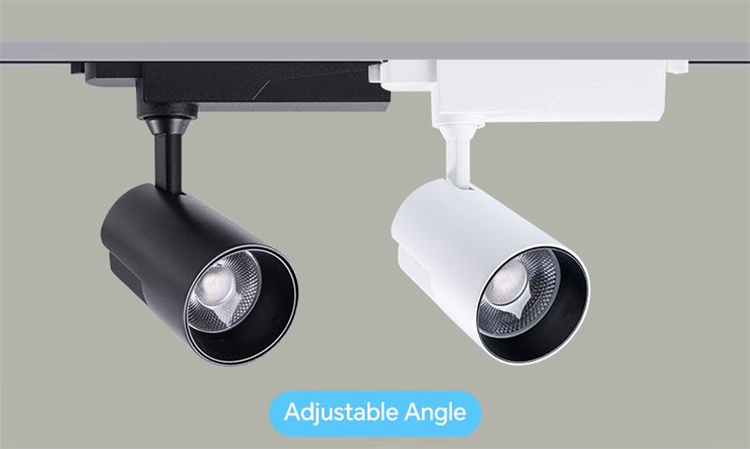

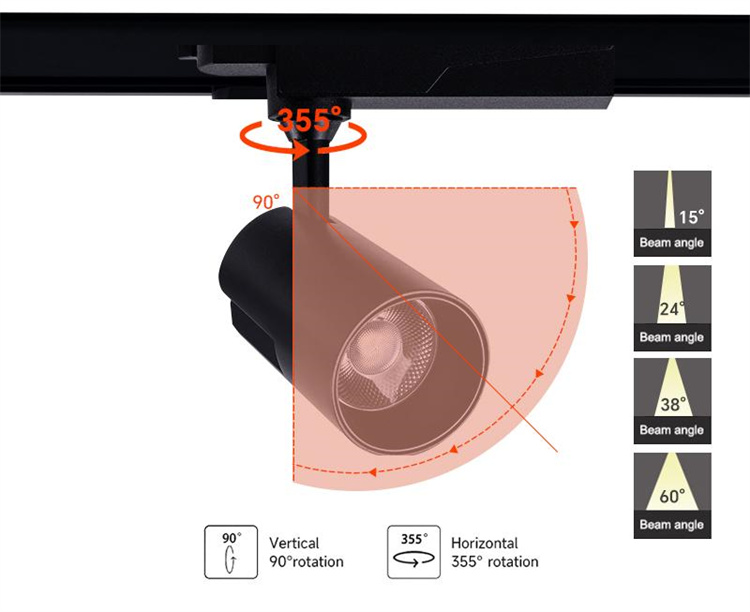

This track light features remarkable bidirectional adjustment capabilities, allowing for 355° horizontal rotation and 90° vertical rotation. This design provides outstanding flexibility and precise control over lighting, making it perfect for a variety of lighting configurations. When adjusting or reconfiguring spaces, there’s no need to move the tracks; simply rotate the lamp heads to direct the light as required.

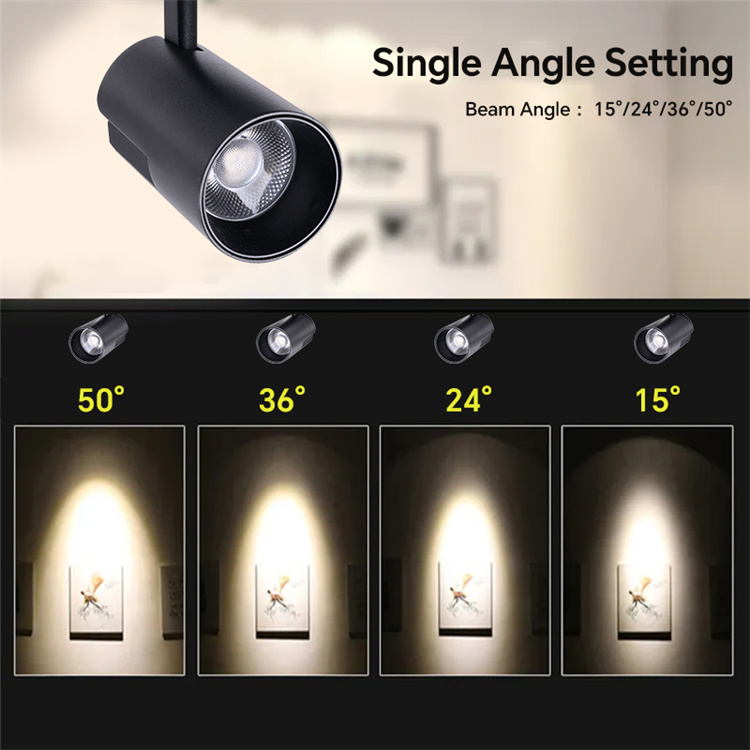

· This track light provides a variety of beam angle options, including 15°, 24°, 36°, and 50°. Each angle produces distinct lighting effects and is suited for different application scenarios.

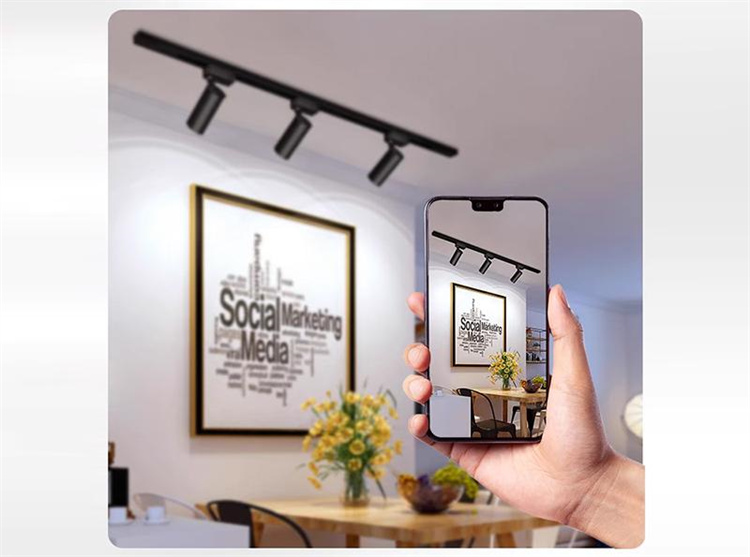

Flicker-Free: This track light eliminates flickering that can be perceived by the naked eye and mobile phone cameras. Compared to traditional track lights, it reduces visual fatigue by 82%.

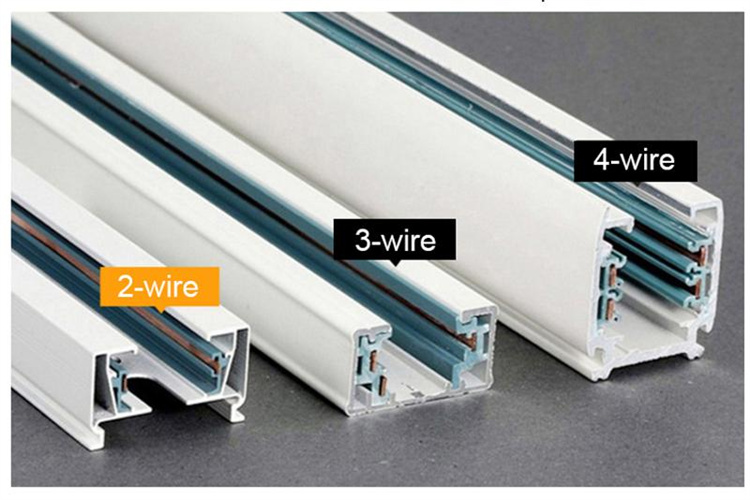

The 2-wire, 3-wire, and 4-wire systems of track lights are designed to meet the electrical standards and application needs of various countries. The main differences among these systems include power supply methods, dimming protocols, and safety regulations.
2-Wire System: Ideal for residential and basic commercial lighting, this system does not require intelligent control features.
3-Wire System: Commonly used in North America (including the United States and Canada) as well as in some European countries.
4-Wire System: Specifically tailored for global professional lighting projects, this system is well-suited for theaters, stages, and high-end retail environments.
· Our track lights are available in a variety of wattages (10W–35W) to suit both residential and commercial needs.
15W-20W Track Lights: These are perfect for highlighting jewelry counters, art displays, and home decorative paintings.
25W-30W Track Lights: Ideal for illuminating clothing store shelves, restaurant tables, and office workstations.
35W-45W Track Lights: Specifically designed for fresh food sections in supermarkets, main stages in exhibition halls, and high-position lighting in factories.

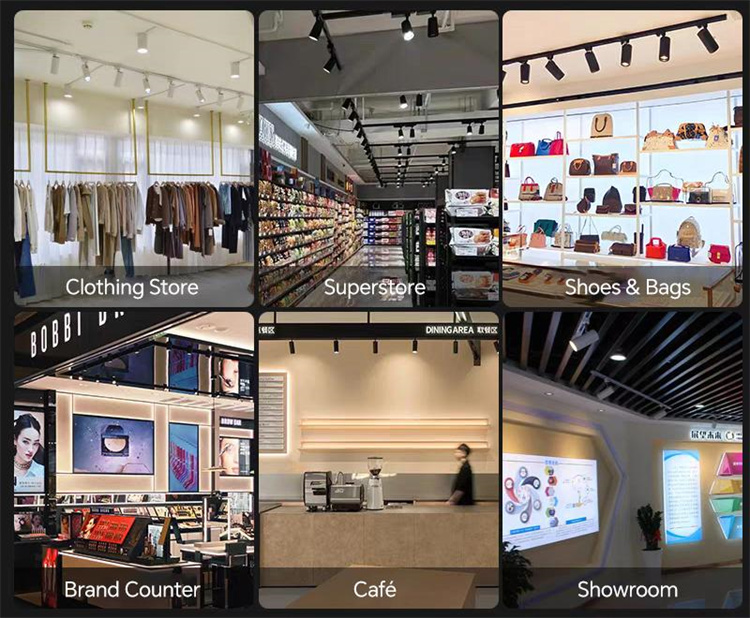

Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
Optimizing LED Track Light Beam Angles for Retail Lighting (15°/24°/36°/50°)
The right beam angle makes products look their best. Our track lights come in four options to match your retail needs:
1. 15° (Pinpoint Spotlight)
Perfect for: Making luxury items shine (watches, jewelry, designer bags)
Why it works: Creates a bright "halo" effect to draw attention
Use in: Display cases or featured product zones
2. 24° (Focused Beam)
Ideal for: Clothing racks & mannequins
Why it works: Shows fabric details with soft shadows
Place in: Fitting room areas or high-end collections
3. 36° (Versatile Wash)
Great for: Shelves with multiple items (jeans, shirts, shoes)
Why it works: Lights up groups of products evenly
Works in: Mid-store displays or brand sections
4. 50° (Wide Glow)
Best for: Lighting entire aisles or checkout areas
Why it works: Eliminates dark spots without glare
Install in: Supermarket lanes or store entrances
Pro Lighting Trick
For boutiques: Mix 15° + 36° (spotlight + fill light)For supermarkets: Pair 24° + 50° (product lighting + area lighting)
All lights show colors accurately (CRI 90+) so clothes look true-to-life. Need help planning? We’ll design your perfect lighting layout!
