Square Recessed LED Downlight CRI90 Anti Glare FT-DLT08
Features：
- High Color Rendering: CRI > 90, accurately restoring the true color of objects.
- Uniform Light Emission: Consistent and uniform light beam distribution.
- Selectable Color Temp: 2700K，3000K, 3500K(Warm), 4000K (Neutral), 5000K, 6000K (Daylight).
- Optional Beam Angles: 120° to suit different lighting needs.
- Multi-Dimming Solutions: Compatible with Triac dimmer, 0-10V, and DALI systems.
- Smooth Dimming Experience: Stepless dimming with no flicker or noise.
Specifications：
- Input Voltage: AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF: 9-20W:0.5 25-35W:0.95
- Driver : LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source: CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI: 80/90/95
- Lifespan: 50000hrs
Specification
|
Brand Name |
Fitlight |
|
Item Type |
Square Led Slim SMD Downlight |
|
Power |
9W/12W/15W/18W/20W/25W/30W/35W/2*9W/2*12W |
|
Input Voltage(V) |
AC 110V ( ± 10%)/AC 220V( ± 10%) |
|
LED light source |
bridgelux SMD Led Chip |
|
Color |
White, black, matte silver, gun black, bright silver, rose gold and antique bronze. |
|
Beam angle |
120° |
|
CRI (Ra>) |
80/90/95 |
|
Cut out |
75*75mm/90*90mm/120*120mm/140*140mm/160*160mm/190*190mm160*75mm/195*90mm |
|
Working Temperature( °C ) |
-20 ~ +50 |
|
Lamp Body Material |
Aluminum |
|
CCT |
Warm white(2700K/3000K/3500K)/Natural white (4000k)/Cool white (5000K/6000K) |
|
PF |
9-20W:0.5 25-45W:0.95 |
|
Dimmable |
Dimmable(0-10V ,Triac ,Dali) / TUYA (ZigbeeBluetooth) |
|
Key Feature1 |
CRI＞90 Deep Anti-Glare Commercial Ceiling Light |
|
Installation |
Recessed/Embedded |
|
Application |
Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
| Model | Power | Dimension(mm) L*W*H |
Cut out | Beam Angle | CCT |
| FT-DLT08-9W | 9W | 100*100*43 | 75*75 | 120° | 2700/3000K/ 3500K/4000/ 5000K/6000K |
| FT-DLT08-12W | 12W | 120*120*43 | 90*90 | ||
| FT-DLT08-12W | 12W | 150*150*45 | 120*120 | ||
| FT-DLT08-15W | 15W | 150*150*45 | 120*120 | ||
| FT-DLT08-18W | 18W | 175*175*50 | 140*140 | ||
| FT-DLT08-20W | 20W | 197*197*50 | 160*160 | ||
| FT-DLT08-25W | 25W | 197*197*50 | 160*160 | ||
| FT-DLT08-30W | 30W | 230*230*55 | 190*190 | ||
| FT-DLT08-35W | 35W | 230*230*55 | 190*190 | ||
| FT-DLT08-2*9W | 2*9W | 183*100*43 | 160*75 | ||
| FT-DLT08-2*12W | 2*12W | 220*120*43 | 195*90 |
Light
Manufactured by FEITL, a professional lighting factory with 14+ YEARS OF LIGHTING MANUFACTURING EXPERIENCE, the FT-DLT08 square recessed LED downlight delivers premium indoor lighting solutions for residential and commercial projects. We support OEM / ODM customization to meet your unique project requirements. This series adopts Bridgelux LED chips, features CRI >90 high color rendering, and comes with a 5-YEAR WARRANTY. Multiple smart dimming options are available including TUYA, ZIGBEE, DALI, 0-10V & TRIAC. Certified with CE, SAA, RoHS, EMC, LVD for global market compliance.

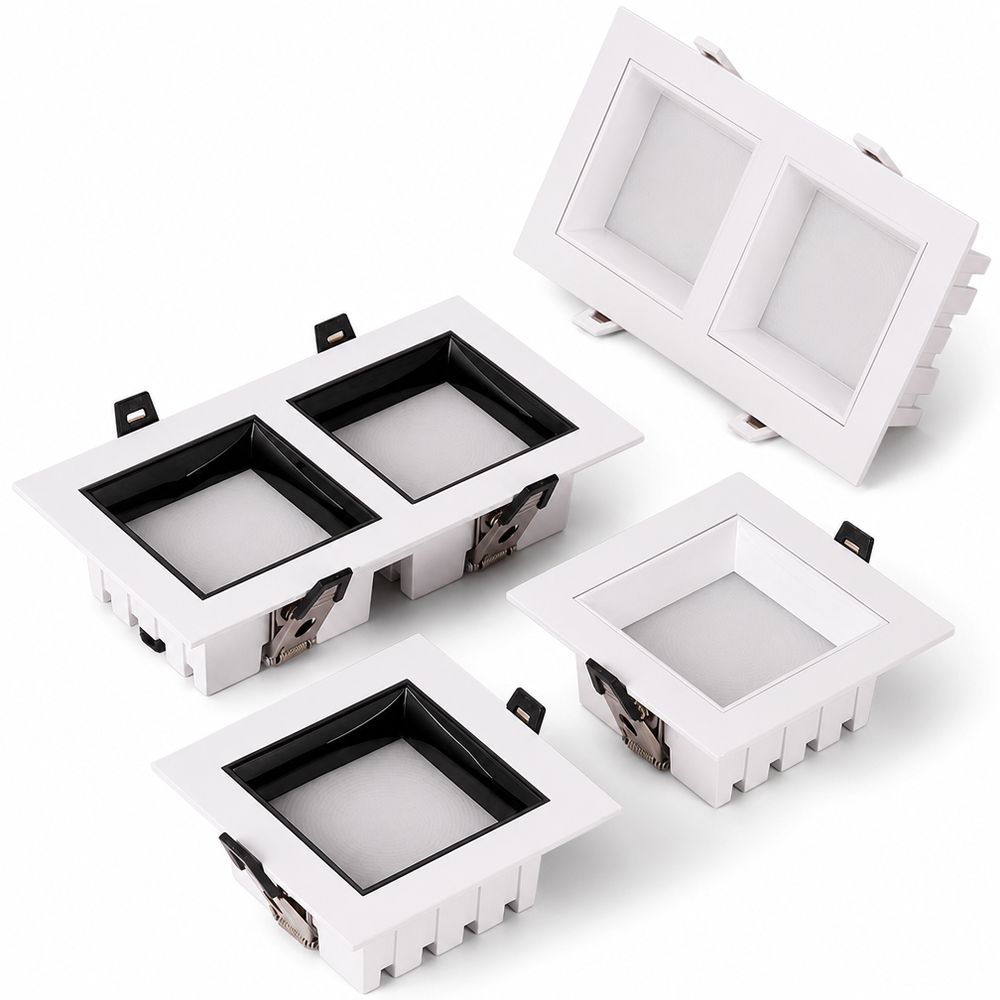

Our FT-DLT08 series includes SINGLE & DOUBLE HEAD SQUARE RECESSED DOWNLIGHTS in white and black finish options. Designed for flush ceiling mounting, this square recessed downlight uses high-grade Bridgelux LED chips with CRI >90, presenting true, lifelike color rendering. Backed by our solid factory strength, we offer reliable 5-YEAR WARRANTY and flexible OEM & ODM services for global buyers. All lights are fully certified for European and Australian markets, and compatible with mainstream smart control systems.

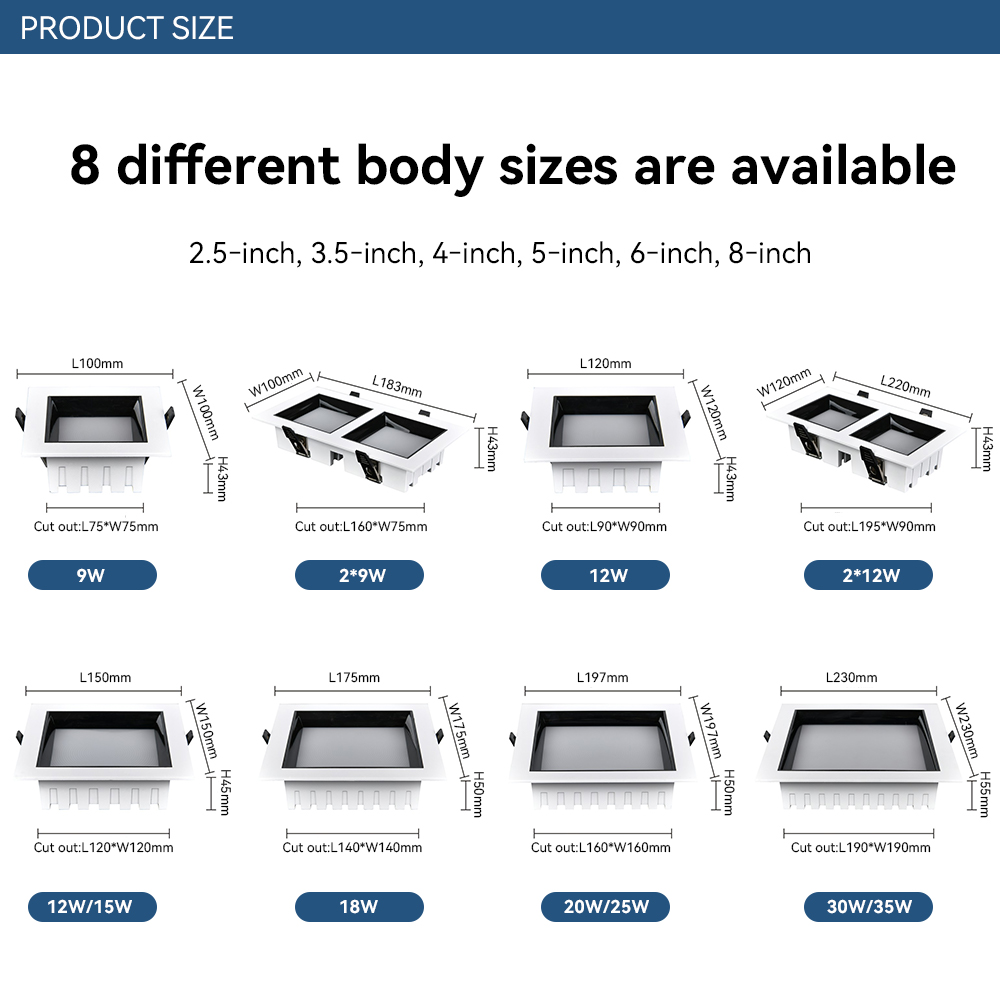

Size & Power Options
Choose from 8 DIFFERENT BODY SIZES & POWER RATINGS to fit diverse ceiling cutout requirements.
Available specifications cover 2.5-inch to 8-inch housings, power ranges from 9W, 2*9W,12W,2*12W,15W,18W,25W,35W.
Every variant has clear cutout dimensions marked for quick installation planning, perfect for small residential renovations and large-scale commercial projects. Multiple size selections allow flexible layout design for different space demands.

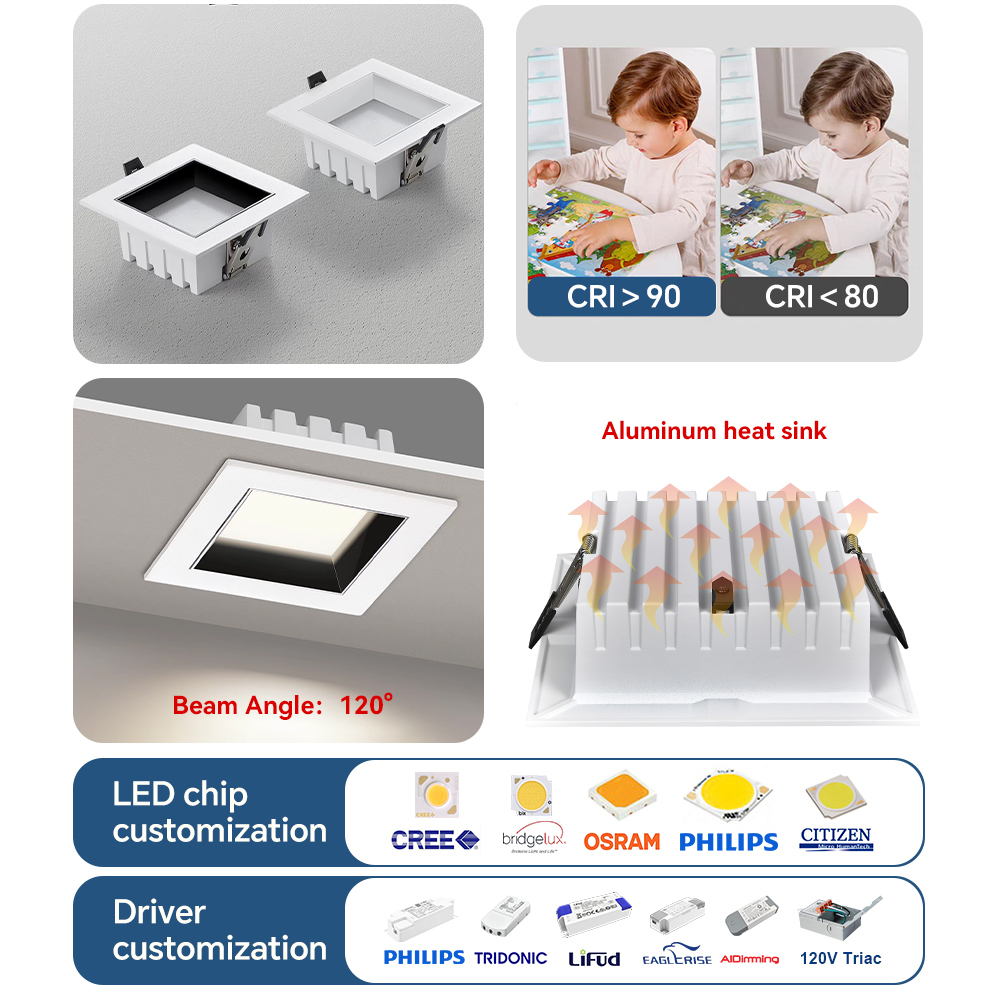

Performance & Customization Highlights
FT-DLT08 delivers outstanding lighting performance with a fixed 120° BEAM ANGLE.
The CRI>90 high color rendering restores object colors vividly compared to low CRI lighting (CRI＜80).
Built with integrated ALUMINUM HEAT SINK for efficient heat dissipation to extend lamp lifespan.
Full component customization supported: pick LED chips from CREE, BRIDGELUX, OSRAM, PHILIPS, CITIZEN, and select drivers from PHILIPS, TRIDONIC, LIFUD, EAGLERISE plus 120V triac drivers for different regional power standards.
Factory & Custom Manufacturing Service
We are more than a lamp supplier — we provide full LIGHTING MANUFACTURING SERVICE.
Our strengths include optimized anti-glare optical design, factory direct supply without middlemen, flexible MOQ for small-batch & bulk orders, abundant raw material stock for fast production, strict UGR ANTI-GLARE TEST for commercial lighting, and custom packaging.
Our project workflow: send CAD/floor plan → get free lighting simulation within 24–48h → sample delivery in 3–5 days → mass production within 10–18 days → full installation guidance.
Customizable items: CRI, CCT(2700K–6000K), beam angle, trim color, laser/printed logo and retail/bulk packaging.
We are ISO9001 CERTIFIED, all products pass CE/EMC/LVD/RoHS/SAA, with 5-YEAR WARRANTY, MOQ starting at 10pcs.

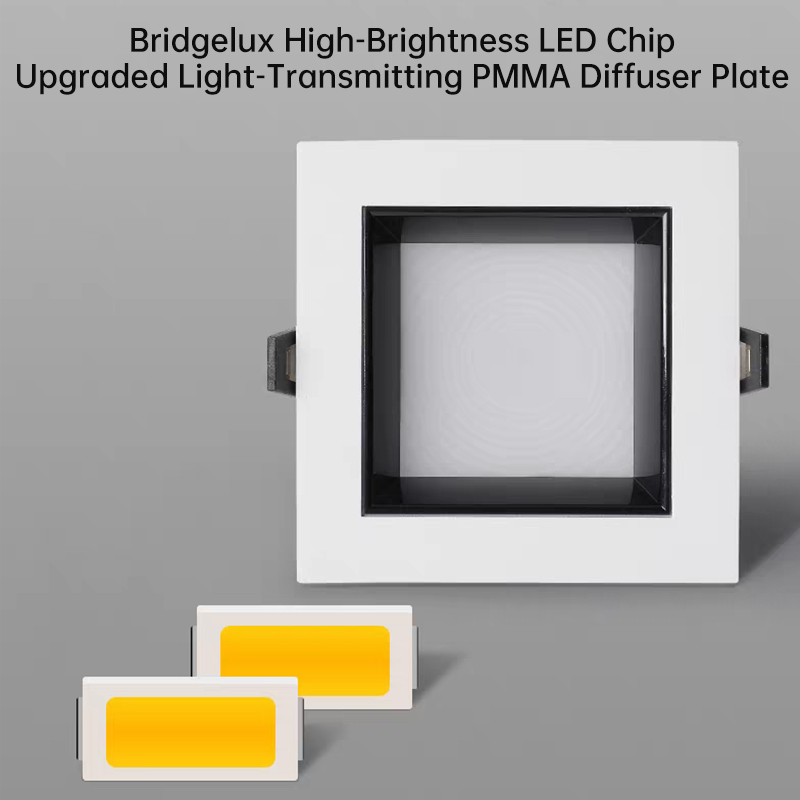

Light Source & Diffuser
This square downlight adopts BRIDGELUX HIGH-BRIGHTNESS LED CHIPS, paired with upgraded PMMA LIGHT-TRANSMITTING DIFFUSER PLATE.
The premium PMMA diffuser softens light output evenly, eliminates harsh hotspots while maintaining high lumen efficiency.
Stable Bridgelux chips guarantee consistent brightness and long service life, reducing light decay over years of use.

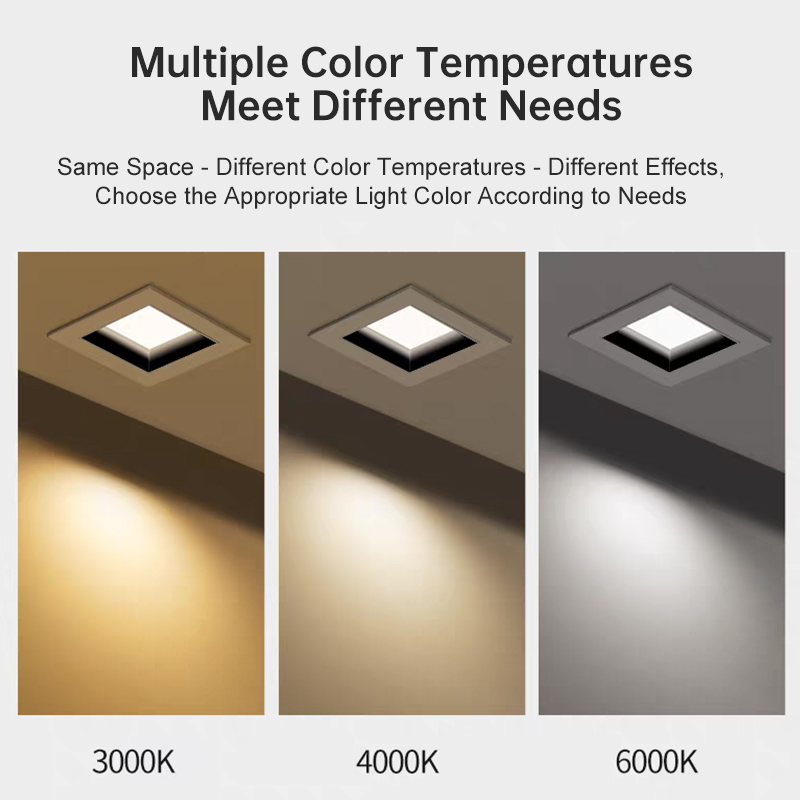

Multiple Color Temperature Selection
MULTIPLE COLOR TEMPERATURE OPTIONS to match varied atmosphere needs.
3000K warm white creates cozy relaxing ambiance;
4000K natural white offers balanced neutral light for offices and shops;
6000K cool white delivers bright crisp illumination.
Adjust light tone freely for the same space and achieve totally different visual effects according to your project design.

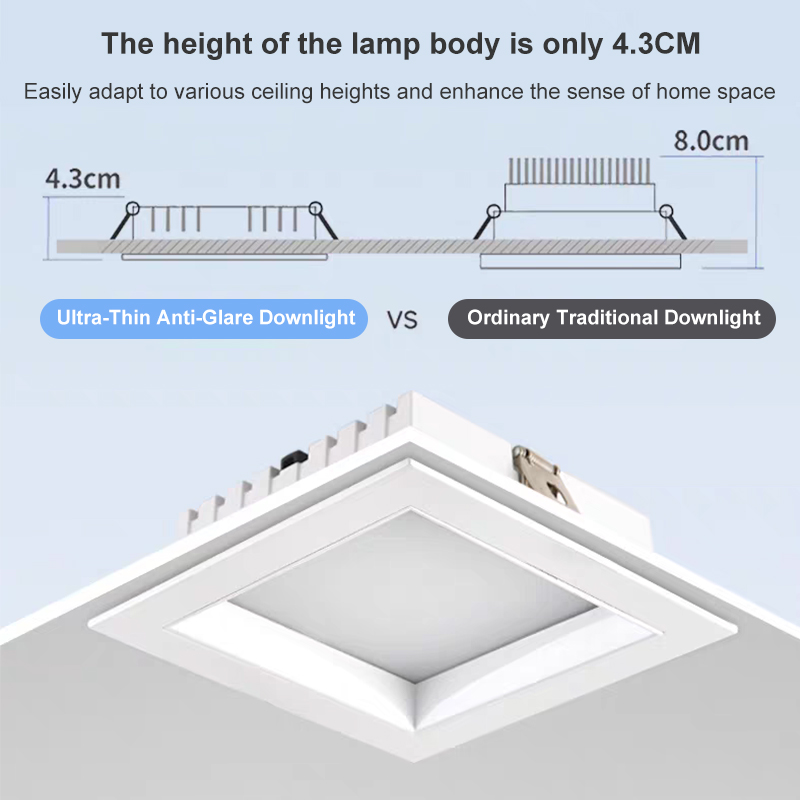

Ultra-Thin Body Design
Only 4.3CM BODY HEIGHT, this ULTRA-THIN ANTI-GLARE DOWNLIGHT easily fits ceilings with limited cavity space, unlike traditional thick downlights which need 8cm depth.
Slim profile preserves vertical space sense, widely compatible with gypsum board ceilings in home and commercial renovation projects.
Spring clip structure enables simple flush mounting without complicated ceiling modification.

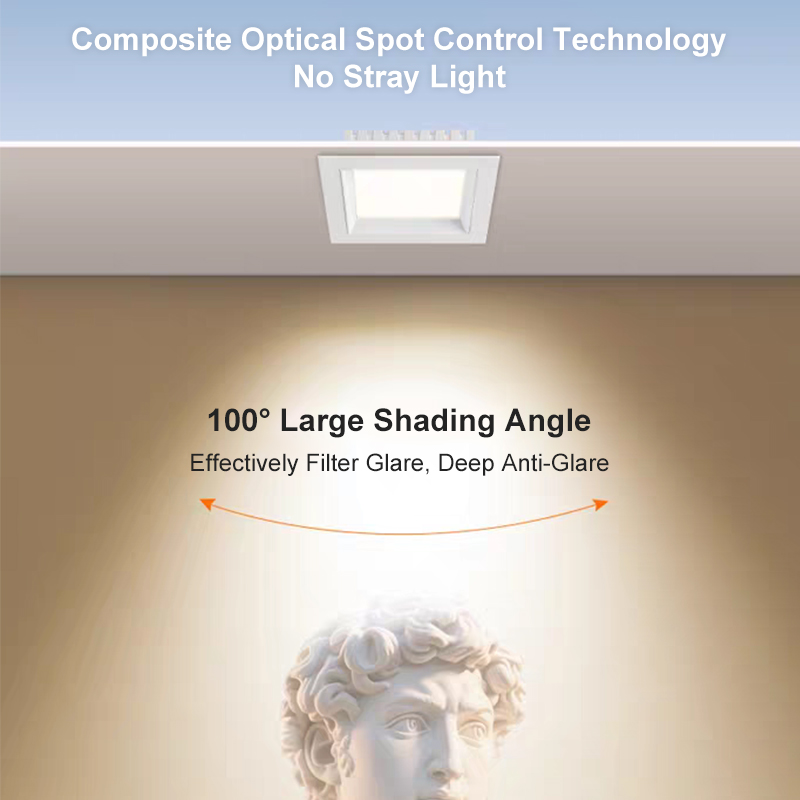

Deep Anti-Glare Optical Design
Equipped with COMPOSITE OPTICAL SPOT CONTROL TECHNOLOGY, effectively block stray light.
Features a 100° LARGE SHADING ANGLE to filter glare thoroughly.
The deep recessed cavity prevents direct light from hitting eyes, greatly reducing visual discomfort.
Ideal for spaces requiring long-time eye comfort such as showrooms, offices and living rooms.

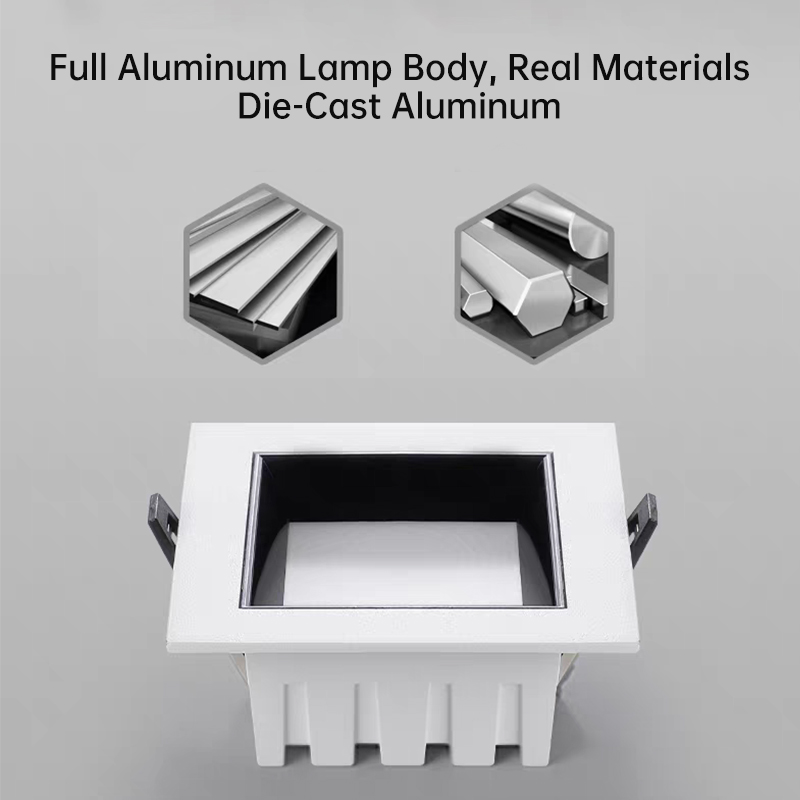

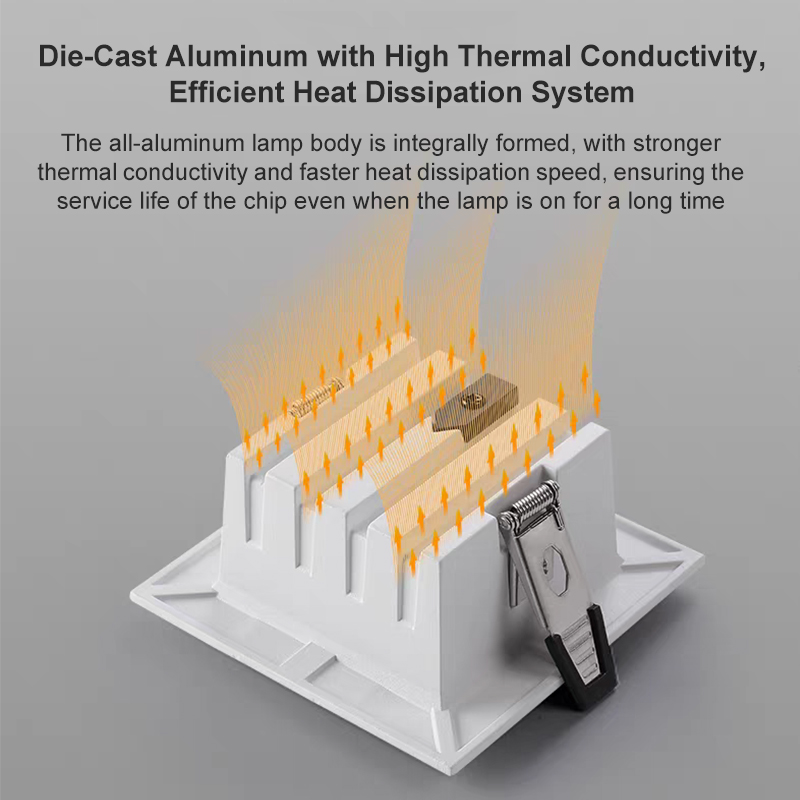

Die-Cast Aluminum Heat Dissipation
Constructed by DIE-CAST ALUMINUM WITH HIGH THERMAL CONDUCTIVITY, forming an efficient heat dissipation system. Integrated all-aluminum housing transfers heat rapidly away from LED chips.
Even with long continuous operation, the operating temperature stays stable, protecting LED chips and greatly prolonging the fixture’s service life.
Wide Application Scenarios

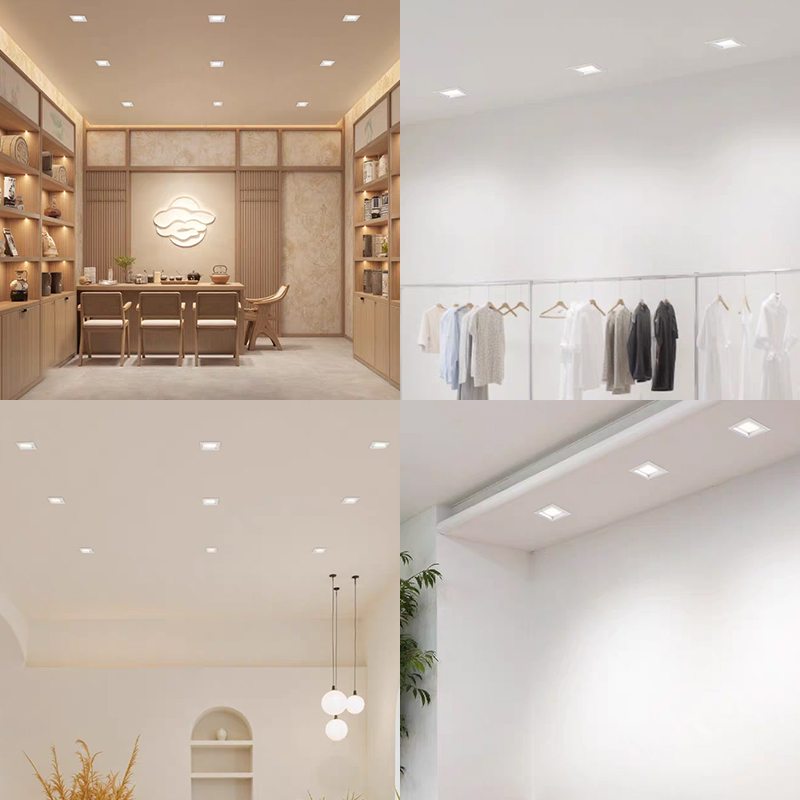

Real Project Application Display
FT-DLT08 square recessed LED downlight fits multiple indoor scenes perfectly. Widely used for residential living rooms, bedrooms, clothing retail shops, tea rooms, showrooms, and office interiors. Its minimalist square appearance blends seamlessly into modern, minimalist and oriental interior styles. The soft anti-glare light enhances space texture and creates premium lighting atmosphere for both home and commercial projects.
Product Specifications Summary
- Product Model: FT-DLT08
- Type: Square Recessed LED Downlight (Single / Double Head Optional)
- Chip: Bridgelux (Customizable Cree / Osram / Philips / Citizen)
- CRI: ＞90
- Beam Angle: 120°
- Shading Angle: 100° Deep Anti-Glare
- CCT: 3000K / 4000K / 6000K (2700K~6000K customizable)
- Housing: Die-cast Aluminum, Ultra-thin 4.3cm
- Dimming: TUYA, Zigbee, DALI, 0-10V, TRIAC
- Certifications: CE, SAA, RoHS, EMC, LVD, ISO9001
- Warranty: 5-YEAR WARRANTY
- Service: OEM / ODM, free lighting simulation, custom logo & packaging
Why Choose Fitlight?
As a direct LED lighting manufacturer with 14+ years of experience, we skip middlemen to provide factory competitive pricing. We support small trial orders and large bulk commercial projects, fast sampling & mass production lead time. Every fixture undergoes strict anti-glare and photometric testing before shipment. Our professional engineering team provides free lighting simulation and full after-sales technical guidance.
