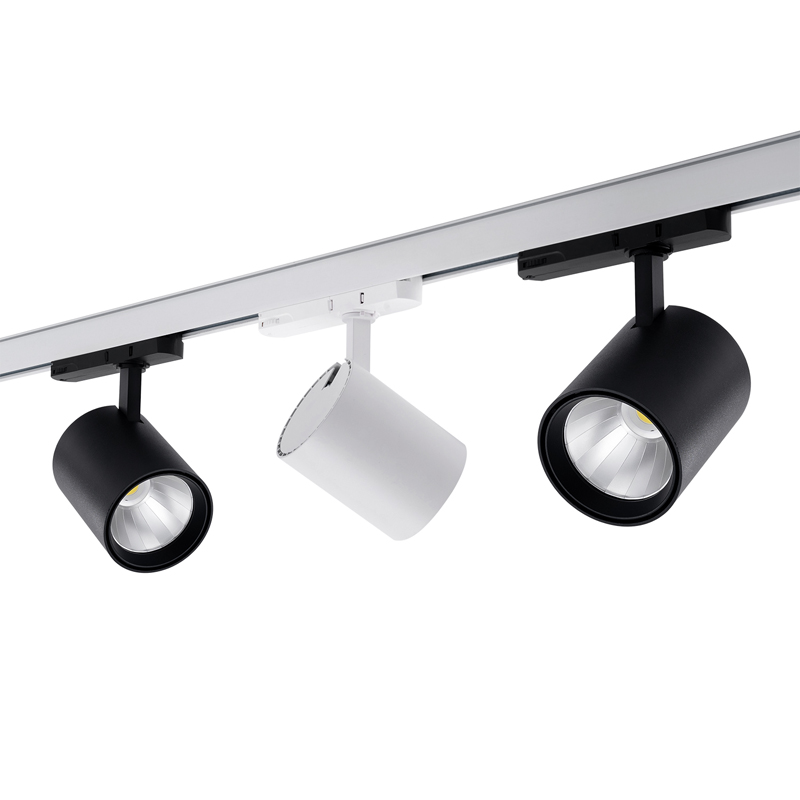

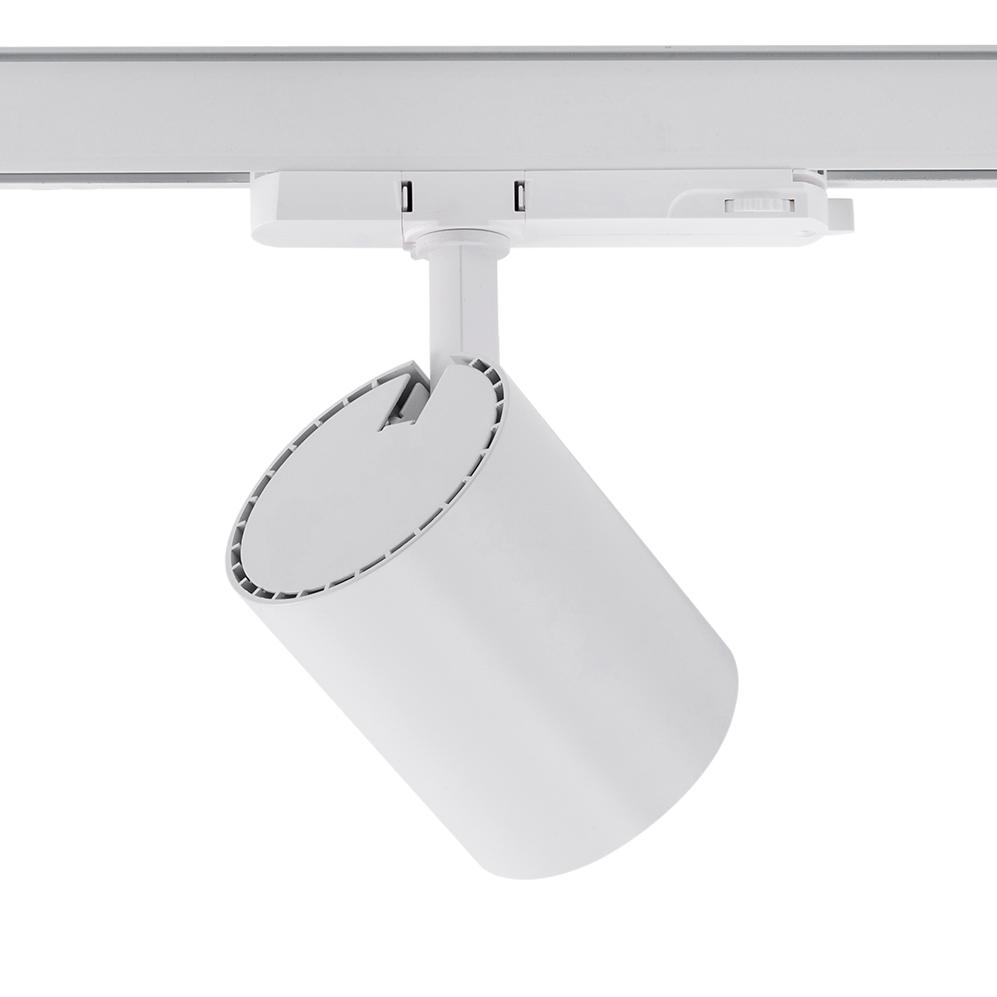

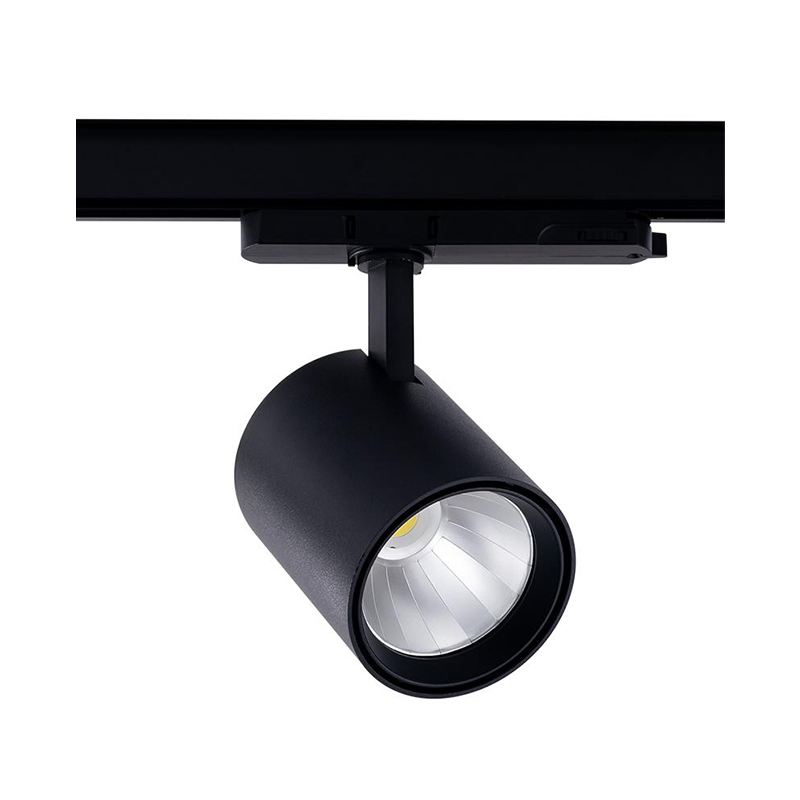

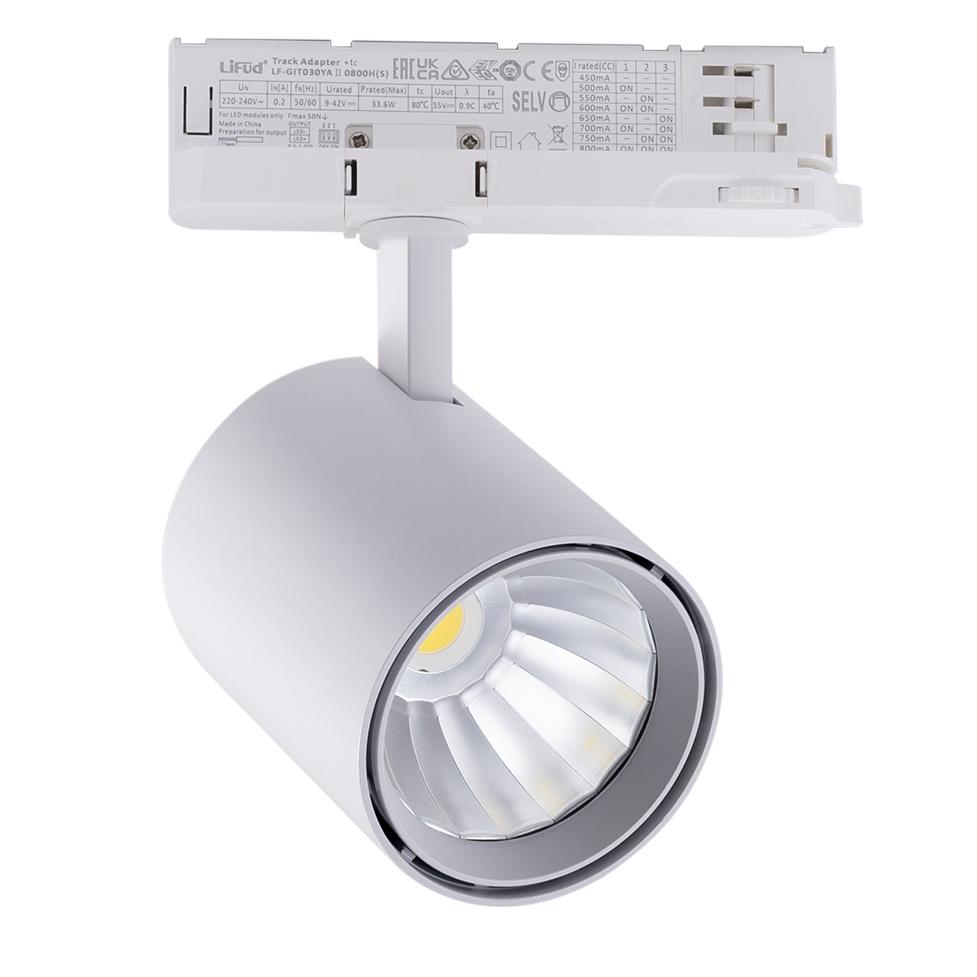

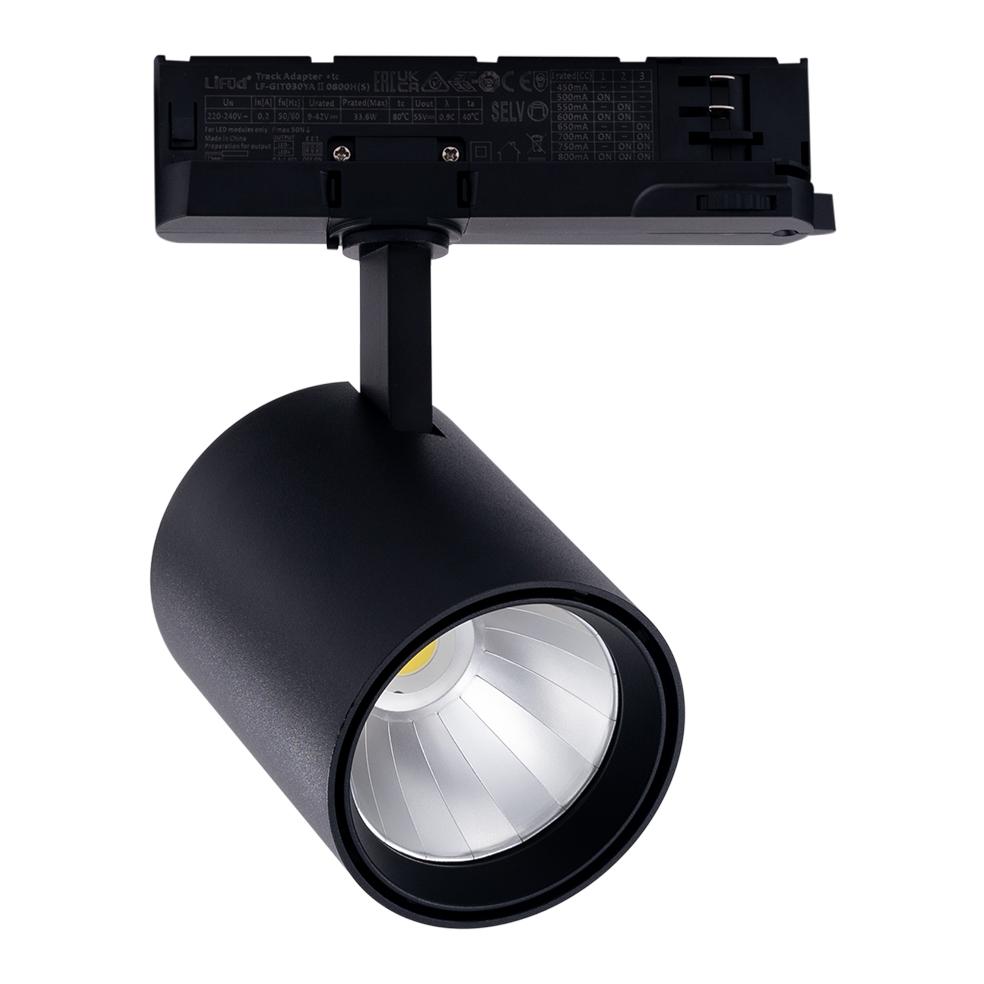

High End Commercial 160Lm/w Led Lights for Track Lighting FT-TL06
Features:
● Ultra-High Efficiency 160LM/W
● Premium LED Chips CRI≥90

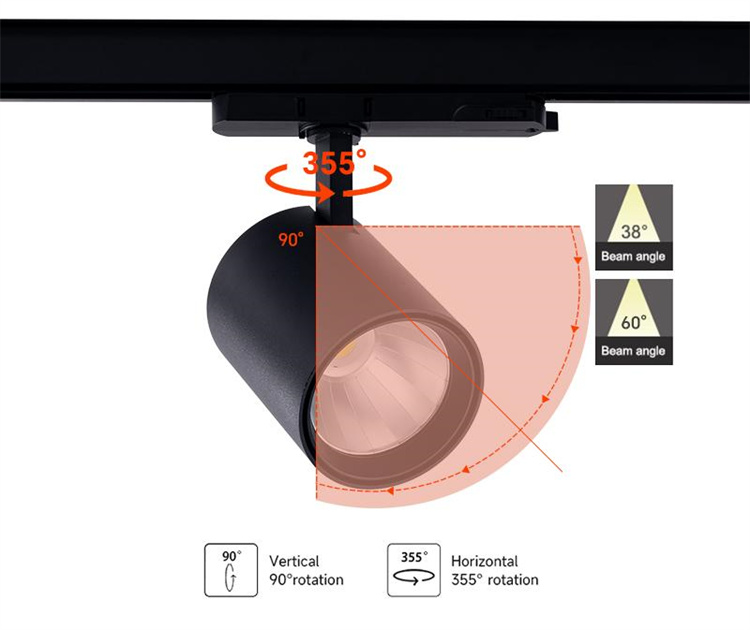

● 355° rotation + 90° tilt for perfect aiming
● Flicker-Free Performance - >0.95 PF with <10% THD
● Dimmable Options- 0-10V/DALI/TRIAC compatible
● Superior heat dissipation with military-grade durability
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | LED Track Light Integrated High Luminous Efficiency 160LM/W |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Power | 25W/30W/35W/40W/45W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM |
| (Other driver brands can also choose from) | |
| Driver | OSRAM/LIFUD (Other driver brands can also choose from) |
| Color | White Black For Option |
| Beam angle | 38°/60° |
| CRI (Ra>) | ＞90 |

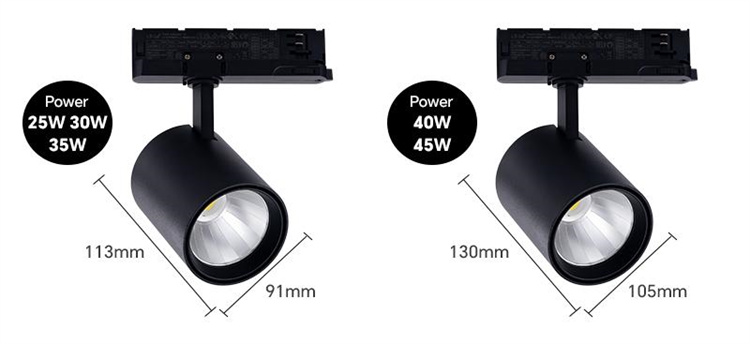

| Size(mm) | D91*H113/D105*H130mm |
| Working Temperature( ℃ ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |

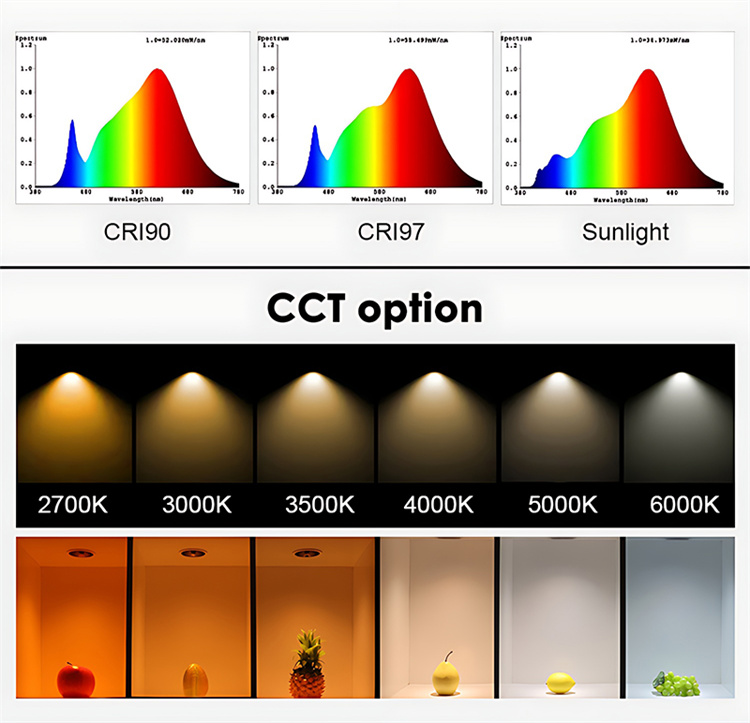

| CCT | Warm White(2700K/3000K/3500K) Natural white (4000K) Cool White (5000K/6000K) |
| PF | 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|
Model No. |
Watts |
Size(mm) |
Lumens |
LED Color |
|
FT-TL06-25W |
25W |
D91*H113 |
4000LM |
2700K
|
|
FT-TL06-30W |
30W |
D91*H113 |
4800LM |
|
|
FT-TL06-35W |
35W |
D91*H113 |
5600LM |
|
|
FT-TL06-40W |
40W |
D105*H130 |
6400LM |
|
|
FT-TL06-45W |
45W |
D105*H130 |
7200LM |
The advantages of the product

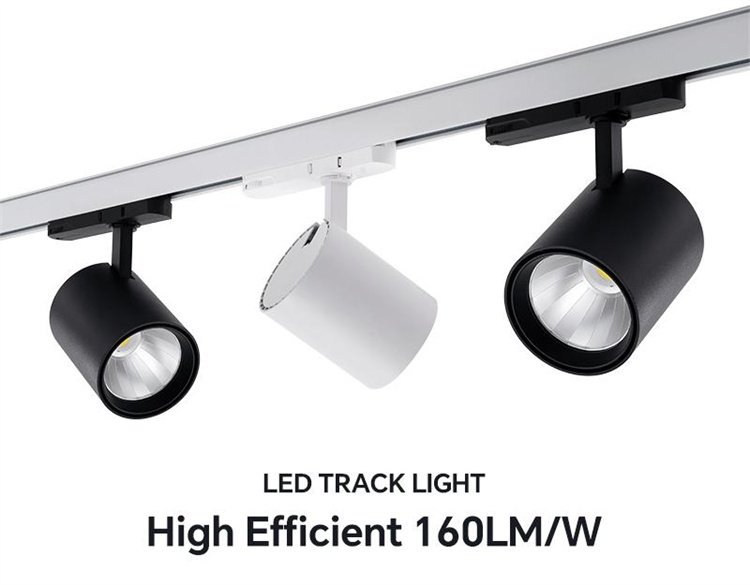

The luminous efficacy of this commercial track light reaches 160lm/W, which is extremely energy-efficient and significantly reduces electricity costs.
Compared with ordinary LED track lights (usually 80-120 lumens per watt), lamps with a brightness of 160 lumens per watt only require about half the power to provide the same brightness.
For example, a traditional 50W lamp (100 lumens/watt) =5000 lumens, while a high-efficiency lamp only needs 31W (160 lumens/watt) to achieve the same luminous flux, saving nearly 40% of electricity.

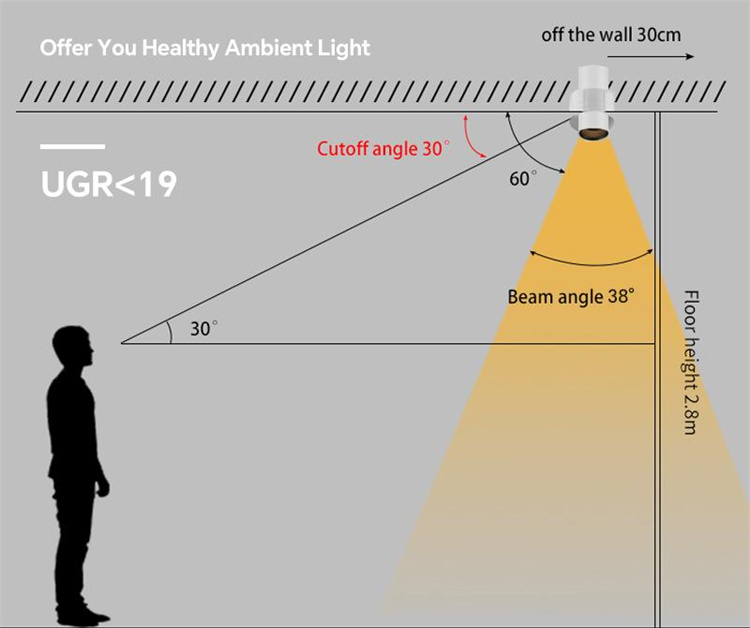

This track light achieves a high luminous efficacy of 160lm/W while also keeping the UGR＜19. When the UGR＜19, the human eye can hardly perceive direct glare (such as the dazzling feeling of the lamp), making it suitable for Spaces where people stay for a long time and protecting the eyes of commercial staff.
· The beam angles of 38 ° and 60° can be selected, and both of these options are suitable for commercial lighting.
· Available in multiple wattages (25W–45W ), to meet different commercial lighting demands.

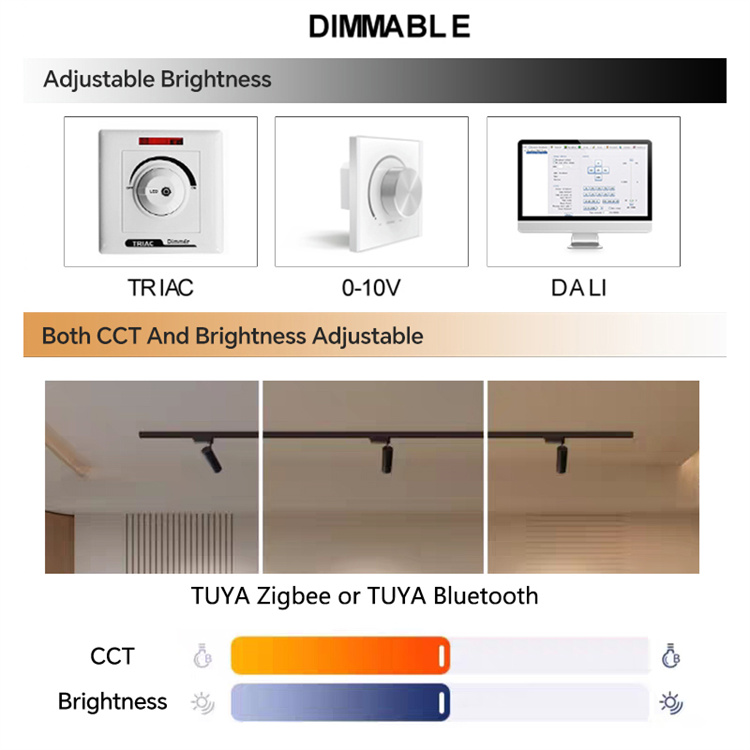

This track light supports 0-10V/DALI/Tric dimming system.

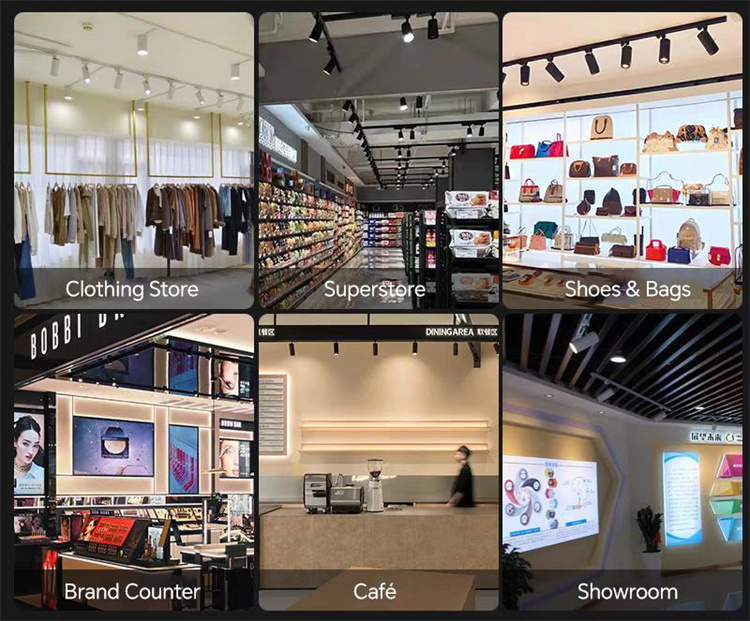

Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
High-Efficiency LED Track Lights – Ultra-Bright & Energy-Saving Solution
Our high-lumen LED track lights deliver exceptional performance with an industry-leading 160LM/W efficacy, making them the perfect choice for commercial and industrial spaces where brightness and energy efficiency are critical. Crafted from cold-forged aluminum, these lights ensure superior heat dissipation, extended lifespan, and a sleek, durable design.
Key Benefits of High-Efficiency LED Track Lighting
✔ Superior Energy Savings – With **160LM/W efficacy, our track lights consume 40-50% less power than conventional LEDs while delivering brighter, more uniform illumination. Businesses can significantly reduce electricity costs without compromising light quality.
✔ Longer Lifespan & Reliability – The cold-forged aluminum housing enhances thermal management, preventing overheating and ensuring 50,000+ hours of stable performance. Ideal for 24/7 operations in retail stores, warehouses, and office spaces.
✔ Reduced Carbon Footprint – Lower energy consumption means fewer CO₂ emissions, supporting eco-friendly lighting solutions for sustainable businesses.
✔ High Brightness, Zero Glare – Advanced optical design ensures glare-free illumination, perfect for task lighting in supermarkets, showrooms, and workspaces where visual comfort is essential.
✔ Wide Voltage Compatibility (100-277V AC) – Suitable for global markets, ensuring stable performance under different power grids.
Ideal Applications
● Retail Stores & Showrooms– Enhances product visibility with crisp, high-CRI lighting.
● Warehouses & Factories – High-output illumination improves safety and productivity.
● Office & Commercial Spaces – Energy-efficient lighting reduces operational costs.
Upgrade to smart dimming for additional energy savings. Contact us today for the best high-efficiency LED track lighting solutions!
