High Quality Contemporary Dining Room 4 Feet Linear Lighting FT-LL1F1
Features:
● Light source: San’an SMD LED
● Long LED life: More than 50,000 hours
● Low heat, less than 60°C
● No mercury or other inorganic
● Homogeneous flood illumination
● Machined aluminum heat fins with excellent thermal efficiencies
● 5 years limited warranty
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 0.95
- Driver LIFUD / Boke Optional
- LED source San’an
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Modern LED Linear Track Lighting |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Power | 10W 12W 15W 20W 25W 30W 35W 40W 45W 50W |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | SMD2835 |
| Shell color | White And Black For Option |
| Beam angle | 140° |
| CRI (Ra>) | 80 |
| Working Temperature( °C ) | -20℃-60℃ |
| Lamp Body Material | Aluminum Housing+PS Diffuser |
| CCT | Warm White(2700K/3000K/3500K) / Natural white(4000K)/ Cool White(5000K/6000K) |
| PF | 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Track Installation |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/Office/Hospital .etc |
|
Model No. |
Watts |
Size （mm/ft） |
Lumens |
LED Color |
|
FT-LL1F1-10W |
10W |
300*50*70 |
800LM |
Warm White (2700K/3000K/3500K) |
|
FT-LL1F1-12W |
12W |
300*50*70 |
960LM |
|
|
FT-LL1F1-15W |
15W |
300*50*70 |
1200LM |
|
|
FT-LL1F2-20W |
20W |
600*50*70 |
1600LM |
|
|
FT-LL1F2-25W |
25W |
600*50*70 |
2000LM |
|
|
FT-LL1F4-35W |
35W |
1200*50*70 |
2800LM |
|
|
FT-LL1F4-40W |
40W |
1200*50*70 |
3200LM |
|
|
FT-LL1F4-45W |
45W |
1200*50*70 |
3600LM |
|
|
FT-LL1F4-50W |
50W |
1200*50*70 |
4000LM |

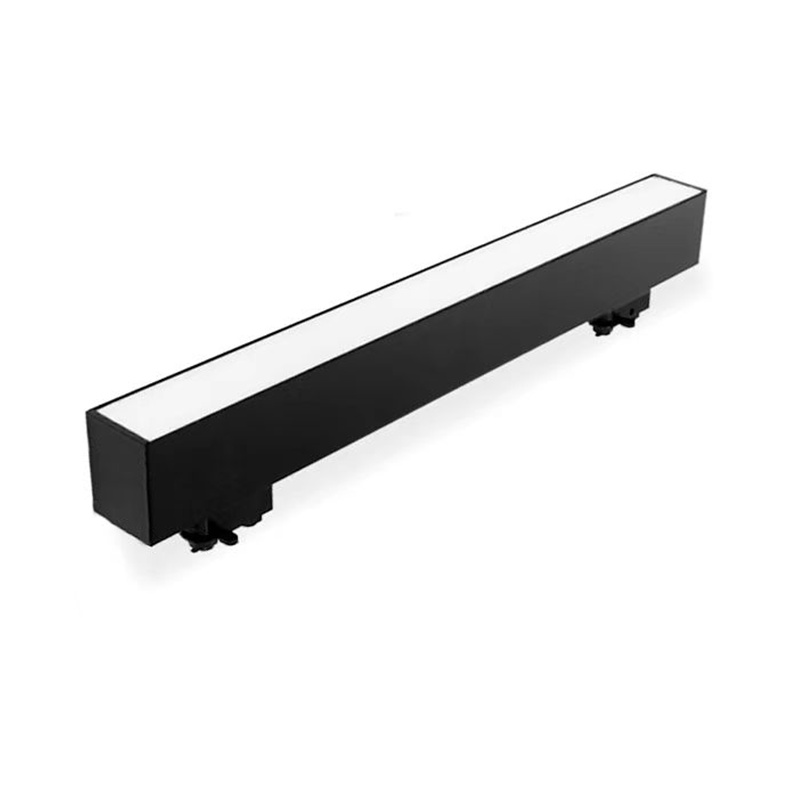

The advantages of the product

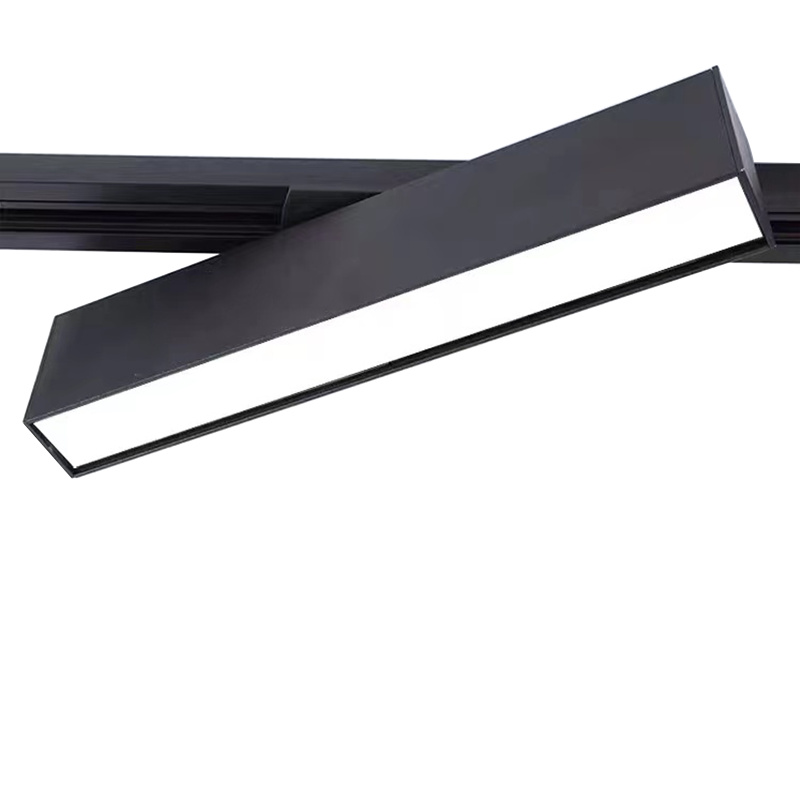

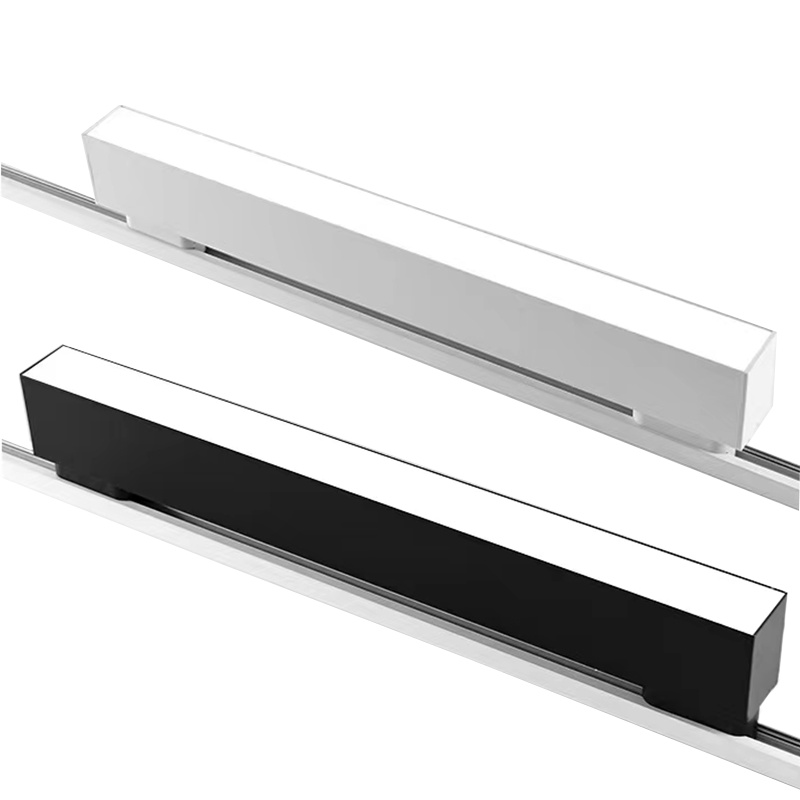

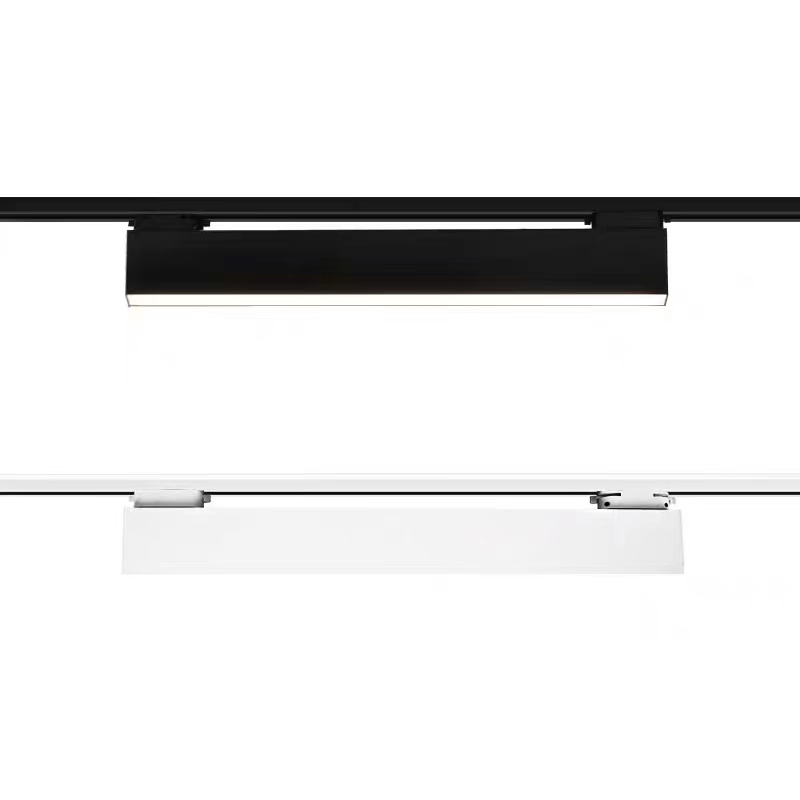

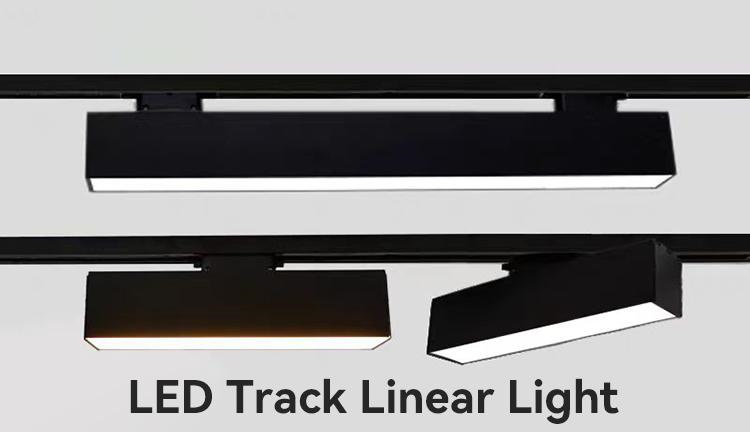

This linear light is track rail mounted, the lighting layout can be freely adjusted by moving, rotating or adjusting the angle along the track, and can be rearranged at any time according to changes in spatial functions (such as exhibition areas, reading angles), without the need for rewiring.
The track system supports rapid assembly and can be directly installed on existing ceilings without the need for large-scale renovation, making it suitable for renovation projects.
Different types of lighting fixtures (such as spotlights and floodlights) can be mixed and installed on the same track to meet diverse lighting needs.

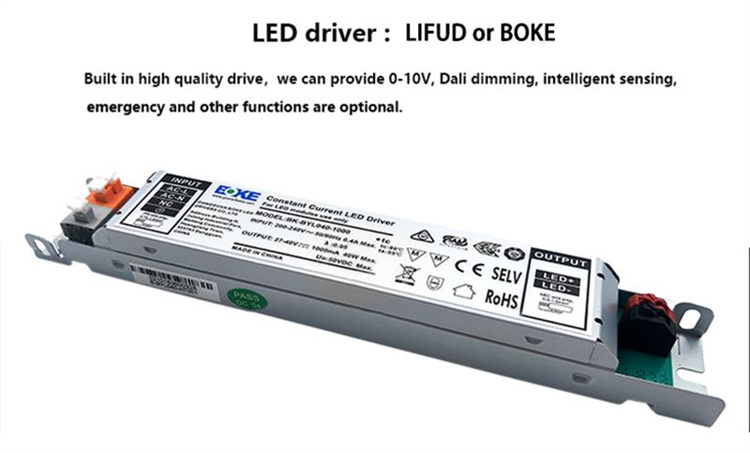

Driver: Our track mounted linear light series features drivers from industry leaders Lifud and Boke, Flicker-Free Technology, ZyeCare Certification,Smooth Dimming.

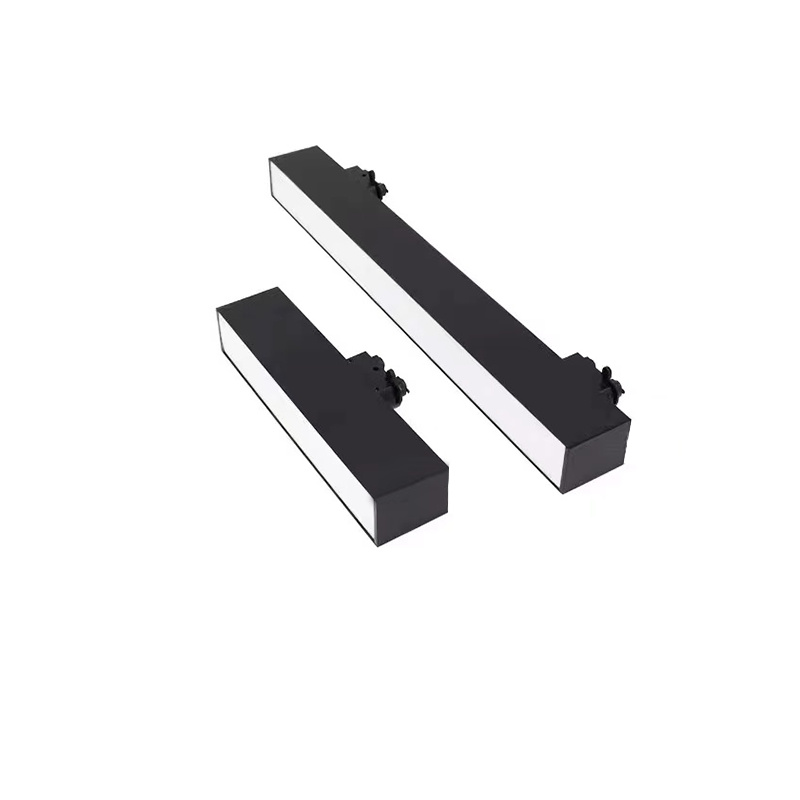

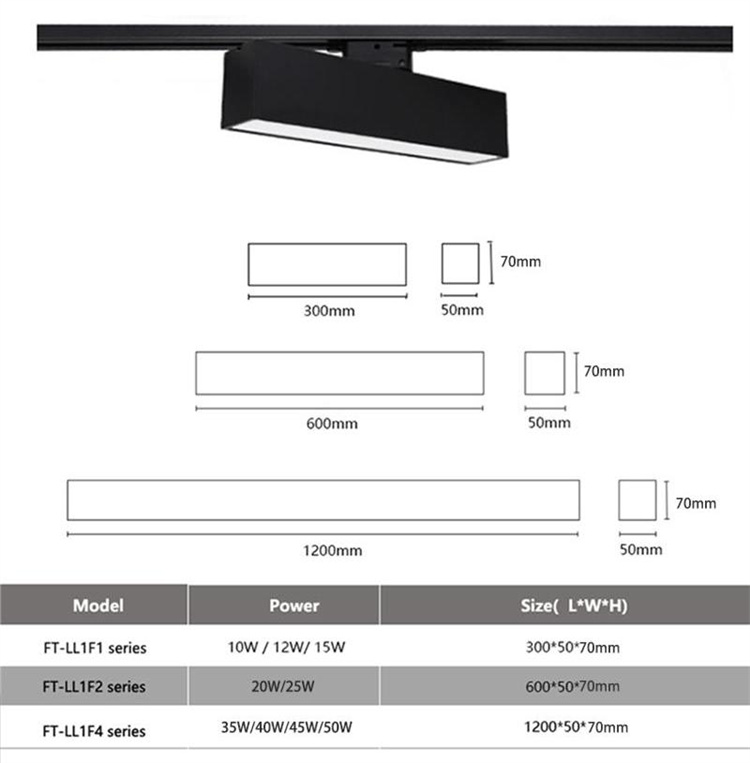

For this linear light, we provide three standard lengths: 300mm, 600mm, and 1200mm. These can be spliced to achieve any customized length as per your specific requirements.

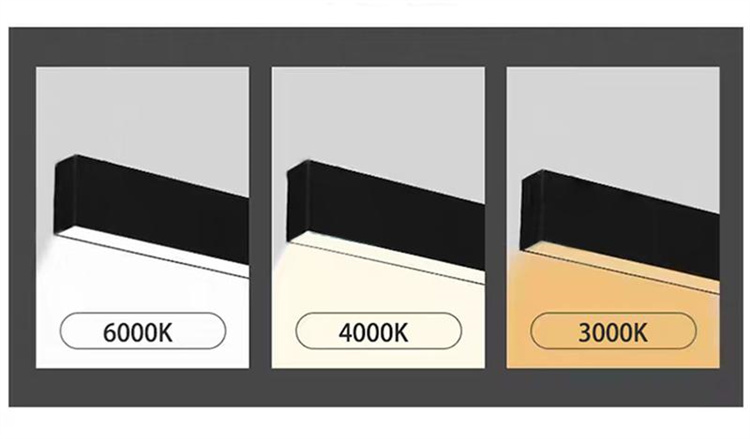

Color Temperature Options for the Linear Light:
Choose from a spectrum of color temperatures to create your desired ambiance:
● Warm White: 2700K/3000K (soft, cozy glow)
● Natural White: 4000K (neutral, balanced light)
● Cold White: 5000K/6000K (bright, energizing tone)

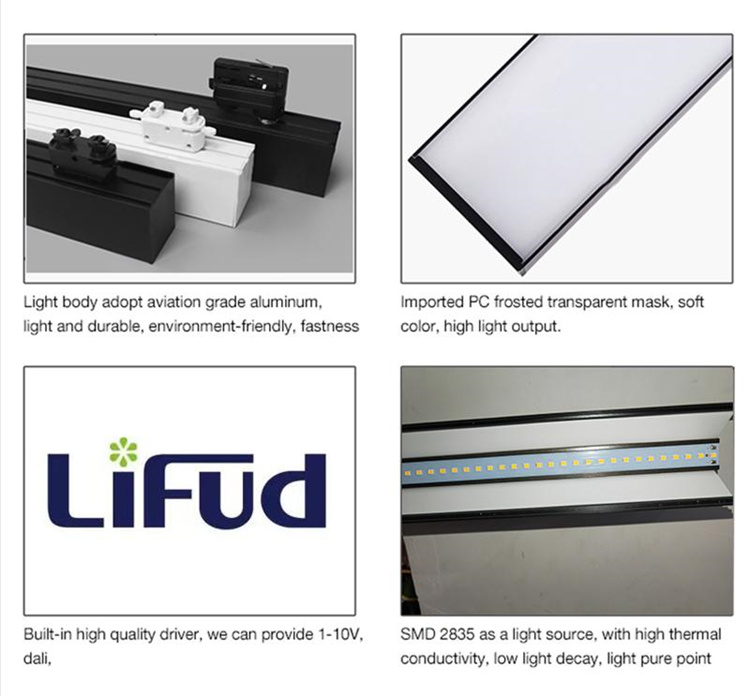

Details:
1. Light body adopt aviation grade aluminum,light and durable ,environment-friendly,fastness.
2. SMD 2835 as a light source, with high thermaconductivity,low light decay, light pure point
3. Built-in high quality driver we can provide 1-10V,dali
4. SMD 2835 as a light source, with high thermalconductivity,low light decay, light pure point

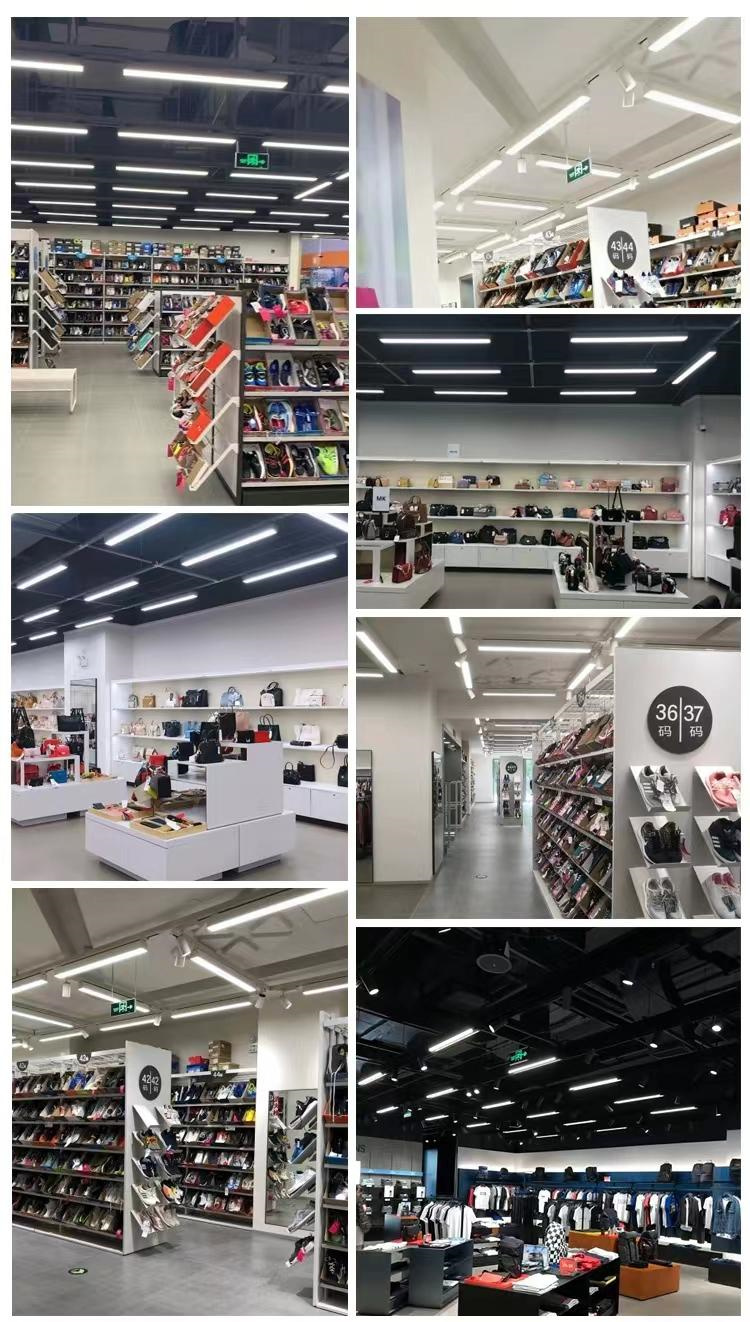

Led Linear Light Application
Linear lights can be used in restaurants, offices, meeting rooms, corridors, hospitals, supermarkets, etc.
