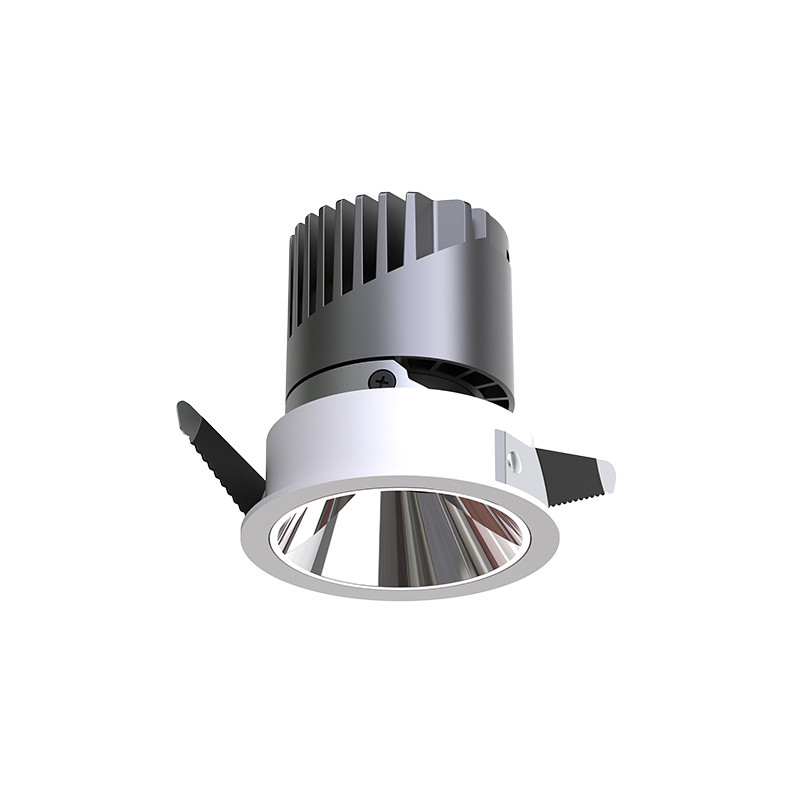

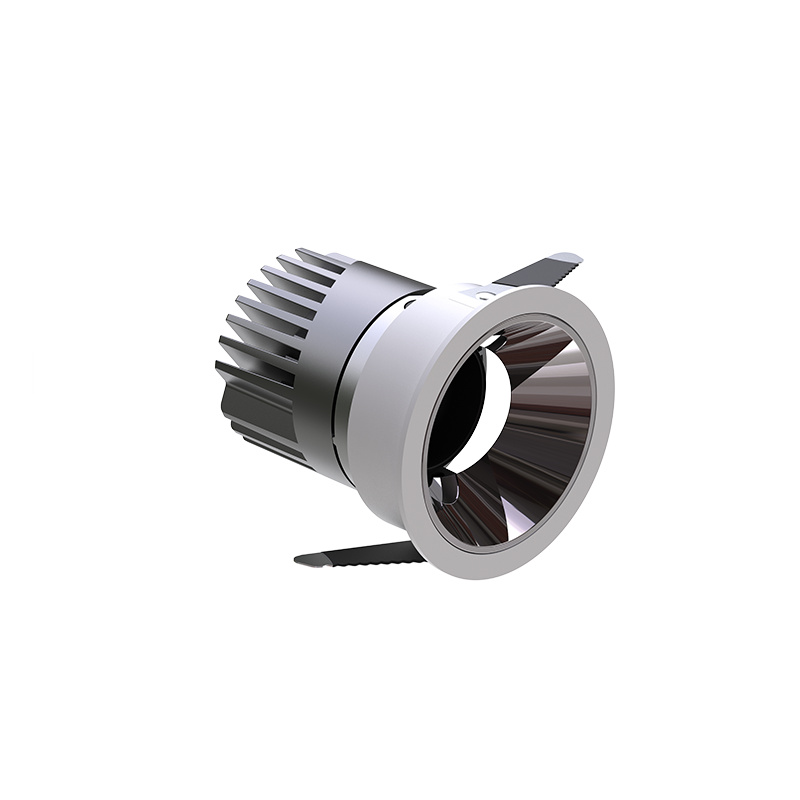

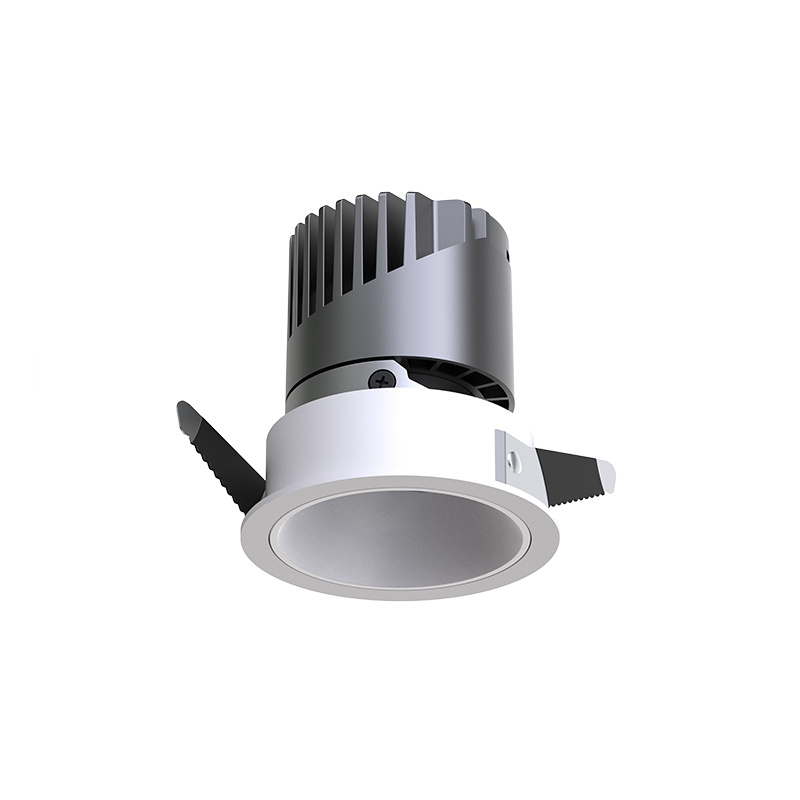

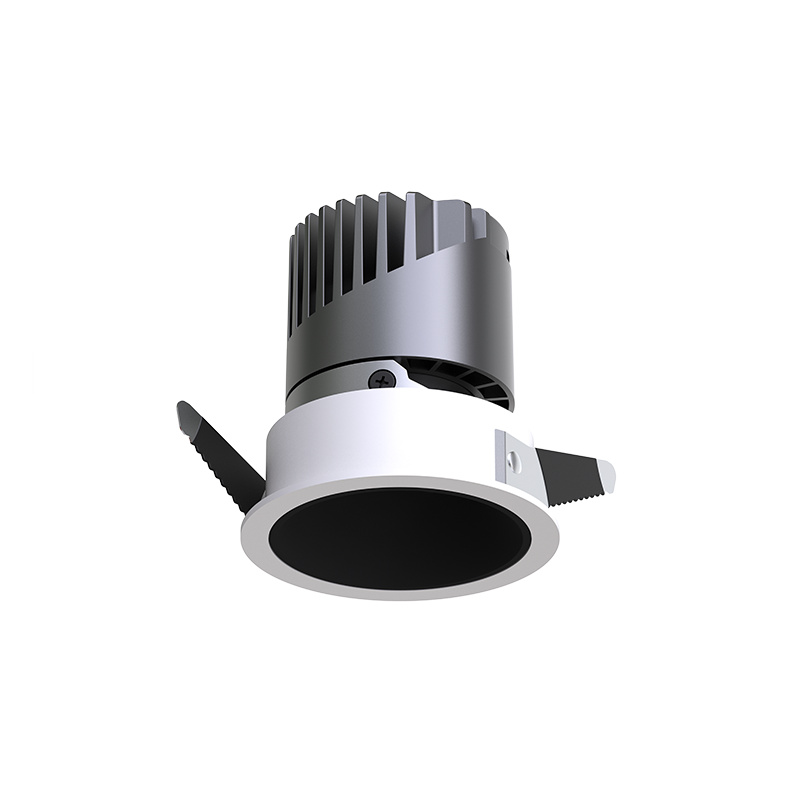

High Quality Single Ceiling Round Spotlights FT-HGS10
Features:
● High CRI≥90-Excellent color rendering index
● Anti-Glare Deep Reflector-Minimizes direct glare
● Compatible with Tuya Smart Control(Zigbee/Bluetooth)
● Smart Dimming & Color Tuning-Brightness & CCT adjustment
● Multi-Color Reflector Cups- Optional silver/black/white/gold
● UGR<19-Ultra-low glare for comfortable lighting environments
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 25-30W：0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Spotlights |
| Power | 7W/9W/10W/12W/15W/20W/25W/30W |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Color | Black/White/Silvr/Gold |
| Beam angle | 8°/15°/24°/38°/55° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 55/75/95MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7-20W:0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

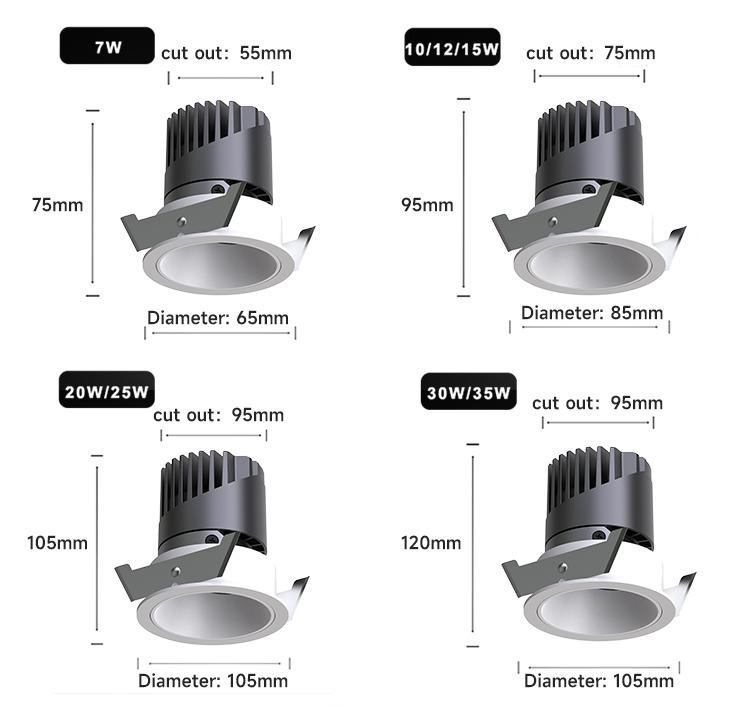

Model No. |
Watts |
Size(mm) |
Cut Out |
LED Color |
|
FT-HGS10-7W |
7W |
D65*H75 |
55MM |
2700K |
|
FT-HGS10-10W |
10W |
D85*H90 |
75MM |
|
|
FT-HGS10-12W |
12W |
D85*H90 |
75MM |
|
|
FT-HGS10-15W |
15W |
D85*H100 |
75MM |
|
|
FT-HGS10-20W |
20W |
D105*H105 |
95MM |
|
|
FT-HGS10-25W |
25W |
D105*H120 |
95MM |
|
|
FT-HGS10-30W |
30W |
D105*H120 |
95MM |

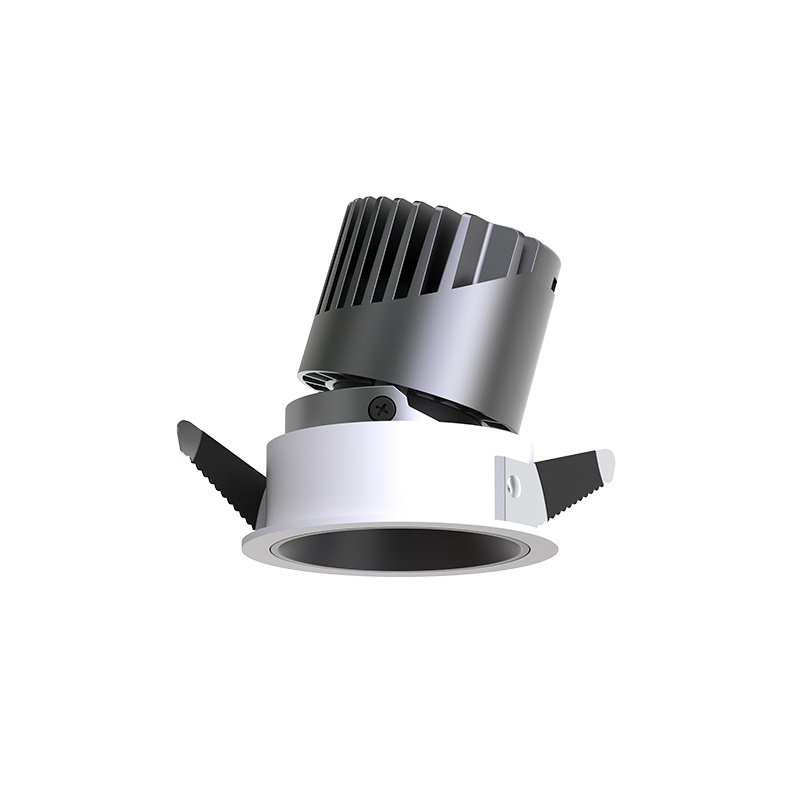

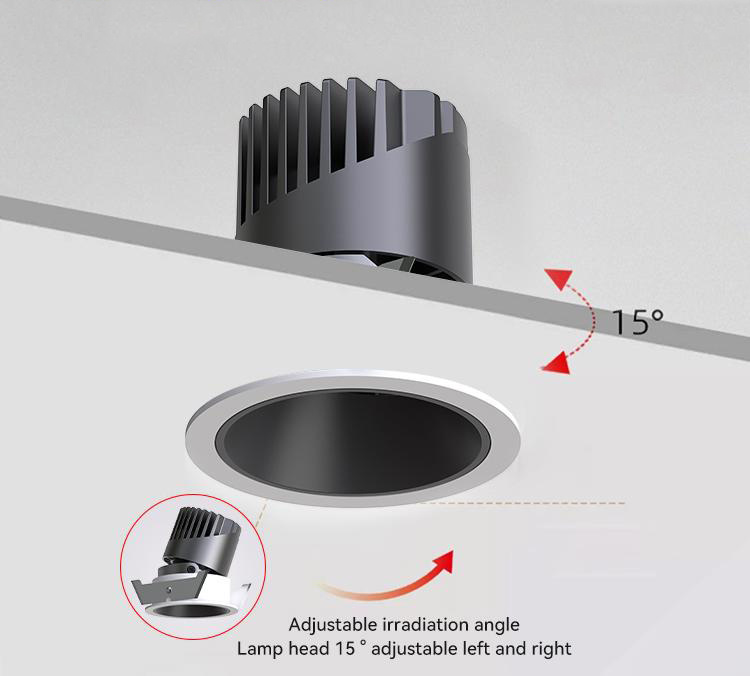

15° Adjustable lamp head
Adjustable Lamp Head (15°): The spotlight comes with a lamp head that tilts 15 degrees, making it easy to position light exactly where you need it.
Anti-Glare Functionality: The angled design of the head cuts down on direct light, reducing harsh glare while softening the beam. This makes it great for adding subtle accent lighting to TV walls, sofa backdrops, or above coffee tables.
Targeted Lighting: With a 15° tilt, the spotlight creates a focused beam of light, perfect for drawing attention to small decorative items or textured surfaces in your space.
Customizable Light Projection: You can easily adjust the head’s angle to change the shape and size of the light spot, ensuring it fits seamlessly with different decor styles and room layouts.
Multiple Beam Angles for Perfect Lighting
This spotlight comes with five beam angle options (8°/15°/24°/38°/55°) to fit any lighting situation:
8° Ultra-Narrow Beam
• Extremely focused light for small details
• Perfect for jewelry displays, gallery exhibits
15° Narrow Spot
• Sharp, direct lighting
• Great for artwork and high-end retail displays
24° Medium Flood
• Balanced light for workspaces
• Ideal for kitchens and office desks
38° Wide Flood
• Broad, even coverage
• Best for living rooms and dining areas
55° Extra-Wide Flood
• Soft, spacious lighting
• Perfect for ceilings and large entryways

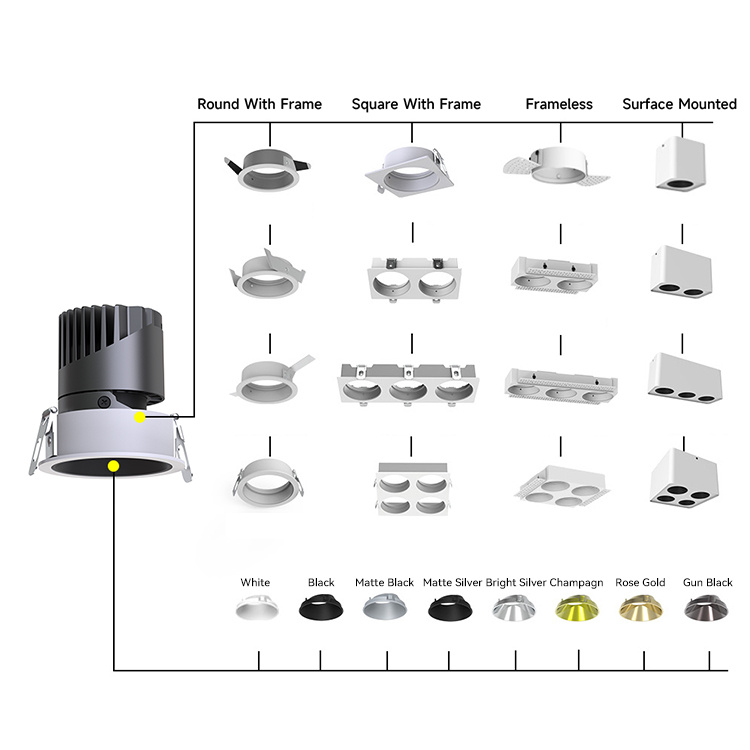

Modular Spotlight System – The Go-To Lighting Solution
This innovative spotlight features a modular design, letting you create endless combinations to suit any space with fully customizable lighting setups:
Design Styles：
Round Spotlights (classic and elegant)
Square Spotlights (modern and streamlined)
Multi-Light Options：
Single-Head (perfect for focused accent lighting)
Double-Head (balanced, symmetrical lighting)
Three-Head (rectangular area lighting)
Quad-Head (wide, even light distribution)
Multiple Power Options: 7W | 10W | 12W | 15W | 20W | 25W | 30W
Our premium spotlight comes in different wattages to fit every lighting need:
Brightness Choices:
• 7W - Soft glow for decoration and small displays
• 10W - Perfect for home workspaces and cozy corners
• 12W - Great for small shops and display areas
• 15W - Strong light for cafes and dining spaces
• 20W - Bright professional lighting for galleries
•25W–Powerful lighting solution for large commercial spaces like supermarkets, warehouses, or high - ceiling lobbies, providing ample brightness to cover expansive areas.
•30W – Bright output, suited for industrial settings, commercial settings or large event venues.
Top Features:
True-color 90+ CRI (all options)
Works with most dimmer switches (0-10V/TRIAC)
Flexible Dimming & Color Control
Dimming Options:
· Works with standard wall dimmers (Triac)
· Compatible with professional 0-10V dimming systems
· Supports smart DALI lighting networks
Adjustable White Light (2700K–6000K):
Wireless Control: Compatible with major smart systems (Bluetooth /WiFi /Zigbee)
Wired Professional Control: Meets DALI DT8 standard

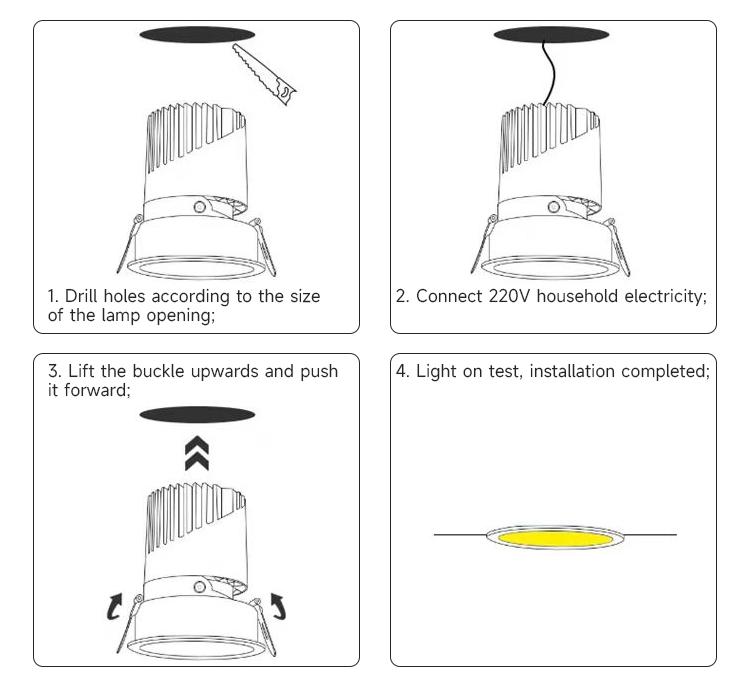

Easy to install
1. Prepare the Mounting Hole – Cut an opening matching the lamp’s specified diameter using appropriate tools.
2. Electrical Connection – Safely wire to standard 220V household power (polarity-insensitive design eliminates live/neutral wire concerns).
3. Secure the Fixture – Align and press upward until the spring clips fully engage with the ceiling/wall surface.
4. Final Verification – Power on to confirm proper operation before final use.
Safety Tip: Always ensure the circuit is de-energized during installation.
Application
Retail stores, Dining room, Hotel, Living room, Kitchen, Bedroom, Art gallery, Museum, Gallery
Optimize Every Space: Anti-Glare LED Spotlights Applications & Selection Guide
Anti-glare LED spotlights are essential for environments demanding visual comfort and focus. Understanding where and how to use them ensures optimal performance.
Key Application Places:
1. Commercial Offices: Critical for reducing eye strain during long computer work. Choose downlights with UGR < 19, wide beam angles (e.g., 55°) for even spotlights, and ensure compatibility with dimmers for adjustable task lighting. Avoid hotspots over desks.
2. Retail & Showrooms: Prevents harsh reflections on merchandise and screens. Select fixtures with deep baffles or micro-prismatic optics (UGR < 19) and medium beam angles (e.g., 36°) for focused product accentuation without customer discomfort. High CRI (>90) is vital.
3. Residential Living Areas (Kitchens, Living Rooms, Hallways): Creates inviting, comfortable atmospheres. Opt for downlights offering soft-edged beams (UGR < 19), warm to neutral white tones (2700K-4000K), and integrated dimming for mood setting. Recessed depth is key in low ceilings.
4. Educational Institutions (Classrooms, Libraries): Minimizes distraction and supports concentration. Prioritize ultra-low glare (UGR < 19), uniform illumination, and flicker-free performance. Robust construction and good thermal management are essential for long hours.
5. Galleries & Museums: Protects artwork and enhances viewing. Specify spotlights with precise beam control (narrow angles, e.g., 24°), exceptional color rendering (CRI >95), and the lowest possible glare (UGR < 19) to eliminate veiling reflections on delicate surfaces.
6. Healthcare (Reception, Waiting Areas): Promotes patient calmness. Choose fixtures with very low UGR (<19), excellent dimming smoothness, and a warm white temperature (3000K).
How to Select for the Application:
Beam Angle: Wider beams (55°) for general ambient light; narrower beams (24°/36°) for accent or task lighting.
Optics: Deep recessed designs or specialized lenses (micro-prisms, baffles) enhance glare control significantly.
Dimming & Color Quality: Ensure smooth dimming capability and appropriate CCT/CRI for the environment's mood and visual tasks.
Installation Depth: Consider ceiling void space; deeper recess often improves glare control.
Selecting the right anti-glare spotlight transforms illumination from functional to exceptional, tailored precisely to each environment's needs.
