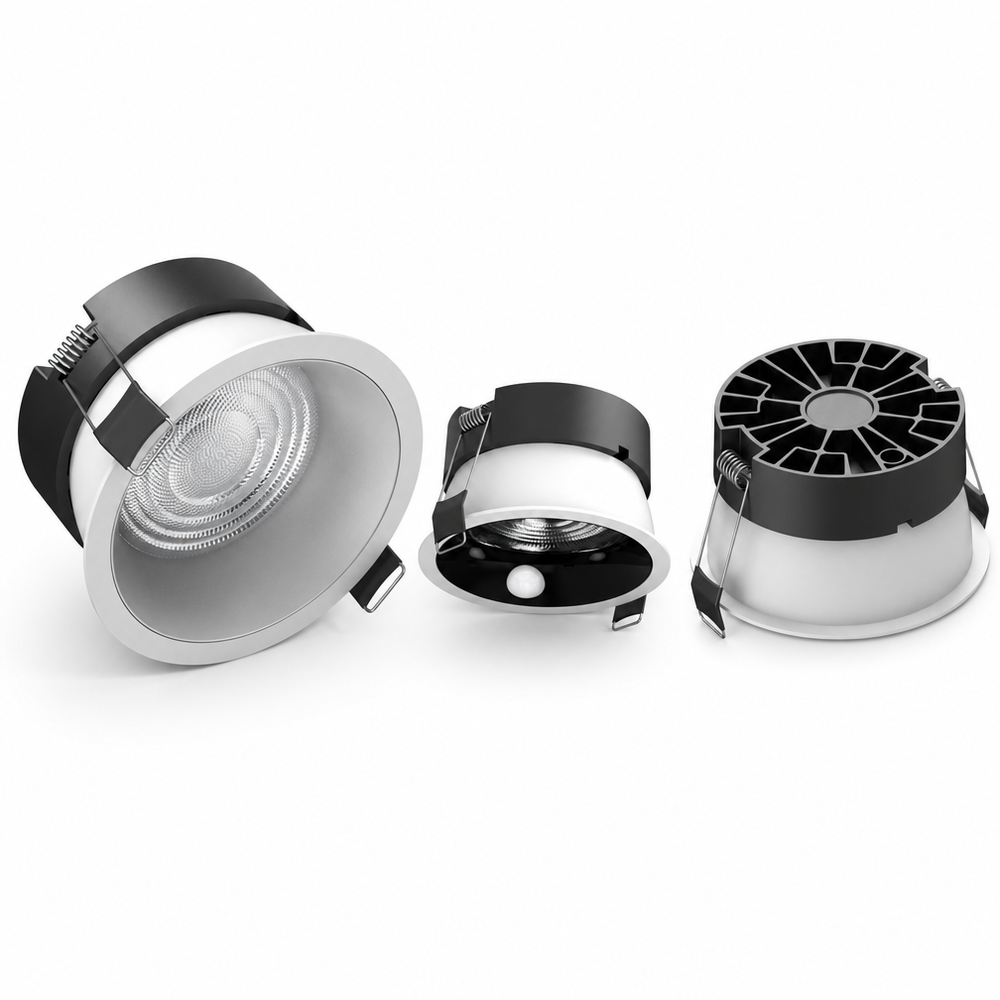

High Efficacy CRI90 Recessed LED Downlight FT-DLT18
Features：
- High Color Rendering: CRI > 90, accurately restoring the true color of objects.
- Uniform Light Emission: Consistent and uniform light beam distribution.
- Selectable Color Temp: 2700K，3000K, 3500K(Warm), 4000K (Neutral), 5000K, 6000K (Daylight).
- Optional Beam Angles: 120° to suit different lighting needs.
- Multi-Dimming Solutions: Compatible with Triac dimmer, 0-10V, and DALI systems.
- Smooth Dimming Experience: Stepless dimming with no flicker or noise.
Specifications：
- Input Voltage: AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF: 10-20W:0.5 25-45W:0.95
- Driver : LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source: CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI: 80/90/95
- Lifespan: 50000hrs
Specification
|
Brand Name |
Fitlight |
|
Item Type |
Led High Efficacy Downlight |
|
Power |
10W/12W/15W/18W/20W/25W/30W/35W/40W/45W |
|
Input Voltage(V) |
AC 110V ( ± 10%)/AC 220V( ± 10%) |
|
LED light source |
bridgelux SMD Led Chip |
|
Color |
White, black, matte silver, gun black, bright silver, rose gold and antique bronze. |
|
Beam angle |
120° |
|
CRI (Ra>) |
80/90/95 |
|
Cut out |
¢75/¢95/¢120/¢14/¢160mm |
|
Working Temperature( °C ) |
-20 ~ +50 |
|
Lamp Body Material |
Aluminum |
|
CCT |
Warm white(2700K/3000K/3500K)/Natural white (4000k)/Cool white (5000K/6000K) |
|
PF |
10-20W:0.5 25-45W:0.95 |
|
Dimmable |
Dimmable(0-10V ,Triac ,Dali) / TUYA (ZigbeeBluetooth) |
|
Key Feature1 |
Led High Brightness Recessed Dwonlight |
|
Installation |
Recessed/Embedded |
|
Application |
Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |

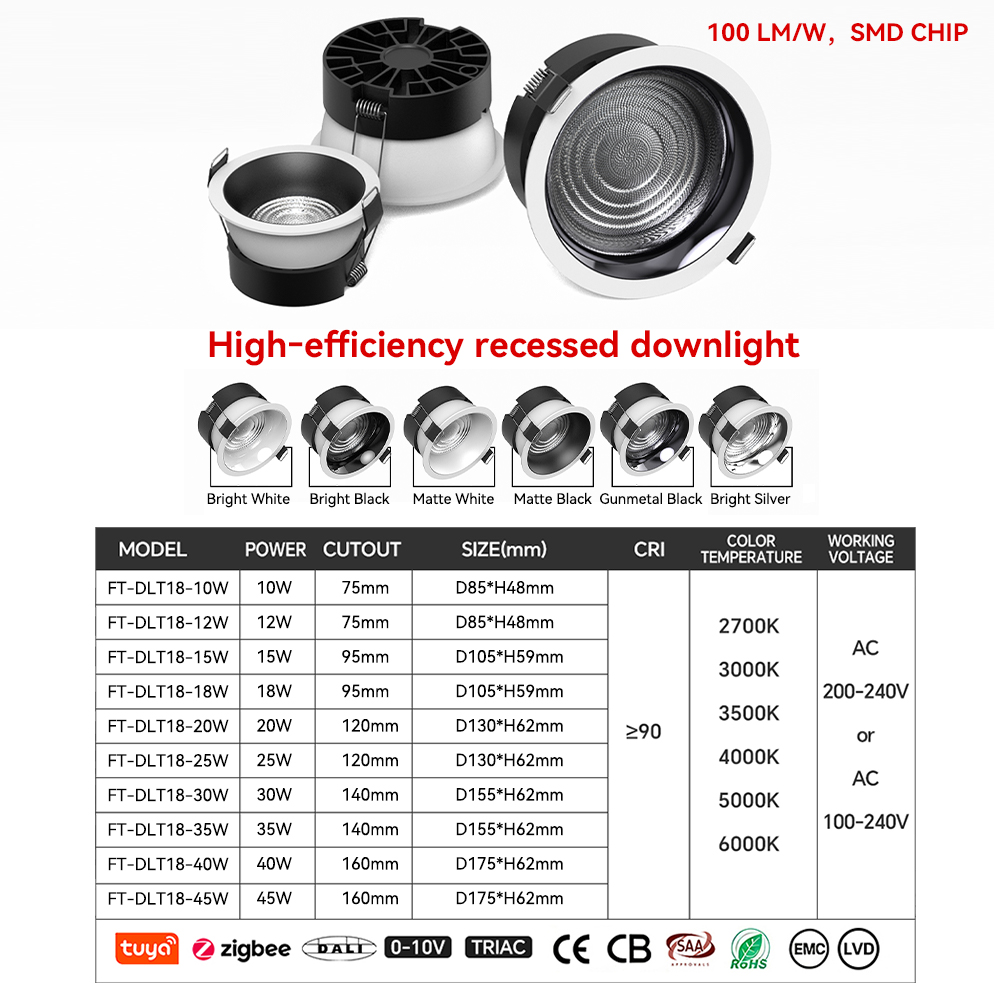

| Model No. | Watts | Size(mm) | Cut Out(mm) | Beam Angle | LED Color |
| FT-DLT18-10W | 10W | D85*H48 | ¢75 | 120° | 2700/3000K/ 3500K/4000/ 5000K/6000K |
| FT-DLT18-12W | 12W | ||||
| FT-DLT18-15W | 15W | D105*H59 | ¢95 | 120° | |
| FT-DLT18-18W | 18W | ||||
| FT-DLT18-20W | 20W | D130*H62 | ¢120 | 120° | |
| FT-DLT18-25W | 25W | ||||
| FT-DLT18-30W | 30W | D155*H62 | ¢140 | 120° | |
| FT-DLT18-35W | 35W | ||||
| FT-DLT18-40W | 40W | D175*H62 | ¢160 | 120° | |
| FT-DLT18-45W | 45W | ||||

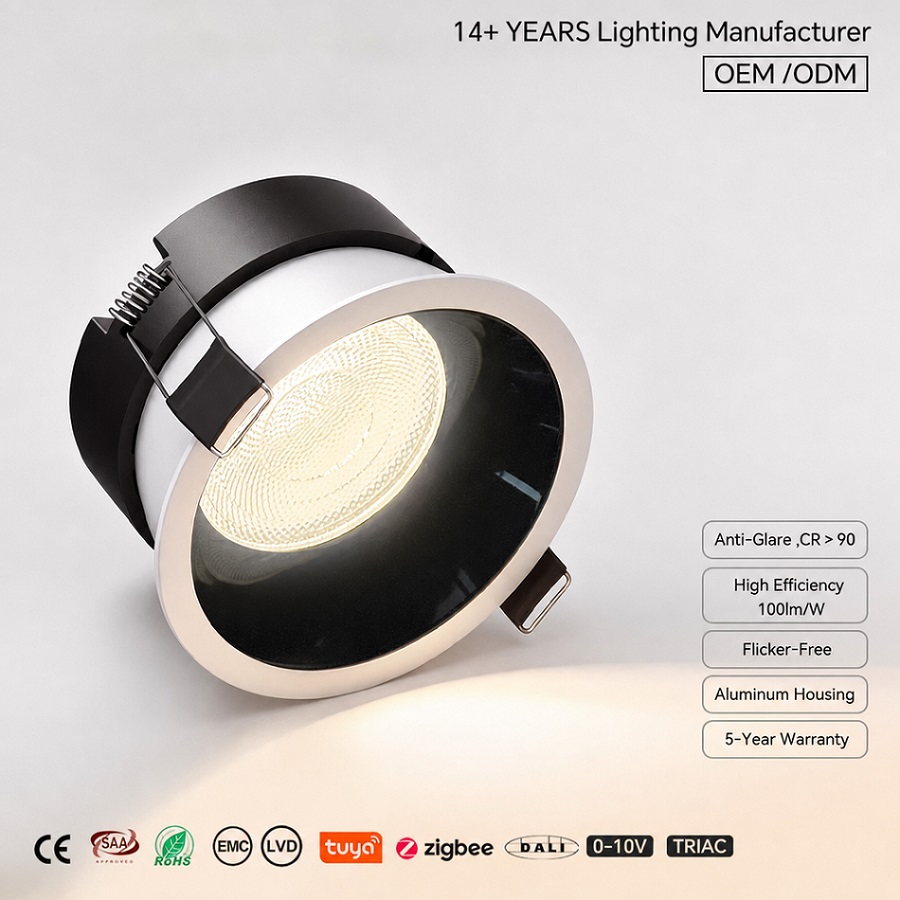

FT-DLT18 High Efficacy Recessed LED Downlight | 100LM/W CRI90 Anti-Glare Ceiling Light
Manufactured by a professional LED lighting factory with 14+ years of industry experience, the FT-DLT18 recessed LED downlight is engineered for HIGH-EFFICIENCY ENERGY-SAVING LIGHTING. Featuring industry-leading100LM/W LUMINOUS EFFICACY, CRI＞90 TRUE COLOR RENDERING, 120° WIDE BEAM ANGLE and FLICKER-FREE & ANTI-GLARE optical performance, this downlight delivers ultra-stable, high-brightness, and eye-friendly illumination. It supports full-range smart dimming systems including TRIAC, 0-10V, DALI, TUYA AND ZIGBEE. Fully certified with CE, CB, SAA, RoHS, EMC, LVD, all units come with a reliable 5-YEAR MANUFACTURER WARRANTY. Custom OEM/ODM services are available for global residential and commercial lighting projects.
Main Product Overview & Core Strengths
The FT-DLT18 RECESSED LED DOWNLIGHT is our upgraded high-efficiency ceiling lighting solution designed for modern interior spaces. Adopting premium SMD LED chips, it achieves outstanding 100LM/W HIGH LUMINOUS EFFICIENCY while maintaining low power consumption. Built with durable full aluminum housing, this fixture features ANTI-GLARE, FLICKER-FREE and high color restoration performance. It supports multiple intelligent dimming modes and various stylish trim finishes to match diverse decoration styles. With complete international safety certifications and long-term quality guarantee, it is an ideal choice for high-end home and commercial lighting renovation and new construction projects.
Full Product Specifications & Custom Parameters
The FT-DLT18 series covers ultra-rich power specifications to meet different space brightness demands, including 10W, 12W, 15W, 18W, 20W, 25W, 30W, 35W, 40W, 45W. It delivers stable 100LM/W HIGH EFFICIENCY and CRI≥90 high color rendering, accurately restoring the real texture and color of objects. The color temperature is freely customizable from 2700K WARM WHITE TO 6000K COOL WHITE. Compatible with AC100-240V & AC200-240V UNIVERSAL GLOBAL VOLTAGE. Optional dimming solutions include TRIAC, 0-10V, DALI, Tuya, Zigbee Smart Control. Multiple trim colors are available: Bright White, Bright Black, Matte White, Matte Black, Gunmetal Black, Bright Silver. All products pass strict CE, CB, SAA, RoHS, EMC, LVD certification tests for global market compliance.

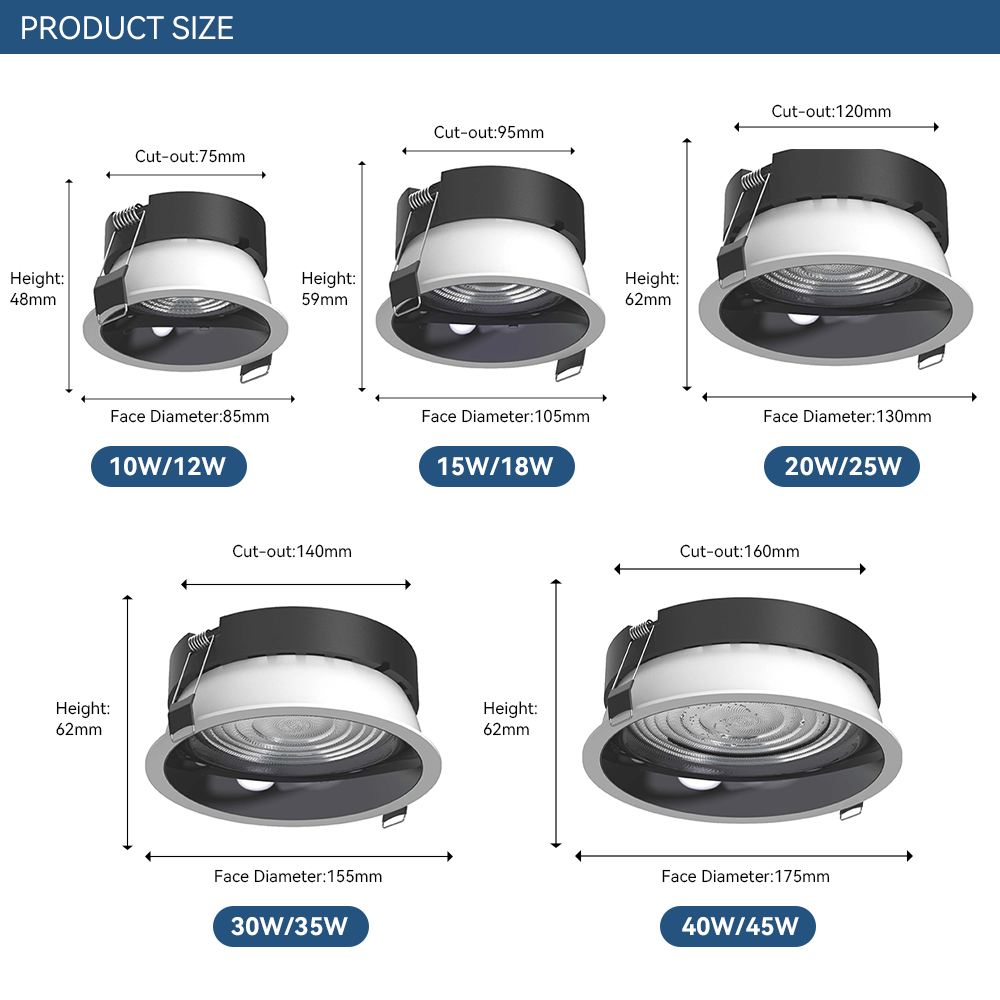

Exact Dimension & Ceiling Cutout Size Guide
Exact Dimension & Ceiling Cutout Size Guide
The FT-DLT18 features a slim streamlined body design with standardized size specifications for easy ceiling installation and construction. All size data is precisely verified to avoid installation errors:
10W/12W: 75mm Cutout | 85mm Face Diameter | 48mm Height
15W/18W: 95mm Cutout | 105mm Face Diameter | 59mm Height
20W/25W: 120mm Cutout | 130mm Face Diameter | 62mm Height
30W/35W: 140mm Cutout | 155mm Face Diameter | 62mm Height
40W/45W: 160mm Cutout | 175mm Face Diameter | 62mm Height
The ultra-thin body adapts to most shallow ceiling environments, perfectly suitable for new building decoration and old house renovation projects.
High-Performance Upgrade & Configuration Customization

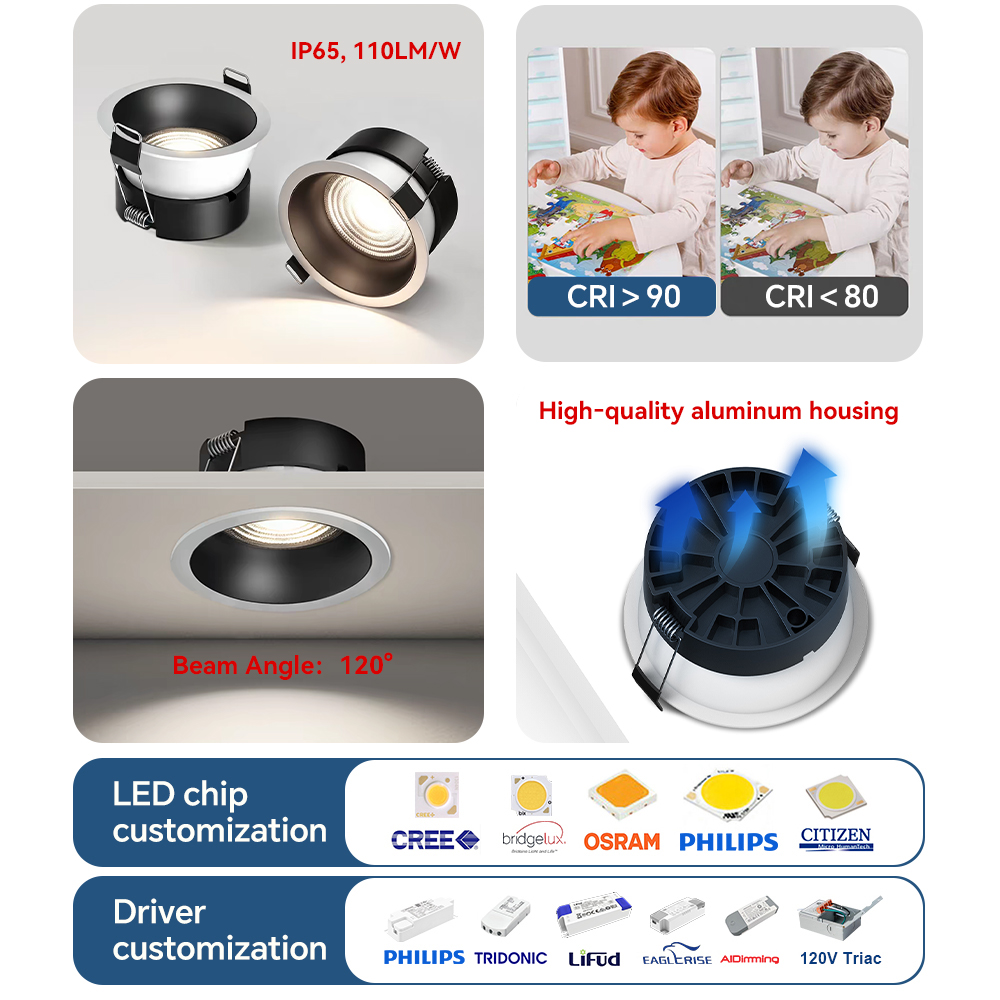

The FT-DLT18 supports multiple high-end customized configurations to upgrade project lighting quality. It can be upgraded to IP65 WATERPROOF GRADE and 110LM/W SUPER HIGH EFFICIENCY on request. Equipped with a 120° WIDE BEAM ANGLE, it provides large-area, uniform and soft ambient lighting without dark zones. Compared with ordinary low-CRI downlights, its CRI＞90 high color rendering technology makes colors more vivid and layered. We support customized international famous brand LED CHIPS (Cree, Bridgelux, Osram, Philips, Citizen) and DRIVERS (Philips, Tridonic, Lifud, EagleRise) to meet high-standard engineering and brand customization needs.
Factory Direct Supply & Professional OEM/ODM Service
As a professional LED downlight manufacturer, we provide one-stop customized manufacturing services for the FT-DLT18 series. We support full customization of CRI, CCT, beam angle, trim color, laser logo and packaging. We offer FREE PROFESSIONAL LIGHTING SIMULATION within 24–48 hours according to customer CAD drawings. The production cycle is efficient: sample delivery in 3–5 days and mass production completion in 10–18 days. With complete ISO9001, CE, SAA, EMC, LVD, RoHS certifications, 5-YEAR WARRANTY and low 10PCS MOQ, we support small-batch customization and large-scale engineering orders for global clients.

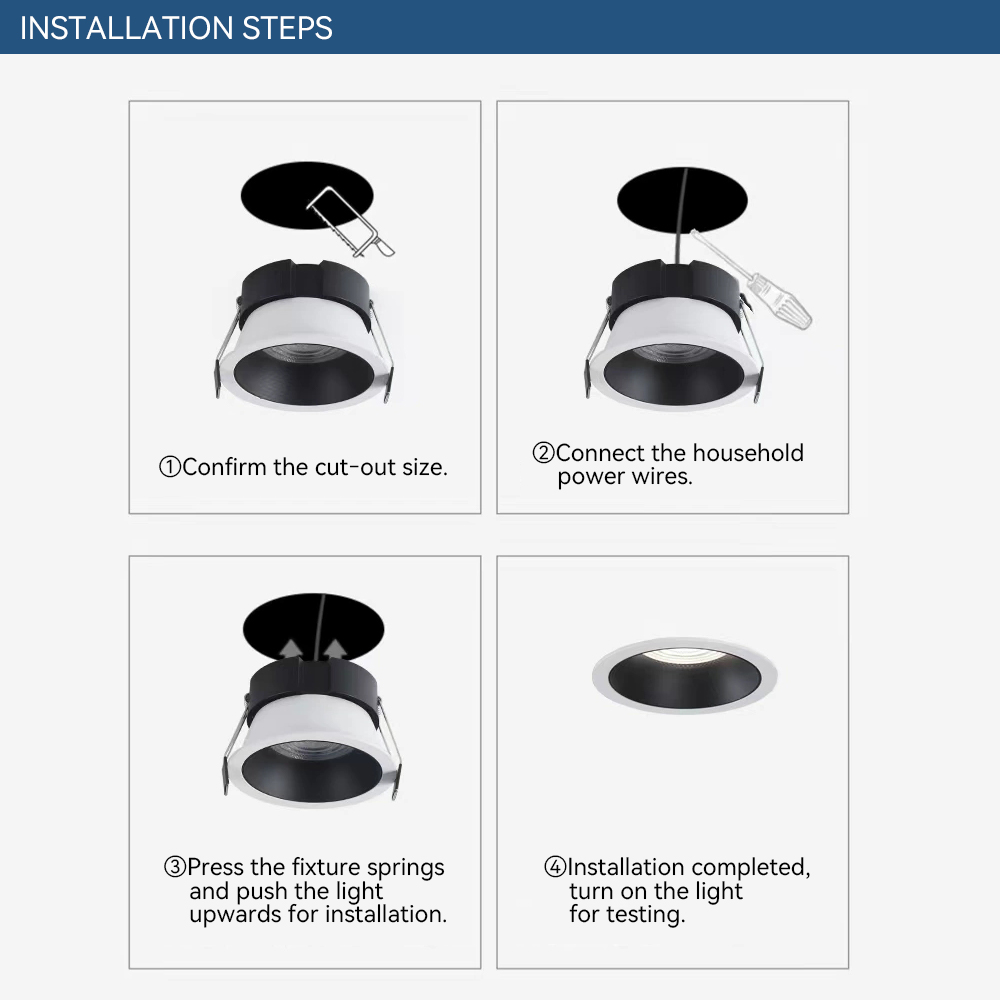

4-Step Fast & Tool-Free Installation
The FT-DLT18 adopts high-tension spring clip mounting structure, realizing simple and efficient manual installation without professional tools. The whole process is divided into 4 steps: First, cut the ceiling opening strictly according to the corresponding power size’s standard cutout dimension. Second, complete safe wiring connection between the lamp driver and ceiling power cables. Third, squeeze the built-in spring clips inward and push the fixture firmly into the ceiling hole. Finally, release the springs to lock the light tightly, then power on and test normal operation. It is compatible with DRYWALL, PLASTERBOARD AND SUSPENDED CEILINGS, saving construction time and labor cost greatly.
Flicker-Free & Anti-Glare Eye-Caring Lighting
The FT-DLT18 focuses on healthy human-centric lighting design. It achieves 100% FLICKER-FREE light output and professionalANTI-GLARE OPTICAL EFFECT, effectively avoiding stroboscopic damage and harsh light stimulation to human eyes. After professional optical testing, the light is soft and uniform without visual fatigue, protecting the eye health of children, adults and the elderly. The minimalist and exquisite appearance matches modern luxury interior styles, creating a warm, comfortable and high-grade living lighting atmosphere for residential spaces.

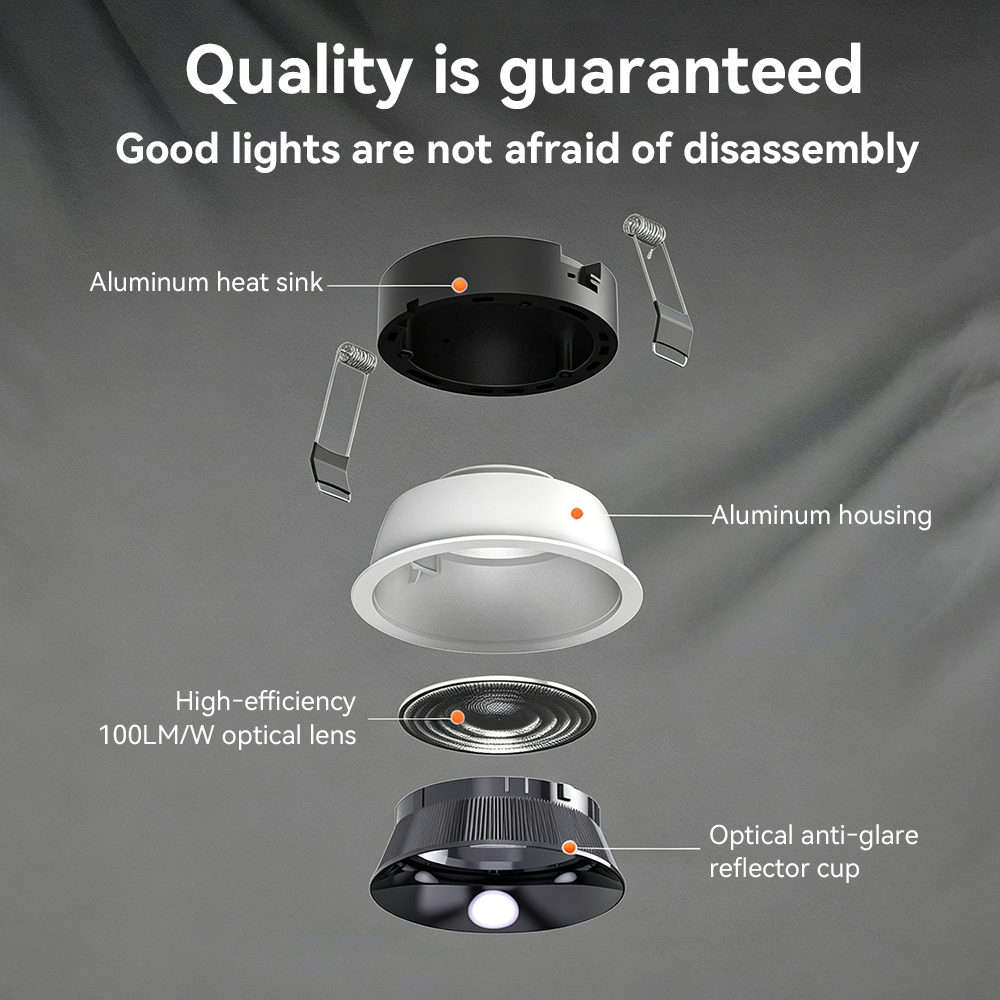

Premium Modular Structure & Material Details
Every component of the FT-DLT18 is precisely crafted with high-quality materials. The product consists of four core structures: high-efficiency ALUMINUM HEAT SINK for rapid heat dissipation, sturdy integrated ALUMINUM HOUSING for anti-corrosion and anti-aging, professional 100LM/W HIGH-EFFICIENCY OPTICAL LENS for uniform light transmission, and upgraded ANTI-GLARE REFLECTOR CUP for soft light output. The scientific modular structure improves overall stability and durability, effectively reducing light decay and extending the long-term service life of the fixture.

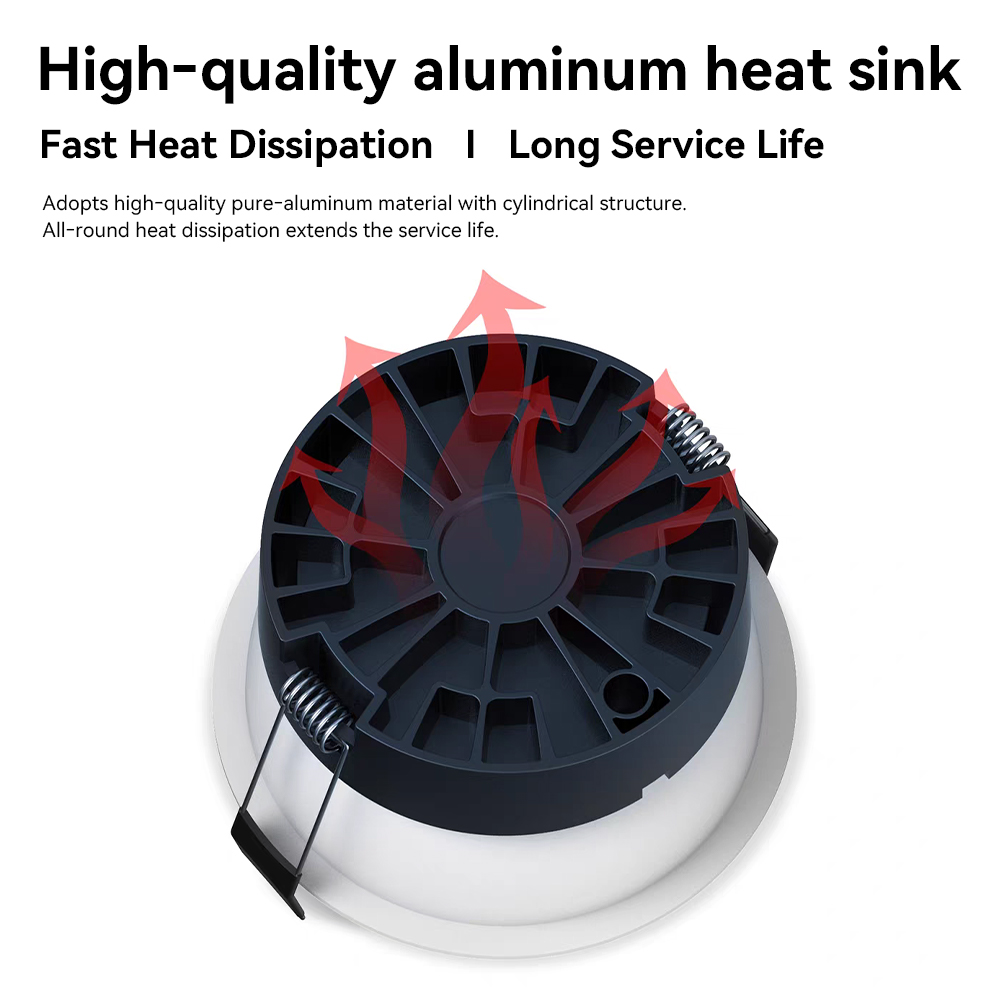

Efficient Full Aluminum Heat Dissipation System
The FT-DLT18 adopts an integrated cylindrical HIGH-CONDUCTIVITY ALUMINUM HEAT SINK with fin-type heat dissipation structure. The high-performance aluminum material quickly absorbs and conducts the heat generated by LED chips, realizing omnidirectional rapid heat dissipation. It keeps the fixture running at a low stable temperature for a long time, EFFECTIVELY SUPPRESSING LUMEN DEPRECIATION AND EXTENDING SERVICE LIFE. Excellent thermal management ensures stable and consistent lighting performance even after long-term continuous operation.

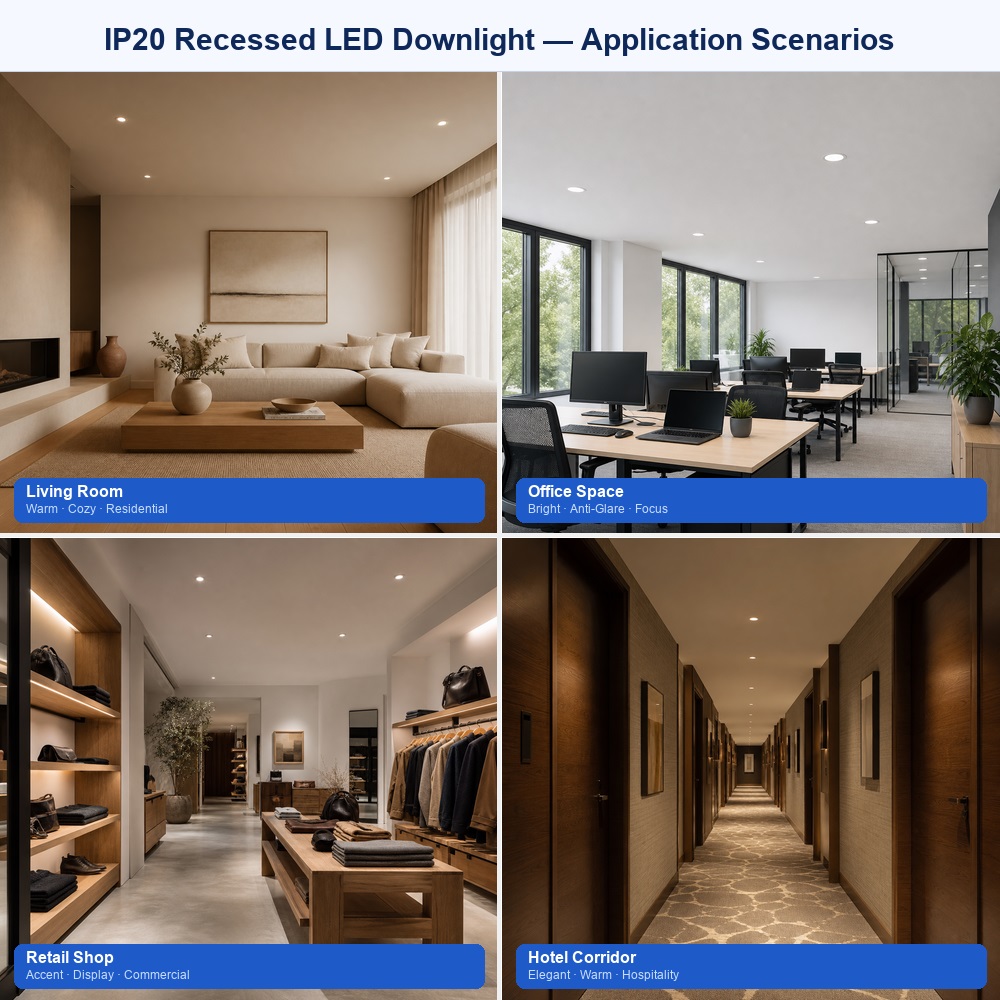

Wide Residential & Commercial Application Scenarios
With high efficiency, high color rendering and healthy eye-protective lighting advantages, the FT-DLT18 is suitable for full-scene indoor lighting. It perfectly fits RESIDENTIAL SPACES such as living rooms, bedrooms, hallways and villas, providing warm and comfortable ambient lighting. It is also widely used in COMMERCIAL SCENARIOS including offices, retail stores, showrooms, hotel corridors and restaurants. The soft anti-glare high-bright light meets both daily lighting and high-end decorative lighting needs for modern interior projects.
We are a professional LED LIGHTING DIRECT MANUFACTURER, providing one-stop FULL OEM & ODM CUSTOMIZATION for the FT-DLT17 series. We support customized CRI, CCT, BEAM ANGLE, TRIM FINISH, LASER LOGO AND PACKAGING. We provide free professional lighting simulation solutions within 24-48 hours based on your CAD drawings. We offer fast sample delivery in 3-5 days and stable mass production delivery in 10-18 days. All products pass strict CE, EMC, LVD, RoHS, SAA, ISO9001 certifications, with 5-YEAR WARRANTY and low 10PCS MOQ to support various project orders.
Core Product Advantages
1. 100LM/W Ultra High Luminous Efficacy
Adopting high-quality SMD LED chips, the FT-DLT18 achieves industry-leading 100LM/W HIGH EFFICIENCY. It converts electric energy into light energy efficiently, greatly reducing power consumption and operation costs, which is more energy-saving and environmentally friendly than ordinary downlights.
2. CRI＞90 True Natural Color Rendering
The professional HIGH CRI≥90 optical technology accurately restores the true color of furniture, artworks, decorations and commodities, presenting richer color layers and visual texture, ideal for high-end home and commercial display lighting.
3. Flicker-Free & Anti-Glare Eye Protection
Optimized optical reflector design eliminates harsh direct glare and stroboscopic light. The FLICKER-FREE & LOW UGR light output effectively relieves visual fatigue and protects family eye health, suitable for long-hour indoor lighting use.
4. Full Aluminum Fast Heat Dissipation
Integrated all-aluminum heat sink structure achieves rapid heat circulation and dissipation. Stable low-temperature operation inhibits light decay and greatly prolongs the fixture’s service life, ensuring long-term stable performance.
Installation Instruction
The FT-DLT18 adopts high-tension spring clip mounting design, supporting fast flush installation for plasterboard and drywall ceilings. Precisely cut the ceiling hole according to the standard cutout size, complete safe wiring connection, squeeze the spring clips and push the fixture into the ceiling, then release the clips to finish installation. No extra brackets or professional tools are required for efficient construction.
Wide Application Scenarios
Residential Use: Bathroom, Shower Room, Kitchen, Living Room, Hallway, Luxury Villa Commercial Use: Hotel Lobby, Guest Room, Retail Store, Showroom, Office, Restaurant, All Indoor Wet-Area Projects
Manufacturer Service & Warranty
Professional OEM / ODM Customization
As a professional LED lighting factory with 14+ years of production experience, we provide full customized services for CRI, CCT, beam angle, surface finish, laser logo and packaging. We offer free lighting design simulation, fast sample service and flexible low MOQ to meet personalized brand and engineering project needs.
Certifications & After-Sales Guarantee
All FT-DLT17 downlights are fully certified with CE, RoHS, SAA, EMC, LVD, ISO9001. We provide a reliable 5-YEAR MANUFACTURER WARRANTY for all products, ensuring stable quality and worry-free after-sales service for global customers.
FAQ
-
Q1: Can this downlight be used in bathroom shower zones?
-
Q2: What dimming systems does this downlight support?
-
Q3: Is custom logo and color temperature available?
