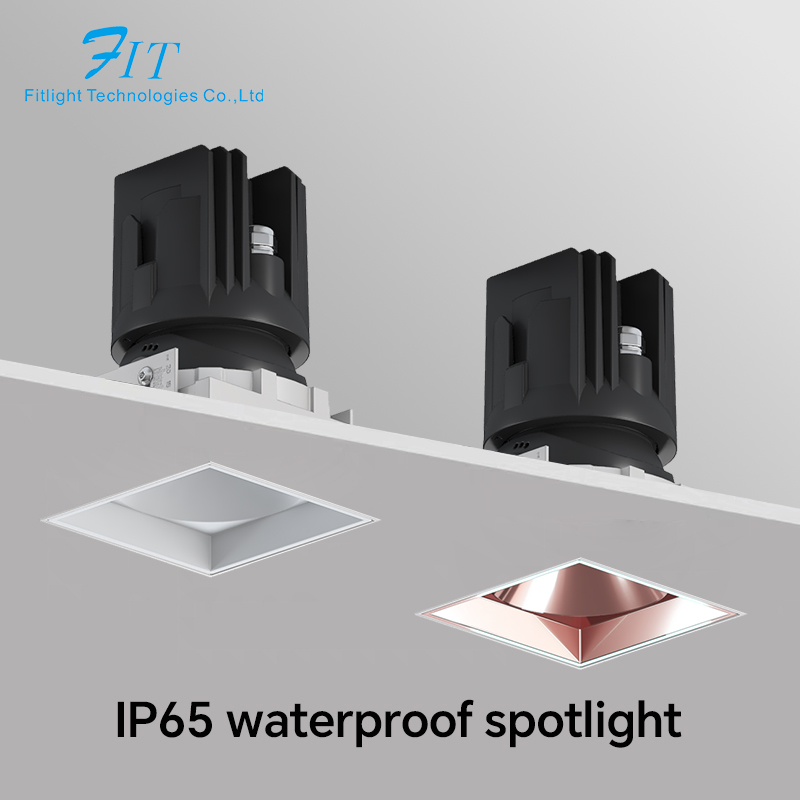

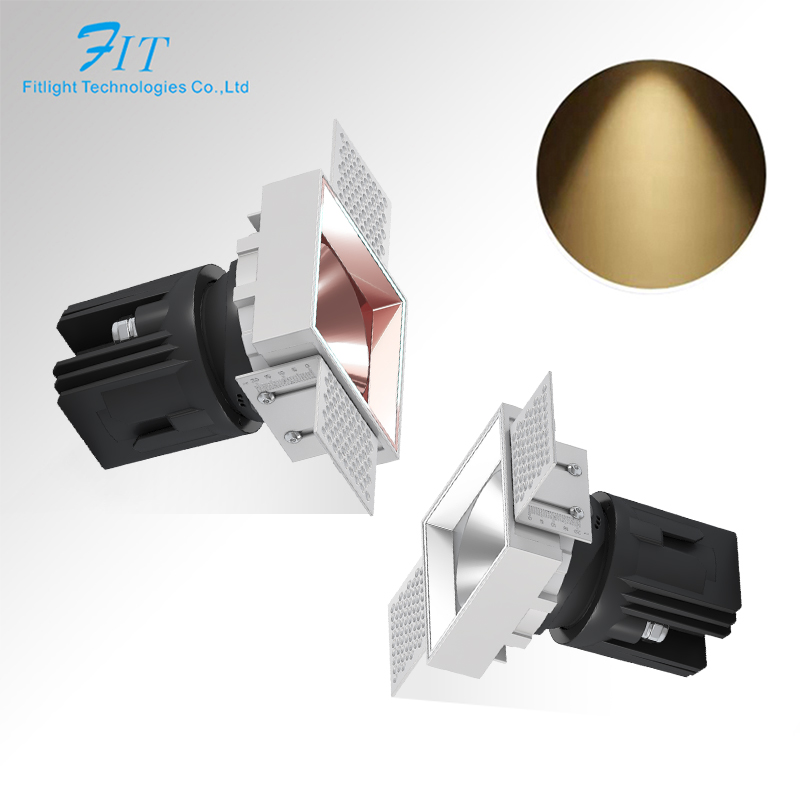

Frameless Square LED Spotlight IP65-HGS21 Square Trimless 1 head
Features：
- Commercial Grade: Durable enough for shopping malls, hotels, and offices.
- Residential Use: Perfect for home lighting projects such as kitchens and bedrooms.
- Adjustable Color Temperature: Easy to switch between warm and cool light.
- Narrow Beam Spotlight: Ideal for highlighting artwork, pictures, or architectural details.
- Wide Application Range: Suitable for both residential and commercial lighting projects.
- Reliable Brand Quality: Strict quality control process ensuring consistent performance.
Specifications：
- Input Voltage: AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF: 7-20W:0.5 25W:0.95
- Driver : LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source: CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI: 80/90/95
- Lifespan: 50000hrs
Specification
|
Brand Name |
Fitlight |
|
Item Type |
Led Waterproof Deep Cup Spot Light |
|
Power |
7W/10W/12W/15W/20W/25W |
|
Input Voltage(V) |
AC 110V ( ± 10%)/AC 220V( ± 10%) |
|
LED light source |
Bridgelux/OSRAM Cob Chip |
|
Color |
White, black, matte silver, gun black, bright silver, rose gold and antique bronze. |
|
Beam angle |
15°/24°/36°/55° |
|
CRI (Ra>) |
80/90/95 |
|
Cut out |
58*55mm/78*75mm/98*95mm |
|
Working Temperature( °C ) |
-20 ~ +50 |
|
Lamp Body Material |
Aluminum |
|
CCT |
Warm white(2700K/3000K/3500K)/Natural white (4000k)/Cool white (5000K/6000K) |
|
PF |
7-20W:0.5 25W:0.95 |
|
Dimmable |
Dimmable(0-10V ,Triac ,Dali) / TUYA (ZigbeeBluetooth) |
|
Key Feature1 |
Adjustable led anti-glare spot light |
|
Installation |
Recessed/Embedded |
|
Application |
Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

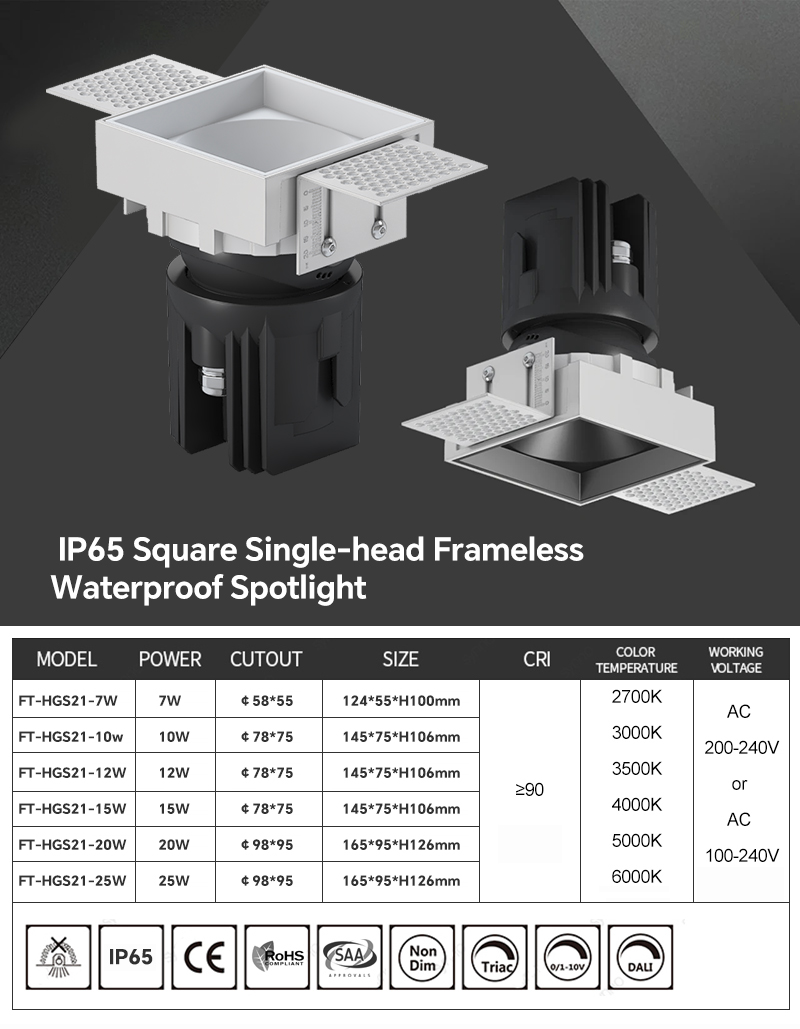

Model No.
|
Watts
|
Size(mm)
|
Cut Out(mm)
|
Beam Angle
|
LED Color
|
|
FT-HGS21-7W
|
7W
|
124*55*H100
|
58*55
|
15°/24°/36°/55°
|
2700K
3000K
3500K
4000K
5000K
6000K
|
|
FT-HGS21-10W
|
10W
|
145*75*H106
|
78*75
|
15°/24°/36°/55°
|
|
|
FT-HGS21-12W
|
12W
|
145*75*H106
|
78*75
|
15°/24°/36°/55°
|
|
|
FT-HGS21-15W
|
15W
|
145*75*H106
|
78*75
|
15°/24°/36°/55°
|
|
|
FT-HGS21-20W
|
20W
|
165*95*H126
|
98*95
|
15°/24°/36°/55°
|
|
|
FT-HGS21-25W
|
25W
|
165*95*H126
|
98*95
|
15°/24°/36°/55°
|
IP65 Square LED Spot Light | DALI 0-10V Triac Dimmable - Premium Architectural Lighting Solution
Elevate your architectural lighting projects with our Frameless Square LED Spotlight, a premium recessed fixture engineered to deliver a seamless, minimalist aesthetic while boasting exceptional performance and global versatility. Designed for modern minimalist interiors and exteriors, this IP65 waterproof spotlight redefines clean design by eliminating traditional bezels, creating a flush, invisible finish that lets your space take center stage. Whether you’re outfitting high-end hotels, serene spas, contemporary residences, or commercial spaces, this frameless recessed fixture blends effortlessly with any architectural style, turning light into a subtle yet powerful design element.
Unlike conventional bezeled spotlights that disrupt the visual flow of a space, our Frameless Square LED Spotlight features a trimless housing that disappears into ceilings or walls, creating the illusion of light emanating directly from the surface. This seamless integration is more than just an aesthetic choice—it’s a design philosophy that prioritizes the structure and ambiance of your space over the fixture itself. Perfect for spaces where every detail matters, this spotlight ensures that the focus remains on your artwork, countertops, architectural features, or interior design, without the visual clutter of bulky bezels or visible hardware.
The Beauty of Invisibility: Frameless Design That Transforms Spaces
The hallmark of our Frameless Square LED Spotlight is its revolutionary frameless design, which offers a modern architectural lighting solution that elevates the beauty of any space. By eliminating the traditional bezel, the fixture sits flush with the surface, creating a clean, unobtrusive look that complements minimalist, contemporary, and high-end design schemes alike. Whether installed in ceilings or walls, the trimless housing blends seamlessly, making the light source appear almost invisible—allowing you to highlight the things that matter most.
This design isn’t just about aesthetics; it’s about functionality too. The frameless construction allows for precise beam angle control, making it ideal for grazing artwork, illuminating countertops, accentuating wall textures, or providing subtle ambient lighting in corridors and lobbies. Unlike bezeled fixtures that can cast harsh shadows or create visual distractions, our frameless spotlight delivers soft, even light that enhances the atmosphere of any space. Whether you’re looking to create a cozy, intimate setting in a hotel suite or a crisp, modern vibe in a commercial office, this fixture’s invisible design ensures that the light works in harmony with your space, not against it.
The frameless design also offers practical benefits for installation and maintenance. Its low-profile construction makes it suitable for shallow ceilings or walls, where traditional recessed fixtures might not fit. The flush finish also makes cleaning easy, as there are no crevices or edges where dust and debris can accumulate—perfect for high-traffic spaces like hotels, spas, and retail stores where cleanliness is a top priority.
Power & Coverage: Select the Right Wattage for Every Space
We understand that every lighting project has unique requirements, which is why our Frameless Square LED Spotlight is available in a range of wattages (7W, 10W, 12W, 15W, 20W, 25W), allowing you to optimize illumination for various installation depths, space sizes, and lighting needs. Whether you need subtle accent lighting for small spaces or powerful flood lighting for large areas, we have the perfect wattage to suit your project.
- 7W - 12W (Frameless Accent): Designed for intimate spaces and targeted illumination, these lower wattages are ideal for display cabinets, retail shelving, intimate corridor wash lighting, and small residential areas. They provide subtle, focused light that highlights specific features without overpowering the space. Perfect for highlighting jewelry in a retail display, illuminating a bookshelf in a home office, or adding a warm glow to a hotel corridor, these wattages offer versatility and precision. The soft, controlled light ensures that your focal points stand out while maintaining a comfortable, inviting ambiance.
- 15W - 25W (Frameless Flood): Built for larger spaces and more demanding applications, these higher wattages deliver powerful downlighting that’s perfect for atrium ceilings, outdoor covered patios, commercial signage, and high-traffic areas. They provide ample illumination for security purposes, ensuring that outdoor spaces are well-lit and safe, while also enhancing the visual appeal of commercial buildings and public areas. Whether you’re lighting a large hotel atrium, a restaurant patio, or a retail storefront, these wattages offer consistent, powerful light that covers large areas without sacrificing quality.
Each wattage option is engineered to deliver maximum efficiency and performance, with energy-saving LED technology that reduces power consumption without compromising on light quality. Whether you choose a lower wattage for accent lighting or a higher wattage for flood lighting, you can trust that our Frameless Square LED Spotlight will deliver consistent, long-lasting illumination.
Aesthetic Versatility: Customizable Cup Colors & White Tones
While the frameless design ensures the fixture blends seamlessly with your space, we also offer unparalleled aesthetic versatility through our interchangeable inner cup options and adjustable color temperatures (CCT), allowing you to tailor the fixture to your unique design vision. Whether you want the fixture to match your ceiling color or create a striking contrast, our customizable options make it easy to achieve the perfect look.

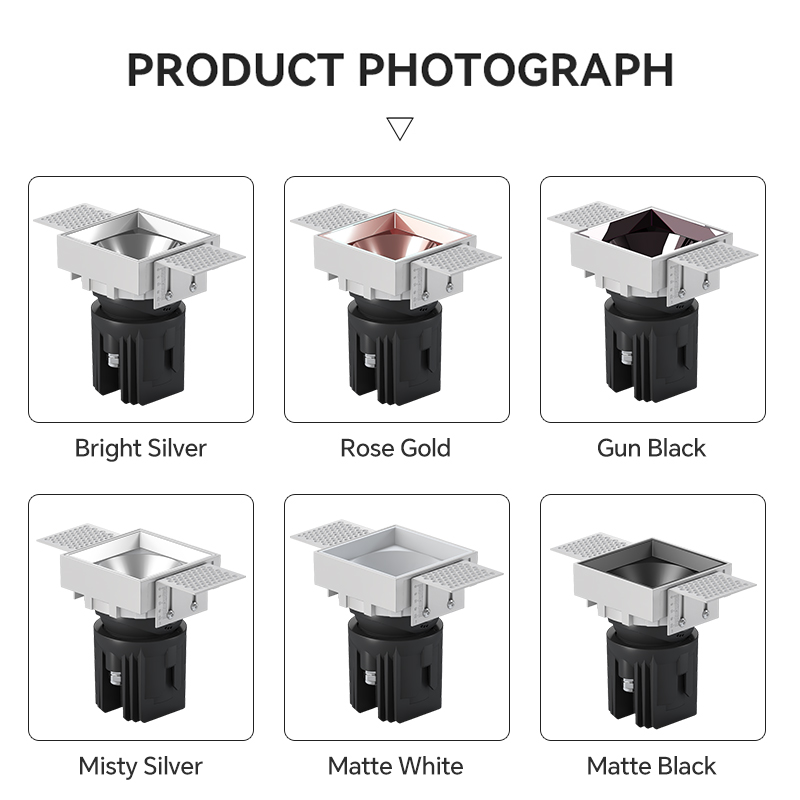

Choose from a wide range of premium inner cup colors to complement your space: Matte White for a clean, minimalist look that blends seamlessly with light-colored ceilings and modern interiors; Matte Black for a sleek, sophisticated finish that adds depth and contrast to dark or neutral surroundings; Matte Silver for a subtle, contemporary shine that complements metallic accents and modern architecture; Gun Black for a bold, industrial-inspired look that makes a statement in urban and modern spaces; Bright Silver for a polished, reflective finish that catches the light and adds a touch of luxury; and Rose Gold for a warm, elegant touch that elevates high-end projects such as luxury hotels, spas, and upscale residential properties. This interchangeable system makes it easy to adapt the fixture to different design themes, ensuring consistency across your entire lighting project.
In addition to customizable cup colors, our Frameless Square LED Spotlight is available in three color temperatures to set the perfect mood for any space: 3000K warm white for a cozy, inviting atmosphere—ideal for hotels, spas, and residential living areas; 4000K neutral white for a balanced, versatile light that works well in offices, retail spaces, and public areas; and 5000K cool white for a crisp, bright light that’s perfect for workspaces, commercial kitchens, and areas where clarity is essential. With these options, you can easily tailor the lighting to match the function and ambiance of your space, creating a cohesive and inviting environment.
Advanced Dimming for Smart Spaces: Total Ambiance Control
Engineered for modern smart buildings and personalized lighting control, our Frameless Square LED Spotlight integrates seamlessly with all major lighting control systems, offering advanced dimming options that allow you to adjust the ambiance to suit any occasion. Whether you’re working on a commercial project that requires energy-saving controls or a residential retrofit that needs simple, user-friendly dimming, we have the solution to fit your needs.
- 0-10V Dimming: The industry standard for commercial energy-saving controls, 0-10V dimming allows for smooth, flicker-free light adjustment from 0% to 100%. This dimming method is ideal for office environments, retail spaces, and commercial buildings where energy efficiency is a top priority. It ensures consistent performance and compatibility with most commercial lighting control systems, helping you reduce energy consumption without compromising on light quality. Whether you’re adjusting the light levels in a conference room or a retail store, 0-10V dimming provides precise control that enhances the user experience.
- DALI Dimming: Designed for large-scale automated buildings such as hotels, shopping malls, and office complexes, DALI (Digital Addressable Lighting Interface) dimming offers addressable control, allowing you to adjust individual fixtures or groups of fixtures remotely. This advanced dimming option provides unparalleled flexibility, making it easy to create custom lighting scenes, schedule lighting changes, and integrate with building management systems (BMS) for seamless smart control. Perfect for high-end hotels and commercial spaces, DALI dimming ensures that you can control the lighting with precision, creating the perfect ambiance for any event or time of day.
- Triac Dimming (Leading/Trailing Edge): Perfect for residential retrofit projects and spaces where existing dimmer switches are in place, Triac dimming is compatible with most standard residential dimmer switches. Whether you’re upgrading your home’s lighting or retrofitting a commercial space, this dimming option ensures easy installation and smooth, flicker-free light adjustment. It’s ideal for spaces where simplicity is key, allowing users to adjust the light levels with the flip of a switch, enhancing the ambiance of any room.
