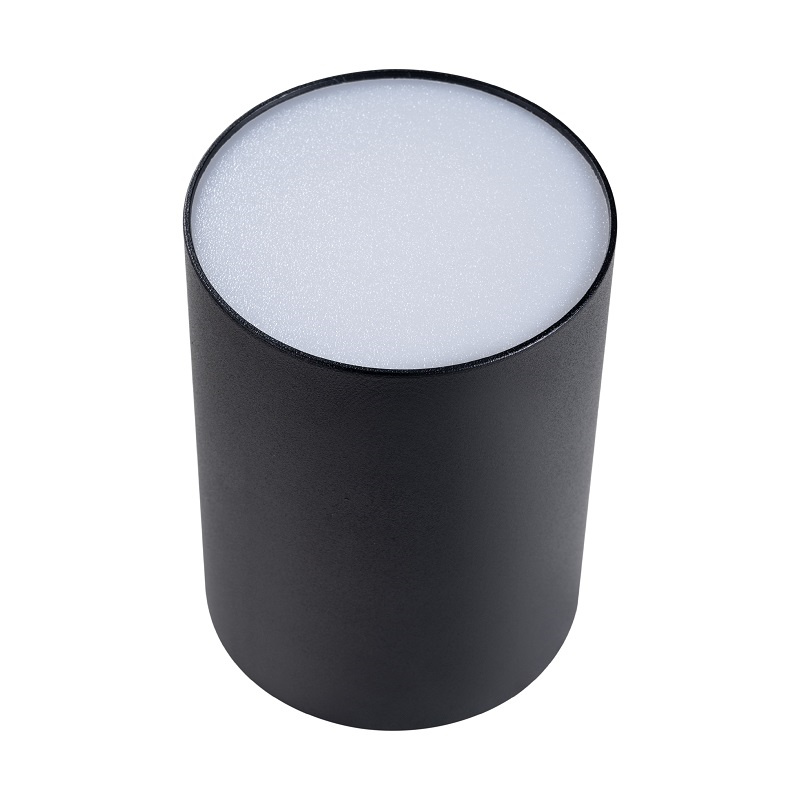

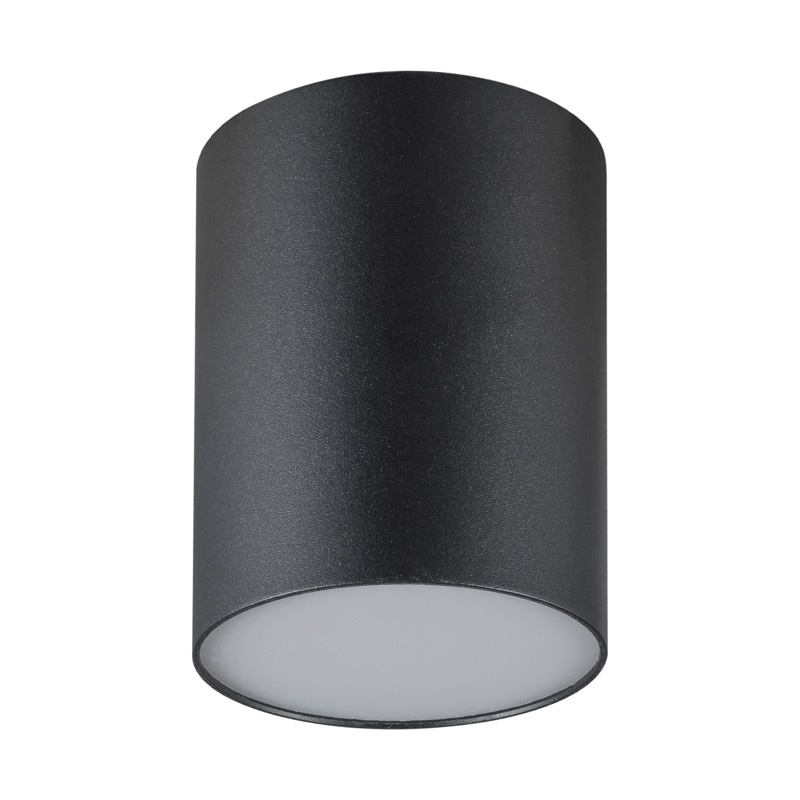

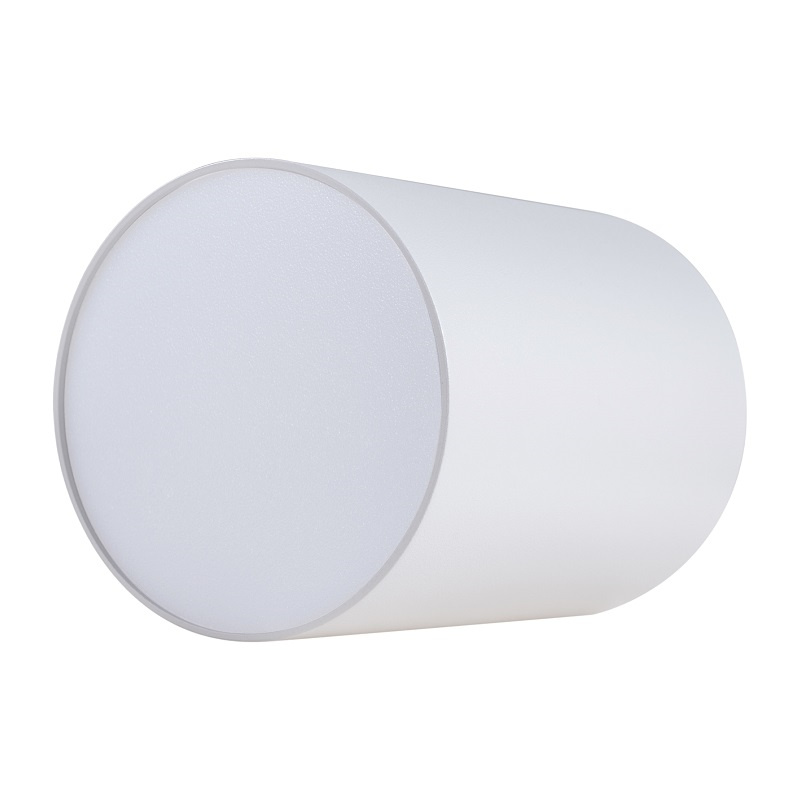

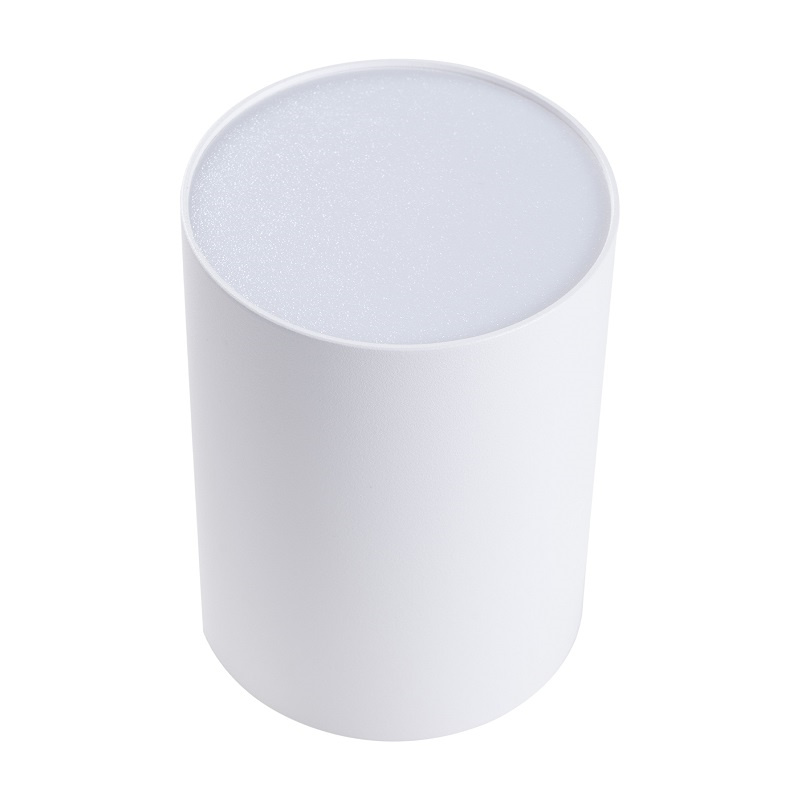

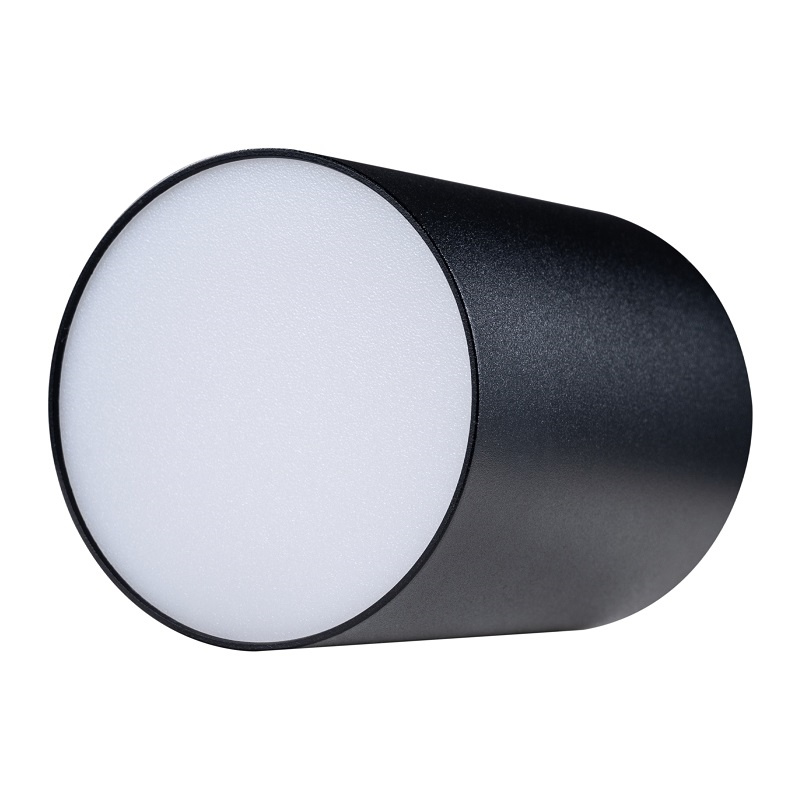

Led COB Miniature Downlight 120 Degrees with PC Diffuser FT-MDL05 with PC
Features:
● 2700K-6000K (Warm to Cool White)
● Durable and heat-dissipating design
● Anti-Glare Design,IP20/IP44 Rated
● Even illumination for various applications
● Frosted Options– Soft or focused light output
● Low power consumption, high luminous efficacy
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight | ||
| Item Type | Led Ceilng Mount Downlight | ||
| Power | 7W/10W/12W/15W/20W/25W/30W/35W/40W/45W | ||
| Input Voltage(V) | AC100-240V or AC200-240V | ||
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) | ||
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) | ||
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) | ||
| Color | Black/White | ||
| Beam angle | 120° | ||
| CRI (Ra>) | 80/90/95 | ||
| Dimension(mm) | D75*H100/D75*H150/D115*H135/D115*H160/D140*H170 | ||
| Working Temperature( °C ) | -20 ~ +50 | ||
| Lamp Body Material | Aluminum | ||
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) | ||
| PF | 5W-25W: 0.5 ; 25W-50W: 0.95 | ||
| Ambient Temperature | -10℃～+40℃ | ||
| Storage Tempertature | -20℃～50℃ | ||
| Housing Temperature (working) | <70℃ (Ta=25℃) | ||
| Installation | Surface mounted/pendant | ||
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc | ||
|

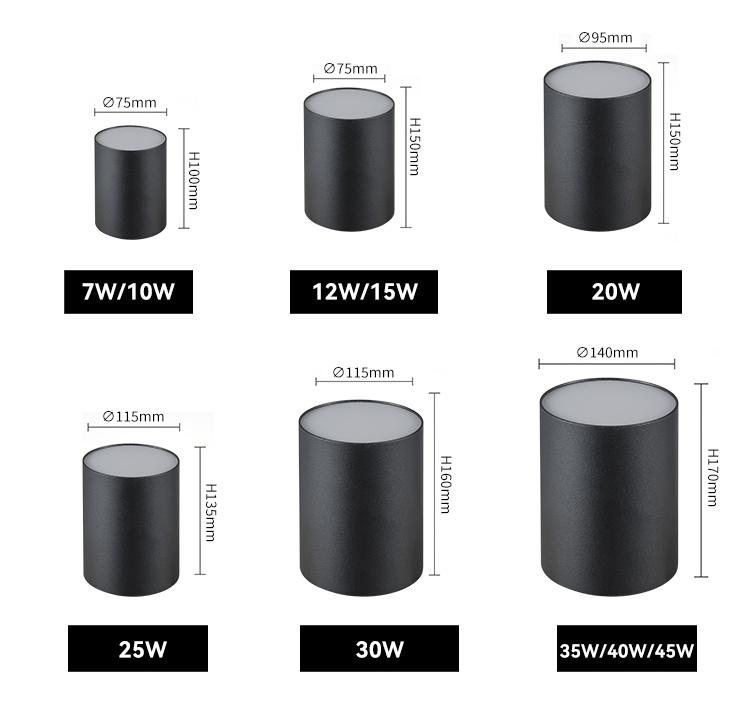

Model No. |
Watts |
Dimension(mm) |
LED Color |
|
FT-MDL05-7W |
7W |
D75*H100 |
2700K |
|
FT-MDL05-10W |
10W |
D75*H100 |
|
|
FT-MDL05-12W |
12W |
D75*H150 |
|
|
FT-MDL05-15W |
20W |
D75*H150 |
|
|
FT-MDL05-20W |
20W |
D75*H150 |
|
|
FT-MDL05-25W |
25W |
D115*H135 |
|
|
FT-MDL05-30W |
30W |
D115*H160 |
|
|
FT-MDL05-35W |
35W |
D140*H170 |
|
|
FT-MDL05-40W |
40W |
D140*H170 |
|
|
FT-MDL05-45W |
45W |
D140*H170 |
MDL05 Premium Pendant & Surface Mounted Downlight – Eye-Friendly Lighting
Sleek Design, Superior Illumination
The MDL05 Downlight redefines modern lighting with its premium die-cast aluminum housing, delivering a luxurious, high-end aesthetic that enhances any space. The 120° wide beam angle ensures even, expansive light distribution, while the high-quality PC diffuser eliminates harsh glare, providing soft, comfortable illumination perfect for both residential and commercial environments.

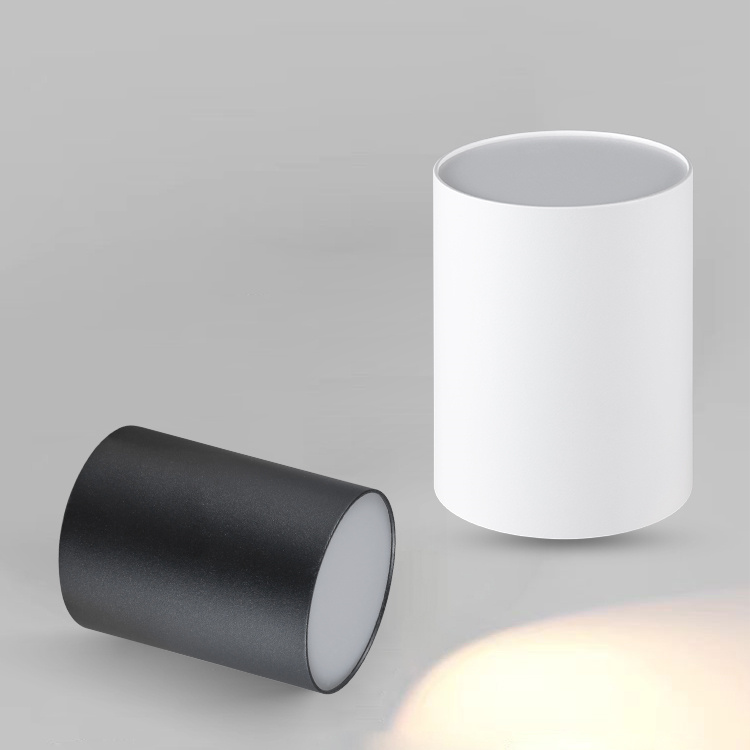

Whether you prefer a Pendant look for a seamless finish or a surface-mounted installation for flexible placement, the MDL05 adapts effortlessly to your design needs. Available in sleek black and crisp white, it blends seamlessly into any décor, from minimalist interiors to industrial-chic spaces.
Eye-Care Technology for Healthier Lighting

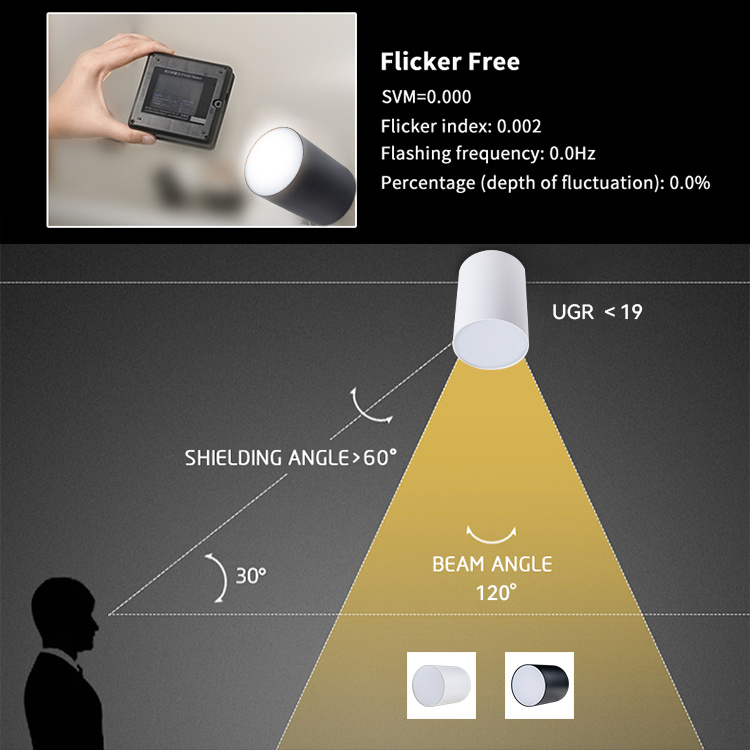

Strain-free lighting is no longer a luxury—it’s a necessity. The MDL05 features flicker-free technology, reducing eye fatigue and headaches for prolonged comfort. With a UGR (Unified Glare Rating) below 19, it meets high standards for visual comfort, making it ideal for offices, schools, and homes where low-glare, high-quality light is essential.
Customizable Brightness & Color Temperature
Wide Power Range (7W – 45W)
Choose the perfect brightness for any application:
·7W-12W: Ideal for accent lighting, hallways, and cozy ambiance.
·20W-30W: Perfect for task lighting in kitchens, offices, and retail spaces.
·35W-45W: Best for high-ceiling areas, commercial settings, and large rooms.
Full Color Temperature Customization (2700K – 6500K)
Tailor your lighting mood with adjustable color temperatures:
·2700K-3000K (Warm White): Creates a relaxing, inviting atmosphere for living rooms, bedrooms, and restaurants.
·3500K-4500K (Neutral White): Ideal for kitchens, bathrooms, and workspaces where clarity is key.
·5000K-6500K (Cool White): Boosts focus and productivity in offices, retail stores, and garages.
Smart Dimming & Advanced Control Options
The MDL05 supports both single and tunable color temperature dimming, making it compatible with a wide range of smart lighting systems:
Single CCT (Fixed Color Temperature) Dimming
·TRIAC: Works with standard wall dimmers for smooth brightness adjustment.
·0-10V: Allows precise dimming control in commercial and architectural lighting setups.
·DALI (Digital Addressable Lighting Interface): Enables individual or group dimming in advanced lighting networks.
Tunable White (CCT Adjustable) Dimming
·2.4G RF Wireless Control: Adjust brightness and color temperature remotely via a handheld controller.
·Tuya Smart Home Integration (Zigbee/Bluetooth/Wi-Fi): Control your lights via voice commands (Alexa, Google Assistant) or smartphone app.
·DALI DT8: Advanced control for dynamic white tuning in professional lighting systems.

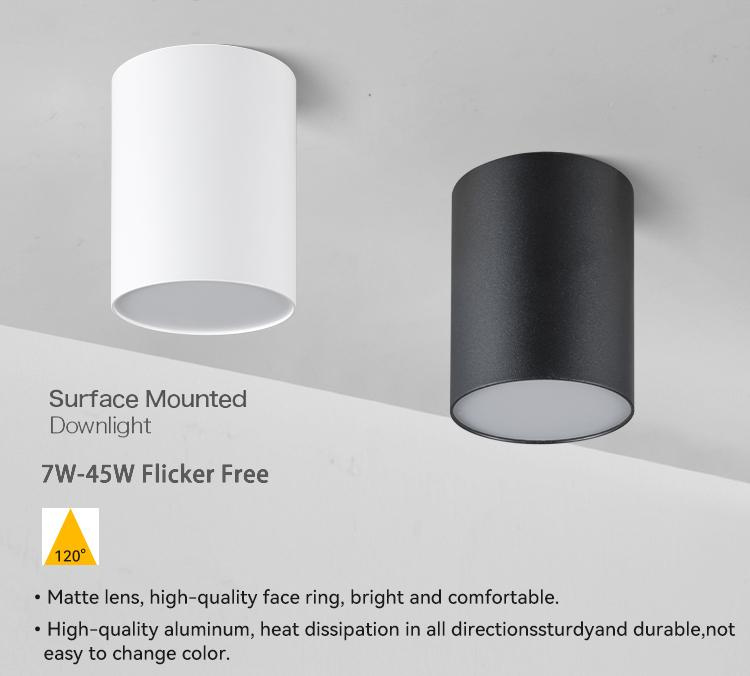

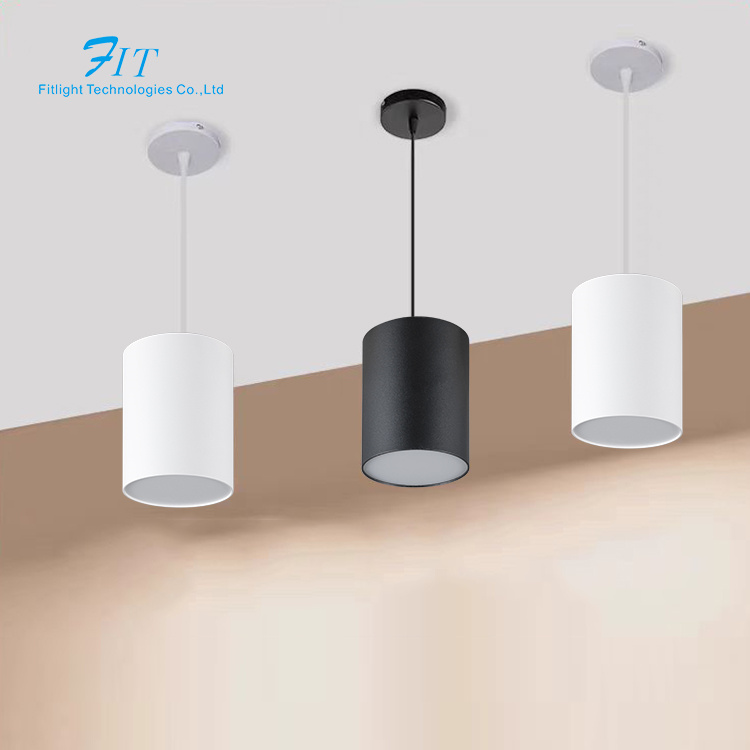

Easy Installation – Pendant or Surface-Mounted
1. Twist the installation base clockwise from the bottom of the lamp and install it on the ceiling. Use screws to install the base according to national regulations.
2. The power supply is located at the bottom of the lamp,and the two wires of the power supply are connected to the power cord.
3. Insert the bottom end of the lamp into the installation base and rotate it counter clockwise to meet the national standard of the lamp.
4. Installation completed.
Perfect for Multiple Applications
The MDL05’s versatile design and high-performance features make it ideal for:
✔ Residential Spaces – Living rooms, kitchens, bedrooms, hallways.
✔ Commercial & Office Lighting – Conference rooms, lobbies, workstations.
✔ Hospitality & Retail – Hotels, restaurants, boutiques, galleries.
✔ Educational & Healthcare Facilities – Schools, clinics, waiting areas.
Why Choose the MDL05 Downlight?
✔ Premium Build – Durable die-cast aluminum + high-transmission PC diffuser.
✔ Wide 120° Beam Angle – Uniform, glare-free illumination.
✔ Flicker-Free & Low UGR (<19) – Protects eyes and enhances comfort.
✔ Customizable Power & CCT (2700K-6500K) – Tailor lighting to your needs.
✔ Smart & Flexible Dimming – Supports TRIAC, 0-10V, DALI, 2.4G, Tuya, and DALI DT8.
✔Dual Installation – Recessed or surface-mounted for maximum versatility.
Upgrade Your Lighting with MDL05 – Where Elegance Meets Intelligence
Whether you’re designing a cozy home, a dynamic workspace, or a high-end commercial project, the MDL05 delivers exceptional light quality, smart control, and timeless style.
Order now and experience the perfect blend of aesthetics, functionality, and innovation!
