Led Down Light Surface Ceiling Lights Factory FT-MDL01
Features:
● Tool-Free Ceiling Mount
● Optional Suspension Kit
● Flicker-Free Technology
● Dual Installation Flexibility
● High Lumen Efficacy (≥90-100 lm/W)
● Wide Voltage Range (100–277V AC)
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 5-20W：0.5 ; 25W-50W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Ceilng Mount Downlight |
| Power | 5W/10W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 20°,45° |
| CRI (Ra>) | 80/90/95 |

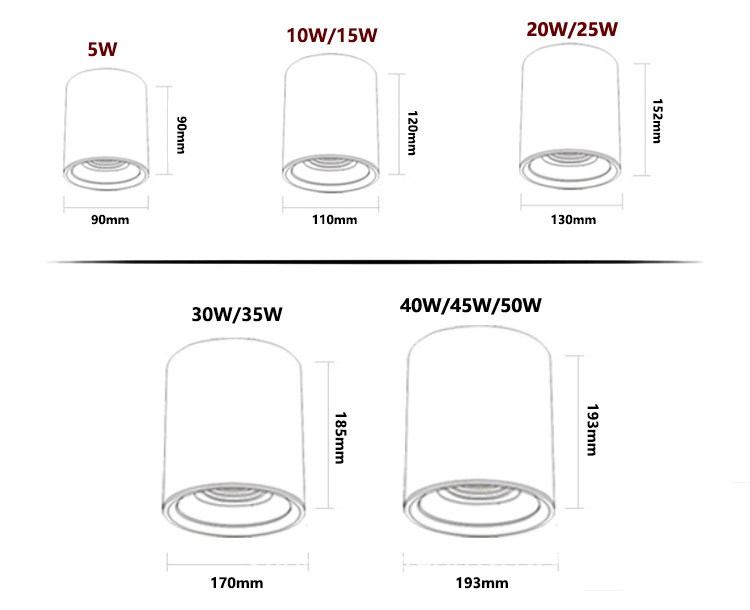

| Dimension(mm) | D90*H90/D110*H120/D130*H152/D170*H185/D193*H193 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 5W-25W: 0.5 ; 25W-50W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Surface mounted/pendant |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|
Model No. |
Watts |
Dimension(mm) |
LED Color |
|
FT-MDL01-5W |
5W |
D90*H90 |
2700K |
|
FT-MDL01-10W |
10W |
D110*H120 |
|
|
FT-MDL01-15W |
15W |
D110*H120 |
|
|
FT-MDL01-20W |
20W |
D130*H152 |
|
|
FT-MDL01-25W |
25W |
D130*H152 |
|
|
FT-MDL01-30W |
30W |
D170*H185 |
|
|
FT-MDL01-35W |
35W |
D170*H185 |
|
|
FT-MDL01-40W |
40W |
D193*H193 |
|
|
FT-MDL01-45W |
45W |
D193*H193 |
|
|
FT-MDL01-50W |
50W |
D193*H193 |

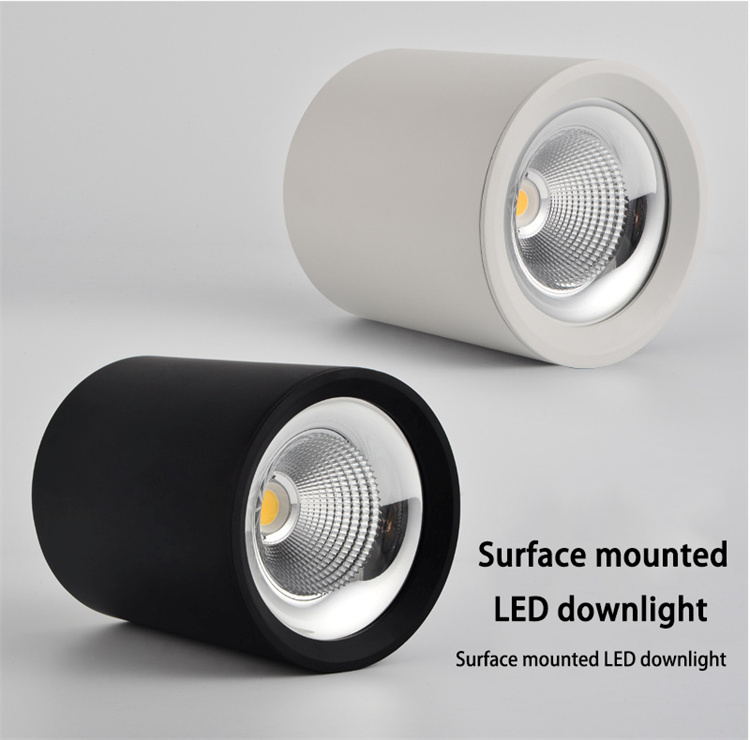

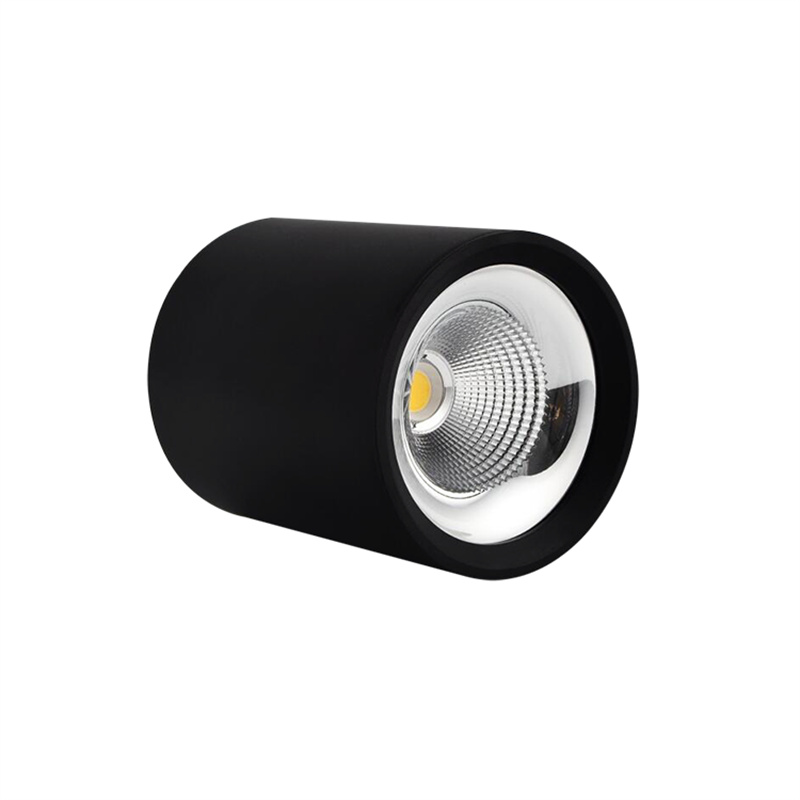

MDL01 Surface Mounted Downlight – Premium & Versatile Lighting Solution
Modern Design, Flexible Installation
The MDL01 downlight offers both surface-mounted and pendant-style installation, giving you the freedom to adapt it to any space. Whether you need sleek ceiling lighting or a stylish hanging fixture, this downlight delivers both functionality and aesthetics.
Choose Your Style

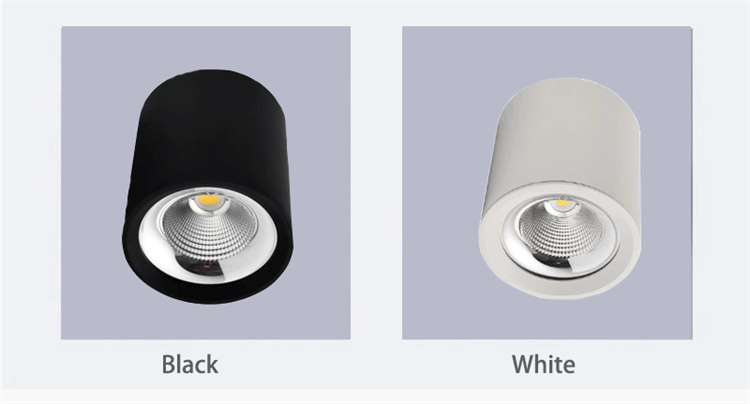

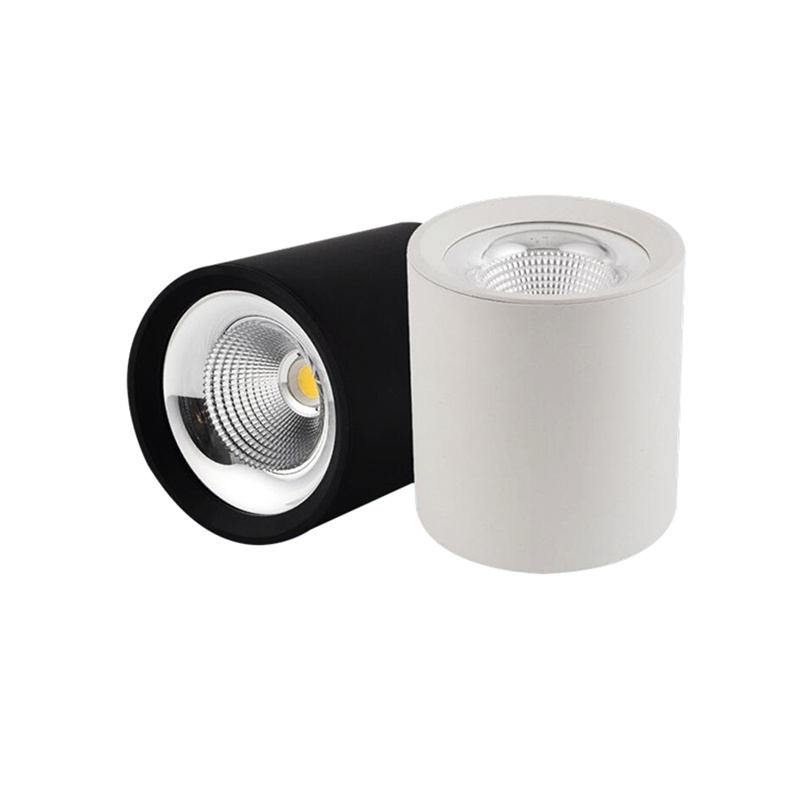

Available in sophisticated black or clean white, the MDL01 seamlessly blends with any interior design—from modern minimalist to industrial chic.
Superior Quality for Brighter, Longer-Lasting Light

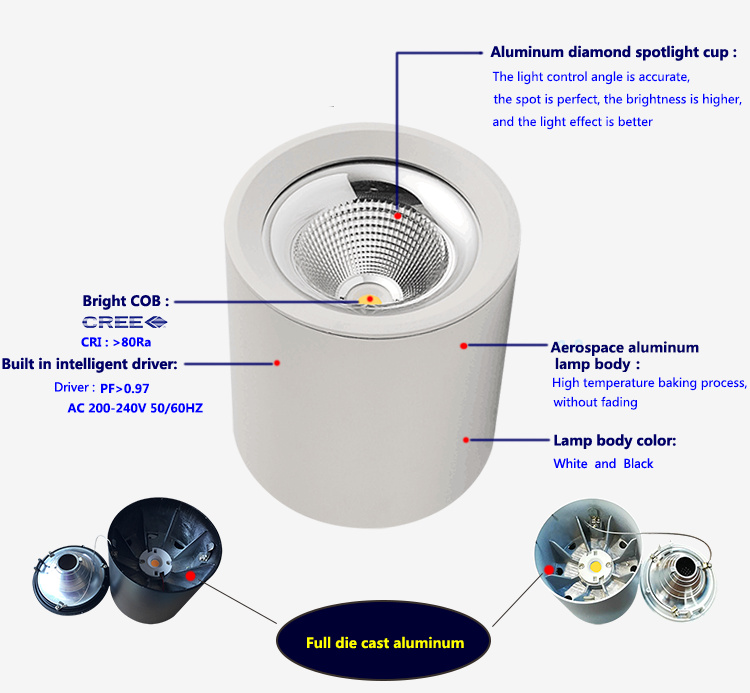

Crafted with high-end materials, the MDL01 ensures optimal performance and durability:
· Die-cast aluminum housing – Enhances heat dissipation, preventing overheating and extending lifespan.
· Premium COB chip – Provides smooth, uniform light without dark spots or glare.
· High-quality driver – Flicker-free lighting for eye comfort, ideal for homes and offices.
· Silver reflector cup – Maximizes light efficiency, ensuring brighter illumination with less energy waste.
Customizable Lighting for Every Need

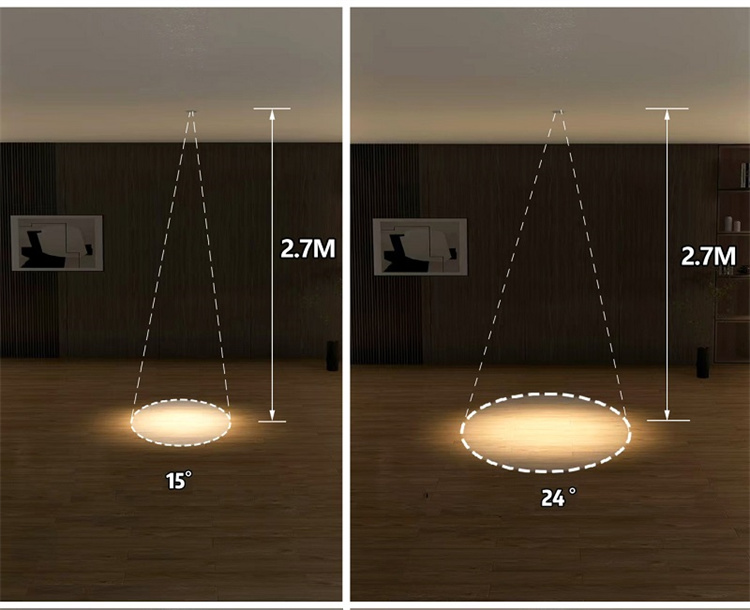

1. Adjustable Beam Angles
·15° (Spotlight) – Perfect for accent lighting (artwork, shelves, retail displays).
·24° (Floodlight) – Ideal for general room illumination (living rooms, kitchens, offices).
2. Wide Power Range (5W–50W)
Choose the perfect brightness for any space:
·Low power (5W–15W) – Bedrooms, hallways, cozy settings.
·Medium power (20W–35W) – Kitchens, bathrooms, workspaces.
·High power (40W–50W) – Commercial areas, showrooms, large spaces.
3. Smart Dimming & Color Control
Single CCT (Fixed Color Temperature)
Compatible with TRIAC, 0-10V, and DALI for seamless dimming.
Tunable CCT (Adjustable White Light)
Supports 2.4G, Tuya (Zigbee/Bluetooth/WiFi), and DALI DT8 for smart lighting control.
Easy Installation – No Hassle, Just Brilliance
The surface-mount option allows for quick and secure ceiling installation, creating a clean, modern look without complex wiring.
1. Twist the installation base clockwise from the bottom of the lamp and install it on the ceiling.Use screws to install the base according to national regulations.
2. 2.The power supply is located at the bottom of the lamp,and the two wires of the power supply are connected to the power cord.
3. Insert the bottom end of the lamp into the installation base and rotate it counerclockwise to meet the national standard of the lamp.
4. Installation completed.
Perfect for Any Space
The MDL01 downlight is designed for versatility, making it ideal for:
·Homes – Living rooms, kitchens, bedrooms, hallways.
·Offices – Conference rooms, workstations, lobbies.
·Retail & Hospitality – Stores, restaurants, hotels, galleries.
·Commercial Spaces – Warehouses, showrooms, exhibition halls.
