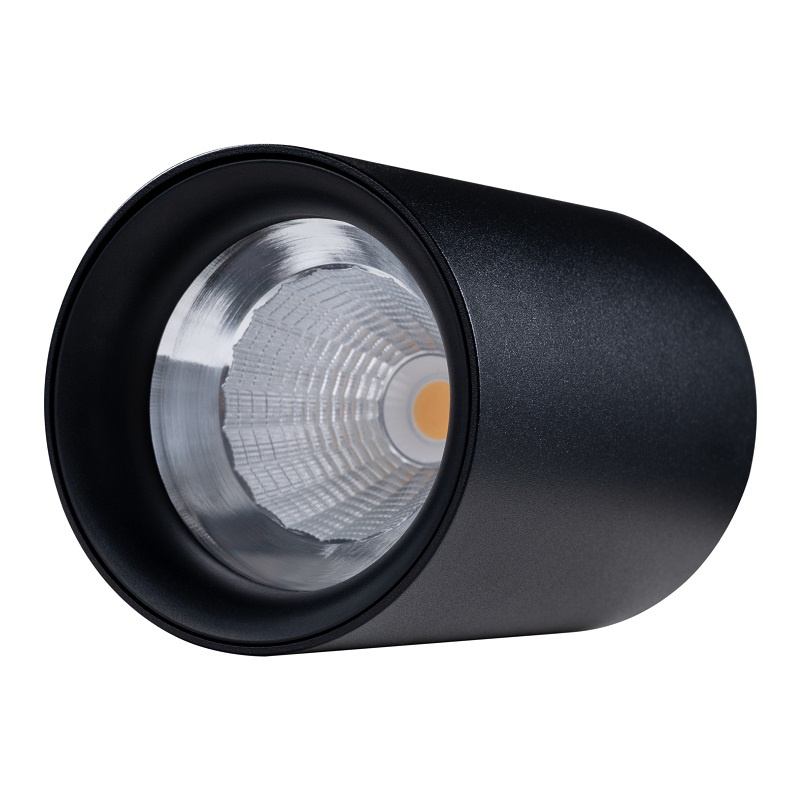

Led Downlight 20W Surface Mounted Manufacturer FT-MDL05
Features:
● Robust Aluminum Housing
● High-Efficiency Reflector Cup
● Energy-Saving LED Technology
● Multiple Color Temperatures-2700K-6500K
● Compatible with leading dimming systems (optional)
● Can be installed as ceiling-mounted or pendant-hung
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Ceilng Mount Downlight |
| Power | 7W/10W/12W/15W/20W/25W/30W/35W/40W/45W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 36°/60° |
| CRI (Ra>) | 80/90/95 |
| Dimension(mm) | D75*H100/D75*H150/D115*H135/D115*H160/D140*H170 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 5W-25W: 0.5 ; 25W-50W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Surface mounted/pendant |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

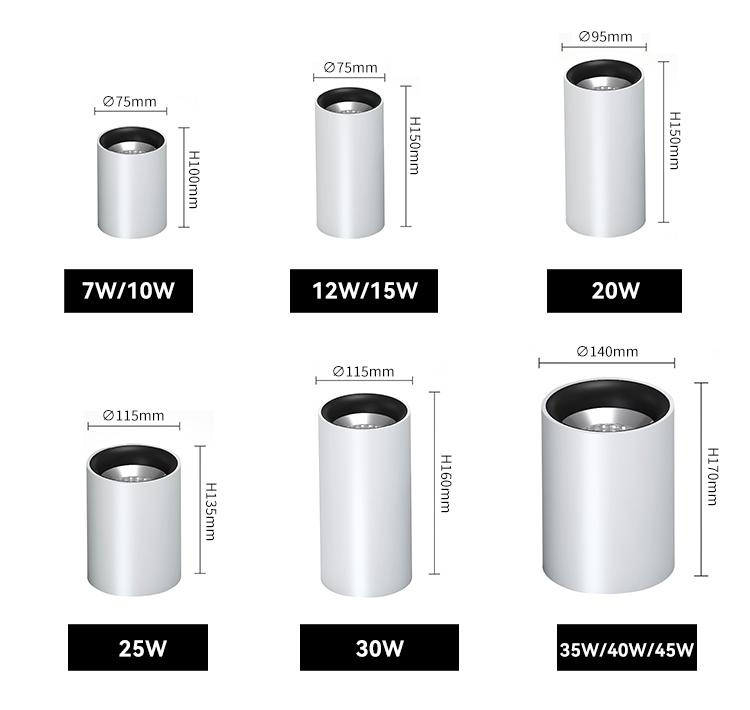

Model No. |
Watts |
Dimension(mm) |
LED Color |
|
FT-MDL05-7W |
7W |
D75*H100 |
2700K |
|
FT-MDL05-10W |
10W |
D75*H100 |
|
|
FT-MDL05-12W |
12W |
D75*H150 |
|
|
FT-MDL05-15W |
20W |
D75*H150 |
|
|
FT-MDL05-20W |
20W |
D75*H150 |
|
|
FT-MDL05-25W |
25W |
D115*H135 |
|
|
FT-MDL05-30W |
30W |
D115*H160 |
|
|
FT-MDL05-35W |
35W |
D140*H170 |
|
|
FT-MDL05-40W |
40W |
D140*H170 |
|
|
FT-MDL05-45W |
45W |
D140*H170 |

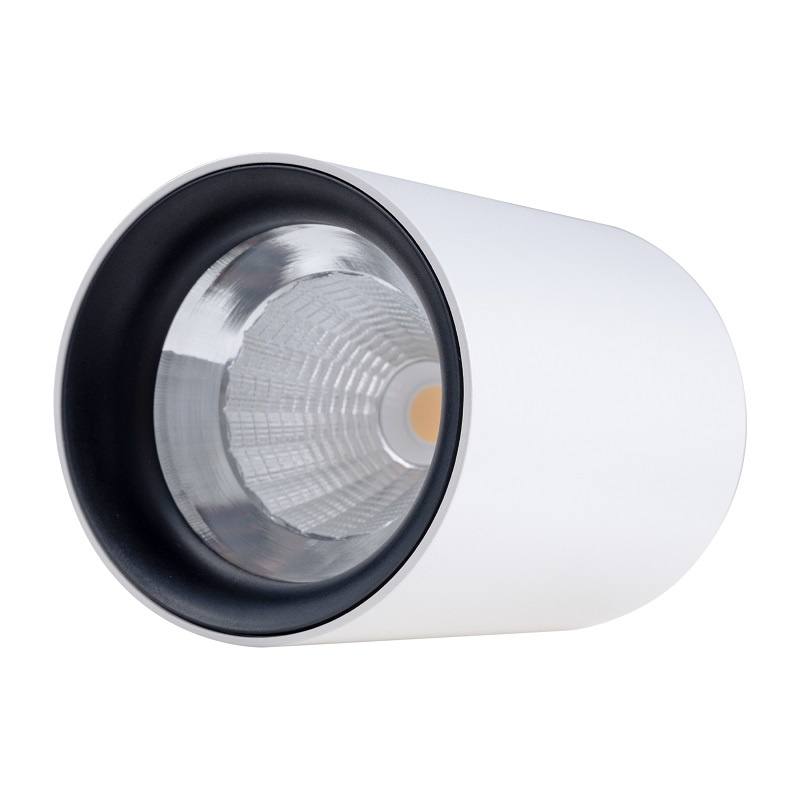

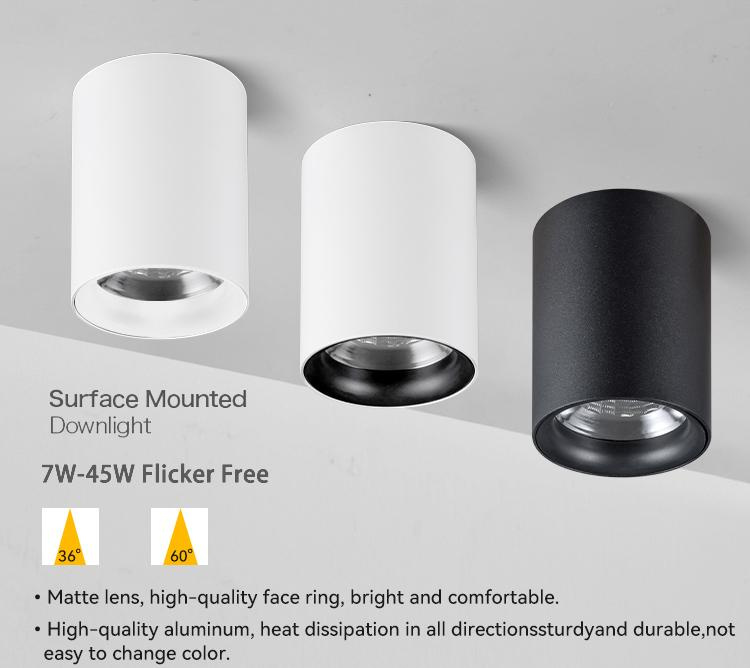

MDL05 Surface Mount Downlight – Sleek & Eye-Friendly Lighting
Modern Minimalist Design with Flexible Installation
The MDL05 downlight combines contemporary aesthetics with versatile mounting options—install it as a flush ceiling light or pendant fixture to match your space. Perfect for modern homes, offices, and commercial settings where clean lines and functional lighting matter.

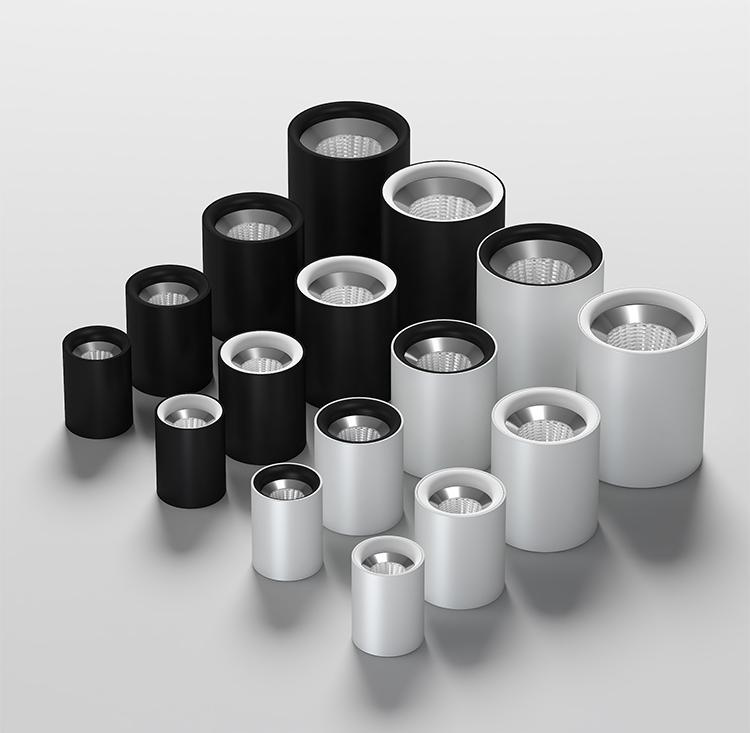

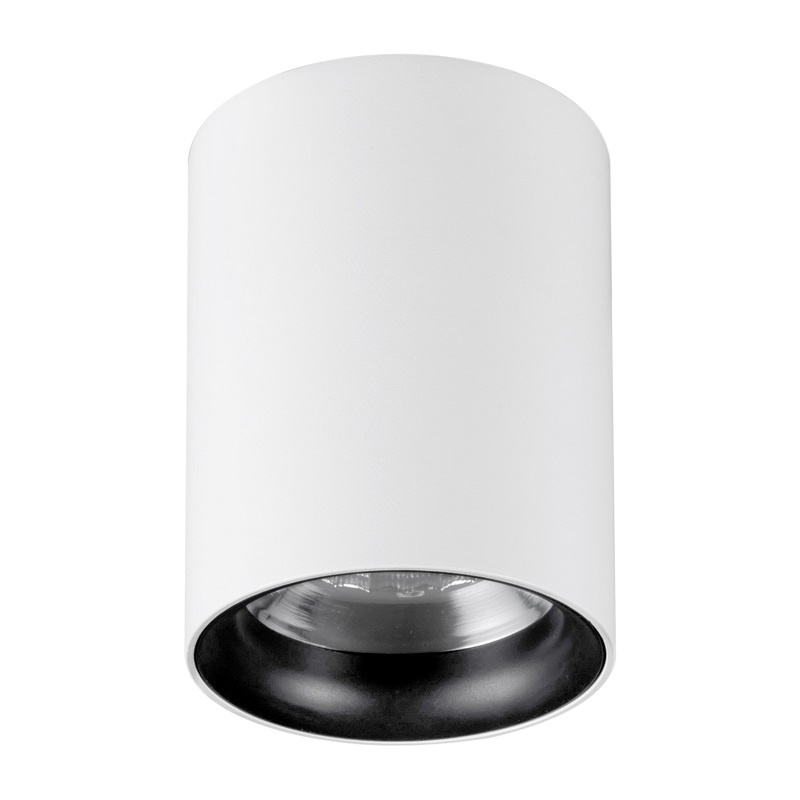

Two Elegant Finishes
Choose between matte black or crisp white to complement your décor. Whether you prefer bold contrast or seamless blending, the MDL05 adapts effortlessly.

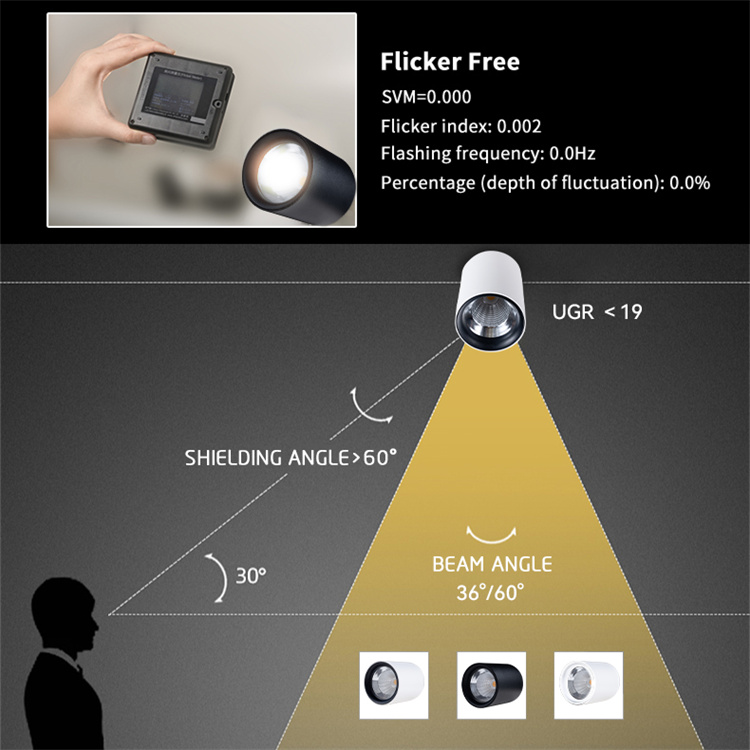

Eye-Comfort Technology for Healthier Lighting
Designed with well-being in mind, the MDL05 delivers:
· Flicker-free illumination – Reduces eye strain, ideal for long hours of work or relaxation.
· UGR < 19 – Low glare rating ensures comfortable ambient light in offices, schools, and homes.
· High-efficiency optics – Even light distribution without harsh shadows or hotspots.
Customizable Performance for Every Need
1. Wide Power Range (7W–45W)
Select the perfect brightness level:
·Soft lighting (7W–12W) – Bedrooms, hallways, cozy spaces.
·Balanced brightness (20W–30W) – Kitchens, home offices, retail displays.
·High-output (35W–45W) – Commercial areas, lobbies, large rooms.
2. Smart Dimming & Color Control
Fixed Color Temperature (Single CCT)
·Works with TRIAC, 0-10V, and DALI for smooth dimming.
Adjustable White Light (Tunable CCT)
·Compatible with 2.4G, Tuya (Zigbee/Bluetooth/WiFi), and DALI DT8 for smart lighting automation.

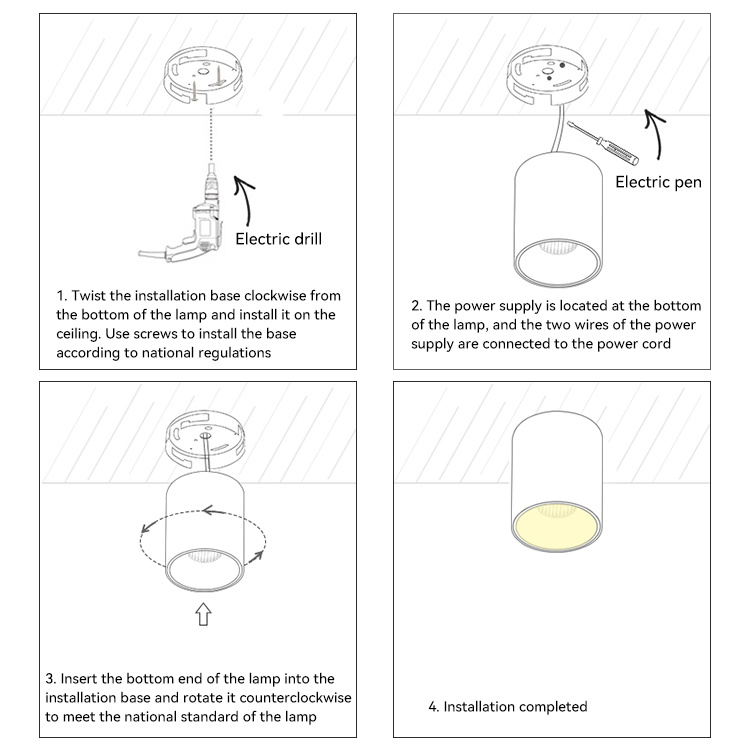

Quick & Easy Surface Mount Installation
The flush-mount design ensures a hassle-free setup—simply secure it to your ceiling for a sleek, low-profile look. No complicated wiring needed.
1. Rotate the mounting bracket clockwise from the lamp's base and secure it to the ceiling. Fasten the bracket with screws in compliance with national electrical standards.
2. The power supply is located at the bottom of the fixture. Connect the two supply wires to the main power cord.
3. Align the lamp's base with the mounting bracket and twist it counterclockwise until it locks into place, ensuring it meets national safety regulations.
4. Installation complete.

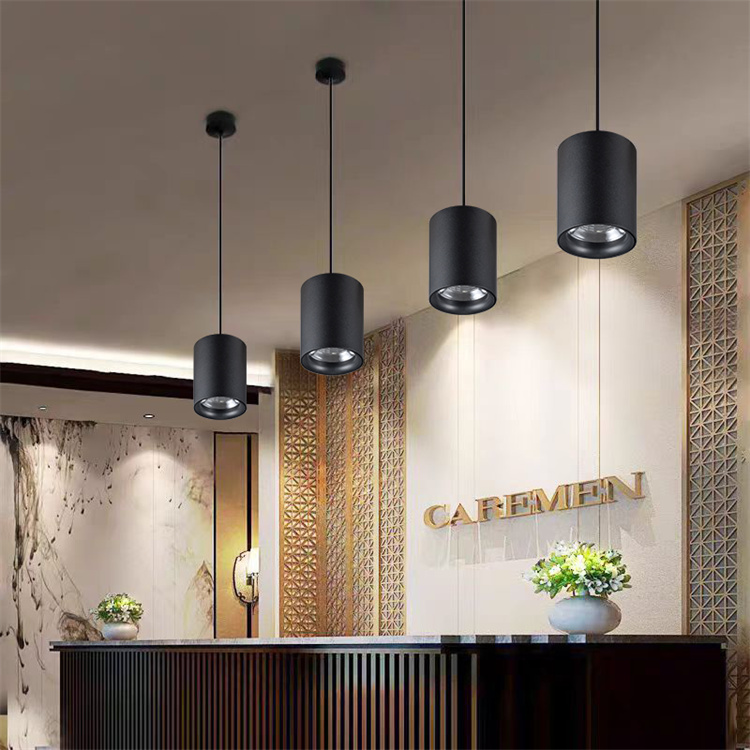

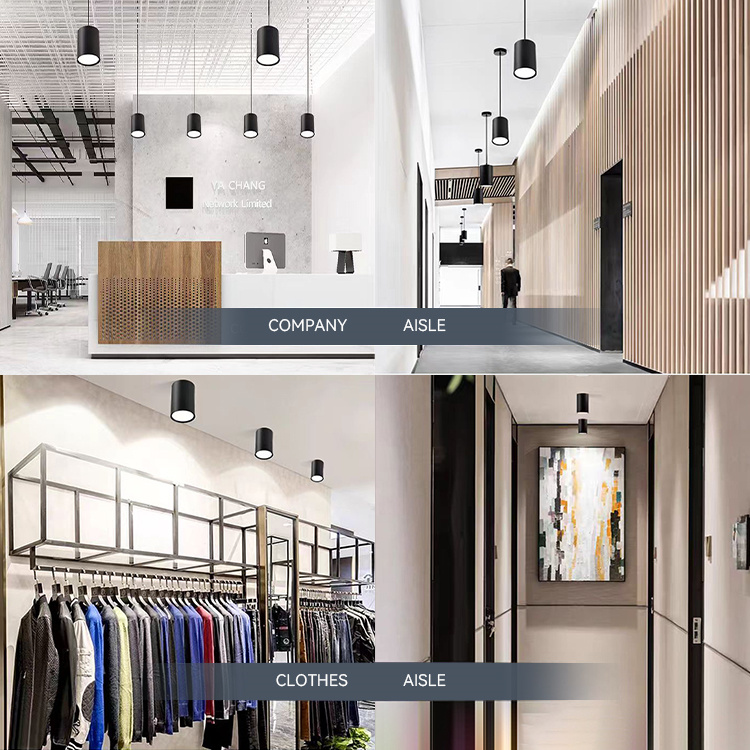

Ideal for Any Modern Space
The MDL05 excels in:
·Residential Use – Living rooms, kitchens, bedrooms, entryways.
·Workspaces – Offices, conference rooms, co-working areas.
·Commercial Settings – Cafés, boutiques, hotel lobbies.
·Educational Spaces – Classrooms, libraries (thanks to low UGR).
