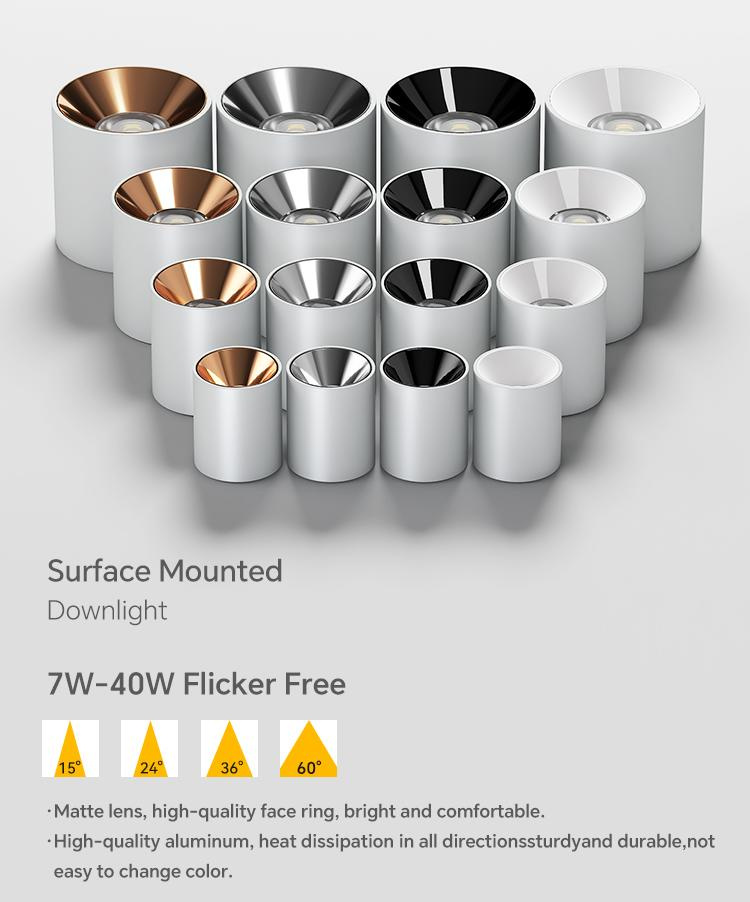

Led Downlight 20W Surface Mounted Manufacturer FT-MDL09
Features:
● Robust Aluminum Housing
● High-Efficiency Reflector Cup
● Energy-Saving LED Technology
● Multiple Color Temperatures-2700K-6500K
● Compatible with leading dimming systems (optional)
● Can be installed as ceiling-mounted or pendant-hung
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Ceilng Mount Downlight |
| Power | 7W/10W/12W/15W/18W/20W/25W/30W/35W/40W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 15°/24°/36°/60° |
| CRI (Ra>) | 80/90/95 |

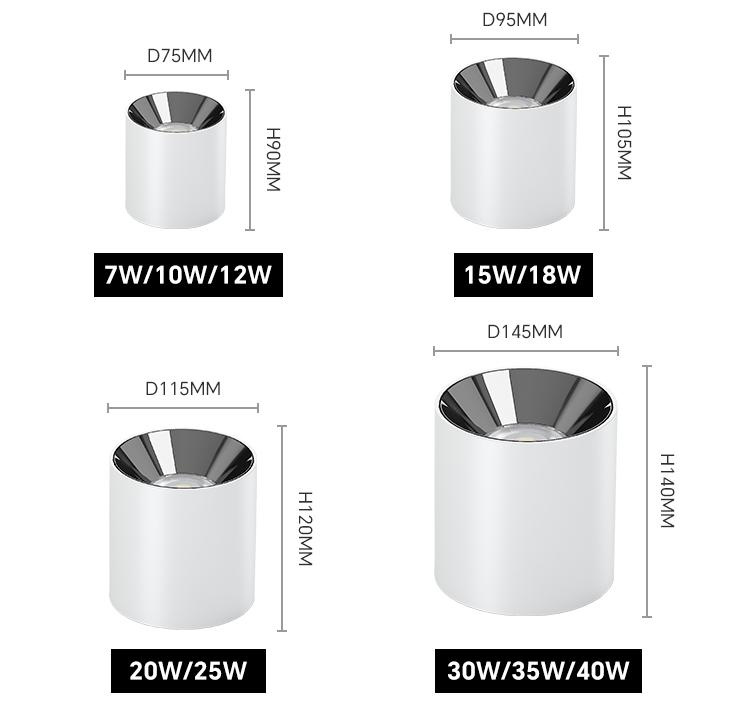

| Dimension(mm) | D75*H90/D95*H105/D115*H120/D145*H140mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7W-20W: 0.5 ; 25W-40W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Surface mounted/pendant |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|
Model No. |
Watts |
Dimension(mm) |
LED Color |
|
FT-MDL09-7W |
7W |
D75*H90 |
2700K |
|
FT-MDL09-10W |
10W |
D75*H90 |
|
|
FT-MDL09-12W |
12W |
D75*H90 |
|
|
FT-MDL09-15W |
15W |
D95*H105 |
|
|
FT-MDL09-18W |
18W |
D95*H105 |
|
|
FT-MDL09-20W |
20W |
D115*H120 |
|
|
FT-MDL09-25W |
25W |
D115*H120 |
|
|
FT-MDL09-30W |
30W |
D145*H140 |
|
|
FT-MDL09-35W |
35W |
D145*H140 |
|
|
FT-MDL09-40W |
40W |
D145*H140 |

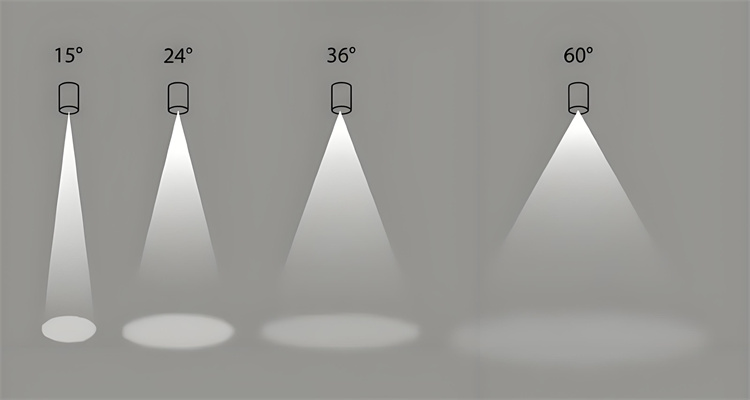

Precision-Engineered Surface Downlight: Advanced Lens Optics & Beam Control
Unlock professional-grade lighting with our lens-based surface downlight, featuring four precision beam angles (15°/24°/36°/60°) for unmatched optical control. Ideal for accent, task, or display lighting, the polycarbonate (PC) lens system delivers superior optical efficiency and consistency compared to traditional reflectors.
Advantages of Lens Optics:
✅ Pinpoint Beam Accuracy
TIR (Total Internal Reflection) lenses collimate light into razor-sharp beams with minimal spill—perfect for highlighting artwork (15°), retail displays (24°), or dining tables (36°).
✅ Uniform Illumination
Eliminates "hotspots" and center dark spots common in reflector designs. Maintains 95%+ intensity uniformity across the entire beam.
✅ Higher Lumen Efficiency
95% light transmission rate vs. 80-85% in reflectors—more lumens per watt with zero wasted uplight.
✅ Durability & Stability
Frosted PC lens resists yellowing (UV-protected), ensuring consistent color temperature over 50,000 hours. No reflector coating degradation.
✅ Flexible Beam Adjustment
Swap lenses in seconds to change beam spread post-installation—no fixture replacement needed.
√Lens vs. Reflector Comparison:
| Feature | Lens Optics | Reflector Cup |
| Beam Sharpness | √ Crisp cutoff (1:10 contrast) | ❌ Gradual fade (halo effect) |
| Consistency | √ Uniform across entire beam | ❌ Hotspot in center |
| Long-Term Performance | √ No degradation (solid PC) | ❌ Reflector tarnishes over time |
| Glare Control | √ Anti-glare micro-texture | ❌ Requires secondary baffles |
| Beam Angle Flexibility | √ Easily interchangeable | ❌ Fixed angle per fixture |

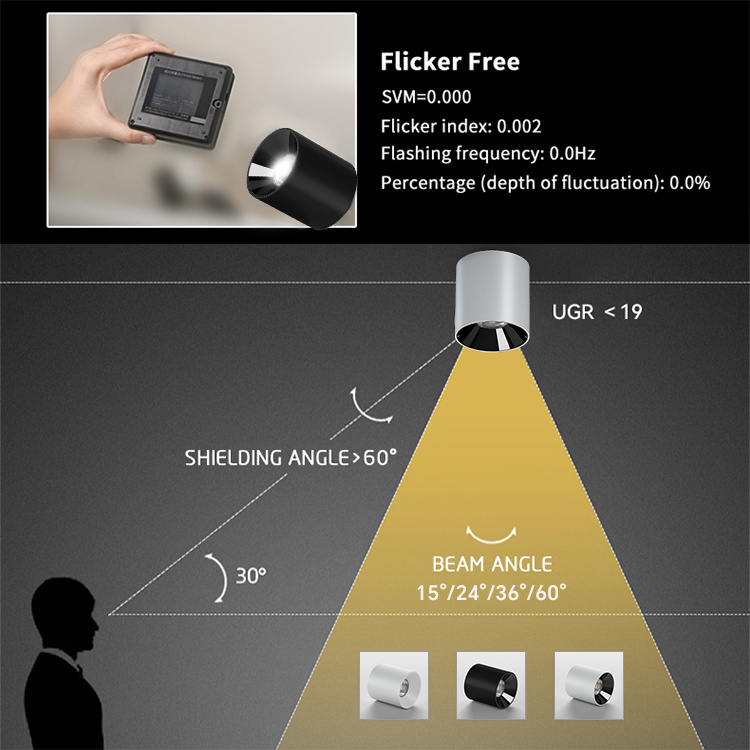

✔ Eye-Care Technology – Flicker-free lighting with UGR < 19, reducing eye strain for a healthier environment.
Choose lens optics for gallery-grade precision in museums, boutiques, or architectural highlighting—where light quality is non-negotiable.

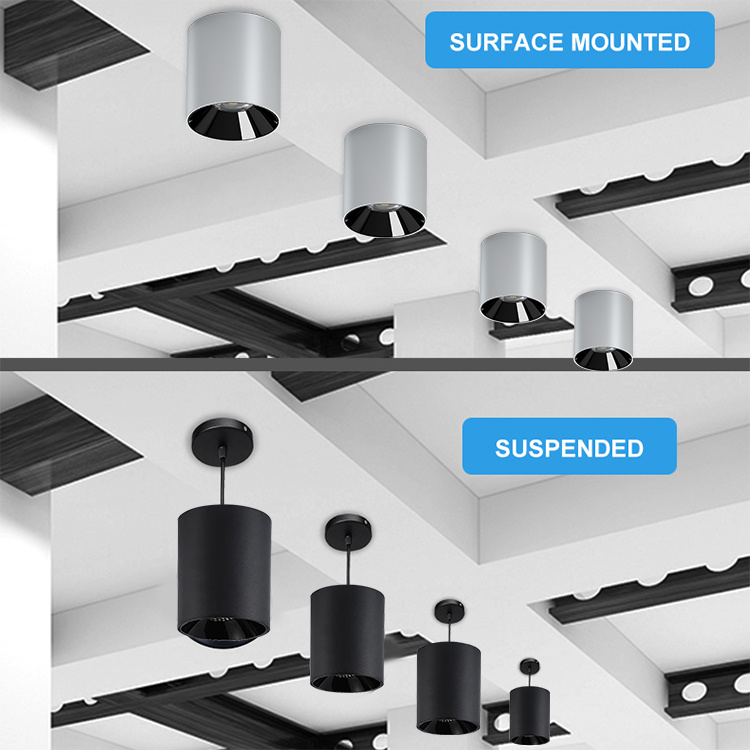

MDL09 offers exceptional installation flexibility, functioning equally well as either a surface-mounted downlight or suspended pendant light to accommodate diverse architectural requirements. Available in elegant black or pristine white finishes, it provides additional customization through three reflector cup color choices (black, white, or silver), ensuring seamless integration with your design vision.
· Dual mounting options - install as surface-downlight or suspended ceiling light

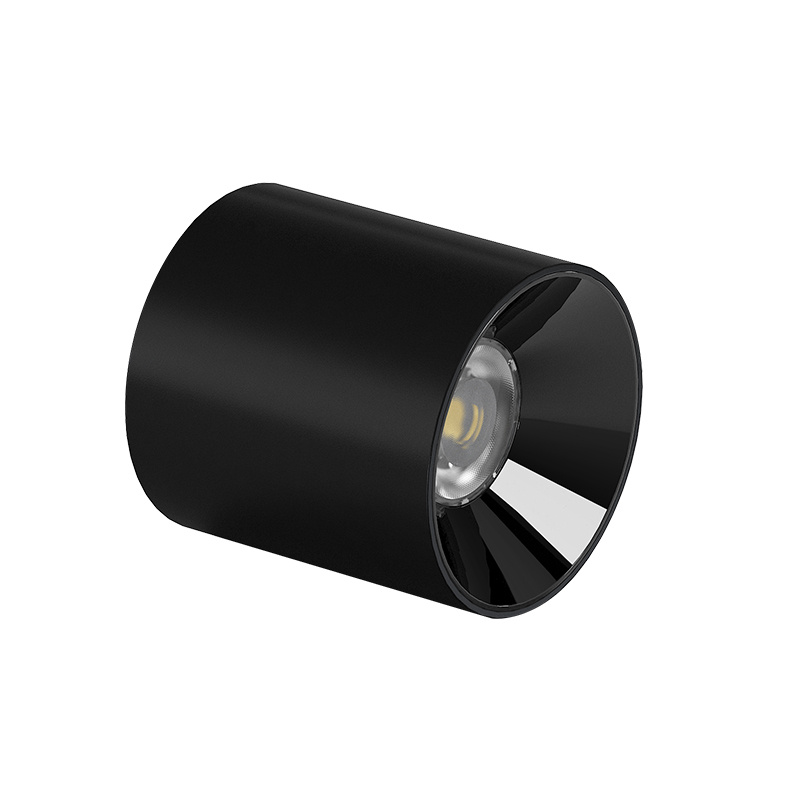

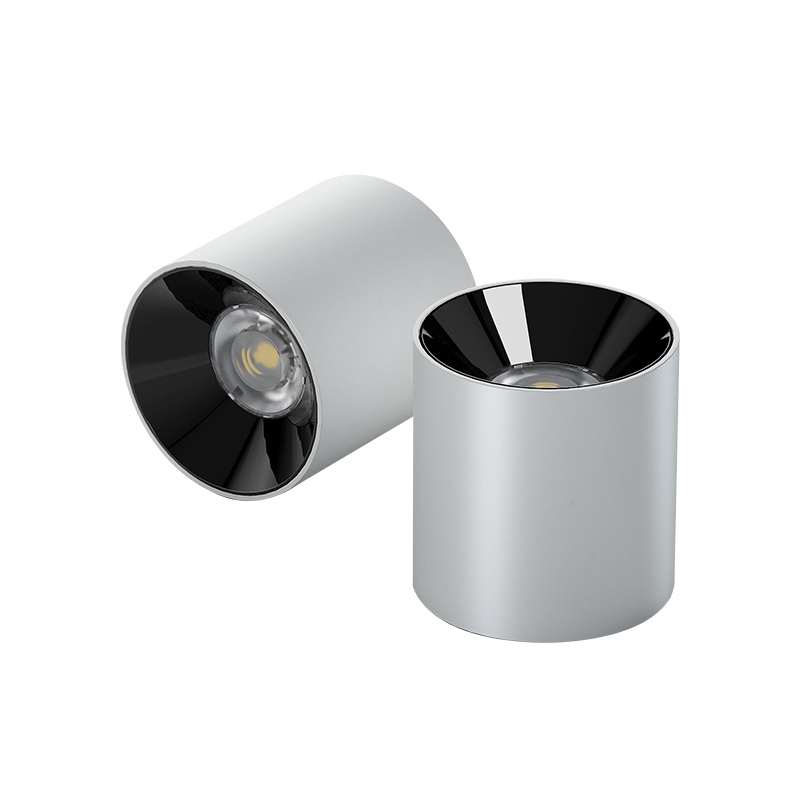

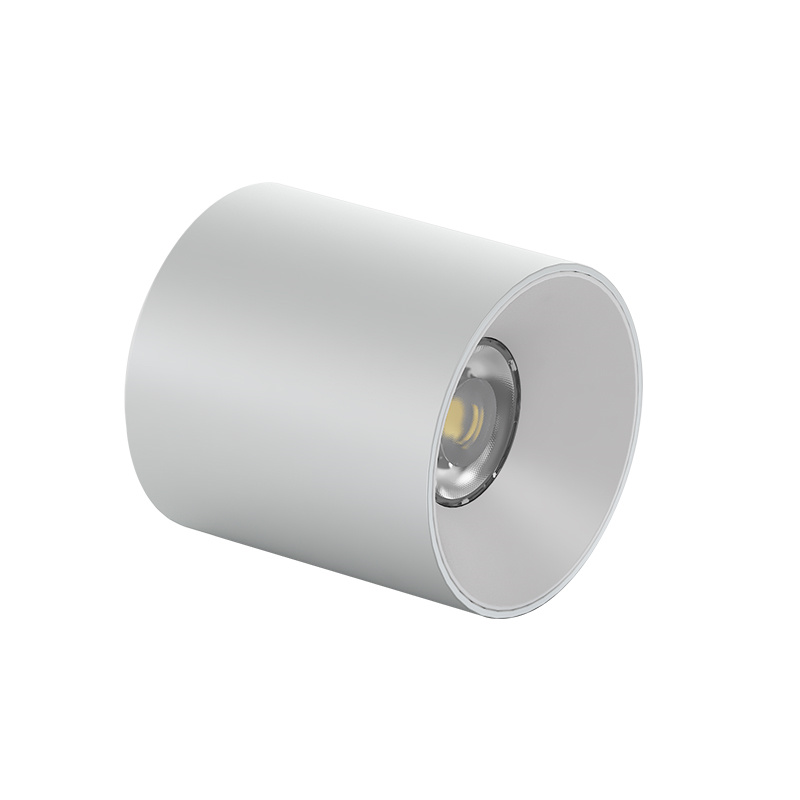

· Two elegant finish choices - sophisticated black or crisp white

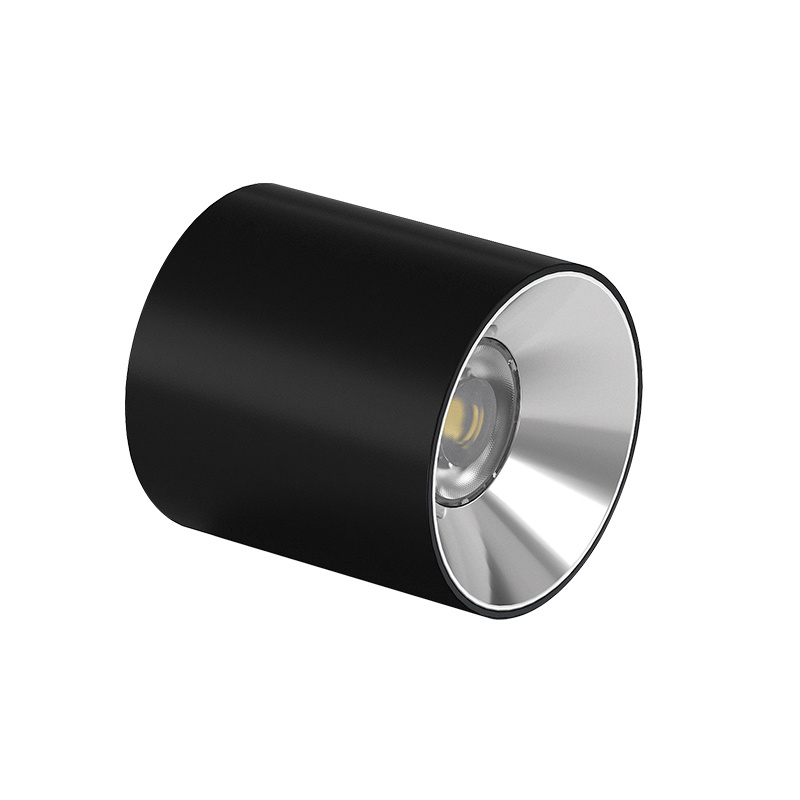

· Three reflector cup colors - black, white, or silver for perfect design coordination
· Architectural versatility - adapts effortlessly to various space requirements
Advanced Dimming Control Options
Single Color Temperature (CCT) Dimming:
• TRIAC Compatibility - Seamlessly integrates with standard wall dimmers for smooth brightness adjustment
• 0-10V Dimming - Delivers precision light control ideal for commercial and architectural applications
• DALI Protocol - Enables sophisticated lighting automation and system integration
Adjustable White (Tunable CCT) Options:
• 2.4G Wireless RF - Simple remote-controlled operation for effortless light management
• Tuya Smart Ecosystem - Full compatibility with Alexa, Google Assistant and smart home automation
• DALI DT8 Standard - Professional-grade color temperature tuning for advanced lighting scenarios
Comprehensive Wattage Selection for Perfect Illumination
Our lighting solutions offer an extensive range of power options to meet every lighting need:
Available in Multiple Wattages:
·7W / 10W / 12W (Ideal for accent & decorative lighting)
·15W / 18W / 20W (Perfect for task & ambient lighting)
·25W / 30W / 35W / 40W (Optimized for high-output applications)
The MDL09's exceptional adaptability makes it the ideal lighting choice for diverse environments:
Home & Living:
• Modern kitchens with task lighting needs
• Dining areas requiring adjustable ambiance
• Contemporary living rooms seeking stylish illumination
Business & Retail:
• Restaurant dining zones and bar counters
• Retail displays and boutique shop lighting
• Professional office workspaces
Hospitality & Leisure:
• Luxury hotel reception and lobby areas
• Lounge bars and entertainment venues
• Conference and event spaces
Specialty Lighting Applications:
• Art galleries and museum displays
• High-end showroom exhibitions
• Architectural feature lighting
