Led Downlight Factory for Recessed Ceiling Lighting FT-DLT10
Features:
● Delivers bright, efficient illumination
● Suitable for diverse international markets
● Provides exceptionally wide and uniform illumination
● Compatible with dimmers for flexible ambiance control
● Significantly reduces energy consumption and maintenance
● Reveals true colors with high Color Rendering Index options
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 5-20W：0.5 ; 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led SMD Recessed Downlight |
| Power | 5W/7W/9W/10W/12W/15W/20W/25W/30W/35W/40W/45W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 120° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 55/75/80/95/120/145/160/200mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 5W-20W: 0.5 ; 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

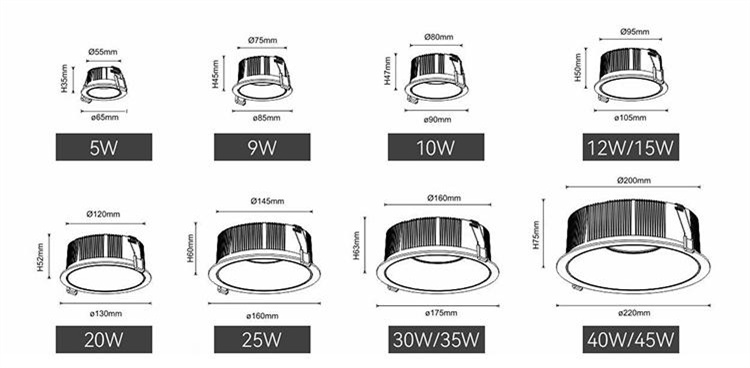

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-DLT10-5W |
5W |
D60*H35 |
¢55 |
2700K
|
|
FT-DLT10-7W |
7W |
D85*H45 |
¢75 |
|
|
FT-DLT10-9W |
9W |
D85*H45 |
¢75 |
|
|
FT-DLT10-10W |
10W |
D90*H47 |
¢80 |
|
|
FT-DLT10-12W |
12W |
D105*H50 |
¢95 |
|
|
FT-DLT10-15W |
15W |
D105*H50 |
¢95 |
|
|
FT-DLT10-20W |
20W |
D130*H52 |
¢120 |
|
|
FT-DLT10-25W |
25W |
D160*H60 |
¢145 |
|
|
FT-DLT10-30W |
30W |
D175*H63 |
¢160 |
|
|
FT-DLT10-35W |
35W |
D175*H63 |
¢160 |
|
|
FT-DLT10-40W |
40W |
D220*H75 |
¢200 |
|
|
FT-DLT10-45W |
45W |
D220*H75 |
¢200 |
SMD LED Downlight
Key Features:
•High-Efficiency SMD LED Chip – Delivers bright, uniform illumination
•Superior Heat Dissipation – Extends lifespan and maintains stable performance
•Energy-Saving & Eco-Friendly – Low power consumption with high luminous efficacy

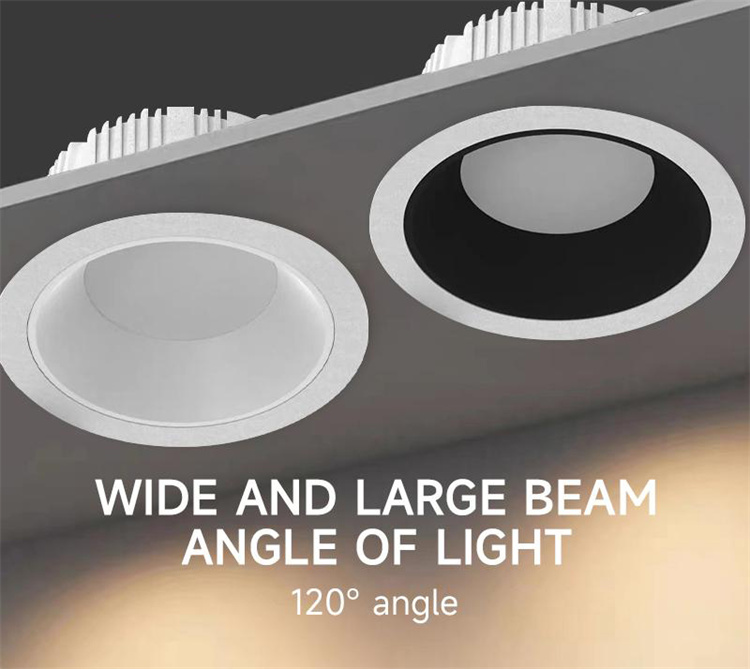

Generally, the beam Angle of SMD downlights is wider, so the beam angle of this downlight is 120°.

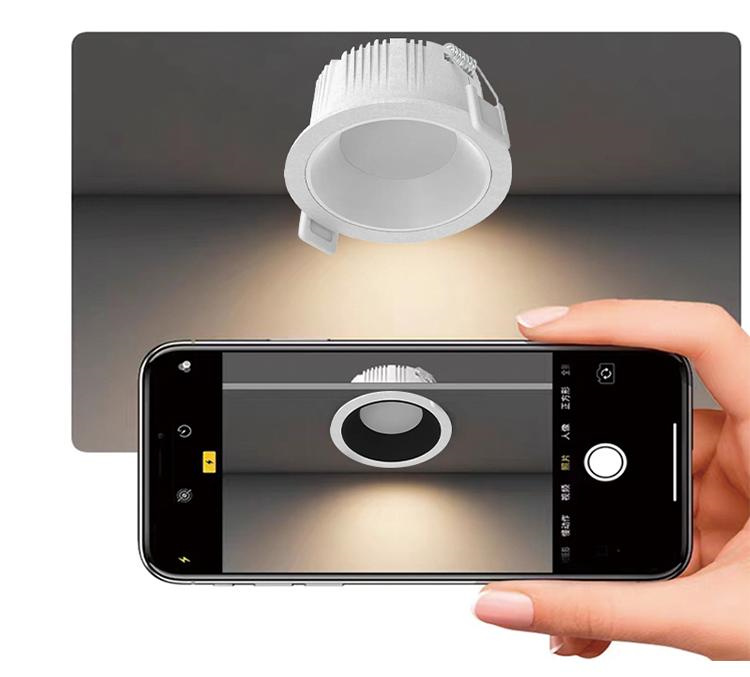

Flicker-Free Downlight – Easy on the Eyes
This downlight is flicker-free
• True flicker-free lighting technology
• Eliminates eye strain and headaches
• Perfect for spaces where people work or relax for long hours

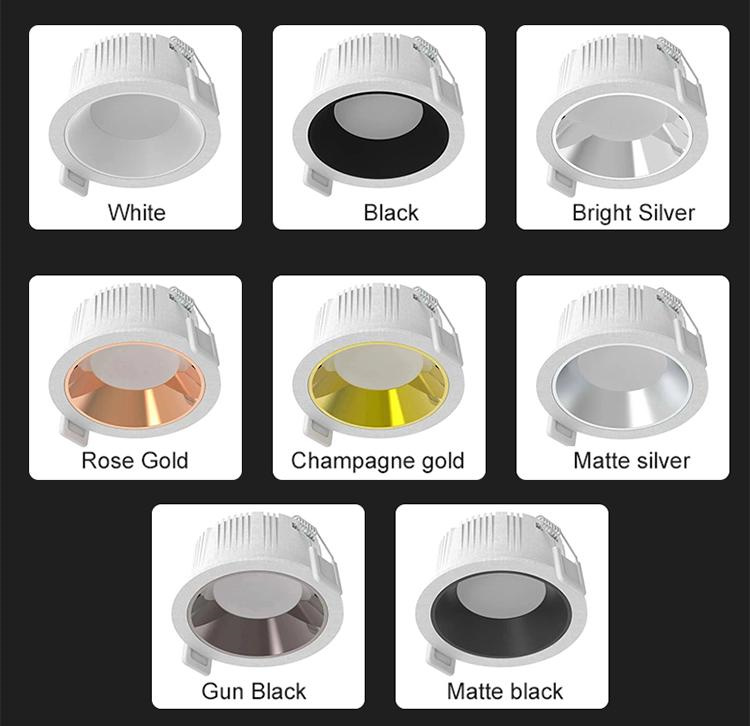

Customizable Reflector Colors for This Downlights
Available Finishes & Applications:
▪ Black – Sleek & Focused
Minimizes glare for sharp beam control
Perfect for modern accent lighting and minimalist spaces
▪ White – Clean & Versatile
Discreet ceiling integration
Ideal for residential and office ambient lighting
▪ Silver – Bright & Efficient
Optimizes light reflection for maximum brightness
Recommended for commercial displays and workspaces
▪ Gold – Rich & Inviting
Complements warm color temperatures
Creates sophisticated hospitality lighting
▪ Rose Gold – Stylish & Decorative
Trendy metallic aesthetic
Preferred for luxury interiors and boutique settings
Available Wattages & Recommended Uses
Full Wattage Range:
5W | 9W | 10W | 12W | 15W | 20W | 25W | 35W | 40W | 45W
(Complete selection from subtle accent lighting to powerful illumination)
Intelligent Lighting Control System
1. Premium Dimming Performance
Residential dimming: TRIAC/ELV wall dimmer compatible
Commercial-grade control: 0-10V dimming support
Smart building ready: Full DALI-2 & DT8 compliance
2. Dynamic Color Temperature Adjustment
Wide CCT range: 2700K (warm) to 6000K (cool)
Precision tuning: ±50K color accuracy
Custom lighting scenes: One-touch mood presets
3. Multi-Protocol Connectivity
Wireless Control:
✓ Bluetooth Mesh for local networks
✓ WiFi for smart home integration
✓ Zigbee 3.0 for IoT ecosystems
Wired Solutions:
✓ DALI DT8 certified for professional installations
✓ Compatible with building automation systems

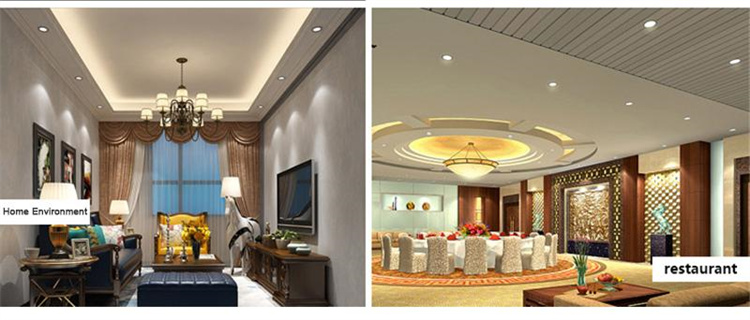

Application
Perfect for home, market, hotel, restaurant etc.
High-Value 120° SMD Downlight: Uniform Illumination, Unbeatable Economics
Engineered for budget-conscious projects without compromising performance, this ultra-wide-angle downlight leverages (SMD) technology to deliver seamless 120° illumination at unprecedented value. Its optimized LED array eliminates hotspotting while achieving 90+ CRI color accuracy – providing commercial-grade light distribution at entry-level pricing.
Cost-Efficiency Advantages:
● Eliminated Secondary Optics: SMD chips emit 120° natively, removing costly reflectors/lenses while maintaining ≤10% intensity variance across ceilings.
● Simplified Thermal Design: Direct SMD-on-board mounting reduces component count, enabling 35% lower production costs vs. comparable COB alternatives.
● Energy Density: Achieves 95lm/W efficacy at full spectrum (2700K-6000K), cutting operational costs by ≤22% vs. 90° retrofit kits.
● Reduced Fixture Count: 120° coverage allows 30% wider spacing (2.8m ceiling example: 2.1m spacing vs. 1.5m for 60° models), slashing installation time and hardware expenses.
Technical Superiority:
● Flicker-Free Operation: <5% THD across 100-277V input (no driver replacement needed)
● Glare Control: Micro-prismatic diffuser achieves UGR<19 for office/compliance
● Instant On: 0.5s cold start to 100% brightness
● Robust Build: PC+ABS housing passes 50kg pressure test (exceeds EN 60598)
Application-Specific Value:
1. Budget Retail: Uniform merchandise illumination without lensing costs
2. Education: Shadow-free classroom lighting with 50,000-hour lifespan
3. Warehousing: Wide-area coverage reduces fixtures by 25% in high-bay spaces
4. Multi-Family Housing: Cost-effective ambient lighting in corridors/laundry rooms
Includes TRIAC dimming (10%-100% smooth dim), IC-rated insulation, and 5-year coverage. Third-party certified to CE/ROHS/SAA standards.
