01
IP65 Led Warm White Cob Smart Dimmable Downlights Factory FT-DLT11
Features:
● 0-10V/DALI/TRIAC/TUYA multi-protocol
● Surge Protection-Withstands voltage fluctuations
● Quick-Connect Terminals-Simplifies installation
● ODM/OEM Support-Custom solutions available for bulk orders
● Adjustable Trim Options-Customizable bezel colors/finishes
● High Lumen Output–Bright illumination with low energy use
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-55W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Cob Downlight |
| Power | 7W/10W/12W/15W/20W/25W/30W/35W/40W/45W/50W55W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 15/24/36/55° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 55/75/95/115/145/170/200MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7W-20W: 0.5 ; 25W-55W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

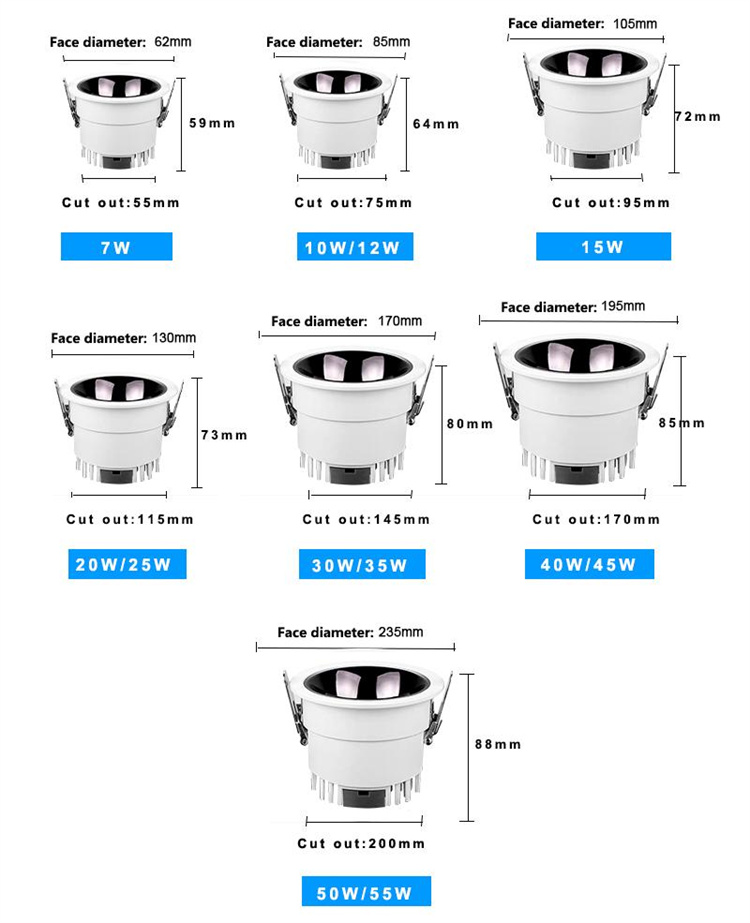

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-DLT11-7W |
7W |
D62*H59 |
¢55 |
2700K
|
|
FT-DLT11-10W |
10W |
D85*H64 |
¢75 |
|
|
FT-DLT11-12W |
12W |
D85*H64 |
¢75 |
|
|
FT-DLT11-15W |
15W |
D105*H72 |
¢95 |
|
|
FT-DLT11-20W |
20W |
D130*H73 |
¢115 |
|
|
FT-DLT11-25W |
25W |
D130*H73 |
¢115 |
|
|
FT-DLT11-30W |
30W |
D170*H80 |
¢145 |
|
|
FT-DLT11-35W |
35W |
D170*H80 |
¢145 |
|
|
FT-DLT11-40W |
40W |
D195*H85 |
¢170 |
|
|
FT-DLT11-45W |
45W |
D195*H85 |
¢170 |
|
|
FT-DLT11-50W |
50W |
D235*H88 |
¢200 |
|
|
FT-DLT11-55W |
55W |
D235*H88 |
¢200 |

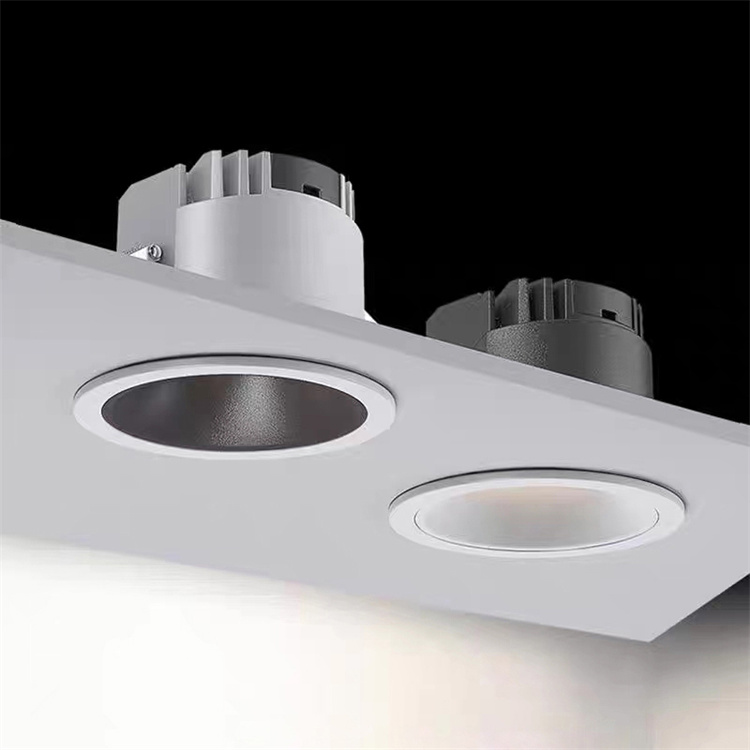

Recessed LED COB Downlight
This downlight is embedded installation:
• No exposed design: Perfectly flush with the ceiling to maintain a unified decoration style
• Minimalist modern feel: Suitable for various decoration styles (modern/Nordic/industrial style)
Flexible installation and adaptation
• Suitable for various ceilings: gypsum board/wood/mineral wool board
• Standardization of opening dimensions (commonly Φ55-Φ220mm)
Flicker-Free Downlight – Easy on the Eyes
This downlight is flicker-free
• True flicker-free lighting technology
• Eliminates eye strain and headaches
• Perfect for spaces where people work or relax for long hours

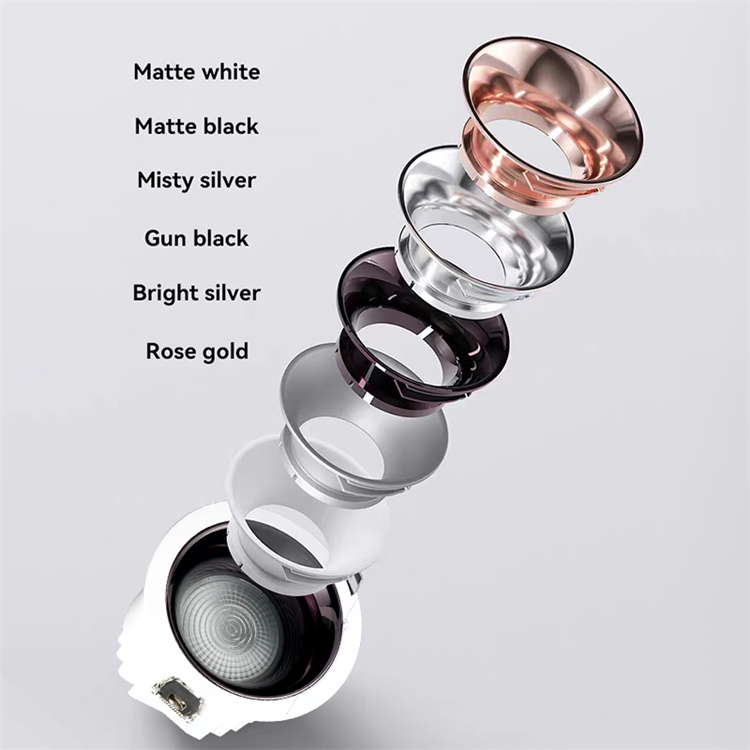

Customizable Reflector Cup for Downlights
Available Color Options & Applications
▪ Black -Anti-glare design for crisp beam control
▪ Pure White - Seamless Integration with ceiling
▪ Silver - Maximum Reflectivity,Enhanced light output efficiency
▪ Gold - Warm Ambiance,Perfects 2700-3000K warm white tones
▪ Rose Gold - Trendsetting metallic aesthetic
Versatile Wattage Options for LED Downlights
Available Power Ratings:
7W | 10W | 12W | 15W | 20W | 25W | 35W | 40W | 45W | 50W | 55W
Wattage Selection Guide:
1. Low Power (7W-12W) - Energy Efficient
• Best for: Accent lighting (artwork, displays),Secondary ambient lighting,Small residential spaces
2. Medium Power (15W-25W) - Balanced Performance
• Ideal applications: General room lighting,Retail environments,Office workspaces,Kitchen task lighting
3. High Power (35W-55W) - Commercial Grade
• Designed for: High-ceiling installations (4m+),Large area illumination
,Industrial/warehouse settings
Intelligent Lighting Control System
1. Premium Dimming Performance
Residential dimming: TRIAC/ELV wall dimmer compatible
Commercial-grade control: 0-10V dimming support
Smart building ready: Full DALI-2 & DT8 compliance
2. Dynamic Color Temperature Adjustment
Wide CCT range: 2700K (warm) to 6000K (cool)
Precision tuning: ±50K color accuracy
Custom lighting scenes: One-touch mood presets
3. Multi-Protocol Connectivity
Wireless Control:
✓ Bluetooth Mesh for local networks
✓ WiFi for smart home integration
✓ Zigbee 3.0 for IoT ecosystems
Wired Solutions:
✓ DALI DT8 certified for professional installations
✓ Compatible with building automation systems

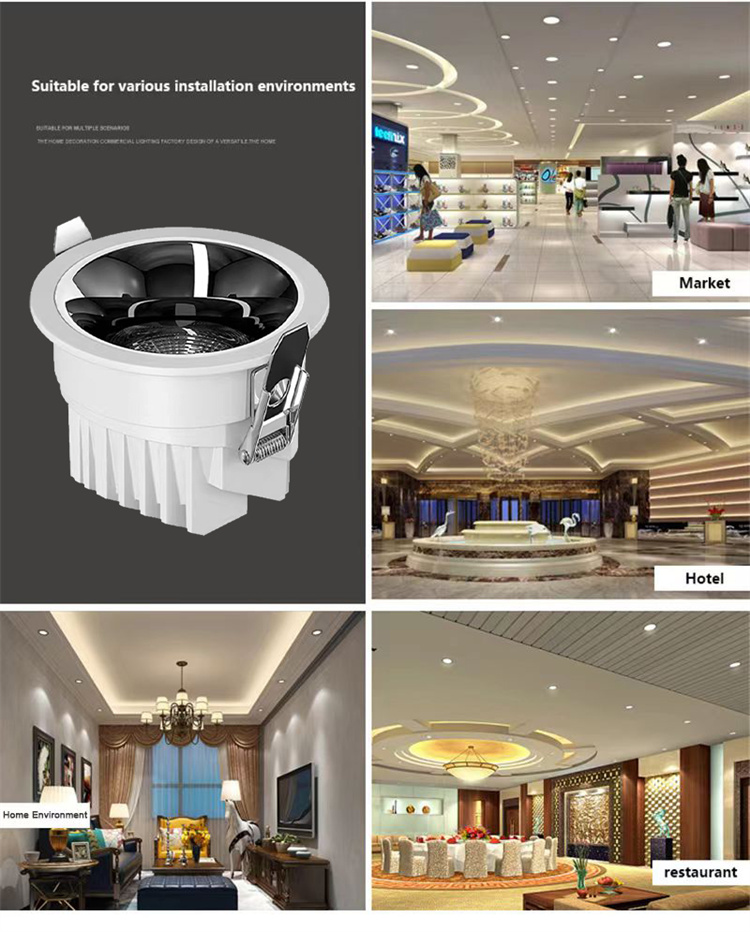

Application
Perfect for home, market, hotel, restaurant etc.
Power-Scalable Smart Downlight: Precision Illumination for Demanding Applications
Engineered for ultimate adaptability, this commercial-grade recessed LED downlight delivers unmatched flexibility with dimmable power and four premium trim finishes (White/Black/Gun-black/Rose Gold). Encased in a die-cast aluminum housing with integrated cooling fins, it ensures optimal thermal management across all wattages – enabling consistent 105lm/W efficacy from accent lighting to high-output applications.
Key Advantages:
● Wattage Precision: Select exact lumen output (560lm-5000lm) for task-specific requirements without over-lighting. Ideal for transitioning from 7W (display cabinets) to 55W (warehouse aisles) within the same product line.
● Universal Dimming: Supports TRIAC (residential retrofit), 0-10V (commercial systems), and DALI (smart buildings) protocols with flicker-free performance (<1% at 5% dimming depth).
● Robust Construction: Pressure-tested aluminum housing provides IP44 splash resistance and 50,000-hour lifespan (L70/B10) even at 55W full load.
● Design Integration: Rotatable gunmetal/rose gold trims maintain beam integrity (±5% color shift) while complementing architectural finishes.
Technical Superiority:
● Beam Consistency: Maintains ≤10% intensity variance across 7W-55W range
● Instant Restrike: 0.2s full brightness recovery after power interruption
● Glare Control: UGR<19 rating with deep-recessed optics
● Thermal Protection: Auto current reduction at 85°C junction temperature
Application Solutions:
● Retail: 15W Rose Gold trims (boutique accent) + 35W Gun-black (general)
● Hospitality: 7W TRIAC-dimmable in bars / 25W DALI-controlled lobbies
● Industrial: 55W 0-10V models with black trims for high-bay areas
● Residential: 12W White trim kits for retrofit projects
Certified to CE/RoHS/SAA standards with 5-year warranty. Specify wattage, trim color, and dimming protocol when ordering.
1. Education: Shadow-free classroom lighting with 50,000-hour lifespan
2. Warehousing: Wide-area coverage reduces fixtures by 25% in high-bay spaces
4. Multi-Family Housing: Cost-effective ambient lighting in corridors/laundry rooms
Includes TRIAC dimming (10%-100% smooth dim), IC-rated insulation, and 5-year coverage. Third-party certified to CE/ROHS/SAA standards.
