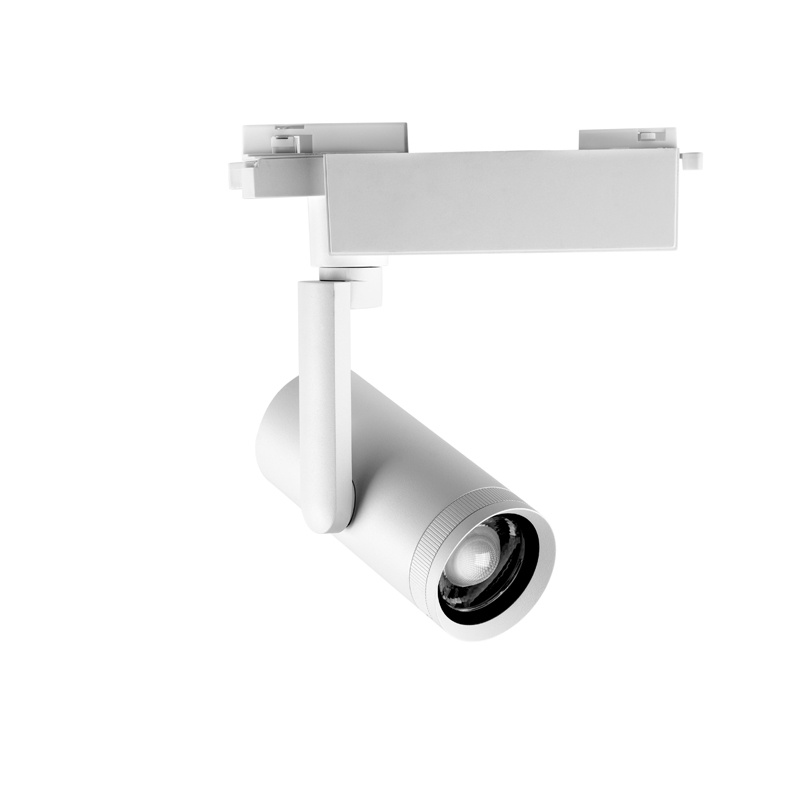

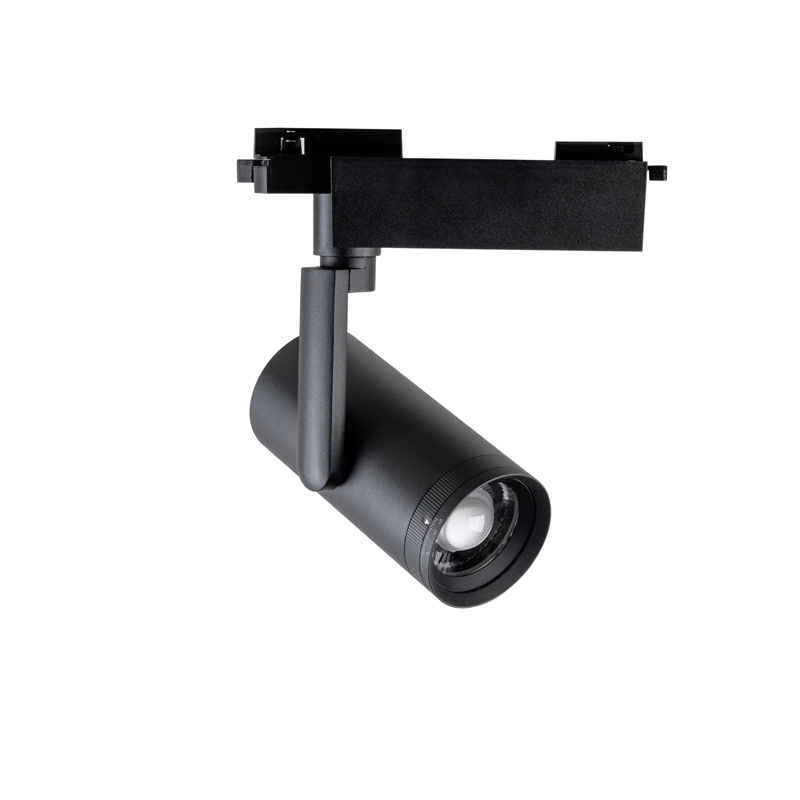

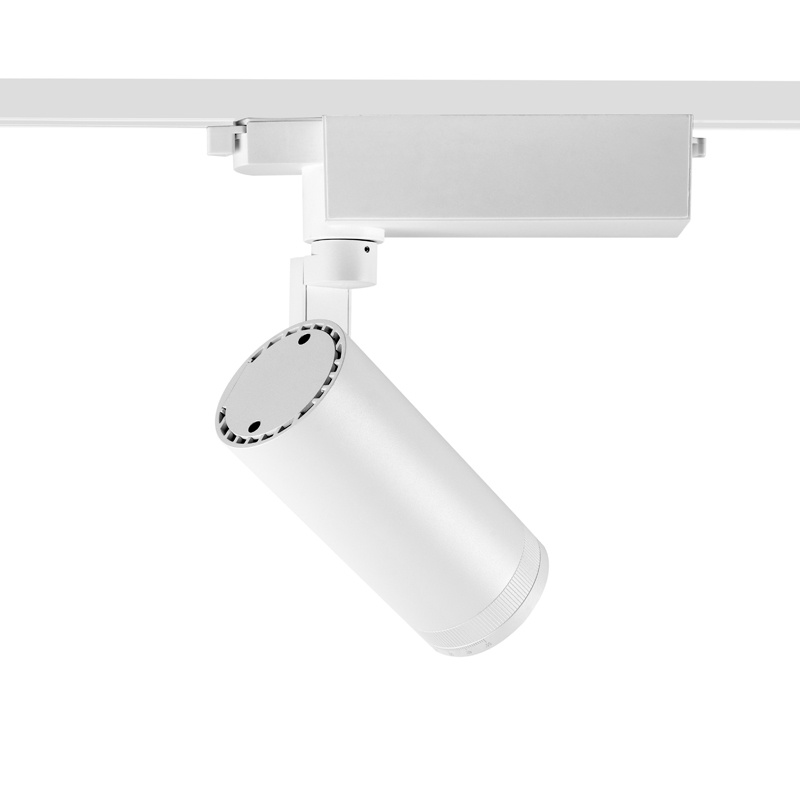

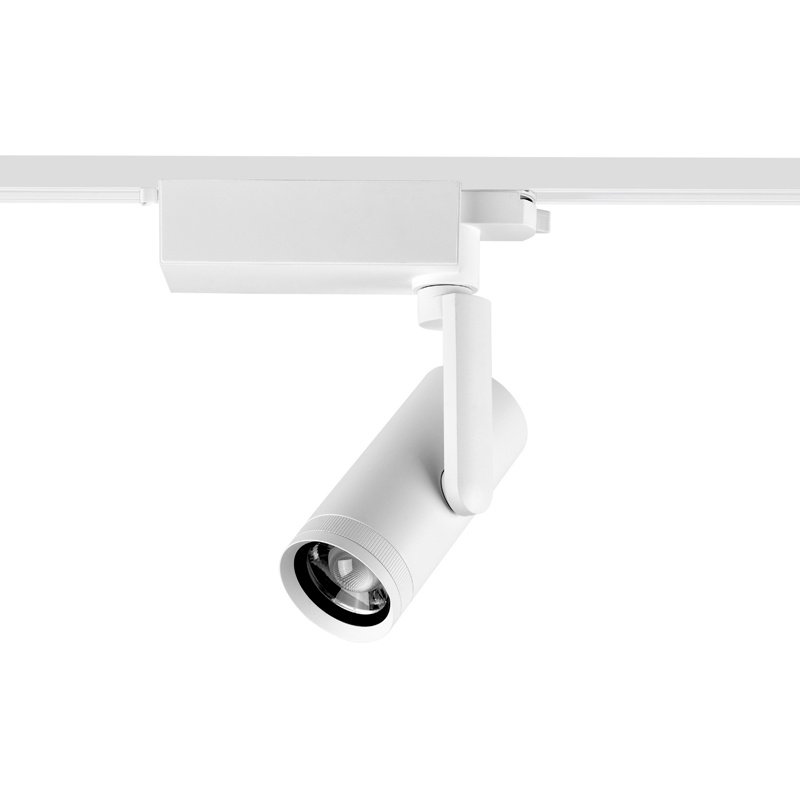

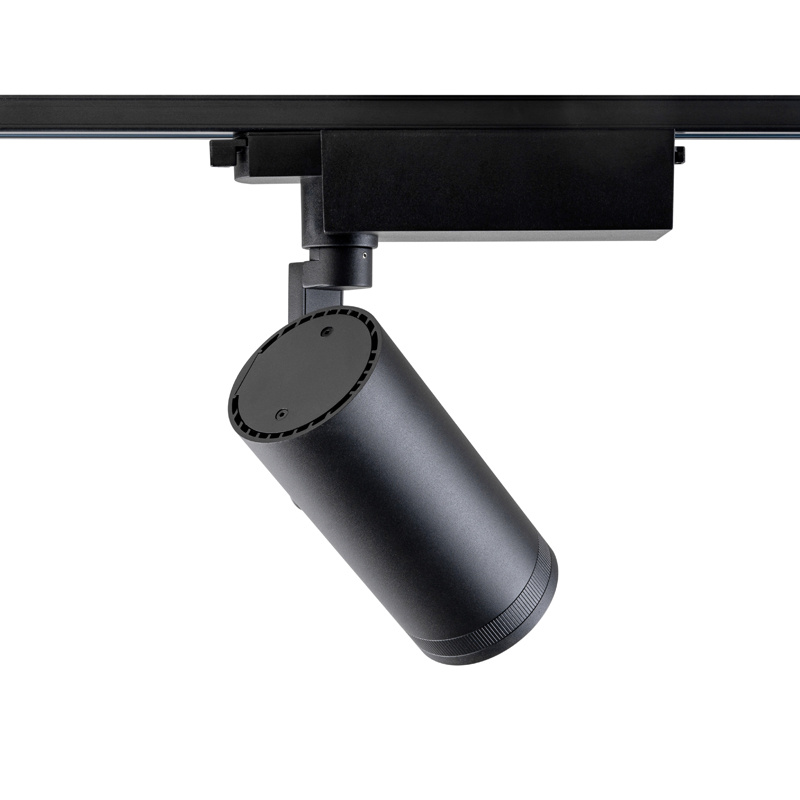

Minimalist Modern Zoom Integrated Track Lighting System Indoor FT-TL04

Features:

● 10°-55°Zoom Adjustable Beam Angle
● Multiple CCT Options：2700K-6500K
● Compatible with smart lighting control systems
● Robust Construction-corrosion-resistant finish
● Long Lifespan-50,000 hours(L70, @Ta=25°C)
● Optional Smart Control-Bluetooth/Zigbee

Specifications:

Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
PF 15-20W：0.5 ; 25W-45W: 0.95
Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
CRI 80/90/95
Lifespan 50000hrs

product details

Specification

Brand Name	Fitlight
Item Type	Zoomable Track Lights
Adaptor	2/3/4-phase
Certificates	CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL)
Power	15W/ 20W /25W/ 30W/ 35W/ 40W/45W
Input Voltage(V)	AC100-240V or AC200-240V
LED Light Source	CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Mainly COB series)
Driver	LIFUD / OSRAM / PHILIPS / TRIDONIC optional
Color	Black / White
Beam angle	10°-55°Adjustbale
CRI (Ra>)	80/90
Size	D55H140mm/D65H147mm/D75H159mm/D85H165mm/D95*H170mm
Working Temperature( °C )	-20 ~ +50
Lamp Body Material	Aluminum
CCT	Warm White(2700K/3000K/3500K) / Natural white (4000K) /Cool White (5000K/6000K)
PF	15W-20: 0.5 ; 25W-45W: 0.95
Ambient Temperature	-10℃～+40℃
Storage Tempertature	-20℃～50℃
Housing Temperature (working)	<70℃ (Ta=25℃)
Installation	Rail Track Installed

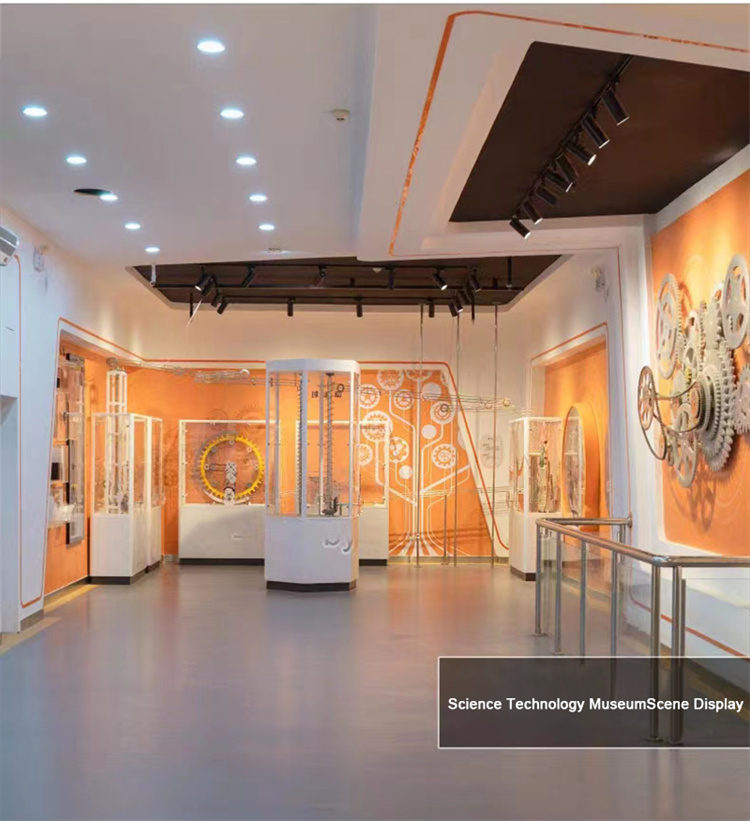

Application	Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc

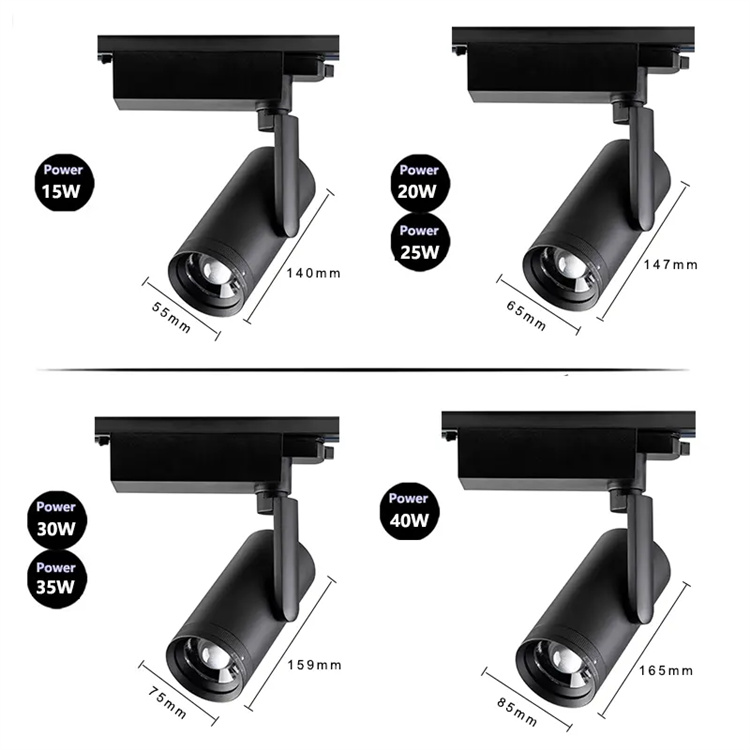

Model No.	Watts	Size(mm)	Lumens (lm)	LED Color
FT-TL04-15W	15W	D55*H140	1200lm	2700K 3000K 3500K 4000K 5000K 6000K 6500K
FT-TL04-20W	20W	D65*H147	1600lm
FT-TL04-25W	25W	D75*H159	2100lm
FT-TL04-30W	30W	D85*H165	2550lm
FT-TL04-35W	35W	D85*H165	2975m
FT-TL04-40W	40W	D95*H170	3600lm
FT-TL04-45W	45W	D95*H170	3825lm

The advantages of the product

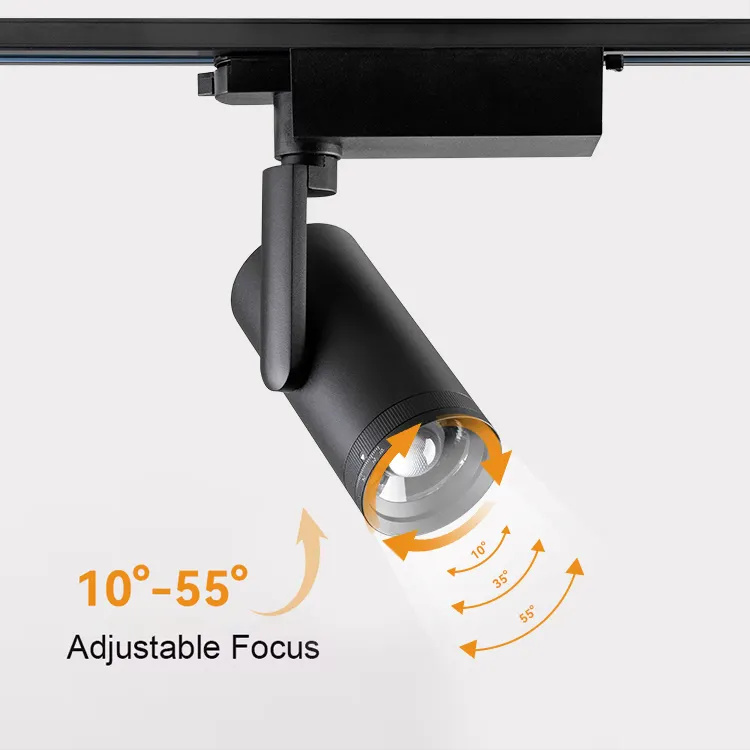

· 10-55° beam angles improve lighting versatility and scene adaptation

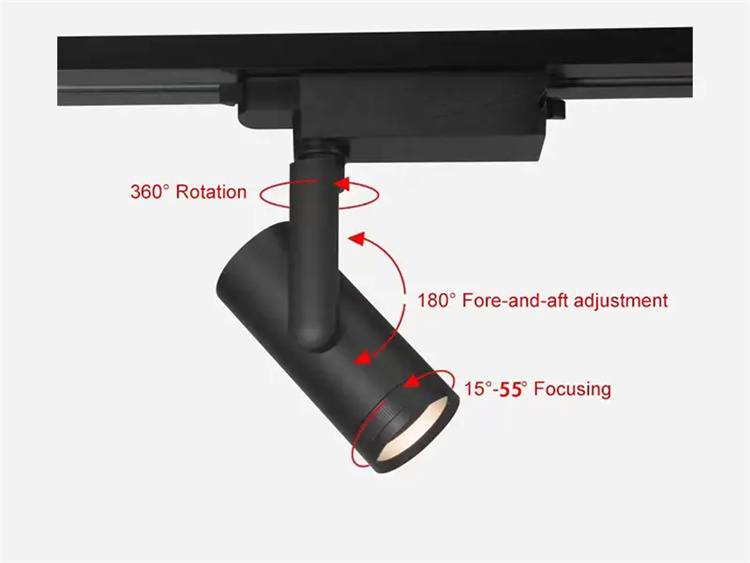

· The side arm design, with flexible adjustment, avoids obstruction and can expand the coverage of lighting. When the track is in close contact with the wall or beam and column, the side boom can extend laterally, preventing the lamp head from hitting obstacles. Visually, it is more simple and suitable for modern styles.

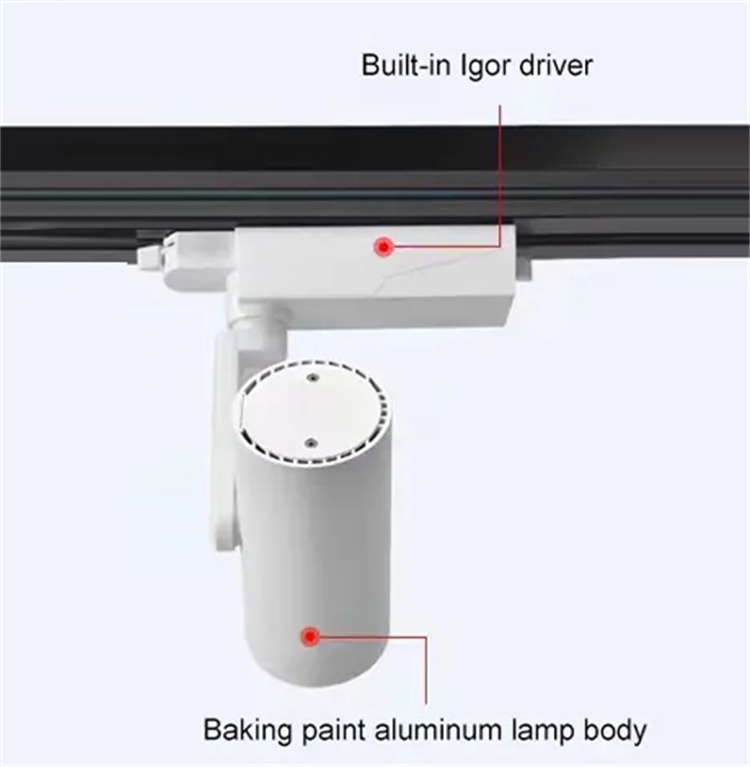

·Built-in driver, no exposed drivers or cables, suitable for minimalist style.

Adopt high-quality aluminum casing with excellent heat dissipation performance.

· Available in multiple wattages (15W–45W ), 15-30W track light is suitable for local lighting, such as window displays, exhibition stands or small-scale focused lighting. 30-45W track light can cover a larger area and is used for main lighting in living rooms, dining rooms and other Spaces.
