01
Modern Black Adjustable Integrated Driver Track and Spot Lighting Fixtures FT-TL05
Features:
● 10°-55°Zoom Adjustable Beam Angle
● Integrated Driver & Adaptor Design
● Supports smart lighting control systems
● Multi-Circuit Track Compatibility
● Flicker-Free & Stable Output
● Bluetooth/Zigbee ready for smart lighting integration
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W：0.5 ; 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Zoom Track Lights |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Power | 15W/ 20W /25W/ 30W/ 35W/ 40W/45W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Mainly COB series) |
| Driver | COIE /BOKE optional |

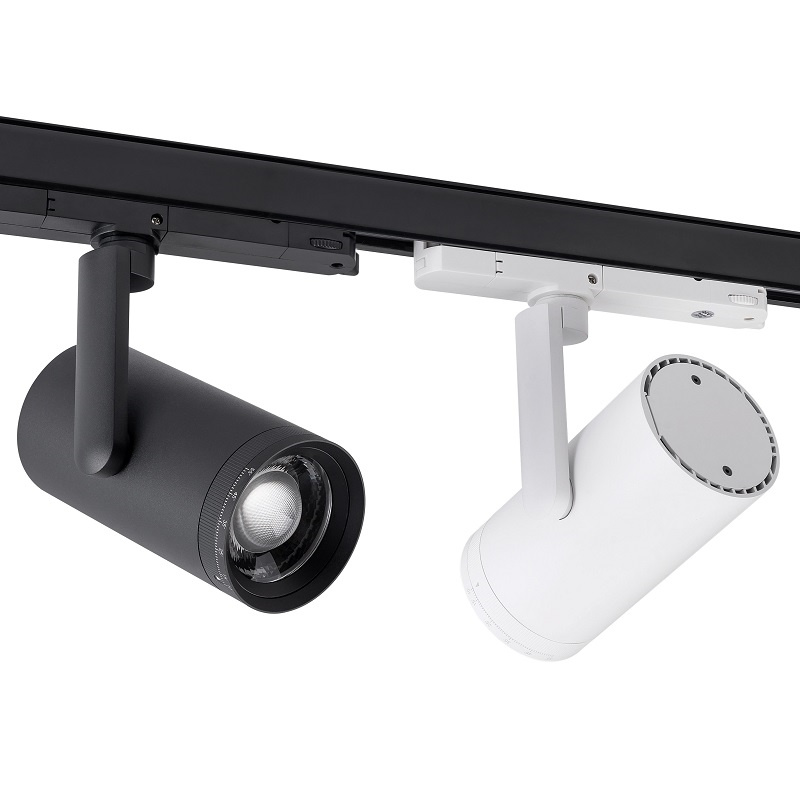

| Color | Black / White |
| Beam angle | 10°-55°Adjustbale |
| CRI (Ra>) | 80/90/95 |
| Size | D55*H140mm/D65*H147mm/D75*H159mm/D85*H165mm/D95*H170mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) / Natural white (4000K) Cool White (5000K/6000K) |
| PF | 15W-20W: 0.5 ; 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|
Model No. |
Watts |
Size(mm) |
Lumens (lm) |
LED Color |
|
FT-TL05-15W |
15W |
D55*H140 |
1200lm |
2700K
|
|
FT-TL05-20W |
20W |
D65*H147 |
1600lm |
|
|
FT-TL05-25W |
25W |
D75*H159 |
2100lm |
|
|
FT-TL05-30W |
30W |
D85*H165 |
2550lm |
|
|
FT-TL05-35W |
35W |
D85*H165 |
2975m |
|
|
FT-TL05-40W |
40W |
D95*H170 |
3600lm |
|
|
FT-TL05-45W |
45W |
D95*H170 |
3825lm |
The advantages of the product

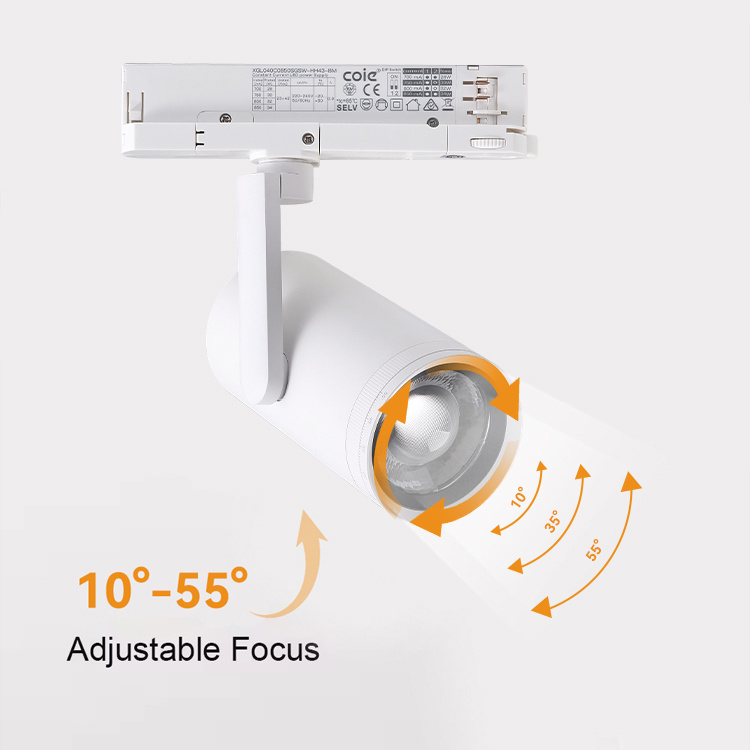

· The beam angle of track lighting can be adjusted freely from 10 -55 degrees.
If you don't know what Beam Angle you want, you can choose this zoom track light. You can get the beam angle you want and it is suitable for different environments.

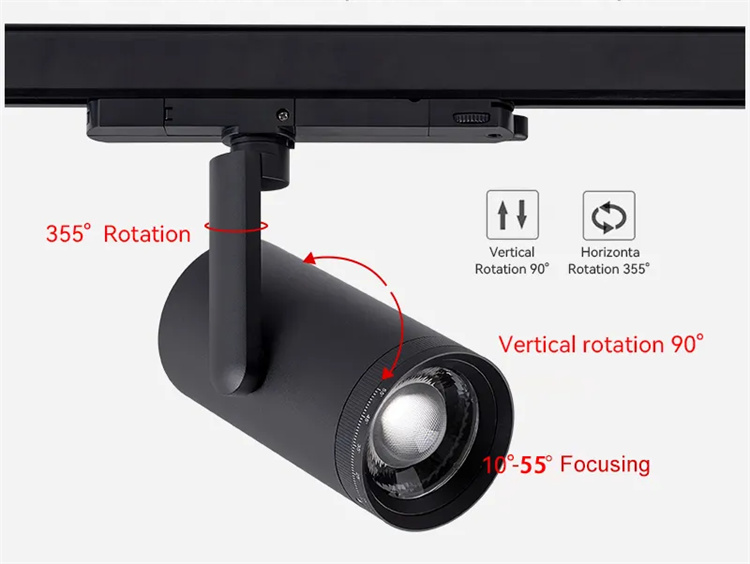

· Vertical rotation 90° and horizonta rotation 355°,The beam angel direction of this track light can be adjusted without blind spots, making it suitable for multi-angle lighting requirements.

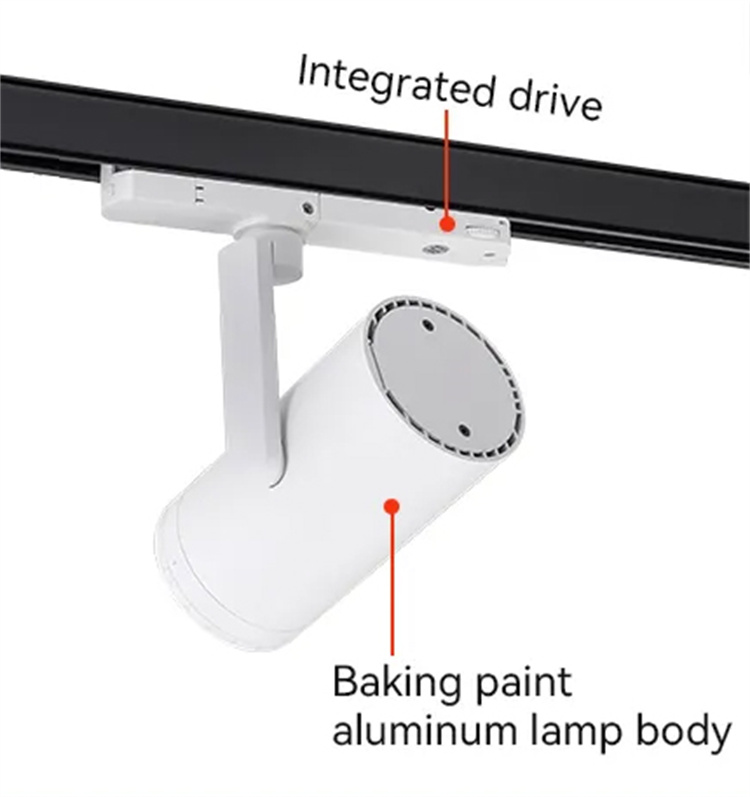

·Integrated driver, no exposed drivers or cables, easy to install and space-saving,suitable for minimalist style.
We use high-quality aluminum casing with excellent heat dissipation performance.

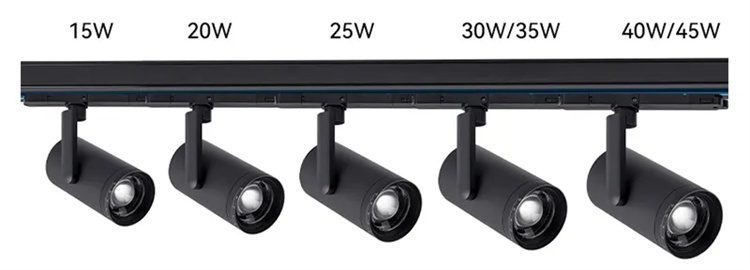

· Available in multiple wattages (15W–45W ), 15-30W track light is suitable for local lighting, such as window displays, exhibition stands or small-scale focused lighting. 30-45W track light can cover a larger area and is used for main lighting in living rooms, dining rooms and other Spaces.
Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
Adjustable Beam Angle LED Track Lights – Perfect for Museums & Galleries
Our LED adjustable focus track lights (10°–55° beam angle adjustable) offer unparalleled flexibility for precision lighting in museums, art galleries, and high-end retail displays. The ability to fine-tune the beam angle ensures optimal illumination for different artworks, exhibits, and architectural details.
Why Beam Angle Matters
Narrow Beam (10°–25°): Creates a focused spotlight effect, ideal for highlighting sculptures, paintings, or small artifacts with minimal light spill. Enhances contrast and draws attention to key pieces.
Medium Beam (30°–45°): Perfect for larger displays or grouped artworks, providing even coverage while maintaining visual emphasis. Great for gallery walls or historical exhibits.
Wide Beam (50°–55°): Delivers broad, ambient lighting for open spaces or large installations, reducing shadows and ensuring uniform brightness.
Key Applications

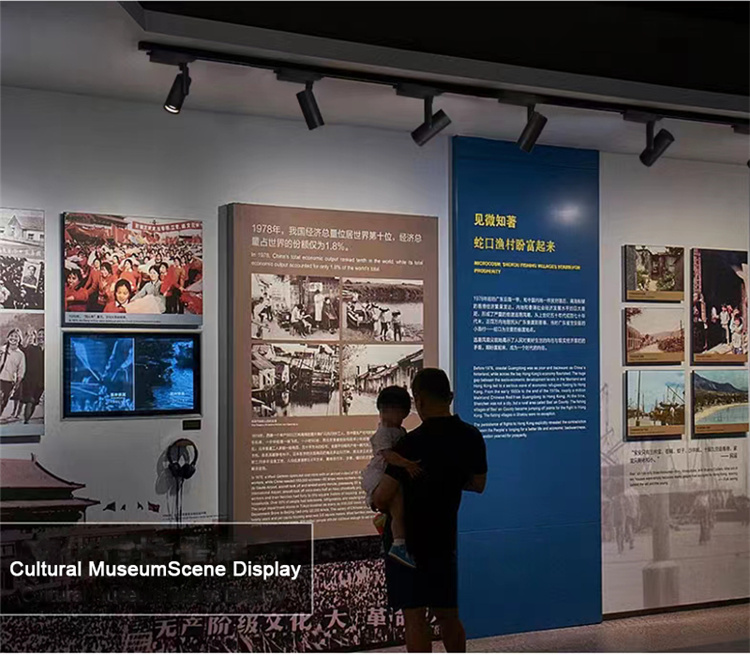

Museums: Adjust between a tight spotlight for delicate artifacts and a wider wash for informational panels.
Art Galleries: Accent lighting for paintings (narrow angle) or wider coverage for installations (55°).
Luxury Retail: Highlight products with a sharp beam or create inviting ambiance with a softer spread.
Advanced Features
✔ Smooth Adjustment– Rotate or slide to set the perfect angle without tools.
✔ High CRI (>90) – True color rendering for accurate artwork representation.
✔ Dimmable Options – Adjust brightness to preserve light-sensitive materials.
Upgrade to smart control compatibility for automated beam adjustments based on exhibit layouts. Contact us for customized lighting solutions!
