Modern Black Adjustable Integrated Driver Track and Spot Lighting Fixtures FT-TL05
Features:
● 10°-55°Zoom Adjustable Beam Angle
● Integrated Driver & Adaptor Design
● Supports smart lighting control systems
● Multi-Circuit Track Compatibility
● Flicker-Free & Stable Output
● Bluetooth/Zigbee ready for smart lighting integration
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W：0.5 ; 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Zoom Track Lights |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp) |
| Power | 15W/ 20W /25W/ 30W/ 35W/ 40W/45W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Mainly COB series) |
| Driver | COIE /BOKE optional |
| Color | Black / White |
| Beam angle | 10°-55°Adjustbale |
| CRI (Ra>) | 80/90/95 |
| Size | D55*H140mm/D65*H147mm/D75*H159mm/D85*H165mm/D95*H170mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) / Natural white (4000K) Cool White (5000K/6000K) |
| PF | 15W-20W: 0.5 ; 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|
Model No. |
Watts |
Size(mm) |
Lumens (lm) |
LED Color |
|
FT-TL05-15W |
15W |
D55*H140 |
1200lm |
2700K
|
|
FT-TL05-20W |
20W |
D65*H147 |
1600lm |
|
|
FT-TL05-25W |
25W |
D75*H159 |
2100lm |
|
|
FT-TL05-30W |
30W |
D85*H165 |
2550lm |
|
|
FT-TL05-35W |
35W |
D85*H165 |
2975m |
|
|
FT-TL05-40W |
40W |
D95*H170 |
3600lm |
|
|
FT-TL05-45W |
45W |
D95*H170 |
3825lm |
The advantages of the product

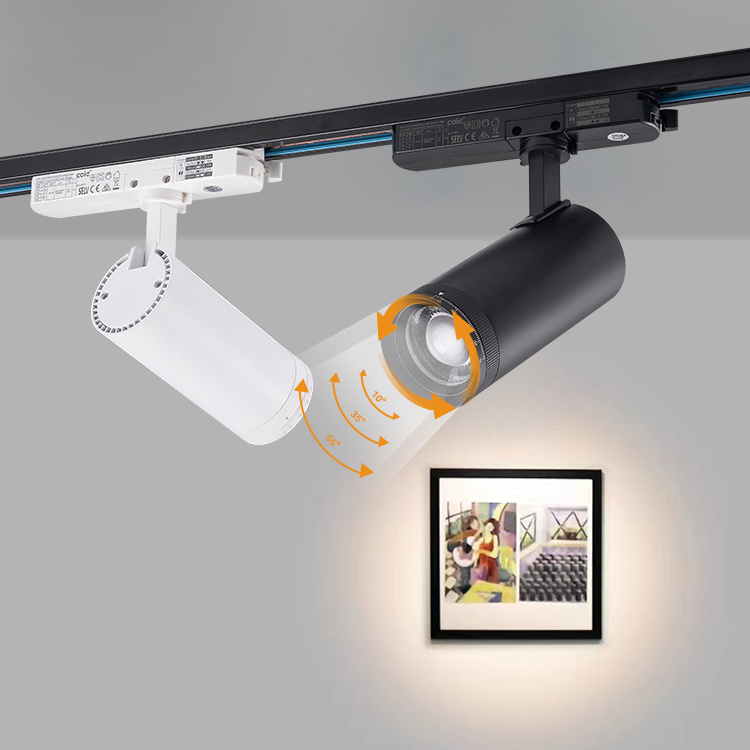

· The beam angle of track lighting can be adjusted freely from 10 -55 degrees.
∠15°:Suitable for small items, handicrafts, decorations, jewelry, etc.
∠24°:Suitable for vases, small cultural relics, hanging paintings, etc
∠36°:Suitable for exhibits, cultural relics, display cabinets, etc.
∠45°: Suitable for statues, fashion models, wall paintings, hanging paintings, etc
∠55°: Suitable for large-scale lighting, wall carving, exhibition stands, wall paintings, etc.
· Vertical rotation 90° and horizonta rotation 355°,The beam angel direction of this track light can be adjusted without blind spots, making it suitable for multi-angle lighting requirements.

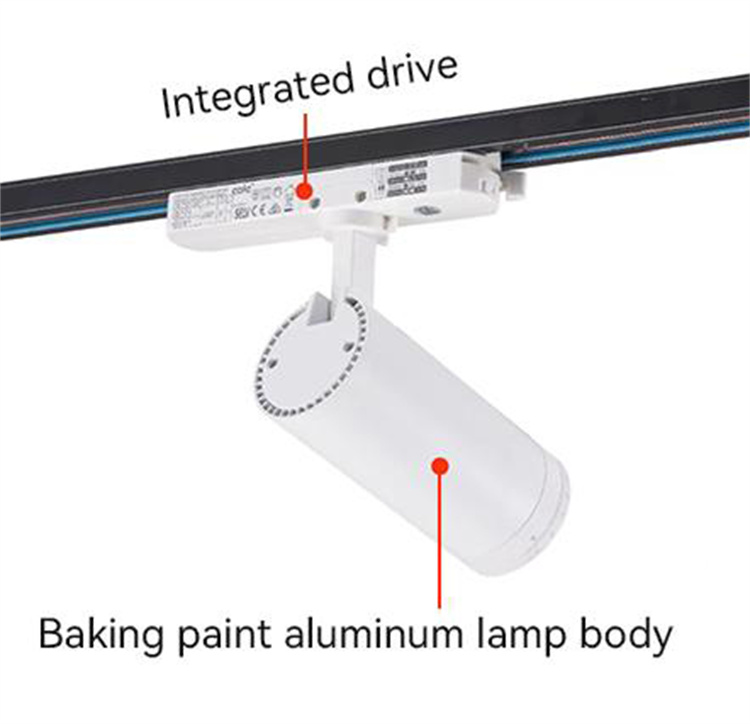

· Integrated driver, no exposed drivers or cables, easy to install and space-saving, suitable for minimalist style.
We use high-quality aluminum casing with excellent heat dissipation performance,long service life.

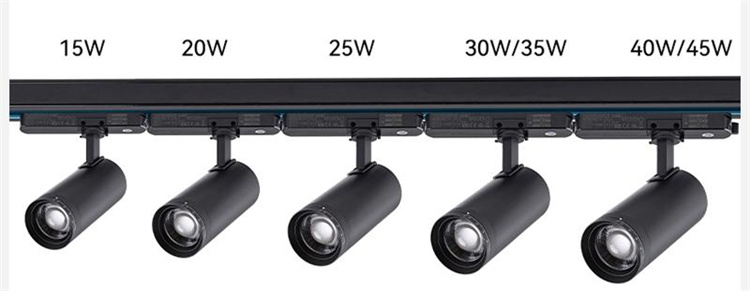

· Available in multiple wattages (15W–45W ), it can be paired with an intelligent dimming system.
This track light supports a 0-10V/DALI/Tric dimming system.
Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
Adjustable Beam Angle LED Track Lights – The Ultimate Lighting Solution for Art & Retail Spaces
Our premium adjustable track lights (10°–55° beam angle) offer complete lighting control for museums, art galleries, and high-end stores. With simple adjustments, you can create the perfect lighting for any display or artwork.
Why Adjustable Beams Matter
Spotlight Setting (10°–25°)
Creates a bright, focused beam perfect for highlighting individual paintings, sculptures, or jewelry displays. Makes colors pop while reducing light spill.
Medium Beam (30°–45°)
Ideal for lighting groups of artwork or larger displays. Provides even coverage without dark spots. Works great for gallery walls or product displays.
Wide Beam (50°–55°)
Offers soft, widespread light for large areas or room lighting. Reduces shadows and creates a welcoming atmosphere.
Where To Use Them
• Museums – Spotlight delicate artifacts or light entire exhibit cases
• Art Galleries – Accent individual pieces or illuminate entire walls
• Retail Stores – Highlight featured products or light dressing rooms
Smart Features You'll Love
✔ Easy adjustment – Change beam angles by hand, no tools needed
✔ True-color lighting – Shows artwork and products in their real colors (CRI 90+)
✔ Dimmable options – Control brightness to protect sensitive materials
✔ Energy efficient – Uses less power than traditional lighting
Available with optional smart controls for automatic lighting changes. Our lighting experts can help design the perfect system for your space – contact us today!
