Modern Flicker Free Flush Mounted Led Track Lighting Factory FT-TL27
Features:
● Certified Safety Standards
● Environmentally Friendly-RoHS compliant
● 5-Year Warranty-Industry-leading protection
● 50,000-Hour Lifespan- L90@50,000hrs (Ta=25°C)
● Smart Lighting Read-Optional Bluetooth/Zigbee mesh
● Cold-Forged Aluminum-30% better heat dissipation than die-cast
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W:0.5 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | COB LED Track Light |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Power | 10W/15W/20W/25W/30W/35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM |
| (Other driver brands can also choose from) | |
| Driver | OSRAM/LIFUD (Other driver brands can also choose from) |

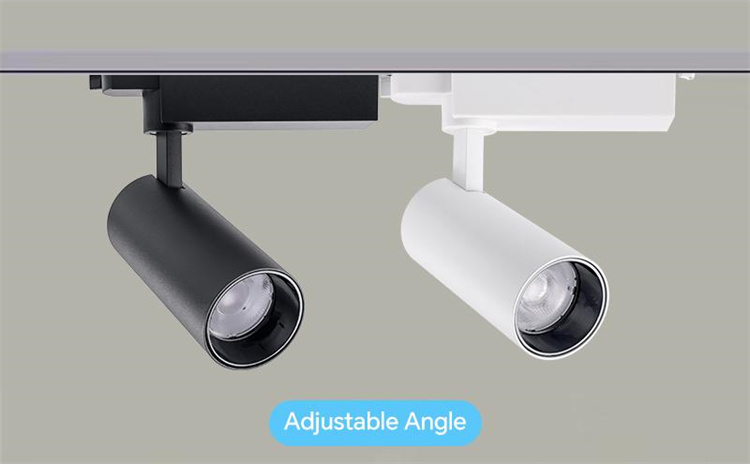

| Color | White Black For Option |
| Beam angle | 15°/24°/36°/50° |
| CRI (Ra>) | 80/90/95 |
| Size(mm) | D48*H120/D58*H135/D68*H155/D80*H155mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural white (4000K) Cool White (5000K/6000K) |
| PF | 10-20W:0.5 25W-35W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|
Model No. |
Watts |
Size(mm) |
Lumens |
LED Color |
|
FT-TL27-10W |
10W |
D48*H120 |
900LM |
2700K
|
|
FT-TL27-15W |
15W |
D58*H135 |
1350LM |
|
|
FT-TL27-20W |
20W |
D68*H155 |
1800LM |
|
|
FT-TL27-25W |
25W |
D68*H155 |
2250LM |
|
|
FT-TL27-30W |
30W |
D80*H155 |
2700LM |
|
|
FT-TL27-35W |
35W |
D80*H155 |
3150LM |
The advantages of the product
The driver and lamp body are designed separately, which helps to reduce maintenance costs. If the driver becomes damaged, there’s no need to disassemble the lamp; you can simply replace the external power supply.
This design also ensures efficient heat dissipation and contributes to a longer service life.

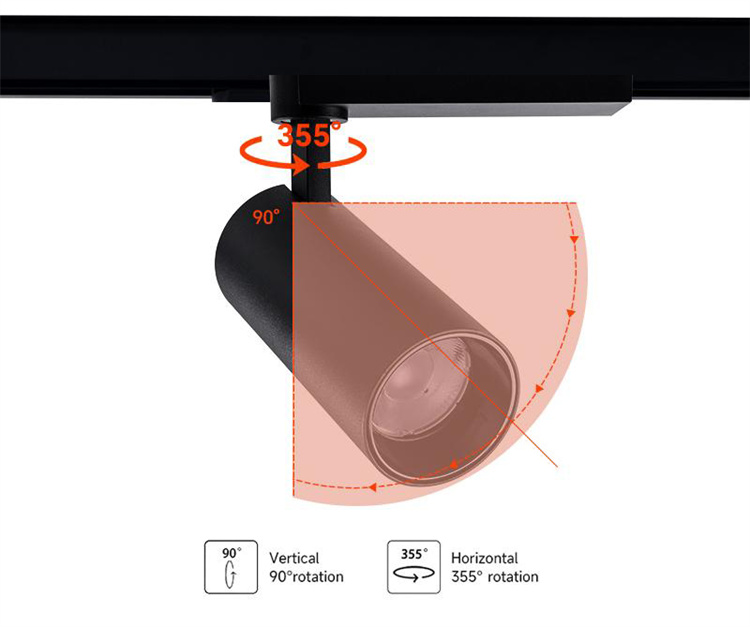

This track light offers impressive bidirectional adjustment, allowing for 355° horizontal rotation and 90° vertical rotation. This design ensures exceptional flexibility and precise control over lighting, making it ideal for various lighting designs. When making adjustments or reconfiguring spaces, there’s no need to reposition the tracks; simply rotate the lamp heads to redirect the light as needed.

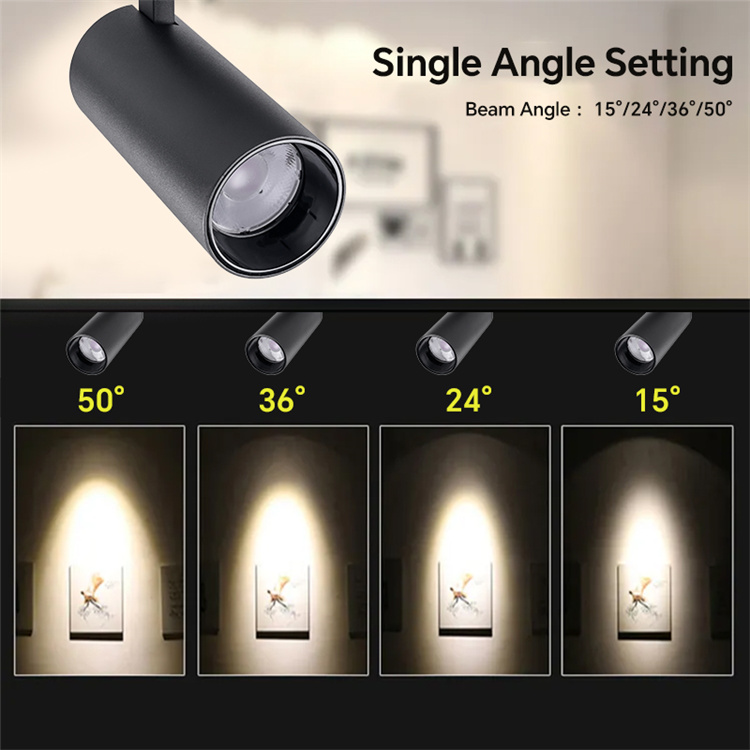

· This track light offers multiple beam Angle options such as 15°, 24°, 36°, and 50°. Different angles correspond to completely different lighting effects and application scenarios.

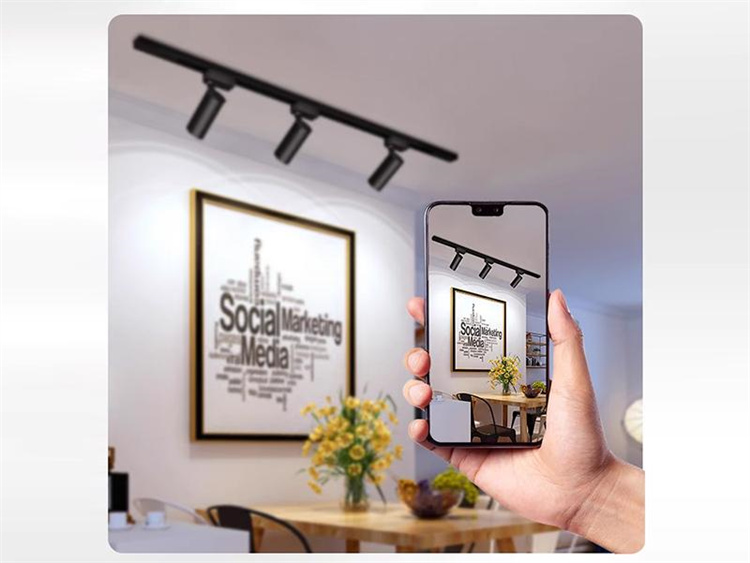

Flicker free: Eliminating the flickering that can be detected by the naked eye and mobile phone cameras, compared with traditional track lights, it can reduce visual fatigue by 82%

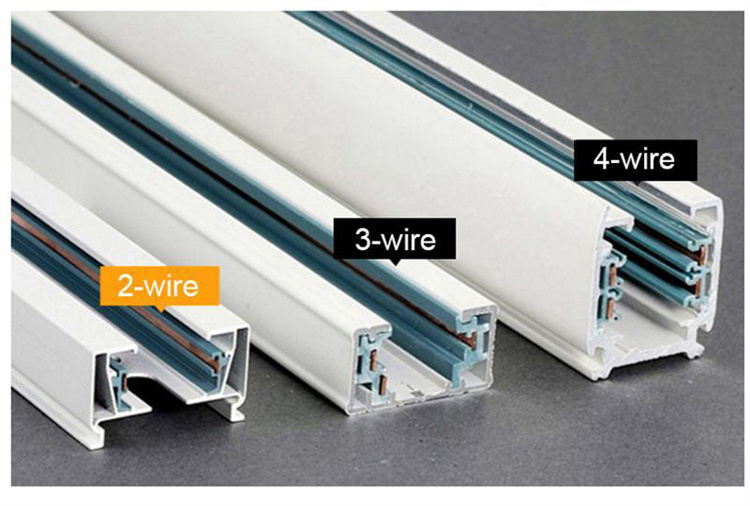

The 2-wire, 3-wire, and 4-wire systems of track lights are tailored to comply with the electrical standards and application requirements of different countries. The primary distinctions between these systems involve power supply methods, dimming protocols, and safety regulations.
2-Wire System: This system is perfect for residential and basic commercial lighting, as it does not necessitate intelligent control features.
3-Wire System: Widely utilized in North America (including the United States and Canada) and some European countries.
4-Wire System: Specifically designed for global professional lighting projects, this system is well-suited for theaters, stages, and high-end retail spaces.

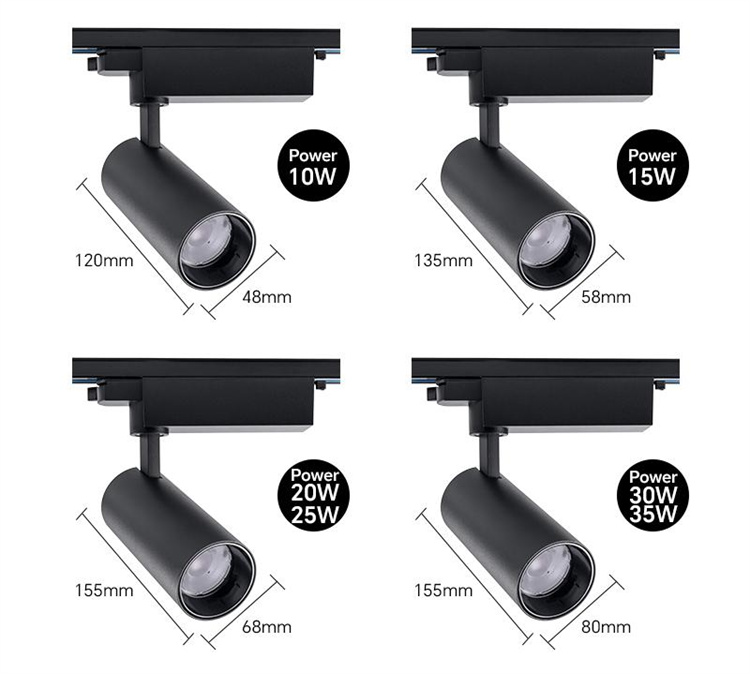

· Our track lights are available in a variety of wattages (10W–35W) to suit both residential and commercial needs.
15W-20W Track Lights: These are perfect for highlighting jewelry counters, art displays, and home decorative paintings.
25W-30W Track Lights: Ideal for illuminating clothing store shelves, restaurant tables, and office workstations.
35W-45W Track Lights: Specifically designed for fresh food sections in supermarkets, main stages in exhibition halls, and high-position lighting in factories.
Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
Optimizing LED Track Light Beam Angles for Retail Lighting (15°/24°/36°/50°)
Selecting the proper beam angle is crucial for creating perfect lighting in clothing stores and supermarkets. Our LED track lights offer four precision beam options to enhance visual merchandising:
1.15° (Narrow Spot)
● Best for: Highlighting individual luxury items or accessories
● Retail Application:Jewelry displays, handbags, or featured designer pieces
● Effect: Creates dramatic focal points with intense illumination
2.24° (Spot)
● Best for: Mannequin lighting and single garment racks
● Retail Application:Fitting room entrances or premium product zones
● Effect:Provides defined shadows that show textile textures clearly
3.36° (Medium Flood)
● Best for: General merchandise sections
● Retail Application: Jeans walls, shirt displays, or mid-size product groupings
● Effect: Balanced coverage that maintains good contrast
4.50° (Wide Flood)
● Best for: Overall ambient lighting
● Retail Application:Aisles, cashier areas, or fitting room interiors
● Effect: Uniform illumination that reduces harsh shadows
Smart Combination Tip
Layer 15°+36° angles for boutique stores (accent+fill lighting), or combine 24°+50° in supermarkets (product+aisle lighting). All options feature 90+ CRI for true color rendering essential for textile displays.
