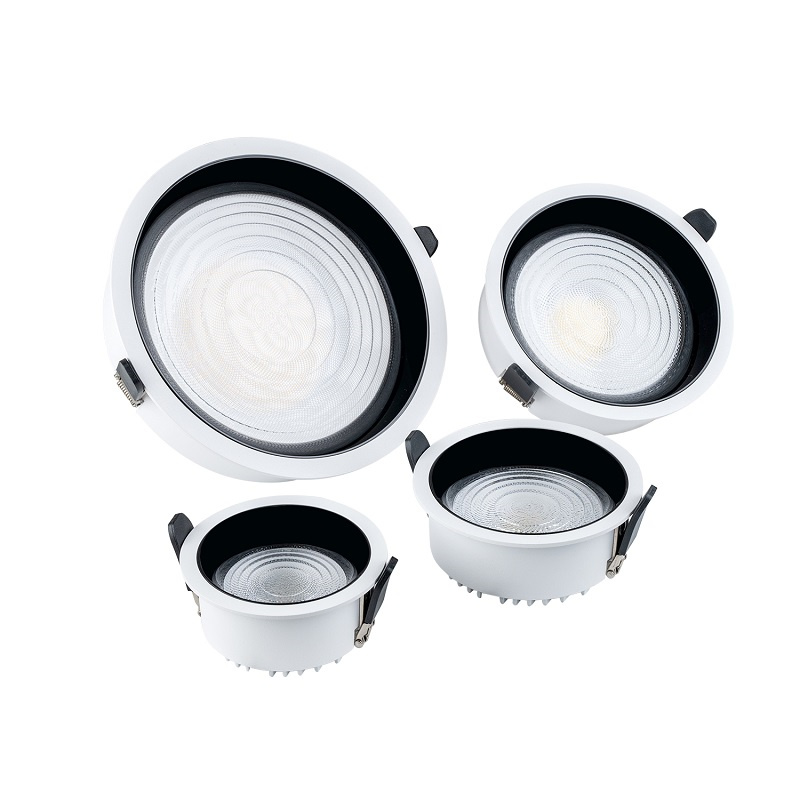

Modern Recessed Lights Dimmable Led Downlights Manufacturer FT-DLT14
Features:
● Ultra-High Efficiency 140-160LM/W
● 5-year warranty-Reliable quality assurance
● 50,000+ hours lifespan-Lower maintenance costs
● Low power consumption-Saves on electricity bills
● High-efficiency LED chips-Bright, consistent illumination
● Surge&overvoltage protection–Protects against power fluctuations
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-100W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Cob Downlight |
| Power | 7W/10W/12W/15W/18W/20W/25W/30W/35W/40W/45W/50W60W/70W/80W/100W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 120° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 75/80/95/120/140/160/200/220/240/260MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7W-20W: 0.5 ; 25W-100W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

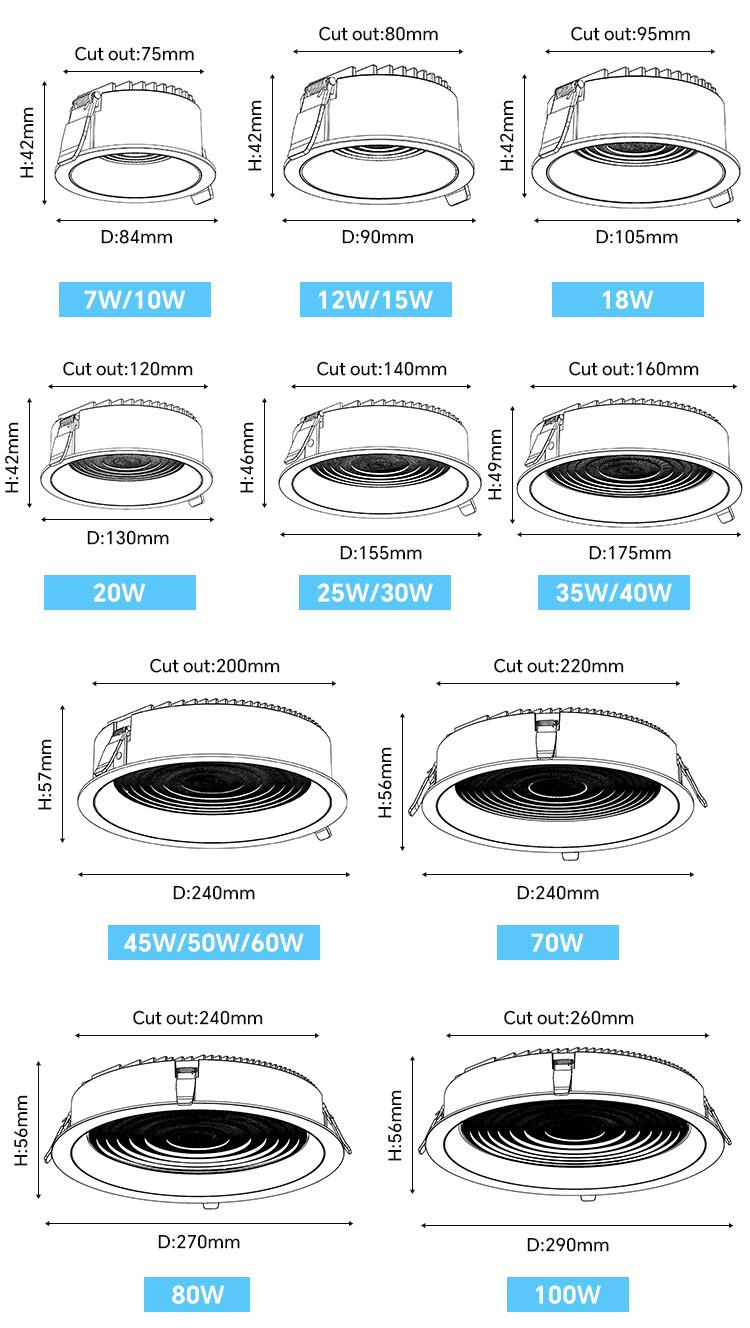

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-DLT14-7W |
7W |
D84*H42 |
¢75 |
2700K
|
|
FT-DLT14-10W |
10W |
D84*H42 |
¢75 |
|
|
FT-DLT14-12W |
12W |
D90*H42 |
¢80 |
|
|
FT-DLT14-15W |
15W |
D90*H42 |
¢80 |
|
|
FT-DLT14-18W |
18W |
D105*H42 |
¢95 |
|
|
FT-DLT14-20W |
20W |
D130*H46 |
¢120 |
|
|
FT-DLT14-25W |
25W |
D155*H46 |
¢140 |
|
|
FT-DLT14-30W |
30W |
D155*H46 |
¢140 |
|
|
FT-DLT14-35W |
35W |
D175*H49 |
¢160 |
|
|
FT-DLT14-40W |
40W |
D175*H49 |
¢160 |
|
|
FT-DLT14-45W |
45W |
D220*H57 |
¢200 |
|
|
FT-DLT14-50W |
50W |
D220*H57 |
¢200 |
|
|
FT-DLT14-60W |
60W |
D220*H57 |
¢200 |
|
|
FT-DLT14-70W |
70W |
D240*H56 |
¢220 |
|
|
FT-DLT14-80W |
80W |
D270*H56 |
¢240 |
|
|
FT-DLT14-100W |
100W |
D290*H56 |
¢260 |
Ultra-High Efficiency LED Downlight (150-160 lm/W)
1. Industry-Leading Energy Savings
• 150+ lumens per watt efficiency (vs. 80-100 lm/W standard fixtures)
• 40% lower energy consumption at equivalent brightness levels
• Cost savings: €15,000+ yearly per 10,000 units (EU commercial rates)
2. Professional-Grade Light Quality
• CRI 95+ - Museum-quality color accuracy for luxury retail and galleries
• UGR <16 - Certified glare-free performance meeting EN 12464-1 standards
• Perfect for sensitive environments: corporate offices, art museums, healthcare facilities
3. Optimized Operational Economics
• 50,000-hour rated lifespan (11+ years at 12h/day operation)
• D4i/DALI-2 driver-ready for smart building integration
• Flicker-free 0-10V/PWM dimming - Critical for broadcast studios and medical imaging
Anti-Glare SMD Downlight – Advanced Eye Comfort Technology
Low Glare Design
• UGR <16 – Meets strict office lighting standards
• Matte Black Baffle Option – Further reduces glare by 40% vs. standard models

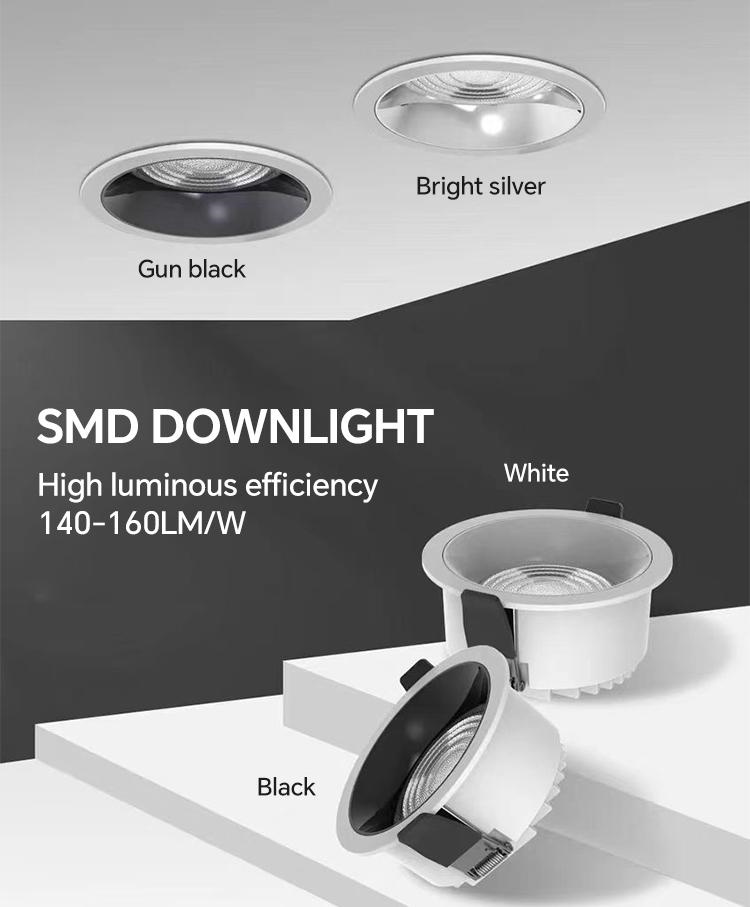

Customizable Reflector Cup for Downlights
Available Color Options & Applications
▪ Black -Anti-glare design for crisp beam control
▪ Pure White - Seamless Integration with ceiling
▪ Silver - Maximum Reflectivity,Enhanced light output efficiency
▪ Gold - Warm Ambiance,Perfects 2700-3000K warm white tones
▪ Rose Gold - Trendsetting metallic aesthetic

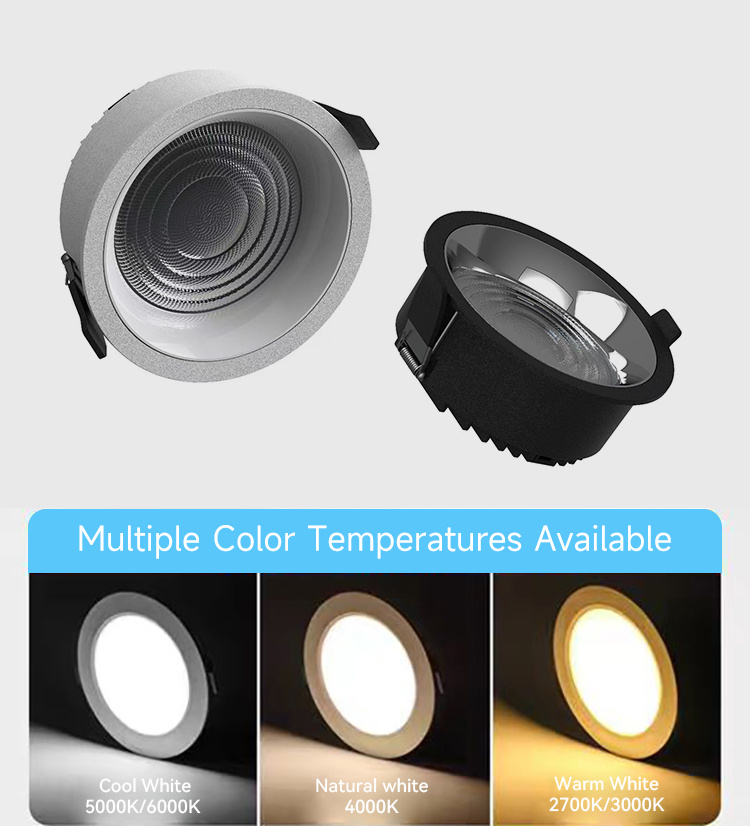

Full CCT Range ：2700K-6000K
▪Warm White (2700K-3000K) – Cozy ambiance for hospitality & residences
▪Neutral White (3500K-4500K) – Balanced light for offices & retail
▪Cool White (5000K-6000K) – Alertness-boosting illumination

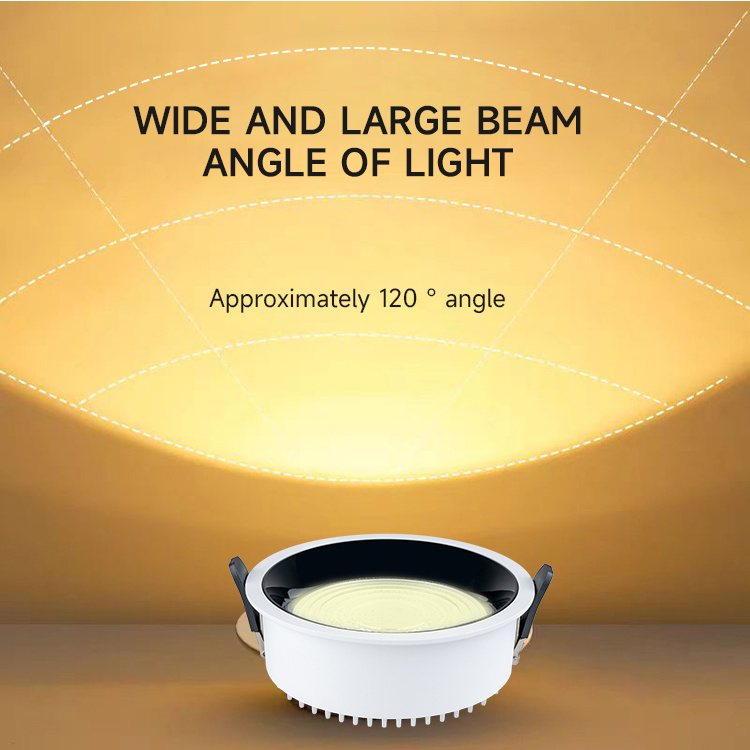

120° Wide Beam Downlight
Feature Highlights:
• Extra-Wide Flood Distribution - Creates seamless ambient illumination
• Perfect Light Diffusion - Even coverage without dark spots or harsh edges
• Wash Lighting Effect - Smoothly blends multiple fixtures
• Low Mounting Requirement - Optimal performance at ≤2.8m ceilings
• Energy Efficient Layout - Fewer fixtures needed for area coverage

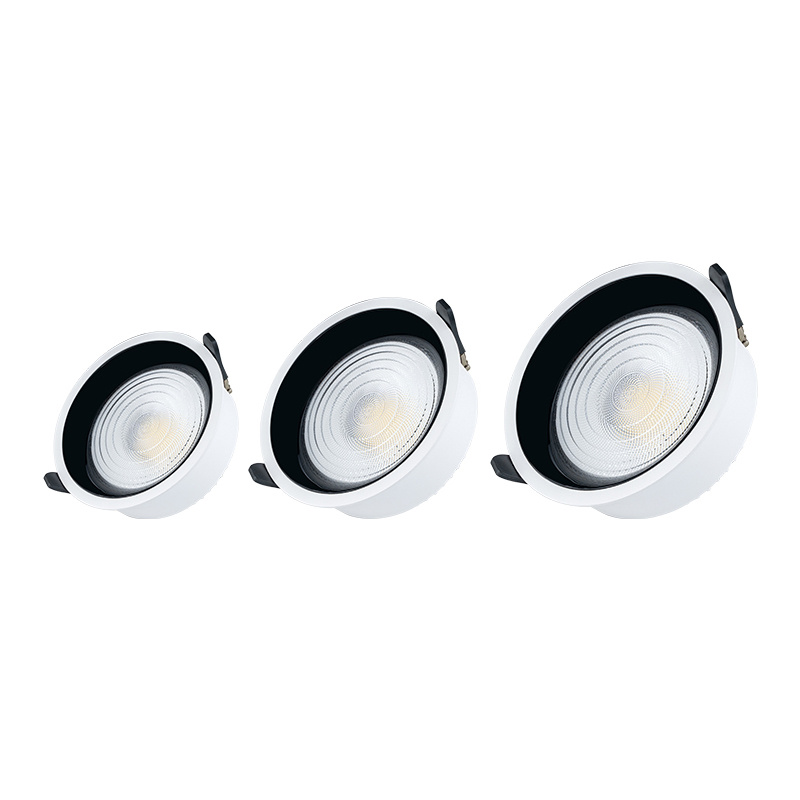

Versatile Wattage Options for LED Downlights
Available Power Ratings:
7W/10W/12W/15W/18W/20W/25W/30W/35W/40W/45W/
50W60W/70W/80W/100W
High luminous efficiency makes it suitable for commercial use.

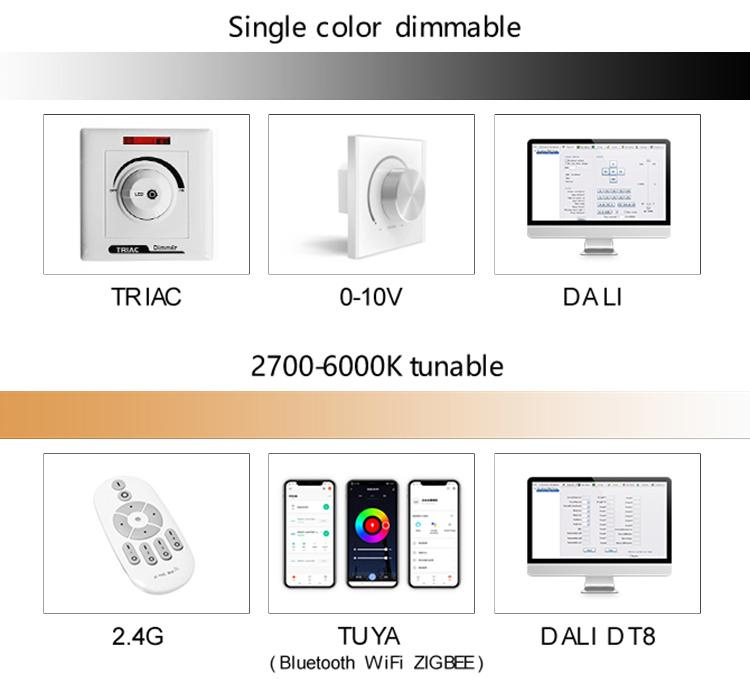

Smart Lighting Control System
1. Advanced Dimming Capabilities
• Home Use - Works with standard TRIAC dimmers
• Commercial Grade - Supports professional 0-10V dimming
• Smart Buildings - Fully compliant with DALI-2 & DT8 standards
2. Adjustable White Light
• Full Color Range - From warm 2700K to cool 6000K
• Precise Control - ±50K color temperature accuracy
• Saved Settings - Store favorite lighting scenes
3. Multiple Connection Options
Wireless Control:
• Bluetooth for direct device control
•WiFi for home automation systems
• Zigbee for smart device networks
Wired Control:
• Professional DALI DT8 certification
• Works with building management systems

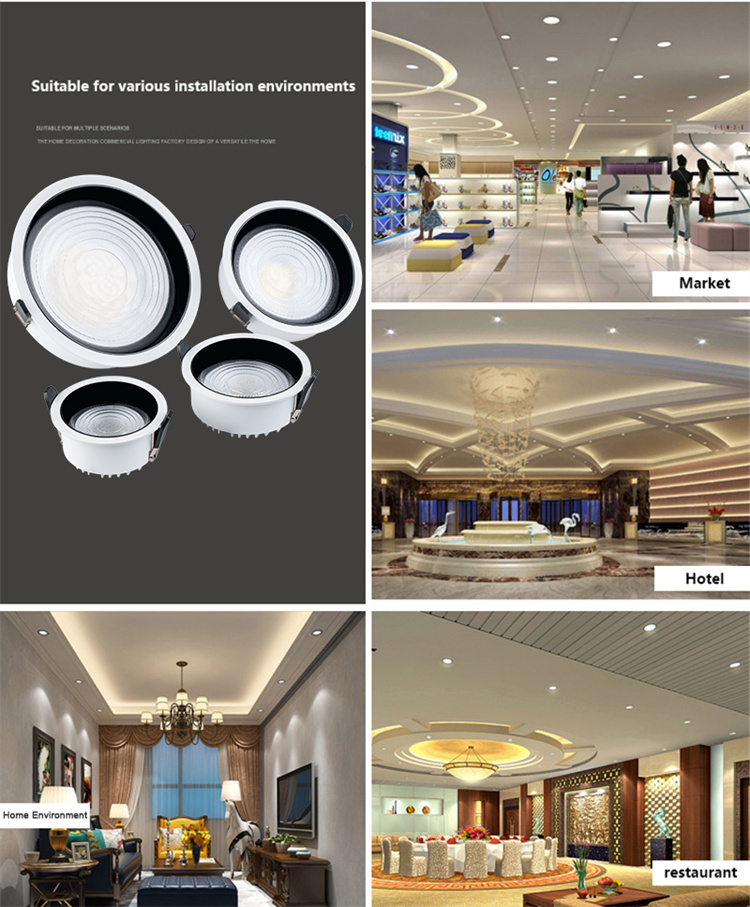

Application
Perfect for home, market, hotel, restaurant etc.
Industry-Leading Efficacy Downlight: 140-160LM/W Precision Lighting with Unrivaled ROI
Engineered to redefine energy economics, this SMD-based downlight achieves breakthrough photonic efficiency (140-160LM/W) – delivering 45% more usable lumens per watt than conventional LEDs (avg. 110LM/W). Scalable across an unprecedented 7W-100W power spectrum, it provides lumen outputs from 980lm to 16,000lm within a single product platform, eliminating fixture stratification in complex lighting designs.

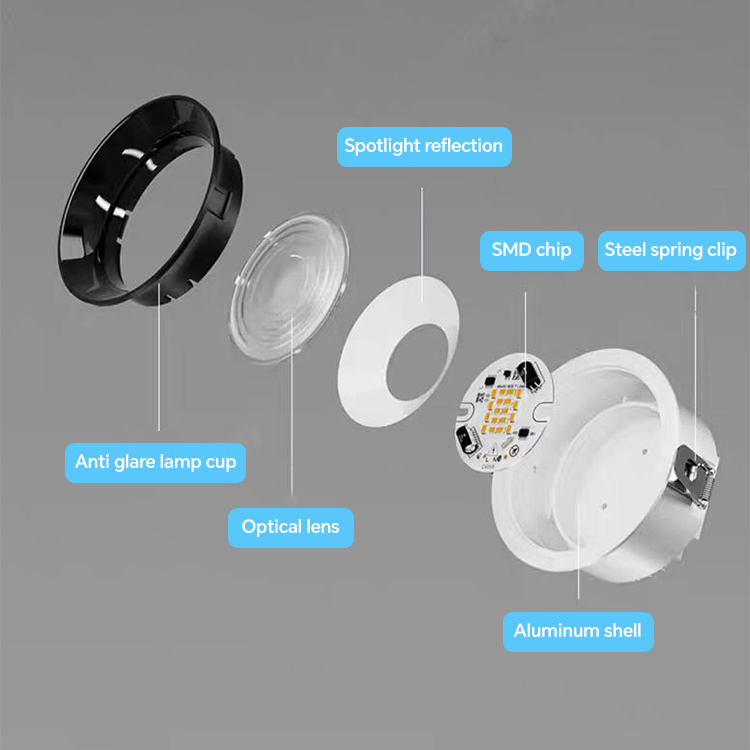

Photon-Advantage Engineering:
● Nano-Textured SMD Arrays: Patented chip layout minimizes thermal droop, maintaining 95% flux output at 55°C ambient
● Zero-Loss Driver Topology: >92% driver efficiency with ±1% current regulation across 100-347V
● Hybrid Cooling Architecture: Copper-core MCPCB + vapor-chamber sink enables 100W operation at <75°C junction
Energy Transformation Benefits:
● Utility Cost Slashing: Replaces 250W metal halide at 100W (64% energy reduction), achieving <12-month ROI in 24/7 operations
● Carbon Footprint Reduction: Saves 8.2 tons CO₂ annually per 100 fixtures vs. 120LM/W alternatives
● Lumen Maintenance: L90 >100,000 hours at 100W (triples HID relamping cycles)
● Optical Precision: 120° batwing distribution with UGR<19 (exceeds EN 12464-1 glare standards)
Power-Specific Applications:
● 7-15W: Museum vitrines (90 CRI + zero UV)
● 30-45W: Retail ambient (140LM/W reduces fixtures by 30%)
● 70-100W: High-bay industrial (16,000lm replaces 250W HID)
Smart Grid Integration:
● DALI & 0-10V dimming with 1-100% smooth control
● PoE-ready version for IoT lighting networks
● Harmonic distortion <10% at full load
Certified CE/ROHS/SAA, and ISO 9001 verified. Includes 5-year warranty – 40% longer than industry standard.
