How to Calculate Lighting Coverage for Construction Sites？

Introduction: Why LED LIGHT Is the Best Choice for Construction Lighting Coverage

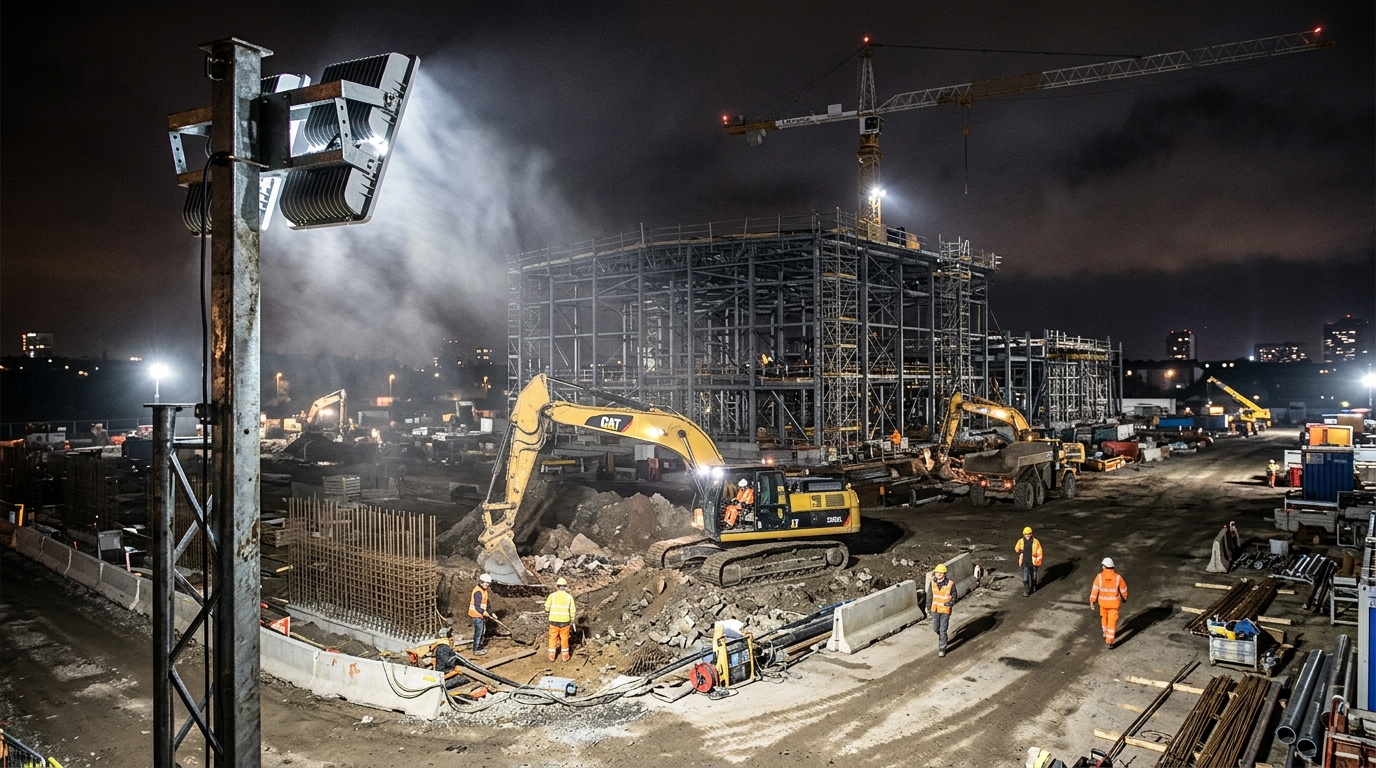

Construction sites often require temporary lighting to maintain safe working conditions during night operations or in low-visibility environments—such as fog, rain, or indoor construction zones like tunnels. Simply installing lights without proper planning can lead to uneven illumination, shadow areas, inefficient energy use, and even safety hazards. In today’s construction industry, LED LIGHT has become the preferred solution for temporary and permanent site lighting, thanks to its high efficiency, long lifespan, adjustable brightness, and superior coverage performance. Unlike traditional lighting (e.g., halogen lamps, metal halide lamps), LED LIGHT offers consistent light output, lower energy consumption, and better adaptability to harsh construction environments, making it ideal for calculating and achieving optimal lighting coverage. This guide will dive deep into how to calculate lighting coverage for construction sites, with a focus on LED LIGHT applications, key calculation factors, step-by-step methods, common pitfalls, and practical examples—helping contractors, site managers, and lighting planners design safe, efficient, and cost-effective LED LIGHTING systems.

Key Basics: LED LIGHT Parameters That Impact Construction Lighting Coverage

Before calculating lighting coverage, it’s critical to understand the core parameters of LED LIGHT that directly influence illumination quality and coverage range. These parameters are the foundation of accurate calculations and ensure that your LED LIGHTING system meets the site’s safety and operational needs.

💡 1.1 Lumens (lm): Total Light Output of LED LIGHT

Lumens measure the total amount of light emitted by an LED LIGHT source—essentially, how “bright” the LED LIGHT is. For construction sites, choosing LED LIGHTS with the right lumen output is essential: too few lumens will result in insufficient illumination, while too many will waste energy and cause glare. Unlike traditional lights, LED LIGHT converts more electrical energy into visible light (with a luminous efficiency of 95–130lm/W, far higher than metal halide lamps), so you can achieve the same or better brightness with lower wattage. For example, a 400W LED LIGHT floodlight can replace a 1000W metal halide lamp, delivering equivalent lumens while reducing energy consumption by 60%–75%. When calculating coverage, you’ll need to match the LED LIGHT’s lumen output to the size of the work area and the required illumination level.

💡 1.2 Lux (lx): Illumination Level Required for Construction Tasks

Lux refers to the amount of light that reaches a surface (measured in lumens per square meter), and it’s the key metric for determining whether an LED LIGHTING system provides sufficient visibility. Different construction activities require different lux levels, and LED LIGHT’s stable light output ensures that these levels are maintained consistently. According to industry standards and the latest building lighting norms (GB/T 50034-2024), the recommended lux levels for construction sites are as follows:

• General site access and safety perimeter lighting: 50–100 lux (LED strip lights or low-wattage LED LIGHT floodlights are ideal here)
• Standard construction work (e.g., concrete pouring, framing): 100–200 lux (mid-range LED LIGHT floodlights or linear LED LIGHTS work best)
• Detailed installation work (e.g., electrical wiring, pipe fitting): 200+ lux (high-lumen LED LIGHT spotlights or high-density LED LIGHT strip lights are recommended)

LED LIGHT’s adjustability allows you to fine-tune lux levels based on the task, ensuring optimal visibility without wasting energy. Additionally, LED LIGHT has a high color rendering index (Ra＞80), which accurately reflects the true color of materials and tools—reducing errors and improving safety on site.

💡 1.3 Beam Angle: How LED LIGHT Spreads Across the Work Area

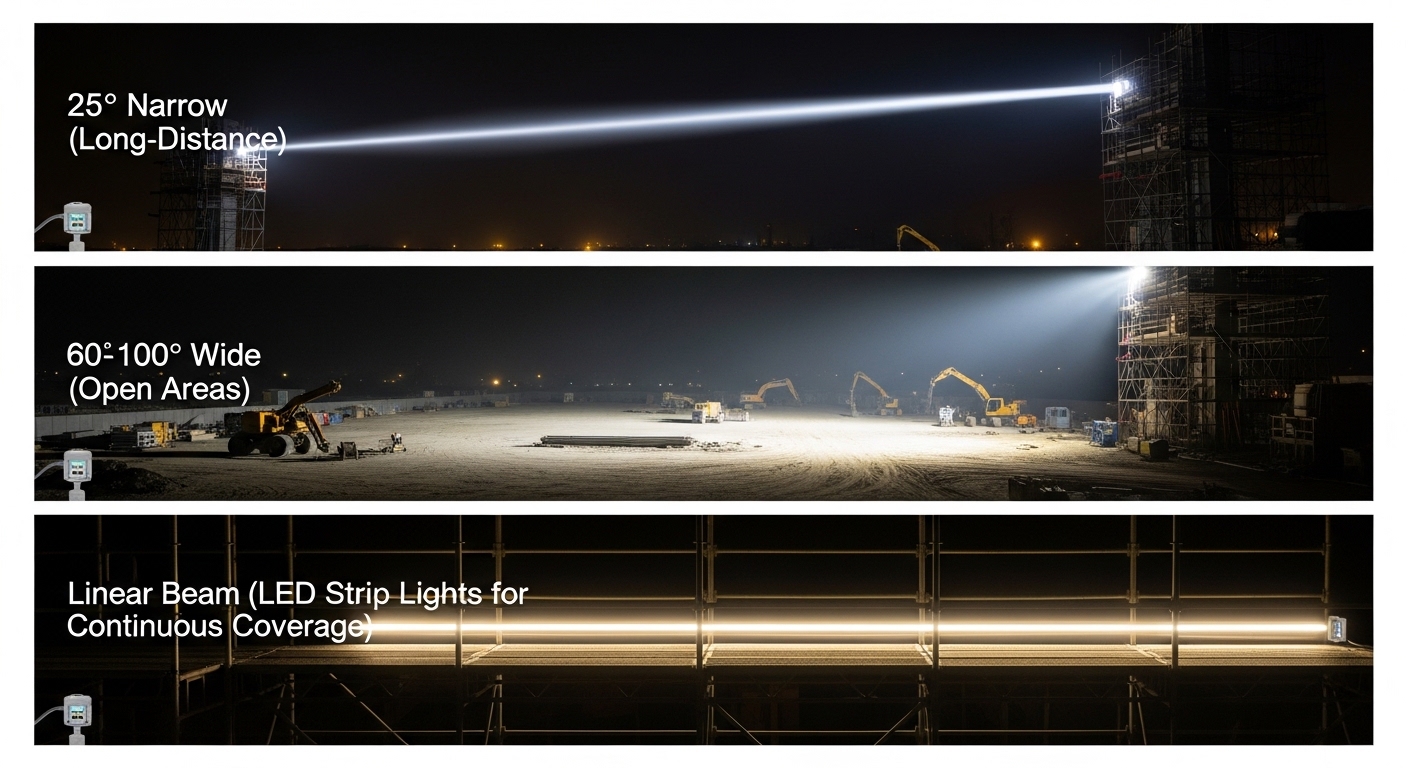

The beam angle of an LED LIGHT determines how widely or narrowly the light is distributed—directly impacting coverage range. LED LIGHTS for construction sites typically have beam angles ranging from 25° (narrow beam for focused illumination) to 100° (wide beam for general area coverage).

• Narrow beam (25°–40°): Ideal for long-distance illumination, such as tower crane lighting or deep tunnel work (use high-power LED LIGHT floodlights with deep lenses)
• Wide beam (60°–100°): Suitable for open construction areas, heavy equipment zones, or general site lighting (use LED LIGHT floodlights with wide-angle lenses)
• Linear beam: LED LIGHT strip lights have a uniform linear beam, perfect for scaffolding, long corridors, or tunnel walls—providing continuous coverage without shadow gaps

Understanding beam angle is critical for calculating how many LED LIGHTS are needed and how to space them to avoid dark spots.

💡 1.4 Other LED LIGHT Features: Durability and Adaptability

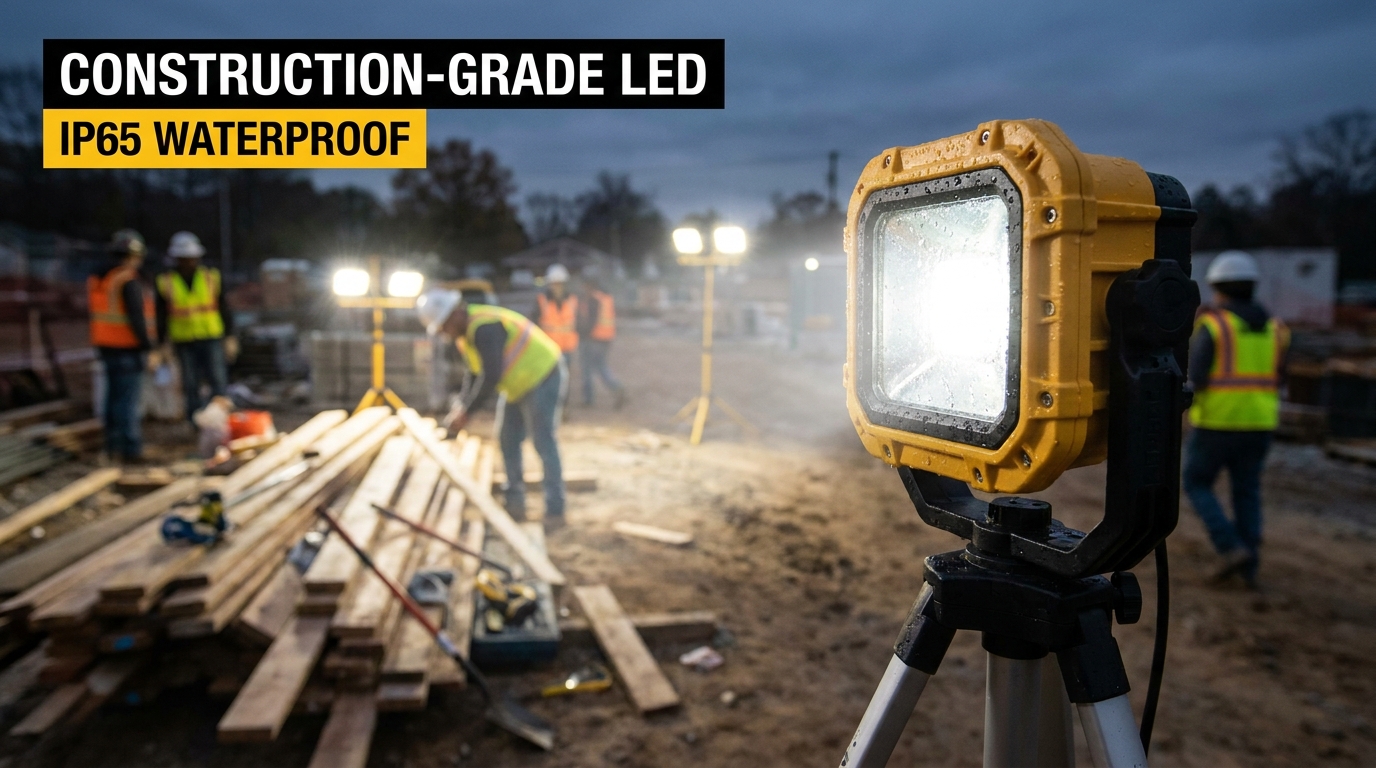

Construction sites are harsh environments, so LED LIGHT’s durability directly impacts long-term coverage and safety. High-quality construction-grade LED LIGHTS feature IP65 or higher waterproof and dustproof ratings, lightning protection (≥10KV), and wide voltage compatibility (AC85–265V)—adapting to rain, dust, and voltage fluctuations on site. They also have a long lifespan (≥50,000 hours), reducing the need for frequent replacement and maintenance—critical for temporary lighting systems that may be in use for months. Additionally, LED LIGHTS operate at low temperatures (surface temperature＜55℃), eliminating the risk of burns or fire hazards, which is essential for crowded construction sites.

Step-by-Step Guide to Calculate LED LIGHT Coverage for Construction Sites

Calculating LED LIGHT coverage involves a combination of theoretical formulas and practical site considerations. Below is a step-by-step process to ensure your LED LIGHTING system provides uniform, safe illumination across the entire jobsite—whether you’re using LED LIGHT floodlights, LED LIGHT strip lights, or a hybrid system.

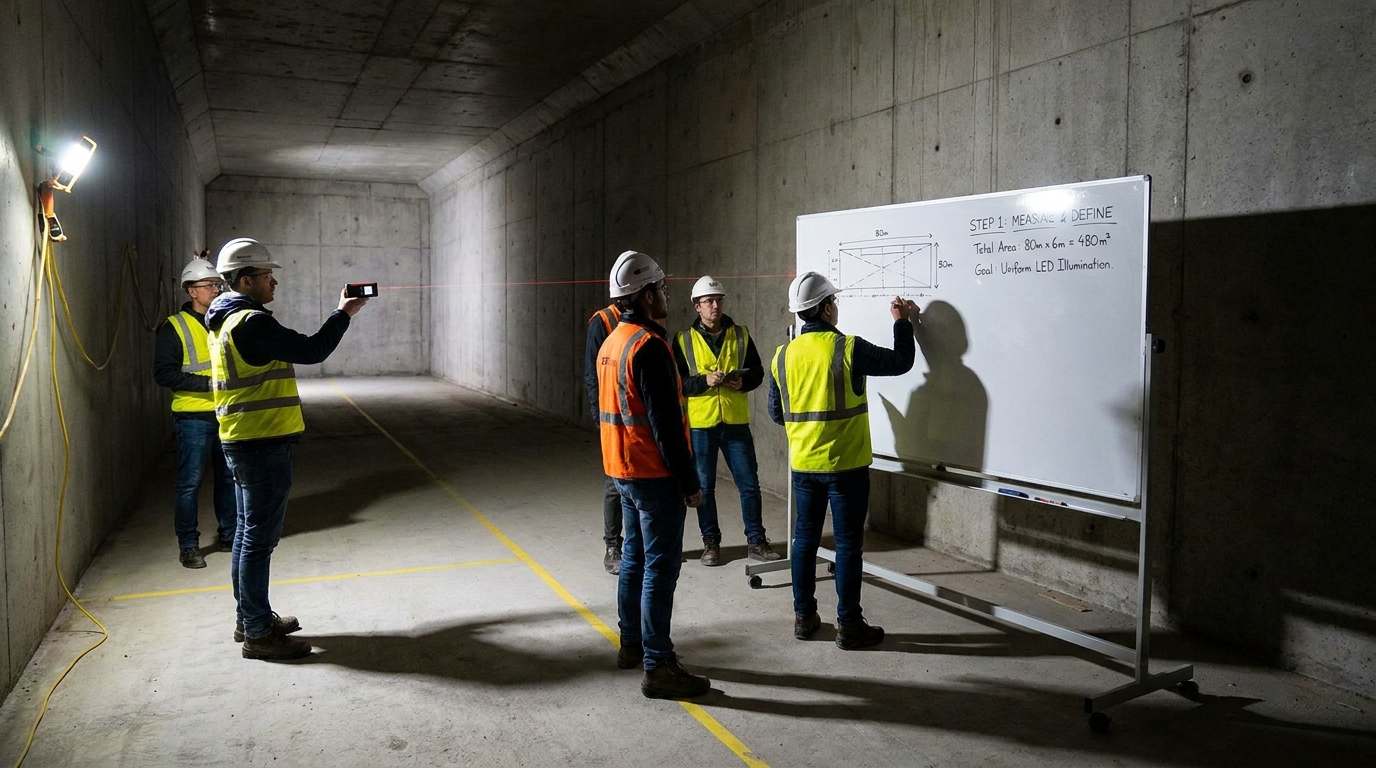

⚙️ 2.1 Step 1: Measure the Work Area and Define Coverage Goals

The first step is to accurately measure the total work area (in square meters) or installation length (for linear areas like tunnels or scaffolding). For irregularly shaped sites, divide the area into simple shapes (e.g., rectangles, squares) and calculate the area of each, then sum them up. Next, define your coverage goals:

• Primary goal: Ensure uniform illumination (illuminance uniformity ≥0.4 for general areas, ≥0.6 for long-term work areas) as per industry standards
• Secondary goals: Minimize energy use, avoid glare, eliminate shadow areas, and ensure compliance with safety regulations

⚙️ 2.2 Step 2: Determine the Required Lux Level for the Task

Remember: LED LIGHT’s high luminous efficiency means you can achieve the required lux level with lower wattage than traditional lights—saving energy and reducing costs.

⚙️ 2.3 Step 3: Choose the Right LED LIGHT Type and Parameters

2.3.1 LED LIGHT Floodlights: For Large, Open Areas

LED LIGHT floodlights are ideal for open construction areas, heavy equipment zones, road construction sites, and large yards. They are available in power ranges from 200W to 2000W, with beam angles from 25° to 100°.

2.3.2 LED LIGHT Strip Lights: For Linear and Narrow Areas

LED LIGHT strip lights (including high-voltage 110V/220V models) are perfect for linear structures like scaffolding, tunnels, long work corridors, and perimeter lighting.

2.3.3 Hybrid LED LIGHTING: For Complex Sites

Many construction sites use a hybrid system: LED LIGHT floodlights for general area lighting and LED LIGHT strip lights for linear structures (e.g., tunnels, scaffolding).

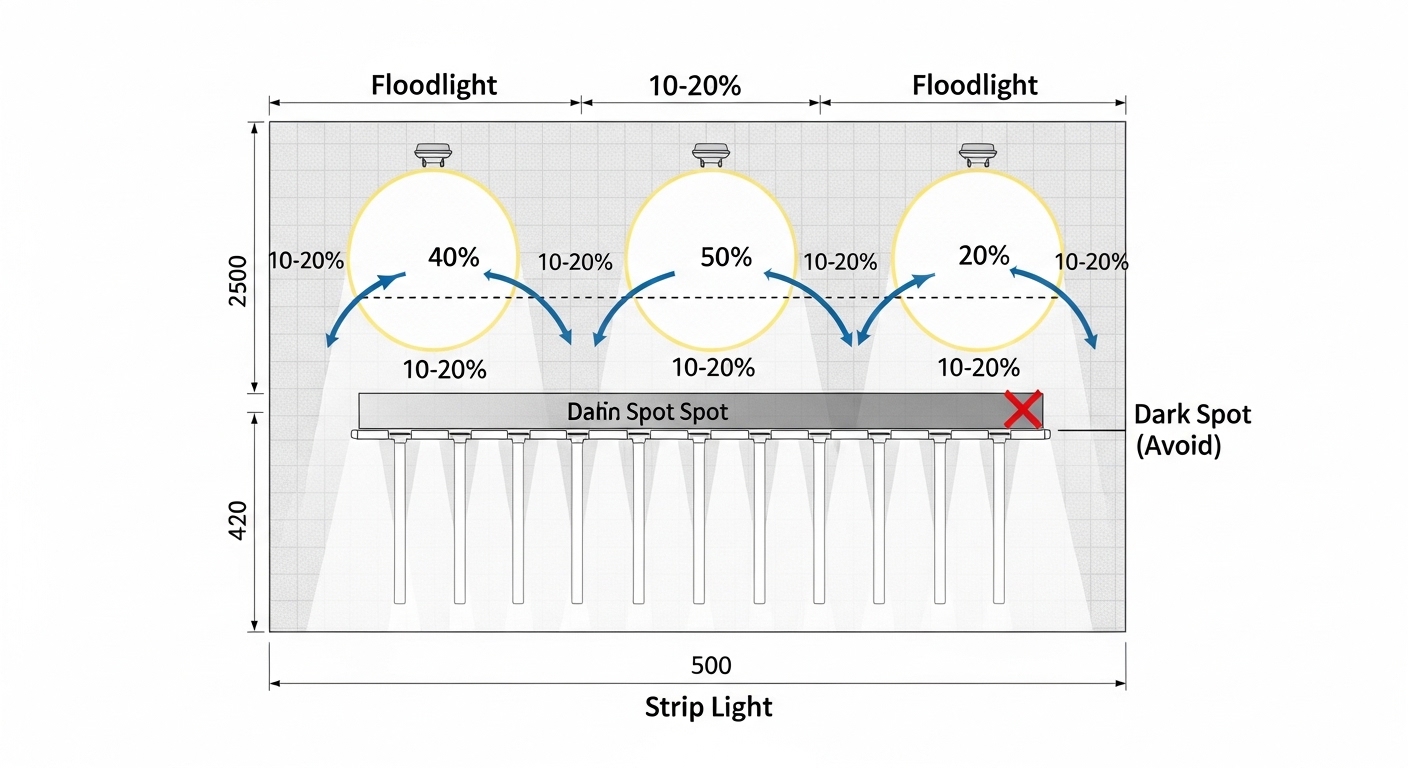

⚙️ 2.4 Step 4: Calculate LED LIGHT Spacing and Coverage Overlap

Once you’ve selected the LED LIGHT type and parameters, calculate the spacing between fixtures to ensure uniform coverage and avoid dark spots. The key principle is to ensure 10–20% coverage overlap between adjacent LED LIGHTS—this eliminates gaps and ensures consistent lux levels.

⚙️ 2.5 Step 5: Adjust for Environmental Factors

Theoretical calculations are a starting point, but you must adjust for real-world environmental factors that affect LED LIGHT coverage.

Practical Examples: Calculating LED LIGHT Coverage for Common Construction Scenarios

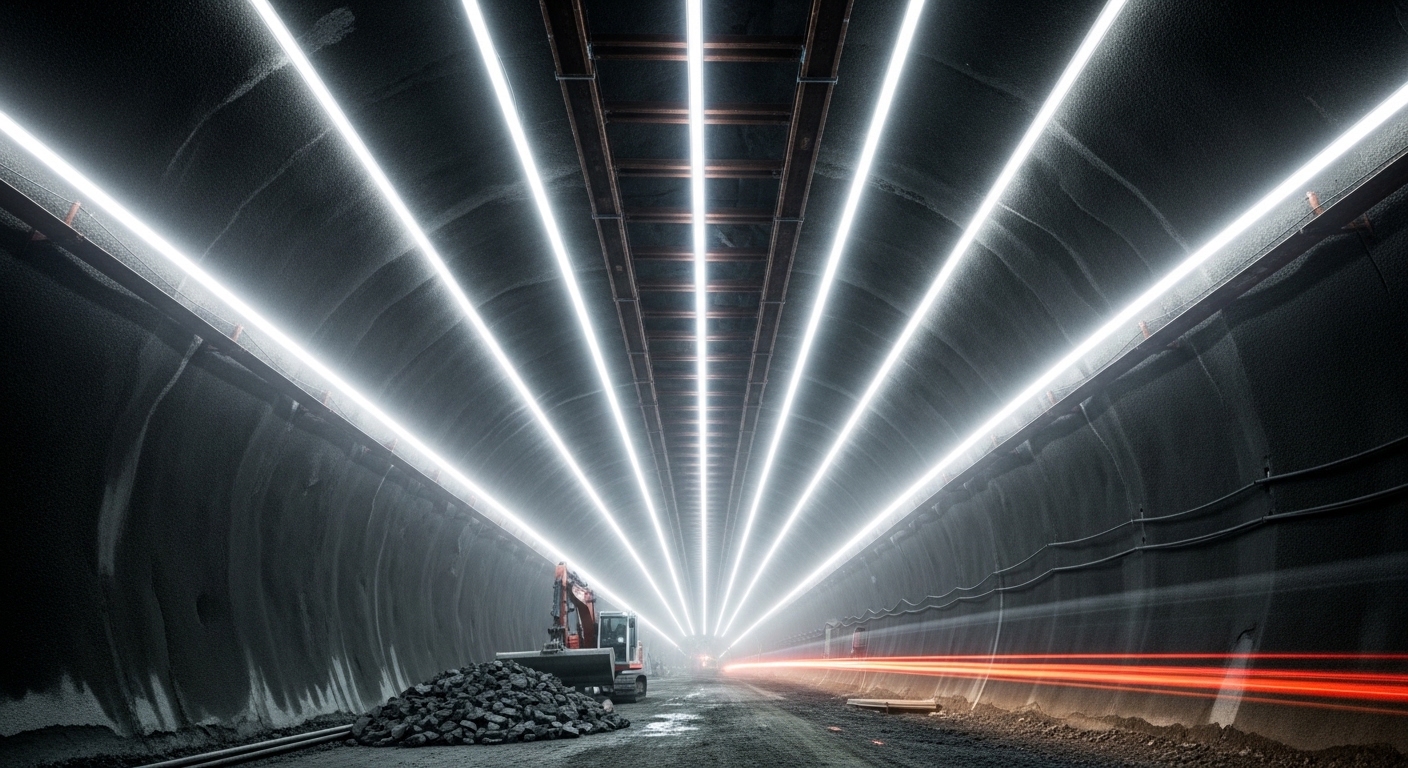

📌 3.1 Example 1: Tunnel Construction (Linear Area)

Scenario: 80-meter long tunnel, 6 meters wide, requiring 150 lux for standard construction work. Goal: Uniform coverage with no shadow zones.

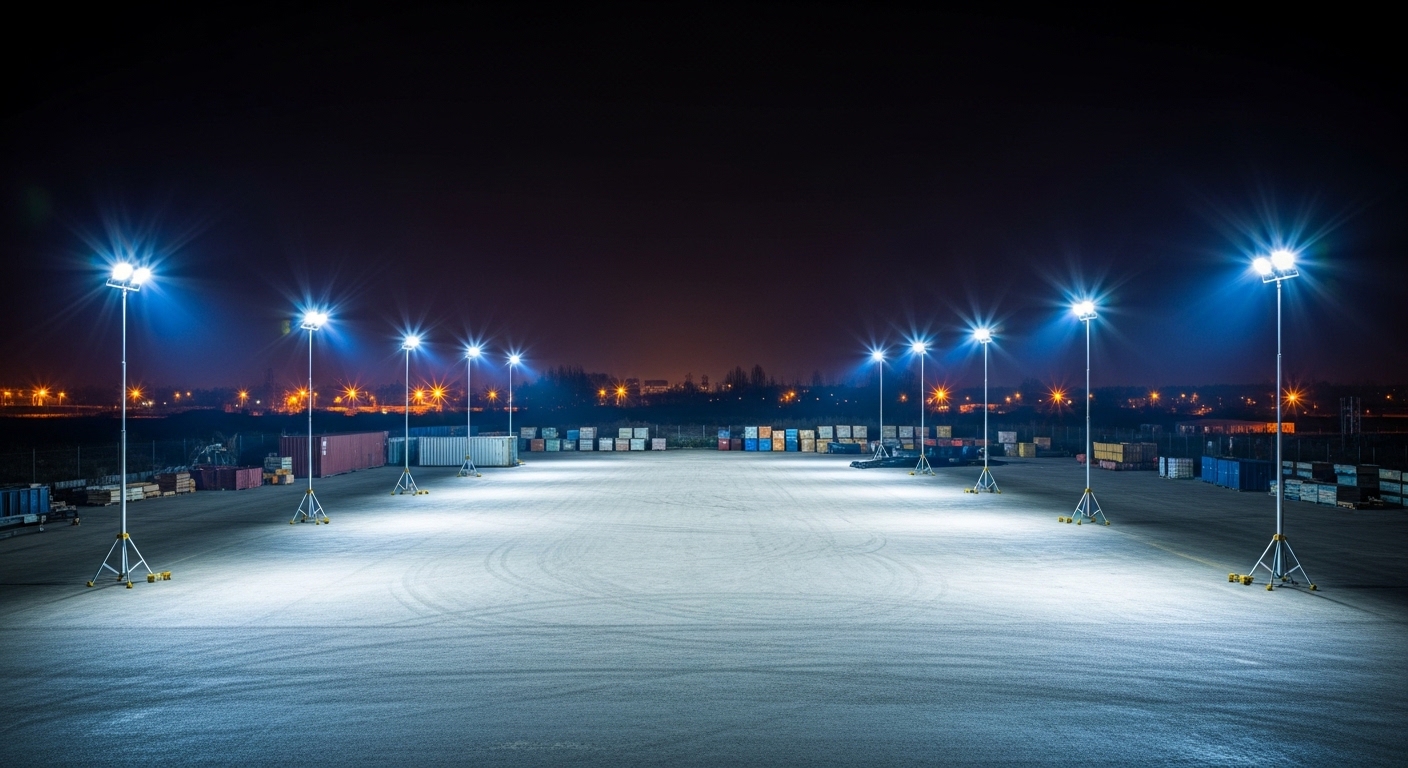

📌 3.2 Example 2: Open Construction Yard (Large Area)

Scenario: 500 m² open yard, requiring 100 lux for general construction work. Goal: Efficient coverage with minimal energy use.

Common Mistakes to Avoid When Calculating LED LIGHT Coverage

• 4.1 Mistake 1: Focusing Only on Lumens, Not Lux - An LED LIGHT with high lumens but a narrow beam angle may not provide enough lux for a large area.
• 4.2 Mistake 2: Ignoring LED LIGHT Beam Angle - Choosing the wrong beam angle leads to uneven coverage.
• 4.3 Mistake 3: Underestimating Mounting Height - Mounting height directly impacts LED LIGHT coverage.
• 4.4 Mistake 4: Forgetting Coverage Overlap - Without 10–20% overlap between LED LIGHTS, dark spots will appear.
• 4.5 Mistake 5: Neglecting Environmental Factors - Dust, fog, and obstacles can reduce LED LIGHT coverage.

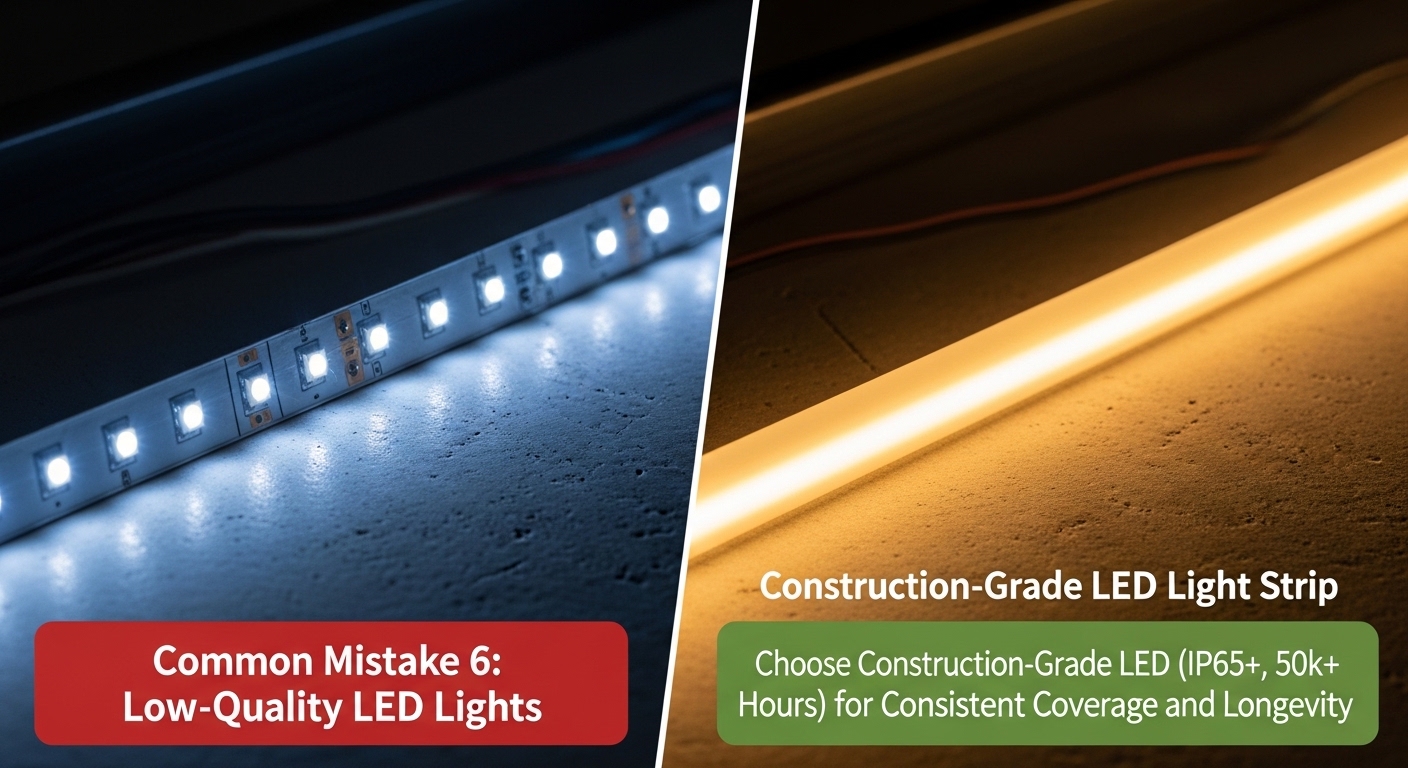

• 4.6 Mistake 6: Choosing Low-Quality LED LIGHTS - Low-quality LED LIGHTS have inconsistent light output.

FAQ: LED LIGHT Coverage for Construction Sites

5.1 What lux level is required for construction sites when using LED LIGHT?
Most construction work areas require 50–200 lux, depending on the task.

5.2 How do you avoid dark spots when using LED LIGHT on construction sites?
Ensure 10–20% coverage overlap between adjacent LED LIGHTS.

5.3 What type of LED LIGHT is best for long construction areas?
For long, linear construction areas, LED LIGHT strip lights are the best choice.

5.4 How many LED LIGHTS do I need for my construction site?
The number of LED LIGHTS depends on the total area, required lux level, and LED LIGHT parameters.

5.5 Are LED LIGHTS more cost-effective than traditional lights for construction coverage?
Yes. LED LIGHTS are more energy-efficient and have a longer lifespan.

Conclusion: Optimize Construction Lighting Coverage with LED LIGHT

Calculating lighting coverage for construction sites is critical for safety, efficiency, and compliance—and LED LIGHT is the best tool to achieve optimal results. By understanding key LED LIGHT parameters (lumens, lux, beam angle), following the step-by-step calculation process, avoiding common mistakes, and adapting to site conditions, you can design an LED LIGHTING system that provides uniform, safe illumination across the entire jobsite. Whether you’re working on a tunnel, open yard, or scaffolding, LED LIGHT offers the flexibility, efficiency, and durability needed to meet the unique challenges of construction lighting. Remember: the goal is not just to “install lights”—but to install the right LED LIGHTS, in the right positions, to ensure every corner of your site is safely illuminated.
