How to Install Downlights in Ceiling? (Step-by-Step LED Downlight Installation Guide for Beginners)
Installing LED downlights in ceiling is one of the most effective ways to upgrade modern lighting design. Whether you're renovating a home, upgrading an office, or designing a retail space, LED downlight installation delivers a clean appearance, high energy efficiency, and long-term reliability.
In this step-by-step guide, you’ll learn how to install downlights in ceiling, including layout planning, wiring methods, spacing rules, and expert tips to achieve professional results with LED downlights.
What Are LED Downlights and Why Choose Them?
LED downlights, also known as recessed lighting or ceiling lights, are fixtures installed directly into the ceiling. Unlike traditional lighting, they sit flush with the surface, creating a sleek and minimalist appearance.
There are several reasons why LED downlights are widely used:
- Energy efficiency: Consume up to 80% less energy than traditional bulbs
- Long lifespan: Typically last over 50,000 hours
- Modern aesthetics: Clean and unobtrusive design
- Versatility: Suitable for homes, offices, retail stores, and hotels
Because of these advantages, LED downlight installation has become a top choice for modern lighting solutions.

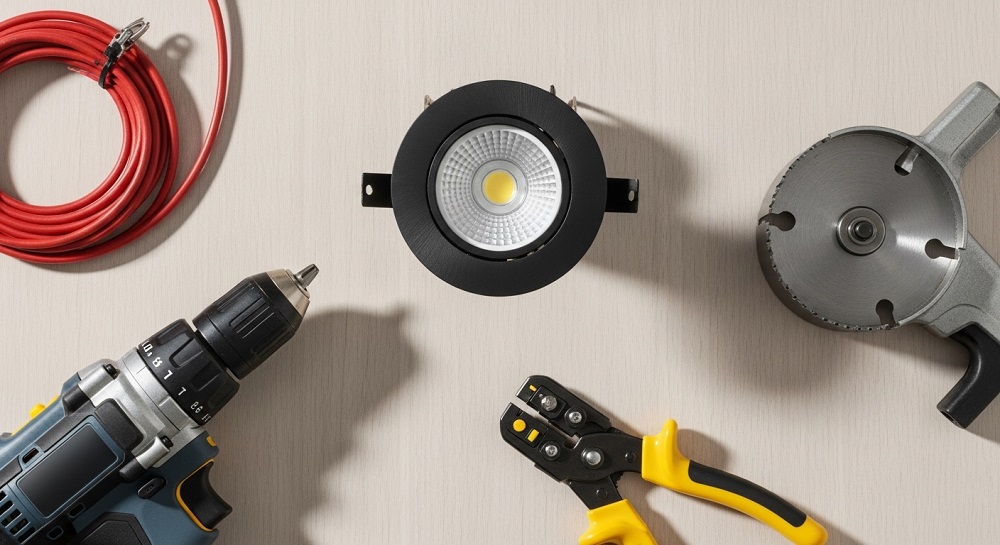

Tools and Materials Needed for Installing LED Downlights
Before starting your downlight installation, make sure you have the following tools and materials ready:
Tools:
- Drill machine
- Hole saw (correct diameter)
- Wire stripper
- Voltage tester
- Measuring tape
- Screwdriver
Materials:
- LED downlights
- LED driver
- Electrical wires
- Junction box or connectors
Having the right tools ensures your LED downlight installation is smooth and safe.
Planning the Downlight Layout (Most Important Step)
Proper planning is the key to achieving a professional lighting result. Poor placement can lead to uneven lighting or dark spots.
How Many Downlights Do You Need?
The number of LED downlights depends on:
- Room size
- Ceiling height
- Brightness (lumens)
As a general rule, one LED downlight covers about 1–1.5 square meters.

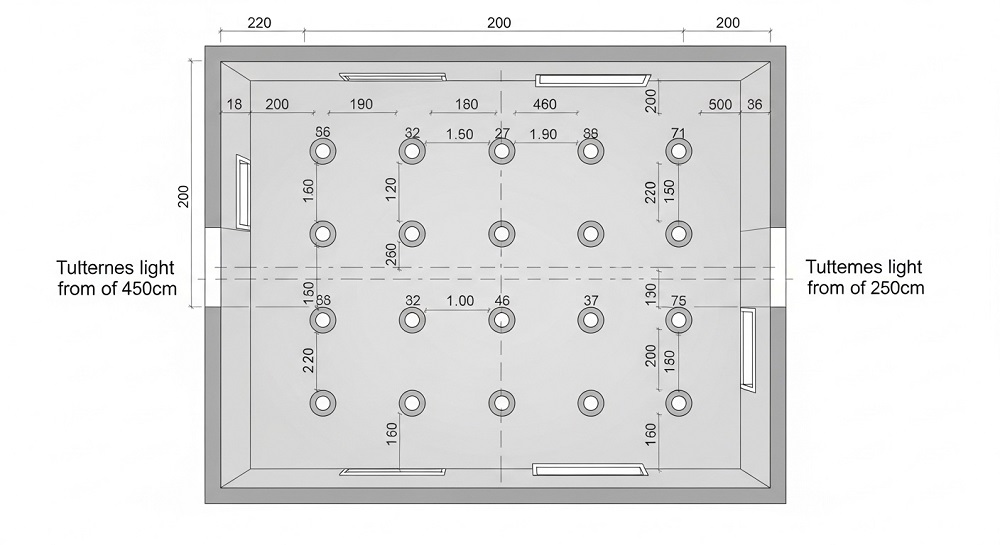

Ideal Spacing Between LED Downlights
A widely accepted guideline:
- Spacing between lights = half of the ceiling height
For example:
If your ceiling height is 2.8 meters, space your LED downlights about 1.4 meters apart.
Distance from Walls
- Keep at least 0.5 meters from walls
- Avoid placing lights too close to corners
This ensures even light distribution and avoids shadows.
Step-by-Step Guide: How to Install Downlights in Ceiling
Follow these steps carefully to ensure a safe and professional LED downlight installation.
Step 1 – Turn Off Power (Safety First)
Before starting any electrical work, always turn off the power at the main circuit breaker.
Use a voltage tester to confirm there is no electricity flowing. Safety is critical when installing LED downlights.

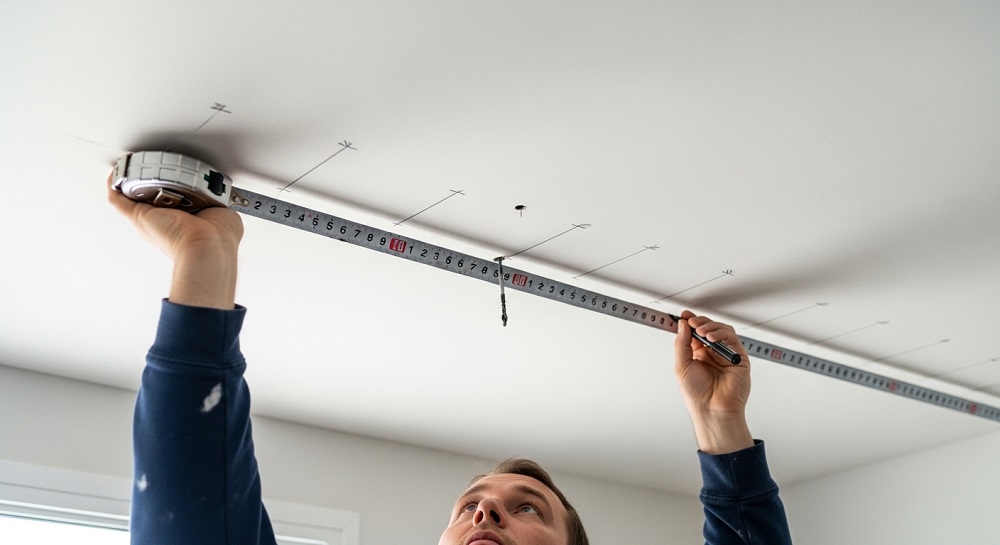

Step 2 – Mark and Measure Ceiling Positions
Use a measuring tape to mark where each LED downlight will be installed.
- Mark the center point
- Drill a small pilot hole
This ensures precise positioning during installation.
Step 3 – Check for Joists, Pipes, and Wires
Before cutting, check for:
- Ceiling joists
- Hidden electrical wires
- Plumbing pipes
Use a detector or carefully inspect to avoid damage.

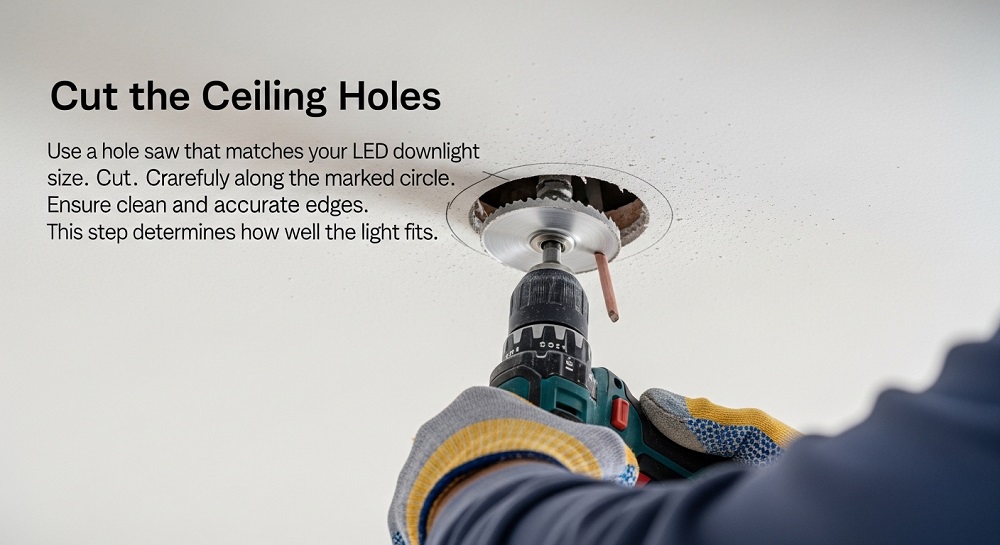

Step 4 – Cut the Ceiling Holes
Use a hole saw that matches your LED downlight size.
- Cut carefully along the marked circle
- Ensure clean and accurate edges
This step determines how well the light fits.

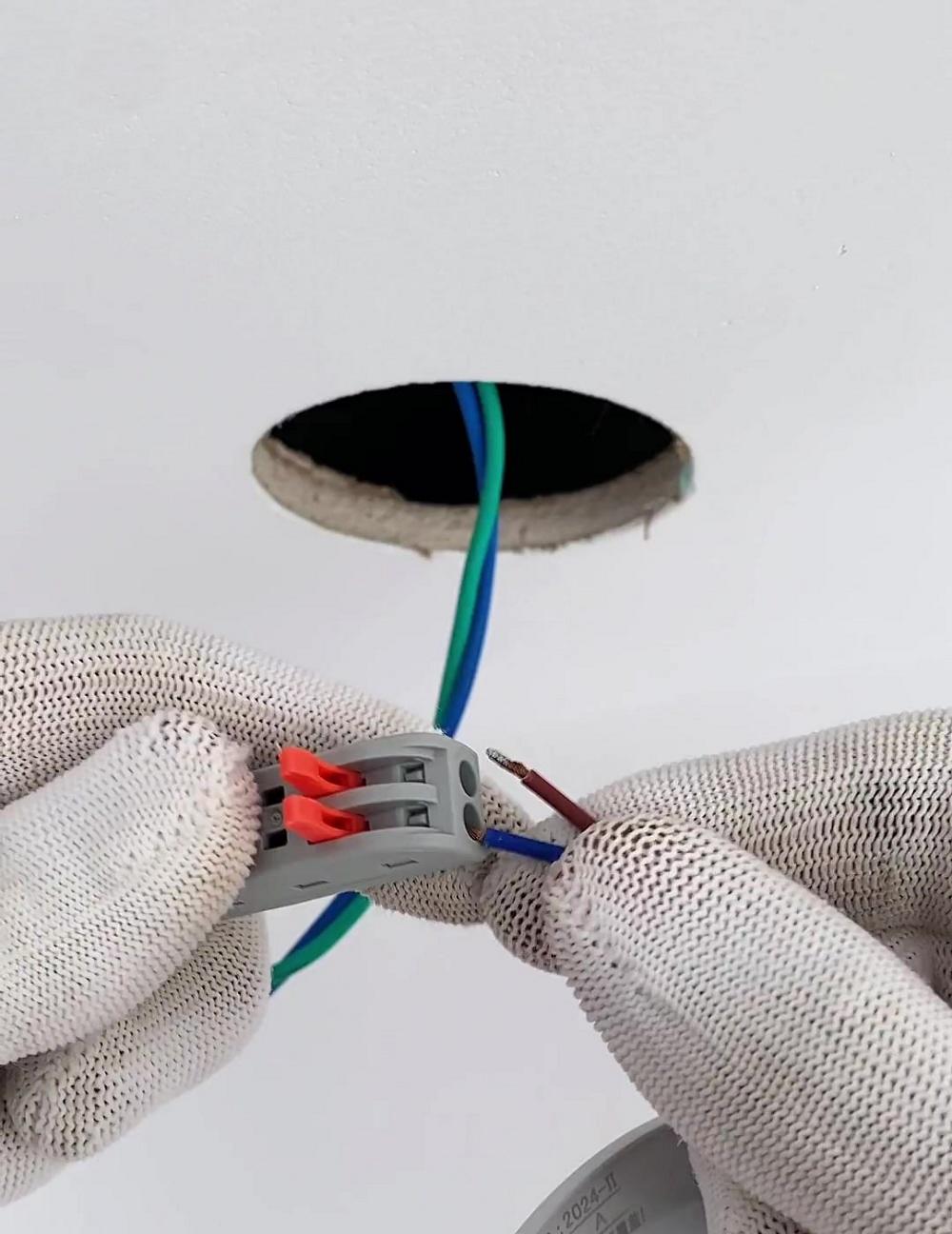

Step 5 – Wiring the LED Downlight
Now connect the wiring:
- Live wire (L)
- Neutral wire (N)
- Earth wire (if required)
Then connect the wires to the LED driver.
Make sure all connections are secure to avoid electrical issues. Proper wiring is essential for safe LED downlight installation.

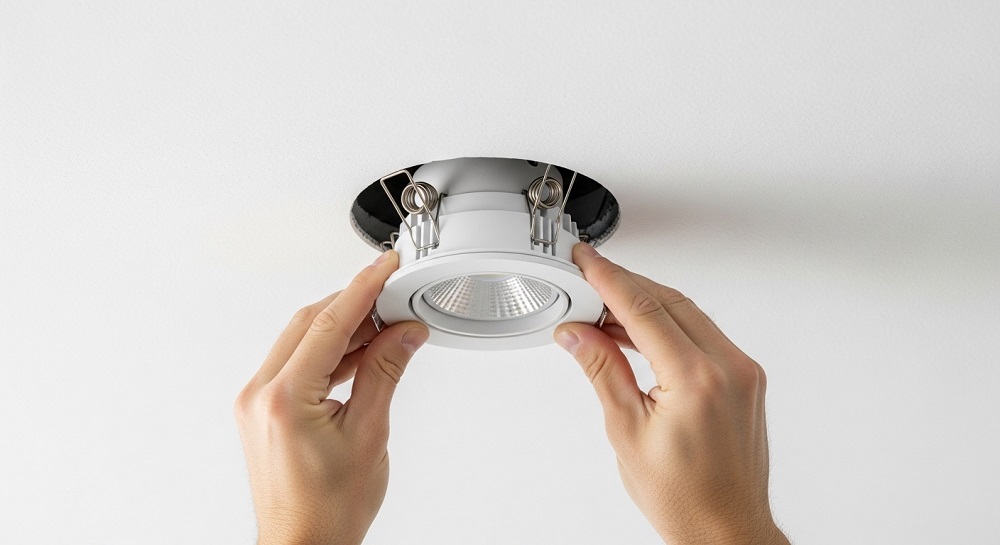

Step 6 – Install and Fix the Downlight
Insert the LED downlight into the hole:
- Compress the spring clips
- Push the fixture into place
- Release clips to secure
The light should sit flush with the ceiling.

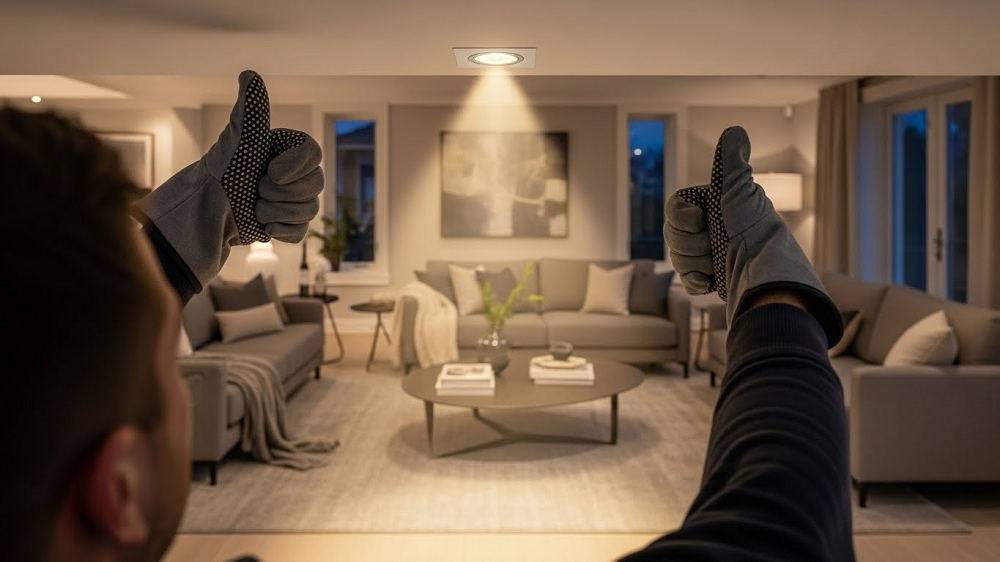

Step 7 – Test and Final Check
Turn the power back on and test your LED downlights.
Check for:
- Proper illumination
- Secure fitting
- No flickering
If everything works correctly, your installation is complete.
Common Mistakes to Avoid When Installing LED Downlights
Even experienced installers can make mistakes. Avoid these common issues:
- Incorrect spacing between lights
- Overloading the electrical circuit
- Poor heat dissipation
- Using low-quality drivers
- Cutting incorrect hole sizes
Avoiding these mistakes ensures long-lasting LED downlight performance.
How to Choose the Right LED Downlight for Your Ceiling
Choosing the right product is just as important as installation.
Here are key factors to consider:
Brightness (Lumens)
- Living room: 800–1000 lumens
- Kitchen: 1000+ lumens
Color Temperature
- 3000K: Warm white
- 4000K: Neutral white
- 6000K: Cool white
CRI (Color Rendering Index)
- Choose CRI > 80 for accurate color
Certifications
Look for:
- CE
- RoHS
- SAA
- UL-certified drivers
⭐ Professional Recommendation (Mid-Article Brand Integration)
When selecting high-quality LED downlights, it’s crucial to choose reliable manufacturers.
Fitlight offers premium LED downlight solutions that meet all the standards mentioned above. Their products feature:
- High-efficiency lighting performance
- Long lifespan and excellent heat dissipation
- Certified with CE, RoHS, and SAA
- Drivers using internationally recognized brands with UL certification
With products exported worldwide, Fitlight ensures both quality and safety for every LED downlight installation.
👉 Learn more: https://www.fitlight-tech.com/
Can You Install Downlights Yourself or Need an Electrician?
In many cases, installing LED downlights can be done as a DIY project if you have basic electrical knowledge.
However, you should hire a professional electrician if:
- You are unfamiliar with wiring
- Local regulations require licensed installation
- The project involves complex circuits
Safety should always come first when performing downlight installation.
Final Tips for a Perfect Downlight Installation
To achieve the best results:
- Plan your layout carefully
- Use high-quality LED downlights
- Ensure proper spacing and alignment
- Avoid overcrowding lights
- Always follow safety guidelines
A well-installed LED downlight system enhances both aesthetics and functionality.
