How to Install Downlights in Concrete Ceiling？
2026-04-24
Can You Install Recessed Downlights in a Concrete Ceiling?
Key Challenges of Concrete Ceiling Installation
Installing downlight fixtures on a concrete ceiling is far more challenging than standard drywall or wooden ceilings. Solid concrete features high hardness, dense internal structures, hidden steel rebars, and limited internal space for wiring and drivers. Traditional spring-loaded recessed lights cannot grip rigid concrete surfaces firmly, leading to loose fixtures and potential falling risks. Additionally, concealed wiring is difficult to arrange in solid slabs, making downlight installation a technical project that requires proper tools and standardized operations.

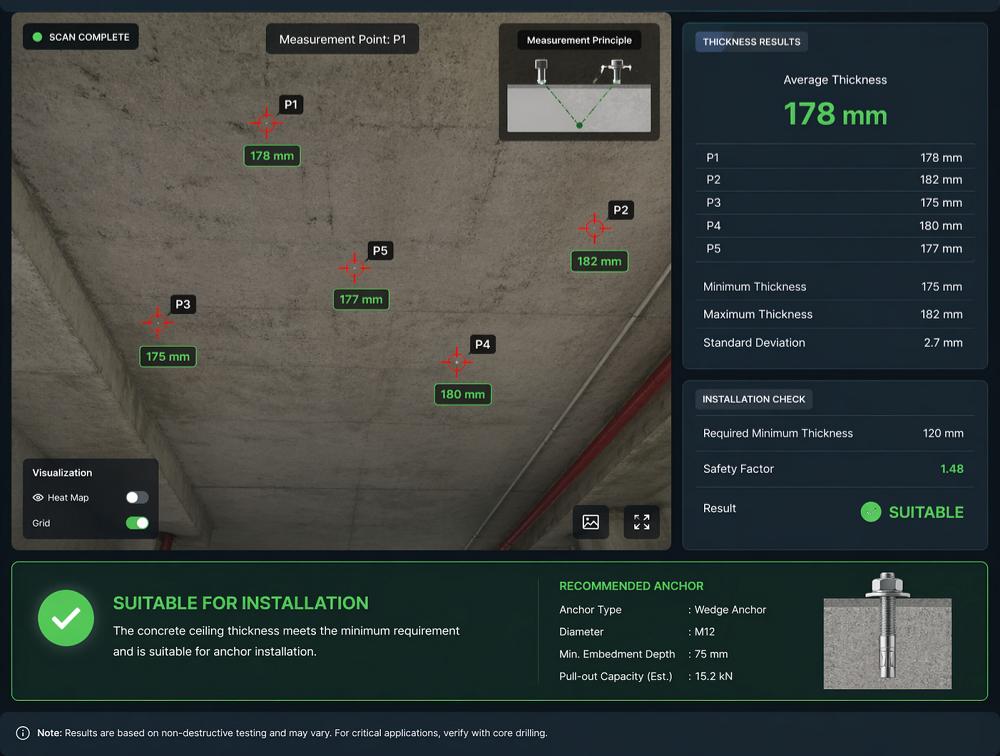

Is Your Concrete Ceiling Suitable?
Before you start to install downlights, you must confirm whether your concrete ceiling meets installation conditions. Most residential concrete slabs have a thickness of 100mm to 150mm, which is thick enough for regular recessed downlights. Avoid drilling heavily reinforced areas, load-bearing structural beams, and thin partition concrete slabs. If your ceiling contains prestressed steel wires or dense rebars, surface-mounted lighting solutions are more recommended to prevent structural damage.
Pre-Installation Preparation: Tools, Materials & Safety
Essential Tools for Concrete Ceiling Downlight Installation
To smoothly install downlights in concrete ceiling, prepare professional construction tools in advance. You will need a hammer drill with concrete drill bits, a diamond hole cutter matched with your downlight size, a rebar detector, tape measure, pencil, spirit level, voltage tester, screwdriver sets, safety goggles, dust masks, and non-slip gloves. Ordinary electric drills cannot cut hard concrete efficiently, so a heavy-duty hammer drill is a must to ensure clean holes and reduce ceiling cracking.
Must-Have Materials & Downlight Selection
Choosing high-quality lighting fixtures directly determines installation stability and long-term use experience. Fitlight factory provides premium LED downlights suitable for concrete ceiling installation scenarios. All Fitlight factory downlights are sold nationwide and fully certified with CE, RoHS and SAA standards. Equipped with internationally renowned brand drivers with UL certification, these downlights deliver stable output, low flicker, excellent heat dissipation and long service life. With reinforced frame design, Fitlight factory downlights are easier to fix on hard concrete surfaces and perfectly adapt to various commercial and residential lighting projects.
Critical Safety Rules Before You Start
Electrical safety is the top priority when you install downlight products. Always cut off the main power supply and test the circuit with a voltage tester to avoid electric shock. Wear protective equipment to prevent concrete dust and flying debris from hurting your eyes and skin. Never drill randomly without checking hidden wires, water pipes and rebars inside the concrete ceiling. Do not drill through the floor slab to avoid damaging the floor structure of the upper floor. Keep the construction area ventilated to reduce dust accumulation during cutting and drilling.
Plan Layout & Mark Positions (Avoid Rebar & Wires)
Optimal Spacing & Placement Tips
Reasonable downlight layout improves lighting uniformity and overall aesthetics. For general living spaces, keep the spacing between each recessed downlight at 2.4 to 3 meters, and reserve 30 to 50 centimeters distance from the wall to prevent uneven edge lighting. For accent lighting and local supplementary lighting, reduce the spacing properly for softer layered light. Mark all installation positions in advance and keep symmetrical distribution to make the interior lighting design more orderly and professional.
How to Mark Holes Accurately on Concrete
Concrete surfaces are rough and hard, requiring accurate marking before cutting. First, confirm the center point of each downlight position with a tape measure. According to the official opening size of the downlight, draw a standard circular outline on the ceiling. Use a rebar detector to scan the marked area to confirm no rebars or buried wires inside. Double-check the horizontal level of each marked hole to avoid tilted installation, which will affect the appearance and fixation effect after the downlight is embedded.
How to Drill & Cut Holes in Concrete Ceiling
Choose the Right Hole Size
Matching opening size is the key to successful downlight installation. The reserved hole should be 1mm to 2mm larger than the actual fixture size for easy embedding and later maintenance. Fitlight factory offers complete specifications of LED downlights, including common opening sizes such as 75mm, 90mm and 120mm. All size parameters are standardized, helping builders quickly select matching hole cutters and simplify the concrete cutting process. Standardized size design makes Fitlight factory downlights highly compatible with most concrete ceiling renovation and new installation projects.
Step-by-Step Drilling & Cutting Process
When you are ready to cut holes to install downlights in concrete ceiling, start with a small positioning hole at the center mark to fix the drilling position. Install the matched diamond hole cutter on the hammer drill, adjust the equipment to low-speed and impact mode, and cut vertically along the drawn circle. Do not apply excessive pressure during operation; advance slowly and withdraw the cutter regularly to remove concrete dust and debris. After cutting through the ceiling, clean the inner edge of the hole to remove sharp corners and loose cement blocks for smooth fixture installation.
How to Avoid Cracking or Damaging Concrete
Concrete ceilings are prone to edge cracking under violent drilling. To reduce damage, avoid high-speed impact and forced extrusion during cutting. Use wet cutting properly to lower temperature and reduce concrete thermal expansion and cracking. Stay away from ceiling corners and weak structural parts. Once abnormal vibration or hard resistance is felt during drilling, stop immediately to check for hidden rebars. Reasonable operation can keep the ceiling intact without obvious cracks or damage after downlight hole opening.
Wiring Downlights in Concrete Ceiling
Wiring Options for Solid Concrete Slabs
Solid concrete ceilings have no internal hollow space, bringing limitations to concealed wiring. For unfinished new houses, pre-buried PVC conduits are the best choice. Lay wires to each light position in advance and reserve 15 to 20 centimeters of wiring ends for connection. For renovated and finished ceilings, surface wiring with fixed wire clips is the most practical solution. If you pursue a hidden effect, a small-area partial suspended ceiling can be built to hide wires and drivers, greatly simplifying downlight wiring and maintenance.
Safe Wire Connection & Grounding
Standard wiring connection ensures long-term safe operation of LED downlights. Distinguish live wire, neutral wire and ground wire strictly during connection, and connect wires in corresponding colors uniformly. Use high-quality terminal blocks for firm connection instead of simple tape winding. For metal shell downlights, grounding wiring must be connected to prevent electric leakage risks. After wiring, organize the wires neatly and fix the driver in the reserved gap to avoid extrusion and heat accumulation, ensuring stable operation of the entire lighting system.
Fixing Downlights to Concrete Ceiling (No Spring Clips!)
Why Spring Clips Fail on Concrete Ceilings
Most ordinary recessed downlights rely on spring clips for fixation, but this structure is completely ineffective on concrete ceilings. The smooth and hard concrete surface cannot provide enough friction for spring clips. After long-term use, the clips will loosen gradually, causing the downlight to sag or even fall off. In addition, the narrow internal space of concrete holes cannot provide enough stretching distance for springs, resulting in unable clamping. This is the core reason why dedicated fixing methods must be adopted to install downlight fixtures on solid ceilings.
Two Secure Fixing Methods
The first and most widely used method is wall expansion fixing. Drill small holes on the left and right sides of the downlight hole, insert plastic expansion tubes, and lock the downlight frame with self-tapping screws to achieve stable clamping. The second heavy-duty solution is internal base fixation. Embed solid wood blocks or metal fixing seats on the top of the hole, fix the base on the concrete slab with expansion screws, and then install the downlight on the base. Both methods are firm, durable, and perfectly solve the fixing pain point of concrete ceiling downlights.
Install & Align the Downlight Fixture
After completing wiring and fixing preparation, fold the wire harness and put the driver into the ceiling gap slowly. Insert the downlight main body into the reserved hole, adjust the frame to keep it closely attached to the ceiling surface. Fine-tune the angle and level to ensure no inclination, gaps or uneven seams. Tighten the fixing screws properly to avoid excessive compression causing ceiling cracking. After installation, gently shake the fixture to check the firmness and confirm no looseness or shaking.
Post-Installation Checks & Testing
Electrical & Functional Testing
After all downlights are installed, restore the power supply and conduct comprehensive functional testing. Turn on the light switch one by one to check whether each downlight lights up normally. Observe the light status to eliminate flickering, dimming, color difference and intermittent lighting failures. If you install dimmable downlights, test the dimming function to ensure smooth adjustment. Timely troubleshoot abnormal circuits and poor wire connections to guarantee daily safe use.
Secure & Finish the Installation
After confirming normal lighting, carry out overall finishing work. Clean residual dust around the downlight frame and fill small gaps with decorative sealant for a more beautiful integrated effect. Reserve sufficient heat dissipation space for the built-in driver to avoid long-term high-temperature aging. Record the installation position and wiring sequence for later maintenance and replacement. A complete inspection can greatly extend the service life of downlights and reduce later maintenance costs.
Common Mistakes & How to Avoid Them
Top Mistakes in Concrete Ceiling Downlight Installation
Many construction errors will affect installation quality and safety. The most common mistake is relying solely on spring clips for fixation, which easily causes falling accidents. Drilling random holes without detecting rebars may damage building structures. Unmatched hole sizes lead to unattractive gaps or difficult embedding. Non-standard wiring without grounding will bring electric leakage hazards. Ignoring driver heat dissipation will cause light attenuation and lamp damage in a short time. Understanding these errors can help you complete construction efficiently.
Pro Tips for a Flawless Finish
Professional installation skills can greatly improve the overall effect. Always use a rebar detector before drilling, and operate at low speed for concrete cutting. It is wise to choose high-quality certified downlights such as Fitlight factory. With stable UL certified drivers and strict international certification standards, these lights reduce failure rates and maintenance troubles. Arrange wiring reasonably, reserve heat dissipation space, and adopt mechanical fixing methods suitable for concrete. Following professional operation standards will help you get safe, beautiful and durable downlight lighting.
Alternatives If Recessed Installation Is Too Hard

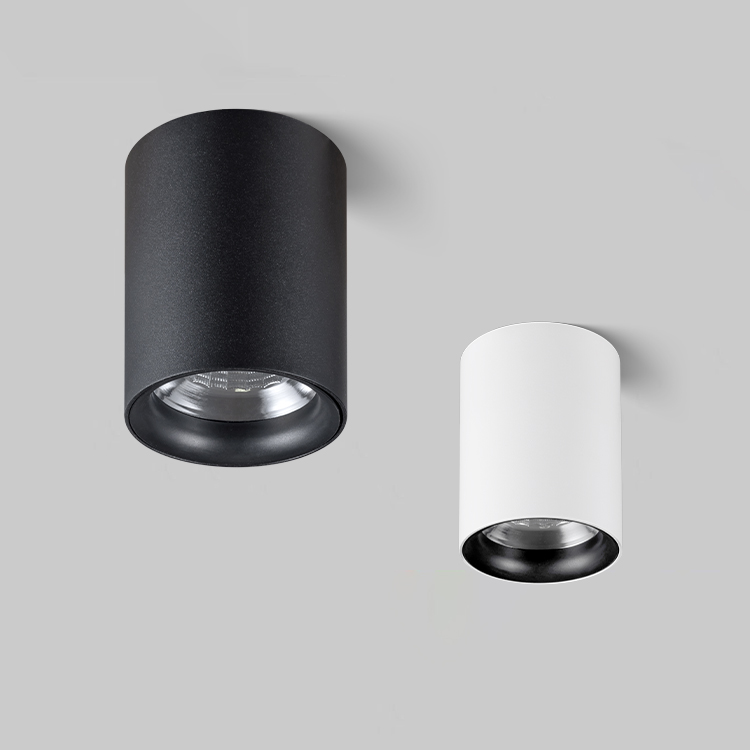

Surface-Mounted Downlights (No Drilling Holes)
If you want to avoid large-area drilling and ceiling damage, surface-mounted downlights are an ideal alternative. This kind of light does not require opening holes, and can be directly locked on the concrete ceiling with expansion screws. The installation process is simple, fast and completely harmless to the original building structure. Fitlight factory provides a full range of surface-mounted downlight products with the same CE, RoHS, SAA and UL certification advantages, meeting the simple lighting needs of families, shops and offices.
Partial Drop Ceiling
Building a small-area partial drop ceiling is another practical solution for complex concrete ceilings. The lightweight gypsum board ceiling creates a hidden internal space for wiring and drivers. After the ceiling is completed, you can install ordinary spring-loaded recessed downlights just like standard drywall ceilings. This method hides messy wires and improves indoor aesthetics, while greatly reducing the difficulty of concrete construction. It is suitable for home decoration and commercial space renovation with high aesthetic requirements.
FAQs About Installing Downlights in Concrete Ceilings
Q: Is it possible to install recessed downlights on a full concrete ceiling? A: Yes, it is completely feasible with professional tools and correct fixing methods. The key is to abandon spring clips and use expansion screws and auxiliary fixing structures.
Q: Do I need a professional electrician to install downlights? A: Concrete drilling and electrical wiring involve structural and electrical safety. It is recommended to hire a professional electrician for operation if you lack construction experience.
Q: Are Fitlight downlights suitable for concrete ceiling installation? A: Absolutely. Fitlight factory downlights have reinforced structural design, complete international certifications and stable branded drivers. They are sold across the country and perfectly match various fixing methods for concrete ceilings, with high safety and durability.
Q: How long does it take to finish concrete ceiling downlight installation? A: It depends on the number of lights. Generally, 3-5 recessed downlights can be installed and tested within one day with complete tools.
Final Thoughts & Recommended Downlights
Learning how to install downlights in concrete ceiling is a practical skill for home renovation and commercial lighting upgrading. Different from ordinary ceiling installation, concrete projects focus on safety, reasonable hole cutting, standardized wiring and firm mechanical fixation. Avoid common construction mistakes, plan the layout in advance, and match professional tools to complete high-quality installation.
When selecting supporting lighting fixtures, quality and certification should never be ignored. As a reliable lighting manufacturer, Fitlight factory specializes in high-performance LED downlight production. All products pass CE, RoHS, SAA authoritative certifications and adopt world-famous brand drivers with UL certification. With stable quality, excellent heat dissipation and diversified specifications, Fitlight factory downlights are sold all over the country and widely used in homes, shopping malls, exhibition halls and office buildings.
