LED Strip Lights – The Indispensable Temporary Lighting Solution for Modern Construction Sites
Temporary lighting stands as a non-negotiable cornerstone of safety, productivity, and compliance on construction sites worldwide. Whether projects extend into nighttime hours, take place in dimly confined spaces like tunnels, deep building interiors, or elevated scaffolding structures, or require consistent illumination across expansive job sites, reliable lighting directly reduces accidents, accelerates workflow, and ensures adherence to occupational safety standards. Among the myriad lighting options available to contractors, project managers, and site electricians, LED Strip Lights – particularly high-voltage 110V and 220V variants – have emerged as the top choice, revolutionizing temporary construction lighting through their unmatched efficiency, ease of use, and adaptability.
Gone are the days of relying solely on bulky, power-hungry floodlights, tangled wiring, and complex low-voltage lighting setups that demand extensive labor and technical expertise. Today’s LED strip lights combine cutting-edge LED technology with high-voltage engineering, eliminating common pain points of traditional temporary lighting while delivering superior brightness, uniform coverage, and long-lasting performance. This comprehensive guide dives deep into everything you need to know about LED strip lights for construction sites: their core advantages, step-by-step safe installation methods, critical safety protocols, comparisons to conventional lighting, and expert tips to maximize their utility on any job site. Designed as a definitive resource for industry professionals, this article equips you with the knowledge to deploy LED strip lights effectively, ensuring your construction site remains well-lit, safe, and operationally efficient at all times.
Why LED Strip Lights Dominate Temporary Construction Lighting
The rapid adoption of LED strip lights in the construction industry is no accident. Unlike generic lighting fixtures, these specialized strips are engineered to withstand the harsh, dynamic conditions of construction sites while addressing the unique needs of temporary illumination. From small-scale residential renovations to massive commercial construction projects, high-voltage LED strip lights deliver a combination of benefits that no other lighting option can match, making them the go-to choice for industry leaders. Below, we break down the transformative advantages that position LED strip lights as the ultimate temporary lighting solution.
Unmatched Long-Run Performance Without Voltage Drop
One of the most critical challenges in temporary construction lighting is maintaining consistent brightness across extended distances. Low-voltage lighting systems and traditional wired lights suffer from severe voltage drop over long runs, meaning fixtures at the far end of a line are dimmer, unreliable, and ineffective – a major safety hazard on long scaffolding runs, tunnel excavations, or sprawling building interiors. LED strip lights solve this problem entirely: high-voltage 110V/220V models support continuous runs of up to 50 meters (164 feet) without any noticeable voltage drop or dimming. This means a single strip can illuminate an entire section of scaffolding, a lengthy construction corridor, or a deep tunnel without needing additional power sources, repeaters, or complex wiring splits. For large-scale projects, this uninterrupted lighting coverage eliminates dark spots, ensures visual consistency for workers, and streamlines lighting layout design.
Plug-and-Play Simplicity – No Drivers, No Complex Wiring
Low-voltage LED lighting systems rely on bulky LED drivers (power supplies) to convert high-voltage AC power to low-voltage DC current, adding cost, installation time, and potential points of failure. Traditional construction lighting also requires extensive wiring, conduit, and junction boxes, tying up skilled labor for hours on end. LED strip lights eliminate these barriers entirely: high-voltage models connect directly to standard 110V or 220V AC power with no drivers, transformers, or complicated circuitry needed. Their plug-and-play design means even general site workers can install them safely (following basic guidelines) without specialized electrical training, slashing installation time from hours to minutes. This simplicity is a game-changer for tight project deadlines, allowing teams to set up temporary lighting rapidly before night shifts or in newly constructed enclosed spaces.
Extreme Flexibility for All Construction Environments
Construction sites are defined by their diverse, ever-changing environments: elevated metal scaffolding, narrow tunnels, rough interior walls, temporary fencing, curved structures, and confined crawl spaces. Rigid floodlights and fixed light fixtures struggle to adapt to these irregular surfaces, leaving gaps in illumination or requiring custom mounting solutions. LED strip lights are inherently flexible and bendable, designed to conform to curved, angular, or uneven surfaces seamlessly. They can be mounted along the vertical and horizontal bars of scaffolding, wrapped around temporary support beams, affixed to tunnel walls, or laid flat across ceiling frameworks – adapting to any structure on the job site. This flexibility ensures 360-degree illumination exactly where it’s needed, rather than limiting lighting to fixed, spotlight-style coverage.
Superior Energy Efficiency & Cost Savings
Construction projects are constantly balancing operational costs, and lighting is a major ongoing expense for overnight or extended work. LED strip lights are vastly more energy-efficient than incandescent work lights, halogen floodlights, and even standard LED floodlights, consuming up to 70% less power while producing brighter, more natural light. Lower energy consumption translates directly to reduced electricity costs on site, especially for long-term projects. Additionally, LED technology has an exceptionally long lifespan – typically 50,000 hours or more – meaning these strips outlast multiple sets of traditional bulbs, reducing replacement costs, waste, and downtime spent changing burnt-out lights. For contractors, the cost-effectiveness of LED strip lights extends far beyond upfront purchase, delivering ongoing savings throughout the project lifecycle.
Robust Durability for Harsh Construction Conditions
Temporary lighting on construction sites must endure dust, moisture, minor impacts, and fluctuating temperatures – conditions that quickly damage fragile indoor LED strips. Commercial-grade LED strip lights for construction are built with rugged, industrial-grade materials, featuring high waterproof ratings (most commonly IP65 or higher) that resist water splashes, rain, dust, and debris. Unlike fragile glass bulbs that shatter on impact, LED strip lights use solid-state LED chips encased in durable protective coatings, making them resistant to bumps, vibrations, and accidental drops common on active job sites. This durability ensures reliable performance even in the toughest construction environments, from outdoor scaffolding exposed to the elements to dusty interior build-outs.
Step-by-Step Safe Installation of LED Strip Lights on Construction Sites
The unparalleled ease of installation is one of the greatest benefits of LED strip lights, but proper setup is critical to ensure safety, performance, and longevity on construction sites. Unlike indoor LED strips, construction-grade strips require attention to structural mounting, electrical safety, and waterproofing (especially when modified). Below, we outline two primary installation methods – the recommended no-cut installation for maximum efficiency, and the controlled cutting method for custom lengths – followed by a universal step-by-step guide applicable to all projects.

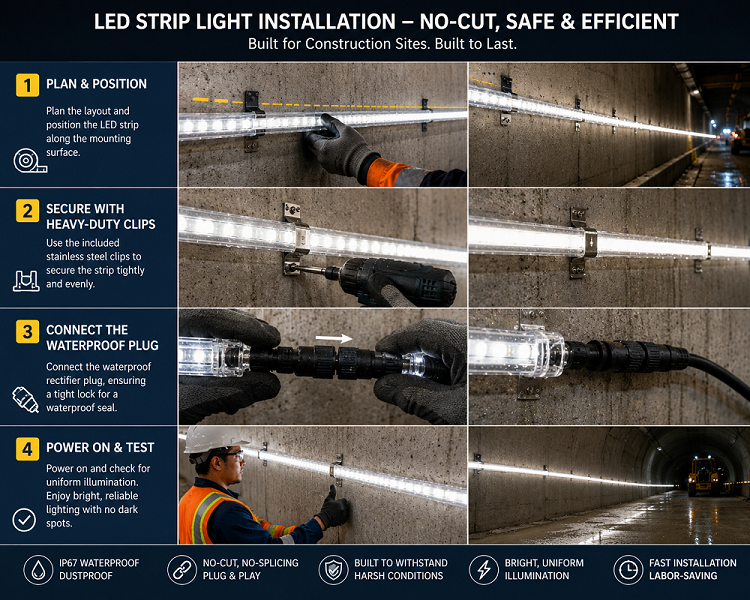

Method 1: No-Cut Installation (Recommended for Most Construction Projects)
For the vast majority of construction lighting applications, cutting LED strip lights is unnecessary and avoidable – this is the preferred method, as it preserves the strip’s factory waterproofing, structural integrity, and simplifies installation to its absolute simplest form. Manufacturers produce high-voltage LED strip lights in standard reel lengths tailored to construction needs: 10 meters for small, confined areas (e.g., utility closets, small room renovations), 25 meters for mid-sized spaces (e.g., hallways, building interiors, single scaffolding sections), and 50 meters for large-scale applications (e.g., long scaffolding runs, tunnel systems, expansive open floors).
By selecting the reel length that closely matches your required lighting distance, you skip all modifications and move directly to deployment. This method is not only faster but also safer, as it maintains the strip’s original factory-sealed connections, eliminating the risk of water damage or electrical faults from DIY sealing.
The no-cut installation process is incredibly straightforward:
- Unroll the LED strip gently from its reel, taking care not to kink or bend the strip sharply (avoid bending radius smaller than 5cm to protect internal circuitry).
- Secure the strip along the target surface – scaffolding frames, walls, beams, or fencing – using industrial cable ties, mounting clips, or heavy-duty adhesive brackets (all compatible with construction-grade LED strips).
- Connect the pre-attached rectifier power plug to the strip’s factory connector (no tools required for this snap-on connection).
- Plug the rectifier directly into a standard 110V or 220V on-site AC power outlet.
- Confirm the strip illuminates uniformly across its entire length – installation complete.
This process takes mere minutes per strip, allowing your team to cover massive areas with lighting in a fraction of the time required for traditional systems.
Method 2: Custom Cutting & Installation (For Specific Length Requirements)
In rare cases where the required lighting length is significantly shorter than standard reel sizes (e.g., a 15-meter section where only 10m or 25m reels are available), LED strip lights can be safely cut to size – but this requires strict adherence to cutting guidelines and waterproofing protocols to maintain safety. Never cut LED strip lights anywhere except the marked cutting points; these pre-designated spots are the only locations where cutting will not damage the internal LED circuits, resistors, or wiring. Cutting between these marks will ruin the strip and create electrical hazards.
If custom cutting is necessary, follow these precise steps to ensure safety and functionality:
- Locate the clearly marked cutting lines on the strip (printed with scissor icons and circuit breaks) – align your scissors exactly with this line.
- Make a clean, straight cut through the strip; avoid jagged cuts that could fray the internal components.
- Attach the rectifier power plug to the cut end of the strip using the provided connector kit (ensure the positive and negative terminals align perfectly to avoid short circuits).
- Seal the entire connector joint generously with industrial-grade waterproof silicone glue, covering all gaps and exposed metal to prevent moisture intrusion.
- Install a waterproof end cap on the opposite cut end of the strip (if unused) and seal it with the same silicone glue to close the circuit safely.
- Allow the silicone sealant to cure fully (follow the manufacturer’s instructions, typically 2-4 hours minimum) before connecting the strip to power. Rushing this step risks water damage, electrical shorts, or fire hazards.
Important note: Cutting LED strip lights should only be done when absolutely necessary. The no-cut method is always safer, faster, and preserves the strip’s full durability for construction site use.
Universal Step-by-Step Installation Checklist for All LED Strip Light Setups
Regardless of which method you use, follow this detailed checklist to ensure every installation is safe, code-compliant, and optimized for performance:
- Select the Correct Strip Specifications: Match the strip length, voltage (110V vs. 220V), and waterproof rating (IP65+) to your site conditions. Outdoor/exposed sites require IP65 or higher; indoor dry areas can use IP65, but IP67 is recommended for all construction use.
- Prepare the Mounting Surface: Clear dust, debris, and sharp edges from scaffolding, walls, or beams where the strip will be mounted. A clean surface ensures secure fastening and prevents damage to the strip.
- Connect Electrical Components Securely: For no-cut strips, snap the rectifier plug into place firmly. For cut strips, double-check connector alignment and silicone sealing before proceeding.
- Secure the Strip Firmly: Use cable ties, metal clips, or heavy-duty brackets every 30-50cm along the strip. Loose mounting causes sagging, which can lead to wire damage or tripping hazards; tight, consistent securing keeps the strip stable amid site vibrations and movement.
- Route Power Cords Safely: Keep the rectifier power cord away from high-traffic areas, sharp construction materials, and standing water. Use cord protectors if crossing walkways to prevent tripping or cord damage.
- Test Before Full Deployment: Plug in the strip and verify full-length illumination, no flickering, and no overheating at the connector points. Resolve any issues before assigning workers to the area.
- Label Temporary Lighting Installations: For compliance, label LED strip light power sources clearly as temporary construction lighting, ensuring all workers can identify power points quickly if needed.
Critical Safety Tips for LED Strip Lights on Construction Sites
While LED strip lights are safer than many traditional lighting options, they are still electrical devices deployed on high-hazard construction sites. Prioritizing safety during installation, use, and maintenance is non-negotiable to protect workers, prevent electrical accidents, and maintain compliance with occupational safety regulations (such as OSHA standards in the U.S., CE standards in the EU, and other local construction safety codes). Below are the non-negotiable safety protocols every site team must follow when using LED strip lights.

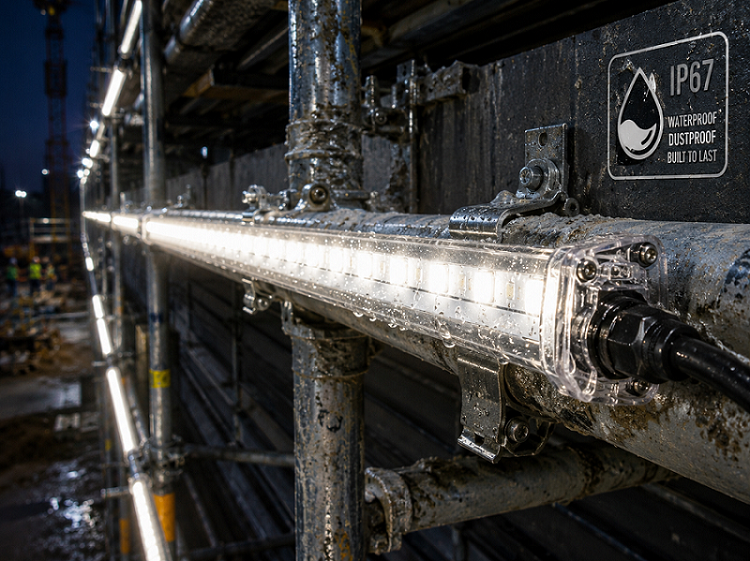

Prioritize IP65+ Waterproof Rating for All Construction Use
Water, moisture, and dew are constant hazards on construction sites, whether from rain, sprinklers, wet concrete, or morning dew. Exposing unprotected electrical connections to moisture causes short circuits, shocks, or even fires. Only use LED strip lights with an IP65, IP67, or IP68 waterproof rating for any construction application – indoor included. Dust and concrete slurry can also infiltrate low-rated fixtures, damaging circuitry over time. The IP (Ingress Protection) rating confirms the strip is sealed against solid particles (first digit) and liquids (second digit); IP65 is the minimum for dust and water splash resistance, while IP67 offers full protection against temporary immersion – ideal for outdoor or tunnel sites.
Avoid Damaging the Strip During Installation & Use
LED strip lights are durable, but their internal circuits can be damaged by excessive bending, twisting, crushing, or piercing. Never bend the strip at a sharp angle (less than a 5cm radius), as this breaks internal copper traces. Avoid dragging the strip across rough concrete or metal edges that could tear the waterproof casing. Do not place heavy construction materials (pipes, lumber, tools) on top of installed strips, and ensure workers do not step on or pull the lighting during daily operations. Inspect strips regularly for cuts, tears, or fraying; replace any damaged sections immediately to avoid hazards.
Secure All Connections & Prevent Loose Wiring
Loose power connections are a top electrical hazard on construction sites. Ensure the rectifier plug is fully seated in the strip’s connector and that the power cord is plugged tightly into the AC outlet. Use waterproof connection boxes for outdoor sites if additional wiring extensions are needed, and never leave exposed wiring or connectors lying on the ground. All mounting fasteners (cable ties, clips) should be tight enough to hold the strip securely but not so tight that they pierce the strip’s casing.
Isolate Power Sources from Water & High-Traffic Zones
Never place rectifier plugs, power outlets, or connection points in standing water, mud, or areas prone to flooding. Mount power components at least 30cm above ground level on scaffolding or walls to keep them dry. Route power cords away from walkways, heavy machinery paths, and areas where workers carry materials – cord tripping hazards are a leading cause of construction site falls. Use cord covers or tape down cords safely if they must cross access routes.
Use Only Certified, Commercial-Grade LED Strip Lights
The construction market is flooded with cheap, low-quality LED strips that lack safety certifications and fail quickly in harsh conditions. Always choose ETL, CE, or other nationally certified LED strip lights designed specifically for industrial and construction use. Certified products meet strict electrical safety standards, including overheat protection, short circuit prevention, and fire-resistant materials. Avoid generic indoor LED strips for site use – they are not built to withstand construction conditions and pose serious safety risks.
Power Down During Severe Weather & Site Modifications
If high winds, heavy rain, or thunderstorms are expected, temporarily disconnect LED strip lights from power to avoid electrical surges or water damage. When modifying scaffolding, moving structures, or performing work near installed lighting, power down the strips first to prevent accidental contact with live circuits. Train all site workers on the location of lighting power switches so they can quickly cut power in an emergency.

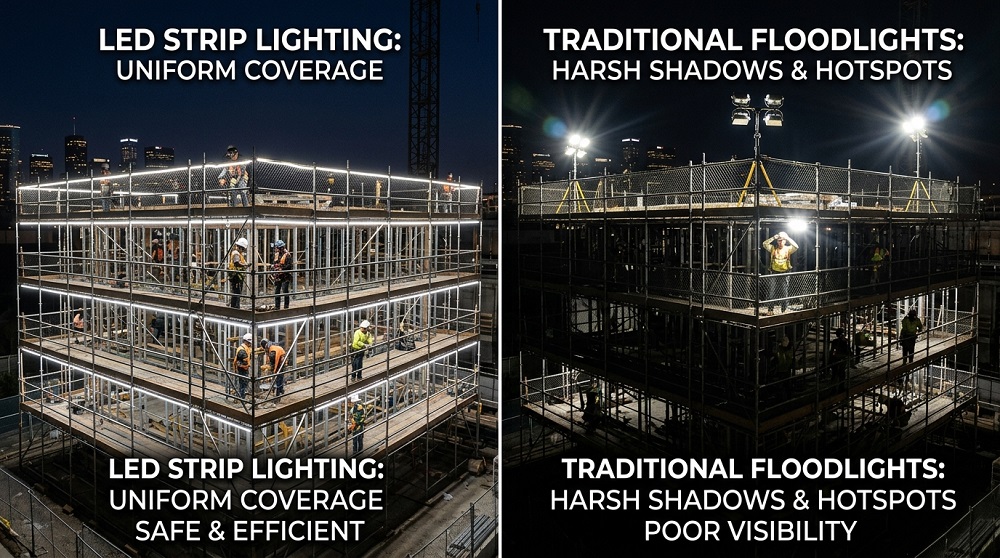

LED Strip Lights vs. Traditional Floodlights – Which is Better for Construction Sites?
To fully understand the value of LED strip lights, it’s essential to compare them to the most common traditional temporary lighting solution: construction floodlights. For decades, floodlights have been the standard, but their limitations have become increasingly apparent as LED strip technology advances. Below is a detailed breakdown of how these two solutions stack up across critical construction site metrics:
| Feature | Construction Floodlights | High-Voltage LED Strip Lights |
|---|---|---|
| Installation Speed & Effort | Moderate to slow – requires mounting brackets, wiring, and often two-person installation; heavy fixtures need secure structural mounting. | Very fast – plug-and-play setup, lightweight, single-person installation; no complex wiring or heavy mounting. |
| Lighting Coverage | Spotlight/flood coverage – creates bright hotspots and dark shadows; limited to fixed directional light. | Continuous, uniform linear lighting – eliminates dark spots, covers entire surfaces evenly; 360° adaptable illumination. |
| Energy Efficiency | Medium to low – halogen and standard LED floodlights consume far more power; high heat output wastes energy. | High – ultra-efficient LED chips use 70% less power; low heat output, maximizing energy savings. |
| Wiring Complexity | Moderate – requires daisy-chaining, junction boxes, and often voltage regulators for multiple units. | Very simple – single cord per long strip; no daisy-chaining needed for 50m runs; direct AC plug-in. |
| Flexibility & Adaptability | Low – rigid, fixed fixtures; cannot conform to curves, scaffolding, or tight spaces. | Extremely high – flexible strips bend to any structure; ideal for scaffolding, tunnels, corridors, and irregular surfaces. |
| Durability & Maintenance | Low to medium – glass bulbs shatter easily; frequent bulb replacements needed; heavy casings can break on impact. | High – solid-state LEDs, no fragile bulbs; waterproof, dust-resistant; minimal maintenance, long 50,000-hour lifespan. |
| Ideal Construction Applications | Small, targeted areas; temporary task lighting; open yards. | Scaffolding, tunnels, building interiors, long corridors, temporary fencing, large-scale site illumination. |
For nearly all temporary construction lighting needs, LED strip lights outperform floodlights. Floodlights may still have niche uses for ultra-bright task lighting in small open areas, but LED strips provide superior coverage, efficiency, and ease of use for the vast majority of site applications. Their ability to deliver consistent, shadow-free lighting across linear and irregular structures makes them infinitely more practical for the dynamic needs of construction projects.
Conclusion – LED Strip Lights Redefine Temporary Construction Lighting
In the fast-paced, safety-focused world of construction, efficiency, reliability, and safety are paramount – and LED strip lights deliver on all three fronts. As the definitive temporary lighting solution for modern job sites, high-voltage 110V/220V LED strip lights combine long-run performance, plug-and-play simplicity, unbeatable flexibility, and industrial-grade durability to solve the most pressing lighting challenges faced by contractors and site managers.
From illuminating towering scaffolding structures at night to lighting dark tunnel excavations and enclosed building interiors, LED strip lights eliminate dark spots, reduce installation labor costs, cut energy expenses, and enhance overall site safety. By choosing certified, waterproof LED strip lights, following the recommended no-cut installation method, and adhering to strict safety protocols, construction teams can deploy a lighting system that works as hard as they do – performing reliably in harsh conditions while keeping workers visible and safe.
As construction technology continues to evolve, LED strip lights have solidified their place as an indispensable tool, replacing outdated, inefficient lighting systems with a smarter, more sustainable solution. For any construction project – big or small, indoor or outdoor – investing in high-quality LED strip lights is an investment in productivity, safety, and long-term cost savings.
