How to Install Philips Hue Downlight?

🚀 First: Know Your Philips Hue Downlight (Key Models & Prep Tips)

Before picking up a drill, it's important to understand which PHILIPS HUE DOWNLIGHTS you have—different models have slight installation differences. Plus, prepping the right tools and checking compatibility will save you headaches later.

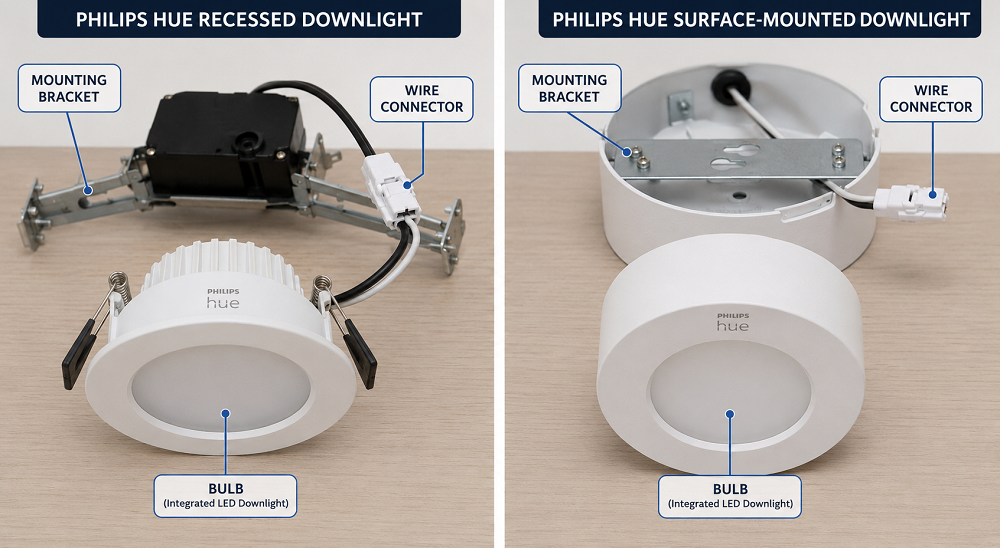

💡 Common Philips Hue Downlight Models (And What You Need to Know)

Philips Hue makes two main types of downlights for home use—both work with the Hue app, but install differently:

• Philips Hue White Ambiance Recessed Downlight: Fits into ceiling cavities (3–6 inches deep) and needs a cut-out hole. Great for new builds or renovations where you can modify ceilings.
• Philips Hue White Ambiance Surface-Mounted Downlight: Attaches directly to ceiling surfaces—no cutting needed. Perfect for concrete ceilings or renters who can't drill large holes.

🛠️ Tools & Materials You'll Need

Philips Hue downlight kits come with most of the hardware you need, but grab these extra tools to make installation smooth:

⚙️ Step-by-Step Installation (For Recessed & Surface-Mounted Models)

Philips Hue downlights have two main installation paths—recessed (needs ceiling holes) and surface-mounted (no cutting). We'll walk through both, starting with the most common: recessed models.

Part 1: Installing Philips Hue Recessed Downlight

Follow these steps if you're installing the recessed Philips Hue downlight (the kind that fits into ceiling cavities):

Step 1: Turn Off Power (Non-Negotiable!)

Smart lights still run on electricity—safety first!

1. Go to your home's circuit breaker and flip the switch for the room where you're installing the downlight.
2. Test the existing ceiling wires with an electrical tester—touch the tester to the wires. If it doesn't light up, power is off (if it does, flip the right breaker!).
3. Remove any old light fixture from the ceiling (if replacing an existing light).

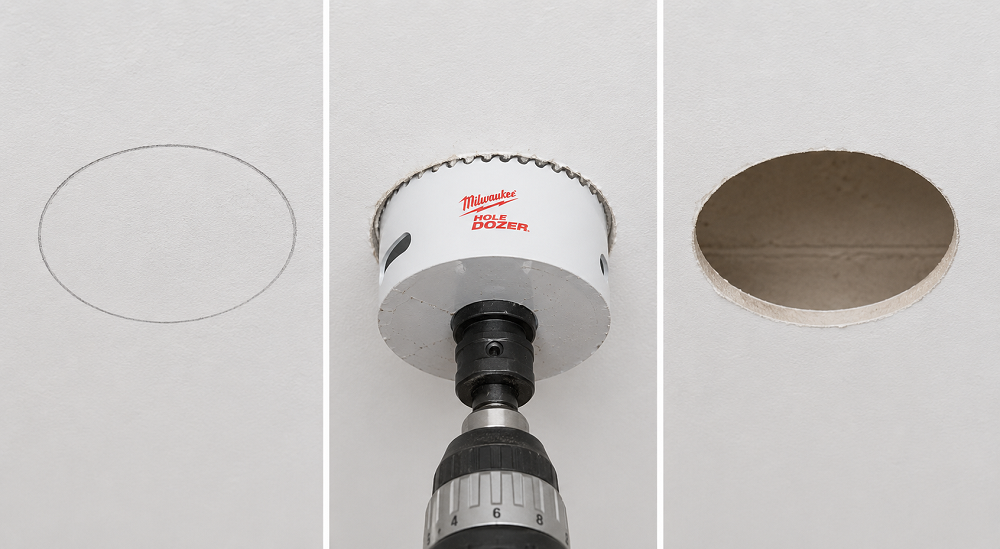

Step 2: Mark & Cut the Ceiling Hole (For Recessed Models)

1. Use a tape measure to plan where you want the downlight—space recessed Hue lights 2–3 feet apart for even lighting (avoid ceiling joists!).
2. Hold the downlight's mounting bracket against the ceiling and trace the outer edge with a pencil (this is your cut line).
3. Put on protective goggles, then use a hole saw attached to your drill to cut along the pencil line. For thick drywall, a drywall saw can help finish the cut.

Step 3: Run Wires Through the Hole (And Connect to the Hue Fixture)

1. Pull the existing ceiling wires (live/black, neutral/white, ground/green) through the hole you just cut.
2. Take your Philips Hue downlight and find the wire connector (it's a small plastic box on the back of the fixture).
3. Strip ½ inch of insulation from the ends of the ceiling wires and the Hue fixture wires.
4. Match the colors:
   • Live wire: Black (ceiling) → Black or Brown (Hue fixture)
   • Neutral wire: White (ceiling) → White or Blue (Hue fixture)
   • Ground wire: Green (ceiling) → Green or Yellow-Green (Hue fixture)
5. Twist each pair of wires together clockwise, then cap with a wire nut (included in the Hue kit). Wrap electrical tape around the wire nuts to keep them secure.

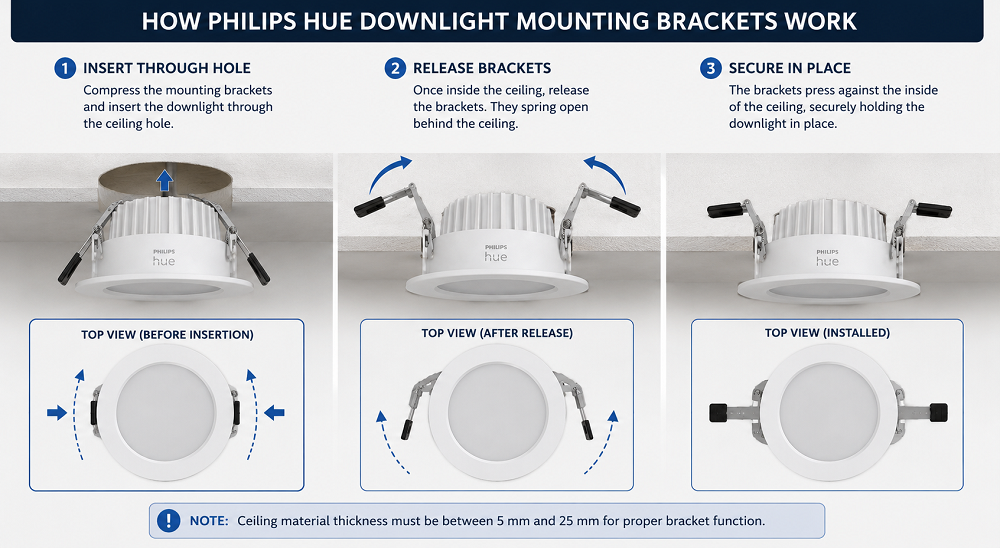

Step 4: Mount the Hue Downlight in the Ceiling

1. Tuck the wired connector and extra wires into the ceiling cavity—make sure no wires are pinched.
2. Push the Philips Hue downlight into the hole until the mounting brackets "click" into place (they'll expand to hold the fixture tight against the ceiling).
3. Gently tug the fixture to confirm it's secure—if it wiggles, push the brackets in further until they lock.

Part 2: Installing Philips Hue Surface-Mounted Downlight

If you can't cut holes in your ceiling (e.g., renters, concrete ceilings), the surface-mounted Philips Hue downlight is the way to go. The steps are simpler—no hole-cutting needed:

Step 1: Turn Off Power (Same as Recessed!)

Shut off electricity at the circuit breaker and test wires with an electrical tester to confirm no power is flowing.

Step 2: Mark Screw Holes on the Ceiling

1. Hold the Hue surface-mounted fixture's base against the ceiling where you want it installed.
2. Trace the screw holes on the ceiling with a pencil (most models have 2–3 holes for stability).

Step 3: Drill Holes & Install Anchors

1. Drill small holes at the marked spots (use a bit smaller than your screws).
2. Tap plastic expansion anchors into the holes (included in the kit)—they'll keep the screws from slipping in drywall.

Step 4: Wire the Fixture & Mount It

1. Connect the ceiling wires to the Hue fixture wires (same color-matching as recessed models: live→live, neutral→neutral, ground→ground).
2. Tuck the wires into the fixture's base (there's a small compartment for this).
3. Line up the base with the drilled holes and drive screws through the base into the anchors—tighten until the fixture sits flush with the ceiling.

📱 Step 5: Pair Your Philips Hue Downlight with the Hue App (The "Smart" Part!)

Installing the physical fixture is only half the fun—now it's time to connect your Hue downlight to your phone so you can control it. Here's how:

1. Set Up the Philips Hue Bridge (If New to Hue)

If you don't have a Hue Bridge yet:

1. Plug the Bridge into a power outlet and connect it to your Wi-Fi router with the included Ethernet cable.
2. Wait for the Bridge's lights to turn solid blue (this means it's connected to Wi-Fi).

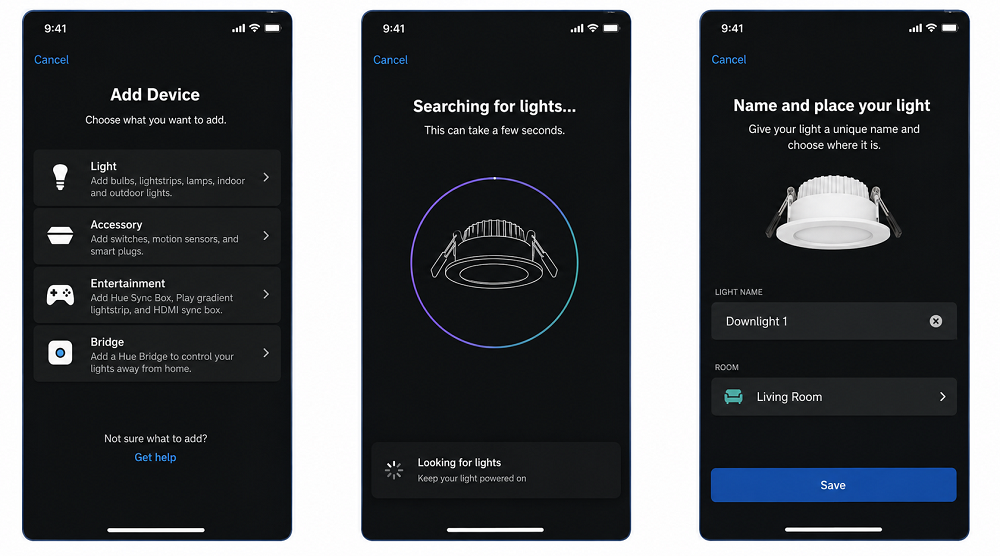

2. Add the Downlight to the Hue App

1. Download the Philips Hue app (free for iOS and Android) and sign in or create an account.
2. Open the app and tap the "+" icon in the top-right corner, then select "Add Device."
3. Choose "Lights" from the menu, then tap "Philips Hue Downlight" (the app will automatically scan for your new fixture).
4. When the app finds the downlight, tap "Set Up" and follow the prompts to name it (e.g., "Living Room Hue Light") and assign it to a room.

3. Test Smart Features (Make Sure It Works!)

Once paired, test these key features to confirm everything's working:

• Brightness control: Slide the bar in the app to dim or brighten the light.
• Color control (for White Ambiance/Color Ambiance models): Tap "Color" to change from warm white (2700K) to cool white (6500K) or even RGB colors (if you have a Color Ambiance model).
• Voice control: Link your Hue app to Alexa or Google Home, then say, "Alexa, turn on Living Room Hue Light" to test.
• Schedules: Tap "Routines" in the app to set the light to turn on at sunset or off at bedtime—perfect for energy savings!

⚠️ Pro Tips to Avoid Common Philips Hue Downlight Mistakes

Even smart light pros make errors—here's how to skip them:

1. Don't Skip the Hue Bridge

2. Check Ceiling Depth for Recessed Models

3. Avoid Overloading the Circuit

4. Update the Hue App & Bridge Firmware

🔍 Troubleshooting Common Philips Hue Downlight Issues

If your Hue downlight isn't working after installation, don't panic—most problems have easy fixes:

✨ Final Thoughts
