How to Install Recessed Downlight?

Recessed downlights, also known as can lights, have become a popular choice for homeowners in the US and Europe. Their sleek design and ability to provide focused, ambient lighting make them suitable for various rooms, from kitchens to living rooms. In this article, we'll guide you through the process of installing recessed downlights, ensuring a seamless and safe installation.

Why Choose Recessed Downlights?

Before we dive into the installation process, let's briefly discuss why recessed downlights are a great option. They offer a clean, unobtrusive look, as they are installed flush with the ceiling. This makes them ideal for rooms with low ceilings or where you want to create a more spacious feel. Additionally, recessed downlights can be used to highlight specific areas, such as artwork or a kitchen countertop.

Tools and Materials You'll Need

To install recessed downlights, you'll need the following tools and materials:

• Recessed downlight fixtures
• Drill with a hole saw attachment
• Voltage tester
• Wire stripper
• Screwdriver
• Electrical tape
• Junction boxes
• NM-B cable

Step-by-Step Installation Process

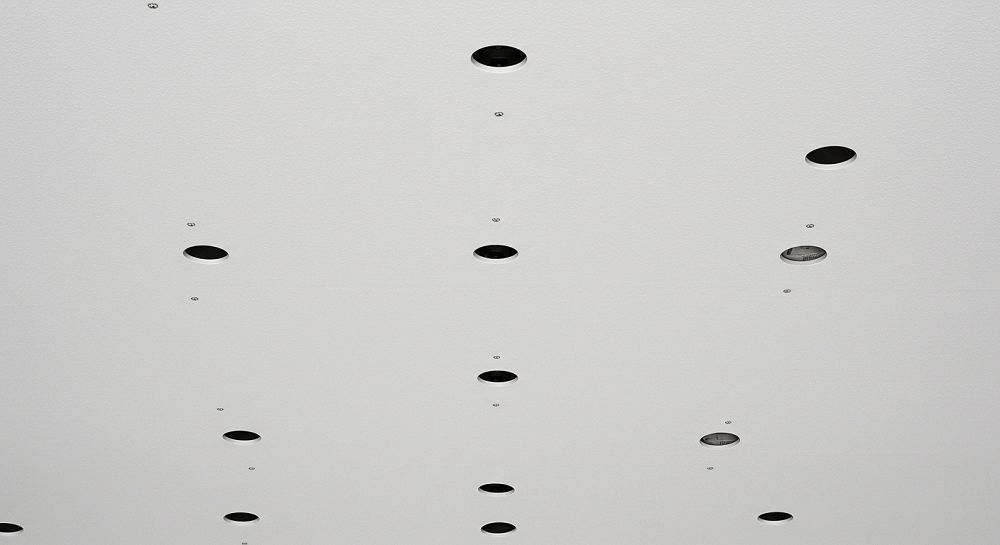

Step 1: Plan Your Layout

The first step in installing recessed downlights is to plan your layout. Decide where you want the lights to be installed and mark the locations on the ceiling. Consider the function of the room and the areas that need to be illuminated. For example, in a kitchen, you may want to place the lights above the countertops and sink.

Step 2: Turn Off the Power

Safety first! Before you start any electrical work, turn off the power to the room at the main fuse or breaker box. Use a voltage tester to ensure that there is no electricity flowing through the wires.

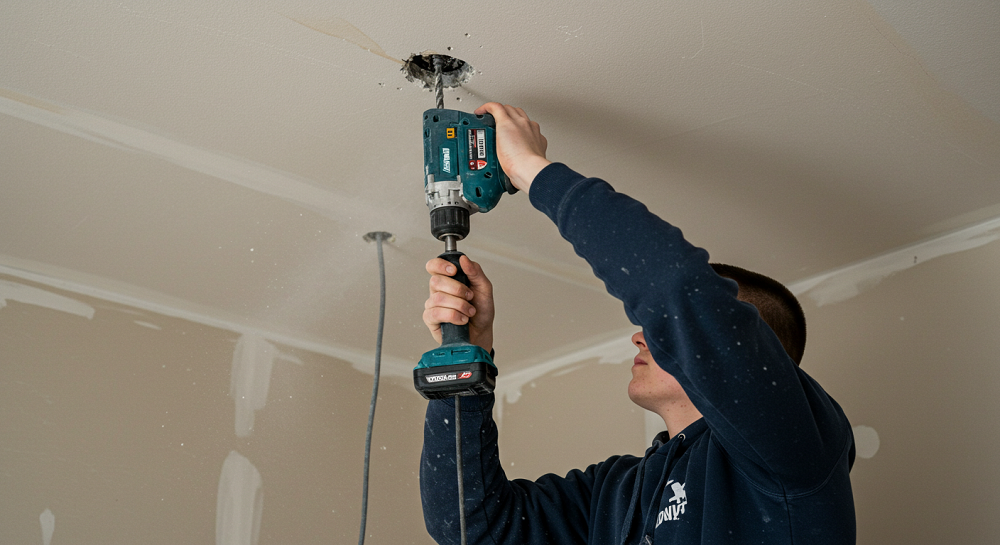

Step 3: Cut the Holes

Using a drill with a hole saw attachment, cut holes in the ceiling at the marked locations. Make sure the holes are the correct size for your recessed downlight fixtures. If you're unsure, refer to the manufacturer's instructions.

Step 4: Install the Junction Boxes

Once the holes are cut, install the junction boxes in the ceiling. The junction boxes will house the electrical connections for the downlights. Secure the junction boxes in place using screws.

Step 5: Run the Electrical Wiring

Run the NM-B cable from the power source to the junction boxes. Make sure to leave enough cable slack for easy wiring. Connect the cable to the junction boxes using cable clamps.

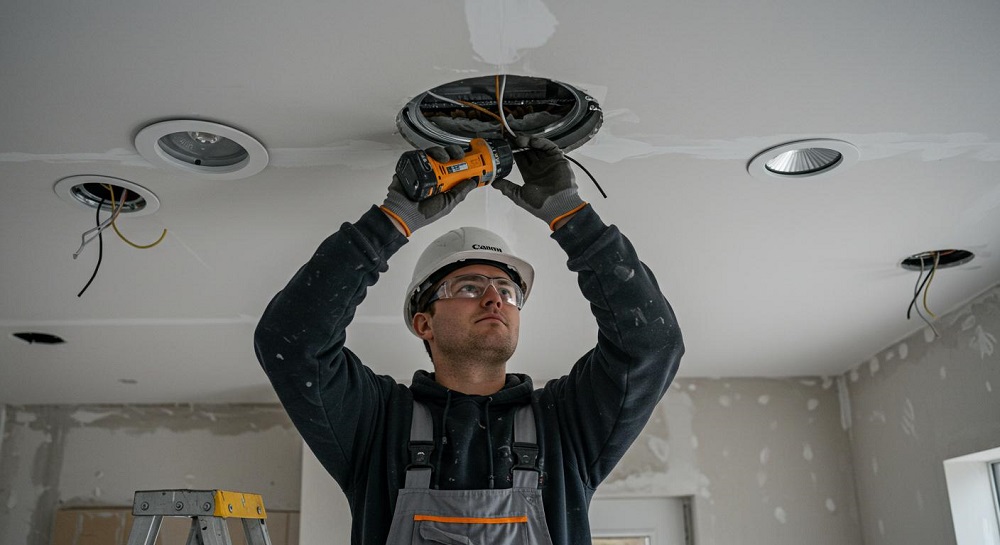

Step 6: Wire the Downlights

Open the downlight fixtures and connect the wires according to the manufacturer's instructions. Typically, you'll connect the black wire from the fixture to the black wire in the junction box, the white wire from the fixture to the white wire in the junction box, and the green or bare wire from the fixture to the ground wire in the junction box. Use wire nuts to secure the connections and wrap them with electrical tape for added safety.

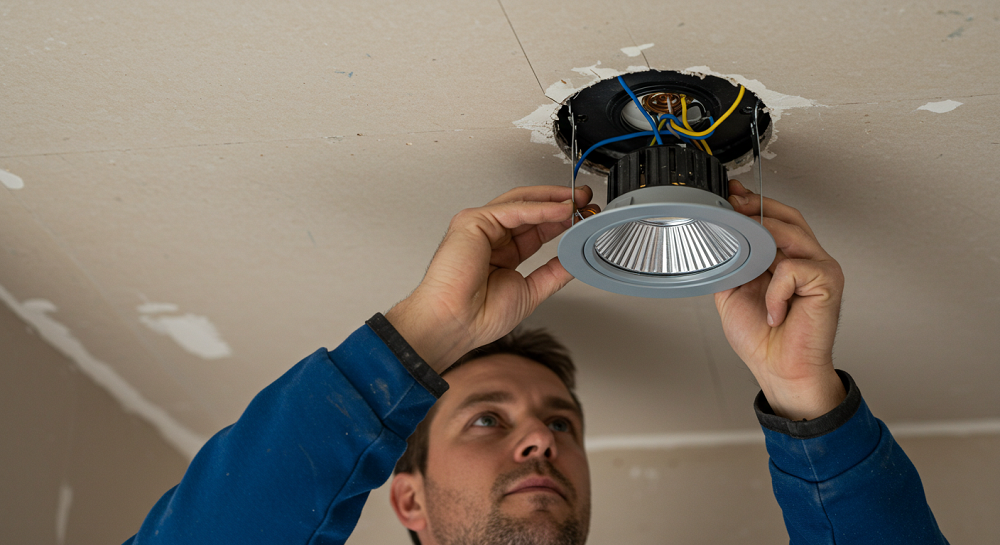

Step 7: Install the Downlights

Insert the downlight fixtures into the holes in the ceiling and secure them in place. Some fixtures may have springs or clips that hold them in place, while others may require screws.

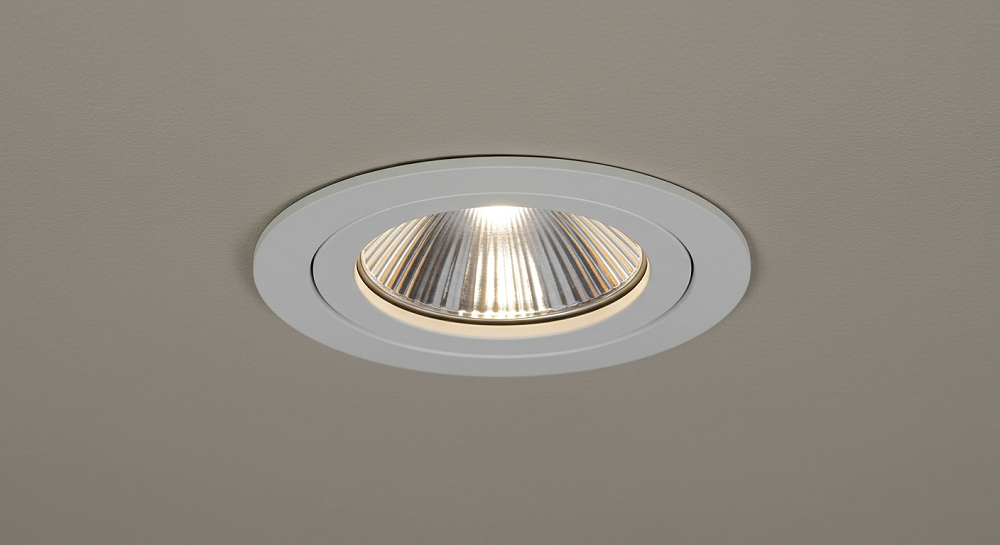

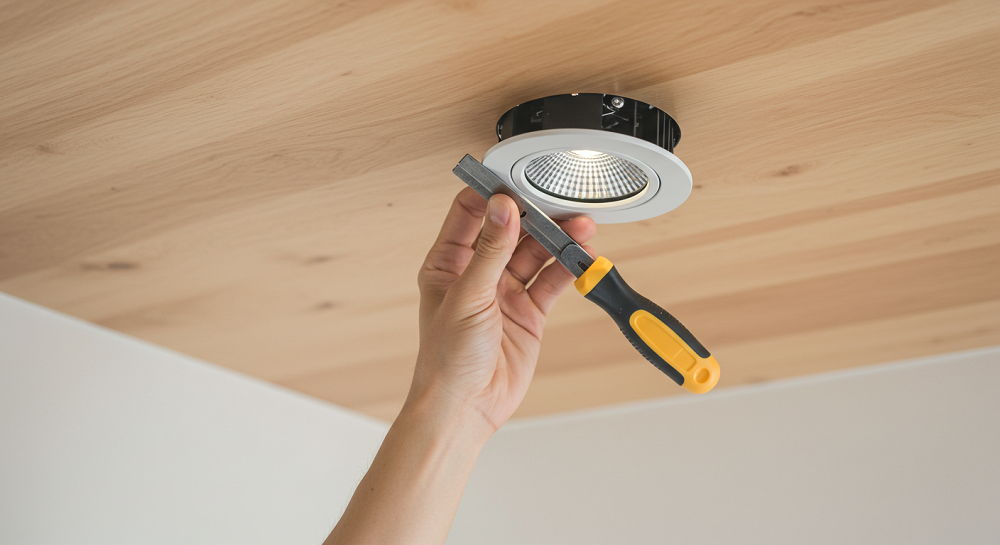

Step 8: Add the Trim

Once the downlights are installed, add the trim. The trim not only adds a finished look to the downlights but also helps to direct the light. Choose a trim that complements the style of your room.

Tips for a Successful Installation

• If you're not comfortable working with electricity, it's best to hire a licensed electrician.
• When cutting holes in the ceiling, be careful not to damage any wires or pipes that may be hidden behind the drywall.
• Make sure to follow the manufacturer's instructions carefully for each step of the installation process.
• Test the downlights before you finish the installation to ensure they are working properly.

Installing recessed downlights can be a rewarding DIY project that can enhance the look and functionality of your home. By following these steps and taking the necessary safety precautions, you can enjoy the benefits of recessed downlighting in no time.
